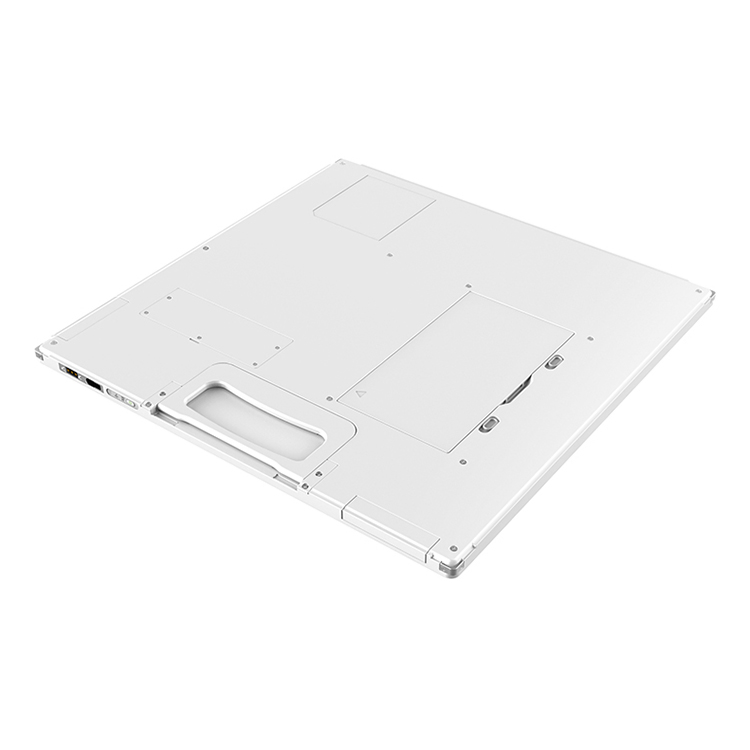

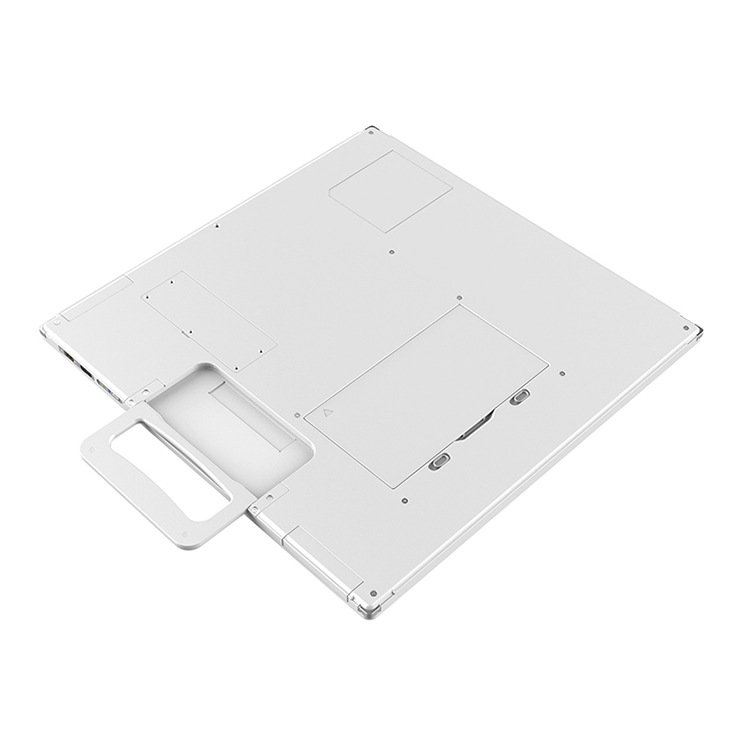

Medical Device Ysfpd-M1717V Wireless X Ray Machine Digital Flat Panel Detector X-ray Dr Flat Panel Detector Flat Panel X Ray Detector
Medical Device Ysfpd-M1717V Wireless X Ray Machine Digital Flat Panel Detector X-ray Dr Flat Panel Detector Flat Panel X Ray Detector
Medical Device Ysfpd-M1717V Wireless X Ray Machine Digital Flat Panel Detector X-ray Dr Flat Panel Detector Flat Panel X Ray Detector
Medical Device Ysfpd-M1717V Wireless X Ray Machine Digital Flat Panel Detector X-ray Dr Flat Panel Detector Flat Panel X Ray Detector
Medical Device Ysfpd-M1717V Wireless X Ray Machine Digital Flat Panel Detector X-ray Dr Flat Panel Detector Flat Panel X Ray Detector
1 / 5
Medical Device Ysfpd-M1717V Wireless X Ray Machine Digital Flat Panel Detector X-ray Dr Flat Panel Detector Flat Panel X Ray Detector
Medical Device Ysfpd-M1717V Wireless X Ray Machine Digital Flat Panel Detector X-ray Dr Flat Panel Detector Flat Panel X Ray Detector
Medical Device Ysfpd-M1717V Wireless X Ray Machine Digital Flat Panel Detector X-ray Dr Flat Panel Detector Flat Panel X Ray Detector
Medical Device Ysfpd-M1717V Wireless X Ray Machine Digital Flat Panel Detector X-ray Dr Flat Panel Detector Flat Panel X Ray Detector
Medical Device Ysfpd-M1717V Wireless X Ray Machine Digital Flat Panel Detector X-ray Dr Flat Panel Detector Flat Panel X Ray Detector

Medical Device Ysfpd-M1717V Wireless X Ray Machine Digital Flat Panel Detector X-ray Dr Flat Panel Detector Flat Panel X Ray Detector

Customization: Available
Warranty: 1 Year
Name: Dr Flat Panel Detector
Send Inquiry

Product Description

Basic Information
Model NO. YSFPD-M1717V
Scintillator CSL / CsI
Size 17''x17'', 14"X17"
Pixel Pitch 139um
Number of Pixels 3072 * 3072
Resolution 3.6 Lp/mm
A/D Conversion 16 Bits
Weight 4kg
Water Tightness IPX3
Warranty 3 Years
HS Code 9022199090
Production Capacity 5,000 Sets/Year
Product Description
Medical Equipment Wireless X Ray Machine Digital Flat Panel Detector

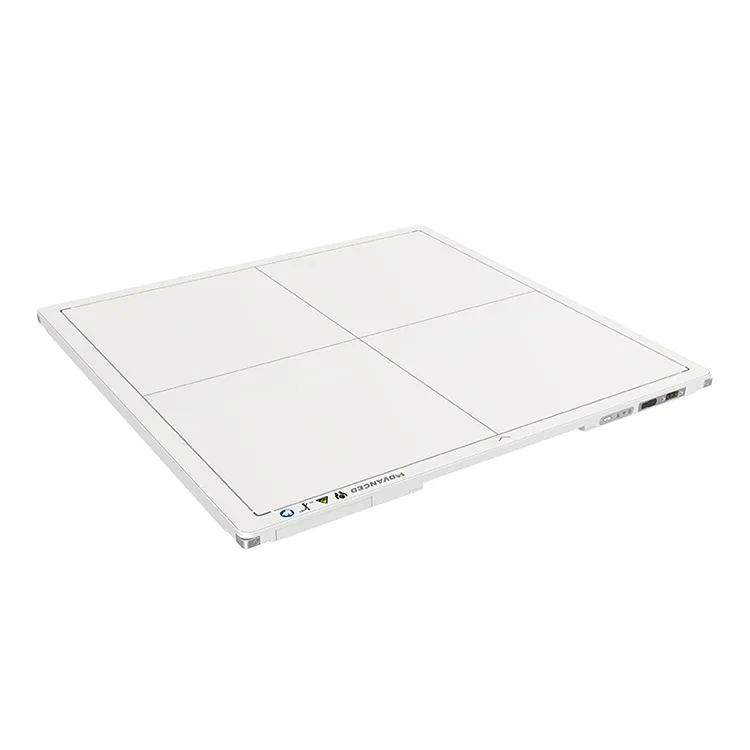

Wireless X Ray Detector
Digital Flat Panel Detector
Medical X-ray Device
Technical Specifications
Description Specification (14x17) Specification (17x17)
Detector Technologya-Sia-Si
ScintillatorCsICsI
Image Size14*17 inch17*17 inch
Pixels Matrix3072×30723072×3072
Pixel Pitch139µm139µm
A/D Conversion16bit16bit
Min Detectable Dose (RQA5)20nGy14nGy
Max Linear Dose (RQA5)150µGy110µGy
Spatial Resolution3.6 LP/mm3.6 LP/mm
Acquisition Time (Wired/Wireless)1s / 2~3s1s / 2~3s
X-ray Voltage Range40-150 KV40-150 KV
Battery Standby Time8H8H
Data InterfaceGigE/802.11acGigE/802.11ac
Power Dissipation20 W20 W
Dimensions46×46×1.5 cm46×46×1.5 cm
Weight (Wireless/Wired)3.9kg / 4.5kg3.9kg / 4.5kg
Water TightnessIPX3IPX3
Product Display
X-ray Detail 1
X-ray Detail 2
X-ray Detail 3

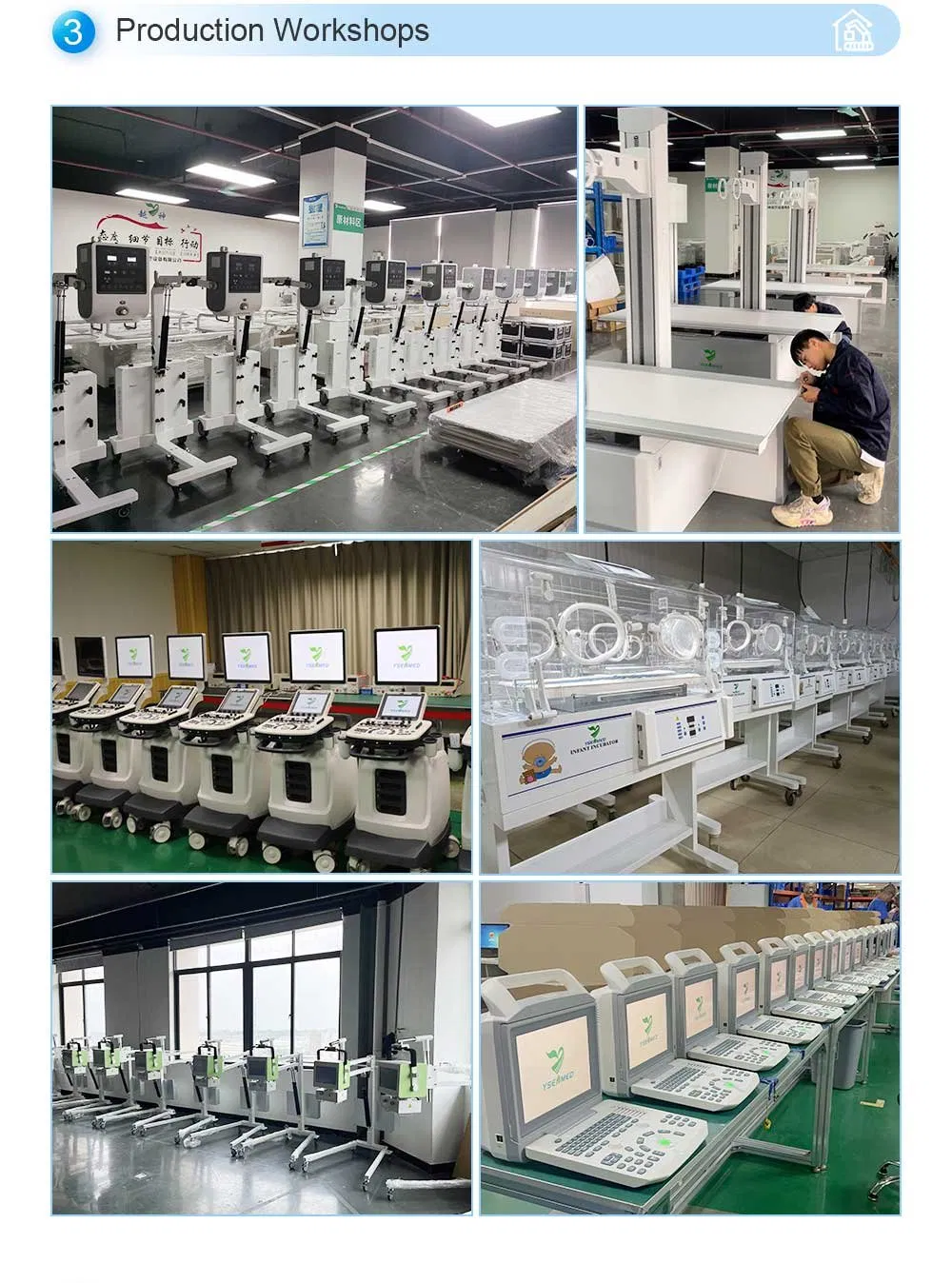

X-ray Detail 4
X-ray Detail 5
X-ray Detail 6
X-ray Detail 7
X-ray Detail 8
Frequently Asked Questions
What type of scintillator is used in this flat panel detector?
The detector uses a high-quality CsI (Cesium Iodide) scintillator, which ensures excellent image clarity and resolution.
How long does the battery last in wireless mode?
The battery provides a standby time of up to 8 hours, supporting long periods of clinical operation without frequent recharging.
What is the image acquisition speed?
The image acquisition time is approximately 1 second in wired mode and between 2 to 3 seconds in wireless mode.
Is the detector portable and water-resistant?
Yes, the detector is highly portable, weighing approximately 3.9kg to 4.5kg, and features an IPX3 water tightness rating for protection.
What is the spatial resolution and pixel pitch of the YSFPD-M1717V?
It features a pixel pitch of 139µm and a spatial resolution of 3.6 LP/mm, providing high-definition digital X-ray images.
What are the available sizes for this model?
This digital detector is available in both 14x17 inch and 17x17 inch sizes to suit different medical imaging requirements.
