Wireless Portable 17x17 Inch Digital X Ray Flat Panel Detector for Medical Equipment B2B Global Buyers

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

ⓘ Basic Information

Model NO.

Mars 1717V

Certification

CE, ISO13485

Detector Technology

Amorphous Silicon

Scintillator

CSL

Active Area (Inch)

17 × 17

Pixel Matrix

3072 × 3072

Pixel Pitch (Um)

139

Spatial Resolution

3.6 Lp/mm

Ad Conversion (Bit)

16

Battery Autonomy

8 H

WiFi

2.4G and 5g, IEEE802.11 a/B/G/N/AC

Trigger Mode

Aed (Optional) 1 Software

Full Image Time

5 S

Production Capacity

500 Piece/Month

💻 Product Description

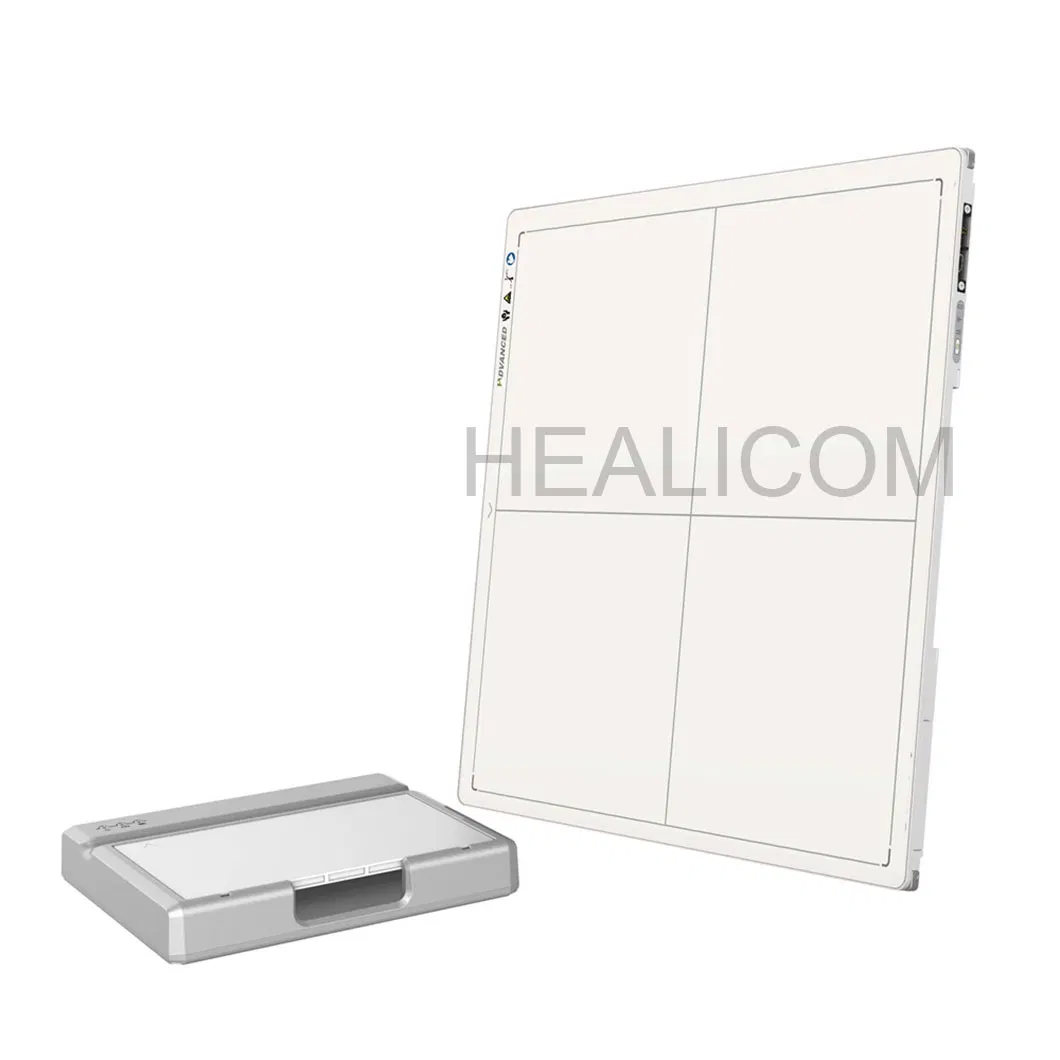

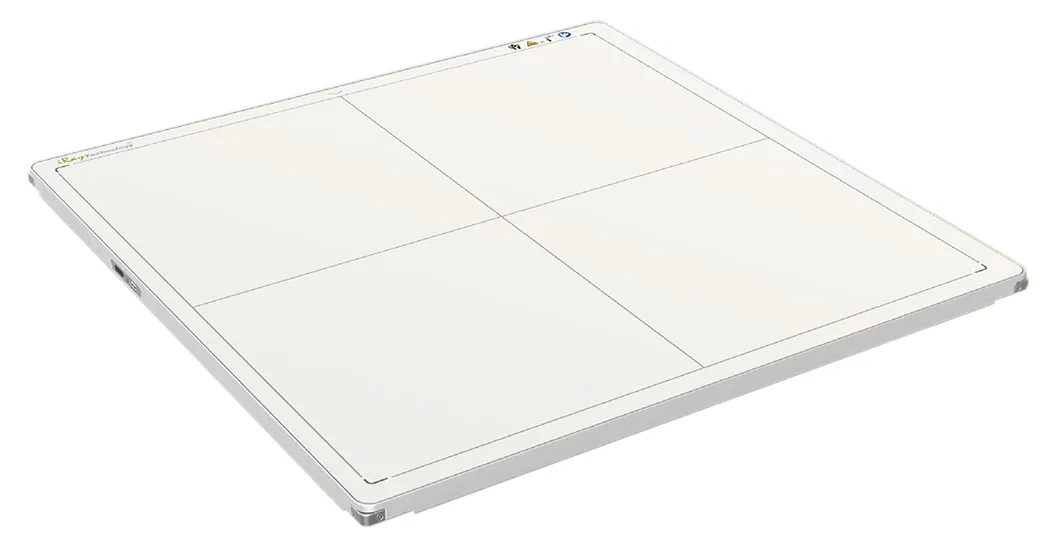

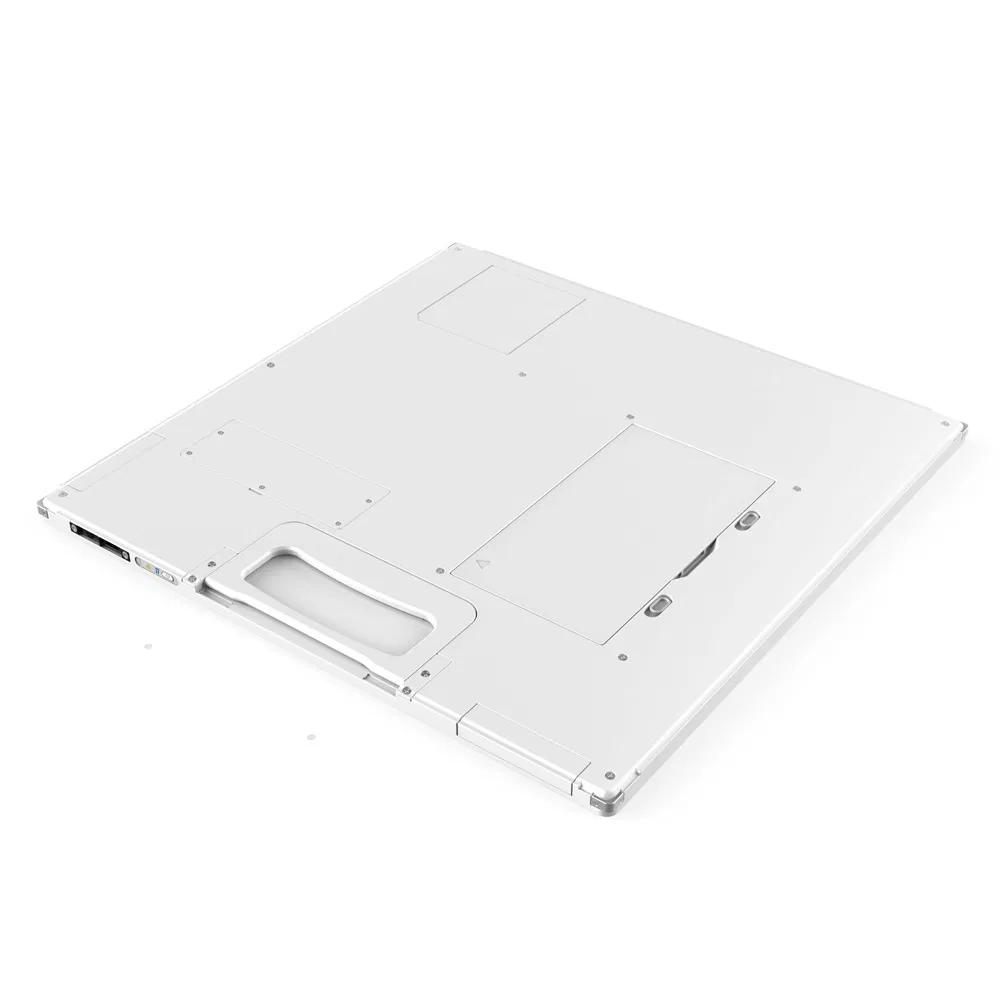

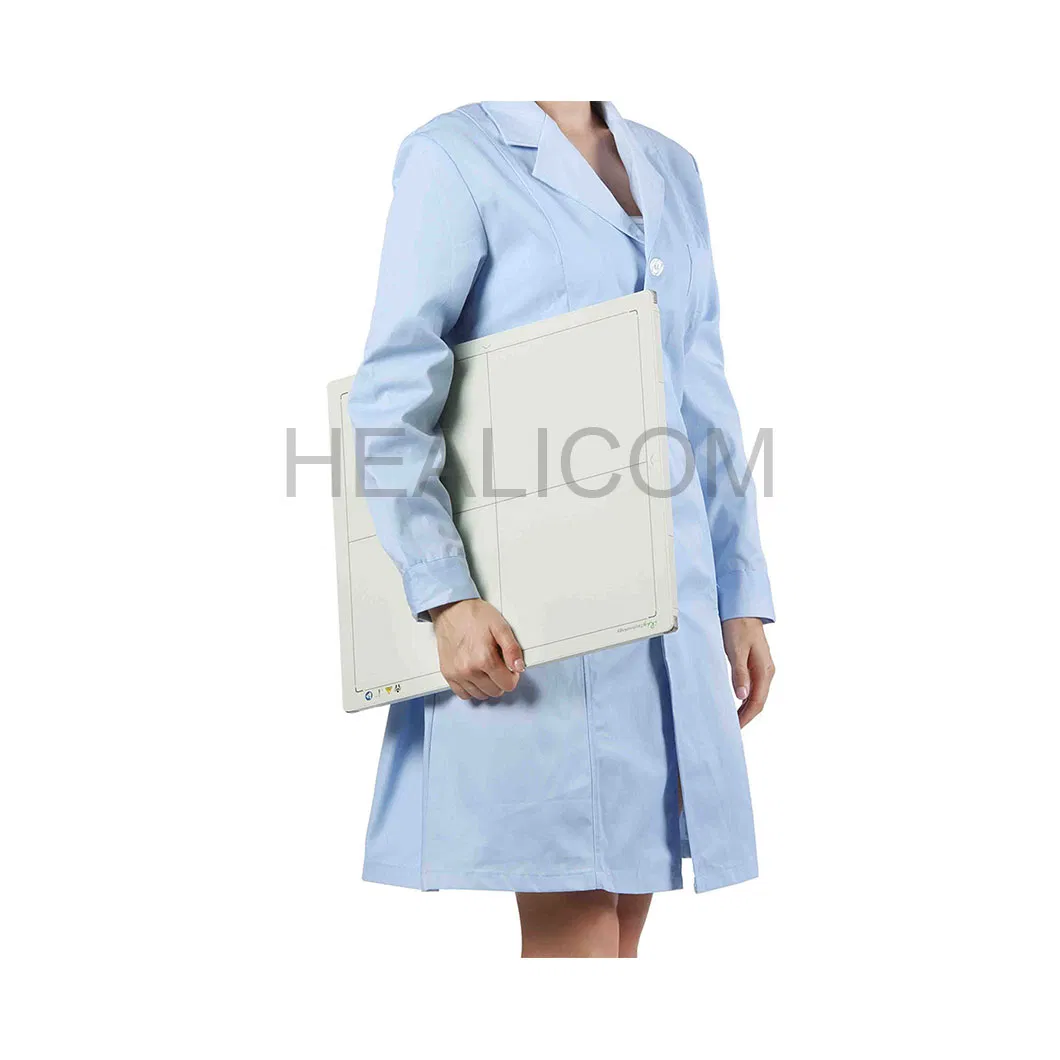

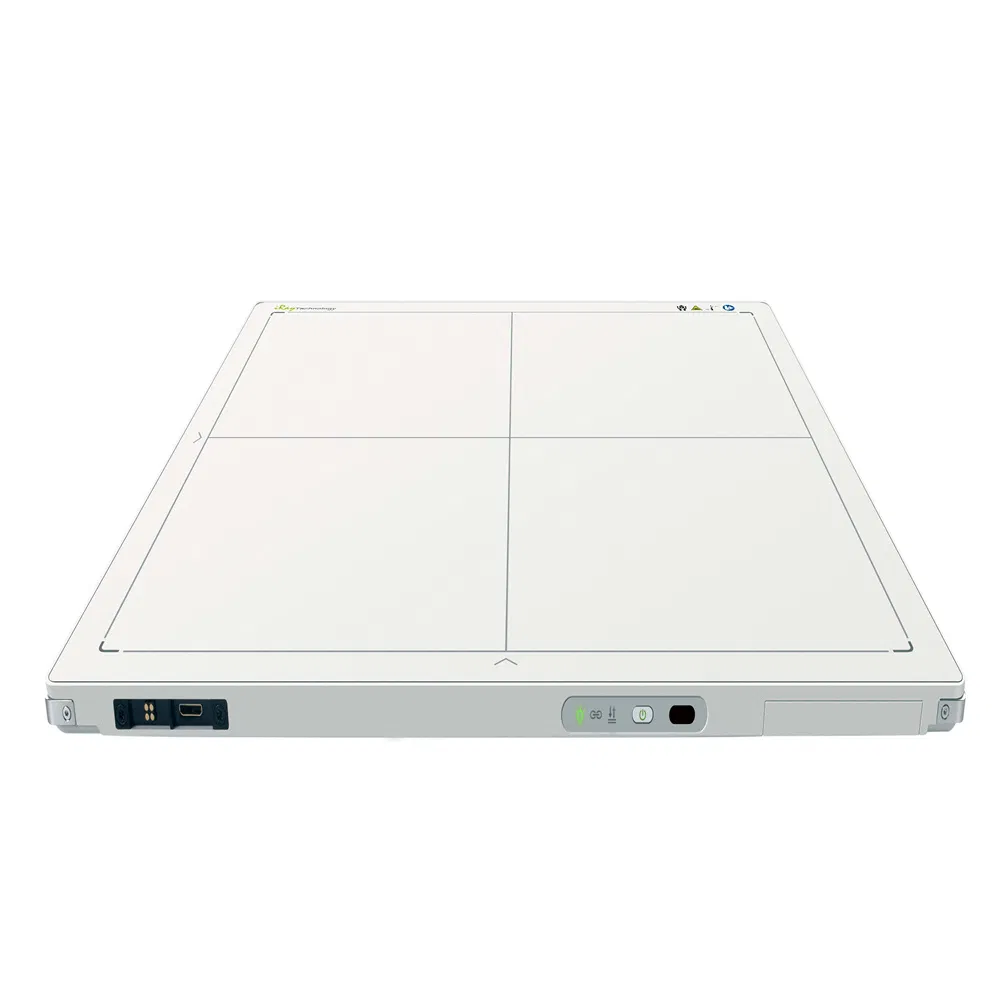

Mars 1717V 17*17 inch Wireless X ray Flat Panel Detector

Mars 1717V is a smart 17×17 inch wireless, cassette-sized FPD for radiographic imaging. It features reliable AED, dependable wireless performance, and a long battery life. The Mars 1717V supports a fast work flow, and is the optimal choice for both retrofit and new DR system solutions.

✔Wireless cassette detector per ISO 4090, fits in bucky

✔139 μm pixel pitch, with 16 bit ADC for more image details

✔Direct deposition CsI for better image quality with lower dose

✔Stable iSync + Automatic Exposure Detection (AED)

✔Dual band (2.4 and 5 GHz) wireless support with easy sharing

✔Long battery life and smart workflow

⚙ Technical Specifications

Parameter Details
Detector Technology	Amorphous Silicon
Scintillator	Csl
Active Area (inch)	17 × 17
Pixel Matrix	3072 × 3072
Pixel Pitch (um)	139
Spatial Resolution (lp/mm)	3.6
AD Conversion (bit)	16
Battery Autonomy (h)	8
WIFI	2.4G and 5G, IEEE802.11 a/b/g/n/ac
Trigger Mode	AED (Optional) 1 Software
Full Image Time (s)	5
Dimensions (mm)	460 x 460 x 15
Weight (kg)	4.6
Static Loading	150kg Uniformly
Ingress Protection	IPX1
Operating Temperature (°C)	5~35
Operating Humidity (% RH)	10 ~ 90 (Non-Condensing)

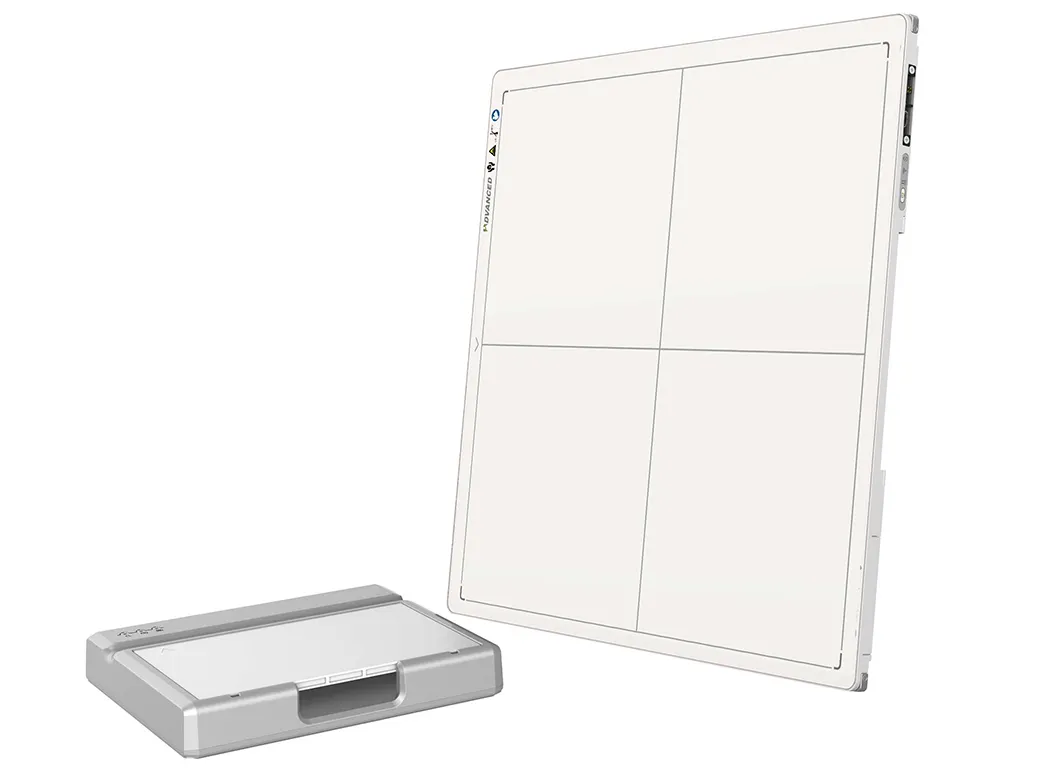

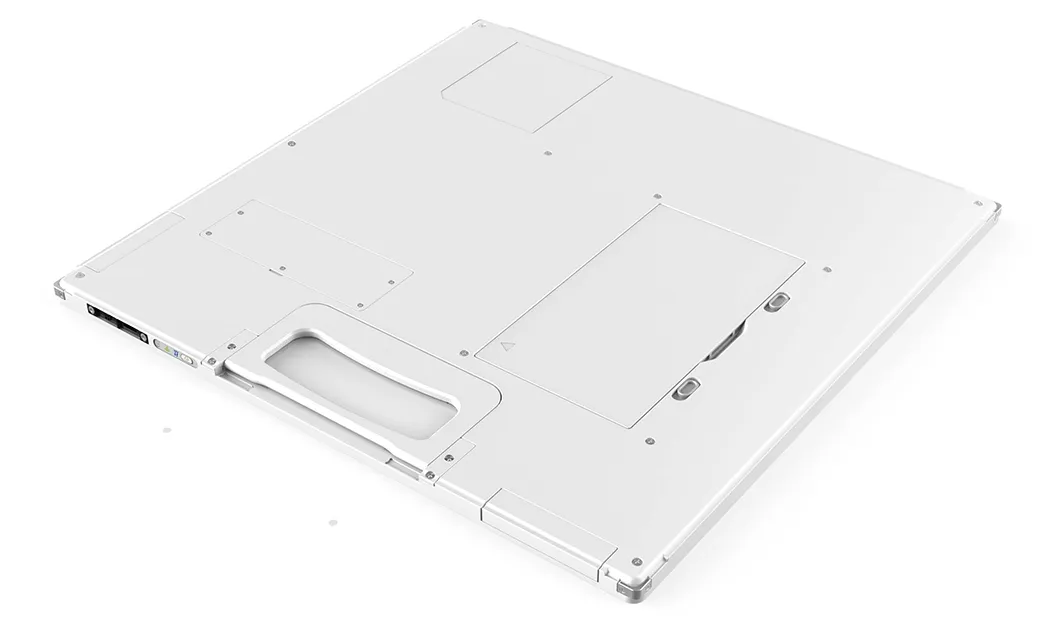

📷 Product & Clinical Display

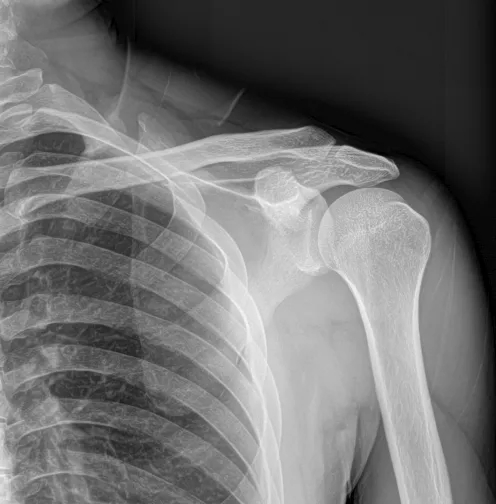

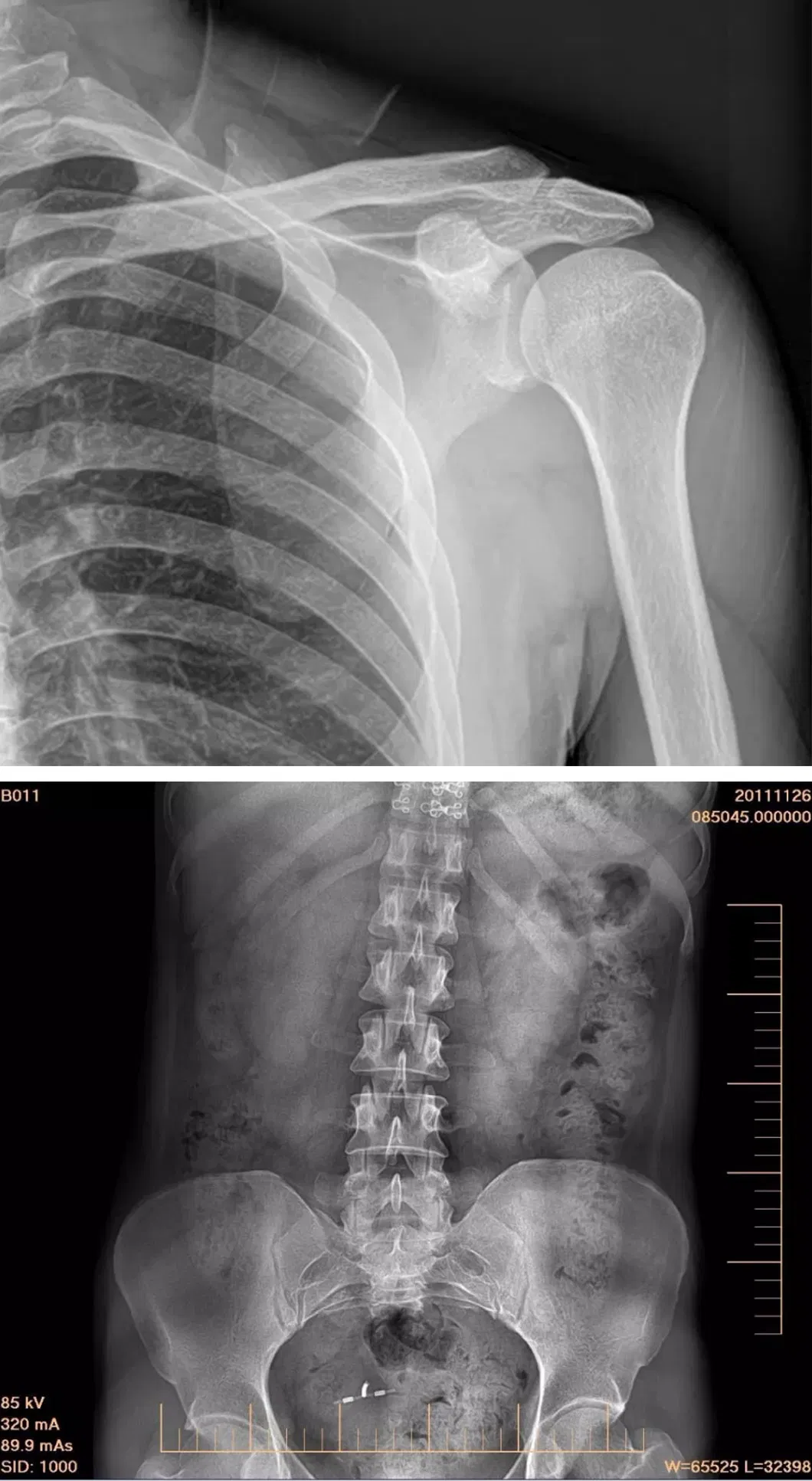

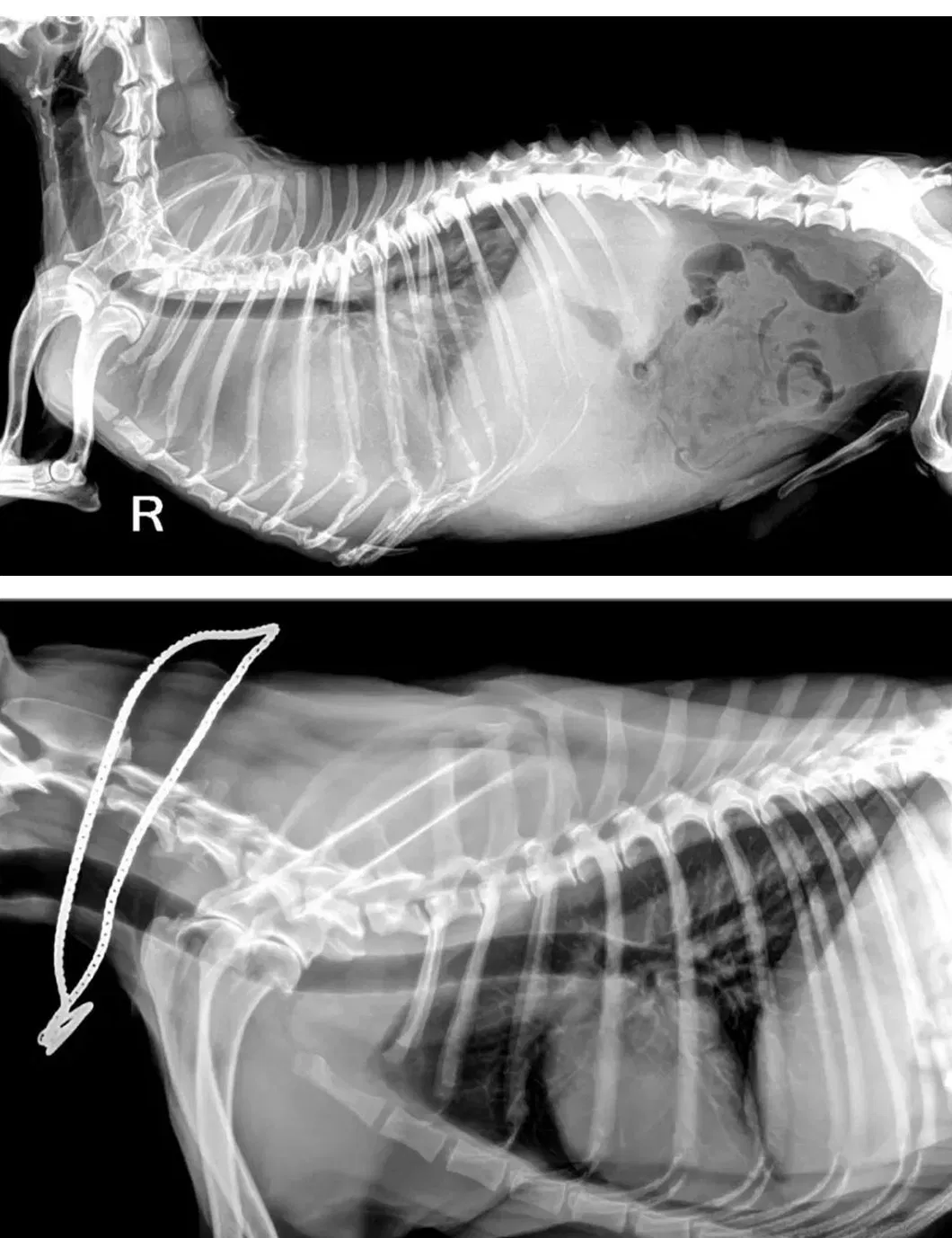

🩺 Clinical Images

🏭 Facility Overview

❓ Frequently Asked Questions

What about the price level?

We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this field more than 20 years. We always adhere to the principle of providing top quality products with competitive prices.

Why are some prices higher compared to other suppliers for similar looking models?

As many products may look similar, the difference often lies in the internal materials and quality control standards. Products using premium components and stricter testing protocols naturally have different pricing than lower-quality copies.

What is the estimated time of delivery?

Since products are produced according to specific orders, the typical delivery period is 15 days after order confirmation. For small or sample orders, please check with us regarding ready-to-ship stock.

How do you handle quality assurance?

We offer a one-year warranty period starting from the time of shipment. For minor issues, we provide free spare parts for replacement. For serious problems, we provide full replacements free of charge.

What are the available payment terms?

We accept various payment methods including T/T, Credit Card, L/C, Western Union, PayPal, and MoneyGram.

Is the detector suitable for portable use?

Yes, the Mars 1717V is a wireless, cassette-sized detector designed for both retrofit and new DR system solutions, offering high mobility and smart workflow.
