Customization: Available
Application: Medical Institution
Scale: Medium
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
MSLFP06
Voltage
220V
Product Name
Wireless Flat Panel X-ray Detector
Detector Tech
Amorphous Silicon
Scintillator
Csi
Active Area
345.6mm X 420mm
Number of Pixels
2304 X 2800
AD Conversion
16 Bit
Trigger Mode
AED/Software
Data Interface
Ethernet/WiFi(802.11AC)
Dimension
384mm X 460mm X 15mm
Package
Carton
🔍 Product Description
17*17 Inch DR Wireless Flat Panel Detector Medical X-Ray Equipment Wireless Digital Flat Panel Detector

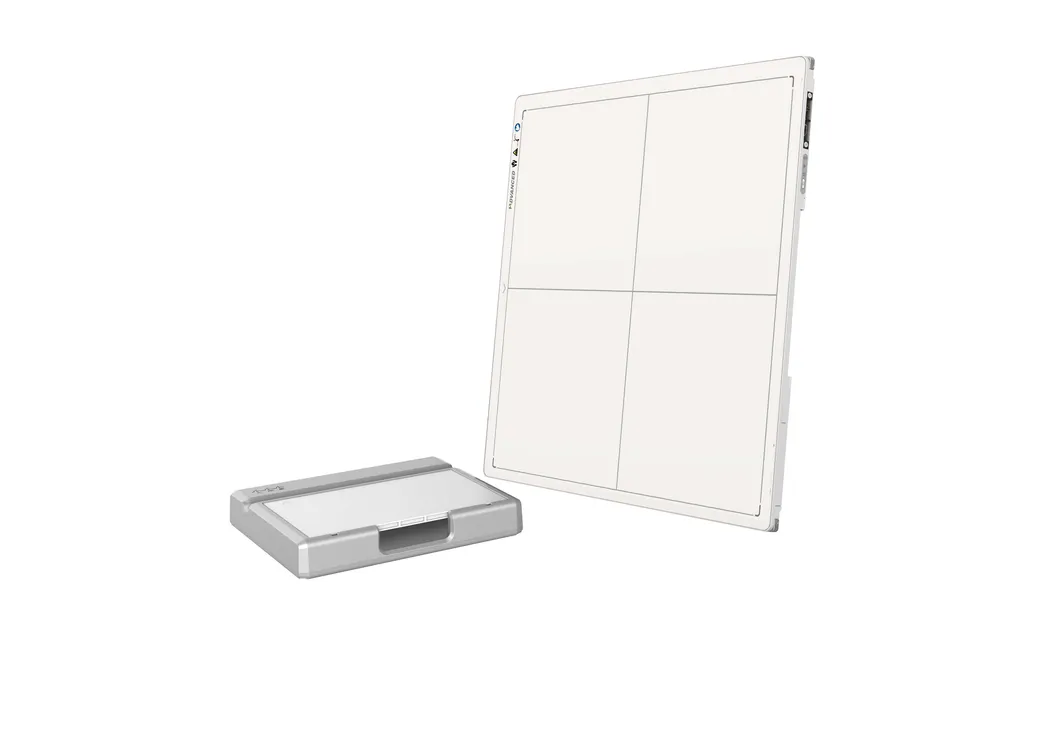

Wireless Flat Panel Detector

⚙️ Technical Specification:

• Detector Technology: Amorphous Silicon

• Scintillator: CsI

• Active Area: 345.6mm x 420mm

• Number of Pixels: 2304 x 2800

• Pixel Pitch: 150 um

• AD Conversion: 16 bit

• Trigger Mode: AED/Software

• Data Interface: Ethernet/WiFi(802.11ac)

• Dimension: 384mm x 460mm x 15mm

• Weight: 4.6 kg

X-ray Detector View 1

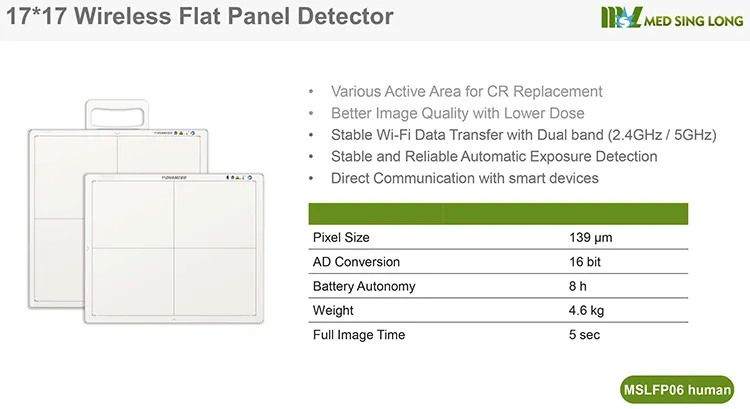

X-ray Detector View 2

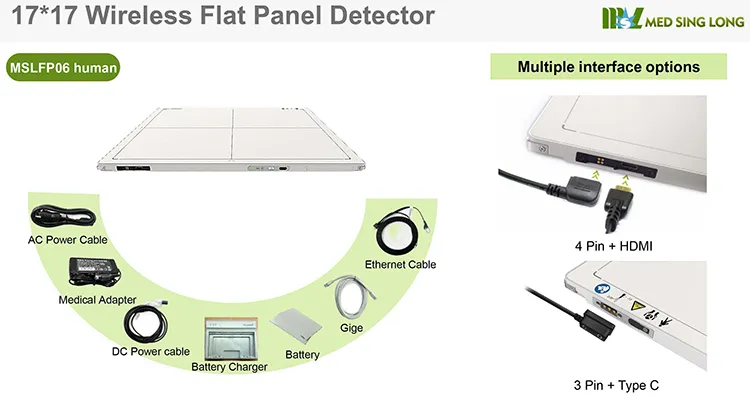

X-ray Detector View 3

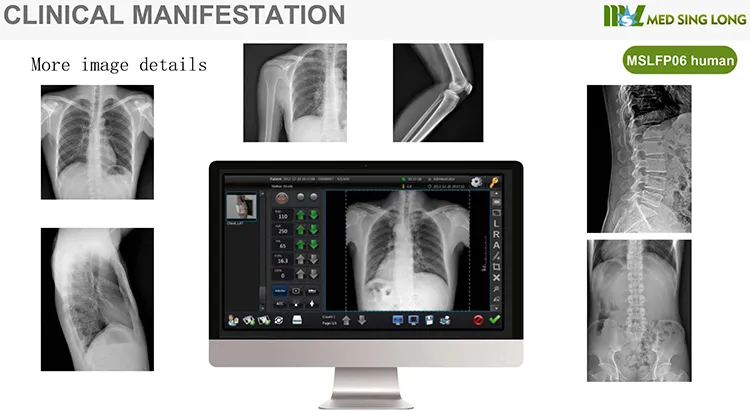

Wireless Digital Detector Details
📸 Detailed Photos

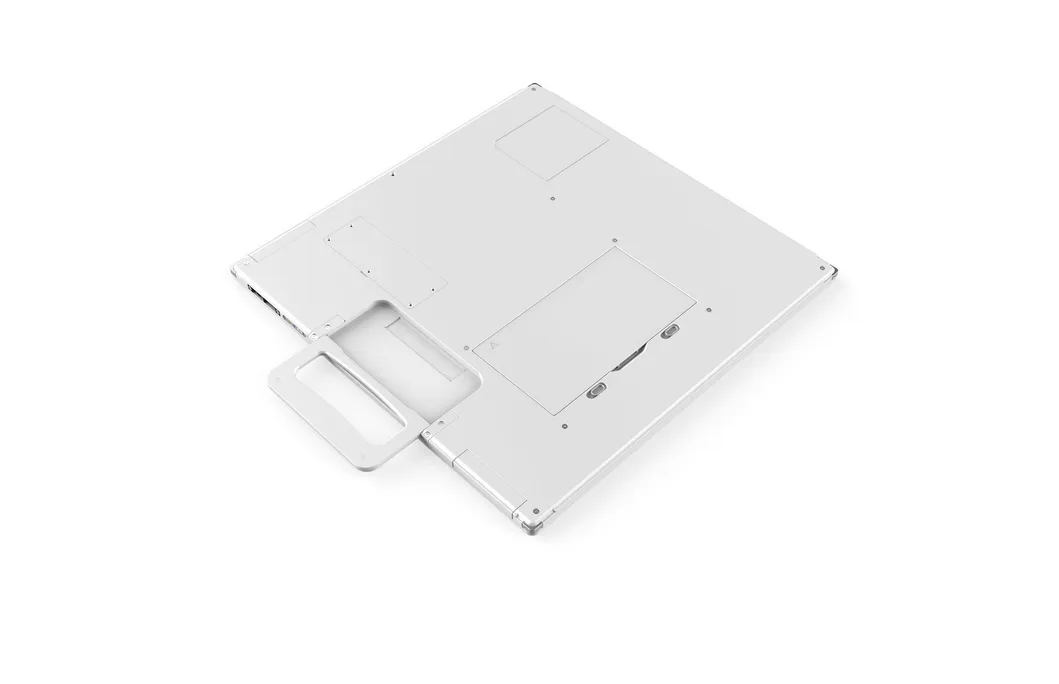

Detail 1
Detail 2
Detail 3
Large View

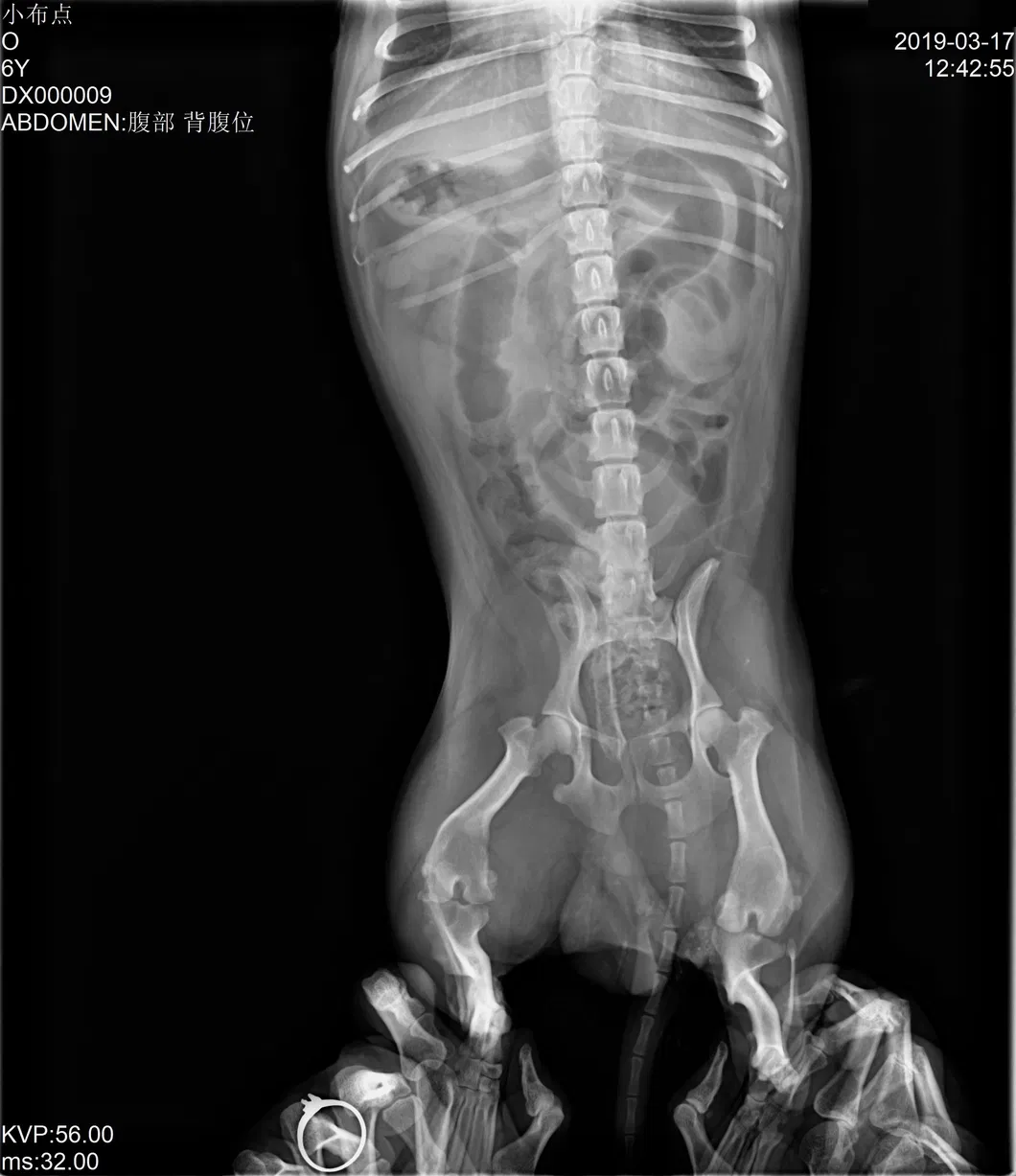

Internal Structure

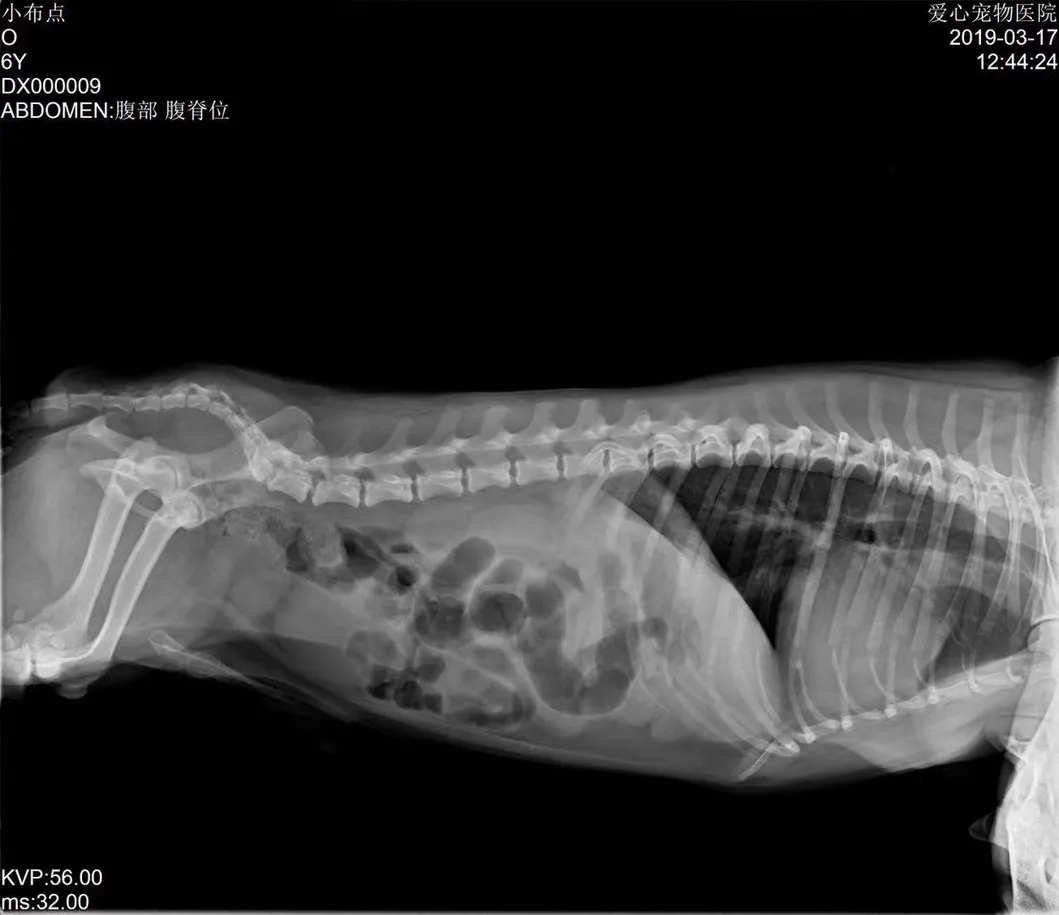

Application 1

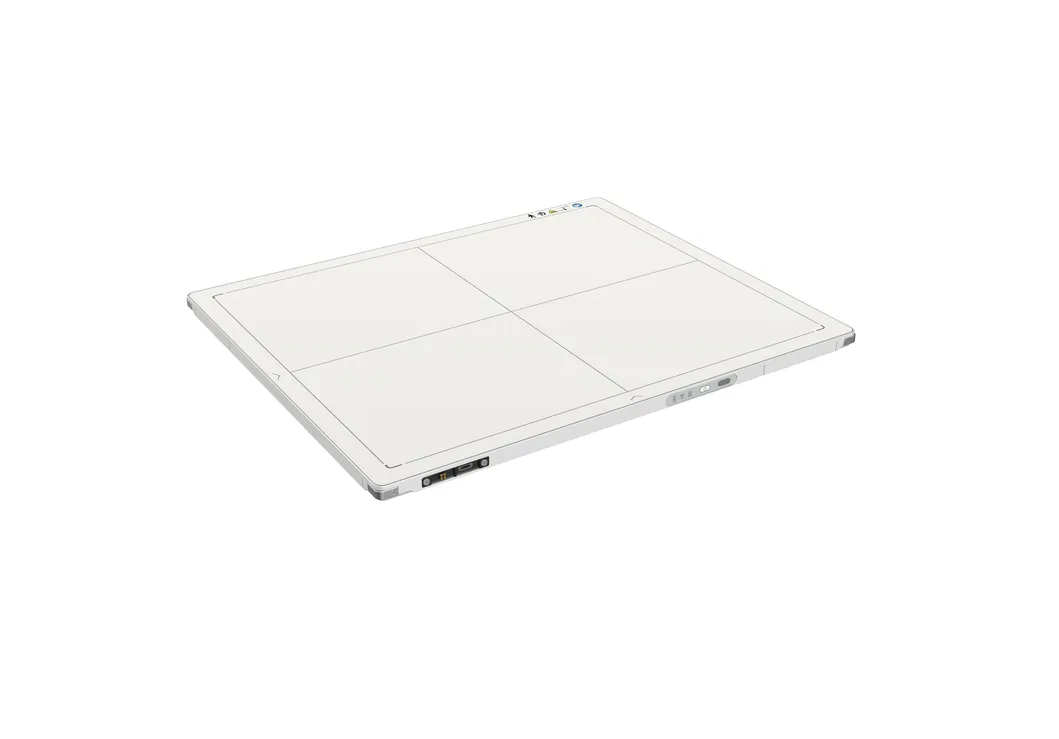

Application 2

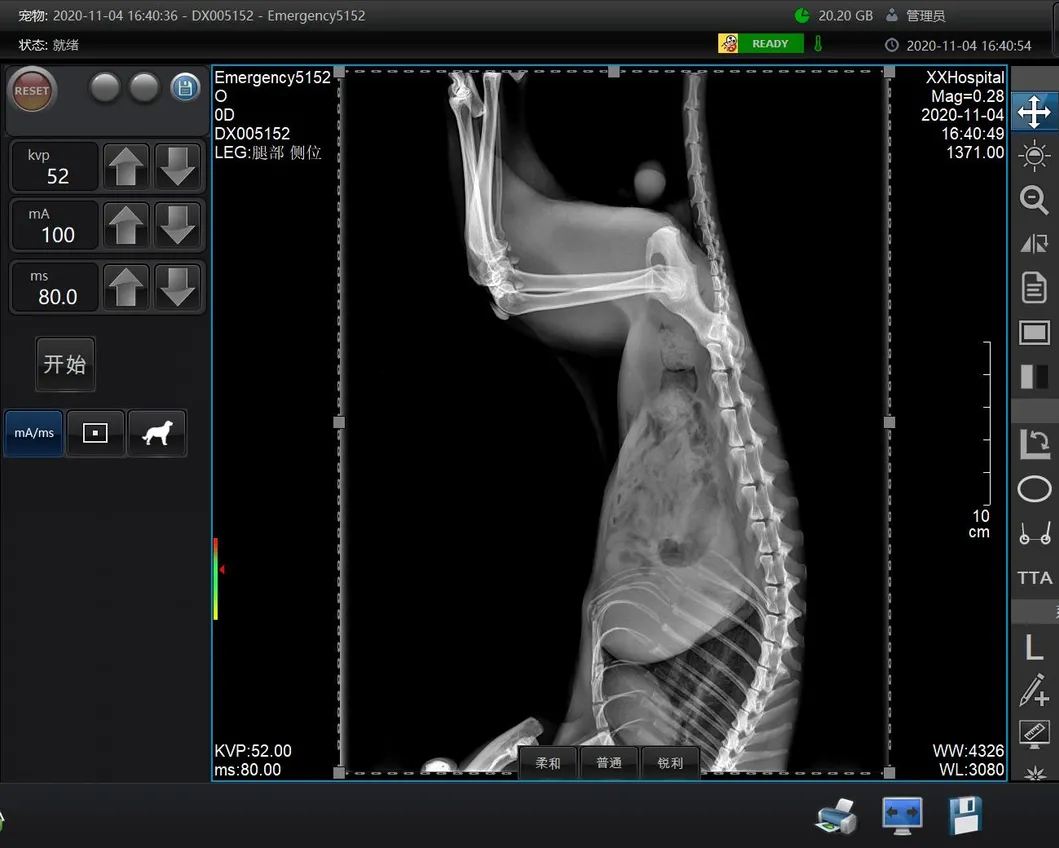

Application 3

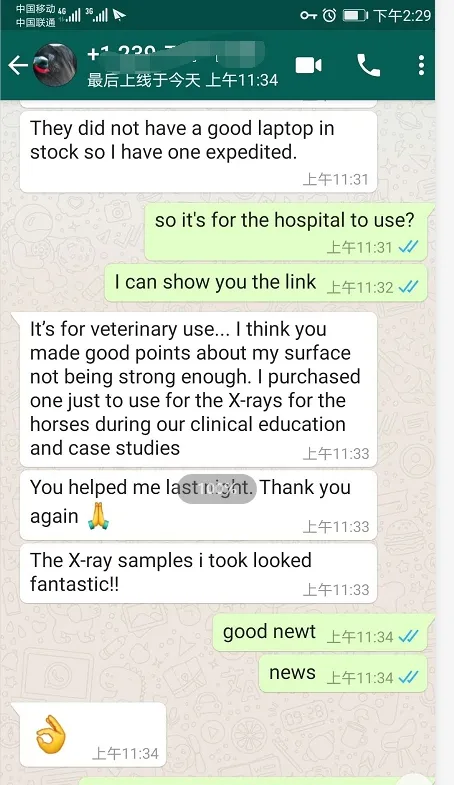

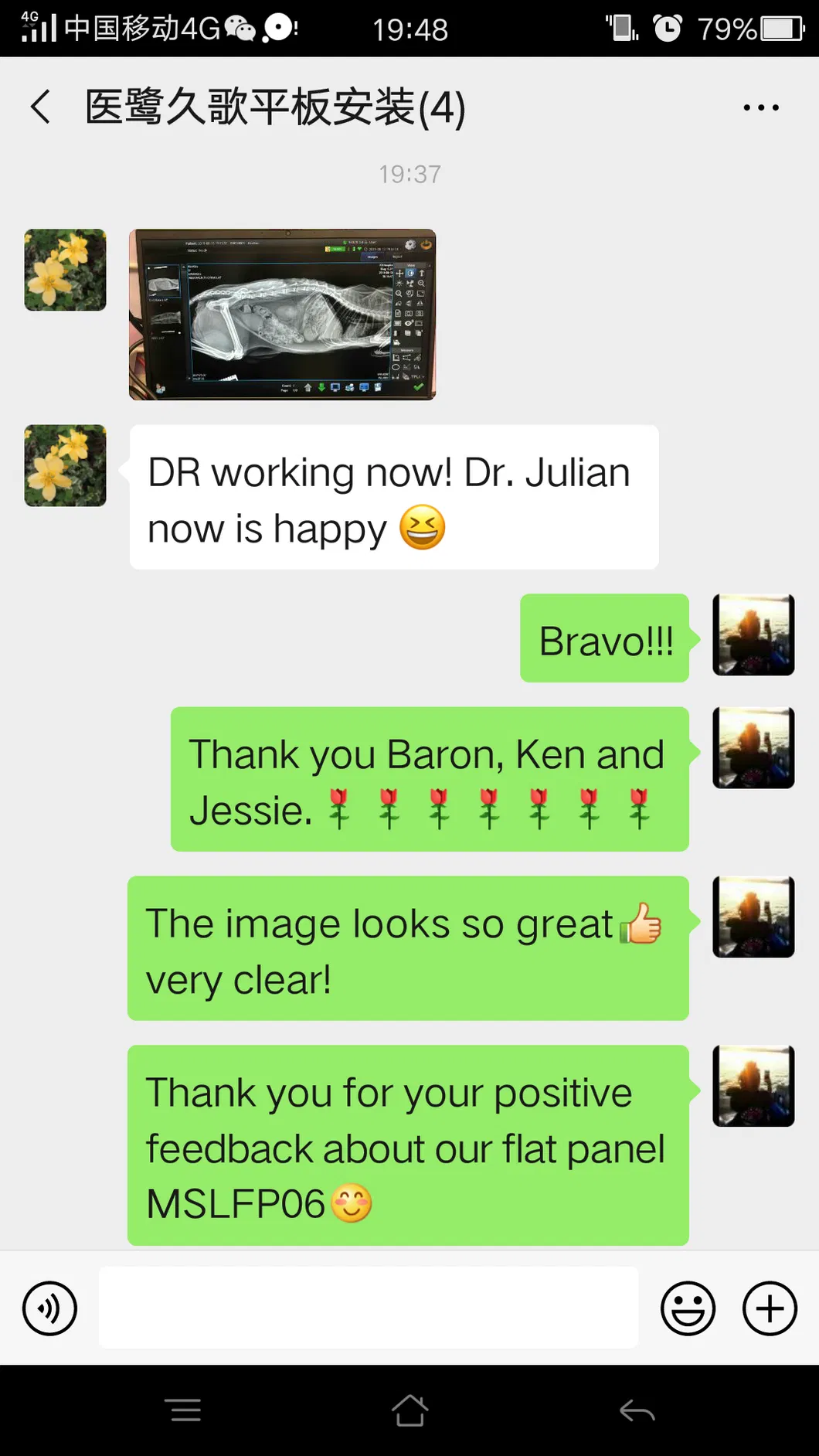

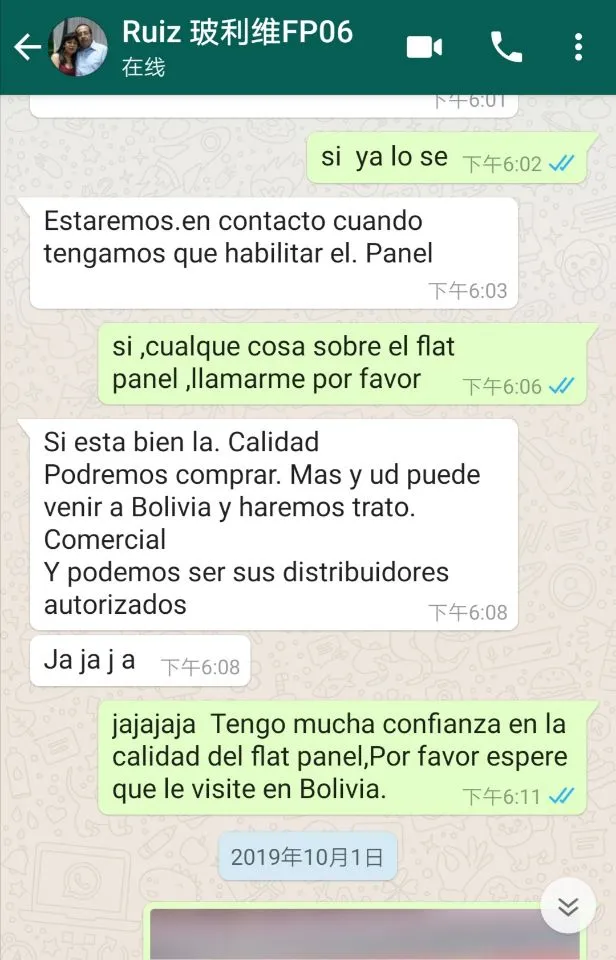

Usage Demo 1 Usage Demo 2 Usage Demo 3 Usage Demo 4
🏢 Overview
Overview Presentation
❓ Frequently Asked Questions
1. What is the active imaging area of this detector?
The detector provides a large active area of 345.6mm x 420mm, suitable for a wide range of medical X-ray applications.
2. Does the device support wireless connectivity?
Yes, it features built-in WiFi (802.11ac) for wireless data transmission, as well as an Ethernet interface for wired connections.
3. What scintillator technology is used?
This model utilizes Cesium Iodide (CsI) scintillator technology, which offers high sensitivity and excellent image resolution.
4. What are the available trigger modes?
The detector supports both AED (Automatic Exposure Detection) and Software trigger modes for flexible integration with different X-ray generators.
5. What is the pixel resolution of the MSLFP06?
It features a pixel matrix of 2304 x 2800 with a pixel pitch of 150 um and a 16-bit AD conversion for high-quality digital imaging.
6. How portable is the wireless flat panel detector?
The detector is designed with a slim profile (15mm thickness) and weighs approximately 4.6 kg, making it easy to handle and integrate into existing X-ray systems.
