Product Description

Basic Specifications

Model NO.Mars-1717V

ScaleSmall

Size17*17 Inches

ModelWireless

Detector TechnologyAmorphous Silicon

Pixel Matrix3072 × 3072

Resolution (Lp/mm)3.4

Production Capacity50000PCS/Year

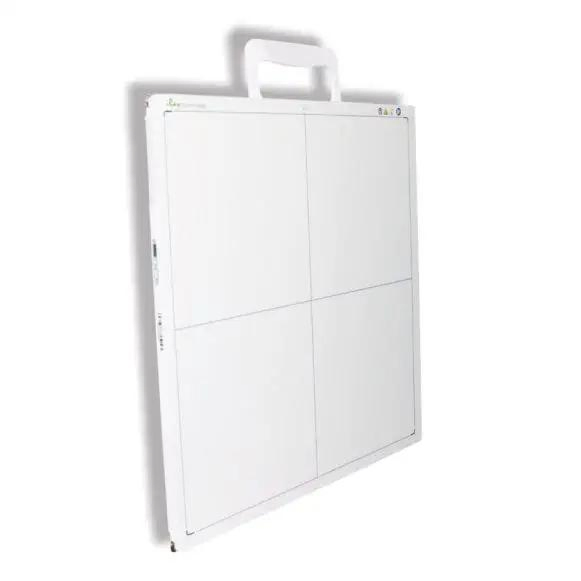

Products Pictures

Product Overview

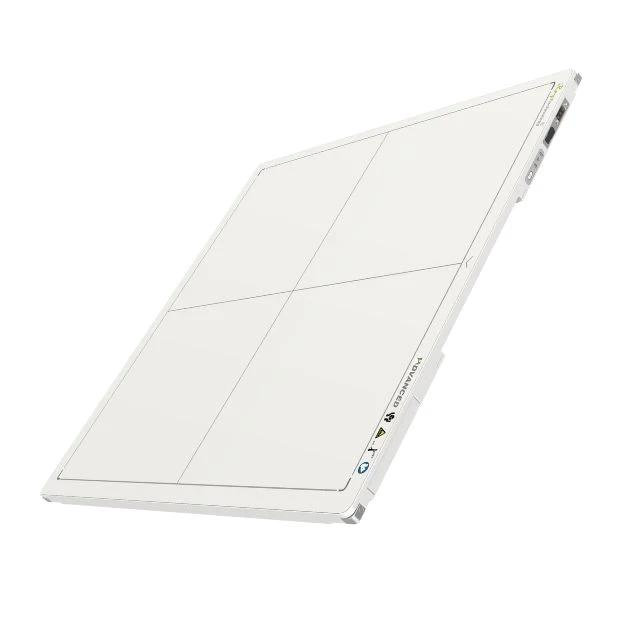

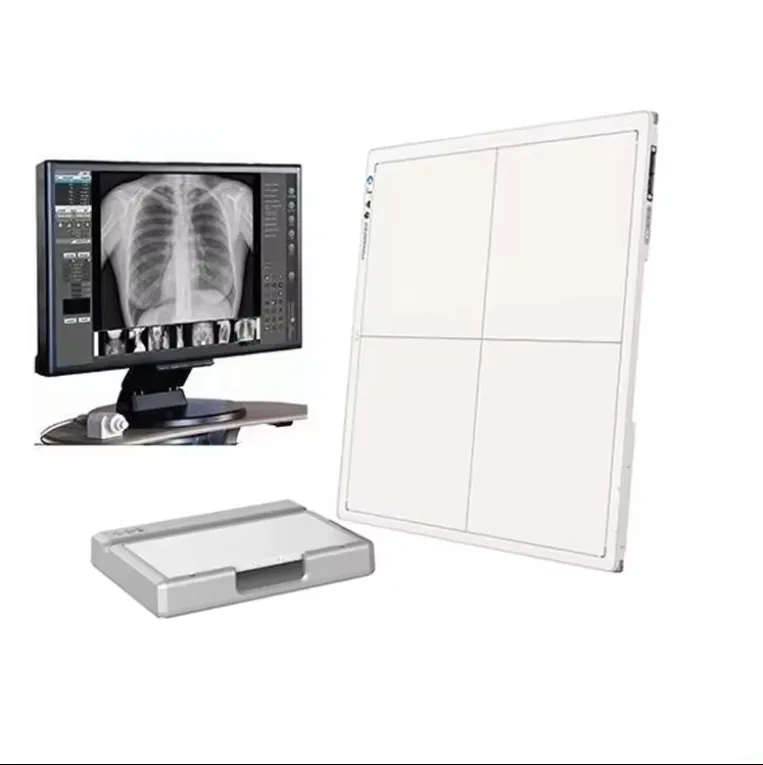

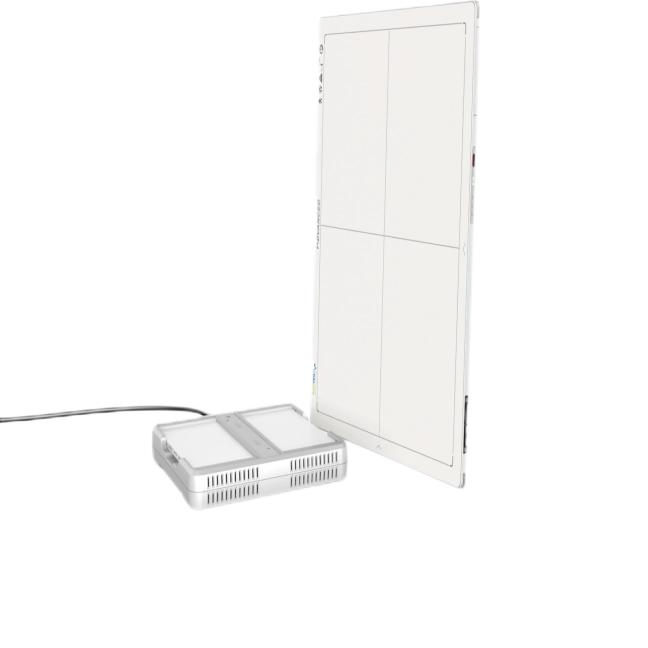

Mars 1717V is a smart 17×17-inch wireless, cassette-sized FPD for radiographic imaging. It features reliable AED, dependable wireless performance, and a long battery life. The Mars 1717V supports a fast workflow, and is the optimal choice for both retrofit and new DR system solutions.

Key Features

Wireless cassette detector per ISO 4090, fits in bucky
Stable iSync+ Automatic Exposure Detection (AED)
139 μm pixel pitch, with 16 bit ADC for more image details
Long battery life and smart workflow
Dual band (2.4 and 5 GHz) wireless support with easy sharing
Direct deposition CsI for better image quality with lower dose

Technical Parameters

Detector Technology	Amorphous Silicon	Full Image Time (s)	5
Scintillator	CsI	Dimension (mm³)	460 x 460 x 15
Active Area (inch)	17 × 17	Weight (kg)	4.6
Pixel Matrix	3072 × 3072	Static Loading (kg)	150 kg Uniformly
Limiting Resolution	3.4 lp/mm	Ingress Protection	IPX1
AD Conversion (bit)	16	Operating Temp (ºC)	5~35
Battery Autonomy (h)	8	Storage Temp (ºC)	-20~55
WIFI	2.4G and 5G, IEEE802.11 a/b/g/n/ac	Trigger Mode	AED (Optional) / Software

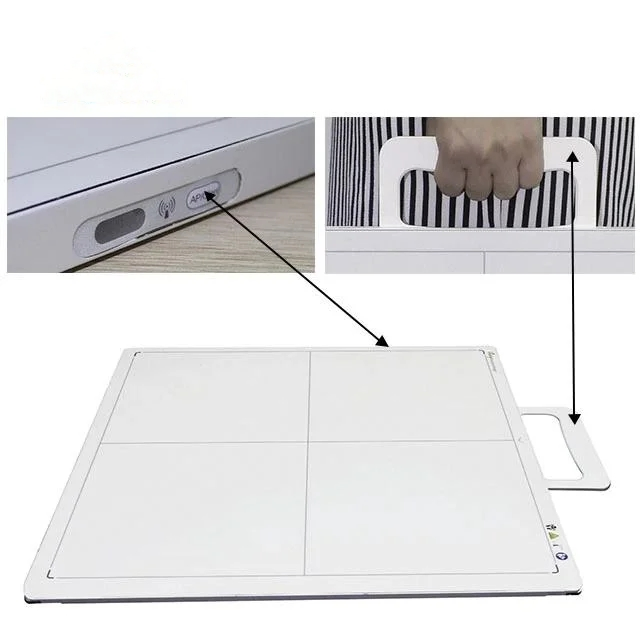

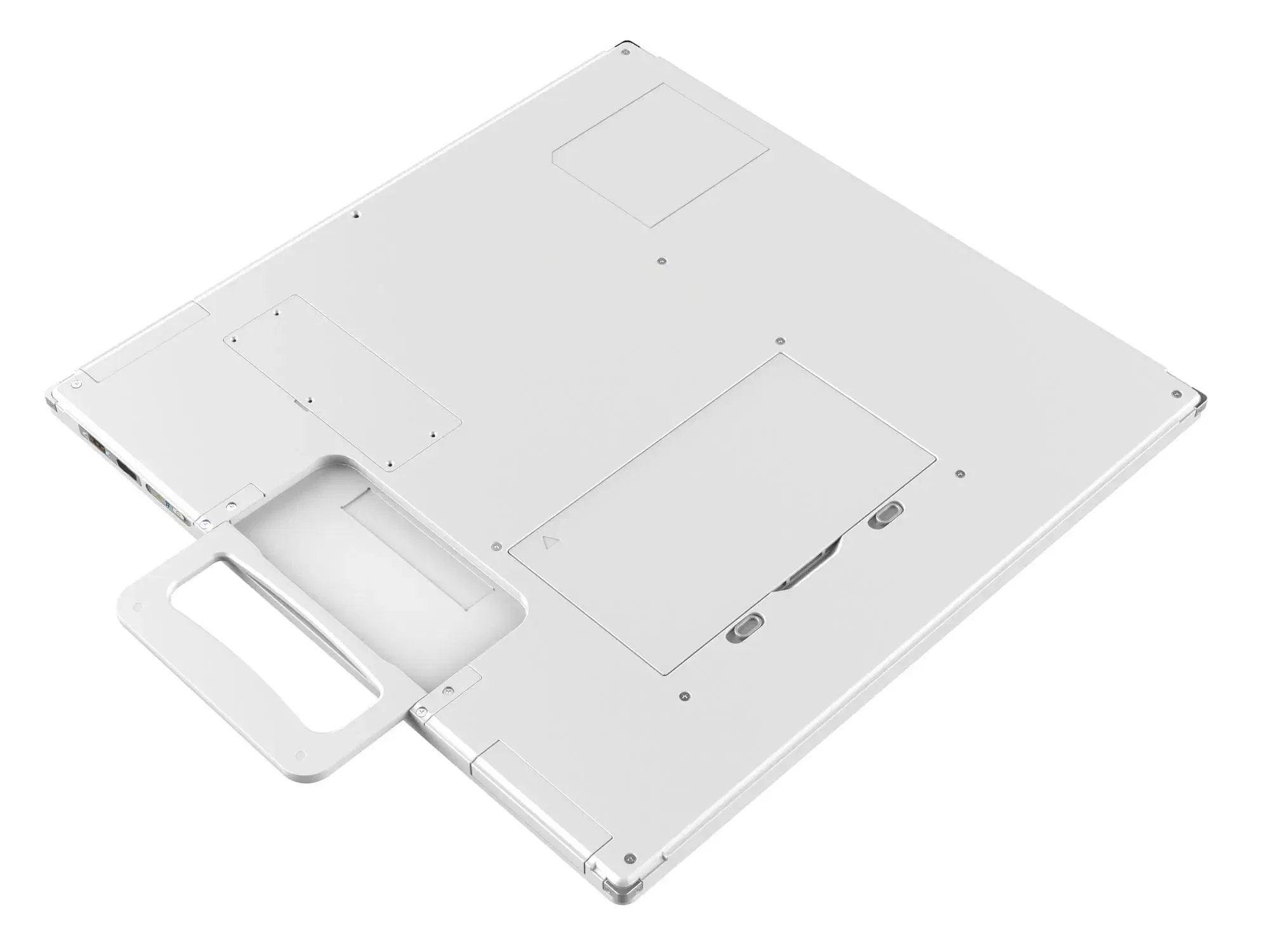

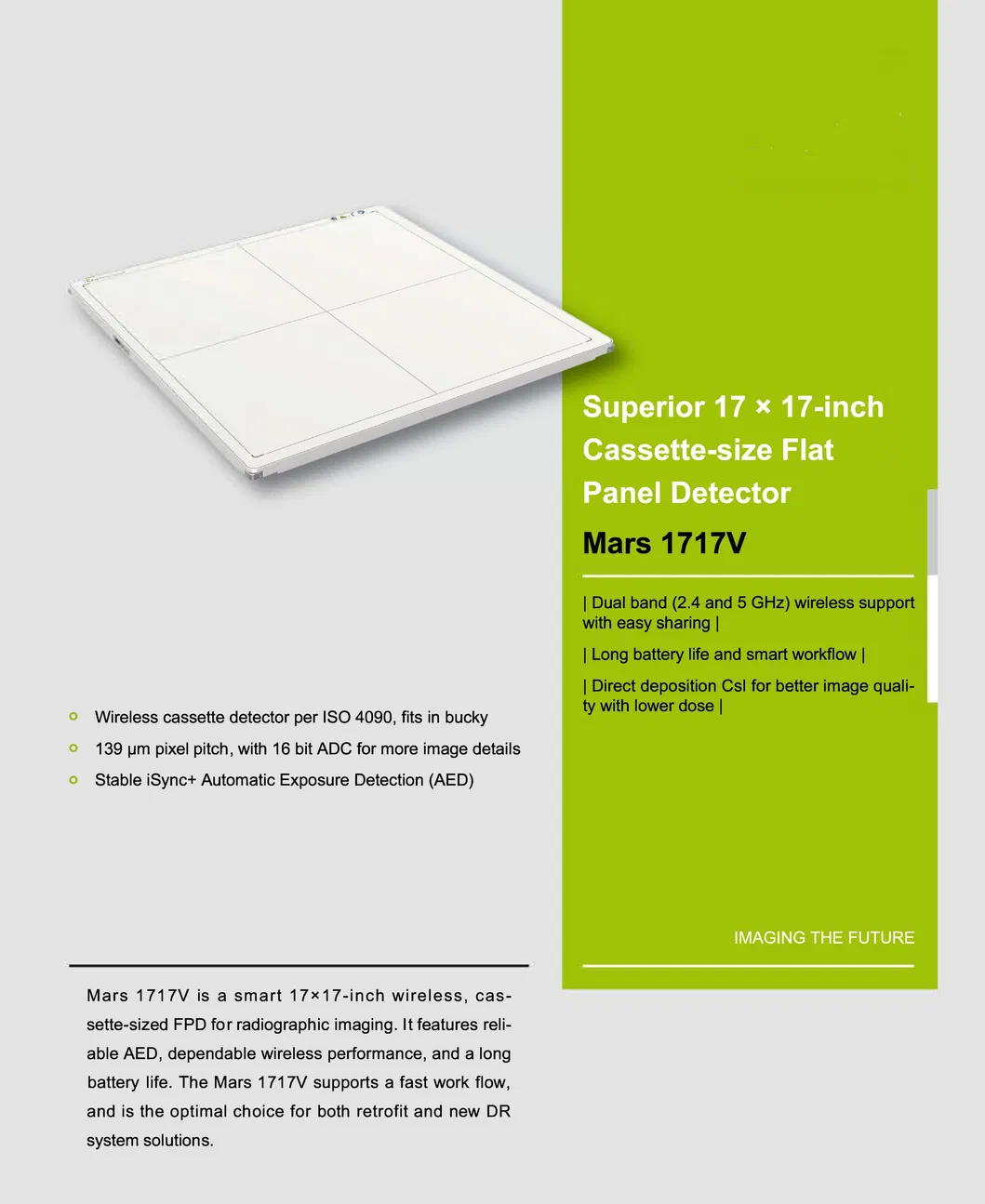

Detail Visuals

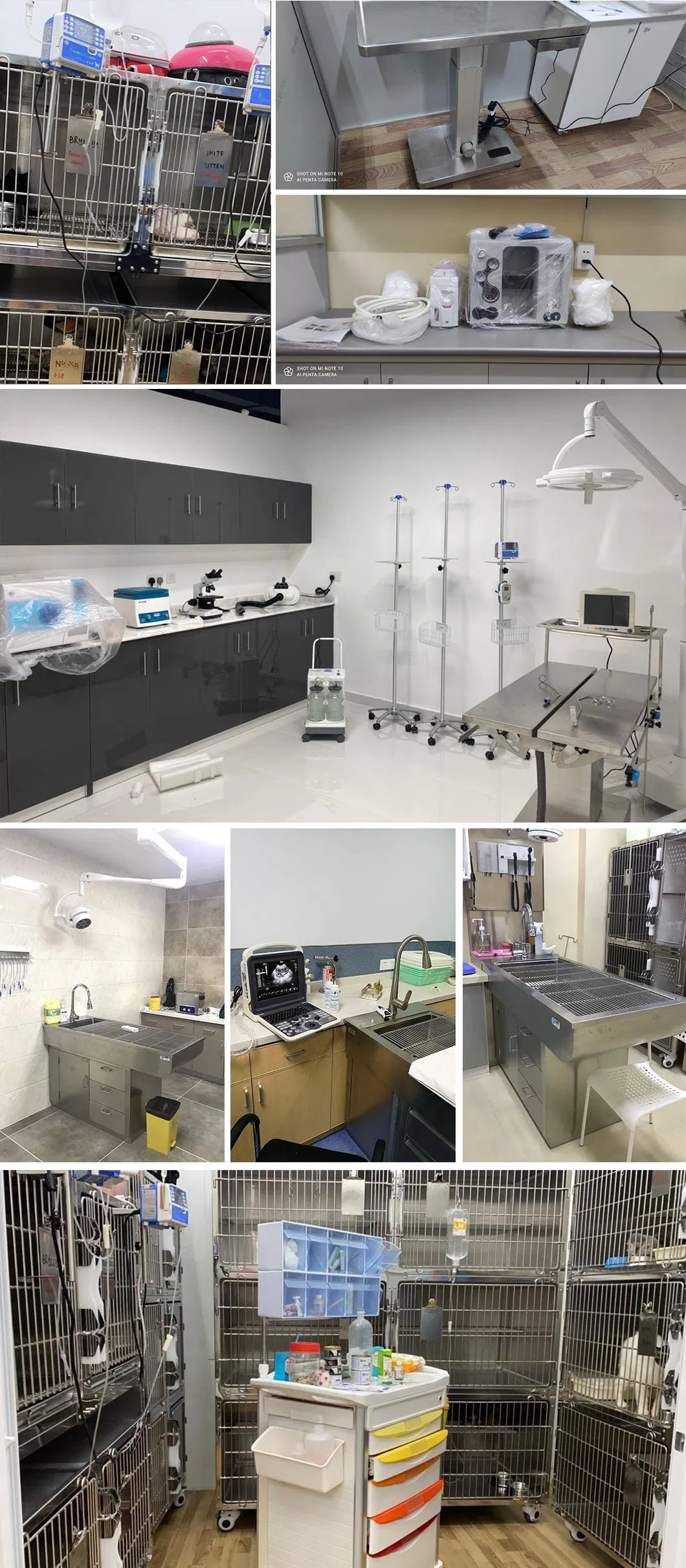

Clinical Applications

Certificates & Quality

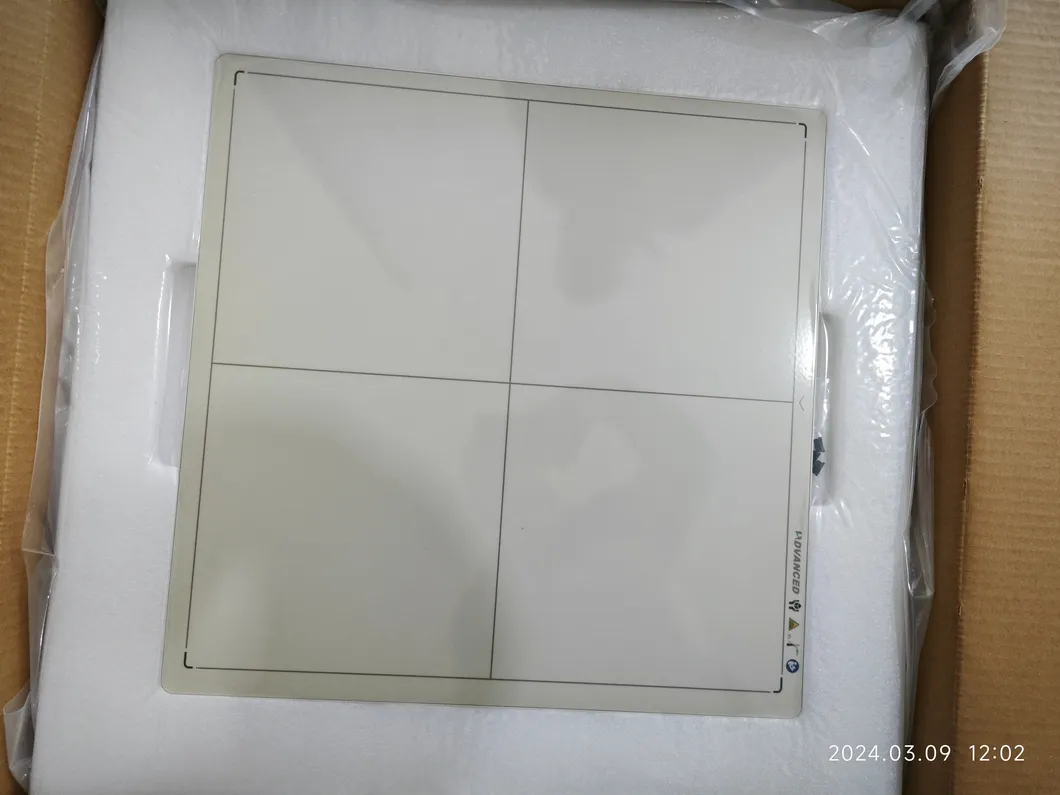

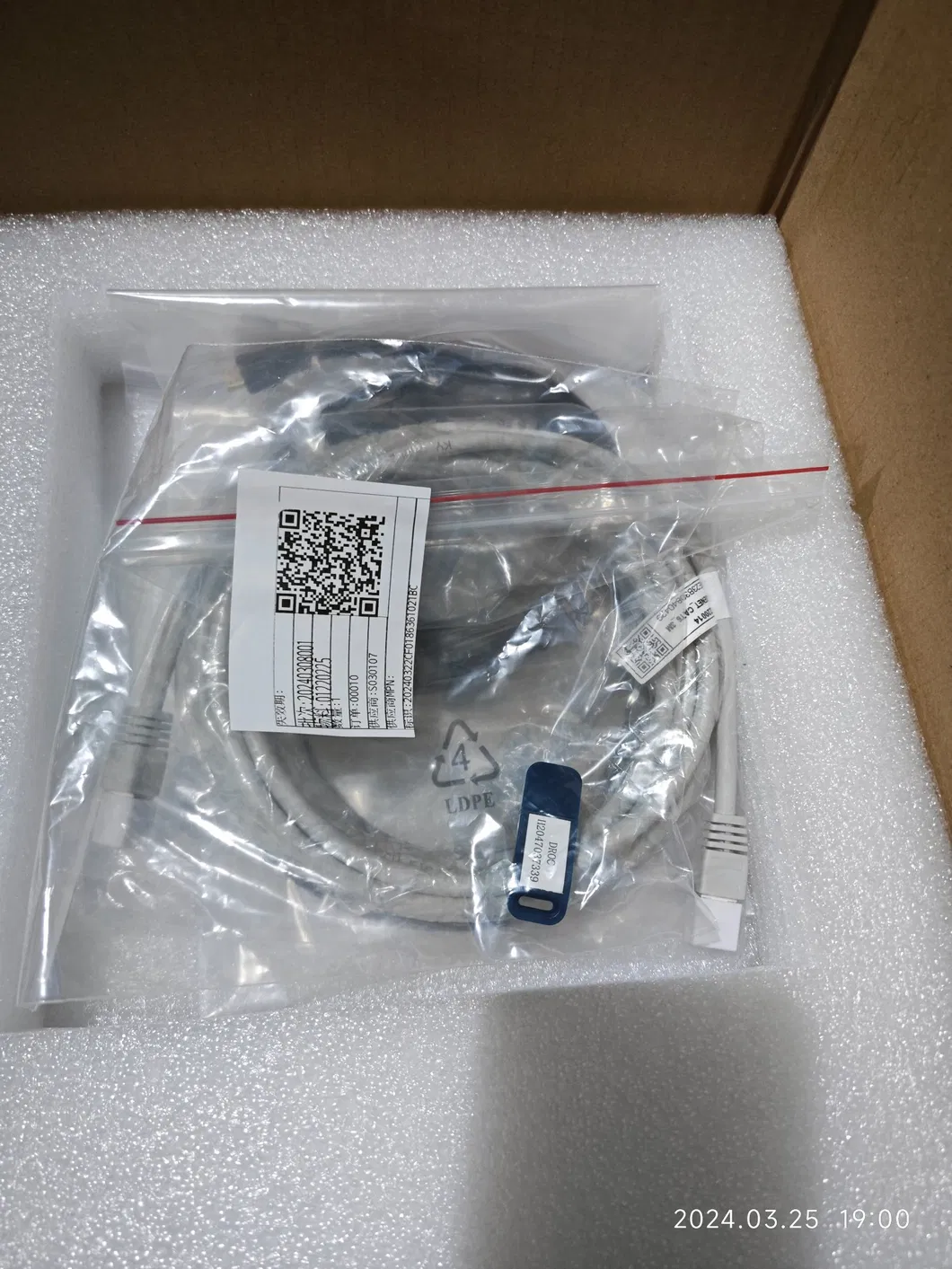

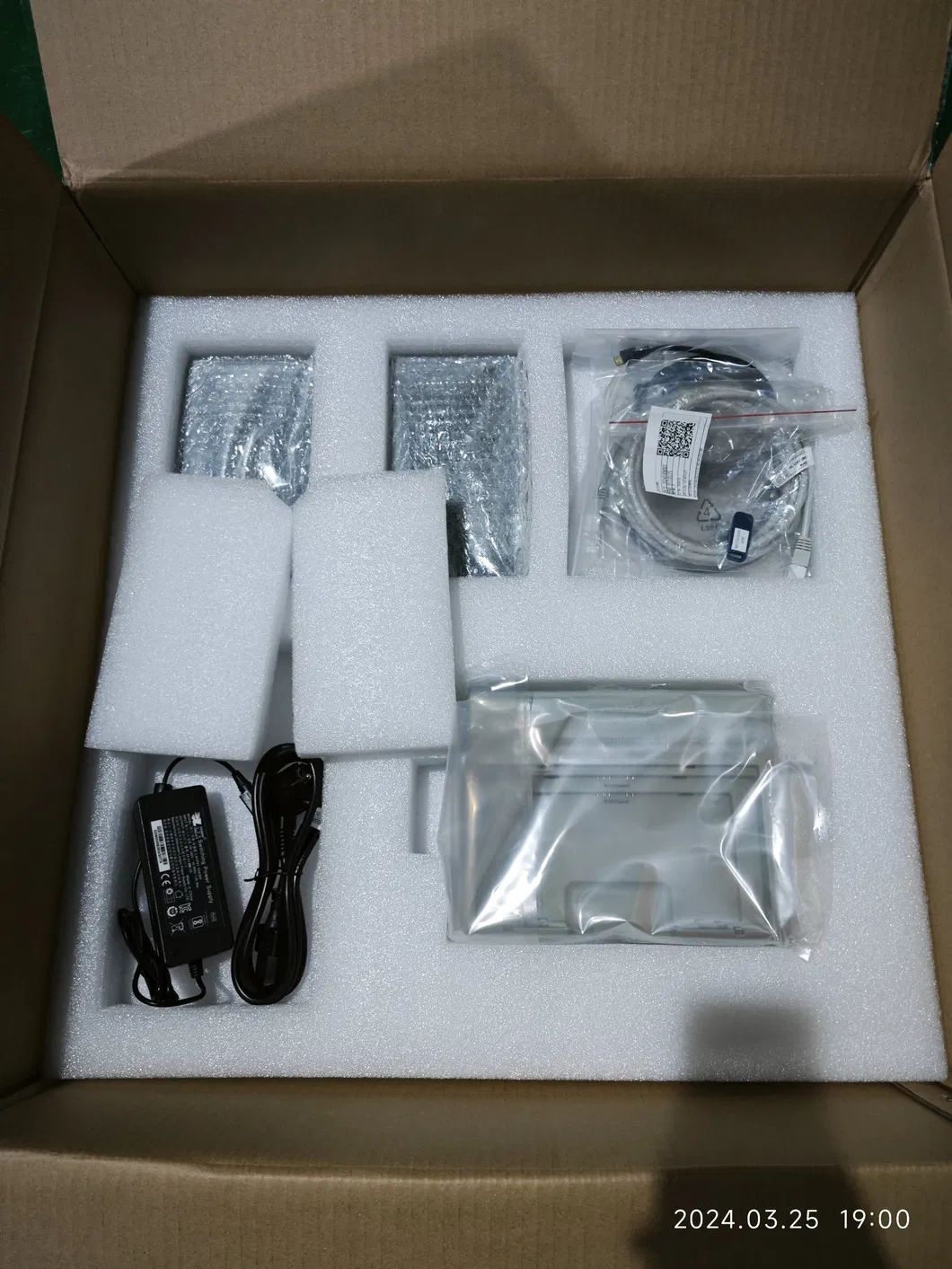

Packaging & Shipping

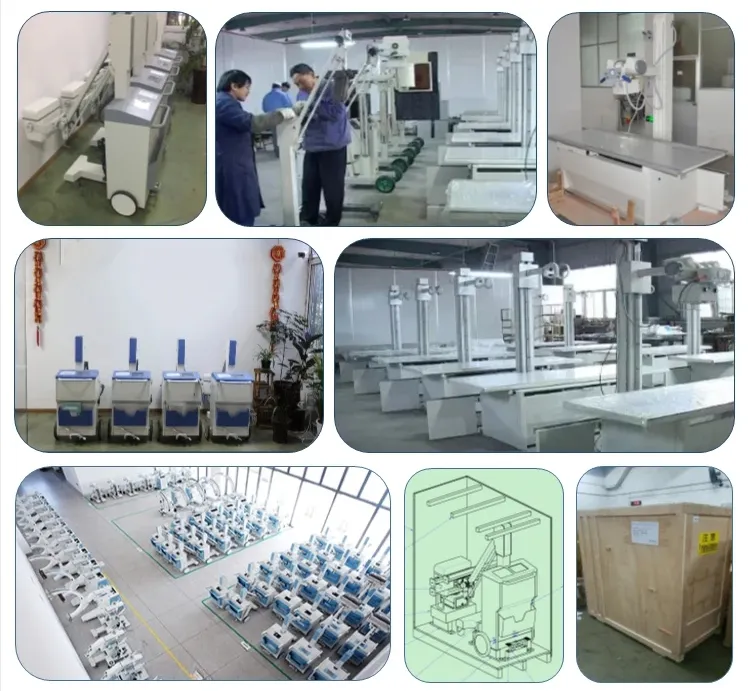

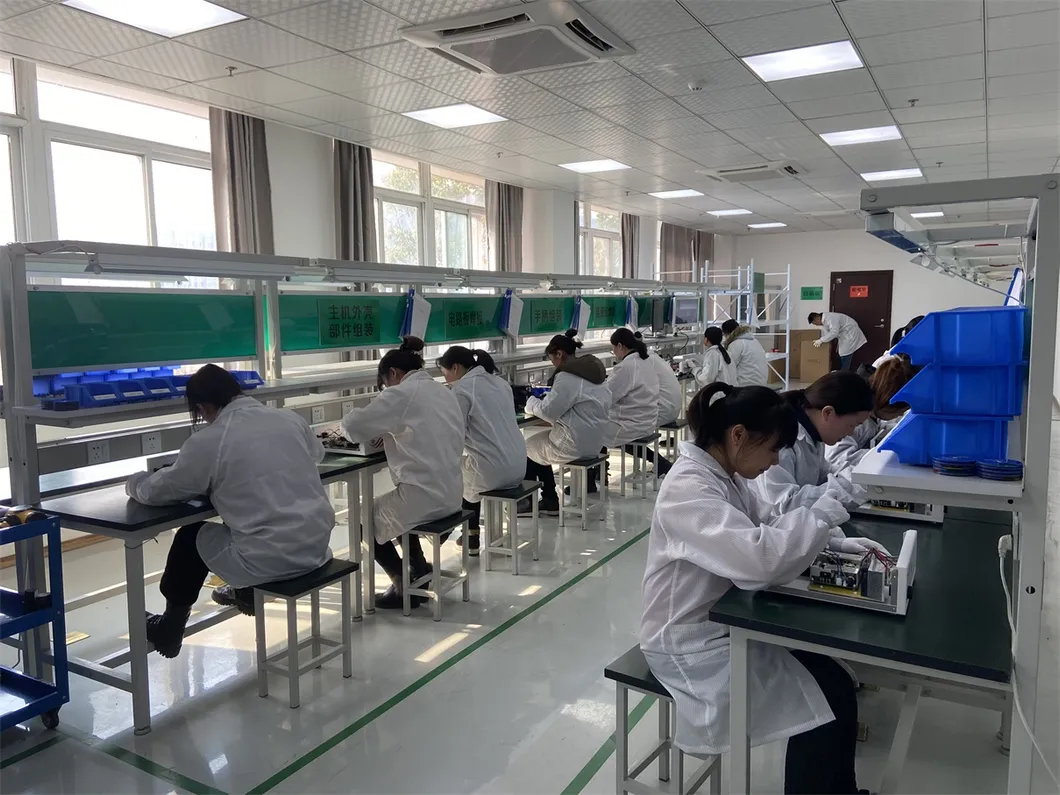

Factory & Exhibition

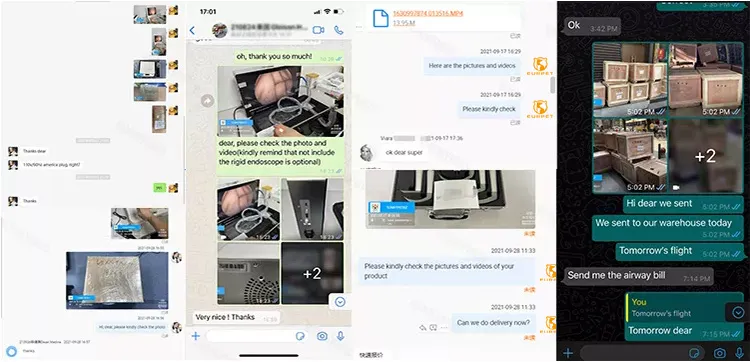

Customer Feedback & Related Products

Frequently Asked Questions (FAQ)

Q1: What is the main application of the Mars-1717V? A: It is a wireless, cassette-sized flat panel detector designed for high-quality radiographic imaging, suitable for both retrofit and new DR system solutions.

Q2: How long does the battery last on a single charge? A: The Mars-1717V offers a battery autonomy of approximately 8 hours, supporting a full day of smart clinical workflow.

Q3: Does the detector support automatic exposure detection? A: Yes, it features stable iSync+ Automatic Exposure Detection (AED) for reliable and efficient imaging.

Q4: What is the pixel pitch and resolution? A: It has a 139 μm pixel pitch and a limiting resolution of 3.4 lp/mm, combined with a 16-bit ADC for exceptional image detail.

Q5: Is the detector waterproof or dustproof? A: The Mars-1717V has an Ingress Protection rating of IPX1, providing protection against vertical dripping water.

Q6: What wireless bands does it support? A: It supports dual-band wireless (2.4 GHz and 5 GHz) following IEEE 802.11 a/b/g/n/ac standards for easy data sharing.
