Digital Flat Panel Detector X Ray Machine 17x17 for Veterinary and Human Use Wireless and Wired Options Affordable Price for Global B2B Buyers

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

Overview

Basic Info	Specifications
Model NO.	1717V
Certification	CE, ISO13485
Active Area	17''x17''
Weight	4.6kg
Detector Technology	Amorphous Silicon
Full Image Time	5s
Dimension	460X460X15mm
Scintillator	Csi

Product Description

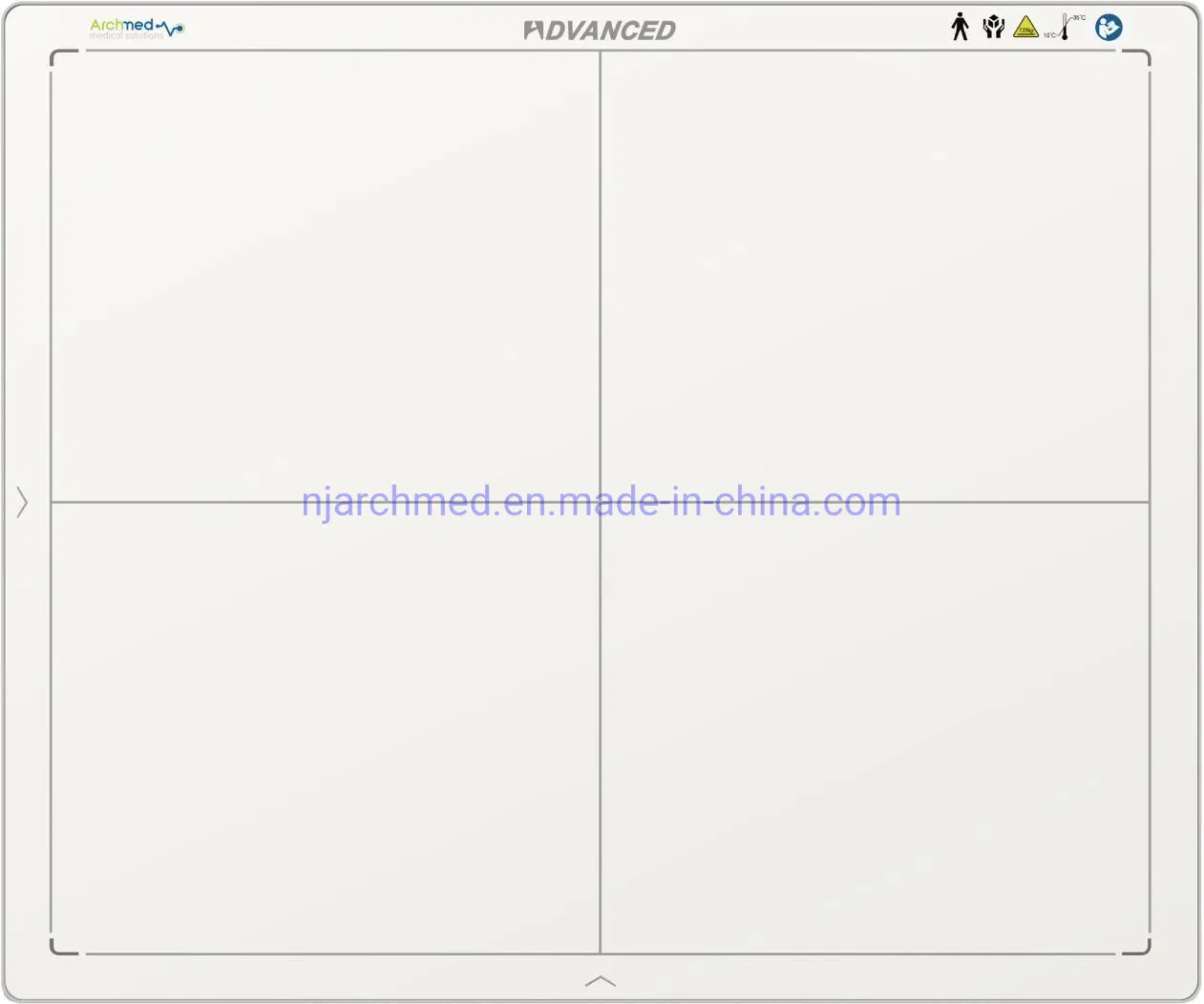

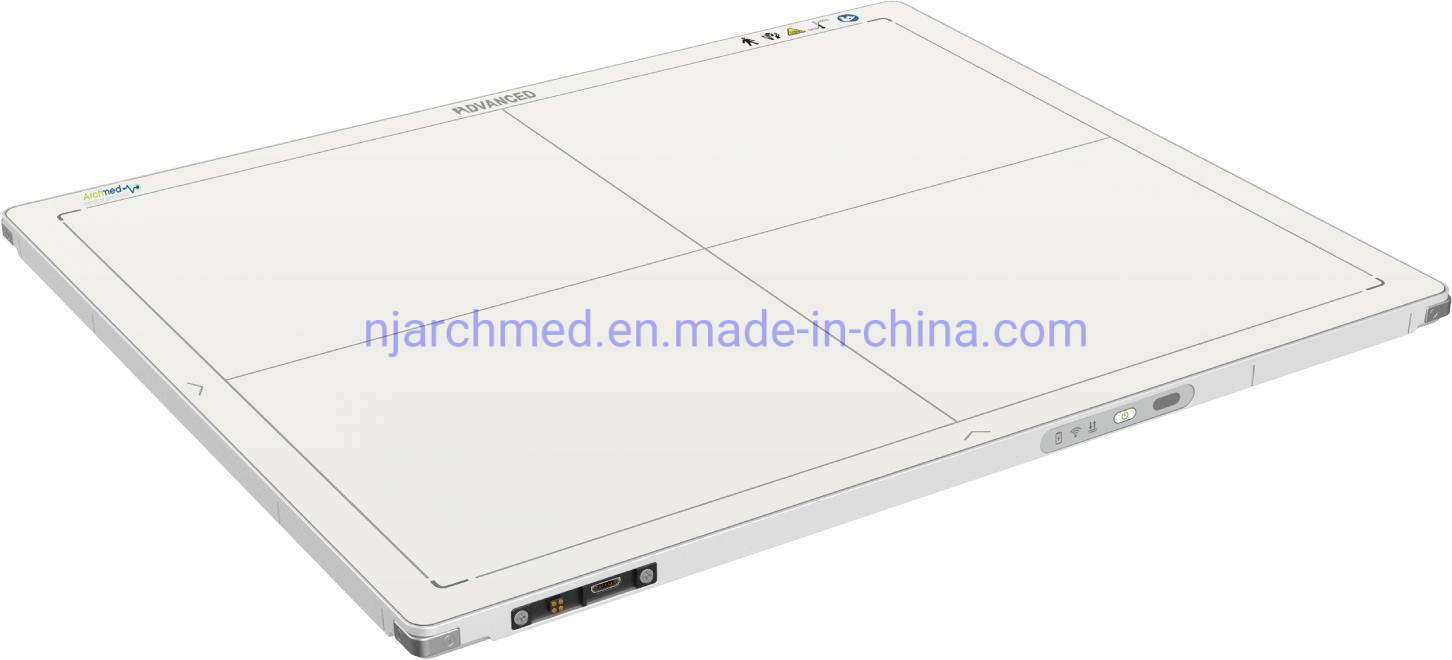

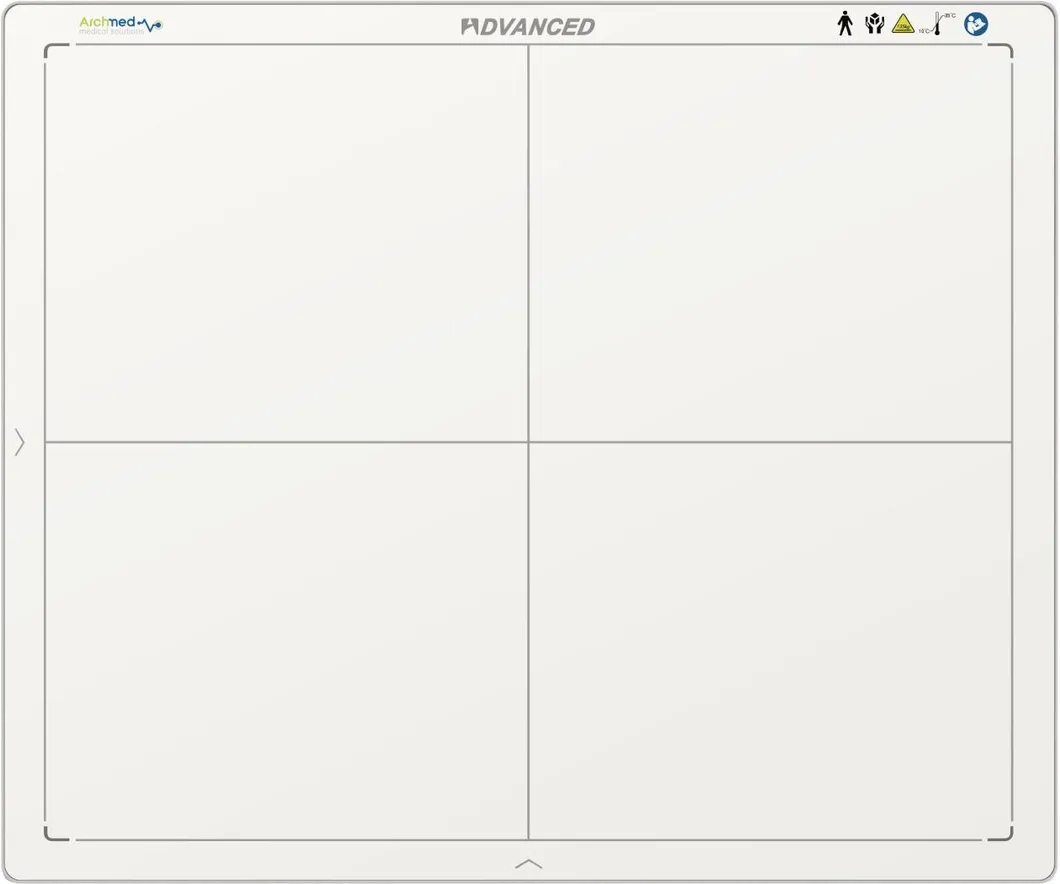

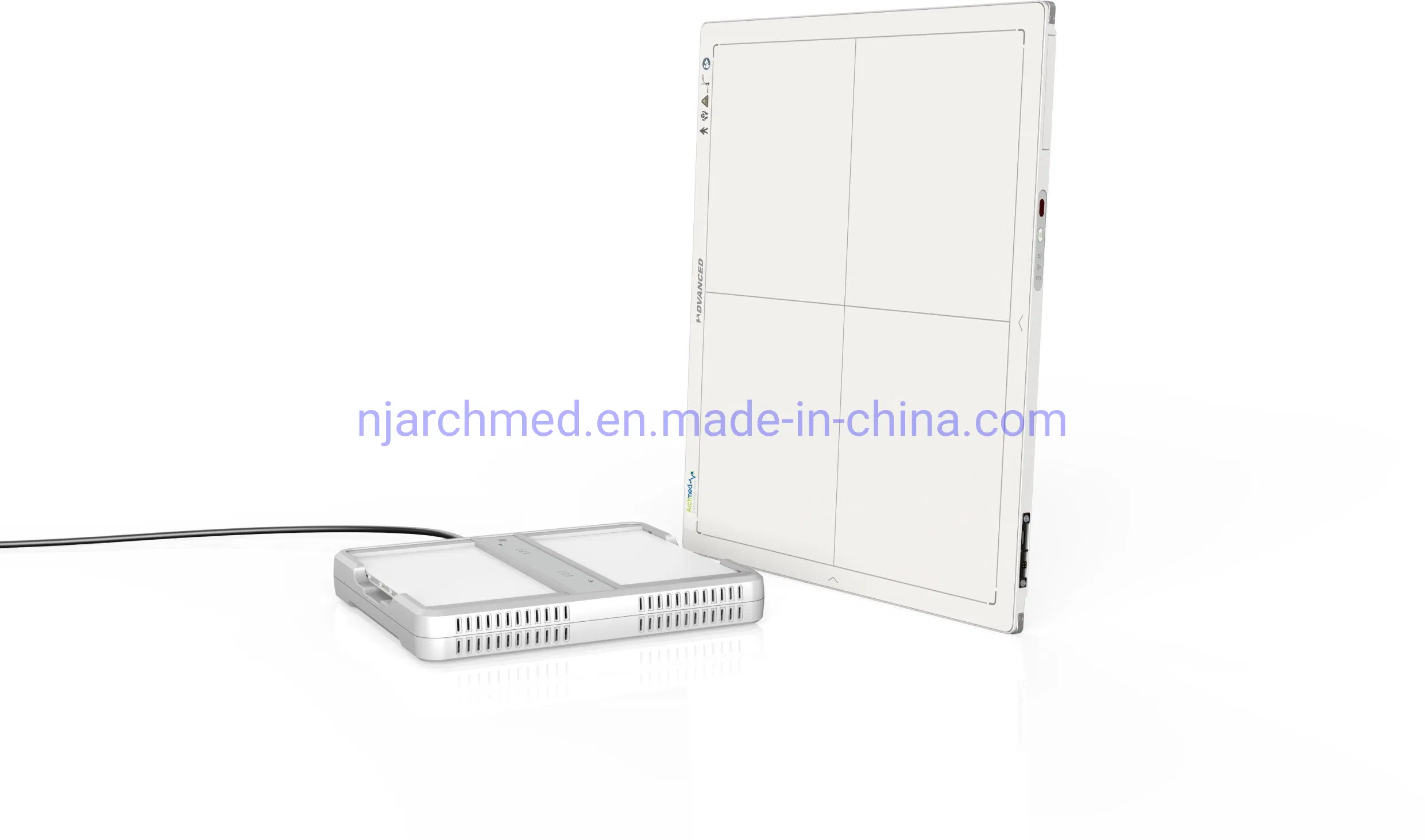

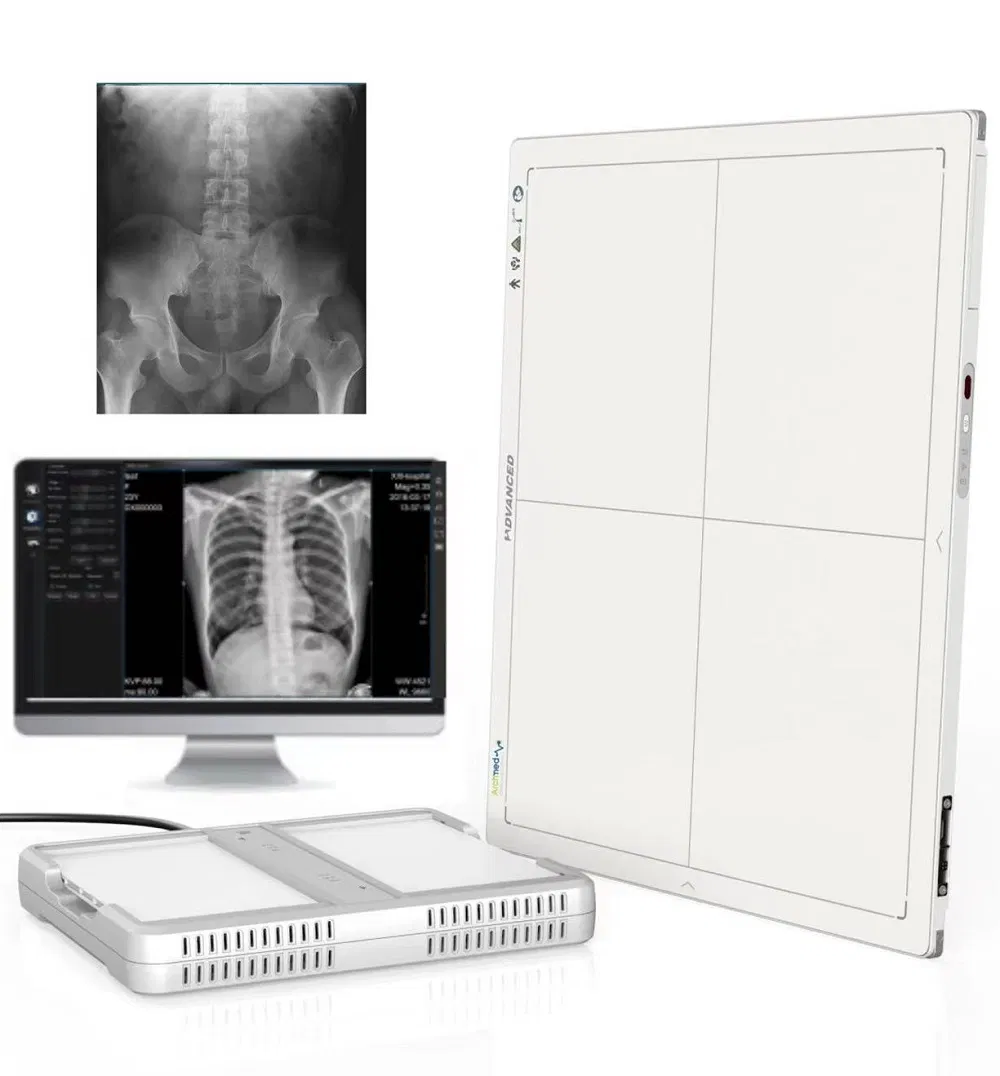

Medical Equipment Digital X-Ray Machine Wireless Flat Panel Detector 17''X17''

The 1717V is a smart wireless, cassette-sized FPD designed for high-quality radiographic imaging. It features reliable AED (Automatic Exposure Detection), dependable wireless performance, and extended battery life. Ideal for both retrofitting existing systems and new DR solutions.

Special Features

Wireless cassette detector per ISO 4090, fits perfectly in bucky
139 μm pixel pitch with 16-bit ADC for superior image detail
Stable iSync+ Automatic Exposure Detection (AED)
Dual-band (2.4 and 5 GHz) wireless support for easy sharing
Direct deposition Csl for better image quality with lower radiation dose

Technical Specifications

Parameter	1717V Details
Detector Technology	Amorphous Silicon
Scintillator	Csi
Active Area (inch)	17 × 17
Pixel Matrix	3072 × 3072
Pixel Pitch (μm)	139
Spatial Resolution (lp/mm)	3.6
AD Conversion (bit)	16
Battery Autonomy (h)	8
WIFI	2.4G and 5G (IEEE802.11 a/b/g/n/ac)
Trigger Mode	AED / Software
Preview Image Time (s)	3
Full Image Time (s)	5
Dimension (mm)	460 x 460 x 15
Weight (kg)	4
Ingress Protection	IPX1

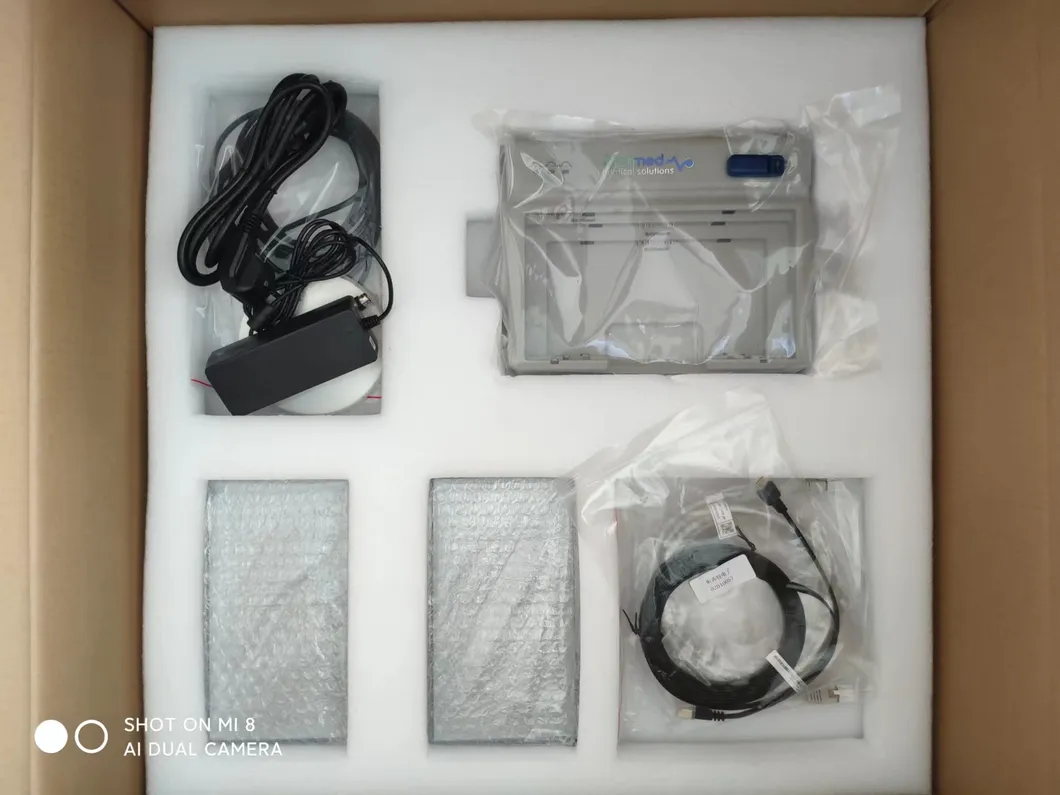

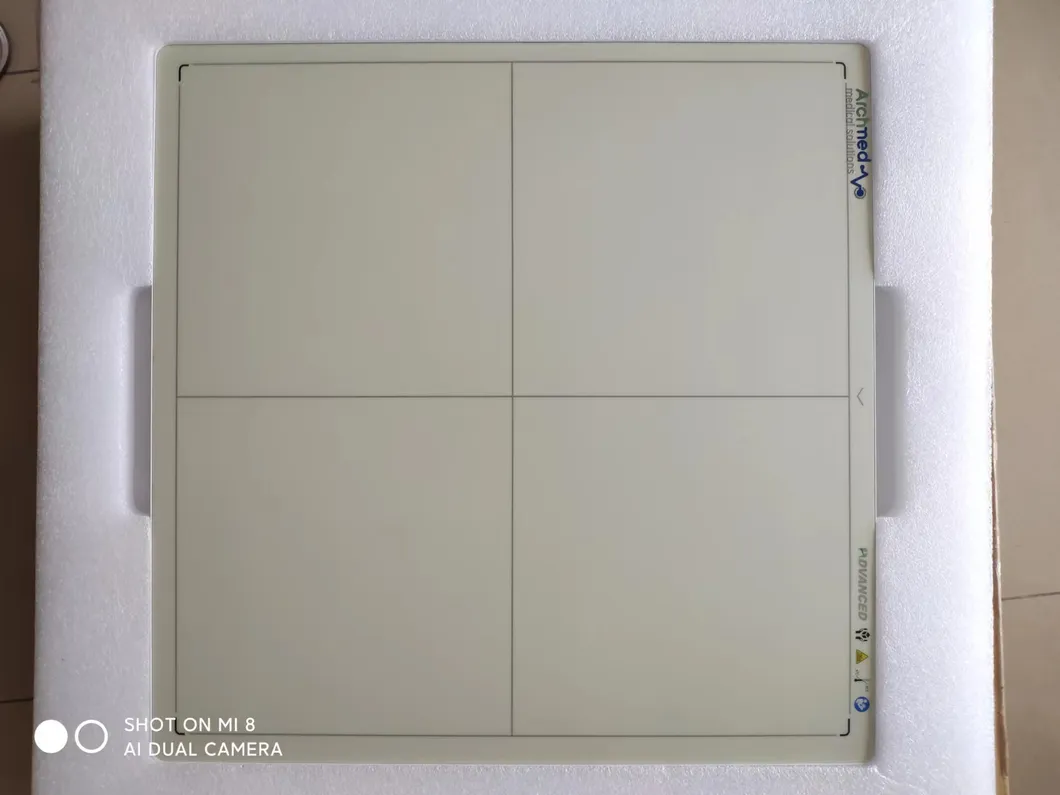

Packaging & Shipping

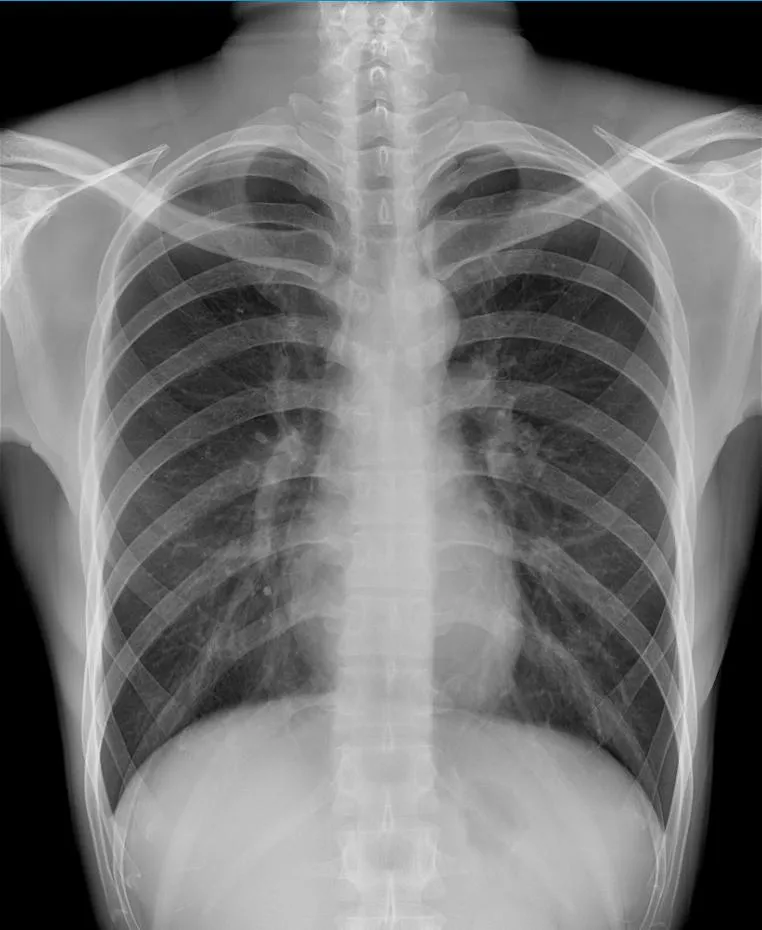

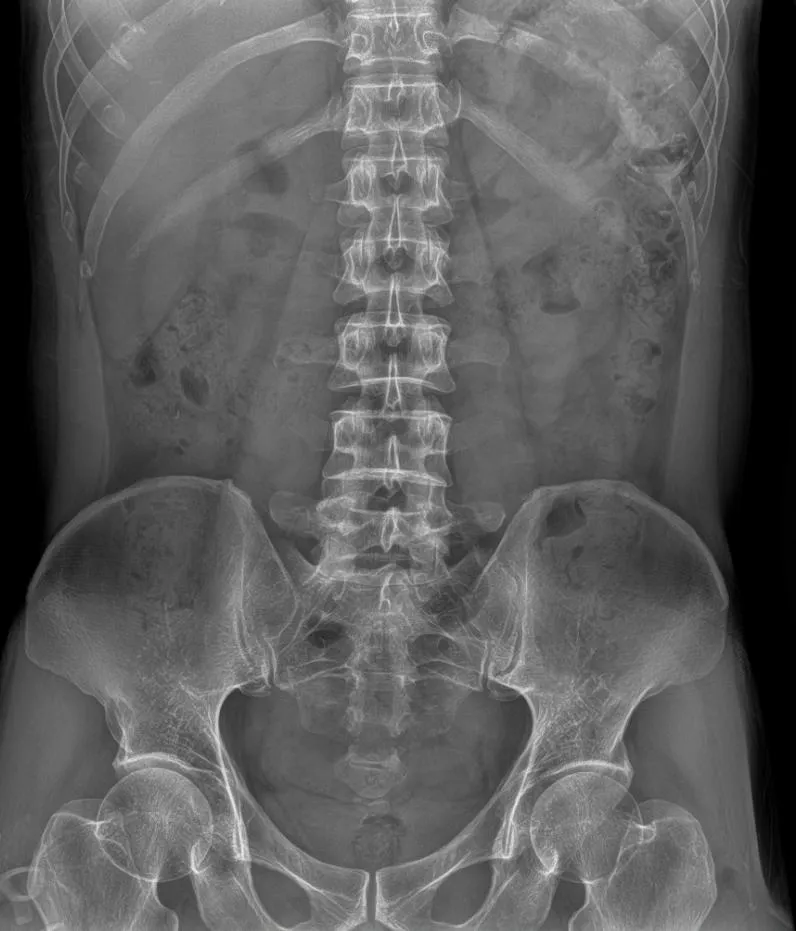

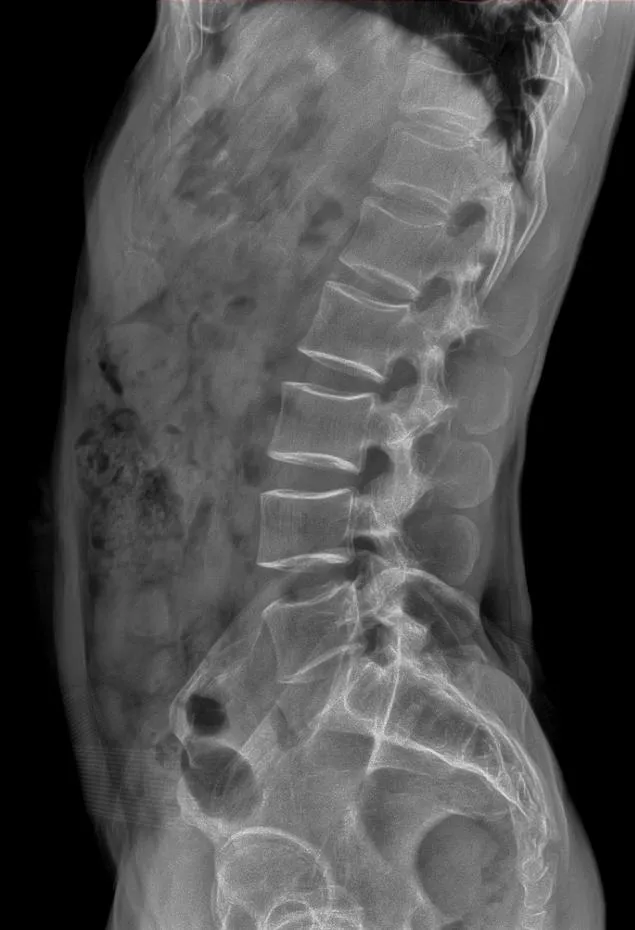

Imaging Performance

Size Sketch & Scope

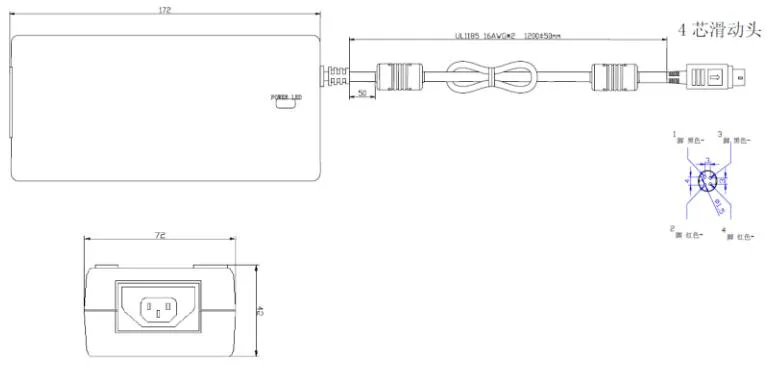

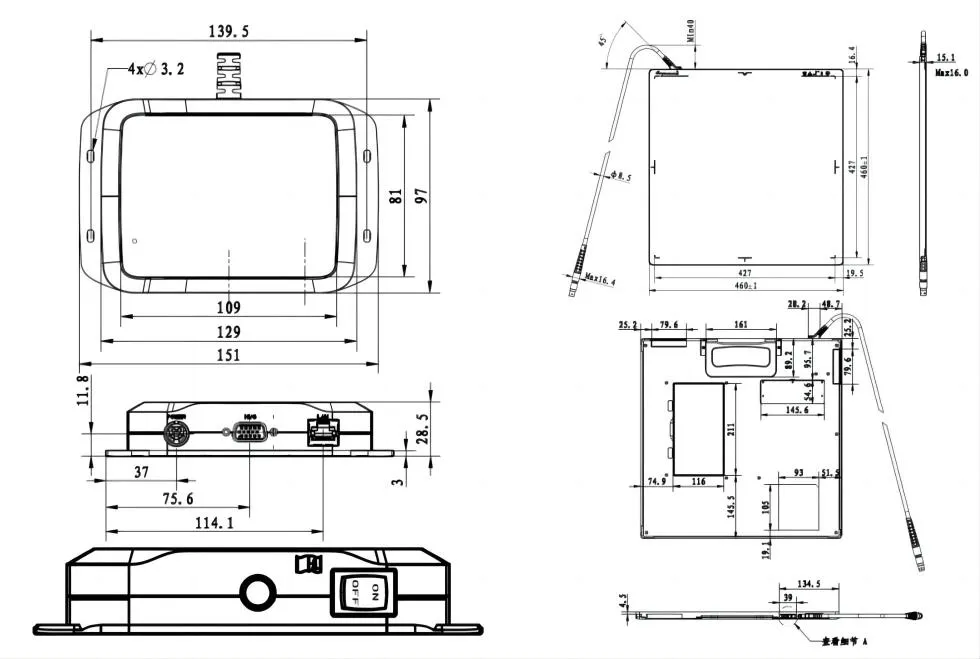

Adapter & Control Box

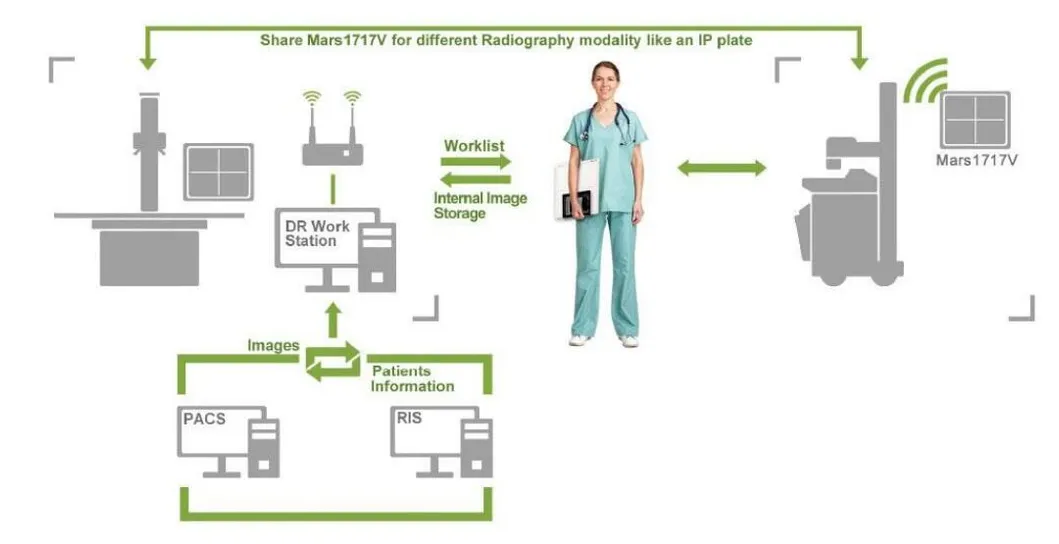

Scope of Application

Optional Components

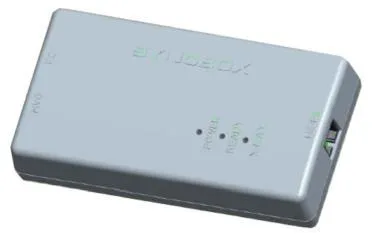

Syncbox

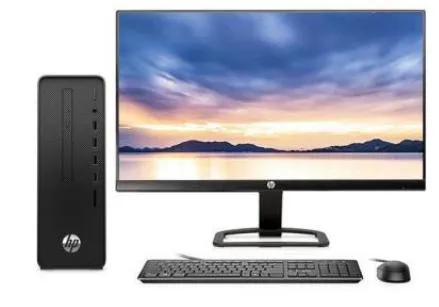

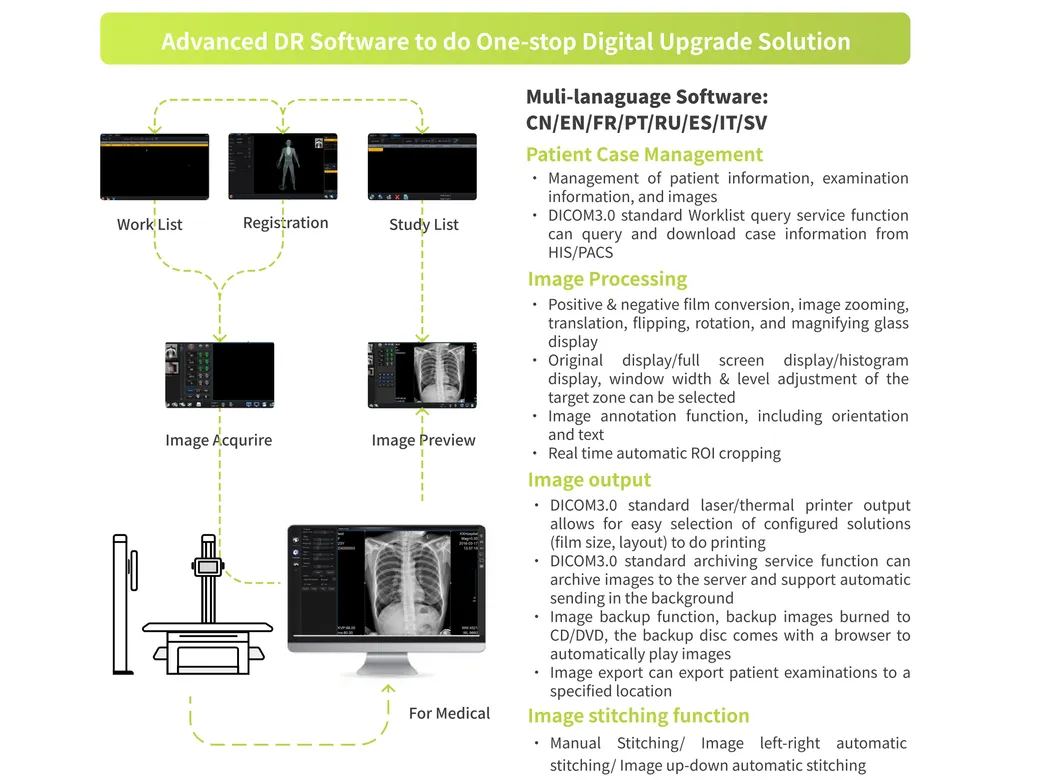

High Performance PC

Medical Workstation

Related Products

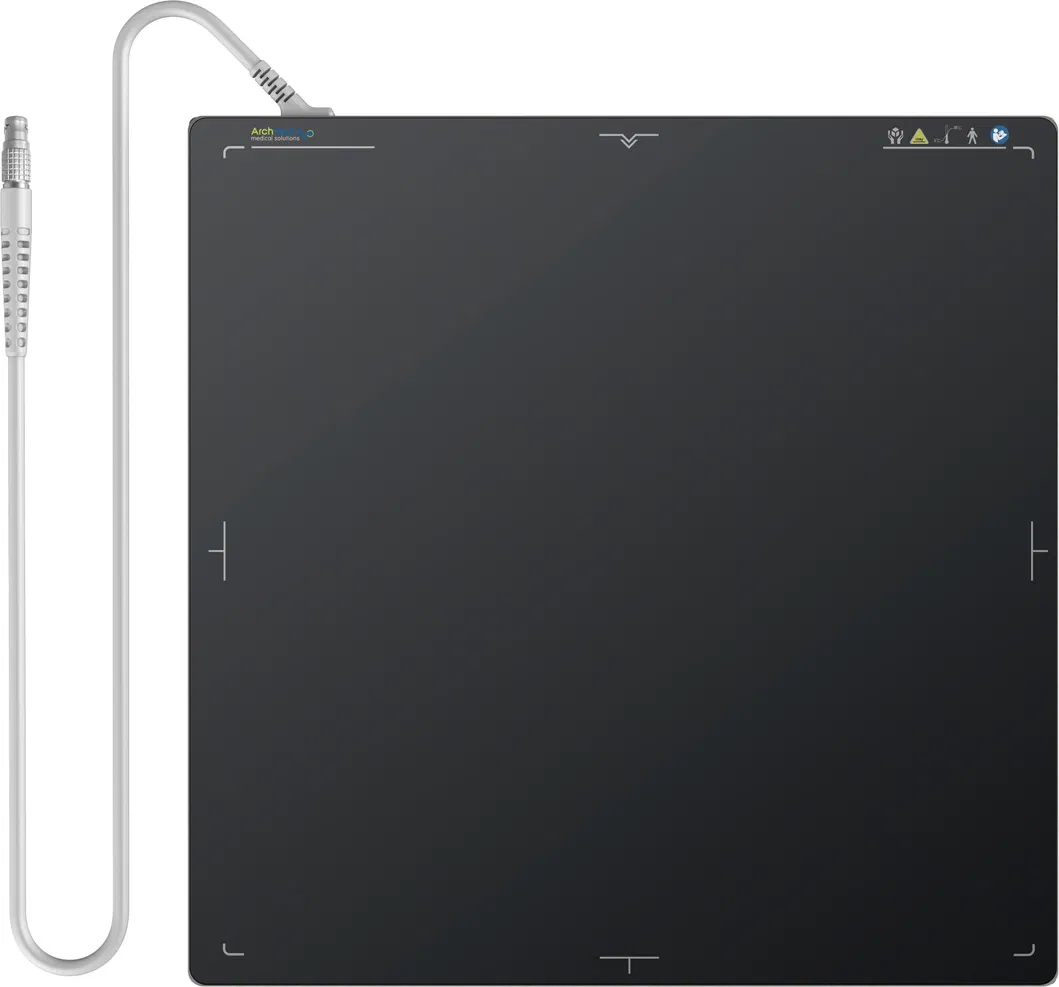

Wired Flat Panel Detector

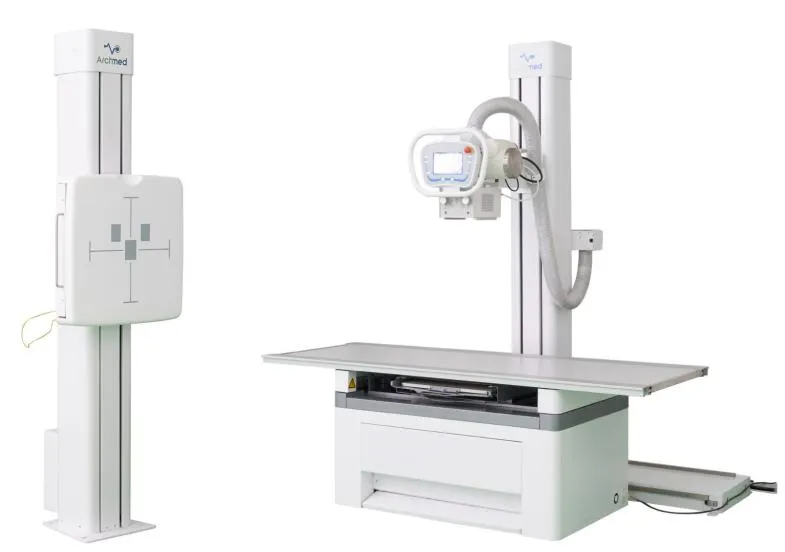

Digital Table X-Ray Machine

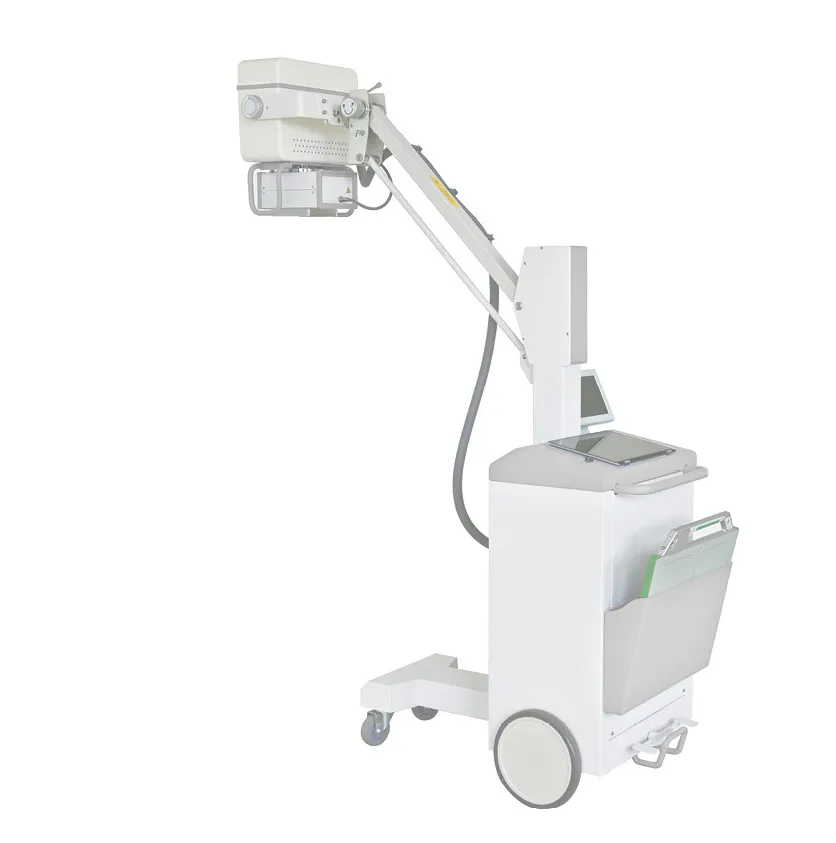

Mobile Digital X-Ray Machine

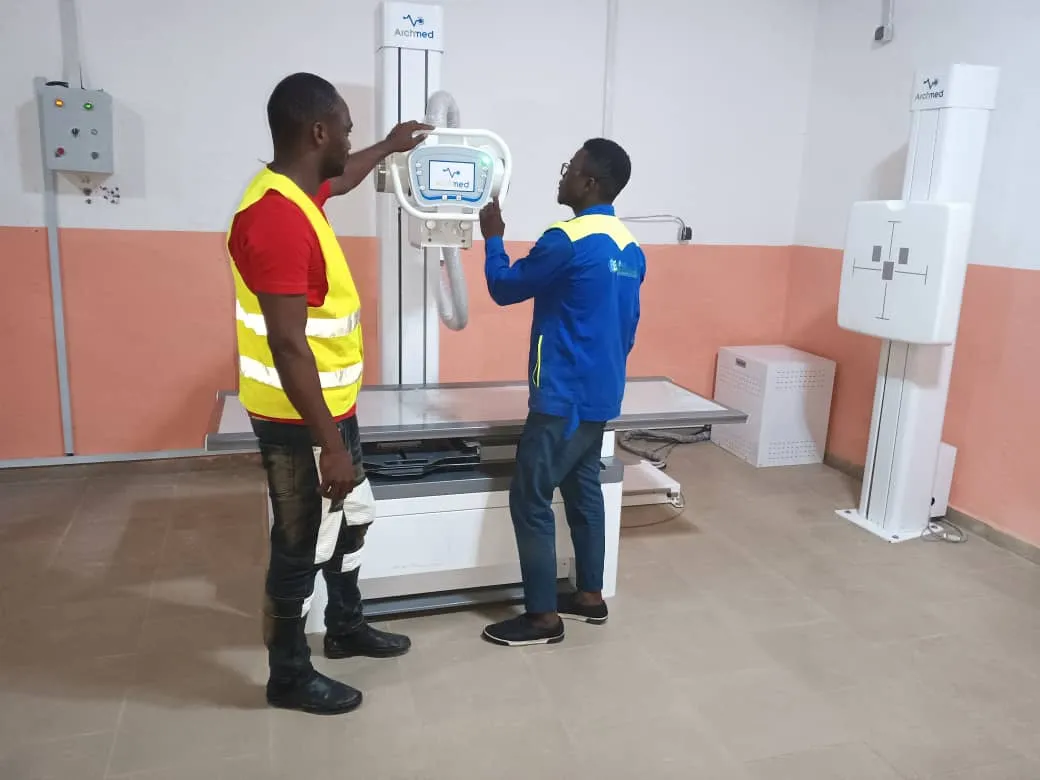

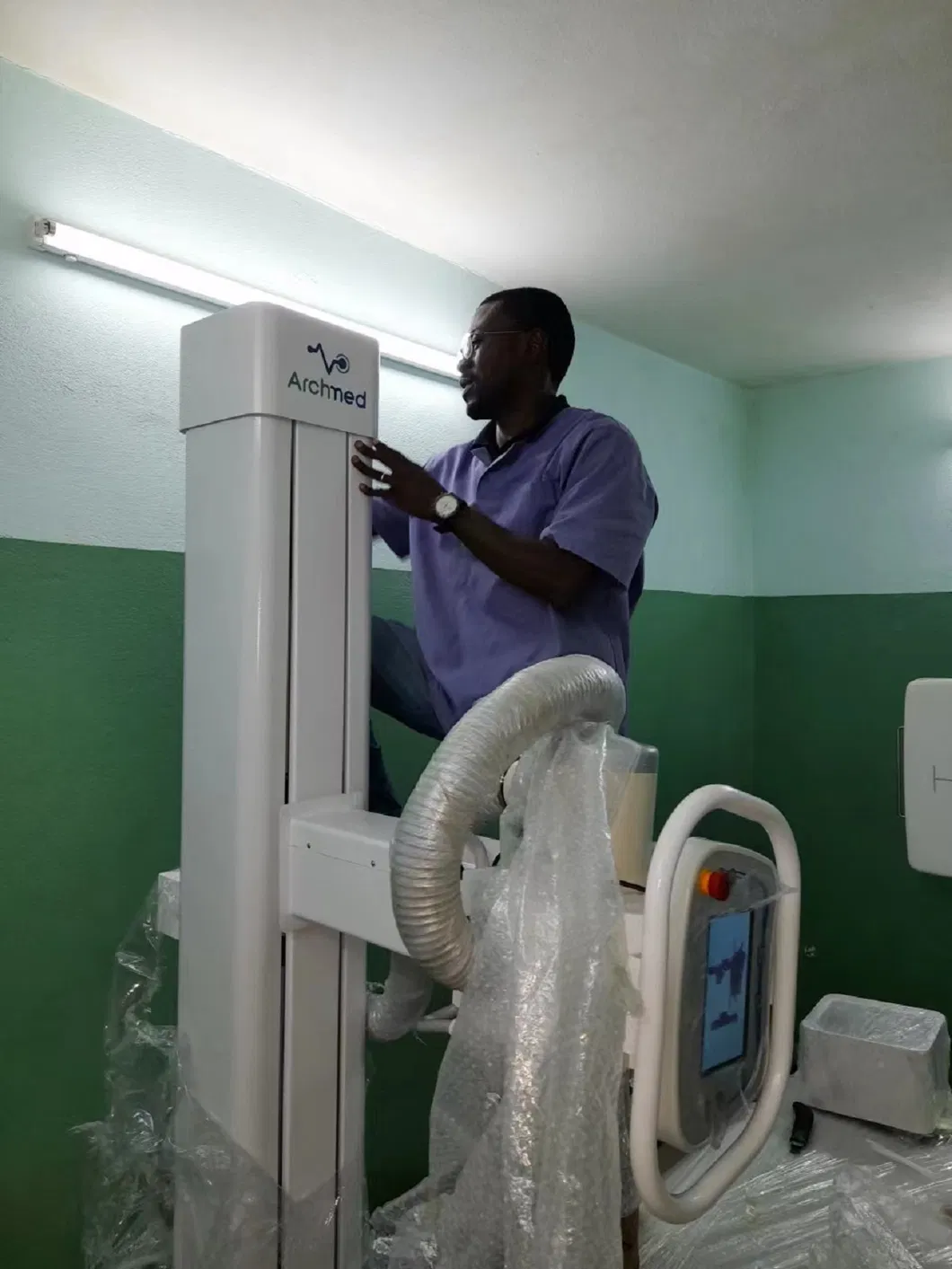

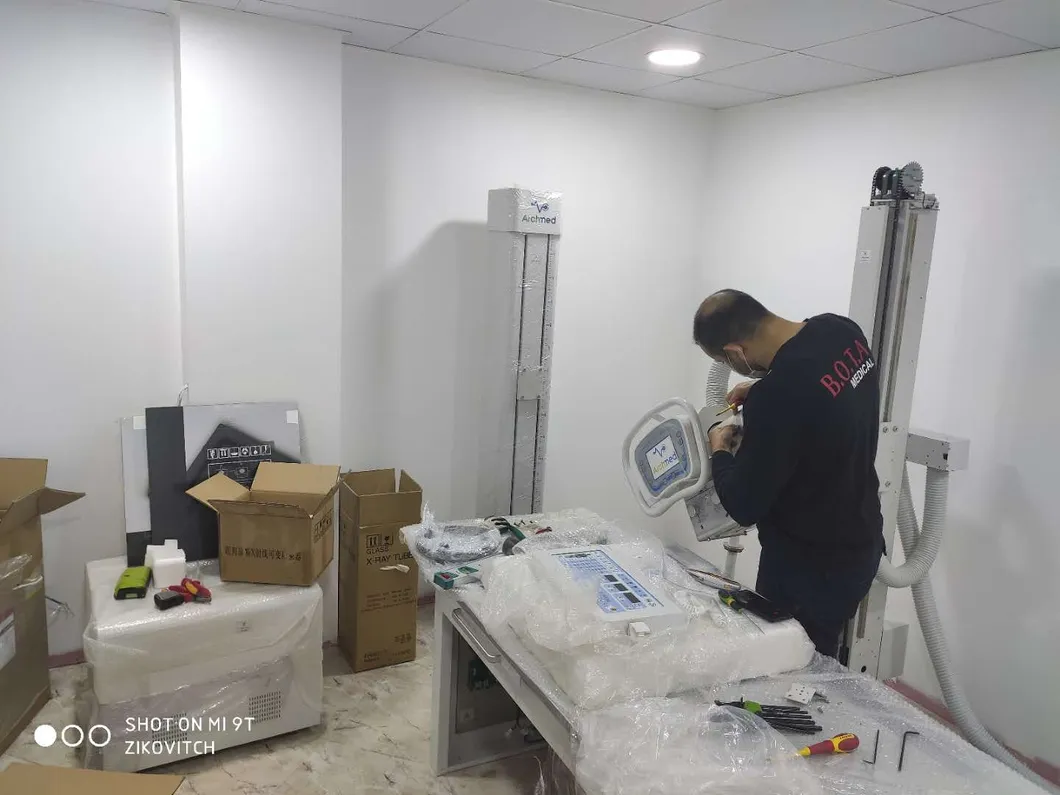

Customer Cases

Frequently Asked Questions

Q1: Are you a manufacturer or a trader? A1: We are an industry and trade company with our own investments in X-ray machine manufacturing to ensure a strong and stable product supply chain.

Q2: What certifications do your products hold? A2: All products are ISO certified. Approximately 90% have CE marking, and select products are FDA approved.

Q3: What is the warranty period for this medical equipment? A3: We provide a standard 14-month warranty after shipment. For our self-manufactured X-ray units, we offer an extended 24-month warranty.

Q4: What payment methods do you accept? A4: We accept T/T in advance, Western Union, MoneyGram, and L/C where required.

Q5: Do you provide OEM services? A5: Yes, OEM services are available. Minimum order quantities may apply depending on the specific product value.

Q6: What is the Minimum Order Quantity (MOQ)? A6: For common medical equipment, the MOQ is 1 piece. For consumables, the MOQ is negotiable based on requirements.
