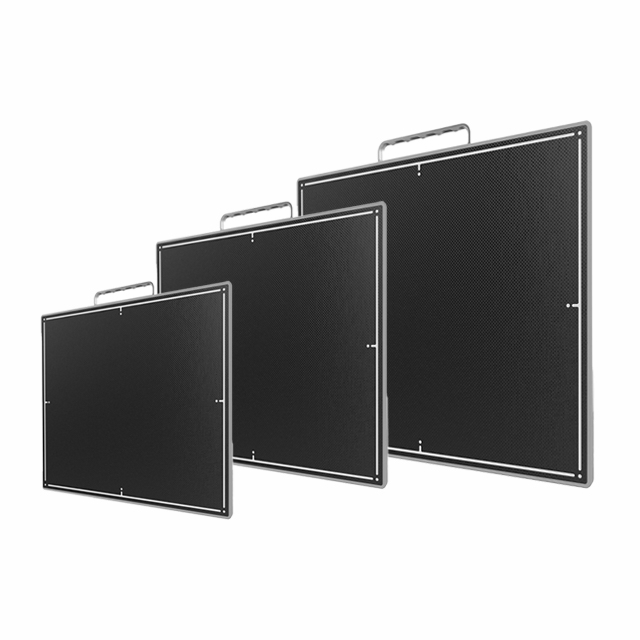

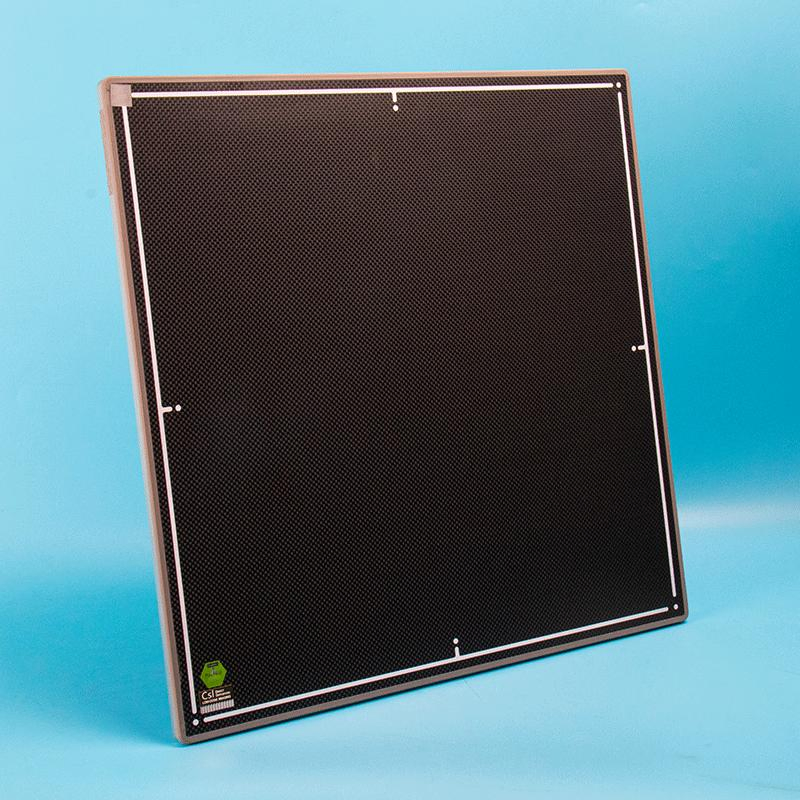

Reliable high-performance digital x-ray detectors. Simple to install and easy to operate. Full-field subject positioning and rapid image acquisition.

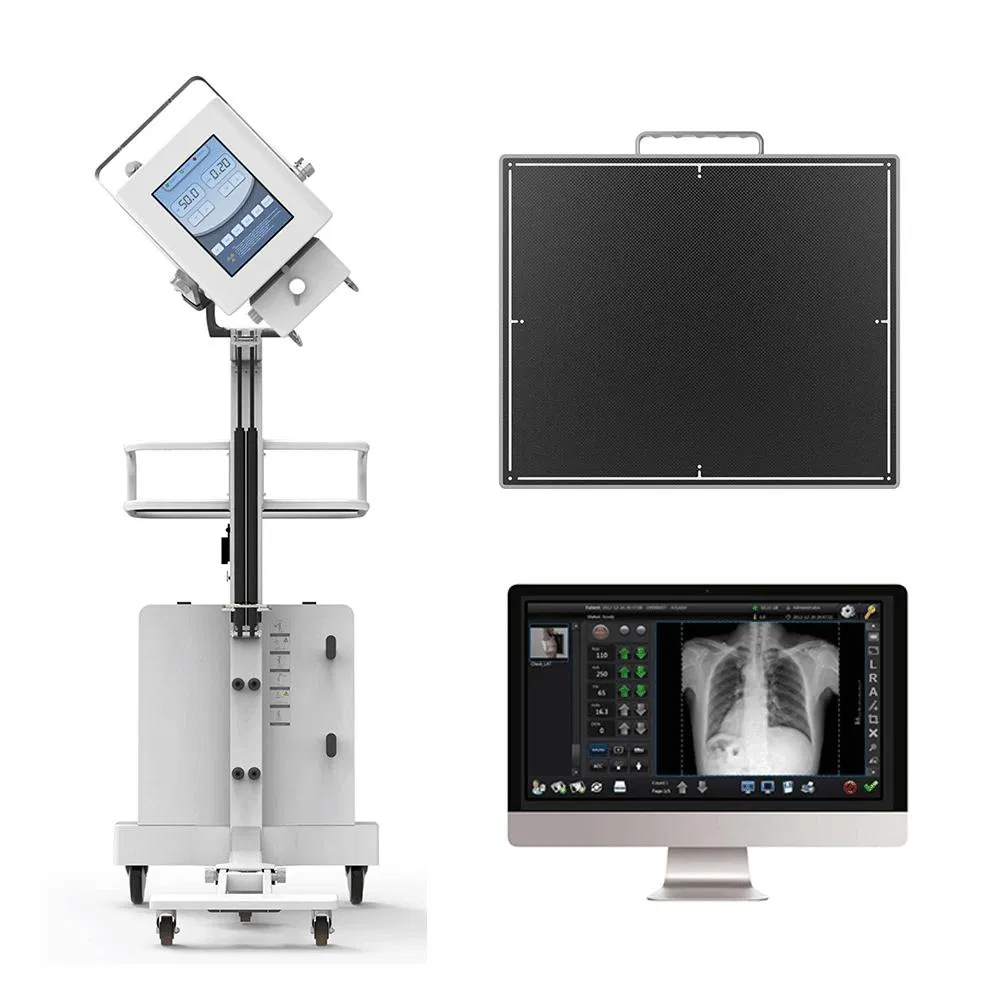

Durable construction for stable long-term performance. Flexible AED allows advanced diagnostic technology to be used with all types of X-ray systems.
Cesium iodide crystals grown in-house and hermetically sealed in packaging. More efficient low dose care with patented imaging technology.
Our newly designed 140um TFT/PD panel. A precise balance of engineering factors perfectly built for highly detailed diagnostic imaging.
| Sensor Specifications | |
|---|---|
| Scintillator | Direct-Deposit Csl (Cesium lodide) |
| Active Area | 430 × 430 mm |
| Image Matrix | 3072 x 3072 pixels |
| Pixel Pitch | 140 um |
| Mechanical & Communication | |
| Dimensions | 460 x 460 x 15 mm |
| Weight | 46 Kg |
| Housing Material | Carbon fiber imaging plate, aluminum alloy body |
| Communication Interface | Gigabit Ethernet |
| Acquisition Time | 2 - 4s |
| Exposure Control | F2AEDR (Full-Field AED), Manual Sync, External Sync |
| Image Quality & Environmental | |
| Spatial Resolution | 3.57 lp/mm |
| MTF | ≥63%(@ 1lp/mm), ≥35%(@ 2 lp/mm) |
| Dynamic Range | > 80 dB |
| Operating Temp | 5-35°C |
| Power Supply | 100 - 240 Volts AC (50/60 Hz) |
