| Model NO. | NS4343WA / NS3543WA |
|---|---|

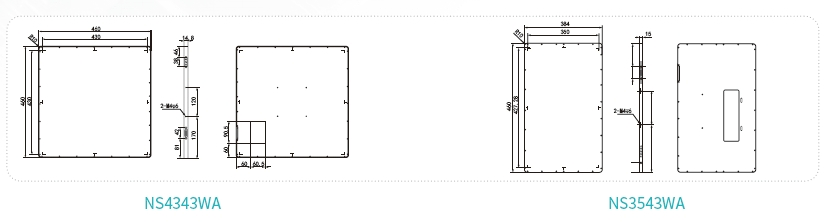

| Dimensions | 460*460*14.8 mm / 384*460*14.8 mm |
| Weight | 4.1kg / 3.6kg |
| Pixel Matrix | 3072*3072 / 2560*3072 |
| Transport Package | Wooden Case |
| Origin | China |

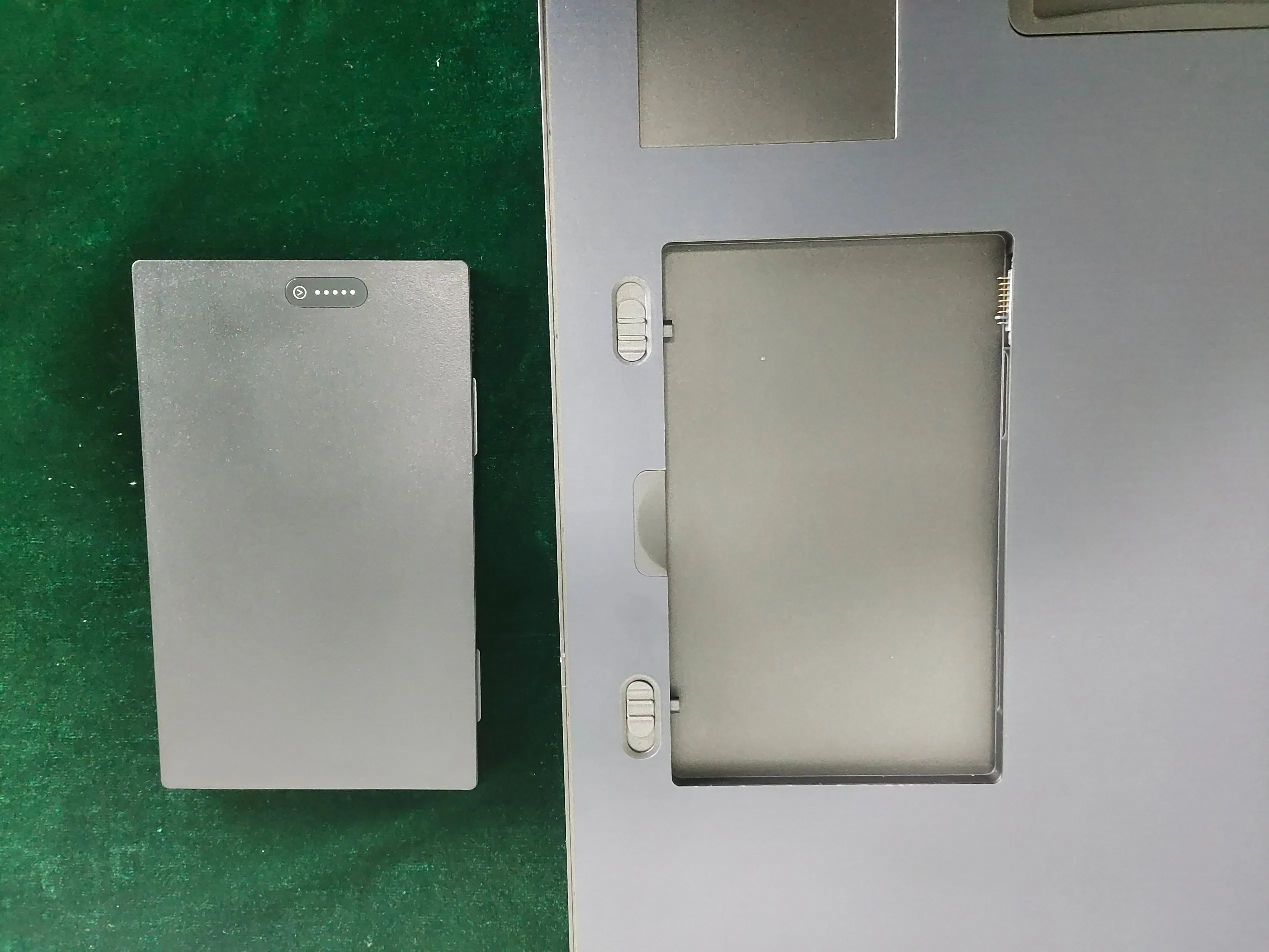

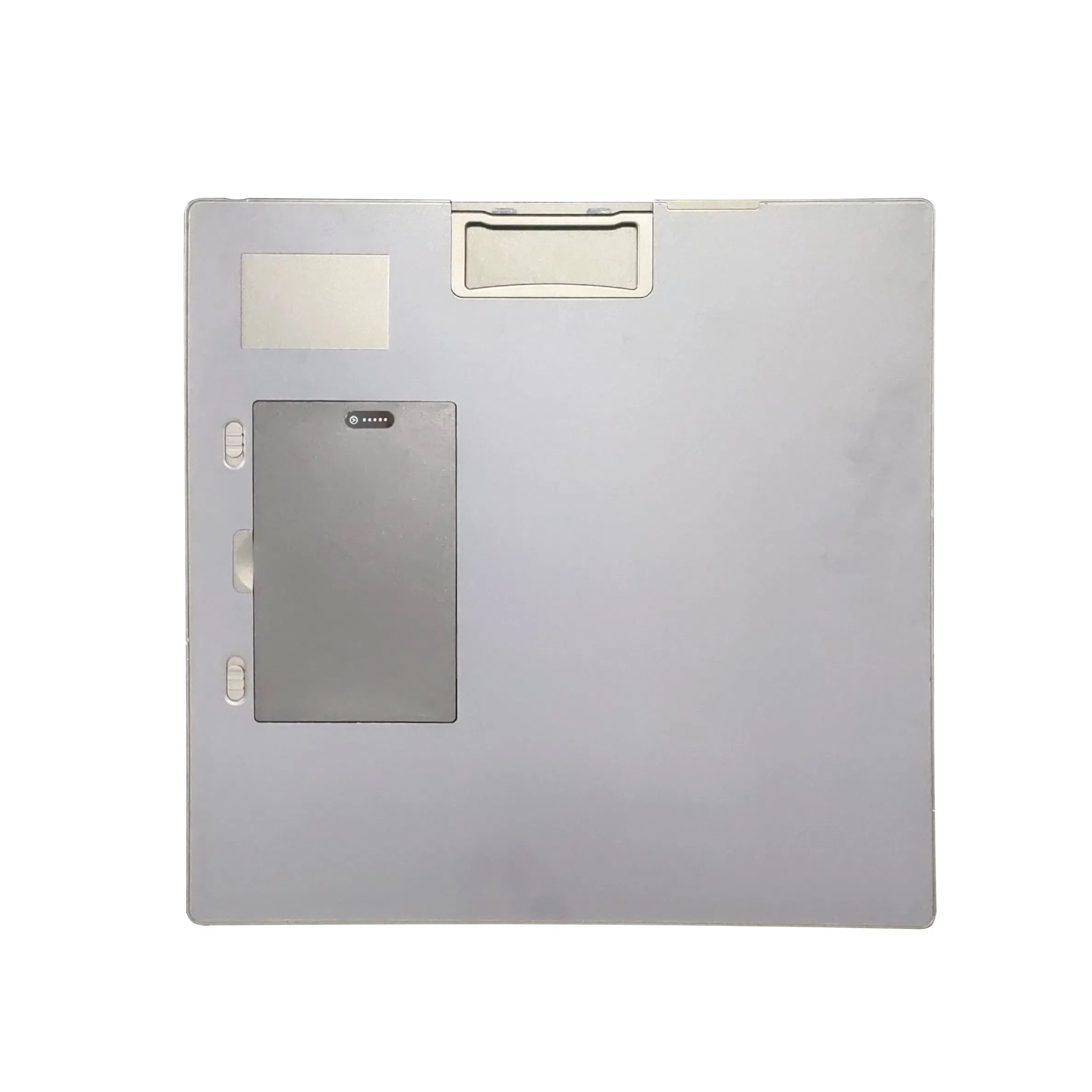

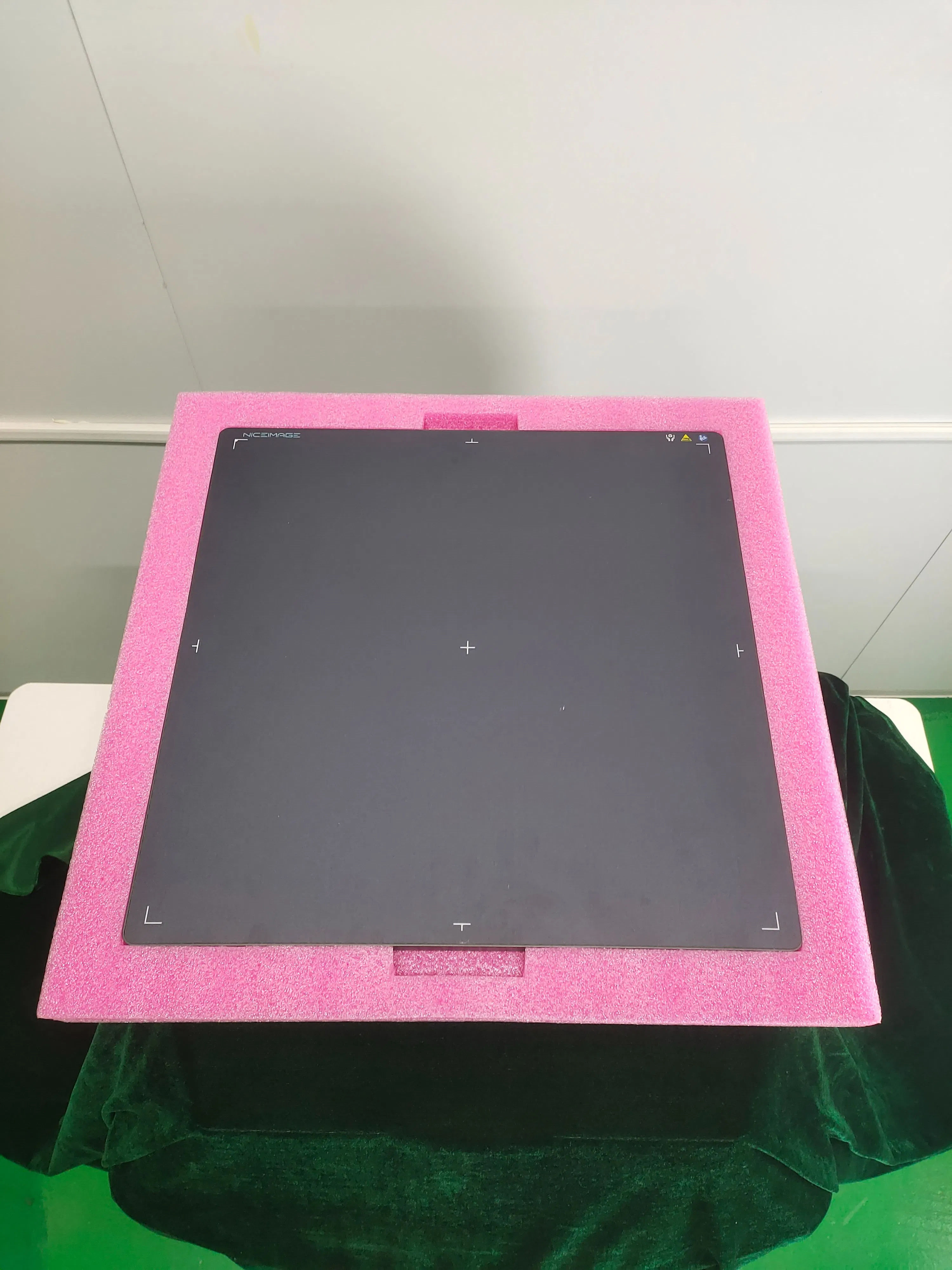

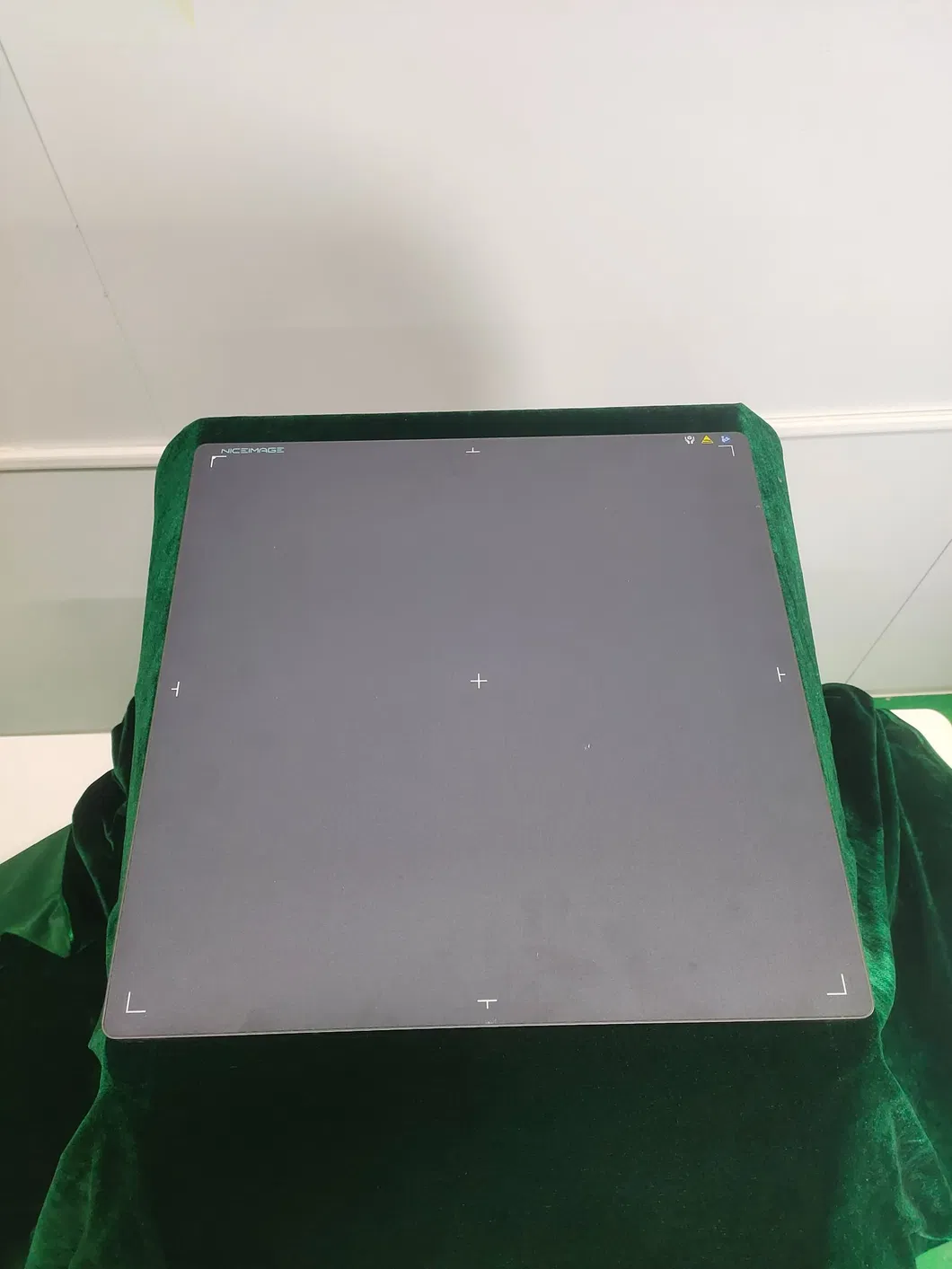

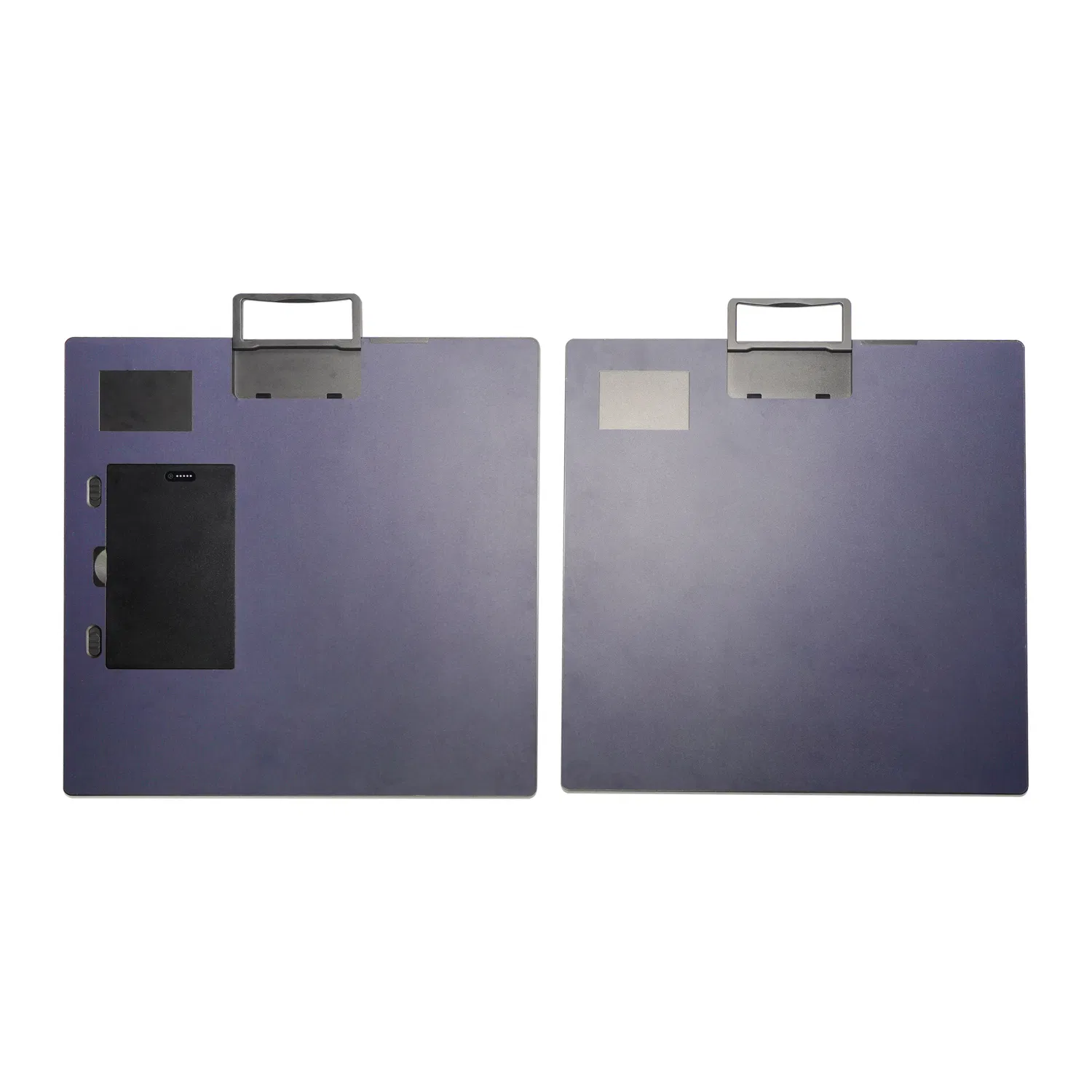

The Wireless Flat Panel Detector features a 139μm pixel pitch with direct deposition Csl. Cutting-edge technologies include a novel light-weight housing design with IP56 ingress protection, in-tray battery charging, and reliable low-power Automatic Exposure Detection (AED). With its exceptional image quality, this Wireless Flat Panel Detector is an excellent choice for high-end DR systems.
| Model | NS4343WA | NS3543WA |
|---|---|---|
| Active Area | 430×430 mm | 350×430 mm |
| Pixel Matrix | 3072×3072 | 2560×3072 |
| Pixel Pitch | 139μm | 139μm |
| AD Conversion | 16bit | 16bit |
| Limiting Resolution | 3.7 LP/mm | 3.7 LP/mm |
| Full View Time | 5s | 5s |
| Data Interface | GBE | GBE |
| Battery Autonomy | 4.5h | 4.5h |
| Charging Time | 2.5h | 2.5h |
| Adapter Input | AC 100-240V, 50-60Hz | AC 100-240V, 50-60Hz |
| Housing Material | Carbon, Alloy | Carbon, Alloy |
| Ingress Protection | IP56 | IP56 |
| Weight | 4.1kg (No batteries) | 3.6kg (No batteries) |
We are a professional supplier of one-stop solutions for X-ray equipment. Our products are widely used in medical, dental, veterinary, and industrial imaging applications. We focus on providing a wide range of X-ray products including flat panel detectors, generators, scintillators, X-ray tubes, stands, DR assembly solutions, as well as DR software and cloud PACS systems. Our aim is to provide valuable, cost-effective solutions and services to customers worldwide.
