Basic Information
| Model NO. |
YSFPD-M1417V |
| Certification |
ISO13485 |
| Power Type |
Electric |
| Group |
Adult |
| Scintillator |
CSL |
| Active Area (mm2) |
346 X 420 |
| Pixel Matrix |
2304 X 2800 |
| Pixel Pitch (Um) |
150 |
| Spatial Resolution (Lp/mm) |
3.4 |
| Ad Conversion (Bit) |
16 |
| Transport Package |
Plywood Case |
| Origin |
China |
| Production Capacity |
1000 PCS/Year |
Product Description

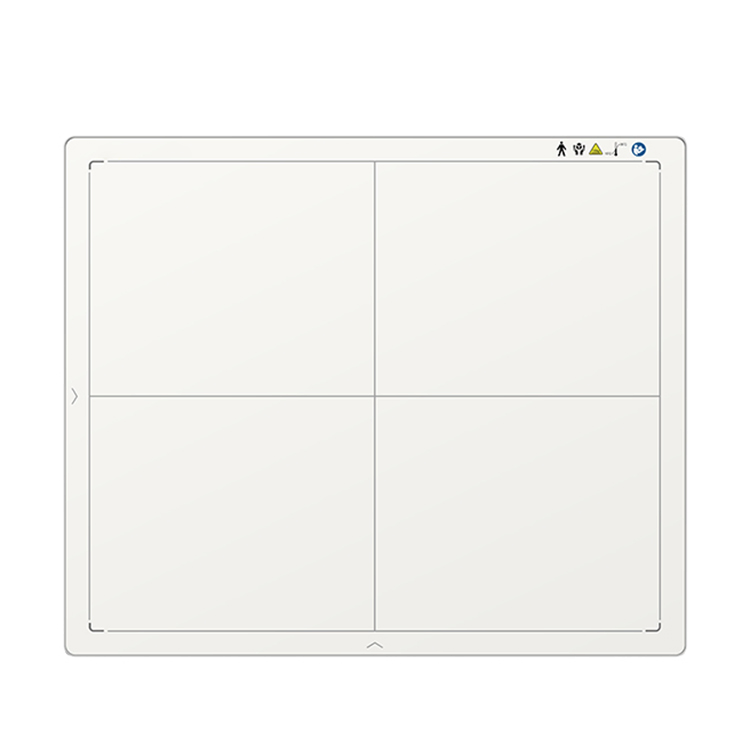

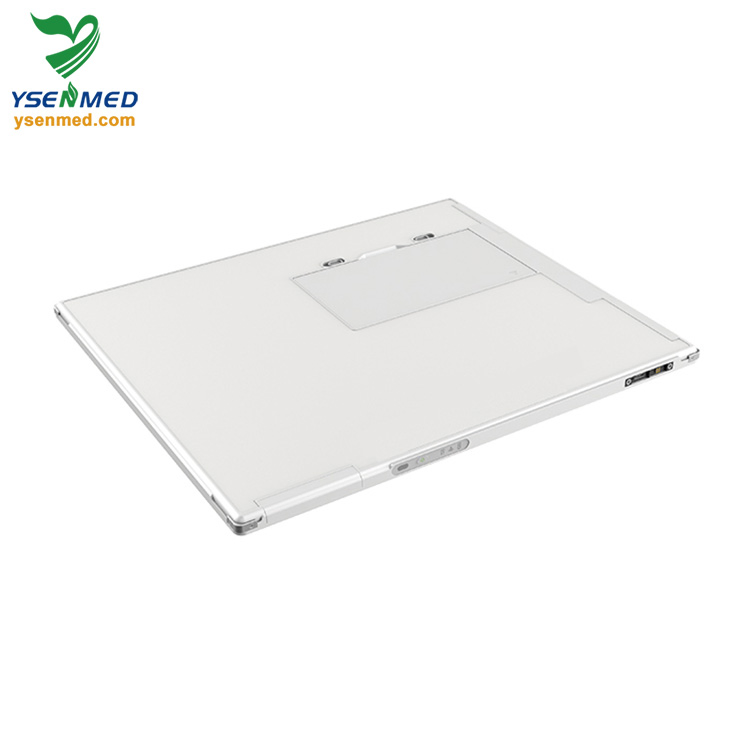

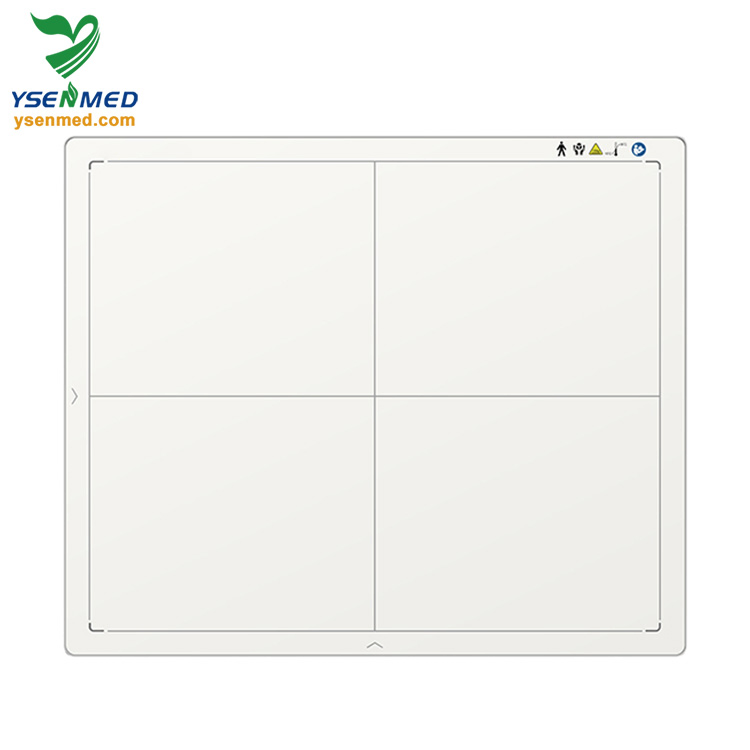

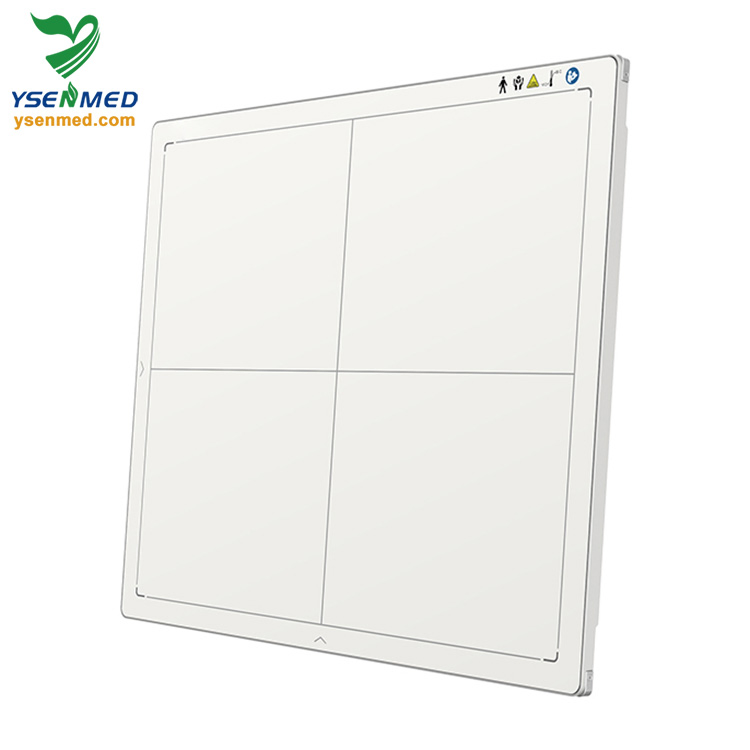

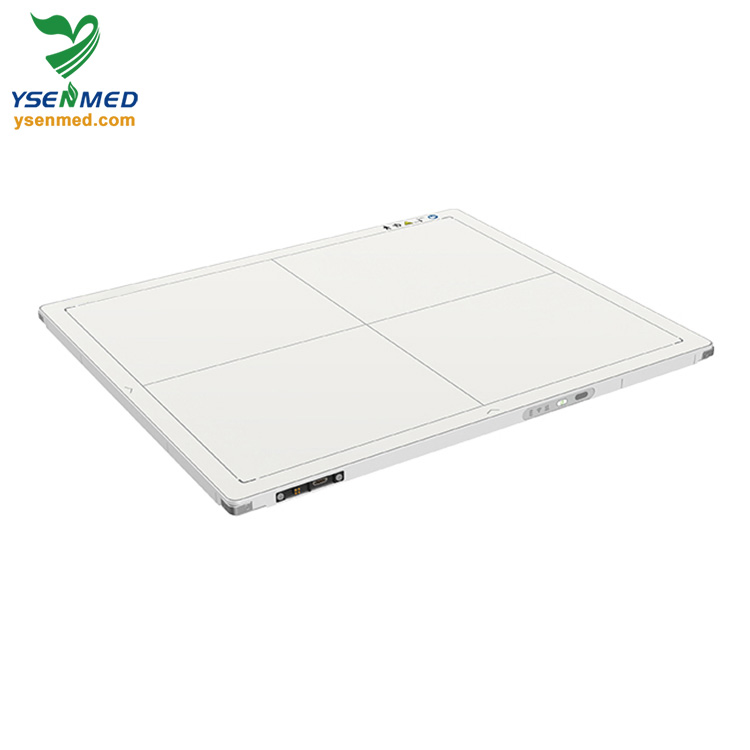

YSFPD-M1417V is a smart 14×17-inch wireless, cassette-sized FPD for radiographic imaging. It features reliable AED, dependable wireless performance, and a long battery life. The YSFPD-M1417V supports a fast workflow and is the optimal choice for both retrofit and new DR system solutions.
✓
Wireless cassette detector per ISO 4090, fits in bucky.
✓
150 um pixel pitch, with 16 bit ADC for more image details.
✓
Stable iSync+ Automatic Exposure Detection (AED).
Frequently Asked Questions
What is the active imaging area of this detector?
The YSFPD-M1417V provides a large active area of 346 mm x 420 mm, suitable for various radiographic imaging needs.
Does this detector require a wired connection to the X-ray generator?
No, it features stable iSync+ Automatic Exposure Detection (AED) and dependable wireless performance, allowing for a cable-free workflow.
Is it compatible with existing X-ray film bucky trays?
Yes, it is designed as a cassette-sized detector following ISO 4090 standards, making it an ideal choice for retrofitting existing analog systems to digital.
What kind of image quality can I expect?
With a 150 um pixel pitch and 16-bit AD conversion, the detector captures high-resolution images with fine details and excellent contrast.
What scintillator technology is used in this model?
This model utilizes a CSL (Cesium Iodide) scintillator, which is known for high X-ray absorption efficiency and superior image clarity.
How is the battery performance for daily clinical use?
The YSFPD-M1417V is equipped with a long-life battery designed to support a fast and continuous clinical workflow throughout the day.
