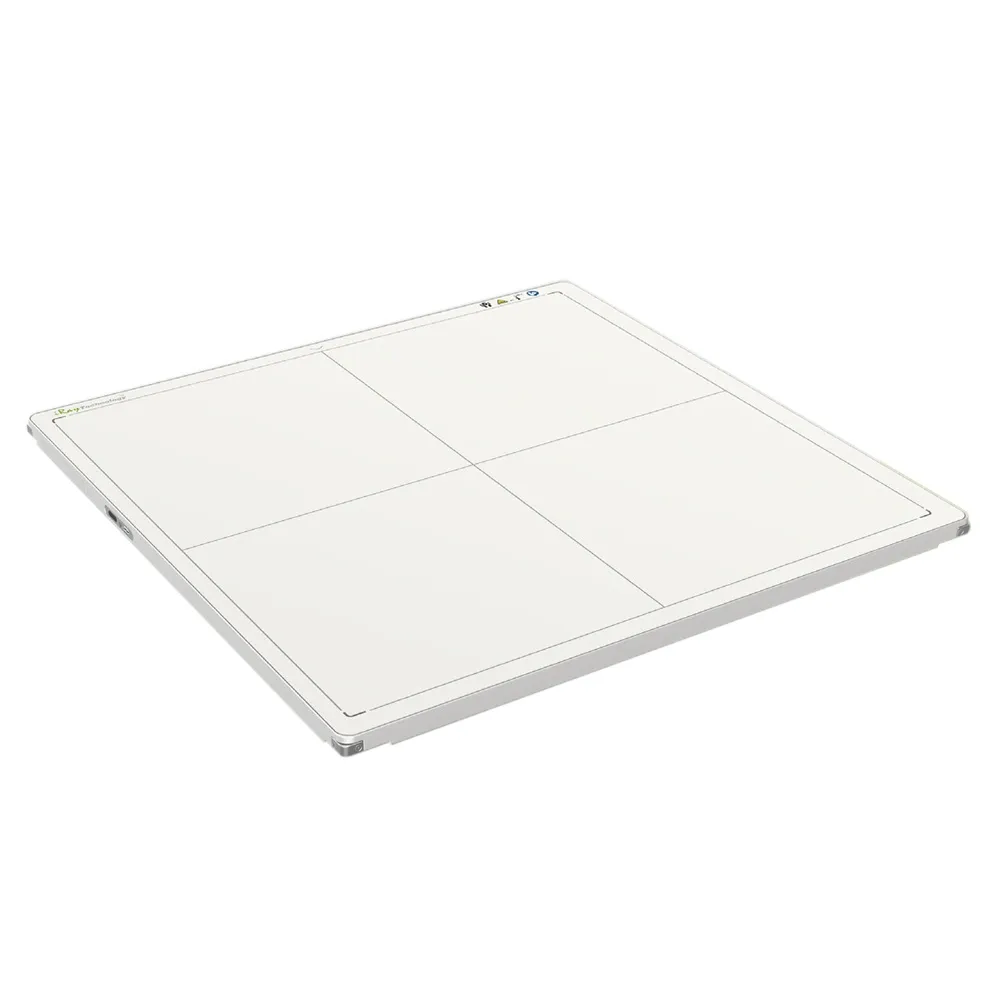

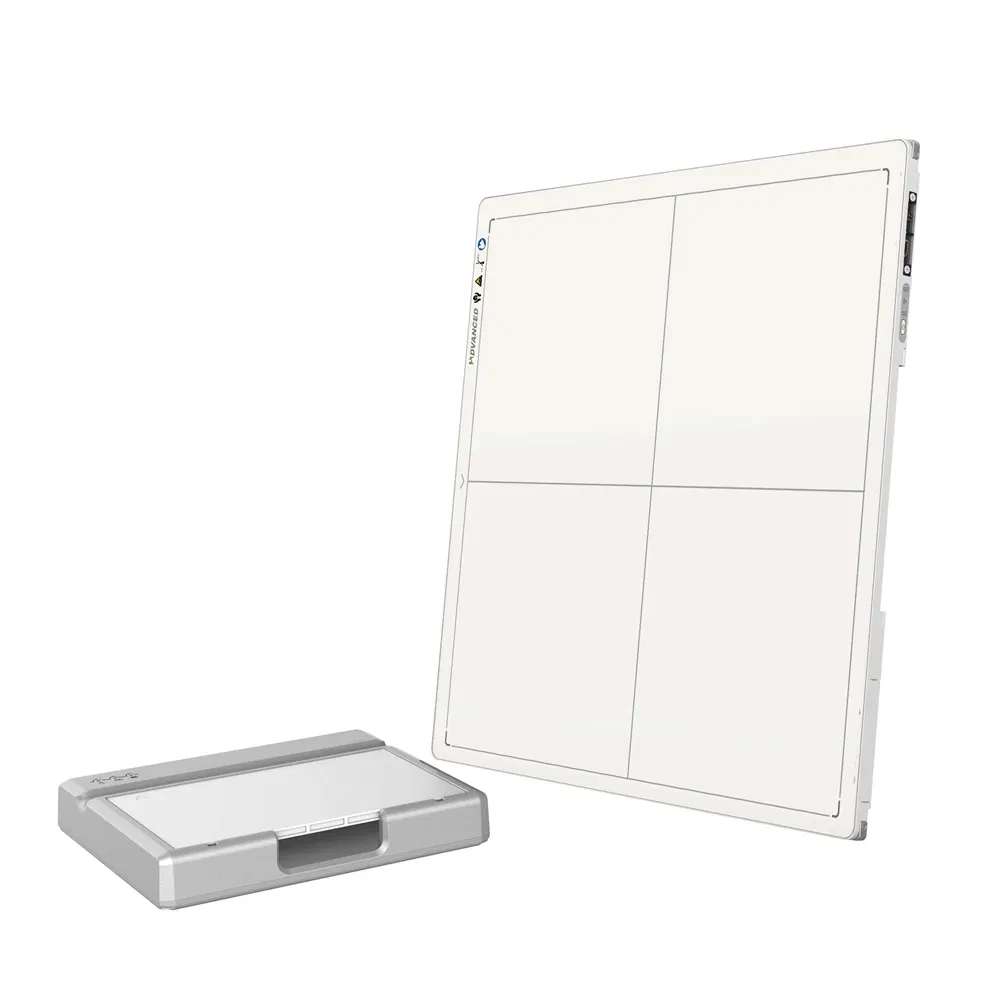

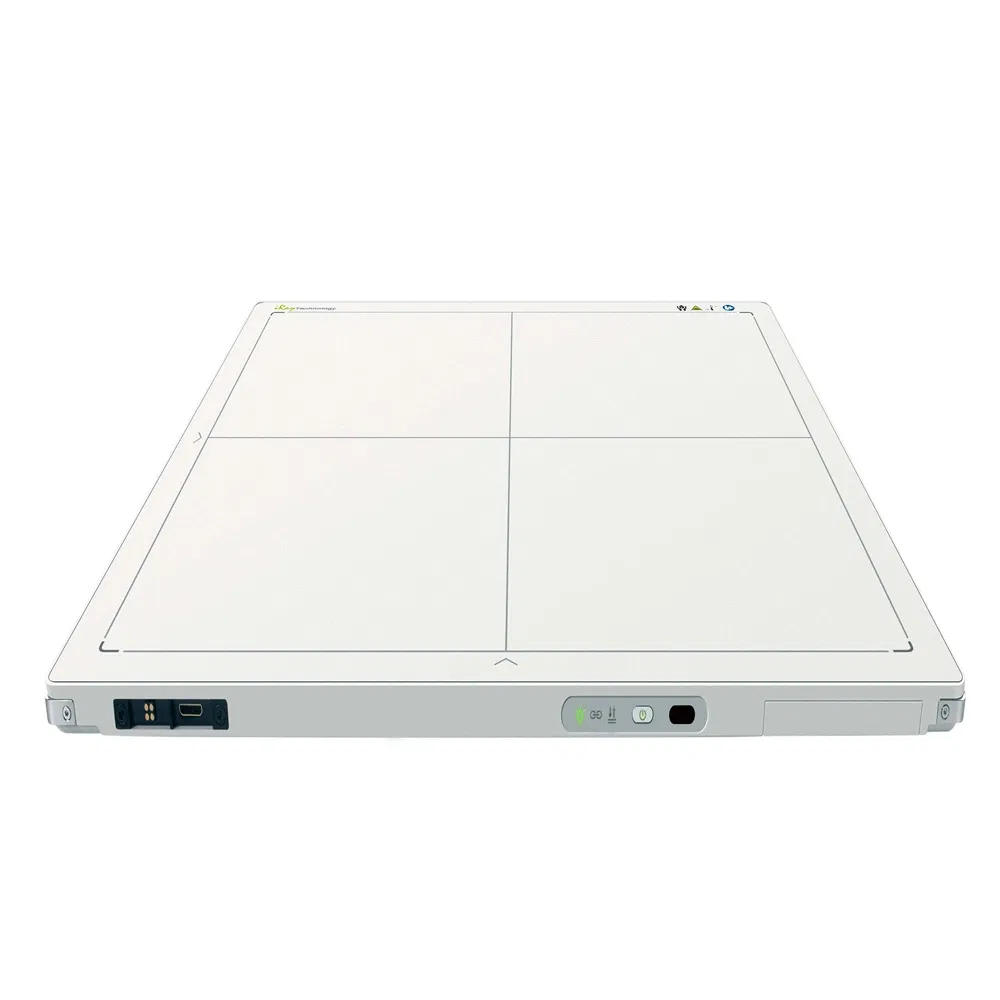

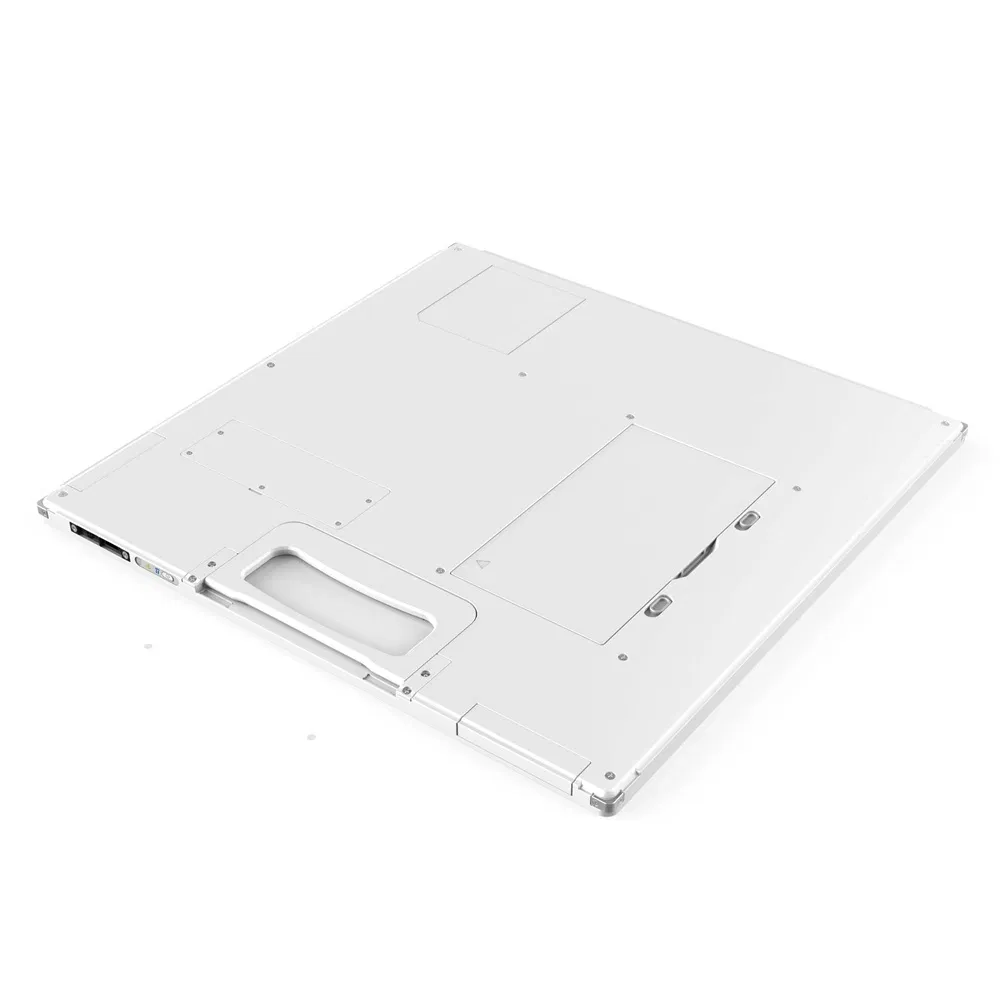

Mars 1717V is a smart 17×17 inch wireless, cassette-sized FPD for radiographic imaging. It features reliable AED, dependable wireless performance, and a long battery life. The Mars 1717V supports a fast workflow and is the optimal choice for both retrofit and new DR system solutions.
| Detector Technology | Amorphous Silicon |
| Scintillator | Csl |
| Active Area (inch) | 17 × 17 |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch (um) | 139 |
| Spatial Resolution (lp/mm) | 3.6 |
| AD Conversion (bit) | 16 |
| Battery Autonomy (h) | 8 |
| WIFI | 2.4G and 5G, IEEE802.11 a/b/g/n/ac |
| Trigger Mode | AED (Optional) / Software |
| Full Image Time (s) | 5 |

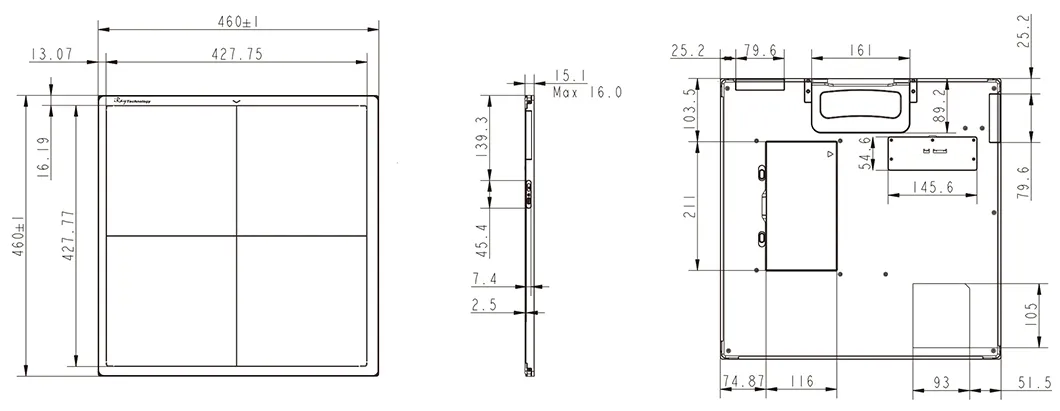

| Dimensions (mm) | 460 x 460 x 15 |
| Weight (kg) | 4.6 |
| Static Loading | 150kg Uniformly |
| Ingress Protection | IPX1 |
Our facility is a leading supplier of medical equipment, specializing in the medical device industry. Our broad product range covers surgical equipment, X-ray machines, laboratory equipment, patient monitors, electrocardiograms, ultrasound scanners, dental equipment and hospital furniture.
We have been committed to providing customers with high quality, competitive prices and good after-sales service for the long term. We have built an efficient global marketing network. Over the years, our products have been exported to Africa, Latin America, the Middle East, Southeast Asia, Europe and the United States, and have gained a good reputation.
We welcome customers from all over the world to explore our products, and we can assure you of high quality, attentive service and competitive prices. Your cooperation with us will surely create a win-win situation.
The detector features a large 17 x 17 inch active area, making it suitable for a wide range of radiographic imaging applications.
The Mars 1717V provides up to 8 hours of battery autonomy, ensuring a smooth and uninterrupted clinical workflow.
Yes, the device supports dual-band wireless (2.4G and 5G) following the IEEE802.11 a/b/g/n/ac standards for stable and fast data transmission.
It utilizes Direct Deposition CsI (Cesium Iodide) technology, which provides superior image quality while requiring a lower radiation dose.

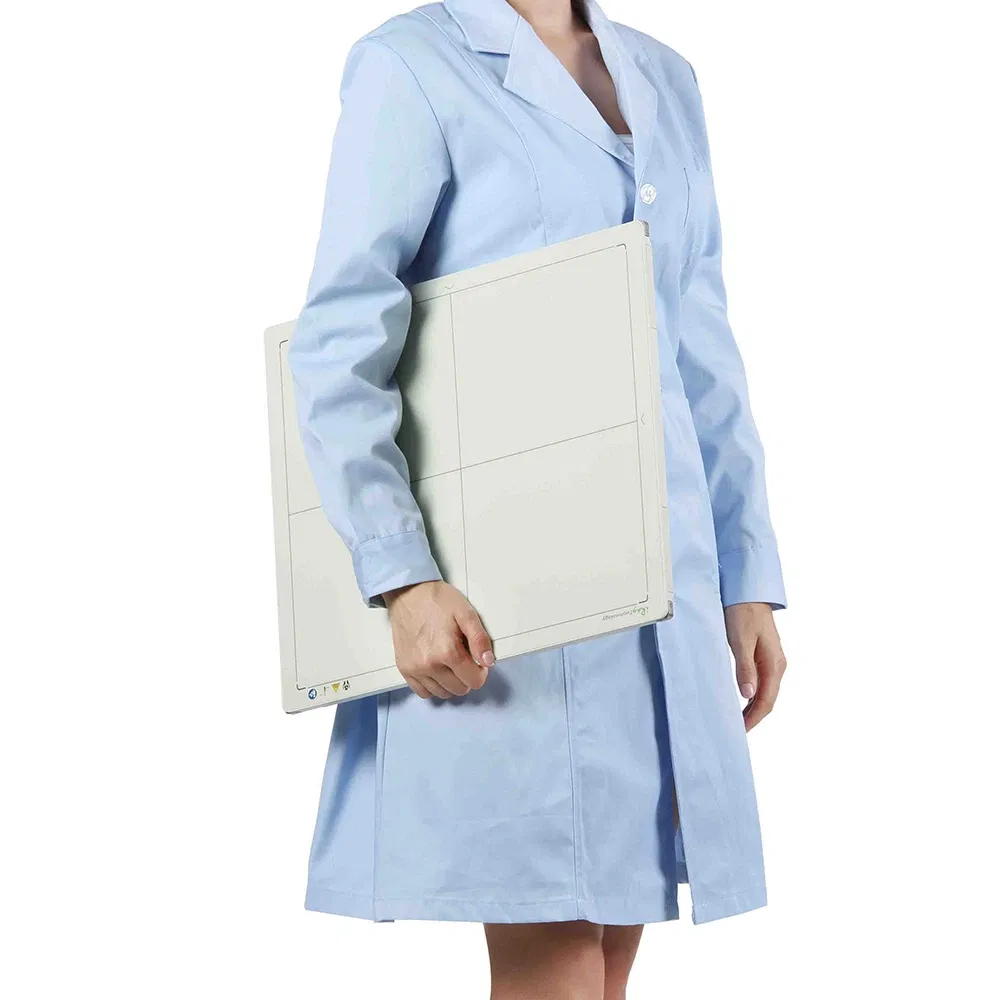

Yes, its cassette-sized design (per ISO 4090) allows it to fit easily into standard bucky trays, making it ideal for both retrofits and new installations.
The detector offers a high spatial resolution of 3.6 lp/mm and a pixel pitch of 139 μm for detailed radiographic images.
