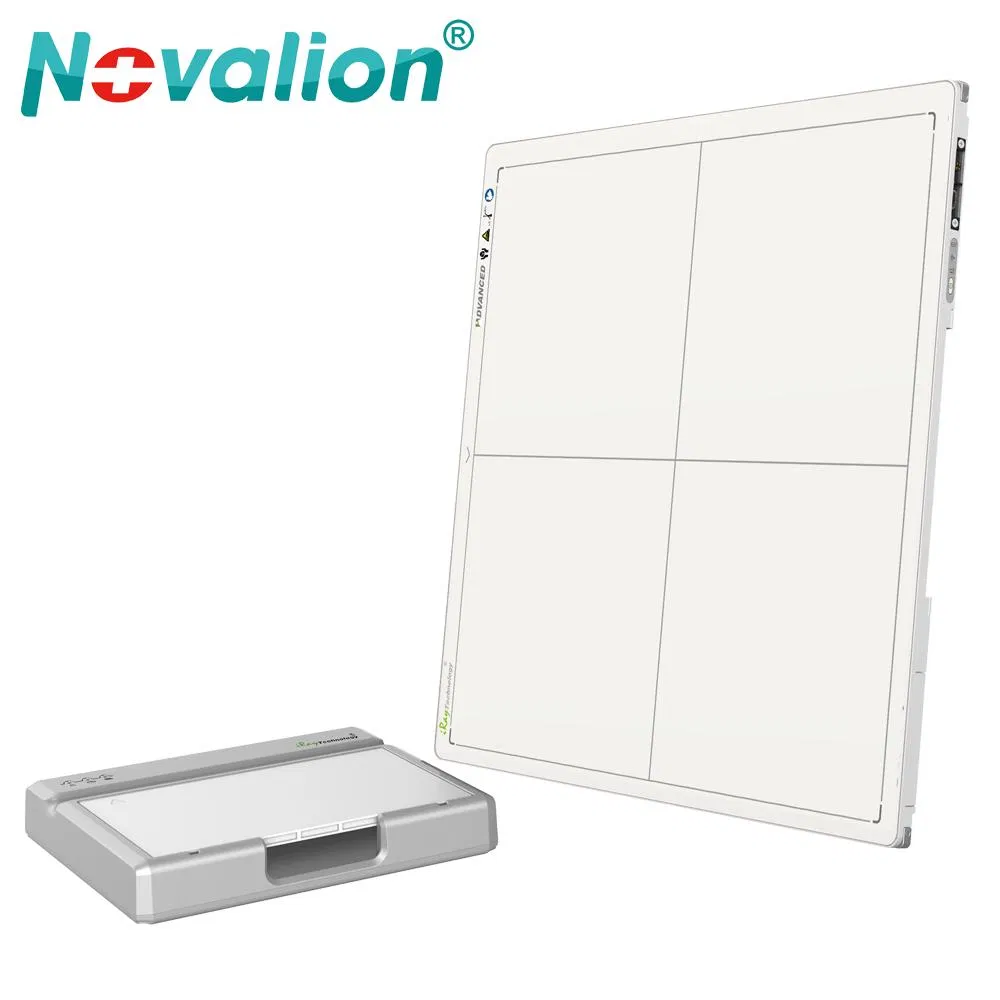

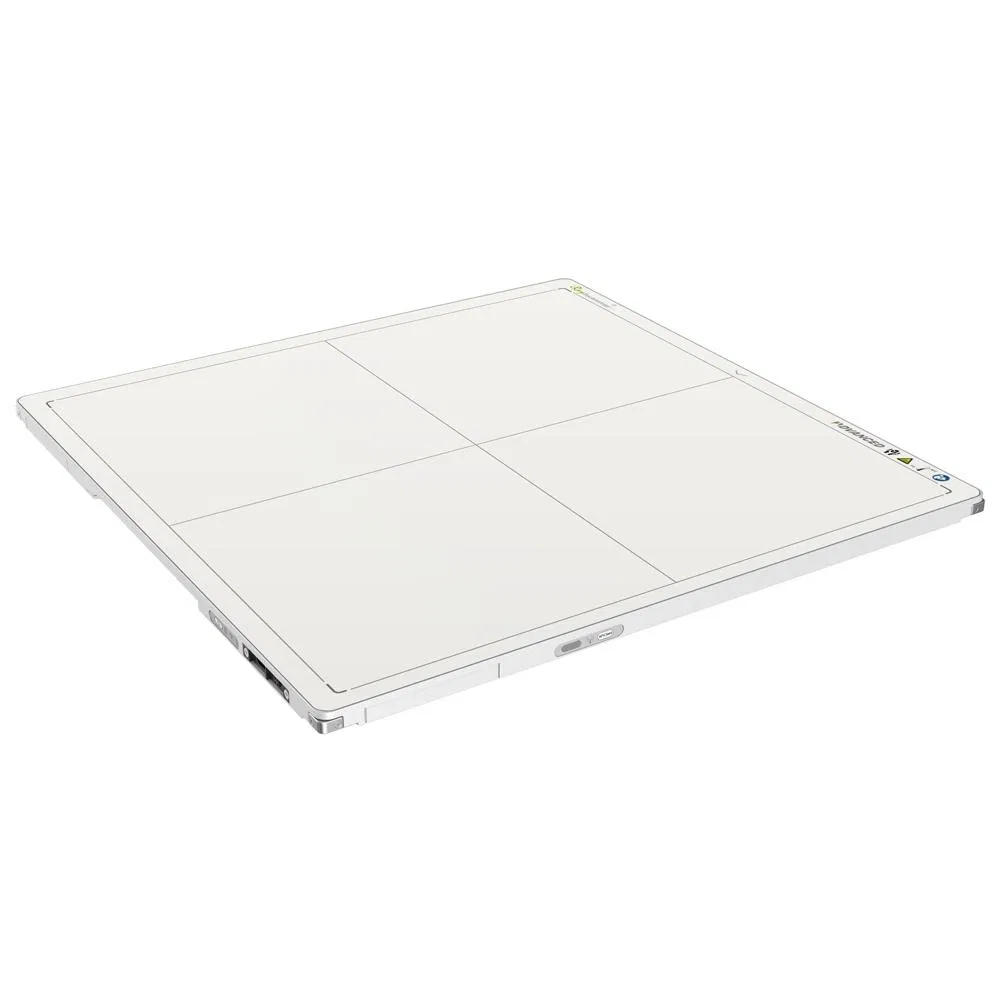

Manufacturer Sale Price Smart Wireless Cassettle Size X Ray Flat Panel Detector

1 / 5

Manufacturer Sale Price Smart Wireless Cassettle Size X Ray Flat Panel Detector

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

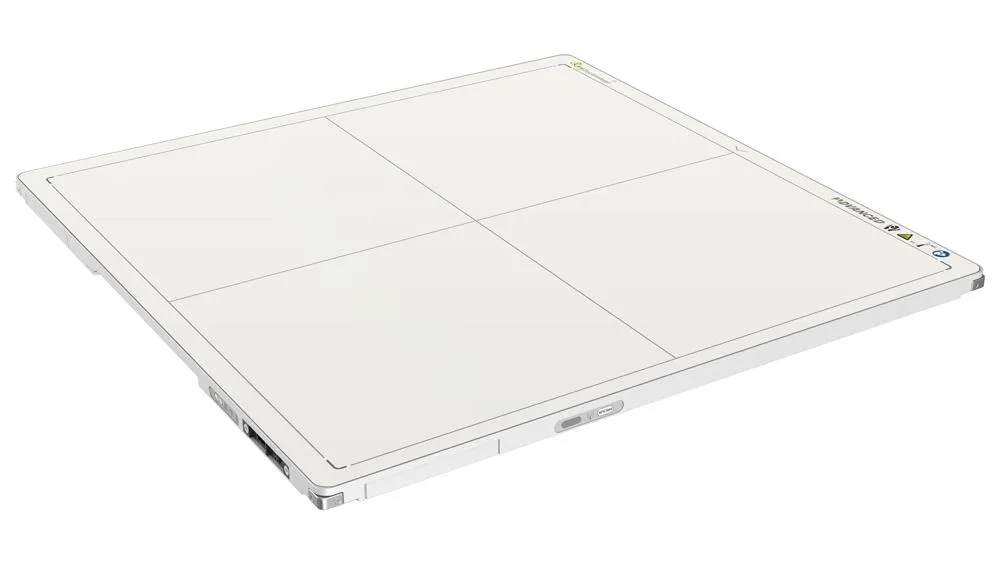

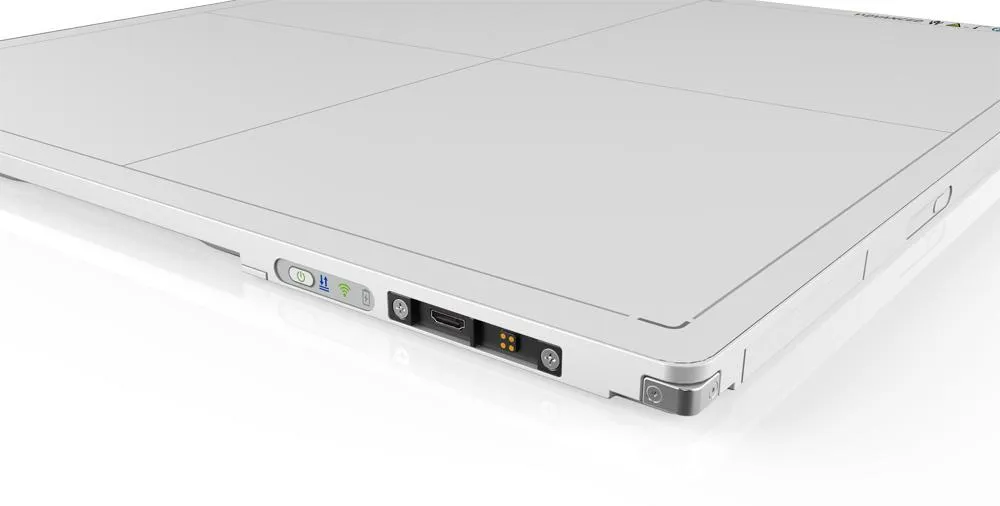

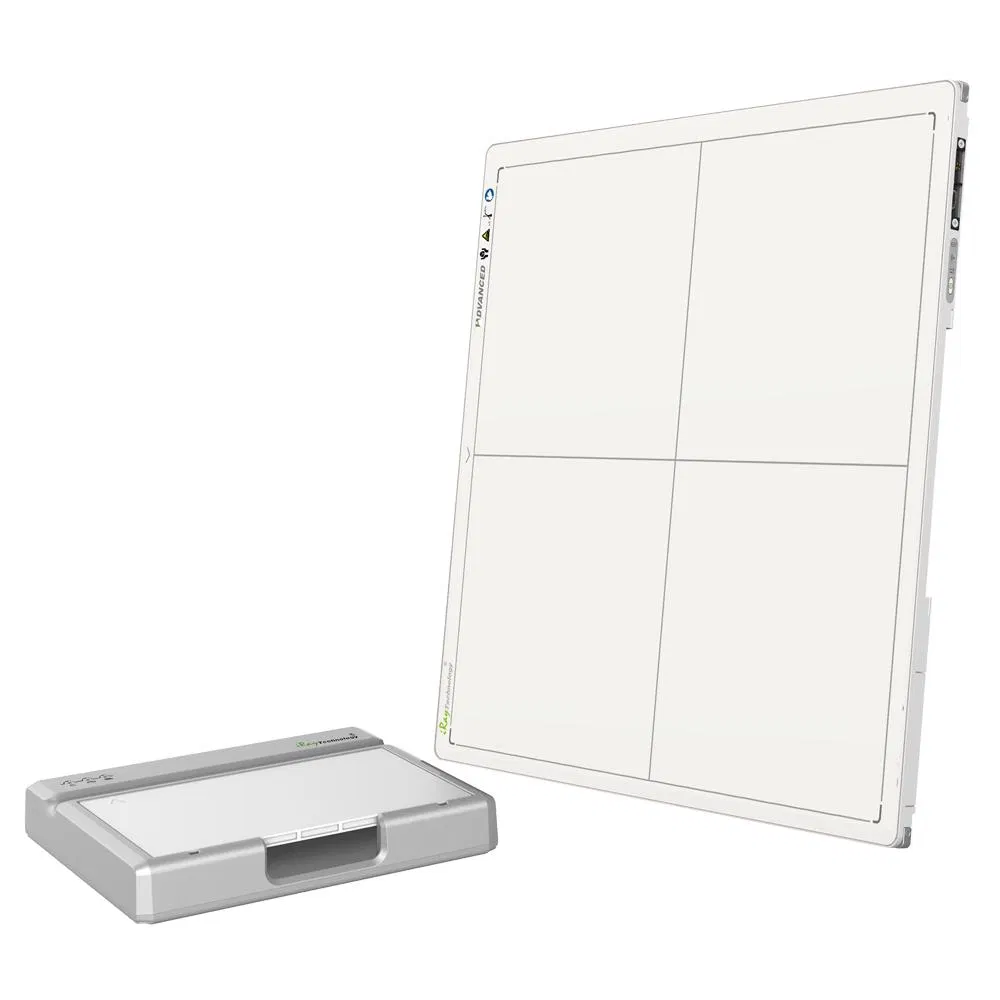

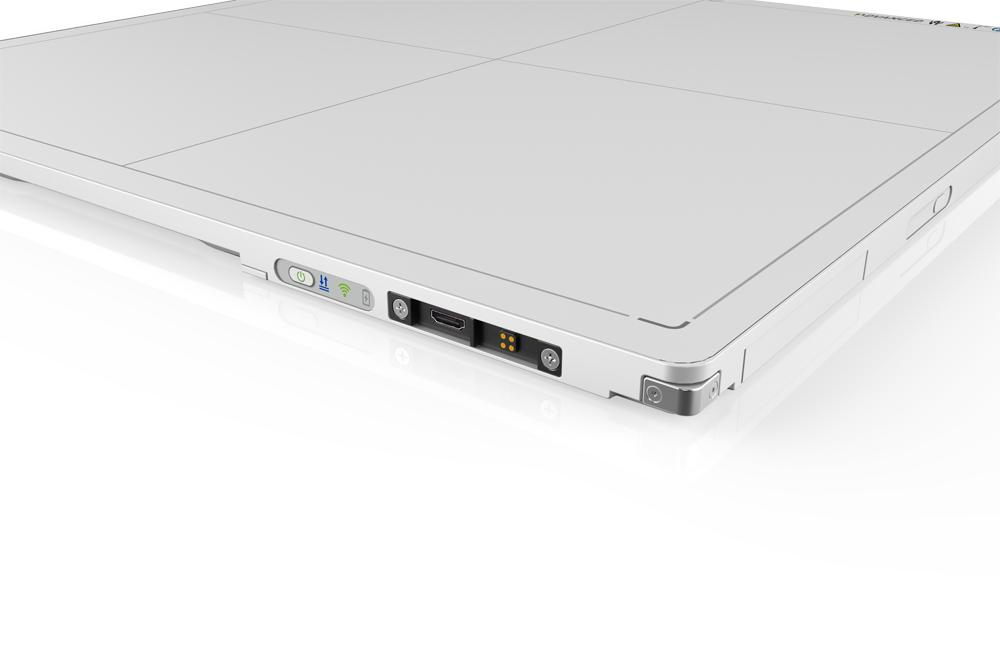

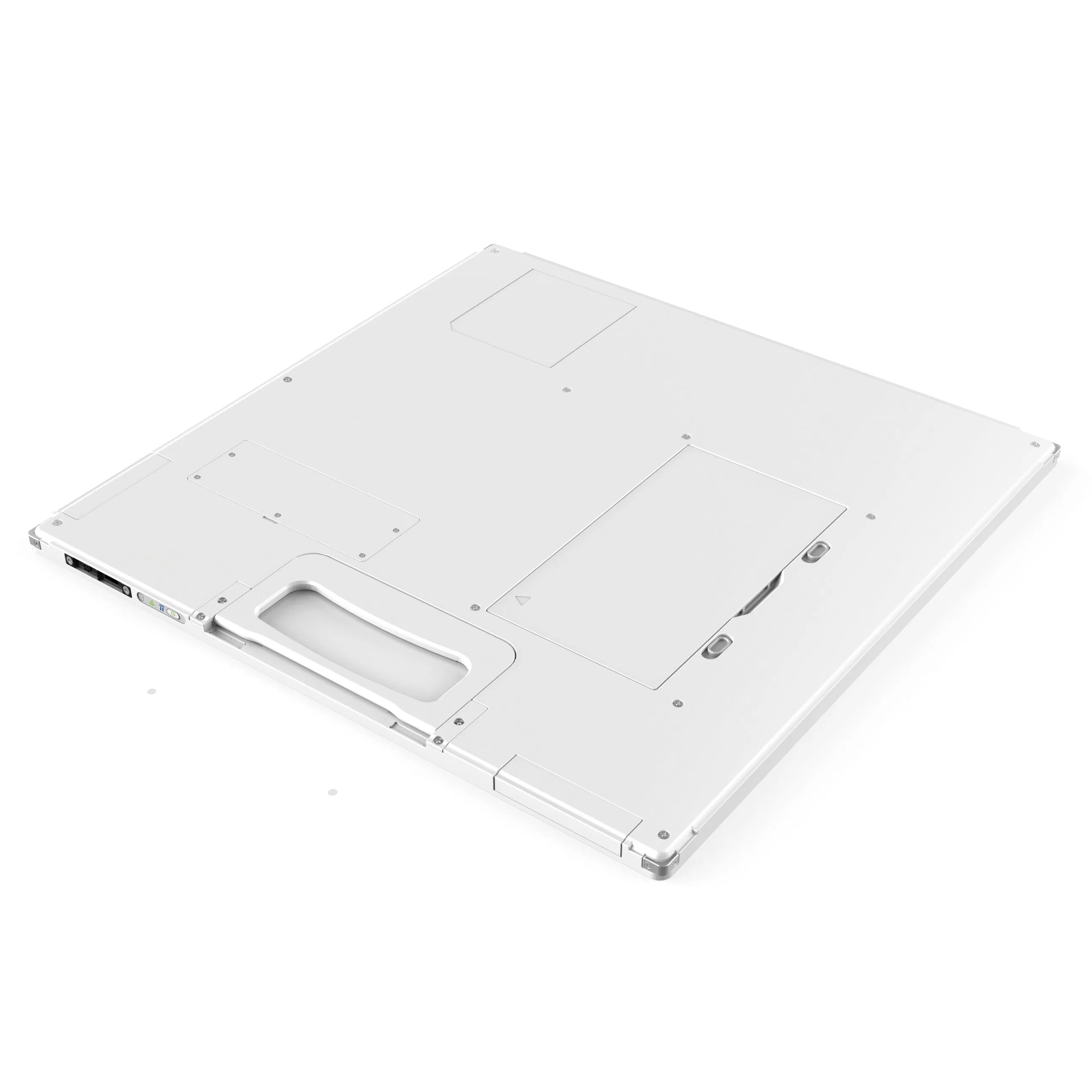

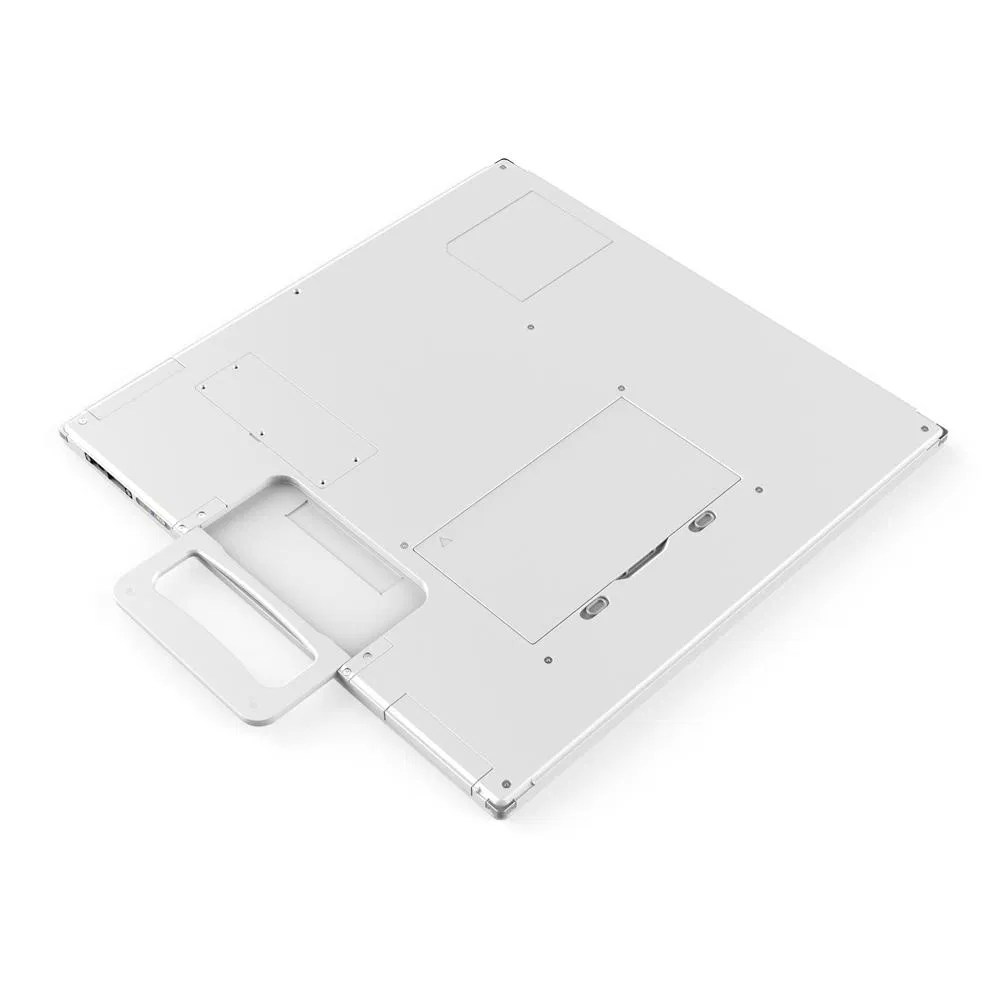

Smart Wireless Cassette Size X Ray Flat Panel Detector

Model: NL060402001A

Basic Information

Model NO.

NL060402001A

Scale

Large

Active Area

17*17inch

Detector Technology

Amorphous Silicon

Scintillator

Csi

Name

Wireless X Ray Flat Panel Detector

Specification

460*460*15.1mm

Origin

China

Product Characteristics

✓Dual band (2.4 and 5 GHz) wireless support with easy sharing.

✓Long battery life and smart workflow.

✓Direct deposition CsI for better image quality with lower dose.

✓139 μm pixel pitch, with 16 bit ADC for more image details.

✓Stable iSync+ Automatic Exposure Detection (AED).

Technical Parameters

Detector Technology	Amorphous Silicon
Scintillator	CsI
Active Area (inch)	17 × 17
Pixel Matrix	3072 × 3072
Pixel Pitch (μm)	139
Spatial Resolution (lp/mm)	3.6
AD Conversion (bit)	16
Battery Autonomy (h)	5
WIFI	2.4G and 5G, IEEE802.11 a/b/g/n/ac
Trigger Mode	AED (Optional) / Software
Internal Image Storage	200 full size images
Full Image Time (s)	5

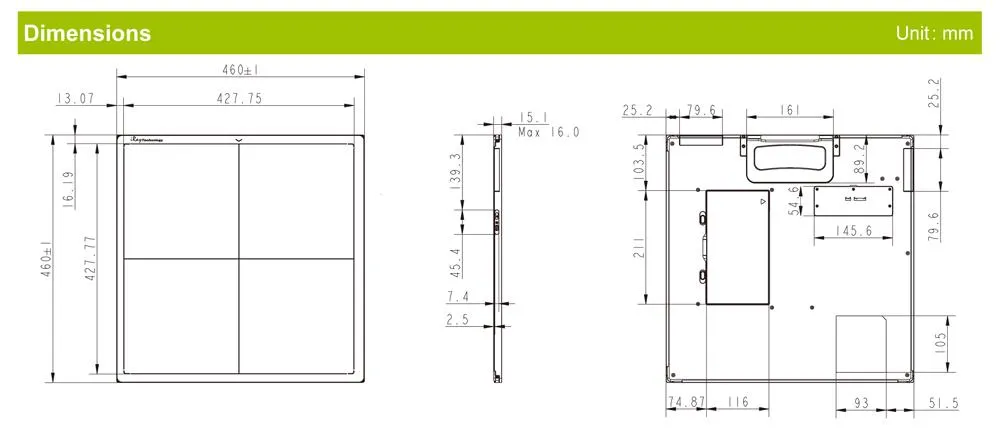

Dimensions (mm)	460 × 460 × 15
Weight (kg)	4.6
Static Loading	150 kg Uniformly
Ingress Protection	IPX1

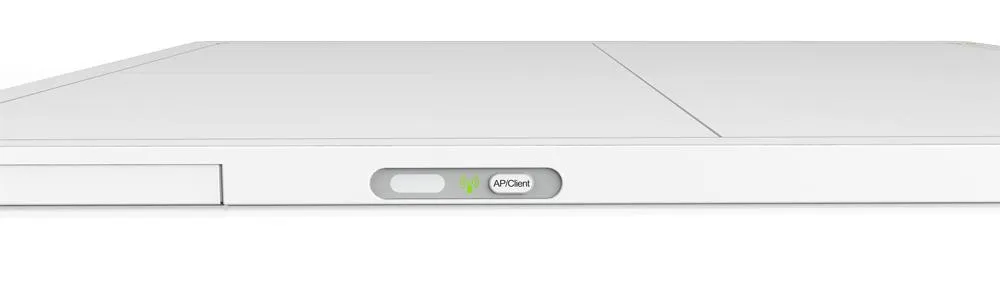

Related & Process Display

Frequently Asked Questions

Why can this manufacturer be trusted?

The manufacturer is certified by international authoritative certification bodies and maintains a high-tier membership on major global trade platforms. With extensive export experience serving customers in 87 countries, reliability is guaranteed.

Why are these products so cost-effective?

By comparing hundreds of factories and negotiating directly, we maintain a rich product library. Our strict procurement process ensures prices are 8% to 30% lower than competitors for the same quality level.

How long will delivery take?

Generally, delivery takes 15 days after order confirmation. For small quantities, we can check immediate stock availability. Large or customized orders will be confirmed based on specific requirements.

What are the available payment terms?

We support multiple payment methods including T/T, Credit Card, L/C, Western Union, and PayPal for your convenience.

What is the after-sales service policy?

Most products come with a one-year warranty. During this period, free replacement parts are provided for non-human factors. Post-warranty or human-caused issues are supported with paid replacement parts.

How is the image quality ensured?

The detector utilizes Direct Deposition CsI technology and a 139 μm pixel pitch with 16-bit ADC, ensuring high-resolution details and superior image quality at a lower X-ray dose.
