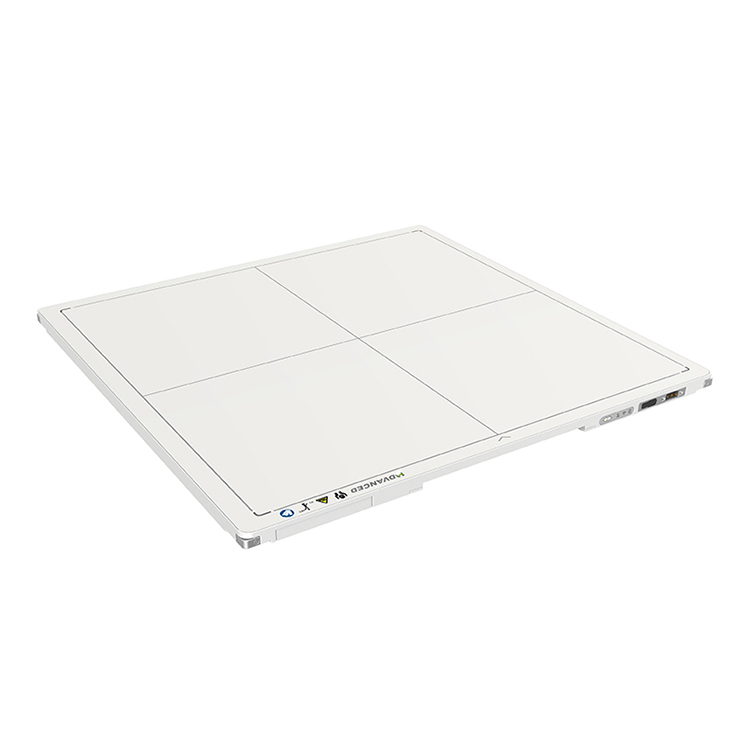

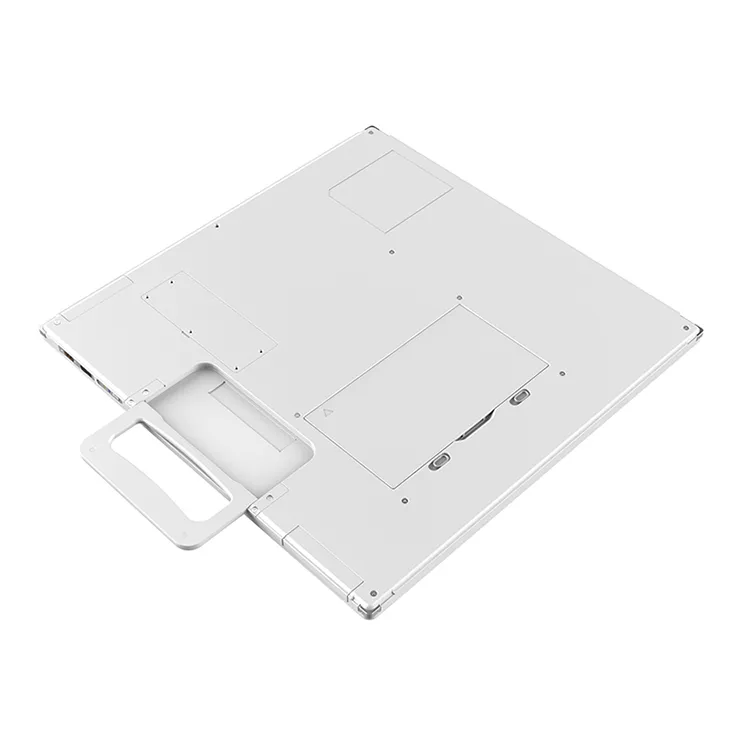

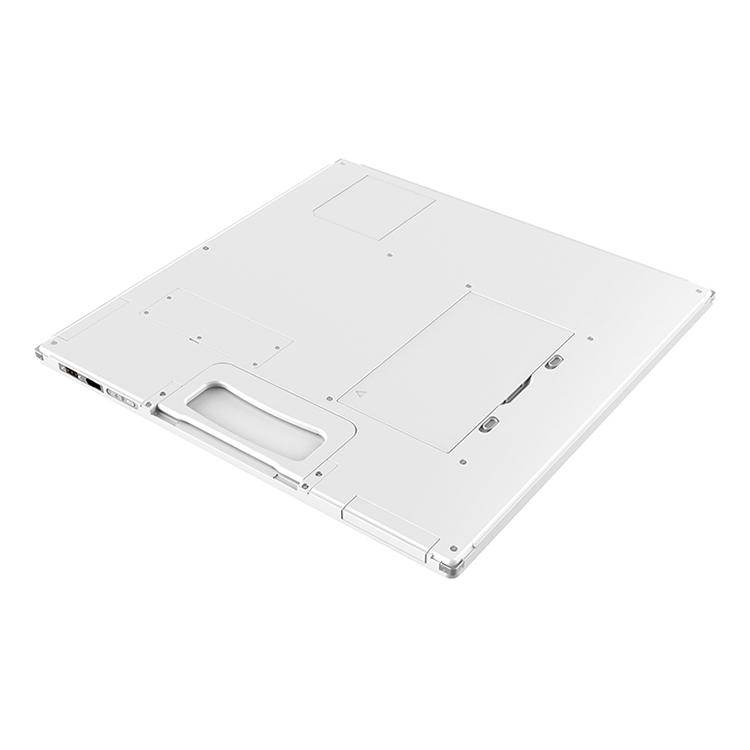

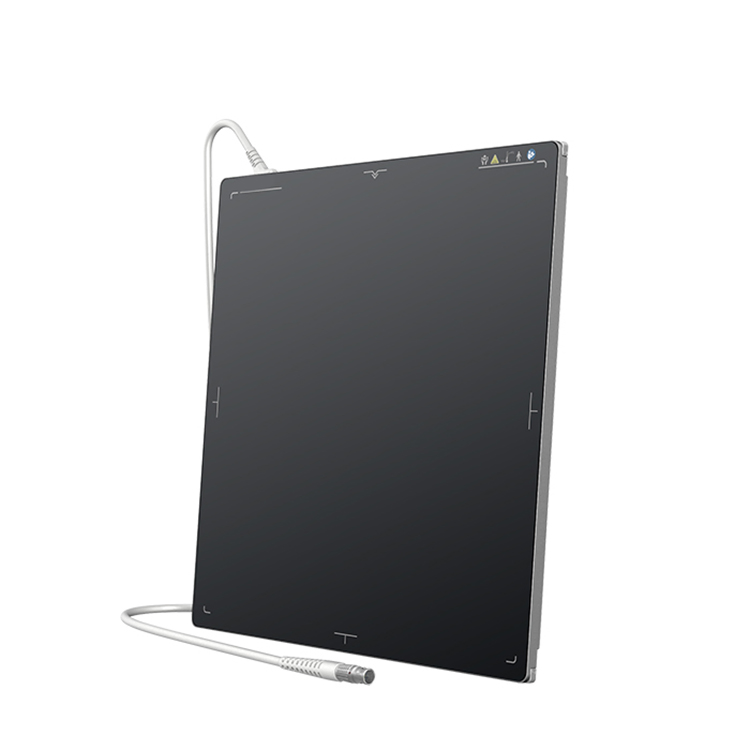

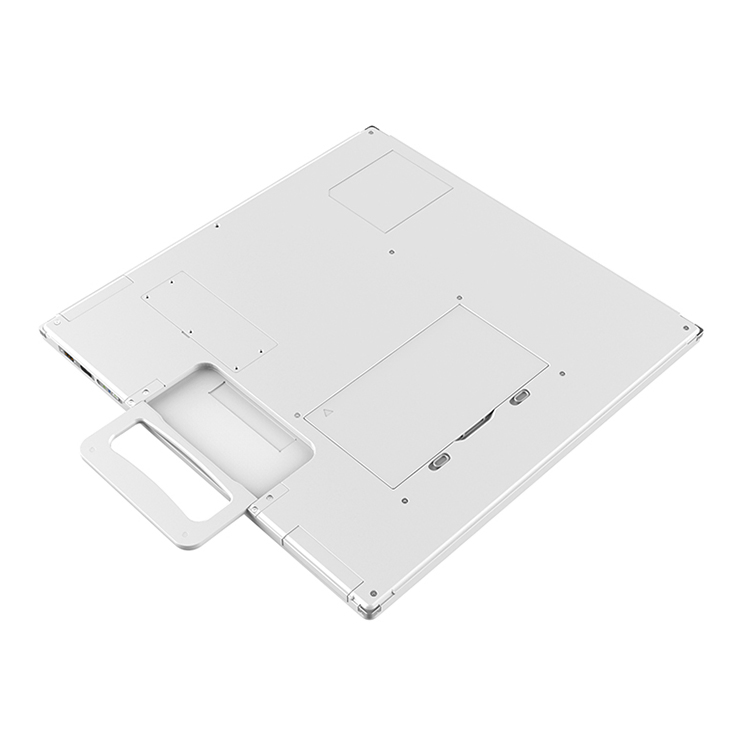

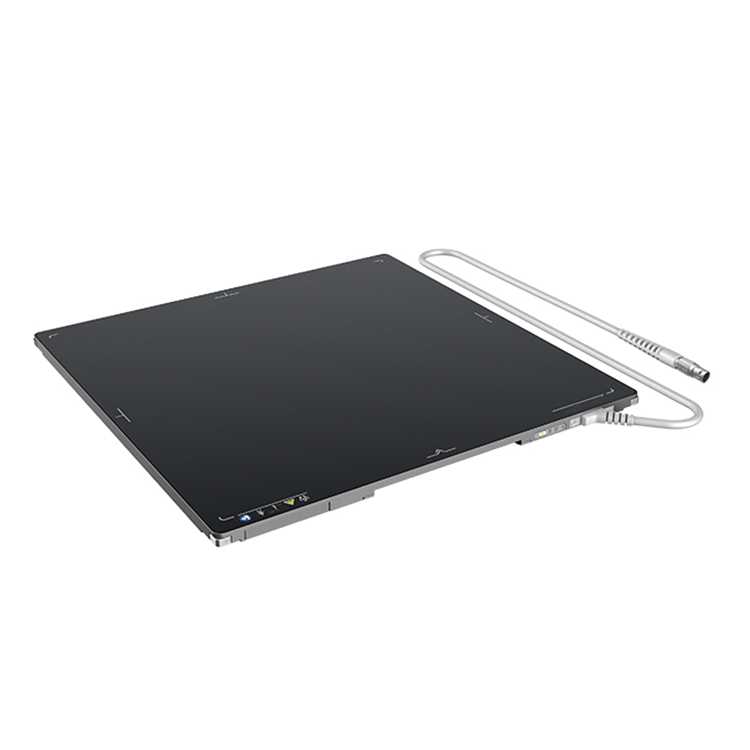

Flat panel detector (FPD) is the most common detector type used in direct digital radiography (DR). The x-rays are converted to electrical charges, either directly or indirectly (x-rays first converted to visible light, then to charges). These detectors are widely used in X-ray CT, medical X-rays, and mammography in place of conventional X-ray II (image intensifiers) and IP (imaging plates).
| Item | Parameters |
|---|---|
| X-ray sensing Material | GOS and a-Si |
| Effective Area | 14X17in or 17*17in |
| Pixel Pitch | 140μm |
| Acquisition Time | Wireless≤2s, Wired≤1s |
| A/D Resolution | 16Bit |
| Line Pair Resolution | ≥3.6Lp/mm |
| Pixel Matrix | 2560x3072 or 3072*3072 |
| Dynamic Range | 84db |
| Operating Temperature | 5~35ºC |
| Battery Life | 12 Hours (wireless) |
| FP Housing | Carbon Fiber, Magnesium Alloy |
| Waterproof Rating | IPX3 |
| Communication Standard | 802.11n, 802.11ac |
