| Model NO. | YJ-4343Z |
|---|---|
| Detector Technology | a-Si (Amorphous Silicon) |
| Pixel Matrix | 3072 * 3072 |
| Pixel Pitch | 139μm |

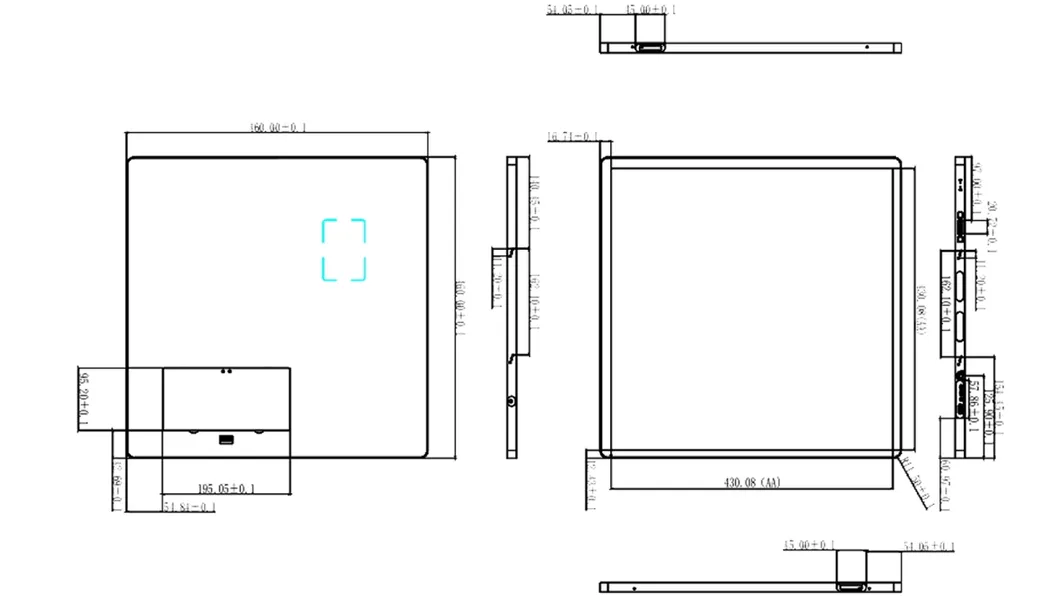

| Dimensions | 46.0 x 46.0 x 1.5 cm |
| Weight | 3.7kg |
| Specification | 17 * 17 inch (43 * 43 cm) |

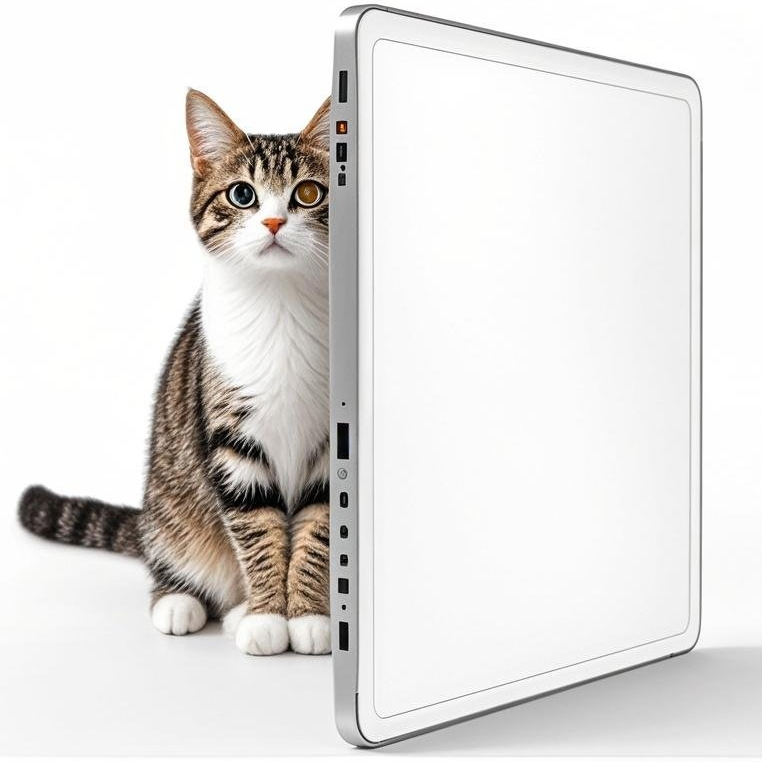

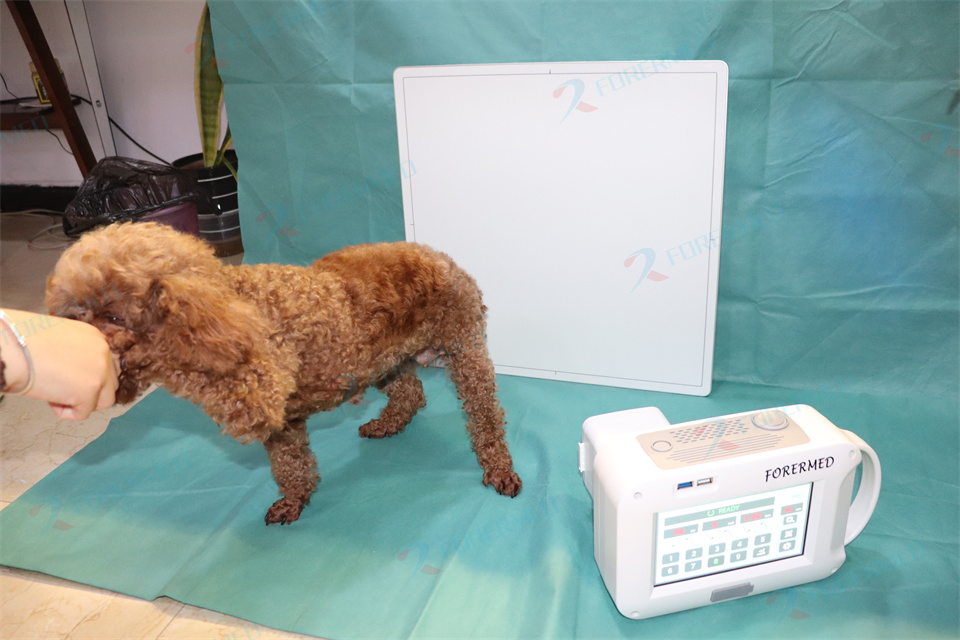

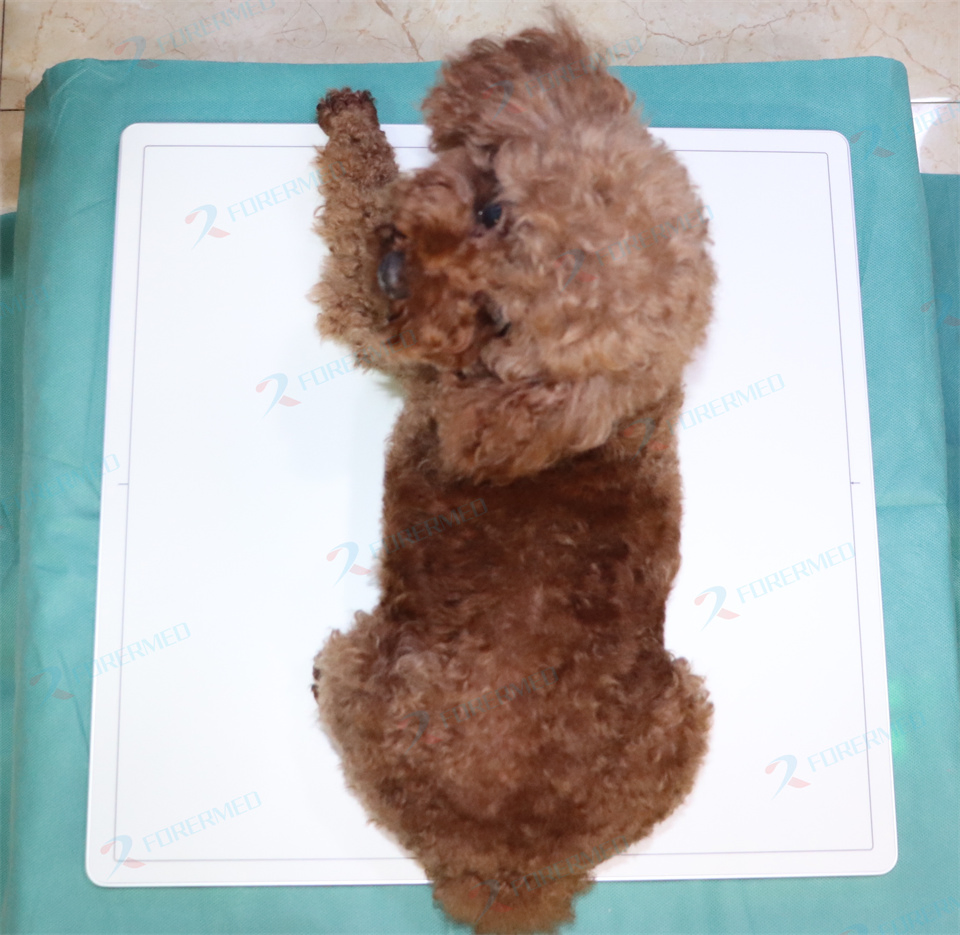

Wireless 17*17 Veterinary X-ray Imaging Detector Diagnostic Device
Veterinary Imaging Solutions:

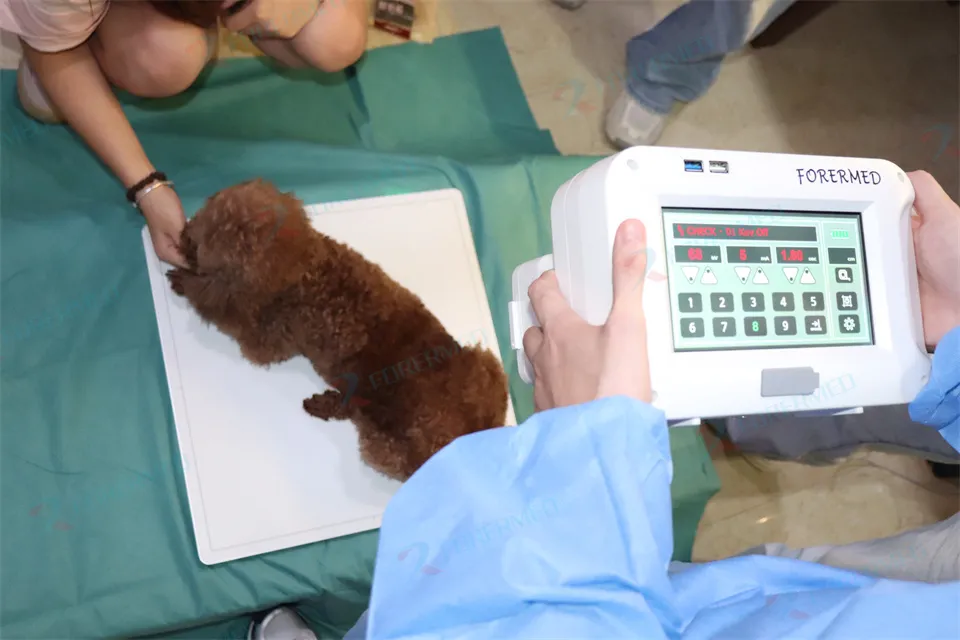

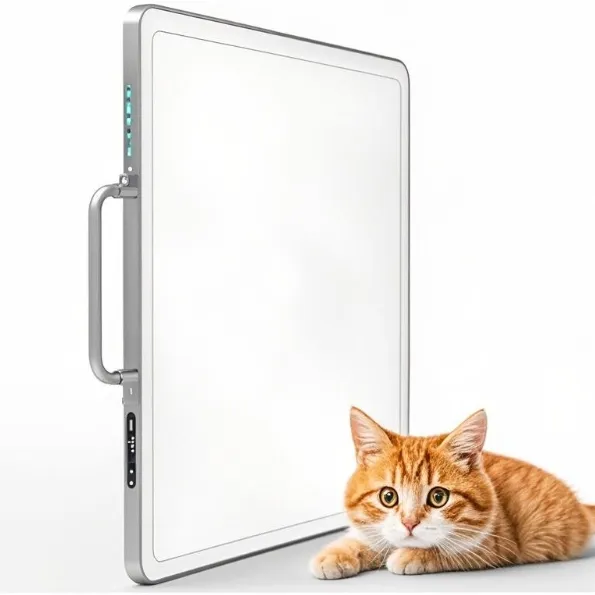

The YJ-4343Z is a high-performance, cassette-sized flat panel detector featuring advanced wireless functionalities. Designed for demanding veterinary environments, it offers a battery standby time of at least 10 hours and supports IEEE 802.11ac with transmission speeds up to 1300Mbps.

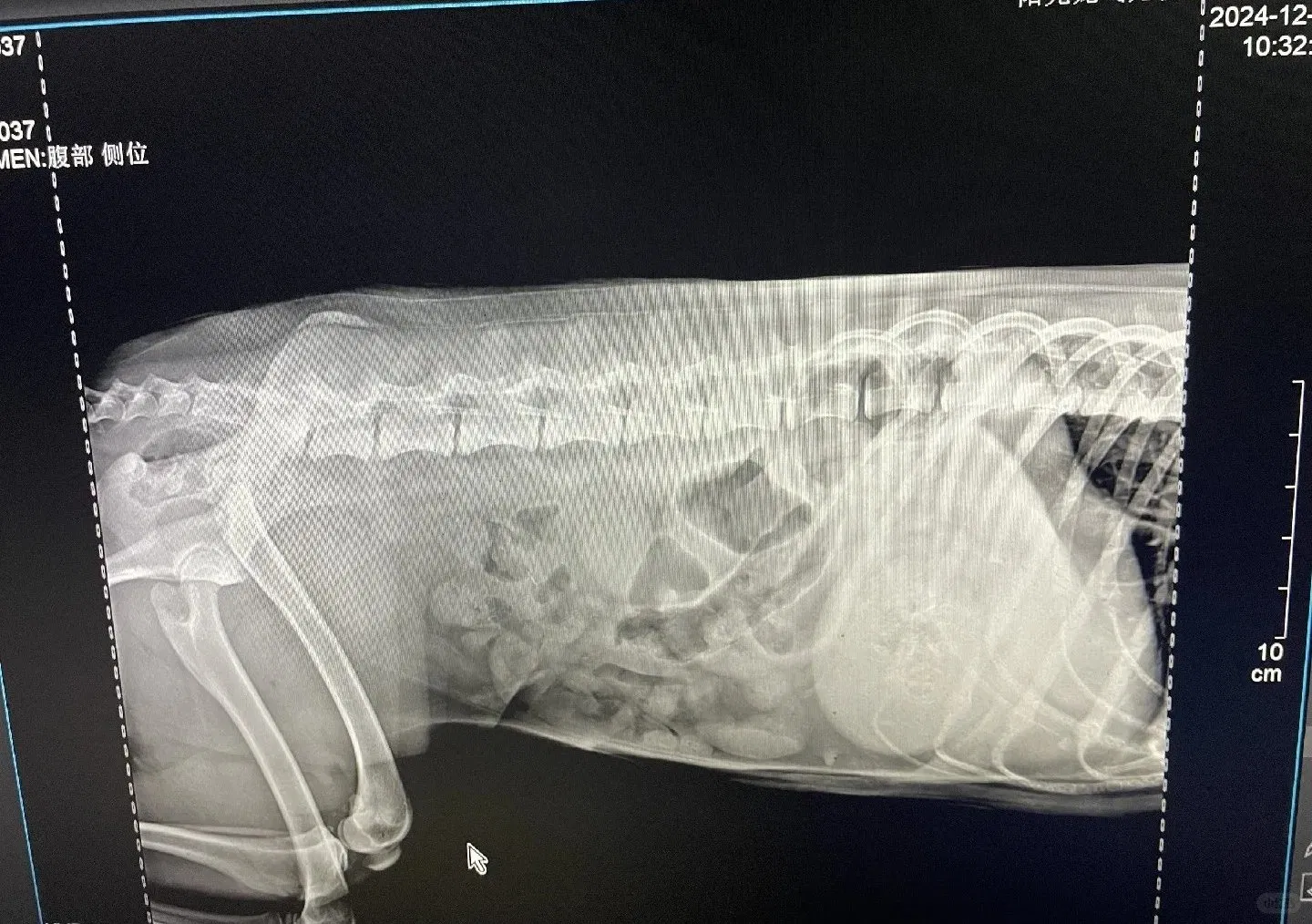

The detector acquires outstanding images with high DQE and high resolution. Equipped with a highly sensitive AED (Automatic Exposure Detection) function, it can be easily synchronized with various types of X-ray generators.
| Technical Parameters | |
|---|---|
| Detector Technology | a-Si |
| Scintillator | CsI |
| Image Size | 43×43cm (17×17in) |
| Pixels Matrix | 3072×3072 |
| Pixel Pitch | 139μm |
| A/D Conversion | 16bit |
| Spatial Resolution | 3.6LP/mm |
| X-ray Voltage Range | 40-150KV |
| Image Acquisition Time | 2.5s (Wireless) |
| Battery Standby Time | 10H (Optional) |
| Water Tightness | IP54 |
| Weight | 3.7kg |
A: The detector provides a large 17 x 17 inch (43 x 43 cm) imaging area, suitable for a wide range of veterinary diagnostic needs.
A: The image acquisition time is approximately 2.5 seconds via wireless transmission, ensuring a fast workflow.
A: Yes, it features an anti-drop design and an IP54 water-tightness rating, making it reliable even in challenging environments.
A: It uses CsI (Cesium Iodide) scintillator technology, which provides excellent image quality and high DQE.
A: Absolutely. With its highly sensitive AED (Automatic Exposure Detection) function, it can be synchronized with almost any kind of generator without a cable connection.
A: The battery supports at least 10 hours of standby time, providing ample power for a full day of clinical work.
