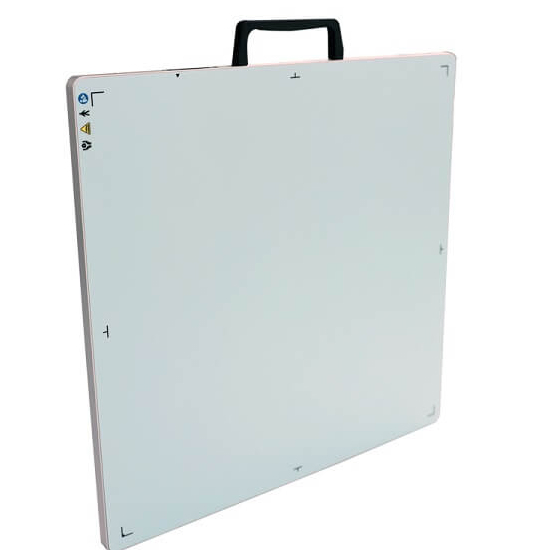

Advanced Wireless Flat Panel Detector for Medical Imaging Nk4343W
Advanced Wireless Flat Panel Detector for Medical Imaging Nk4343W
Advanced Wireless Flat Panel Detector for Medical Imaging Nk4343W
Advanced Wireless Flat Panel Detector for Medical Imaging Nk4343W
Advanced Wireless Flat Panel Detector for Medical Imaging Nk4343W
1 / 5
Advanced Wireless Flat Panel Detector for Medical Imaging Nk4343W
Advanced Wireless Flat Panel Detector for Medical Imaging Nk4343W
Advanced Wireless Flat Panel Detector for Medical Imaging Nk4343W
Advanced Wireless Flat Panel Detector for Medical Imaging Nk4343W
Advanced Wireless Flat Panel Detector for Medical Imaging Nk4343W

Advanced Wireless Flat Panel Detector for Medical Imaging Nk4343W

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
NK4343W
Scintillation Type
Cesium Iodide
Effective Imaging Area
17X17 Inch
Pixel Matrix
3072 X 3072
Pixel Size (μm)
139
Trigger Mode
AED/Software/Outer
Dimensions (mm)
460 X 460 X 15
Detector Weight
3.8kg Without Battery
Working Voltage
AC 100-240V, 50-60Hz
Specification
CE ISO TUV
Origin
China

Wireless Flat Panel Detector Overview

The DR flat panel detector system utilizes X-ray direct conversion technology to transform X-ray image data into high-quality digital information, minimizing imaging links for superior clarity.

Wireless Flat Panel Detector
◈
Wireless Design
Advanced wireless card-type flat panel detector for flexible use.
◈
Stable AED Control
Reliable Automatic Exposure Detection (AED) for smart workflow.
◈
High Definition
139 μm pixel size with 16-bit ADC for exceptional image details.
◈
Dual Band Wireless
Supports both 2.4GHz and 5GHz wireless transmission.
◈
Long Battery Life
Intelligent workflow with up to 8 hours of battery performance.

Main Specifications (NK4343W)

Detector TypeAmorphous Silicon
Spatial Resolution3.6 lp/mm
AD Conversion16 bit
X-ray Energy Range40-150kv
Power Supply24V DC 2.5A
Shell MaterialCarbon Plate, Aluminum Alloy
Operating Temperature10~35°C
Operating Humidity30~85% RH (non-condensing)

Available Models

  • NK3543W: Effective imaging area: 14X17 inch (35x43cm)
  • NK4343W: Effective imaging area: 17X17 inch (43x43cm)

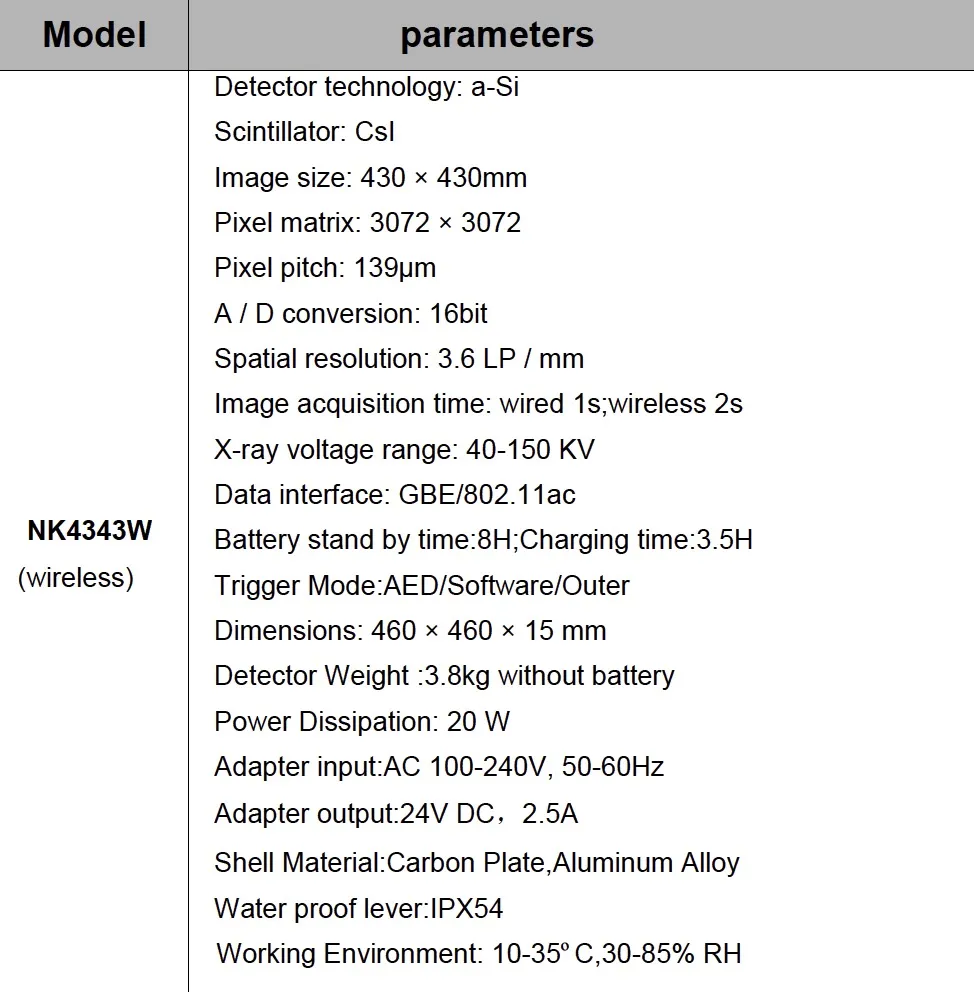

Detector Details

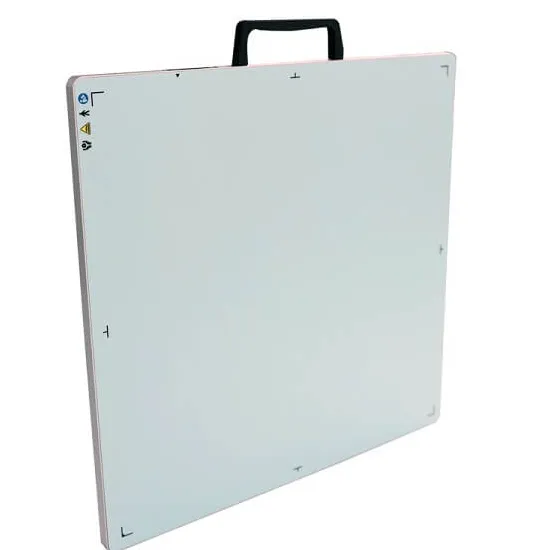

Medical Imaging Equipment

Frequently Asked Questions

What is the imaging technology used in this detector?
It uses Amorphous Silicon with a Cesium Iodide (CsI) scintillation type for high-efficiency X-ray conversion.
What is the battery life for wireless operation?
The system provides up to 8 hours of battery life, supporting a full day's intelligent workflow.
Does the detector support automatic exposure detection?
Yes, it features stable and reliable AED control, along with Software and Outer trigger modes.
What are the available sizes for the wireless flat panel detector?
We offer two main models: the NK3543W (14x17 inch) and the NK4343W (17x17 inch).
What wireless frequencies are compatible with the device?
The detector supports both 2.4GHz and 5GHz wireless transmission for stable data connectivity.
What is the spatial resolution of the NK4343W?
The detector offers a high spatial resolution of 3.6 lp/mm with a 139 μm pixel size.
