| Model NO. | UM-FPD4343 |
| Certification | CE, FDA, EEC, MSDS, ISO13485 |
| A/D Conversion | 16 Bits |
| Acquire Time | Wireless: 3-5s |
| Receptor Type | a-Si |
| Scintillator | GoS / CsI:Ti |
| Active Area | 430 x 430 mm |
| Resolution | 4304 x 4304 |
| Pixel Pitch | 100 μm |
| Standby / Recharge | 4.5h / 4.5h |
Our cutting-edge flat-panel detector serves as the core imaging system of the X-ray machine, boasting integrated information collection software for seamless operation. Within a mere 2 seconds of the X-ray capturing the image, it is efficiently transmitted to the computer, ensuring a swift and smooth diagnostic process.

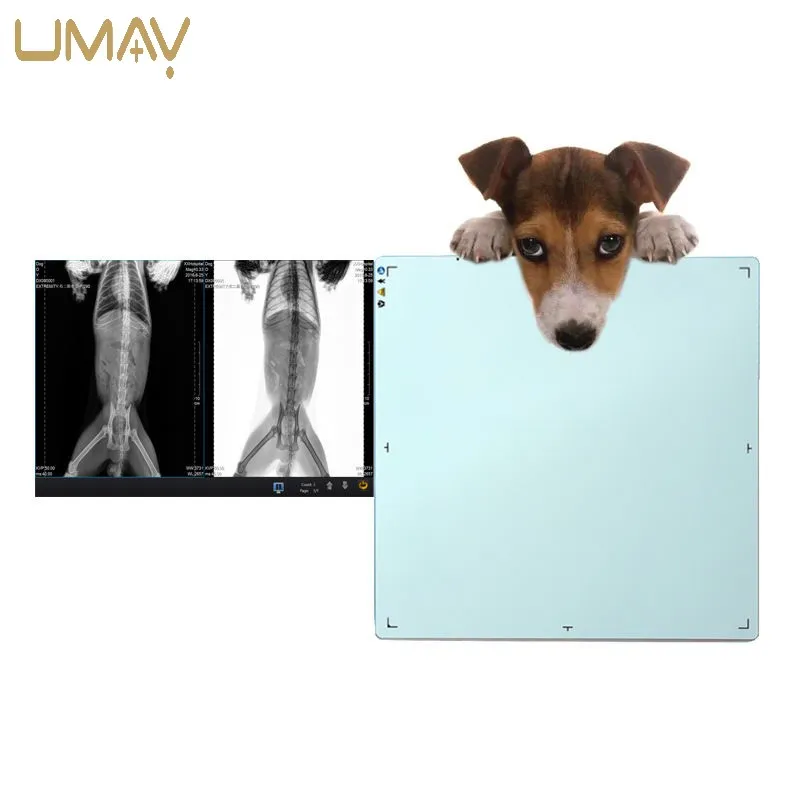

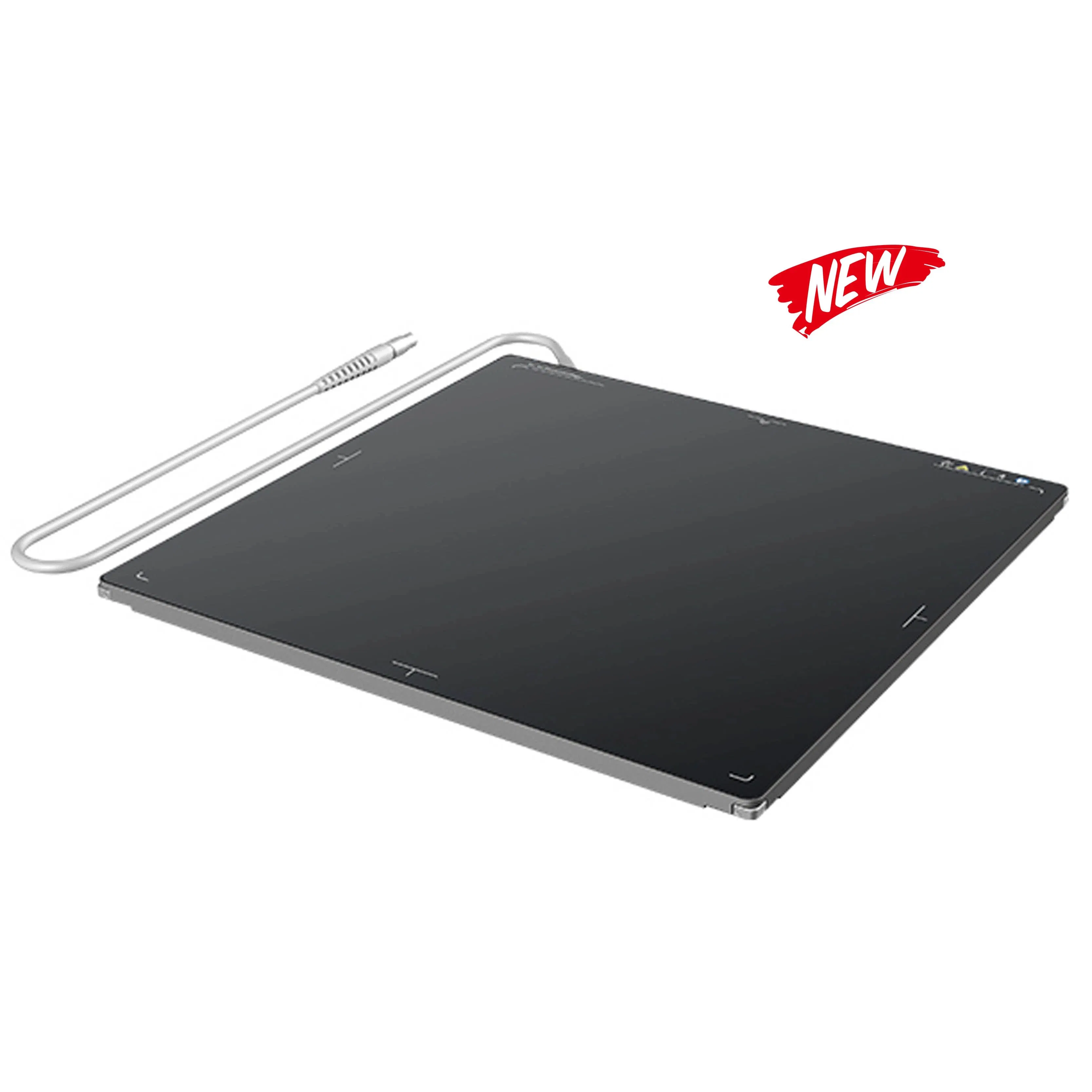

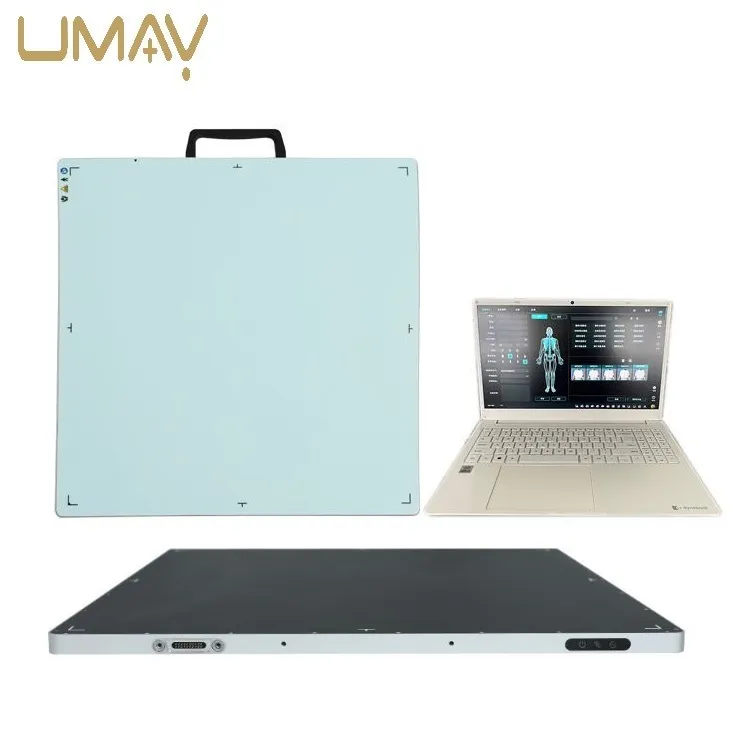

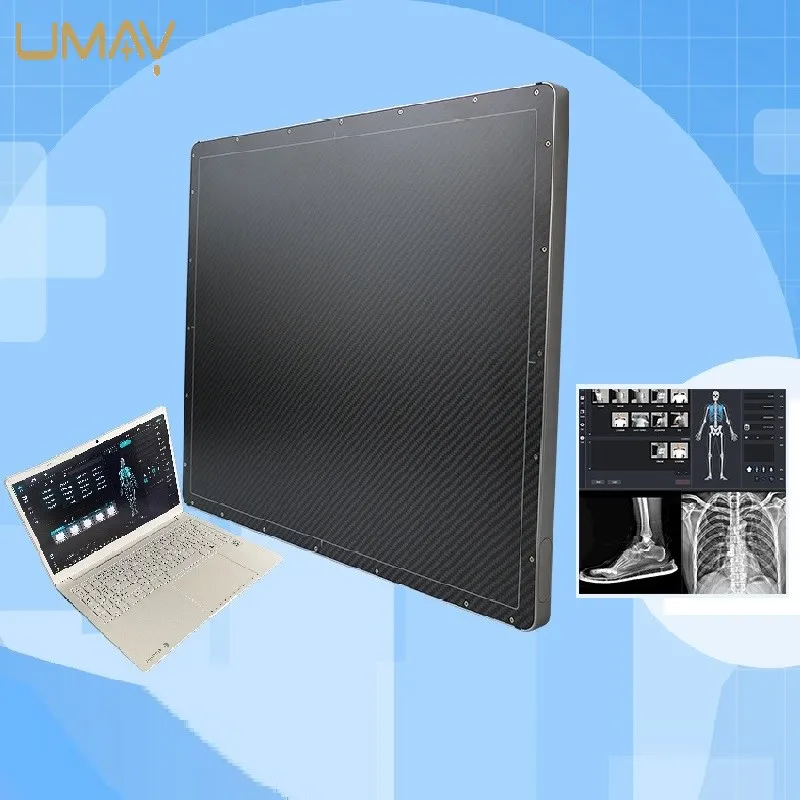

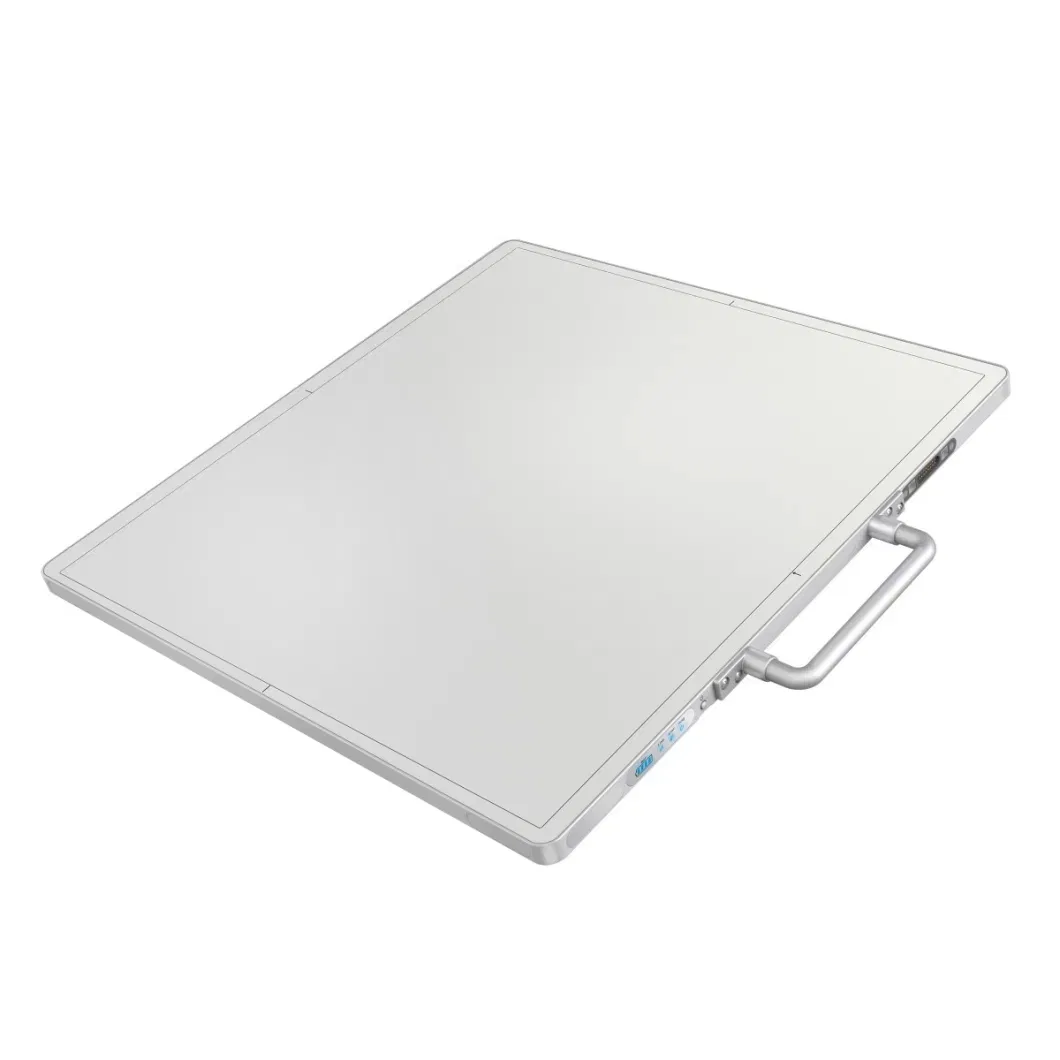

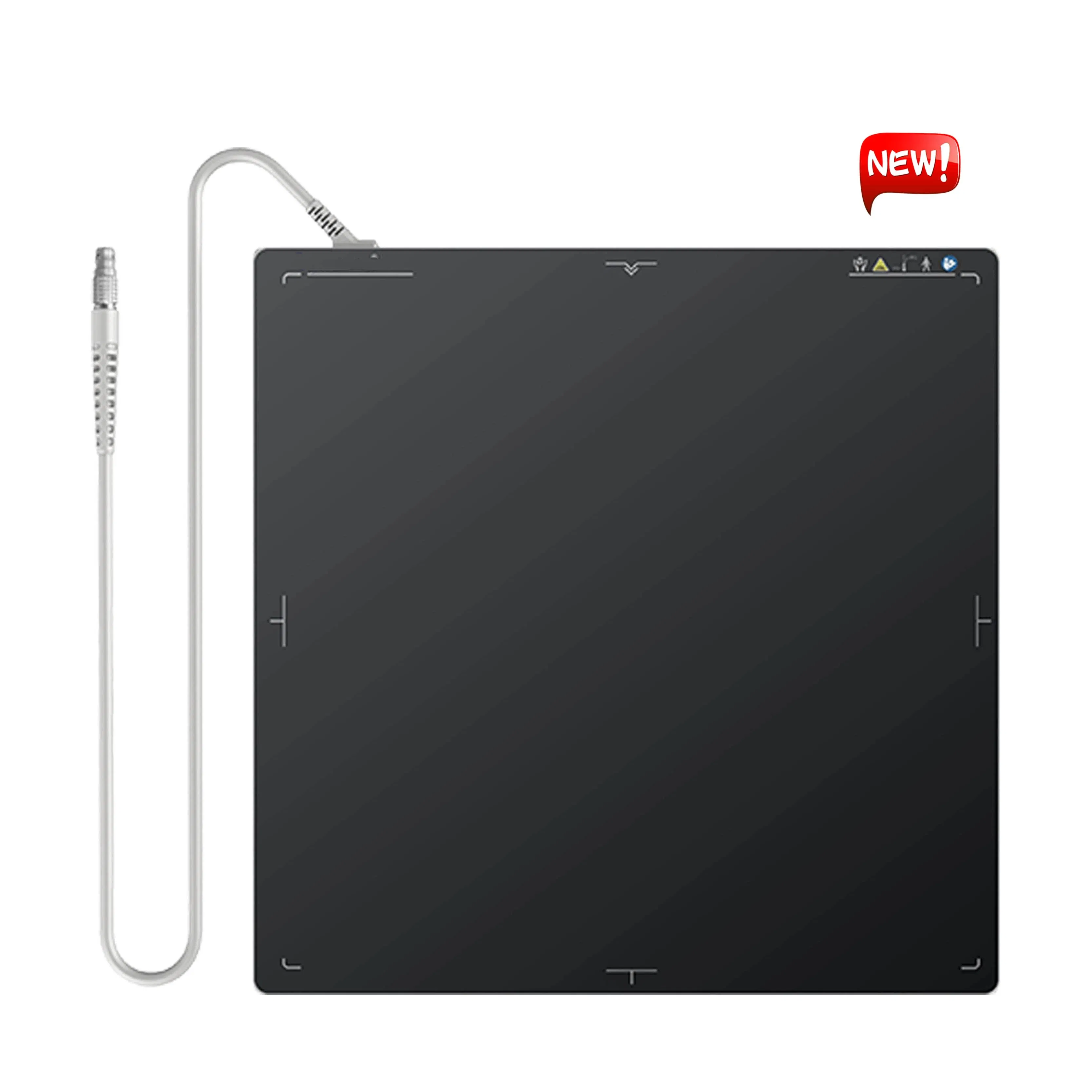

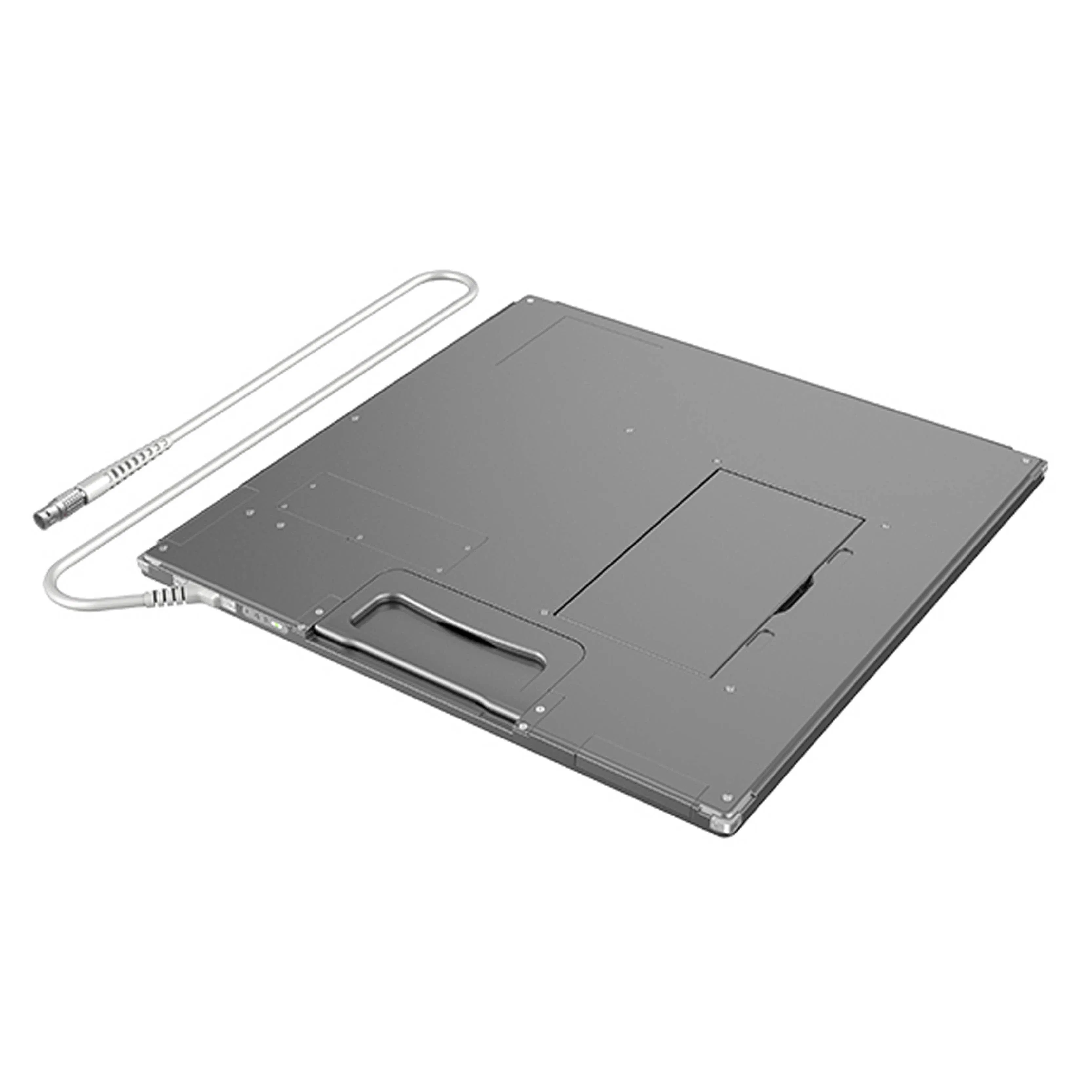

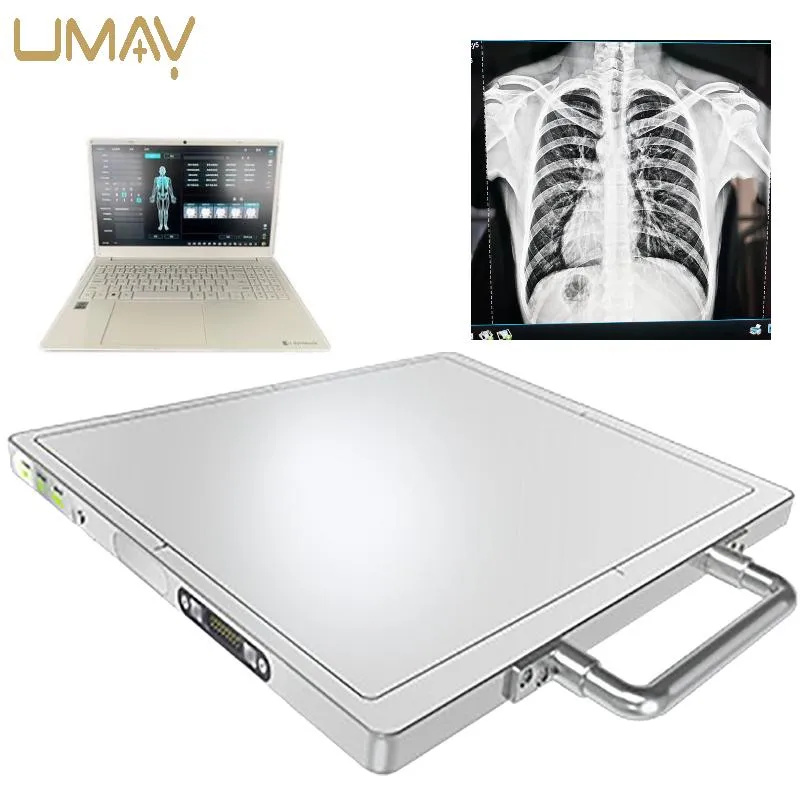

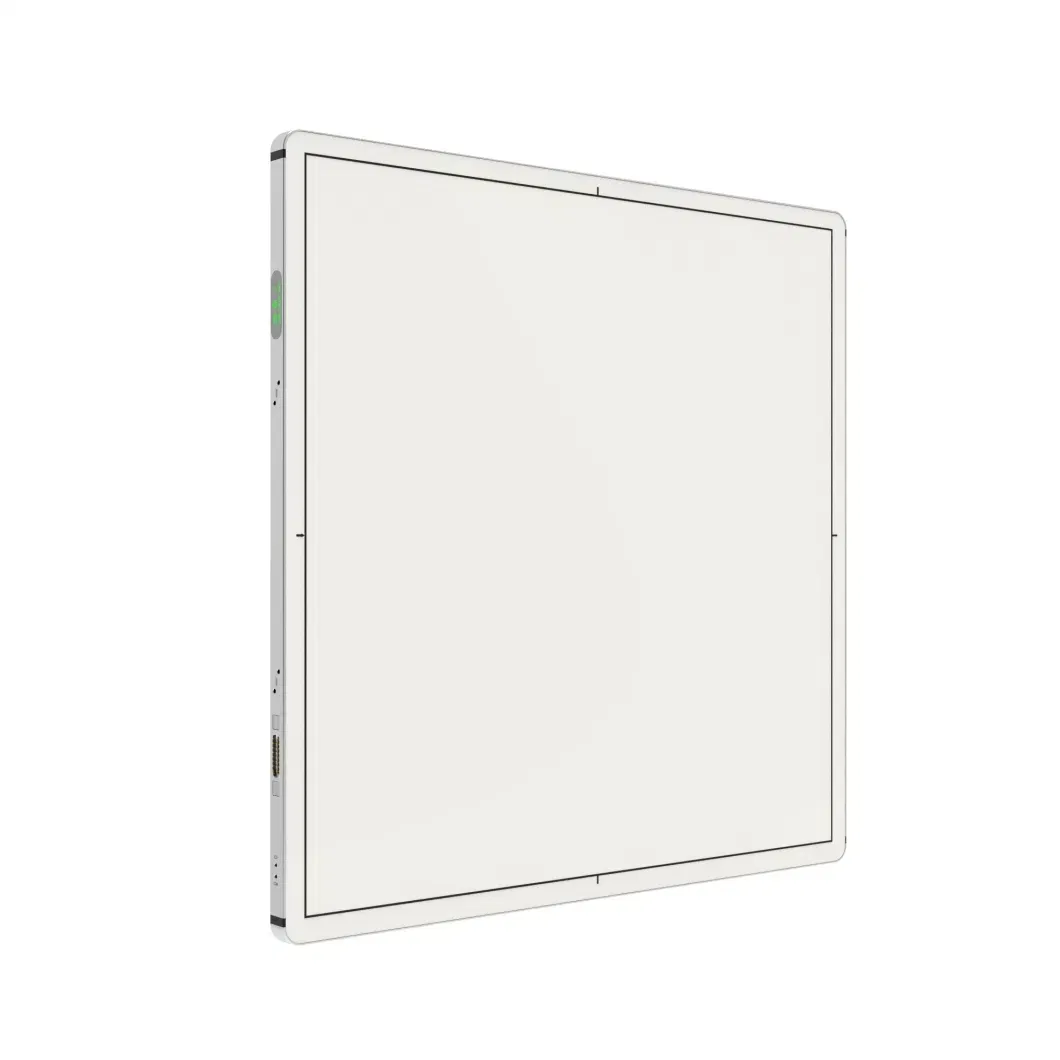

The 17*17 Inch DR Digital Flat Panel Detector is available in both wired and wireless versions to cater to diverse operational needs. These detectors are highly versatile, suitable for both medical and veterinary fields, supported by specialized acquisition software.

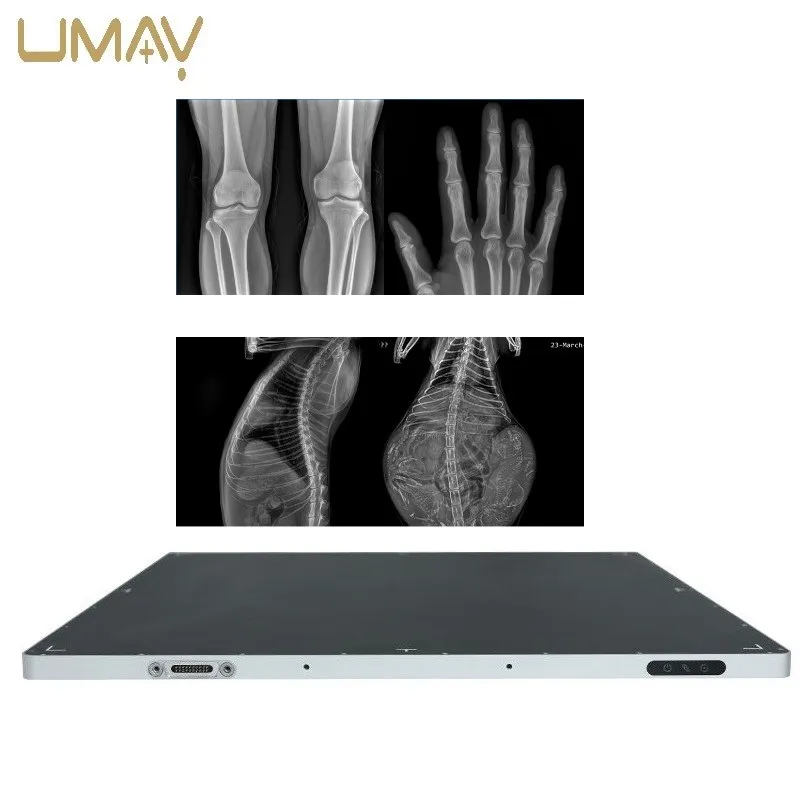

Featuring a remarkable resolution of 4304 x 4304 and a refined pixel pitch of 100 micrometers, this flat panel detector stands out as a premier choice among medical professionals. It ensures extraordinary image clarity and swift wireless acquisition time ranging from 3 to 5 seconds.
The heart of the X-ray machine's imaging system is equipped with sophisticated collection software. Whether utilized in the conventional 14*17 or 17*17 sizes, our detectors provide customizable solutions to meet various clinical application needs in global facilities.

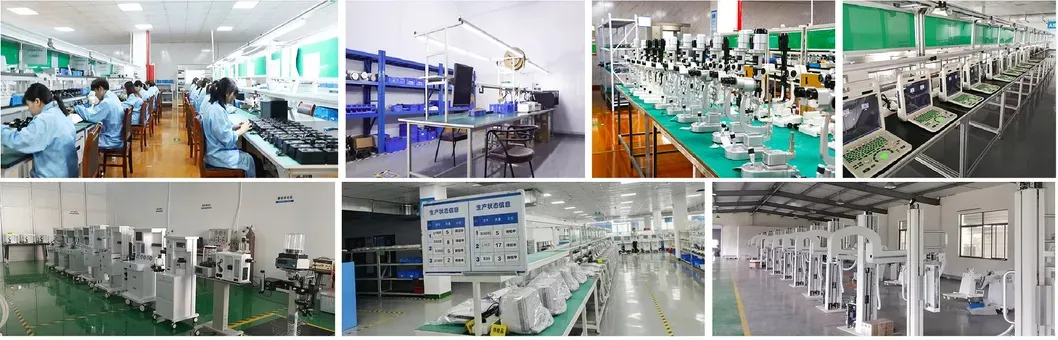

Our facility blends research and development with production to deliver high-quality medical imaging systems. Our extensive portfolio encompasses advanced laboratory equipment, OT solutions, dental supplies, and versatile hospital furniture. Built on mutual trust and exceptional service, we deliver cost-effective medical equipment tailored for hospitals and clinics worldwide, serving customers across 188 countries and regions.
| Electricals and Interface | |
| Data Interface | 802.11ac (only 5G) |
| Exposure Control | Software/Sync/AED |
| Mechanical | |

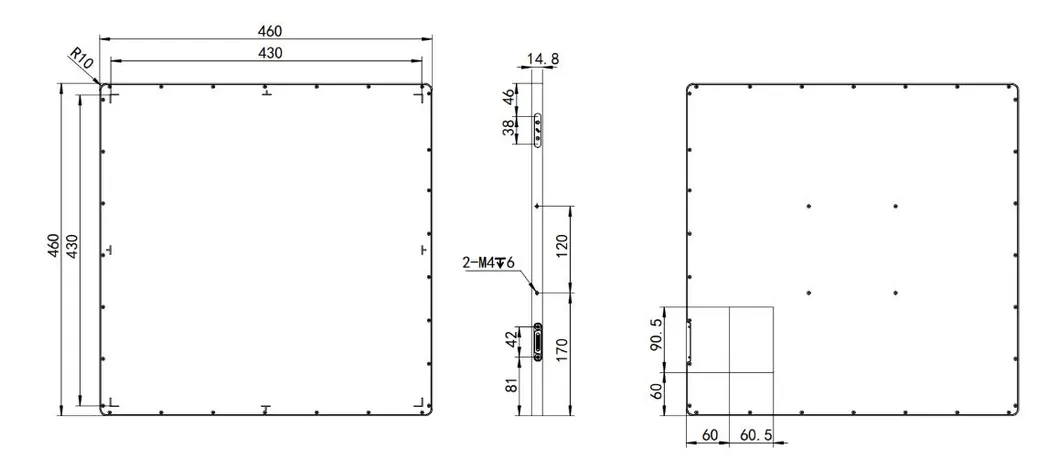

| Dimension | 460 × 460 × 14.8 mm |
| Weight / Material | 3.8kg / Aluminum and magnesium alloys |
| Environmental | |
| Operating Temperature | 10-35°C |
| Ingress Protection | IP51 (Customized to IP67) |
| Image Quality | |
| Energy Range | 40-160 KV |
| Sensitivity | ≥0.36 LSB/nGy |
| MTF / DQE | 68% @ 1 LP/mm / 42% @ 1 LP/mm |
1. Internal Protection: Meticulously encased in moisture-resistant film and nestled within custom-shaped foam molds for unwavering stability.
2. Buffering: Substantial layers of bubble film provide an impenetrable shield against external shocks.
3. Outer Shell: Multi-layer corrugated cardboard boxes provide high compression and impact resistance.
4. Logistics: Flexible shipping options including Air, Sea, Land, or Rail to minimize turbulence and ensure earthquake resistance during transit.
