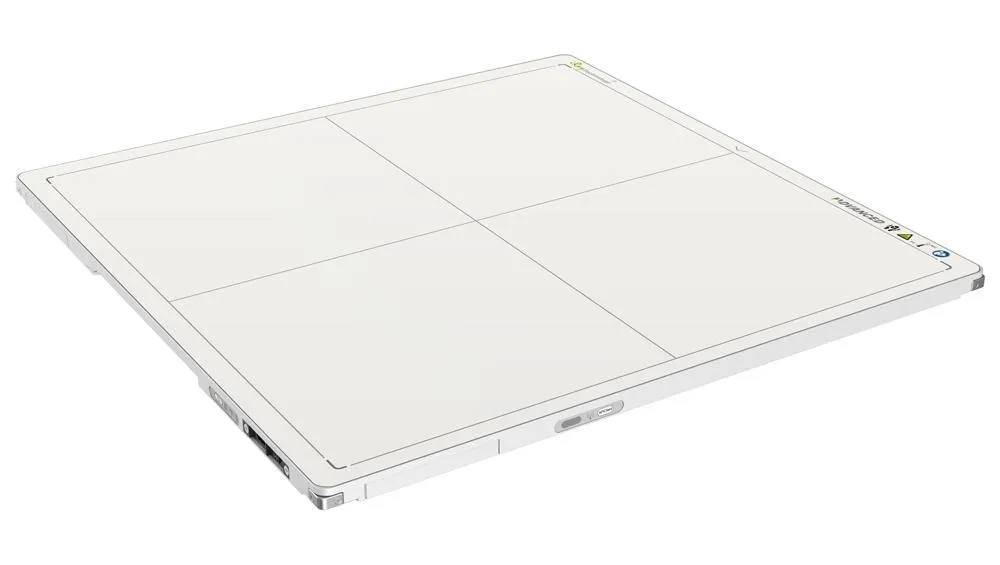

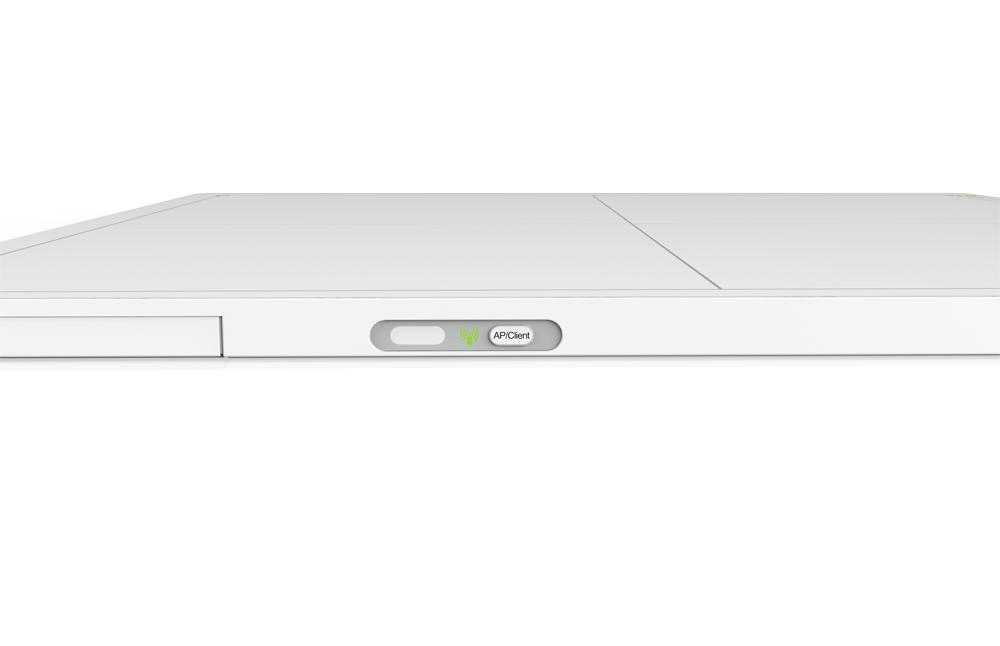

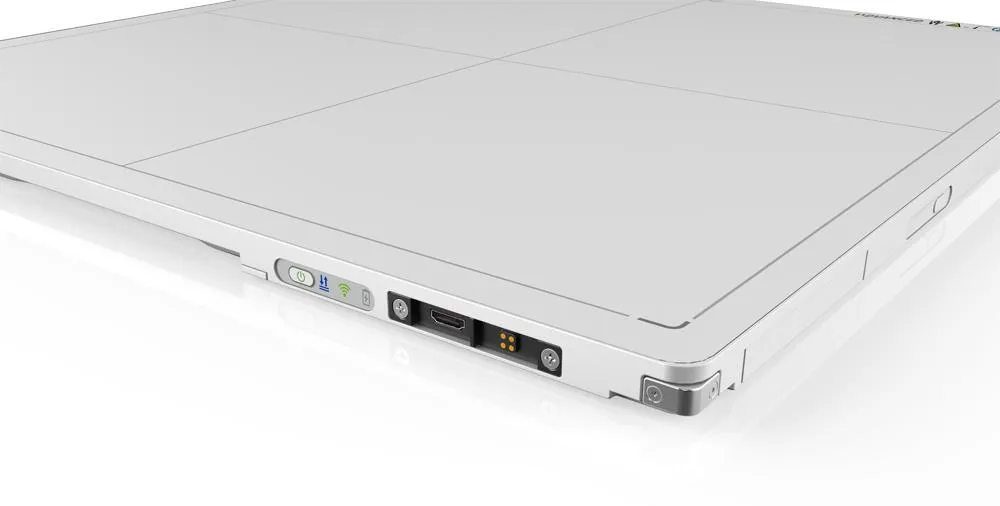

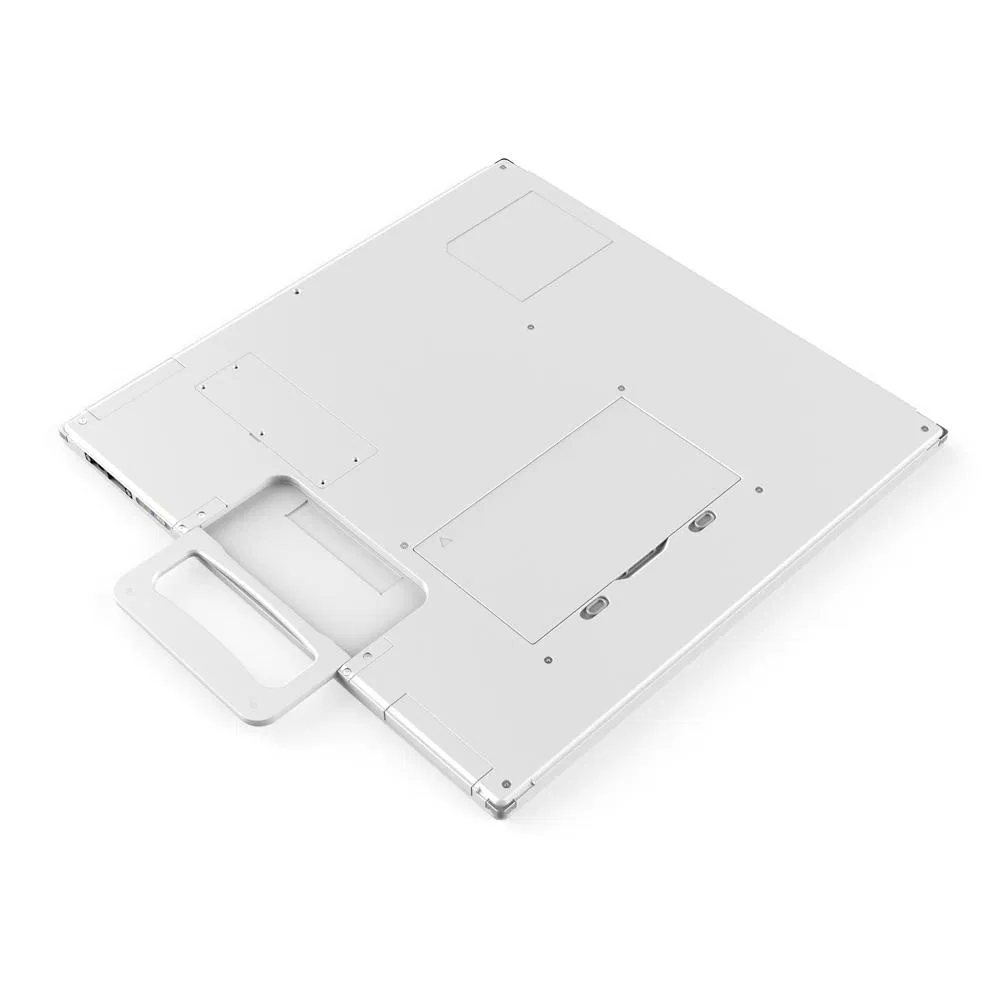

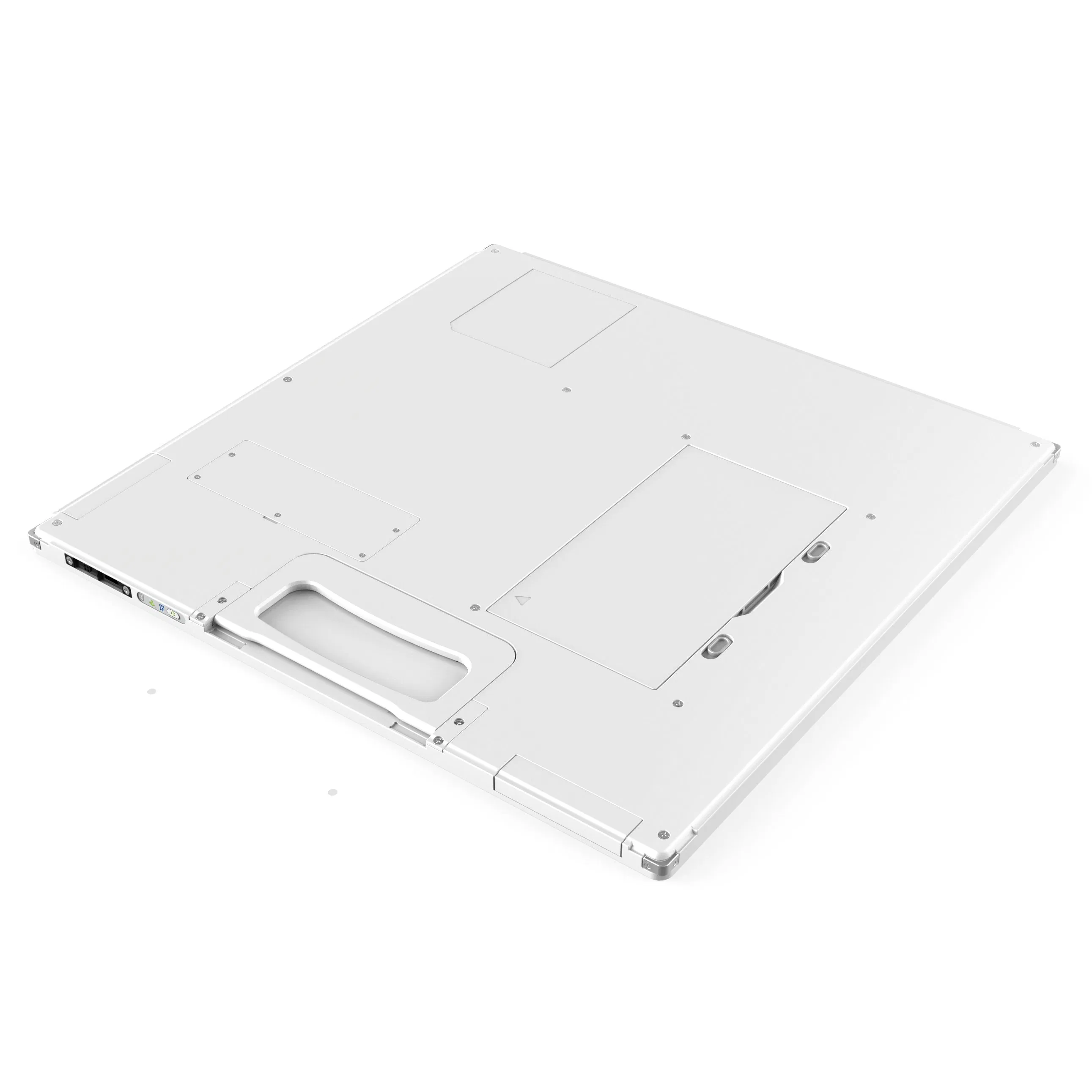

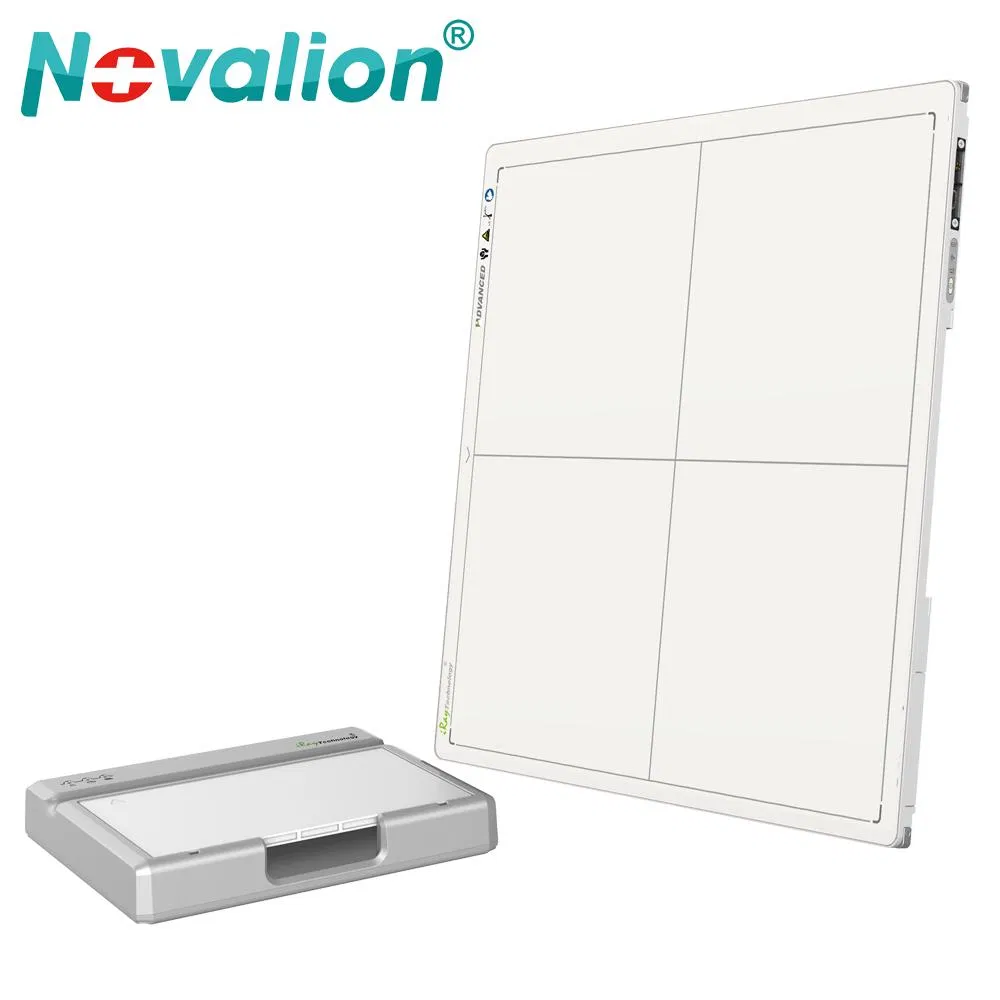

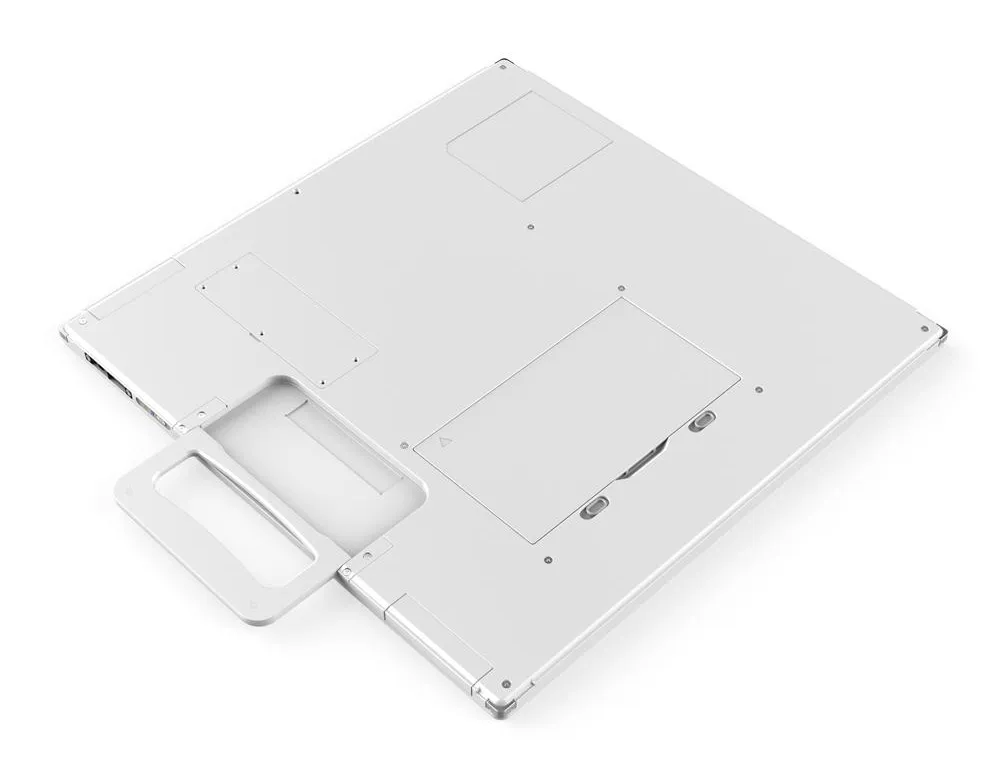

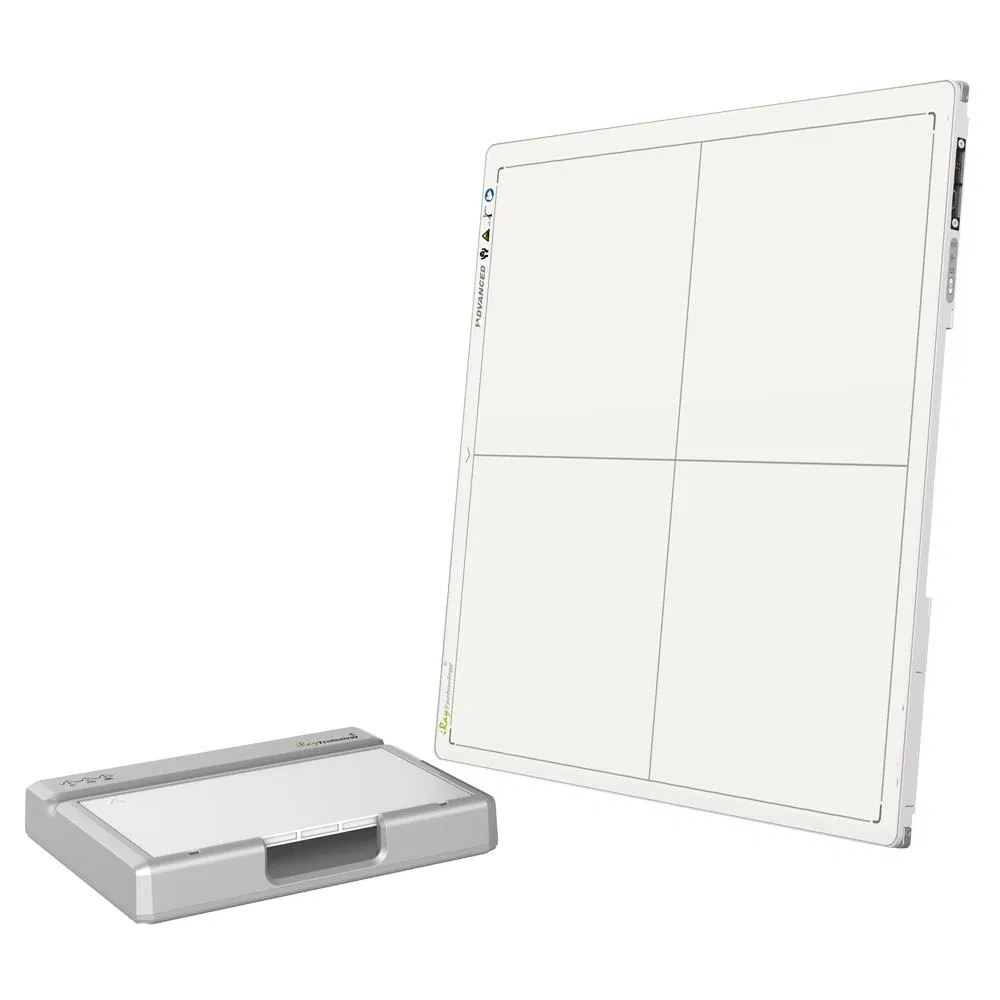

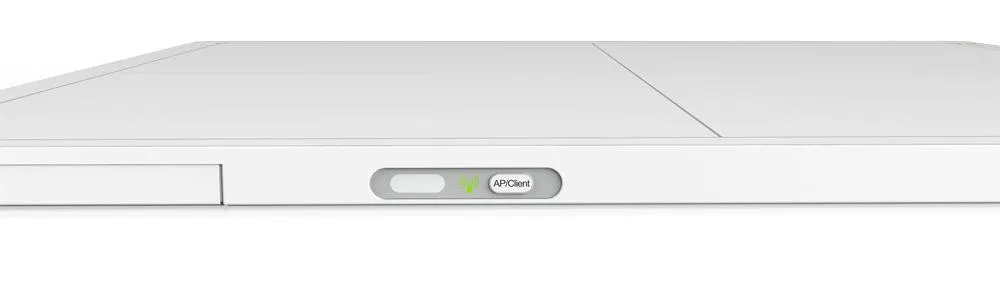

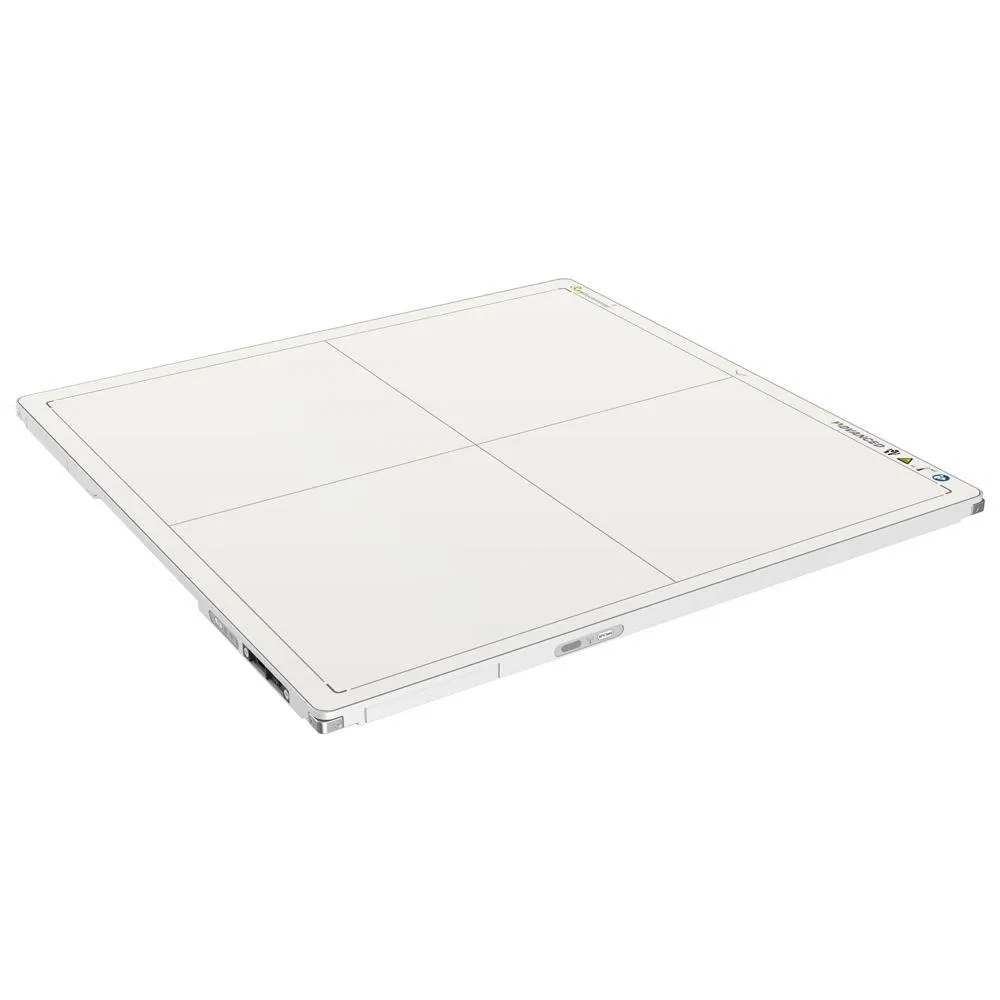

High Quality 17*17 Portable Digital Radiography Wireless X-Ray Flat Panel Detector
This smart 17×17-inch wireless, cassette-sized FPD is designed for high-end radiographic imaging. It features reliable Automatic Exposure Detection (AED), dependable wireless performance, and an extended battery life to support high-volume workflows. It is the optimal choice for both retrofit and new DR system solutions.
| Model | NL060402001A |
| Name | Wireless X-Ray Flat Panel Detector |
| Active Area | 17 * 17 inch |
| Technology | Amorphous Silicon |
| Scintillator | CsI (Cesium Iodide) |
| Production Capacity | 100 PCS / Month |
| Parameter | Specification Details |
|---|---|
| Detector Technology | Amorphous Silicon |
| Scintillator | CsI |
| Active Area (inch) | 17 × 17 |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch (μm) | 139 |
| Spatial Resolution (lp/mm) | 3.6 |
| AD Conversion (bit) | 16 |
| Battery Autonomy (h) | 5 |
| WIFI | 2.4G and 5G, IEEE802.11 a/b/g/n/ac |
| Trigger Mode | AED (Optional) / Software |
| Internal Image Storage | 200 full size images |
| Full Image Time (s) | 5 |

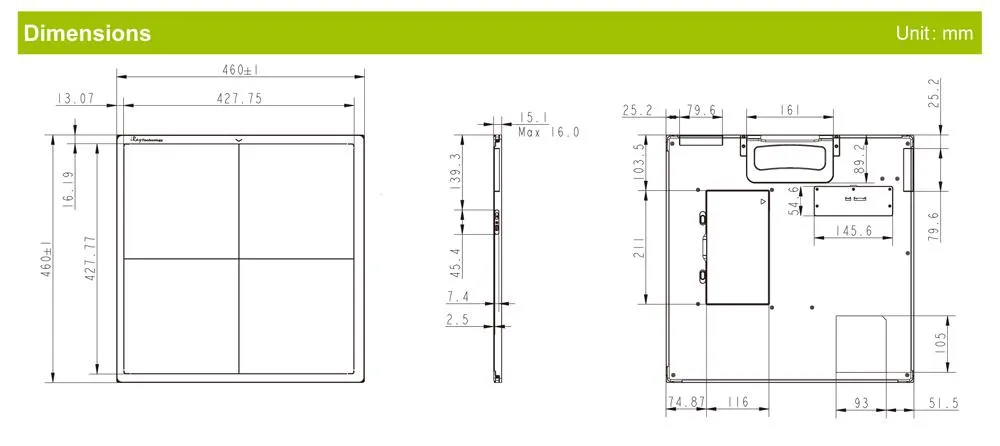

| Dimensions (mm) | 460 × 460 × 15 |
| Weight (kg) | 4.6 |
| Static Loading | 150 kg Uniformly |
| Ingress Protection | IPX1 |
