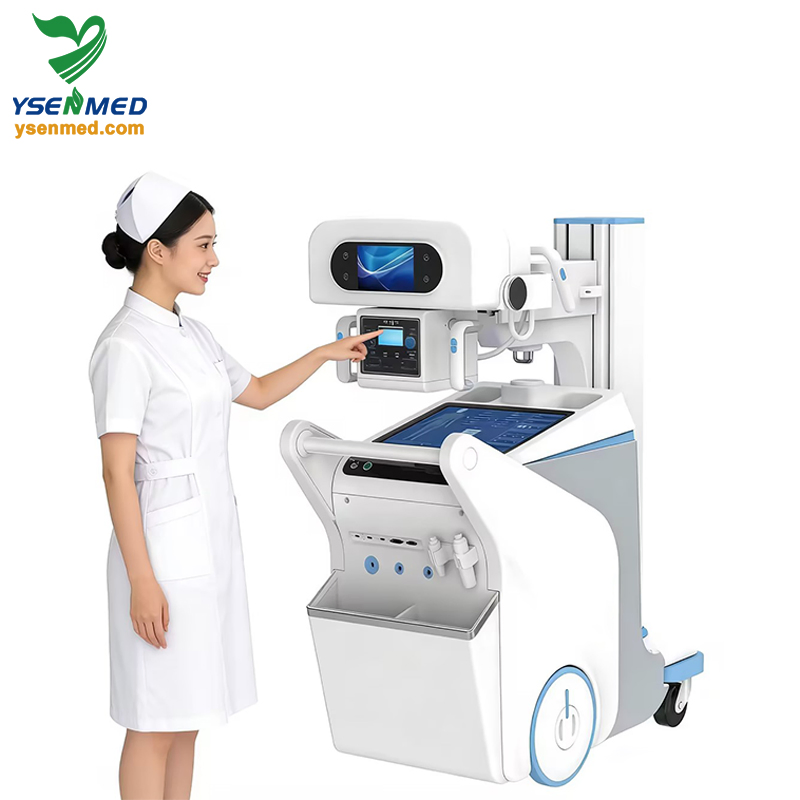

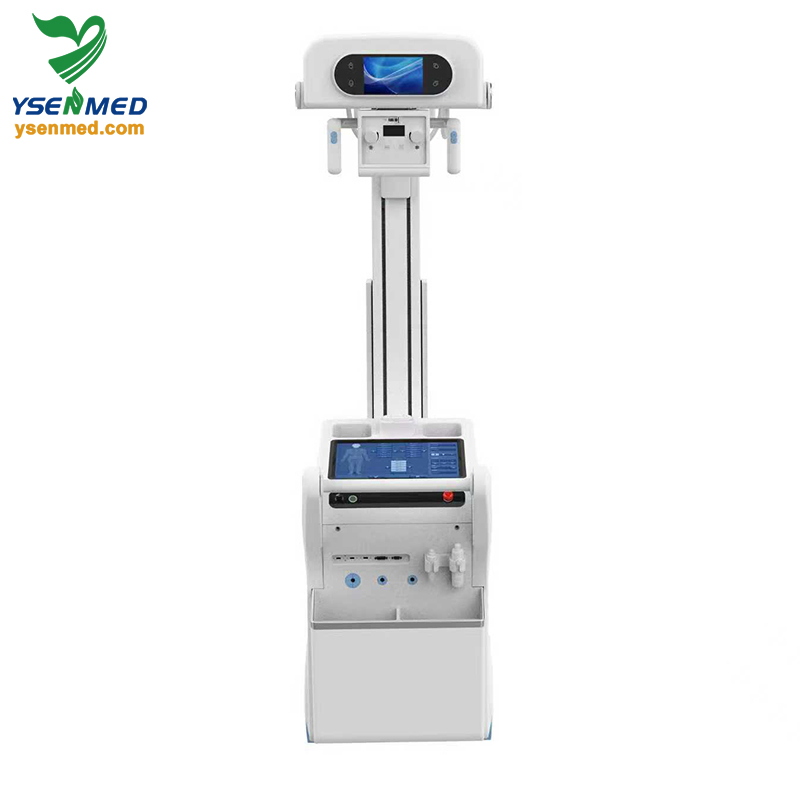

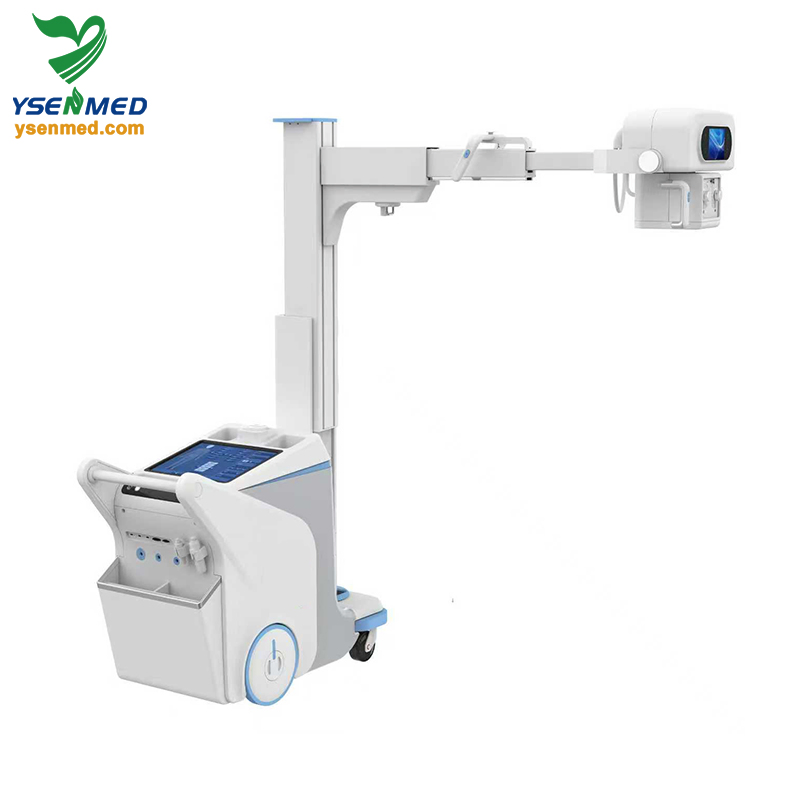

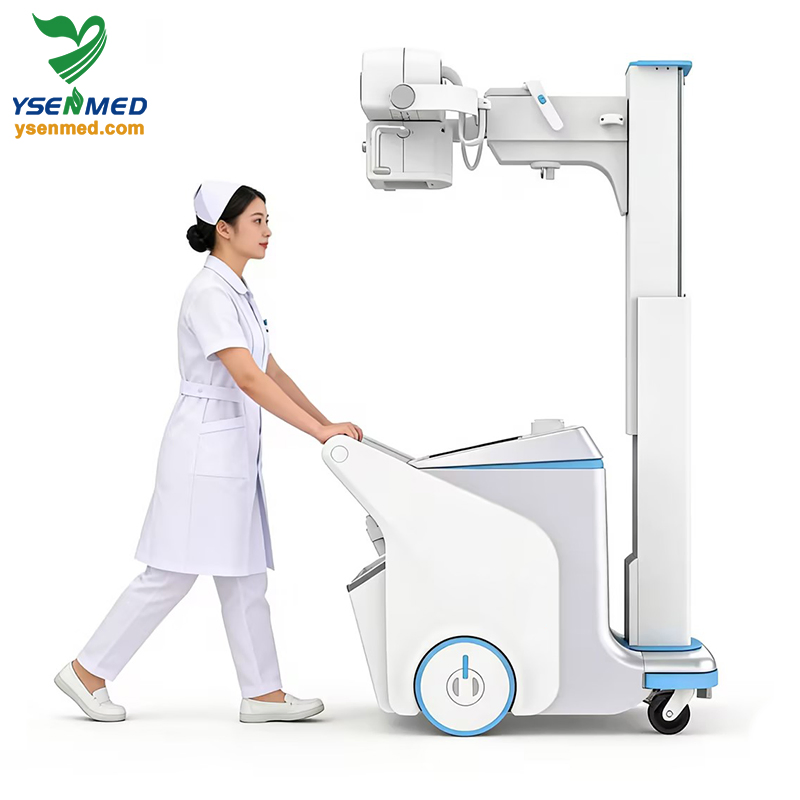

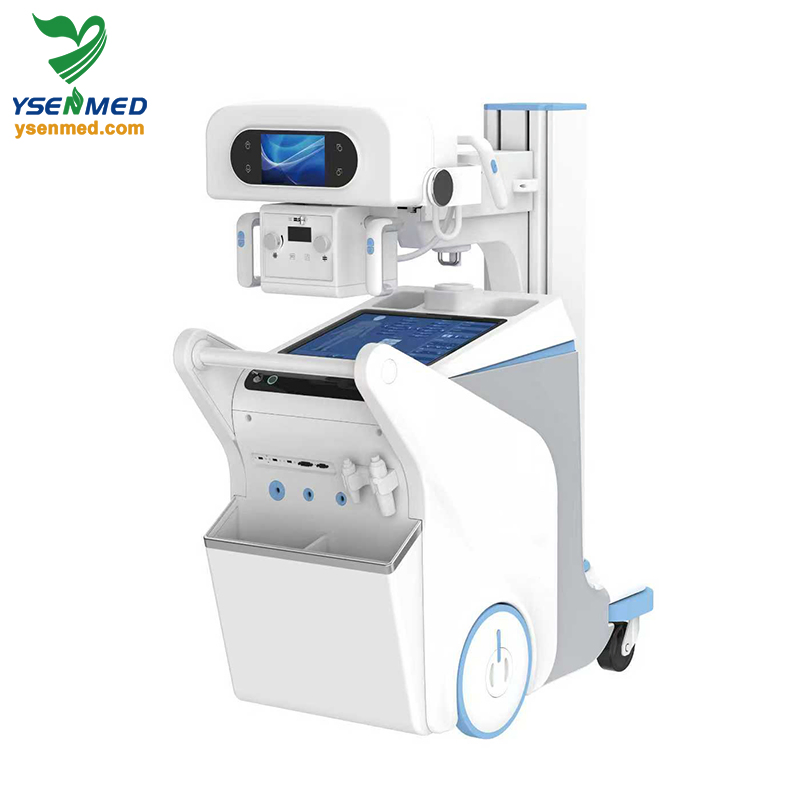

Ysenmed Medical Dr X Ray 50 Kw Mobile Digital X-ray System

Output Power: 50kw
Kv Adjustable Range: 40~150kv, 1kv Step
Ma Range: 50-630mA

Product Description

Basic Information
Model NO.
YSX-mDR50B
Mas Range
0.5~320mas
Input Power
220V/110V Single Phase
Origin
China
Production Capacity
1000 PCS/Year

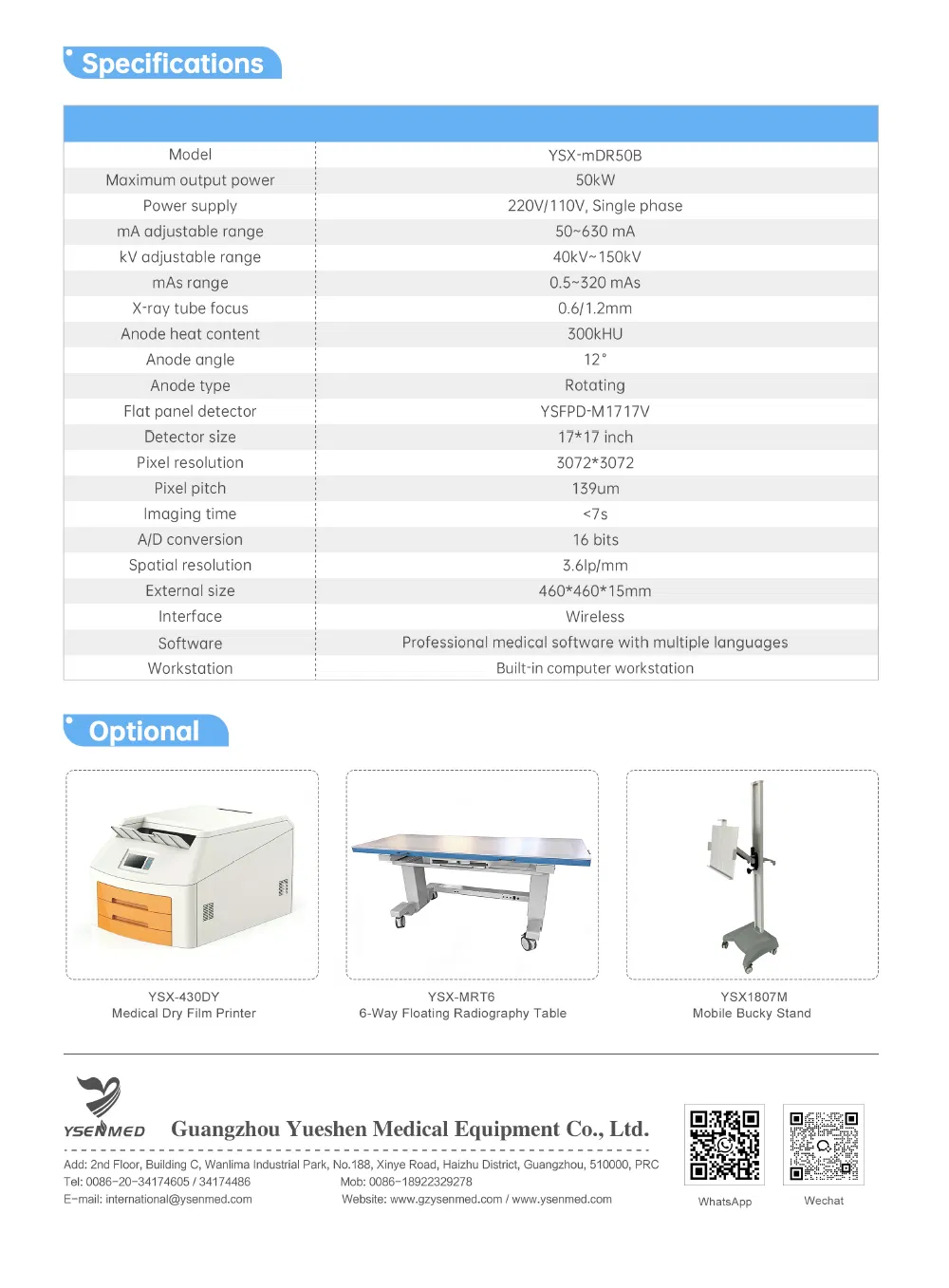

Product Description

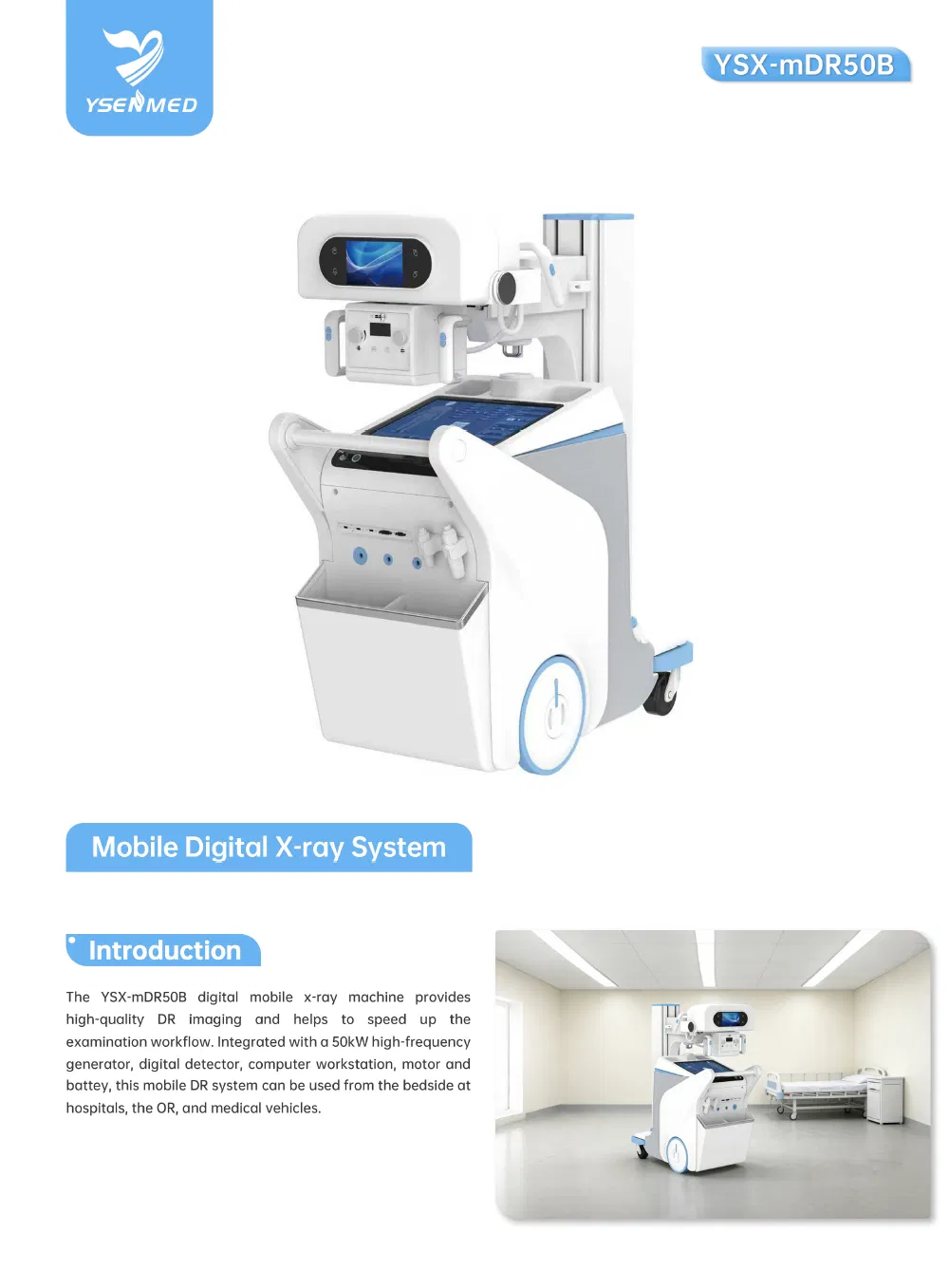

50kW Mobile Digital X-ray System
Model: YSX-mDR50B
Flat Panel Detector Specifications
Technology
Wireless a-Si Flat Panel Detector
Scintillator
CsI
Images Size
430mm x 430mm
Pixel Matrix
3072 x 3072 pixels
Pixel Size
140μm
Resolution
3.5lp/mm
Acquisition
≤7s
High Frequency Generator
Output Power
50kW
kV Range
40~150kV (1kV step)
mA Range
50-630mA
mAs Range
0.5~320mAs
X-ray Tube
Focus
0.6/1.2mm
Anode Type
Rotating (300kHU Heat Capacity)
Anode Angle
12°

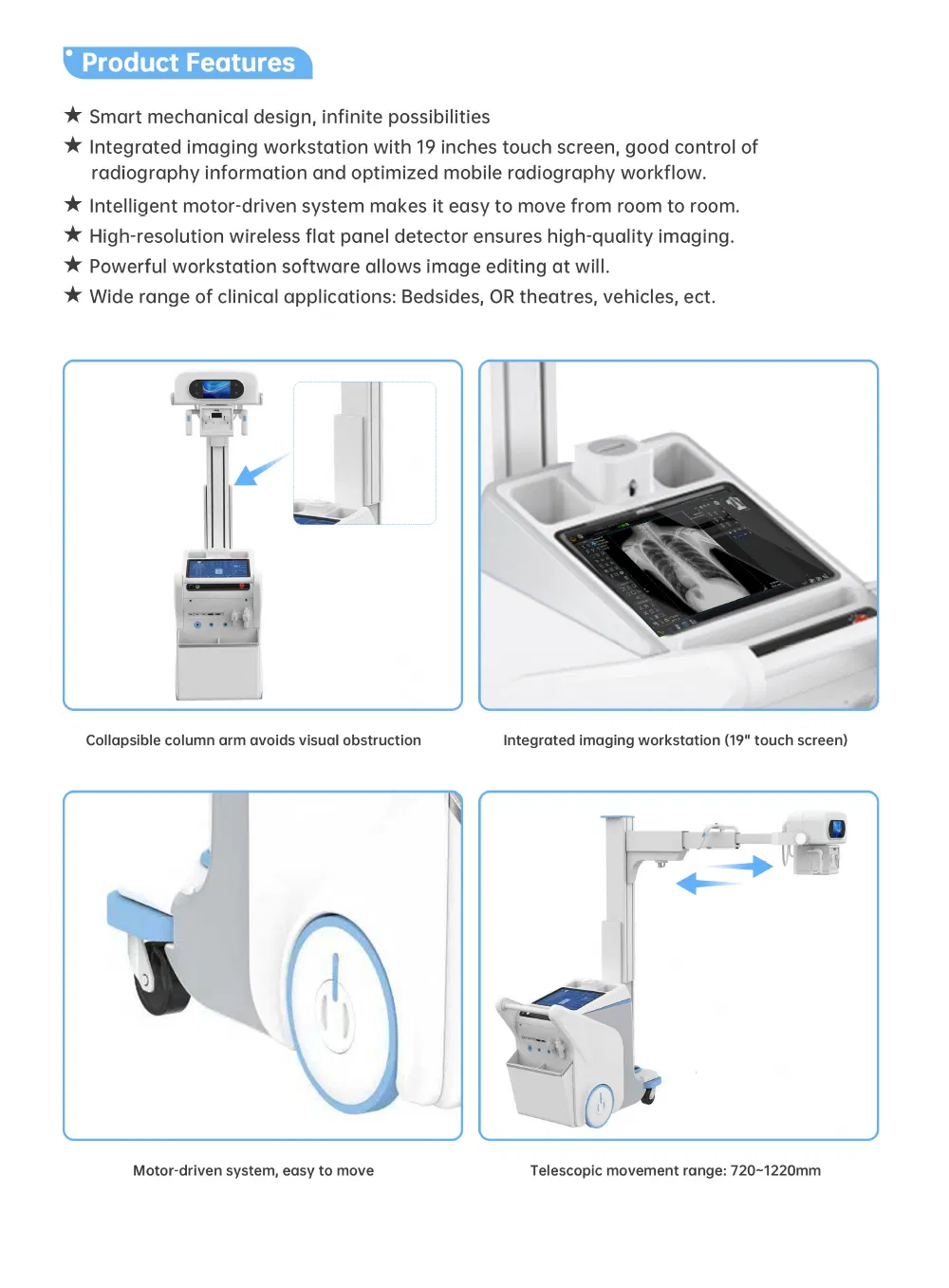

Mobile Stand & Collimator
Vertical Range
600mm - 2100mm
Telescopic Range
720mm - 1220mm
Rotation Range
Stand: ±270°, Tube: ±90°
Collimator
Manual control, LED lamp, 1.2mm Al Filter
System Configurations
Product Name Model Quantity
Flat Panel Detector 14”x17”YSTCQ-1417L1
DX Ray Diagnostic WorkstationYSTX-31
High Frequency GeneratorYSFSQ-M50A1
X-Ray TubeYSMXZ13011
CollimatorYSXS-A11
Mobile StandYSMTYD501
Battery Power Unit/1
Tablet/Option
Profile

We are a professional supplier specializing in the research, development, and sale of medical devices, with a core focus on medical X-ray technology. Our comprehensive portfolio includes medical imaging, laboratory equipment, operation room solutions, gynecology and neonatal care, dental equipment, and hospital furniture.

Our mission is to provide cost-effective medical solutions for hospitals and clinics globally. With established partnerships across 160 countries, we prioritize reputation and customer satisfaction as the foundation of our service. Our dedicated support teams ensure powerful backup and technical assistance for all our clients worldwide.

Pre-sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory visitation available
  • Timely response rate to all customer inquiries
After Sales Service
  • Comprehensive equipment installation training
  • Operational usage training for staff
  • Engineers available for overseas machinery service
  • 24/7 online technical support via multiple channels
Frequently Asked Questions
Q1: What are your primary medical equipment categories?
Our business covers medical imaging, OT room equipment, clinical laboratory instruments, hospital furniture, dental equipment, neonatal care, sterilizers, and veterinary medical equipment.
Q2: Do you support OEM or ODM services?
Yes, most of our products can be customized with your logo and branding through our OEM and ODM services.
Q3: How can I request a detailed price list for specific models?
Please select the specific models and detailed requirements you are interested in and send us an inquiry; we will provide a comprehensive quote promptly.
Q4: What are your standard payment terms for orders?
For standard orders, we typically require a 30% advance payment via T/T, with the remaining 70% balance due before delivery. Sample orders usually require 100% advance payment.
Q5: Do you provide international technical support?
Yes, we provide online support through various communication platforms and have engineers available for overseas equipment servicing and training.
Q6: What is the typical lead time for production?
Production capacity is approximately 1000 units per year. Specific lead times depend on the order size and customization requirements.
