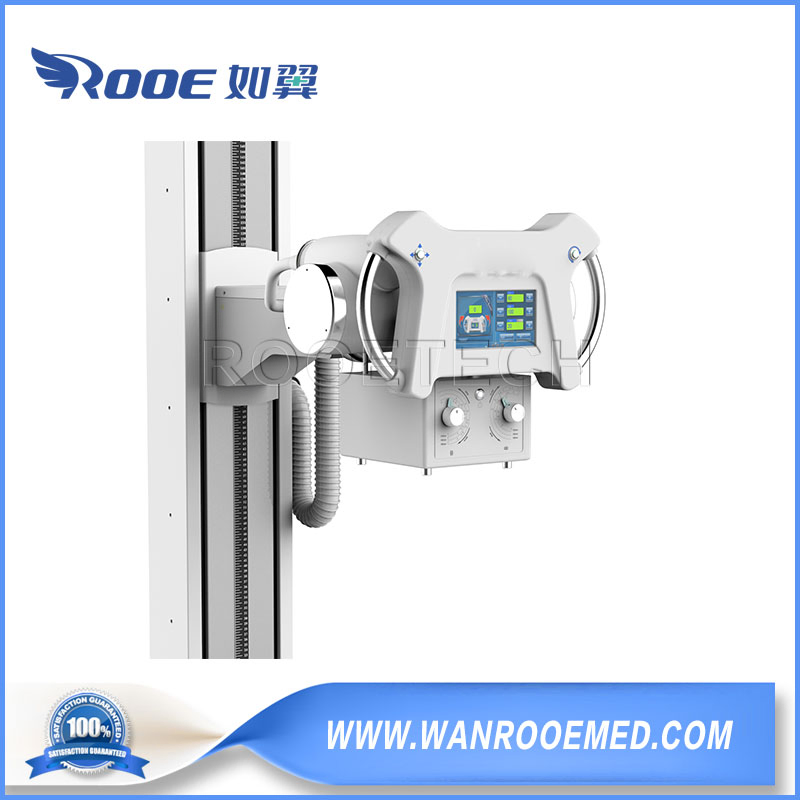

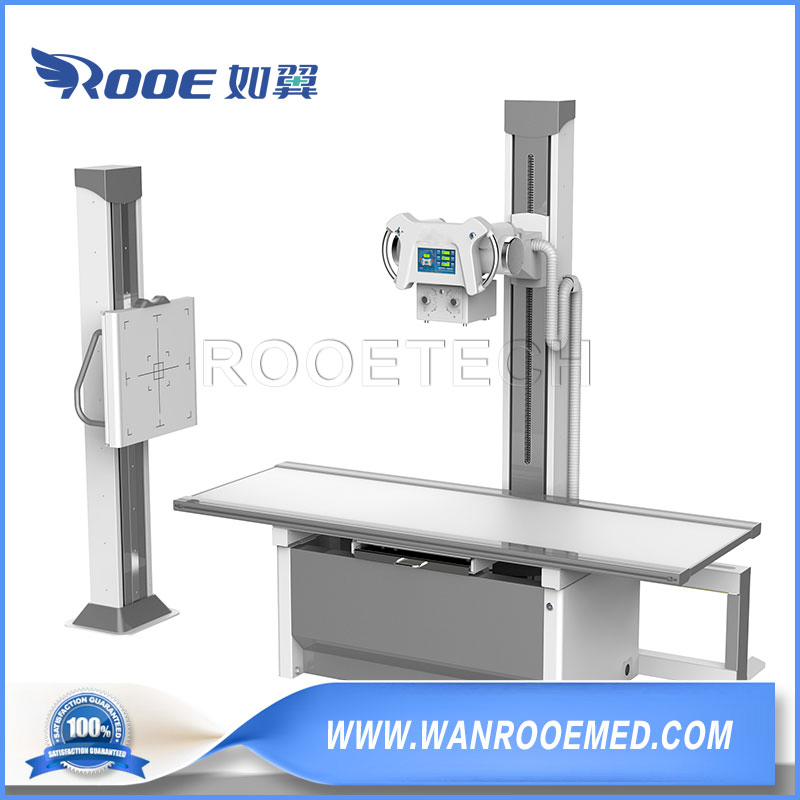

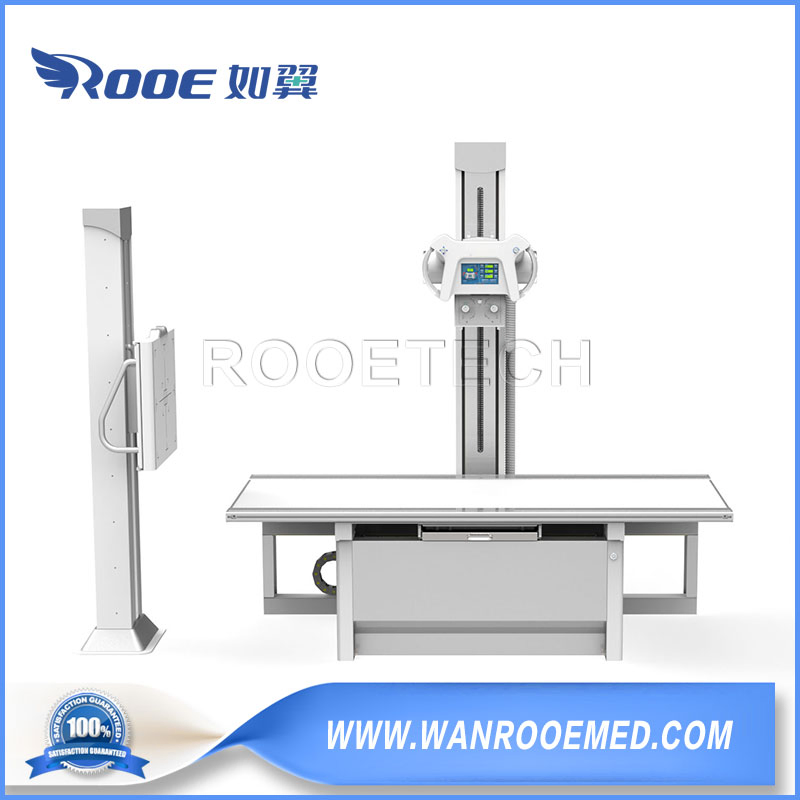

Floor-Mounted Medical Image Flat Bed X-ray Radiography System with Dr Detector
Floor-Mounted Medical Image Flat Bed X-ray Radiography System with Dr Detector
Floor-Mounted Medical Image Flat Bed X-ray Radiography System with Dr Detector
1 / 3
Floor-Mounted Medical Image Flat Bed X-ray Radiography System with Dr Detector
Floor-Mounted Medical Image Flat Bed X-ray Radiography System with Dr Detector
Floor-Mounted Medical Image Flat Bed X-ray Radiography System with Dr Detector

Floor-Mounted Medical Image Flat Bed X-ray Radiography System with Dr Detector

Customization: Available
Customized: Customized
Certification: CE, ISO13485
Send Inquiry

Product Description

Basic Specifications

Model NO.
PLD7400-DR-P
Scale
Large
Radiographic Table Size
2100X800X650mmm
Output Power
20/32/40/50kw
Radiographic Table Bucky Size
18X18inch
Vertical Moving Range
1200mm
Bucky Size
18X18inch
HS Code
94029000
Production Capacity
1000 Sets/Month

Product Description

Floor-mounted Medical Image Flat Bed X-ray Radiography System with DR Detector

Floor-Mounted Medical Image Flat Bed X-ray Radiography System

It is suitable for the digital photography of the head, limbs, chest, spine, lumbar vertebra and other parts of the whole body in orthopedics, wards, emergency rooms, operating rooms, etc. It can be used for the digital X-ray photography diagnosis in medical teaching, scientific research and medical units.

Case managementManual registration, WORKLIST automatic query.
Image acquisitionAutomatic window adjustment, automatic cropping, automatic sending.
Image processingImage correction, image flipping, organization balancing, sharpening, image filtering.
Image observationWindow width and window level adjustment, image flipping, image rotation, image scaling and restoration.
Medical record reportAutomatic loading of patient information, expert template.
Film printingSupport DICOM3.0 standard laser camera printing.
DICOM TransferImages can be sent to any PACS and workstations that comply with the DICOM 3.0 standard.

Technical Parameters

Model PLD7400-20DR-P PLD7400-32DR-P PLD7400-40DR-P PLD7400-50DR-P
X-ray Generator Output Power 20KW 32KW 40KW 50KW
Power Voltage 220V±22V 380V±38V
kV range 40~125kV 40~150kV
mA range 10~320mA 32~400mA 32~500mA 10~630mA
mAs range 0.5 ~320mAs 0.32 ~400mAs 0.32 ~500mAs 0.1 ~630mAs
Exposure time 0.002~6.3S
X-ray Tube Small focus 1 1 1 0.6
Large focus 2 2 2 1.2
Anode speed 2800r/min /
Radiographic Table Top Table Size 2100X800X650mmm
Bucky Size 18X18inch
Longitudinal movement ≥900mm
Cassette Distance ≥500mm
Vertical Chest Stand Moving range ≥1200mm
Bucky Size 18X18inch

Product Gallery

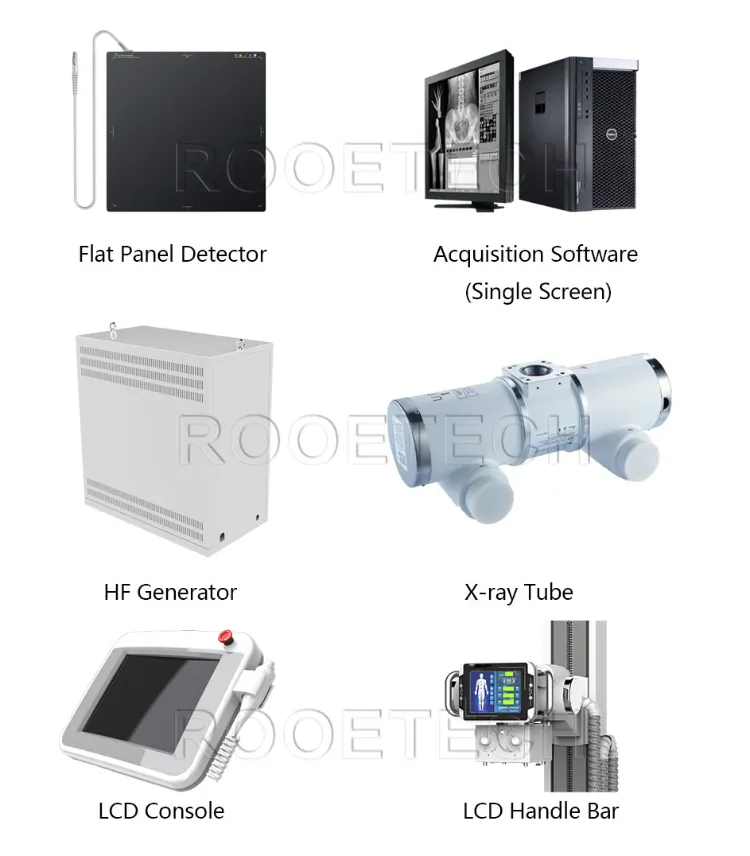

System Detail 1
System Detail 2
System Detail 3

Frequently Asked Questions

What are the primary applications for this X-ray system?
It is designed for digital photography of the head, limbs, chest, spine, and lumbar vertebra. It is ideal for orthopedics, emergency rooms, and operating rooms.
What power configurations are available for the PLD7400-DR-P series?
The system comes in four power options: 20KW, 32KW, 40KW, and 50KW to meet different clinical requirements.
Does the system support digital image integration?
Yes, it fully supports DICOM 3.0 standards for film printing and image transfer to PACS and workstations.
What is the size of the radiographic table and its movement range?
The table size is 2100X800X650mm with a longitudinal movement range of ≥900mm and a cassette movement distance of ≥500mm.
What are the vertical movement capabilities of the chest stand?
The vertical chest stand features a moving range of ≥1200mm and uses an 18x18 inch Bucky size.
Can the system handle high-volume patient workflows?
Yes, with features like automatic image acquisition, WORKLIST query, and expert report templates, it is optimized for efficient clinical workflows.
