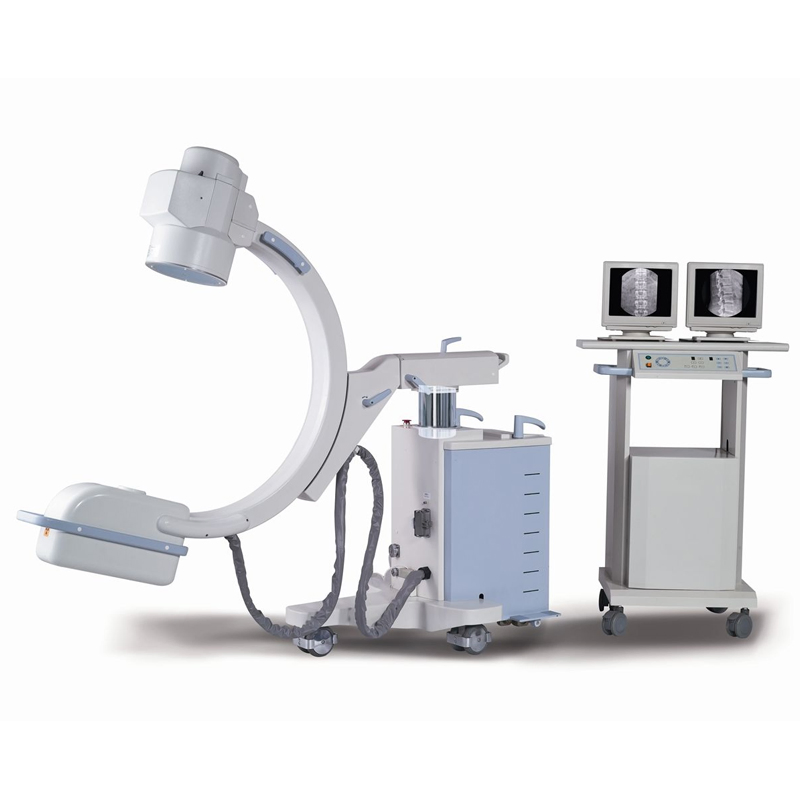

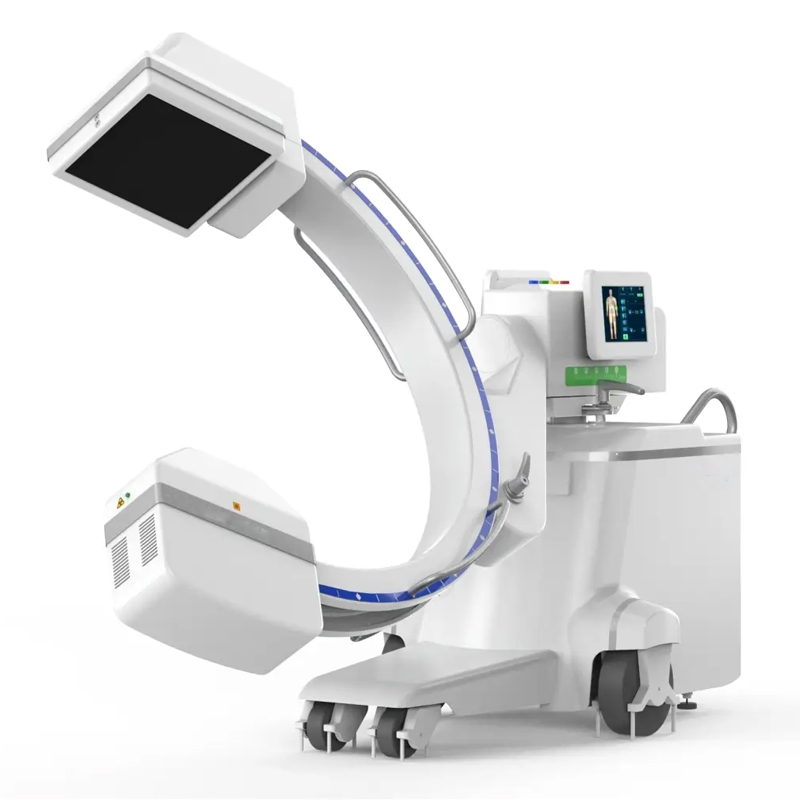

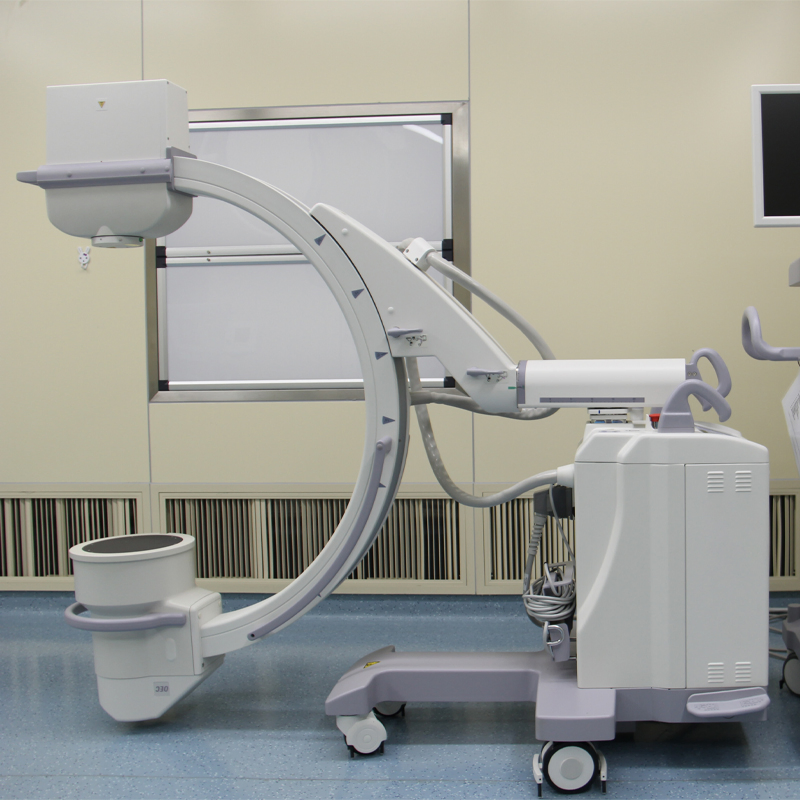

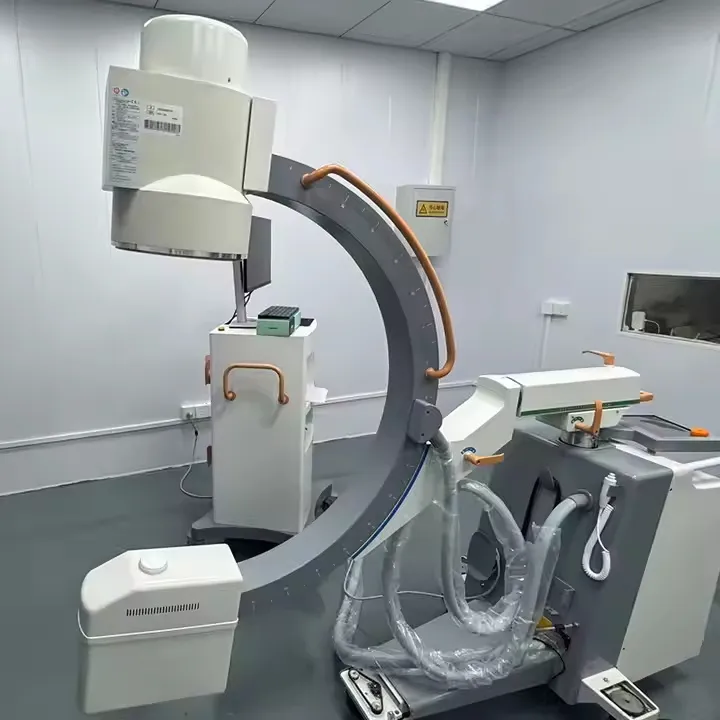

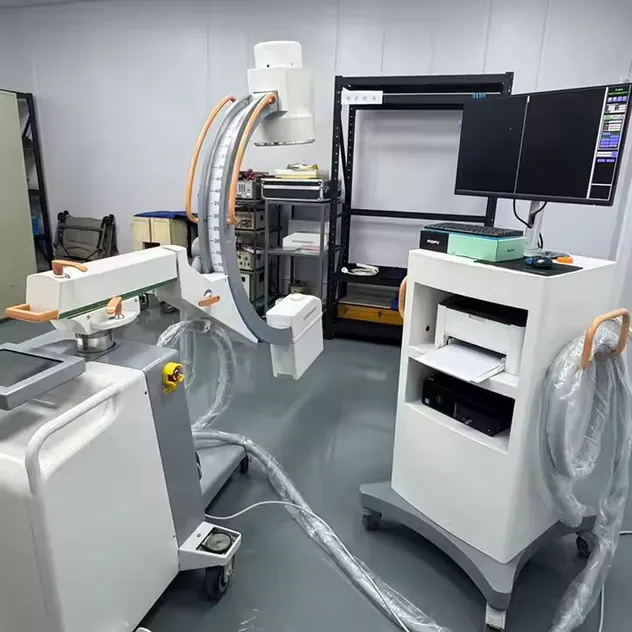

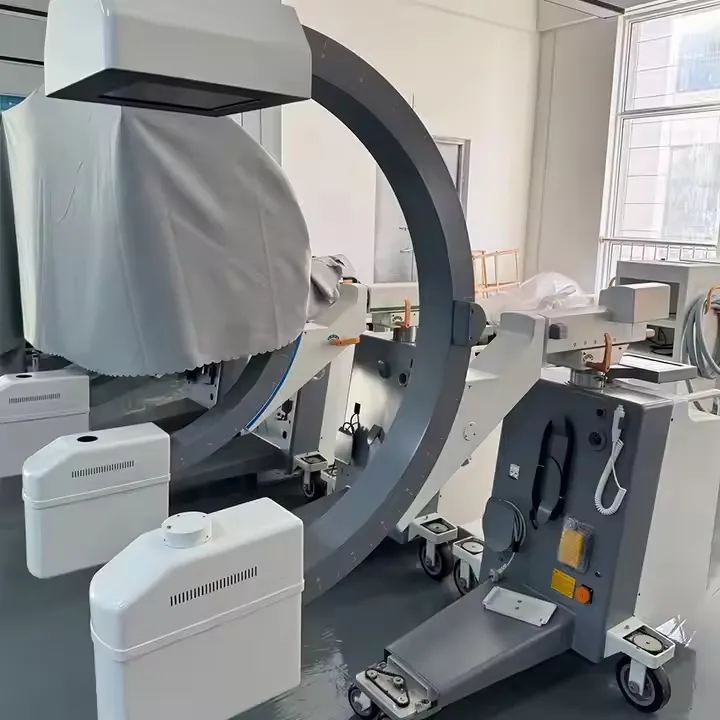

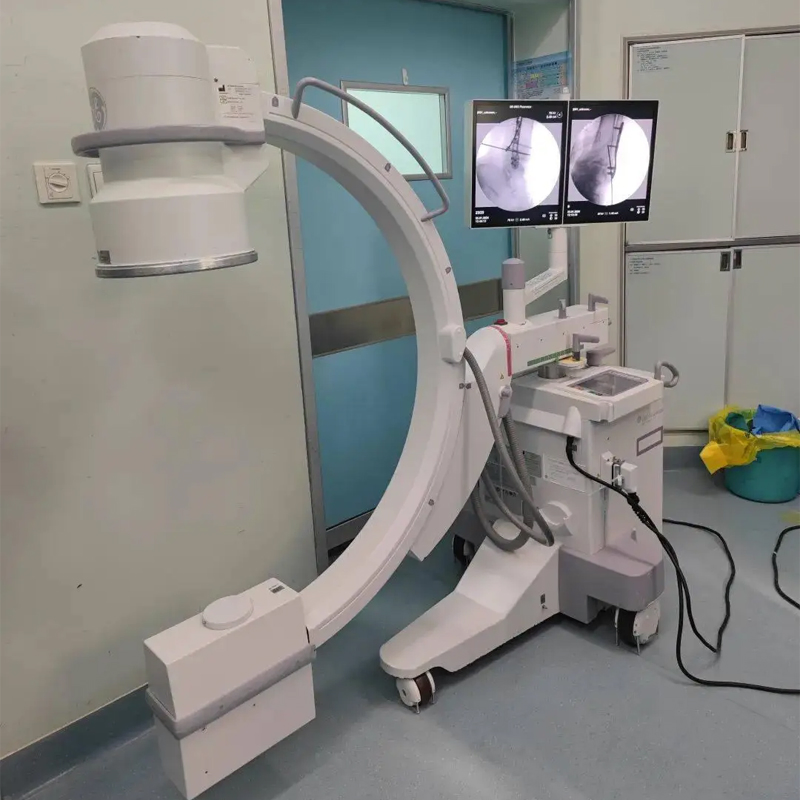

The Series Mobile C-arm X-ray Machine adopts a 1Kx1K pixel digital image system, providing clear images for precise diagnosis. Its simple and lightweight mechanical design ensures operation is highly convenient for medical professionals.
This system is widely used across various medical departments, including:
Simple structure with no external drag cables, ensuring ease of movement and use in tight operating rooms.
Large anode heat capacity and 50KW high power options to support long-term surgical procedures.
AK & AKR dynamic monitoring with real-time dose display and high-dose prompts for radiation safety.

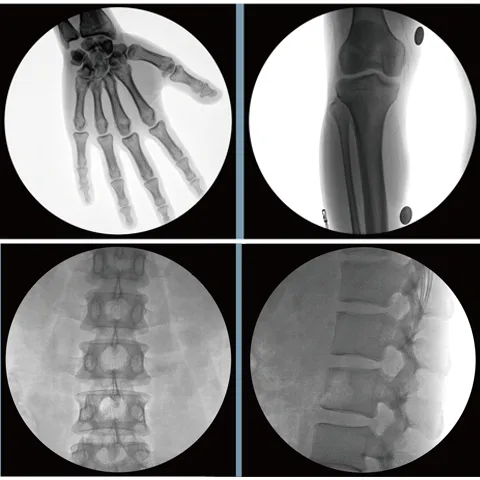

Excellent image algorithms eliminate dynamic tailing; 1Kx1K digital system for lossless processing.
| Component | Technical Parameters & Performance |
|---|---|
| HF Generator | 110kV, 3.5KW, 40kHz; Pulsed fluoroscopy 40~110 kv; Photography 40~110kV / 1~250mAs |
| X-ray Tube | Dual-focus fixed anode: 0.6mm/1.5mm |
| Image Intensifier | Three fields of vision (9", 6", 4.5") |
| CCD Camera | High resolution, 360° rotation capability |
| Image System | 5 Degree recursive Noise Reduction; Frame freezing; DICOM 3.0 support; Screen image comparison |
| Mechanical Motion | Vertical travel: 0~400mm; Horizontal travel: 0~200mm; Rotation about horizontal axis: ±180° |
| C-Arm Dimensions | SID: 1000mm; Depth in arm ≥ 650mm |

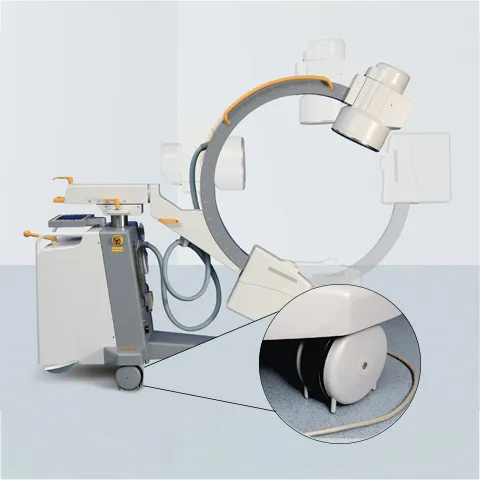

Equipped with a color guide to assist the operator in finding the right position quickly. The unique block wire wheel design prevents accidents caused by compacted cables during movement.
