50 Kw Dr X Ray Radiography High Frequency Digital Dr X Ray System Hospital Medical
50 Kw Dr X Ray Radiography High Frequency Digital Dr X Ray System Hospital Medical
50 Kw Dr X Ray Radiography High Frequency Digital Dr X Ray System Hospital Medical
50 Kw Dr X Ray Radiography High Frequency Digital Dr X Ray System Hospital Medical
50 Kw Dr X Ray Radiography High Frequency Digital Dr X Ray System Hospital Medical
1 / 5
50 Kw Dr X Ray Radiography High Frequency Digital Dr X Ray System Hospital Medical
50 Kw Dr X Ray Radiography High Frequency Digital Dr X Ray System Hospital Medical
50 Kw Dr X Ray Radiography High Frequency Digital Dr X Ray System Hospital Medical
50 Kw Dr X Ray Radiography High Frequency Digital Dr X Ray System Hospital Medical
50 Kw Dr X Ray Radiography High Frequency Digital Dr X Ray System Hospital Medical

50 Kw Dr X Ray Radiography High Frequency Digital Dr X Ray System Hospital Medical

Customization: Available
Customized: Customized
Certification: CE, FDA, EEC, ISO13485
Send Inquiry

Product Description

Basic Information
Model NO.
ZJBSH-M1010
Scale
Large
Detector Size
17"*17"
Pixel
3072*3072
Item
X Ray System
Tube Current
0.1 ~630mas
Specification
50KW
Capacity
5000 Set Per Year
Product Description

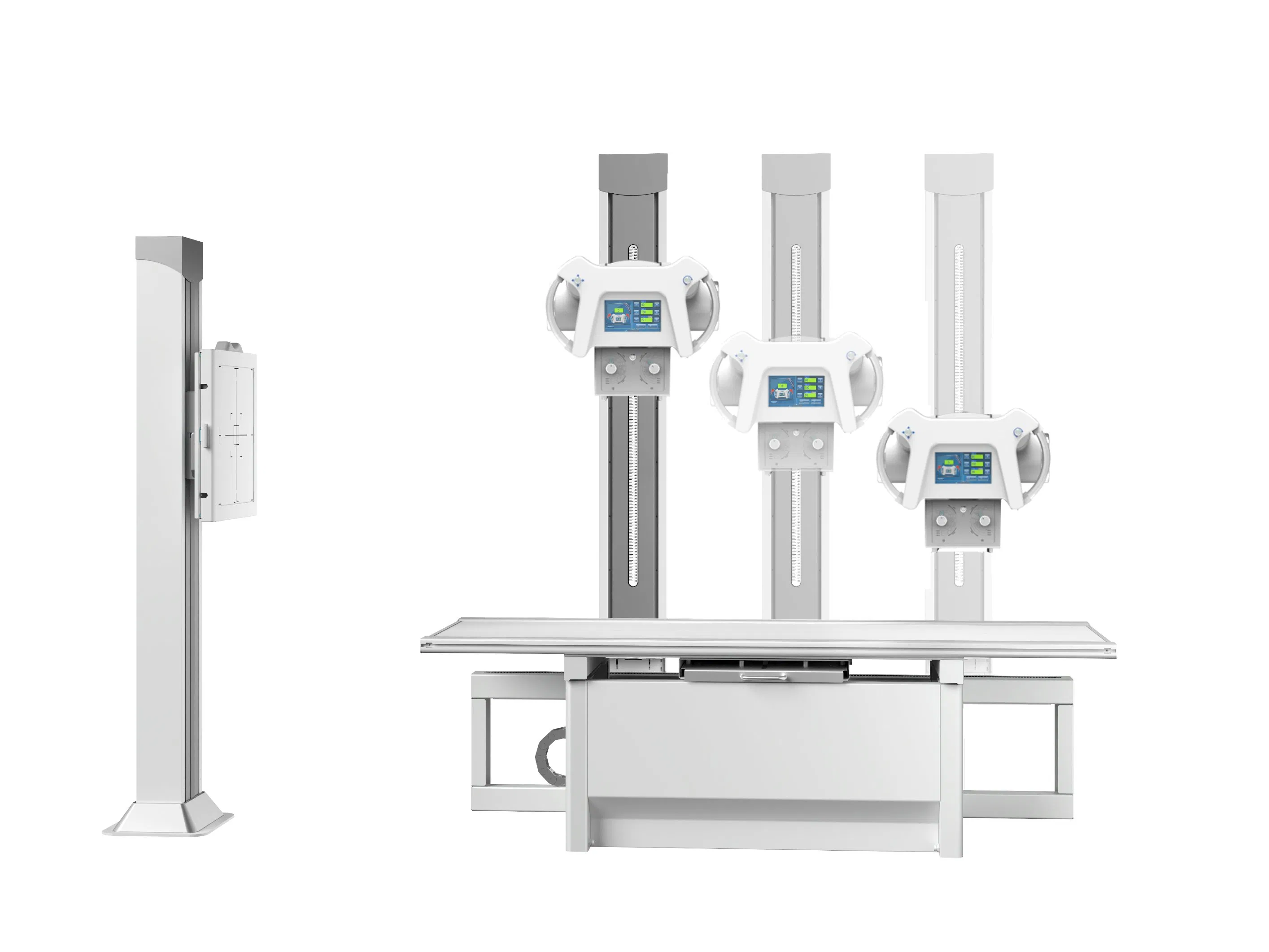

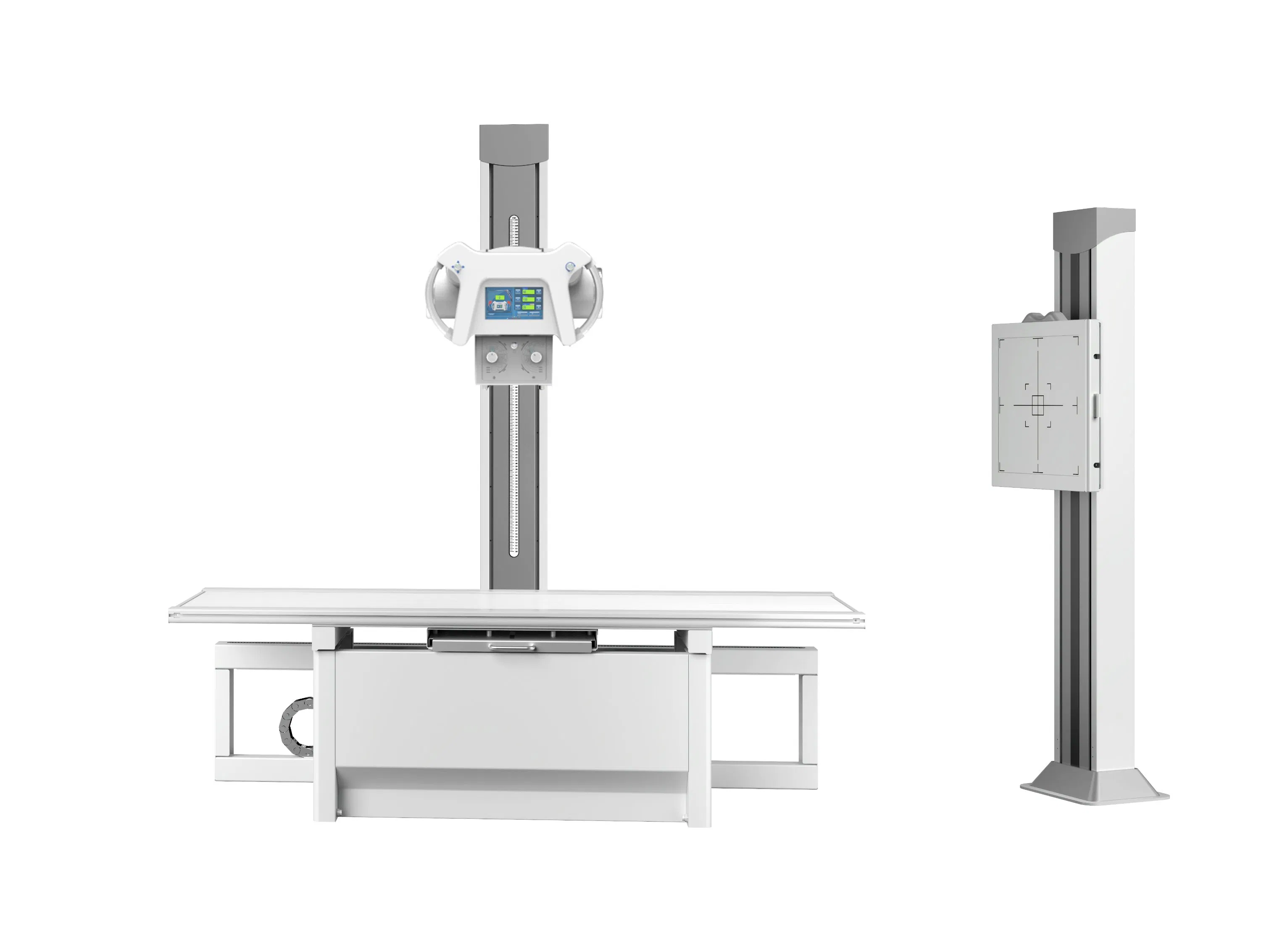

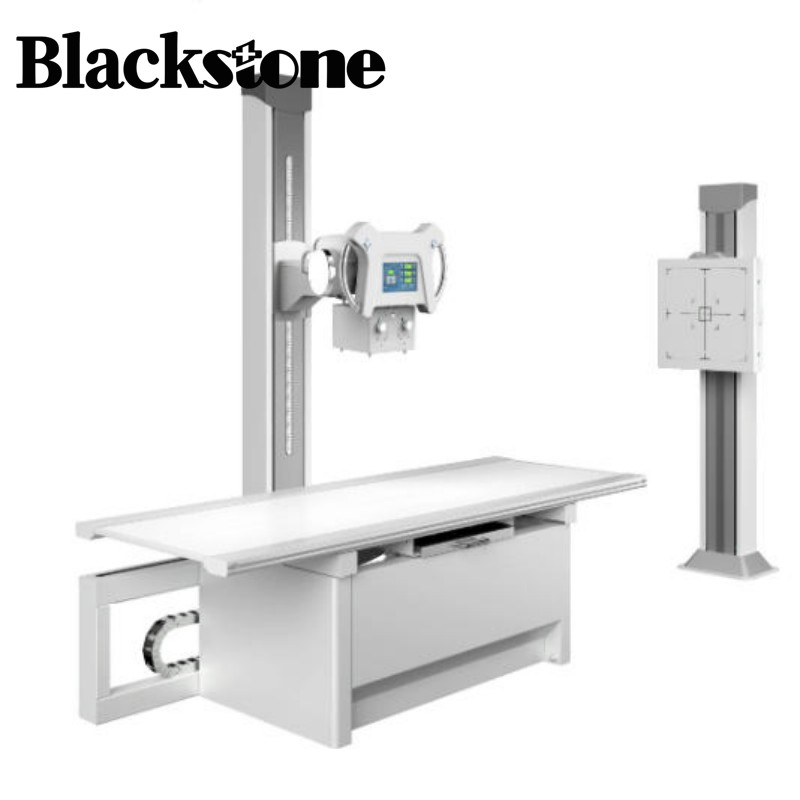

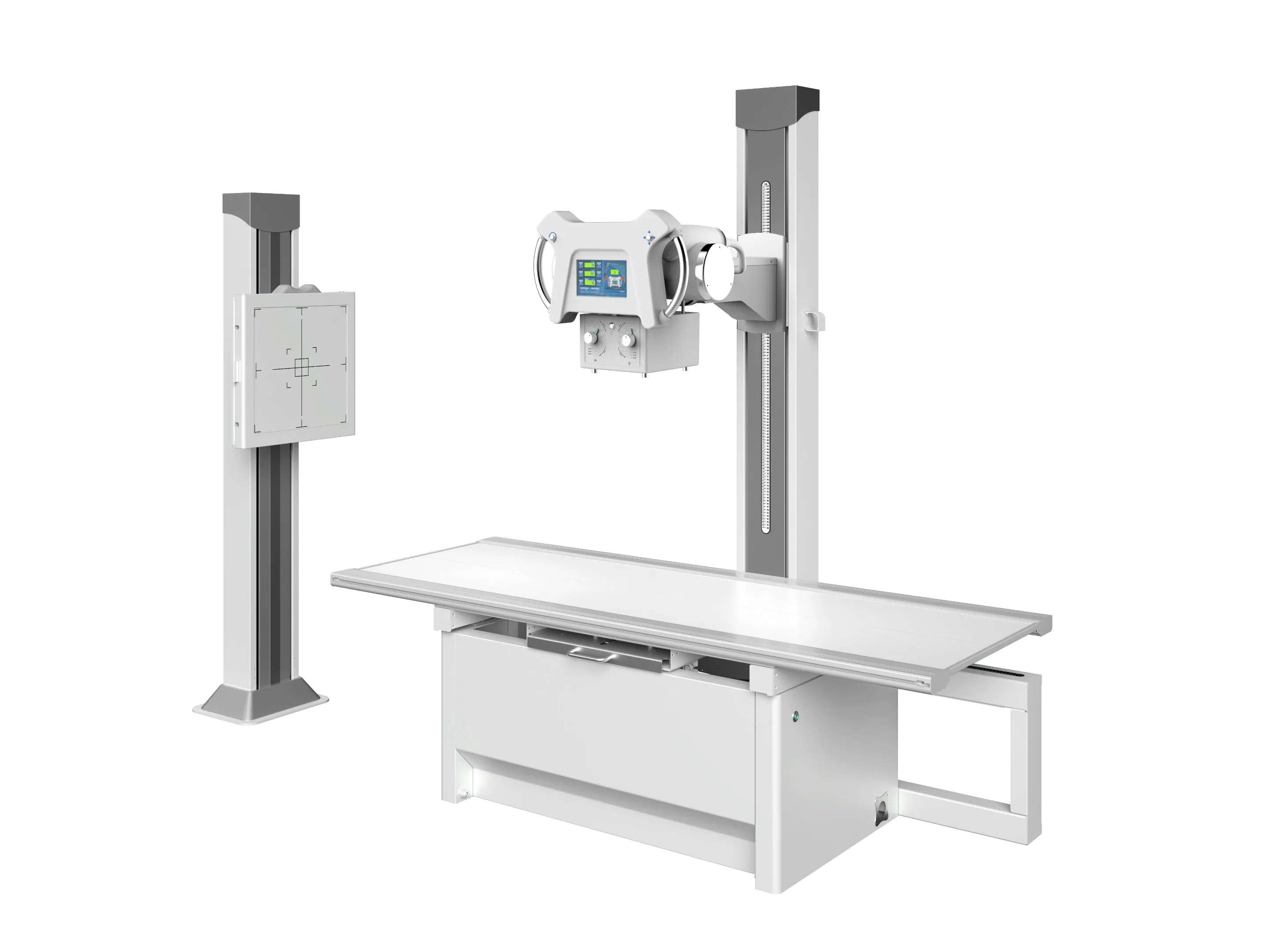

50kw Floor-Mounted Digital Radiography X-ray Machines

Digital X-ray Machine
X-ray System Detail 1 X-ray System Detail 2
Control Interface
  • Available with 7-inch or 10.4-inch control screens.

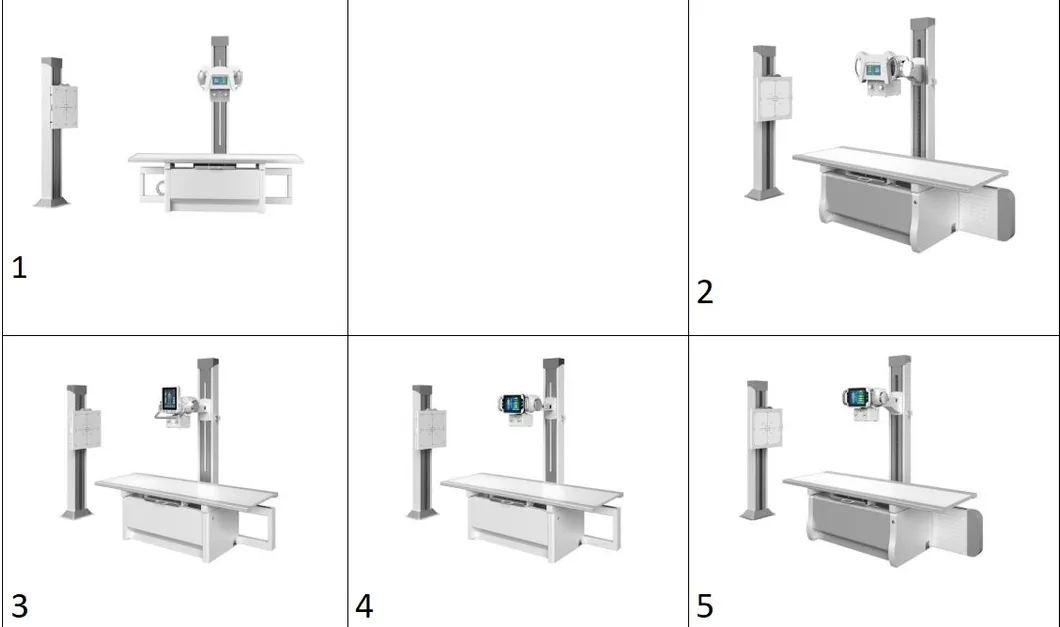

  • Multiple bed types and tube head configurations.
  • High intelligence analog-digital double-loop control.
  • Suitable for all standard medical diagnostic imaging requirements.
  • High-Performance X-ray Generator:
  • Rich DR upgrade reserve interface.
  • Fault self-diagnosis and protection systems.
  • Automatic tube current calibration and filament dormancy.
  • Strong penetration for obese patient imaging.

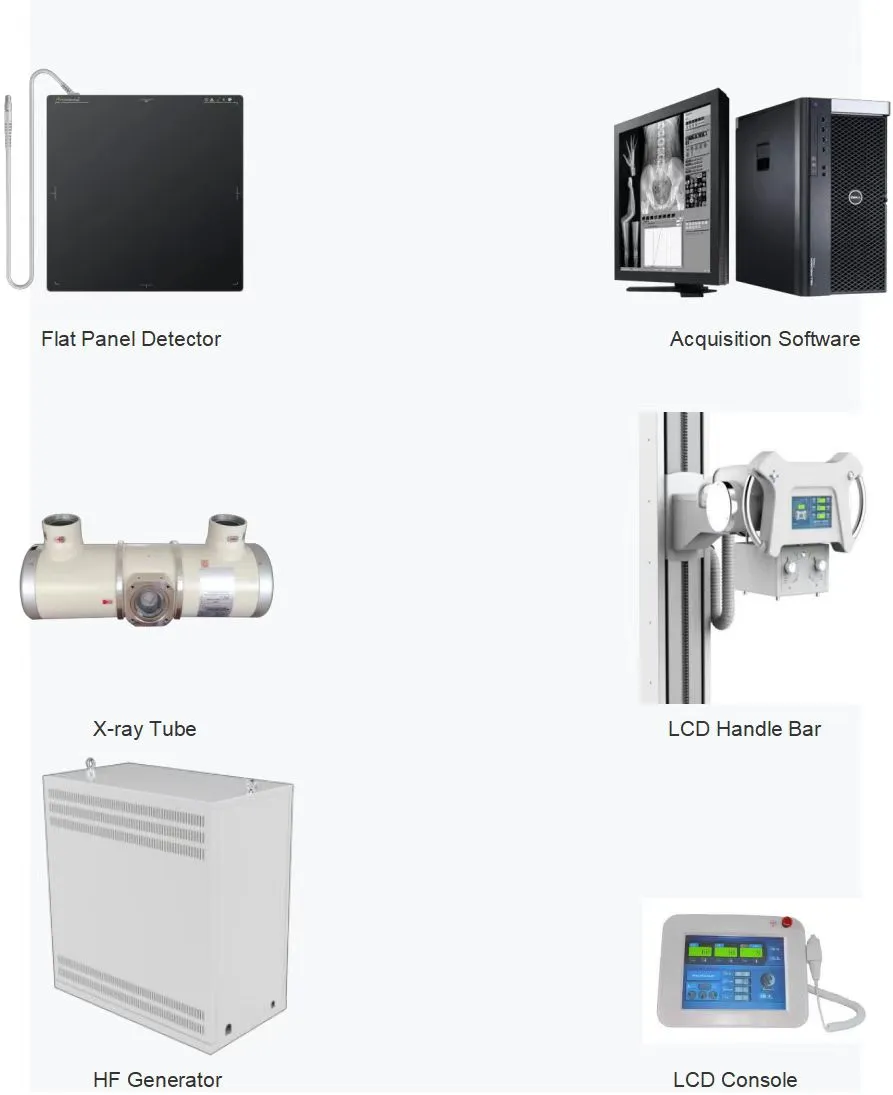

X-ray Generator

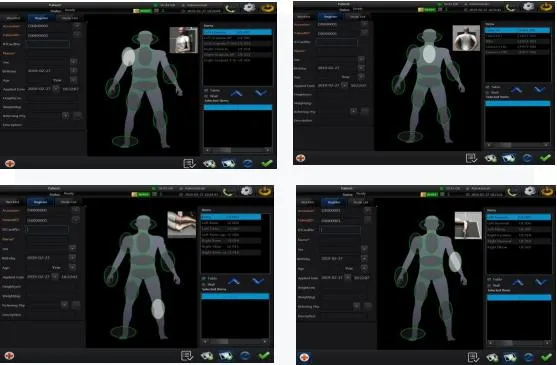

Acquisition Software
  • Professional Software & Workstation:
  • Multi-language support and professional diagnostic tools.
  • Full RIS/PACS/DICOM printer connectivity.
  • Comprehensive patient management and post-processing.
  • High-speed image capture and secure storage.

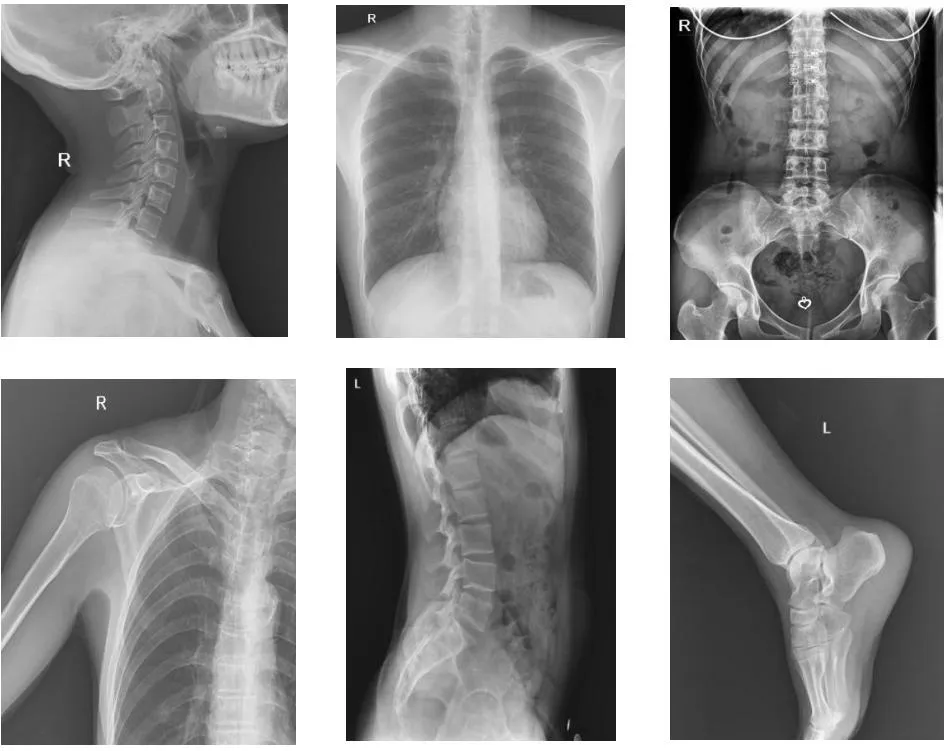

Clinical Application

Applicable to orthopedics, emergency room, operating room, and general medical diagnosis (Head, limbs, chest, spine, lumbar).

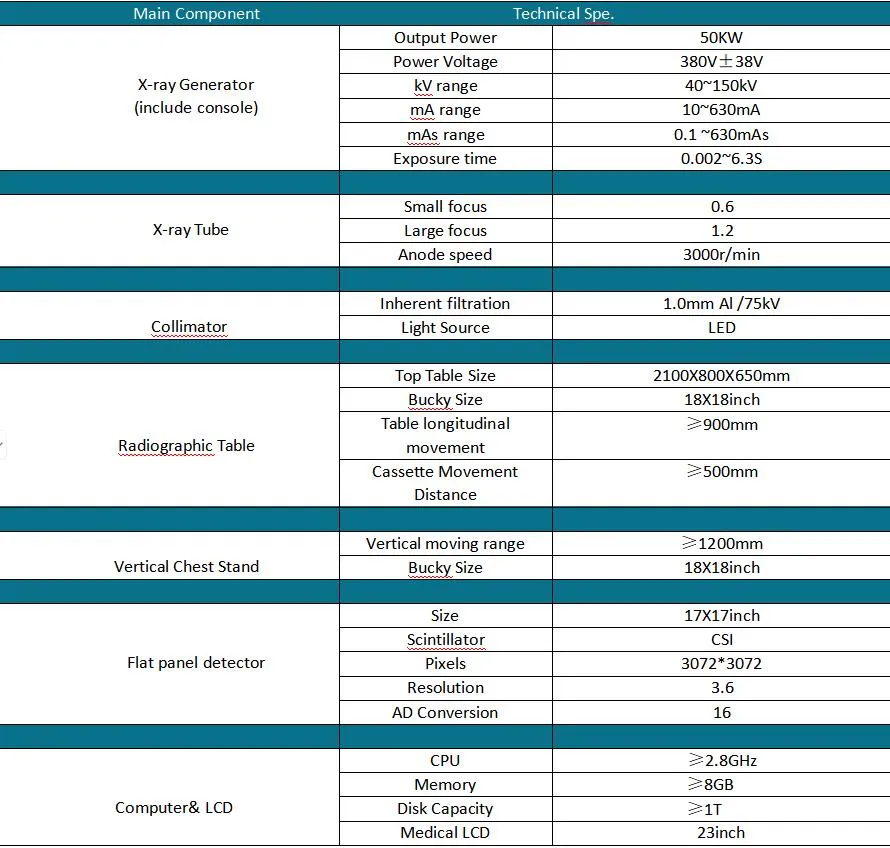

Technical Specifications
Component Feature D20 D32 D40 D50 D65
Power Supply Voltage AC220V AC220V AC380V AC380V AC380V
High Voltage Generator Power 20kW 32kW 40kW 50kW 65kW
kV Range 40~125kV 40~125kV 40~125kV 40~150kV 40~150kV
mA Range 10~320mA 10~400mA 10~500mA 10~630mA 10~800mA
Frequency 300kHz 300kHz 400kHz 400kHz 400kHz
X-ray Tube Anode Heat 140KHU 140KHU 140KHU 300KHU 300KHU
Focus 1.0/2.0mm 1.0/2.0mm 1.0/2.0mm 0.6/1.2mm 0.6/1.2mm
Target Angle 12.5° 12.5° 12° 12° 12°
Radiographic Table Size 2096 × 800 × 650mm
Bucky Size 18 × 18 inch
Production Facility Quality Control International Standard
Frequently Asked Questions
What types of medical examinations is this X-ray machine suitable for?
This system is designed for a wide range of diagnostic needs, including orthopedics, emergency rooms, and general radiography for the head, limbs, chest, spine, and lumbar spine.
Does the system support digital image management (DICOM)?
Yes, the professional workstation supports full RIS, PACS, and DICOM printer connections for seamless image capture, storage, and sharing.
Can the machine handle larger or obese patients?
Yes, with high kV, high current, and high power options (up to 65kW), the system provides strong penetration capabilities specifically to handle imaging for obese patients.
What are the power requirements for the different models?
Models D20 and D32 operate on AC220V, while the higher-powered D40, D50, and D65 models require AC380V.
What safety features are included in the X-ray generator?
The generator includes fault self-diagnosis and protection, automatic tube current calibration, and an infrared photoelectric switch for the four-way table to ensure safe operation.
Does the software support multiple languages for international use?
Yes, the professional acquisition software is designed for global use and supports multi-language interfaces.
