Electron linear accelerators are widely used in pressure vessel manufacturing, petroleum and petrochemical, heavy machinery, nuclear power, foundry, electrical equipment, and defense industries. It plays an important role in processing, medicine, hygiene, environmental protection, and material handling.

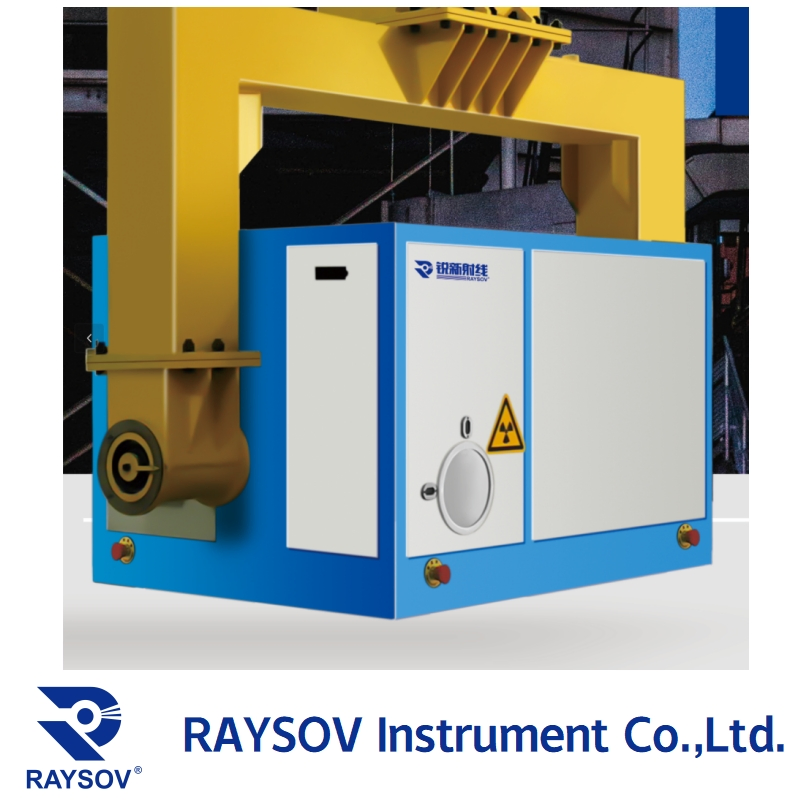

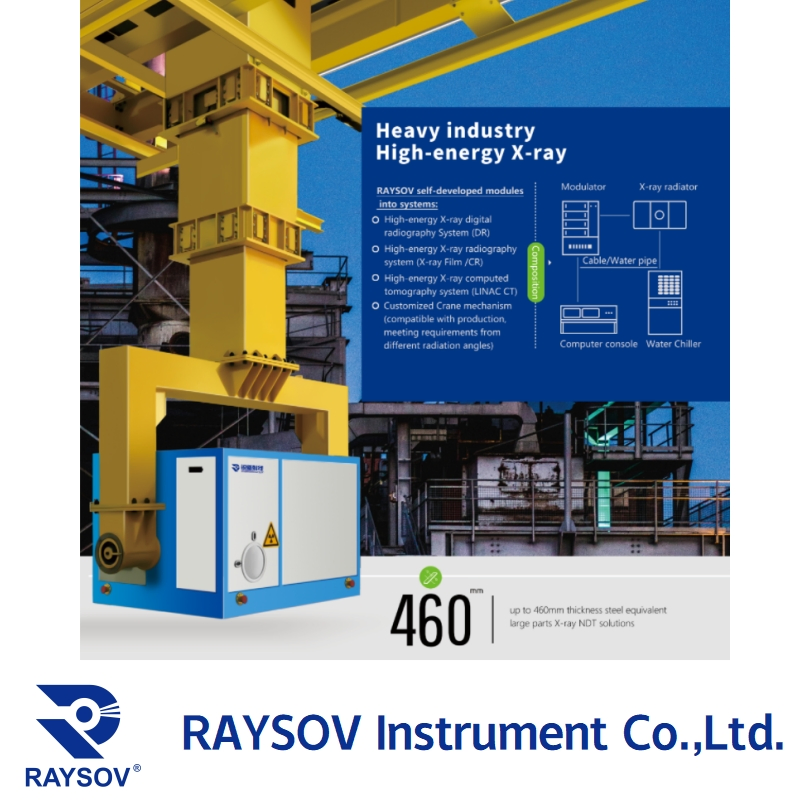

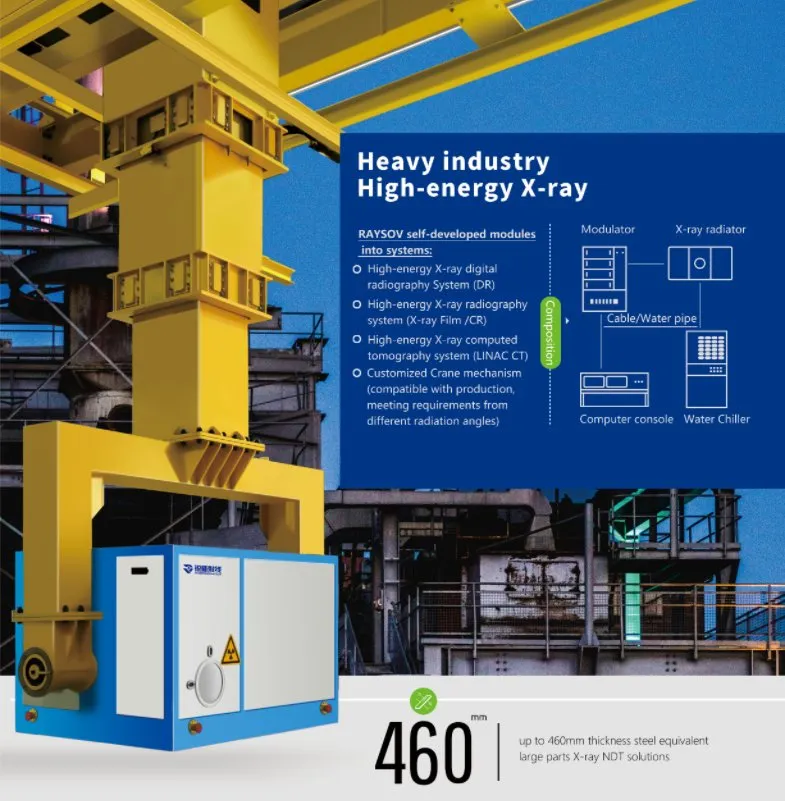

The X-ray linac system is composed of an X-ray radiator, Cable/Water pipe, Computer console, Modulator, and Water chiller. It serves as one of the core components of X-ray nondestructive testing equipment, functioning as the heart and brain in 2D/3D X-ray inspection and analysis systems.
Adopting high-energy adjustable technology with large dose rates, small focus, and short radiation time, the system meets various requirements for NDT & NDE of large metal parts. The compact modular design and intelligent control system ensure detection efficiency while guaranteeing operator safety and environmental protection.

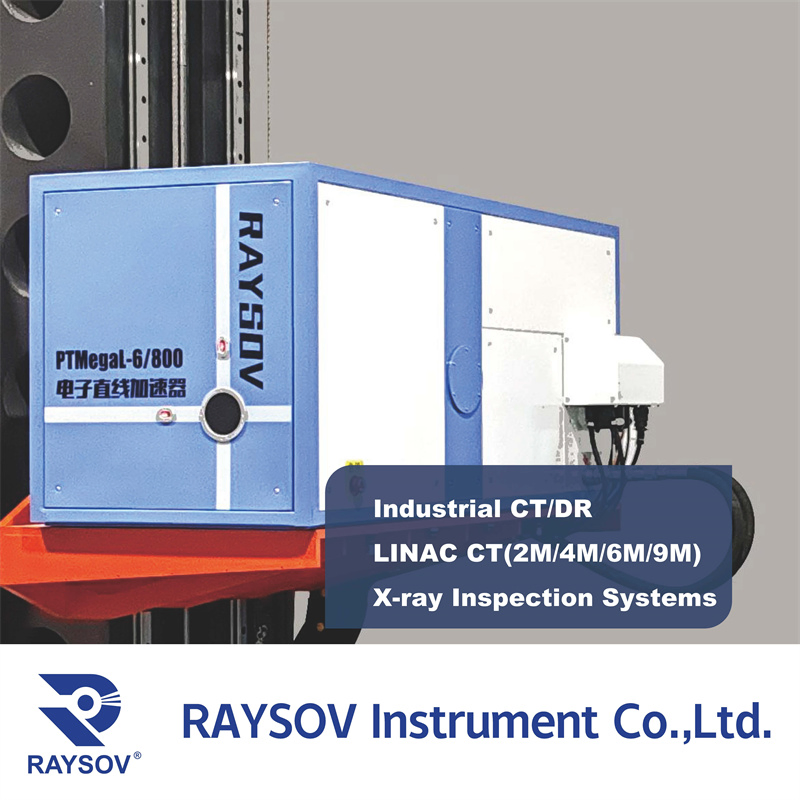

| Accelerator Model | PTMegaL-2 | PTMegaL-4 | PTMegaL-6 | PTMegaL-9 | PTMegaL-12 | PTMegaL-15 |
|---|---|---|---|---|---|---|
| Beam Energy (MeV) | 2 | 4 | 6 | 9 | 12 | 15 |
| X-ray Dose Rate (cGy/min) | ≥200 | ≥500 | ≥1000 | ≥3000 | ≥5000 | ≥12000 |
| Focus Diameter (mm) | ≤1.5 | ≤1.5 | ≤1.5 | 1.5-2 | ≤3 | ≤3 |
| Penetrated Thickness (A3 Steel mm) | 40-200 | 50-250 | 50-280 | 76-380 | 50-280 | 76-380 |
| Sensitivity | 1-2T (Hole image quality meter ASTM) | |||||
1× X-ray tube
1× X-ray HV generator
1× HV cable
1× X-ray generator controller
1× X-ray cooler
High power penetration
Cost saving & environmental protection
Easy installation
CE certification
Customization support
Warranty: 12 months
Training: On-site or remote
Operation: Easy maintenance
Support: 24/7 technical assistance

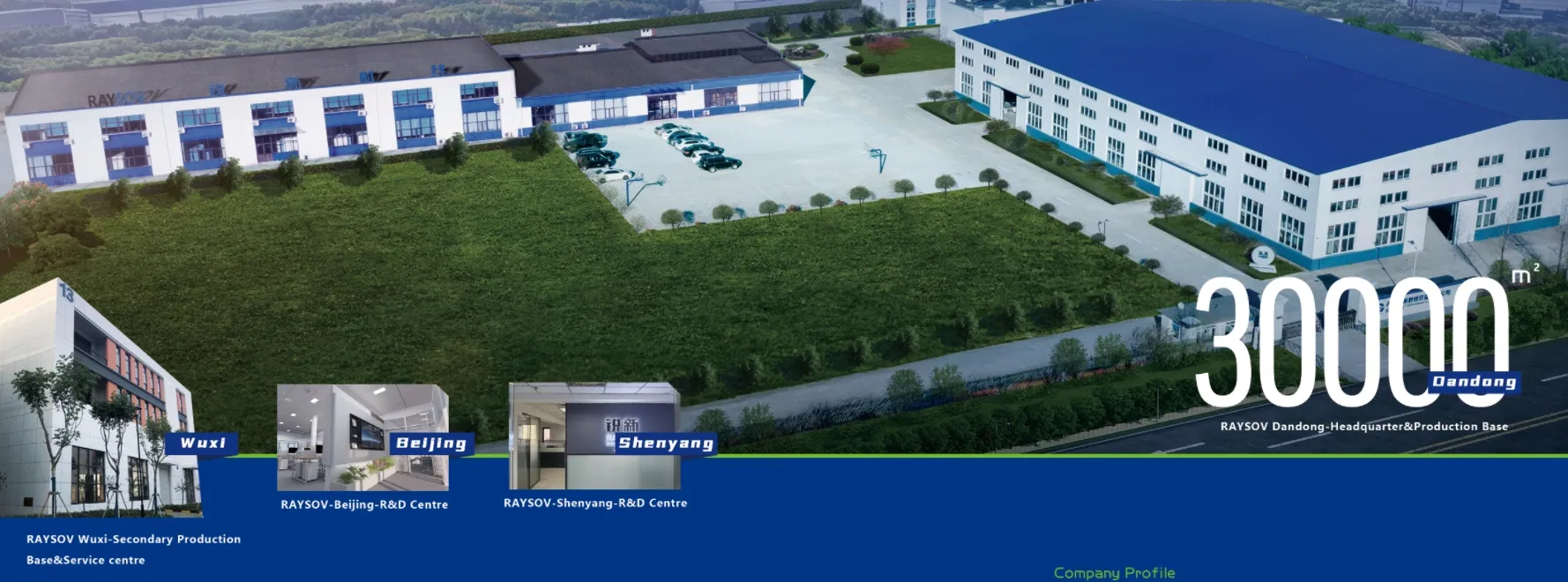

Established in 2009, our company is a prominent manufacturer of advanced X-ray non-destructive testing and evaluation instruments. We are a high-end supplier of automated industrial DR and industrial CT inspection solutions globally.
We place immense importance on meeting international standards, holding certifications such as ISO9001, ISO14001, ISO45001, and ISO27001. These achievements demonstrate our commitment to strict quality controls and environmentally friendly practices.
With independent intellectual property rights and numerous national invention patents, we offer custom-built solutions for manufacturing and technology projects worldwide.
