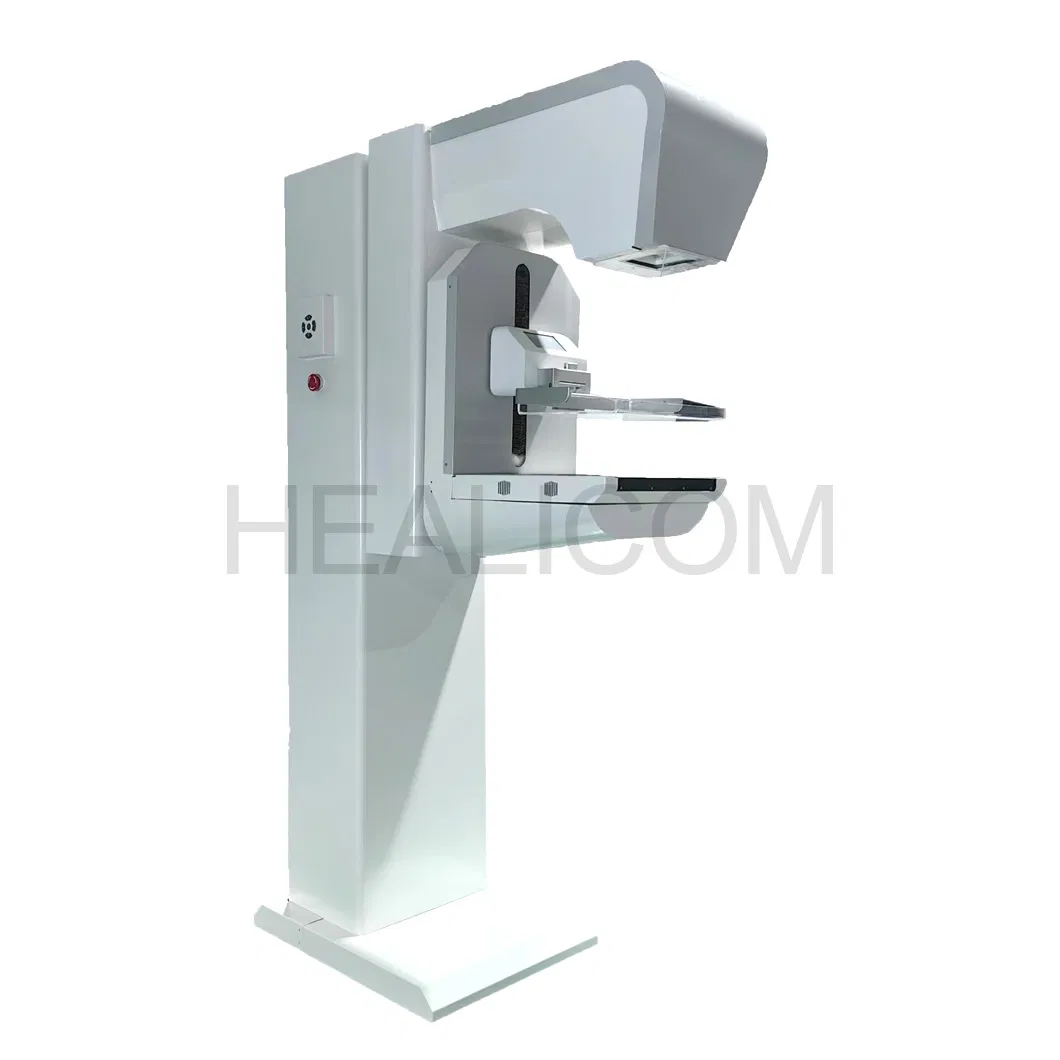

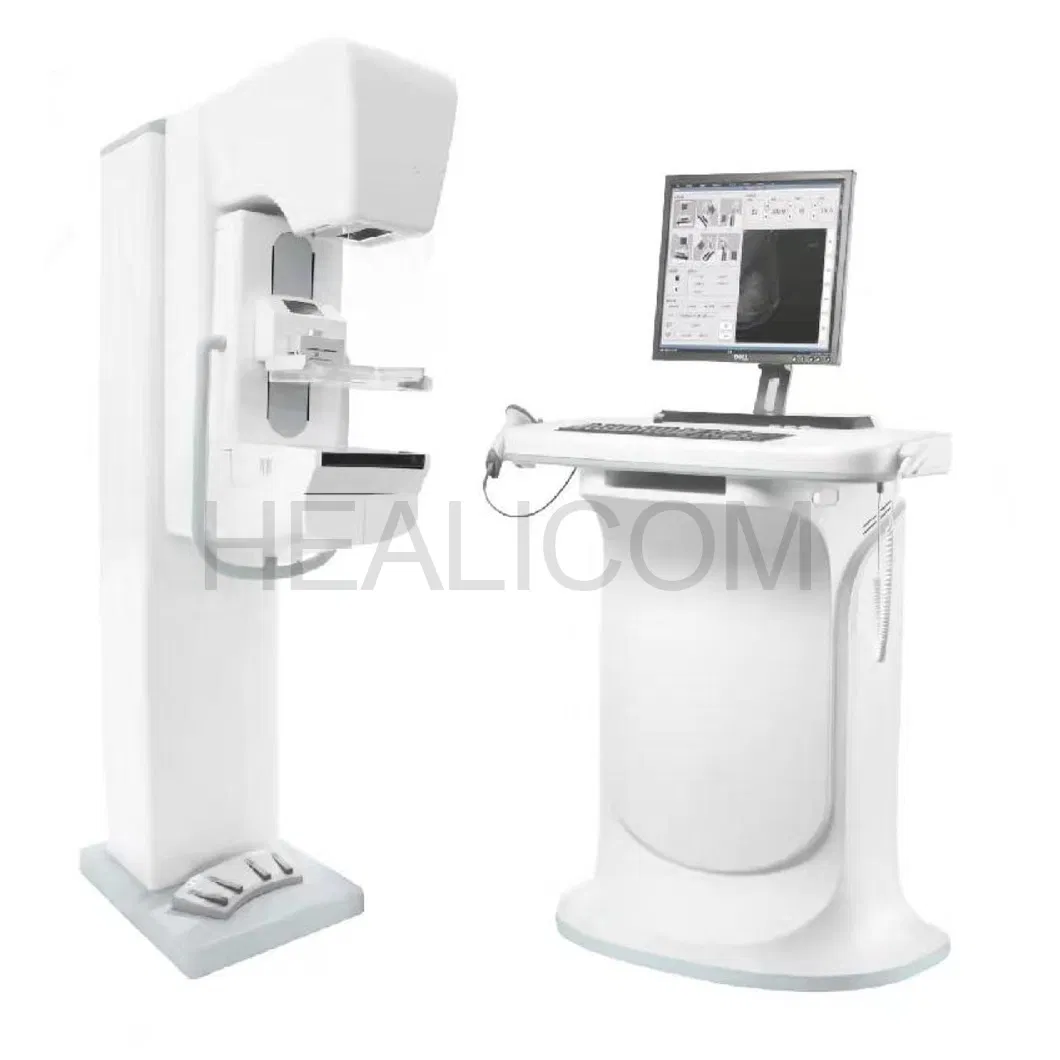

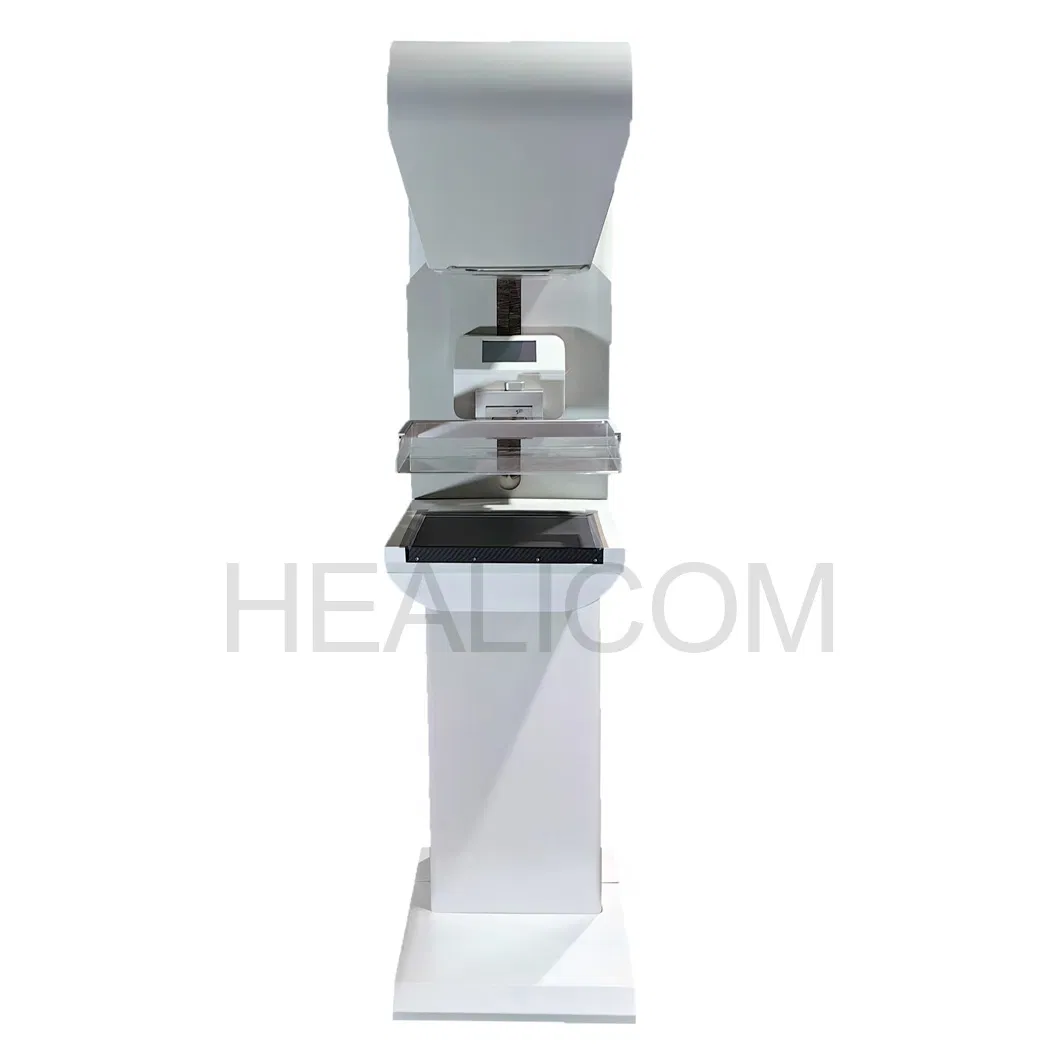

Our 5kW Digital Mammography System is a professional equipment for breast diseases examination. It is suitable for early detection of mammary gland lesions. This system adopts the latest technology of flat panel detector, which has a higher sensitivity to X-ray and higher resolution for breast examination, representing the highest level among the industry. It can easily capture calcified lesion under 0.1mm. By improving the accuracy and sensitivity of mammography diagnosis, it becomes a reliable tool to diagnose early stage breast cancer.
| Technical Parameters | |
|---|---|
| Power Output | 5kW |
| Radiography Current | 10-200mA |
| Radiography Voltage | 20kV-40kV |
| mAs | 0.5-560mAs |
| Exposure time | 5-10000ms |
| Focus Size | 0.1/0.3 |
| Detector Type | Flat Panel Detector |
| Vision Size | 10*12" |
| A/D Conversion | 16 bits |
| Spatial Resolution | 6 lp/mm |
| Pixel Size | 2762X3308 |
• Case management: manual registration, worklist auto searching
• Image acquisition: auto window adjusting, auto cutting and auto sending
• Image processing: image correcting, flipping, balancing, sharpening and filtering
• Image viewing: window position adjusting, zooming and recovering
• Film printing: Support DICOM3.0 standard
Threshold pressure control technology ensures safety. Multi-frequency self-induced compression technology ensures the best image quality and reduces patients' pain maximally.

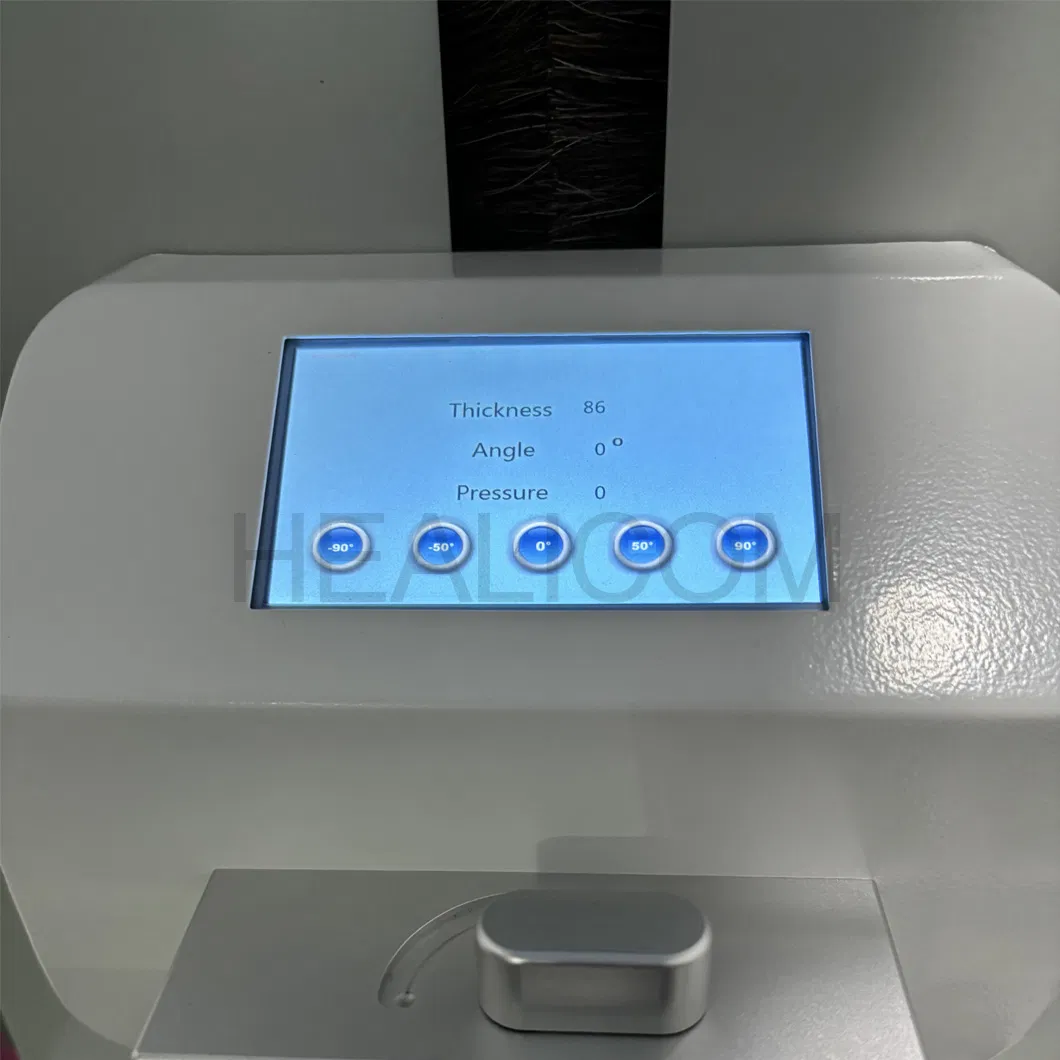

High intelligent positioning by one button provides easy operation and improves work efficiency.
High accuracy movement control; x-ray tube rotates around detector isocenter; provides hardware support for breast tomosynthesis and breast biopsy.
