Advanced X-ray Imaging Shielding Nondestructive Testing X-ray Automatic Casitng Inspection Systems
Advanced X-ray Imaging Shielding Nondestructive Testing X-ray Automatic Casitng Inspection Systems
Advanced X-ray Imaging Shielding Nondestructive Testing X-ray Automatic Casitng Inspection Systems
Advanced X-ray Imaging Shielding Nondestructive Testing X-ray Automatic Casitng Inspection Systems
Advanced X-ray Imaging Shielding Nondestructive Testing X-ray Automatic Casitng Inspection Systems
1 / 5
Advanced X-ray Imaging Shielding Nondestructive Testing X-ray Automatic Casitng Inspection Systems
Advanced X-ray Imaging Shielding Nondestructive Testing X-ray Automatic Casitng Inspection Systems
Advanced X-ray Imaging Shielding Nondestructive Testing X-ray Automatic Casitng Inspection Systems
Advanced X-ray Imaging Shielding Nondestructive Testing X-ray Automatic Casitng Inspection Systems
Advanced X-ray Imaging Shielding Nondestructive Testing X-ray Automatic Casitng Inspection Systems

Advanced X-ray Imaging Shielding Nondestructive Testing X-ray Automatic Casitng Inspection Systems

Customization: Available
After-sales Service: Along Lifetime Services
Warranty: 12months
Send Inquiry

Product Description

i

Basic Information

Model NO.
ZXFlasee D-I type
Portable
Non Portable
Form
Cabinet Type
Application
Security Check, Industrial
Type
Industrial High-definition X-ray Detector
Certification
CE, ISO
X-ray Tube
160kv/225kv/320kv/450kv/600kv Option
Protection Level
Custom Built Standards
NDT Type
NDT-Rt Digital Radiography
HS Code
9022909090
★

Product Description

High-precision X-ray Vertical radiography flat panel detector X-ray inspection systems NDT solutions

The online X-ray inspection system is a series of inspection solutions developed based on high resolution high frame ratio speed online X-ray digital imaging capability. It is specifically designed for batch quality control of castings (aluminum alloy, steel, resin, etc.) and small to medium-sized welded parts (liquefied gas cylinders, high-voltage electrical enclosures, etc.).

Engineered for durability, efficiency, and versatility in heavy-industry projects, this system ensures superior performance in harsh environments. It is widely used in alloy casting, ceramic sintered parts, welding, injection molding, and other manufacturing and research fields.

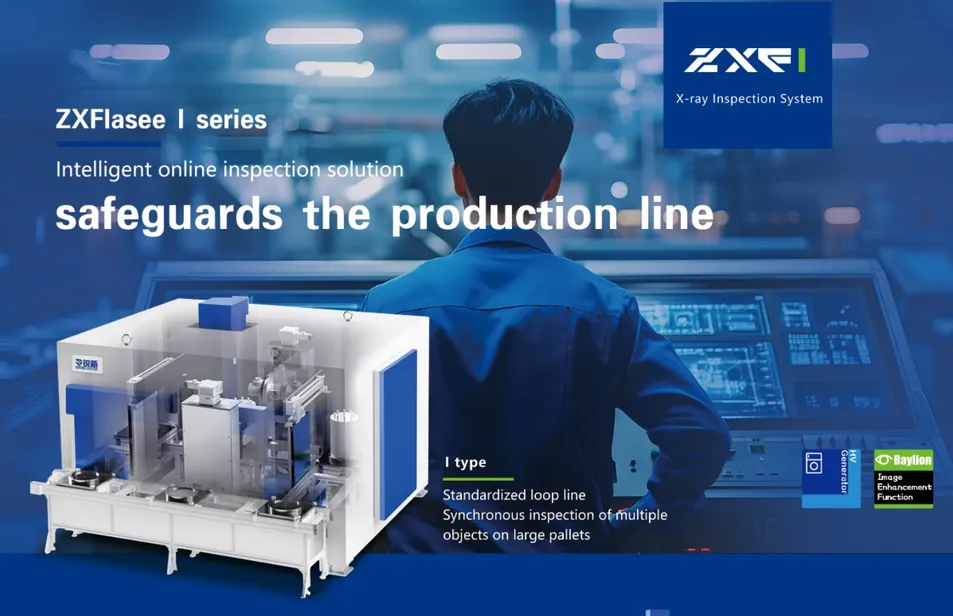

X-ray Automatic Casting Inspection Systems

Key Features

  • Flexible system configuration: Scientific verification standards with core components like X-ray sources, HV generators, and detectors.
  • Highly integrated innovative design: Optimized space utilization for a cost-effective intelligent inspection system.
  • Cross-domain applications: Proved performance in aviation, aerospace, and defense fields with over 15 years of project experience.

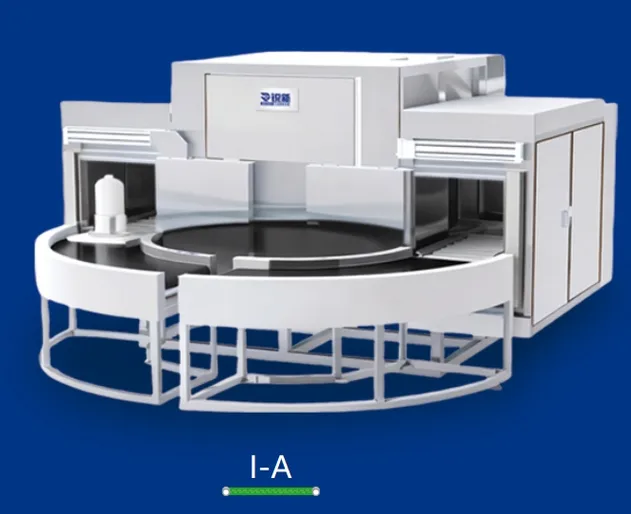

Online Test Connection

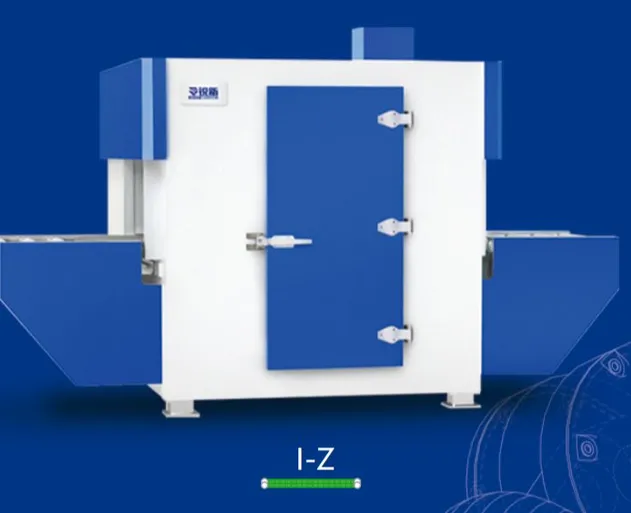

Production Line Integration

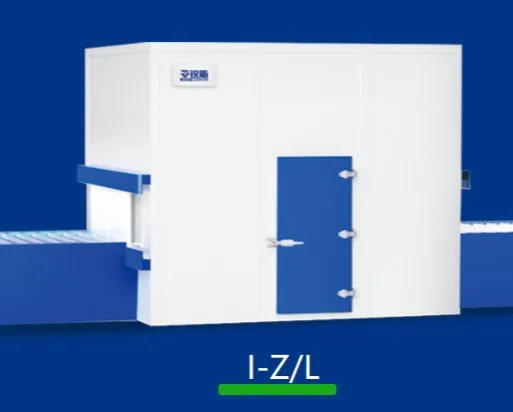

Large Test Object Travel
📋

Technical Specifications

Parameter I-A I I-Z I-Z/L I-N/L
Test object size ≤φ180x350mm ≤φ250x380mm ≤φ450x350mm ≤1570x970x480mm ≤φ200x2500mm
X-ray energy 225/320kV 320kV 225/320/450kV 160kV 450kV
Detector imaging area 307x244mm 430x430mm 430x430mm 430x430mm 307x244mm
Detector pixel size 120µm 140µm 140µm 140µm 120µm
Maximum load 30kg 50kg 50kg 25kg 100kg
⚙

Industry Applications

  • Aviation: Engines, fuselage, wings, and safety apparatus.
  • Aerospace: Rocket components, aerospace materials, and safety equipment.
  • Science: Advanced scientific research and material analysis.
  • Power Energy: Nuclear, electric, oil, and gas energy infrastructure.
  • New Materials: Ceramics, composite materials, and additive manufacturing.
🛠

After Sales Service

  • Standard Warranty: 12 months comprehensive coverage.
  • Extended Warranty: Optional coverage available up to 36 months.
  • Global Support: 24/7 technical assistance and rapid spare parts supply.
  • Training: Professional on-site or remote operation and maintenance training.
🏢

Company Profile

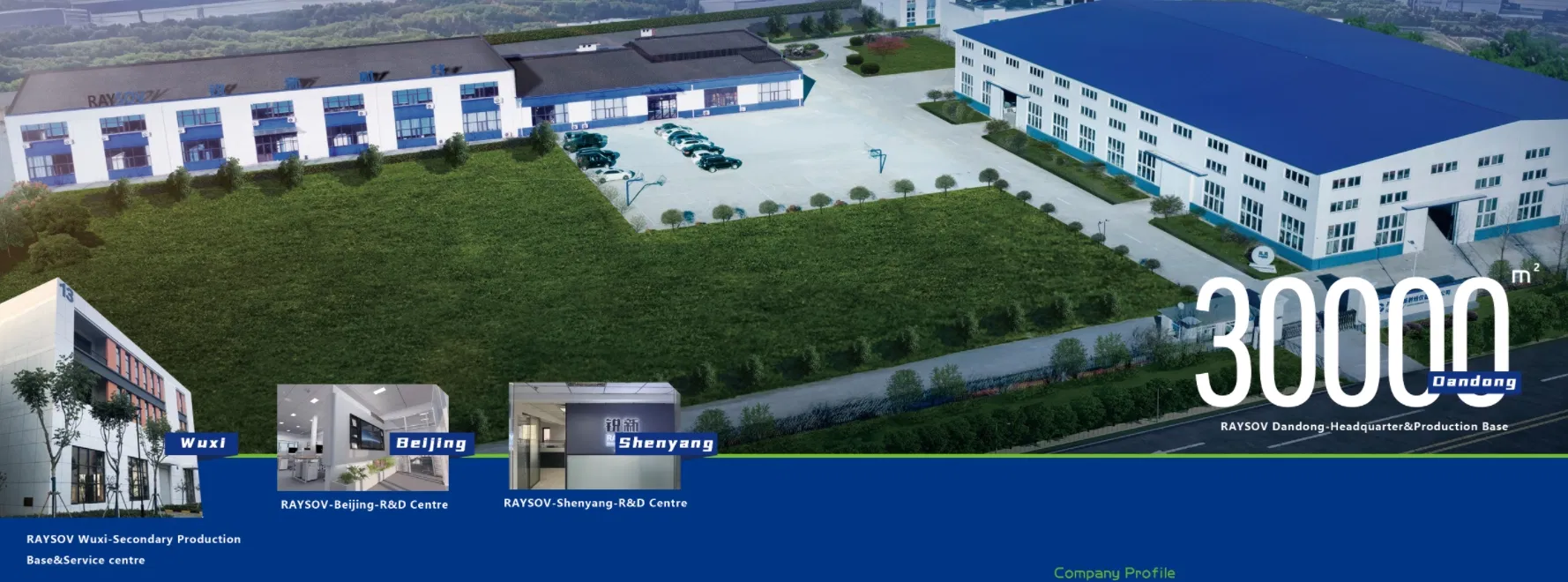

Manufacturing Facility
Established in 2009, the company is a prominent manufacturer of advanced X-ray non-destructive testing and evaluation instruments. It has earned a reputation as a high-end supplier of automated industrial DR and industrial CT inspection solutions globally. The facility holds international certifications including ISO9001, ISO14001, ISO45001, and ISO27001, demonstrating a commitment to strict quality controls and environmentally friendly practices.

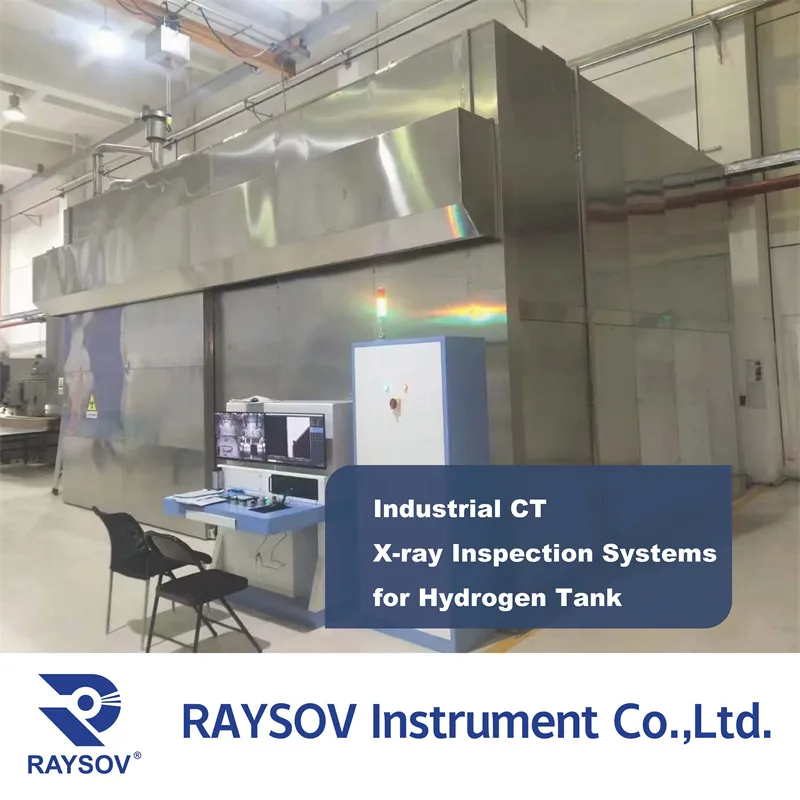

Quality Control

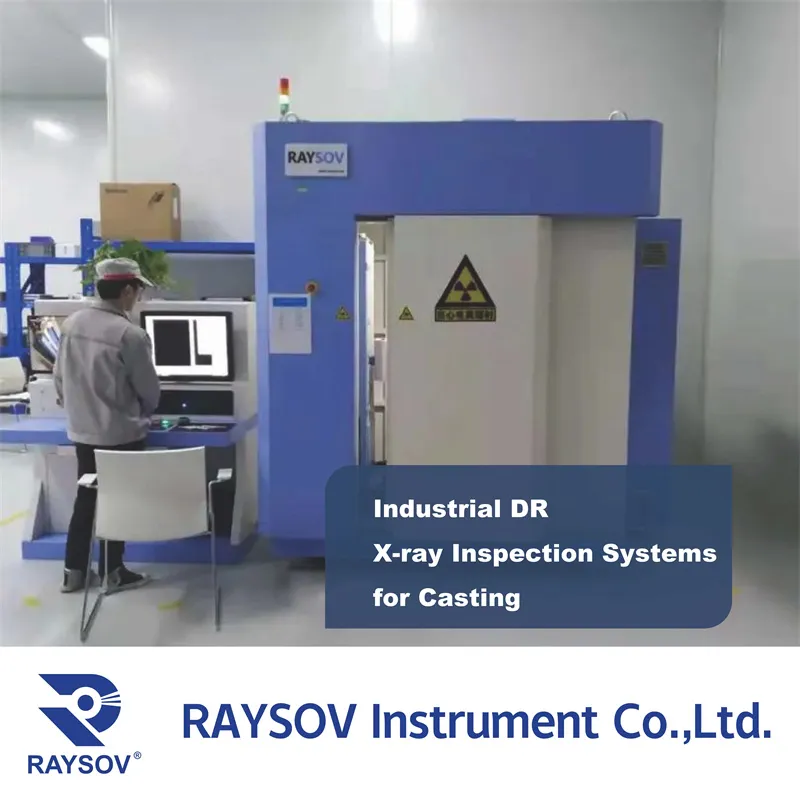

Research Center
?

Frequently Asked Questions

Q: What is the lead time for orders? A: Standard models typically ship within 3 months, while customized units require approximately 6 months for engineering and production.
Q: Do you provide after-sales service overseas? A: Yes, we provide global support through partnered service centers in key regions to ensure 24/7 technical assistance.
Q: Can I request customized equipment? A: Absolutely. We specialize in tailored NDT solutions, including custom mechanical motion structures and multi-function software modules.
Q: What documents are provided for export? A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and necessary certifications.
Q: What are the benefits of Industrial Digital Radiography (DR)? A: It offers holistic dimensional inspection, accurate 2D projection, and advanced software filtering, significantly saving time and costs compared to traditional film.
Q: How do I place an order? A: Please contact our sales team for a formal quote. Once the specifications are finalized, you can confirm the order with a Purchase Order (PO).
