🐾 Applications

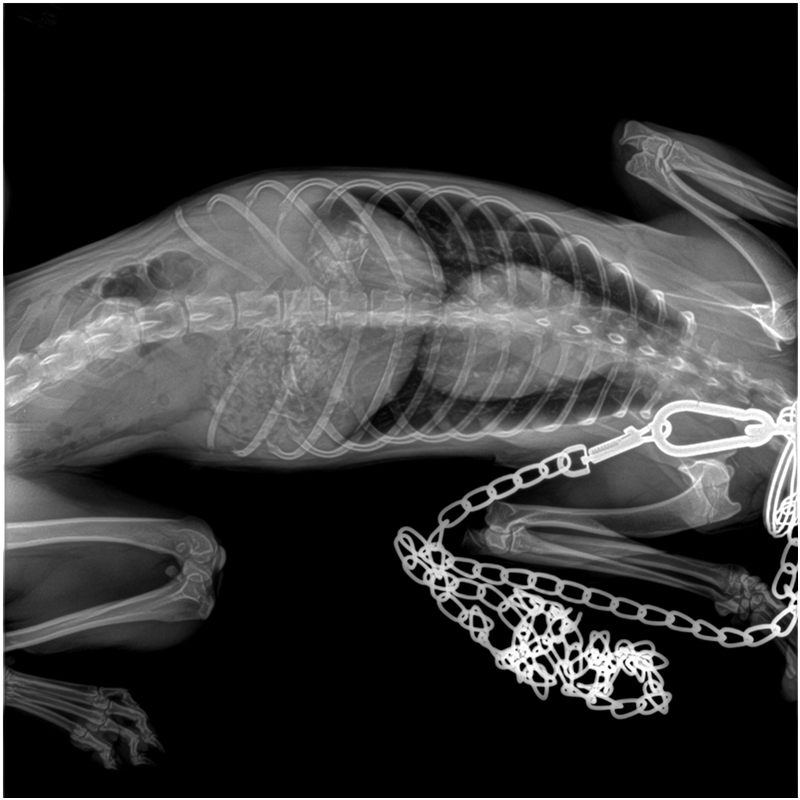

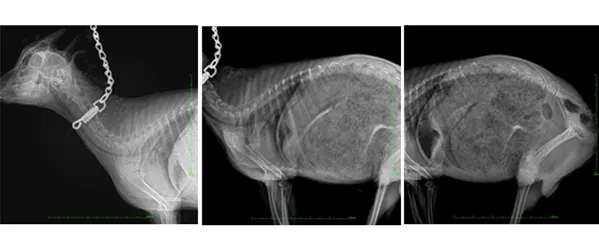

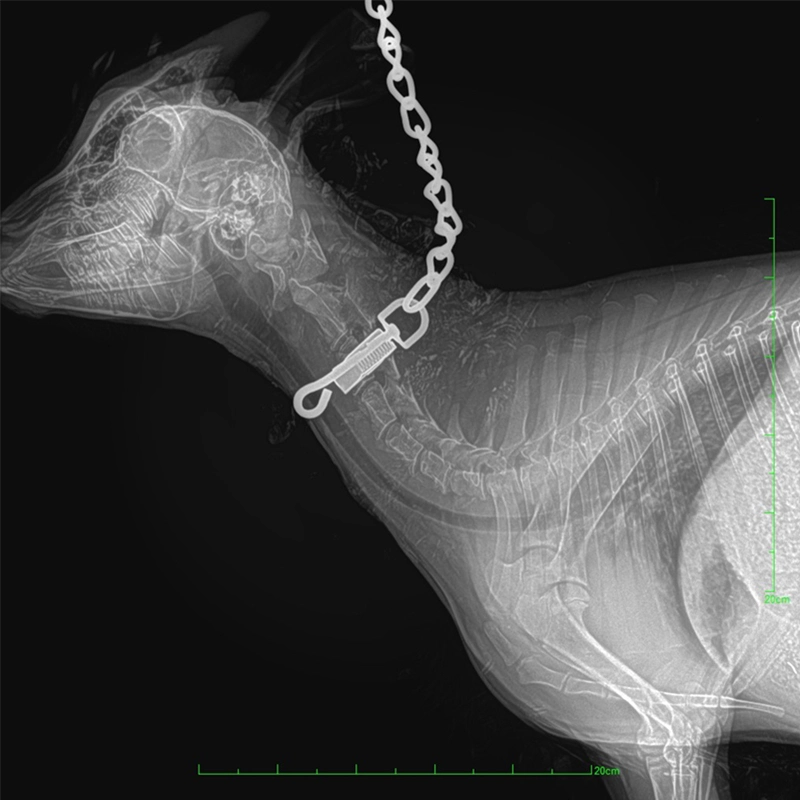

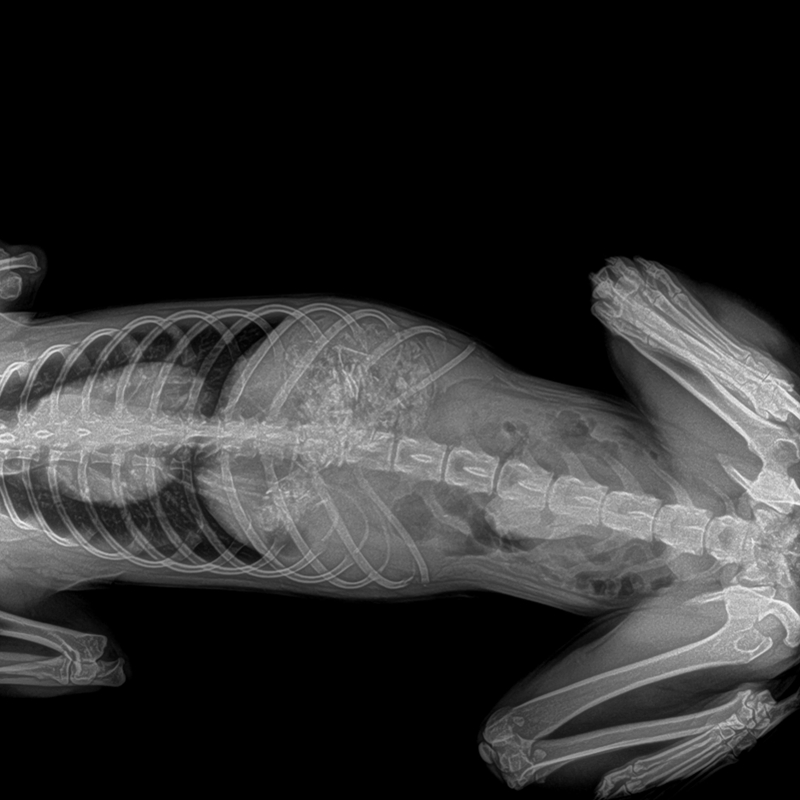

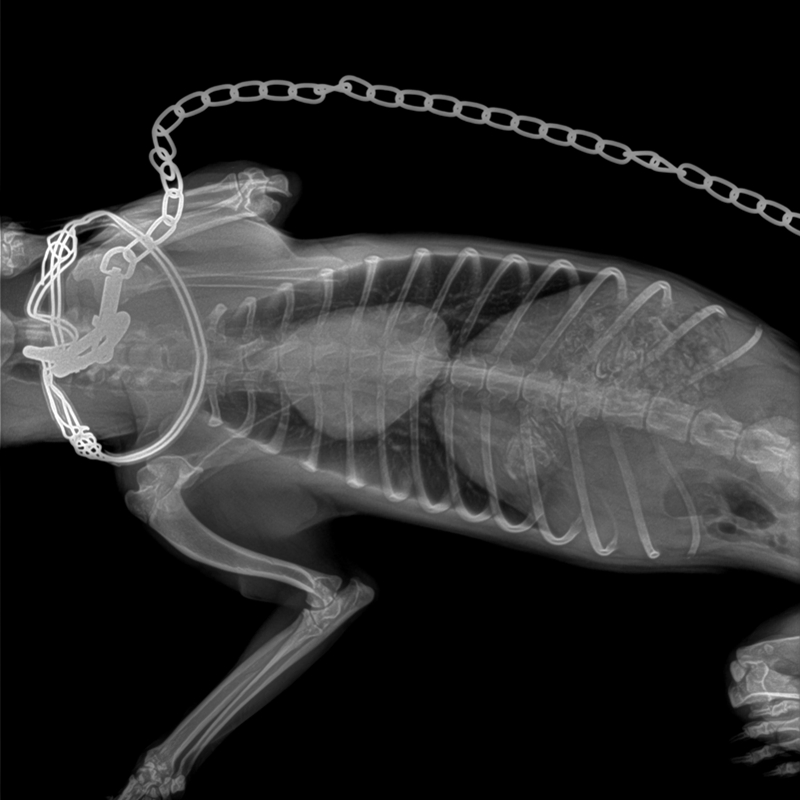

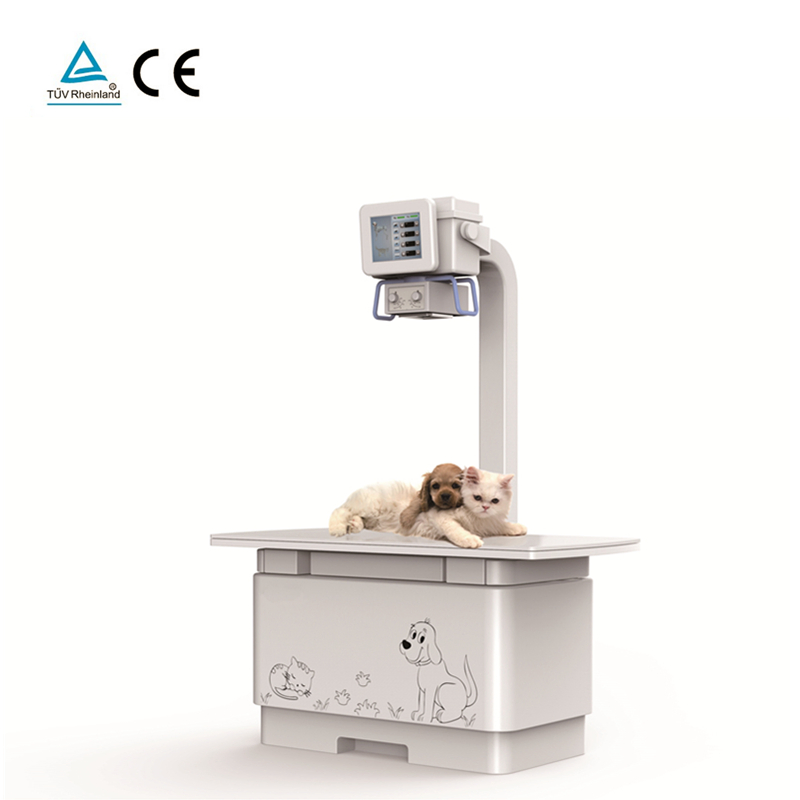

This high frequency high voltage X-ray machine is used to take digital radiography of different veterinaries of different body parts, applied in pet radiography hospitals and clinics.
📋 Basic Information
Model NO.:VET1600
Scale:Medium
Power Output:25kw
Frequency:50kHz
Tube Current:70-200mA
Tube Voltage:40-125 Kv
Mas:1.0-360 Mas
Imaging Detector:a-Si
Pixel:3K*3K
Active Area:17*17
Resolution:3.6lp/mm
Gray Scale:14bit
HS Code:9022191090
Production Capacity:10000PCS/Year
🌟 Key Features
- Structure using ergonomic design, compact appearance, convenient operation.
- High frequency inverter to emit high quality X-ray and low dose on skin, ensuring excellent definition.
- kV analog closed loop control and mAs digital closed loop control for precision.
- LCD display with kV, mAs two-button adjustment and safety guard multifunctions.
- 50 preset exposure programs, modifiable and storable by the user.
- High-quality knockdown X-ray generator to reduce irradiation for environmental safety.
- Error code display system for quick troubleshooting.
- Automatic parameter saving after power cut-off.
- Rotatable beam applicator and collimator lamp for accurate radiograph positioning.
- Remote and hand-held exposure methods to decrease doctor skin dose.
- Dedicated Vet application software for parameter accuracy.
- Standard Dicom 3.0 interface for easy sending, sharing, and printing.
⚙️ Detailed Specifications
| Item |
Content |
| Power Output | 25KW |
| Inverter Frequency | 50KHz |
| Tube Current | 70-200mA |
| Tube Voltage | 40-125kV |
| mAs | 1-360mAs |
| Power Supply | 220V 50Hz |
| Digital Imaging System | Detector: A-si, Pixel:3K*3K, Area:17*17, Resolution: 3.6Lp/mm, Gray: 14Bit |
| Mechanical Parameters | Bed: 1530mm±5%, Height: 2010mm±5%, Float L/R: 480mm, Float F/B: 220mm |
📦 Basic Configuration
- Main Frame (1 unit)
- X-ray tube assembling (1 unit)
- Vet Workstation (1 unit)
- Detector (1 unit)
- Software (1 unit)
🔍 Related Medical Systems

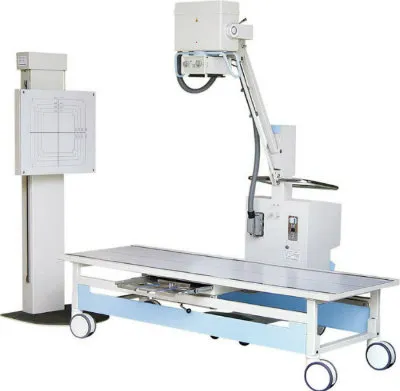

Mobile X-RAY MACHINE

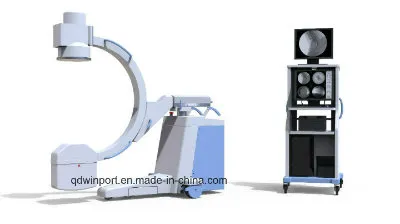

High Frequency Mobile Digital C-Arm

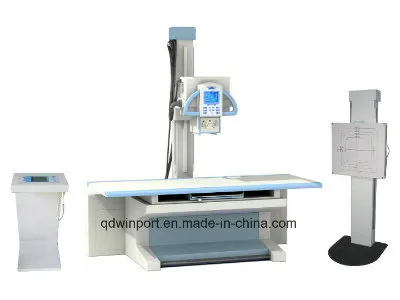

X-ray Radiography System

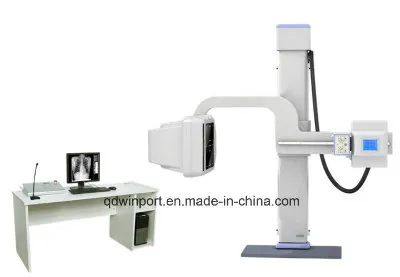

Digital Radiography System

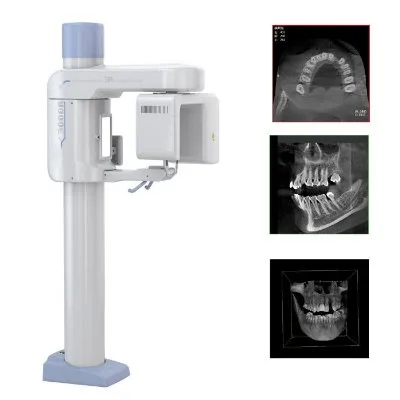

Panoramic Imaging CBCT Dental System
❓ Frequently Asked Questions
Q1: What types of animals can the VET1600 be used for?
A: The VET1600 is designed for medium-scale veterinary applications, suitable for imaging various body parts of common pets and clinic animals.
Q2: Does this system support digital file sharing?
A: Yes, it features a standard DICOM 3.0 interface, which allows for easy sending, sharing, and printing of high-quality digital radiographs.
Q3: How does the system ensure operator safety?
A: It utilizes a high-frequency inverter to ensure a low skin dose and features a knockdown X-ray generator to minimize irradiation. It also supports remote exposure methods.
Q4: Can I save custom exposure settings?
A: Absolutely. The system comes with 50 preset programs that can be easily modified and stored by the user for recurring procedures.
Q5: What is the resolution of the imaging detector?
A: The system uses an a-Si detector with a resolution of 3.6lp/mm and a 14-bit gray scale, ensuring excellent image contrast and definition.
Q6: What happens if there is a power failure?
A: The machine is designed to automatically save all current parameters after a power cut-off, ensuring no data or settings are lost.
