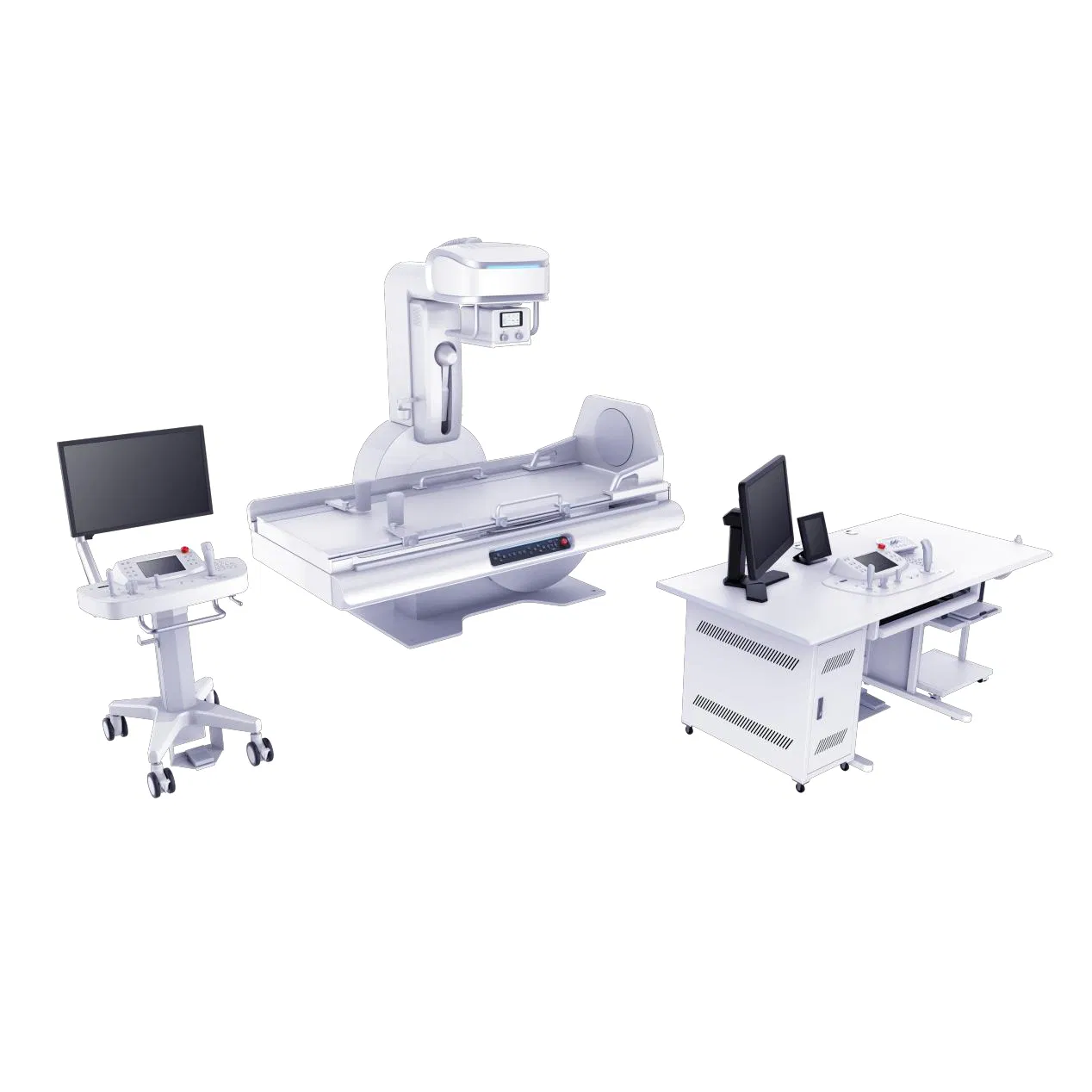

Technical Specifications
| No. |
Product Name |
Model |
Quantity |
| 1 | Dynamic Flat Panel Detector | DR-CP | 1 |
| 2 | DXRay Diagnostic Workstation | TS-5 | 1 |
| 3 | High Frequency Generator | XDRP80 | 1 |
| 4 | X-Ray Tube | E7254FX | 1 |
| 5 | Collimator | XS-F | 1 |
| 6 | Remote Control Bed | DC-DT-4 | 1 |
| 7 | Remote-Control Console | YKT-4 | 1 |
| 8 | Movable Console with Monitor (Optional) | YKT-4M | 1 |
| 9 | Grid | GRID-1000 | 1 |
| 10 | Report Printer | / | 1 |
| 11 | Microphone/Speaker | / | 1 |
| 12 | High Voltage Cables | / | 2 |
High Frequency Generator (XDRP80)
- Output power: 80kW
- Input Power Frequency: 50Hz/60Hz
- Output Voltage (Radiography): 40kV-150kV
- Output Voltage (Fluoroscopy): 40kV-125kV
- Output Current (Radiography): 10mA-1000mA
- Output Current (Fluoroscopy): 0.5mA-20mA
- mAs Range: 0.1~1000mAs
- Support ABS & AEC function
X-Ray Tube (E7254FX)
- Focus: 0.6/1.2mm
- Voltage: 150kV
- Anode Heat Capacity: 400kHU
- Input Power: 40kW/102kW
- Rotating Speed: 2700rpm / 9700rpm
Dynamic Flat Panel Detector (DR-CP)
- Technology: a-Si Flat Panel Detector
- Scintillator Material: CsI
- Images size: 430mm x 430mm
- Static Pixel Matrix: 3072 x 3072 pixels
- Dynamic Pixel Matrix: 1536 x 1536 pixels
- Pixel size: 140μm
- Spatial Resolution: 3.5lp/mm
- Max Frame Rate: 30f/s

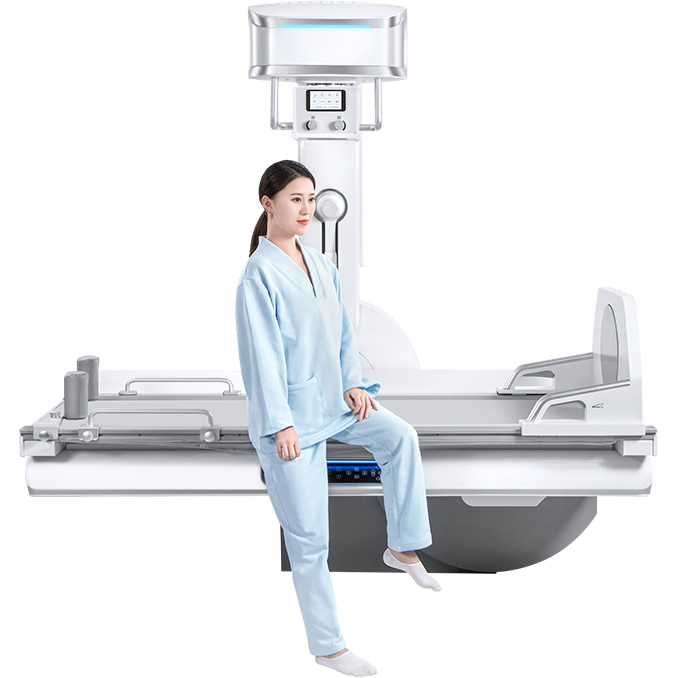

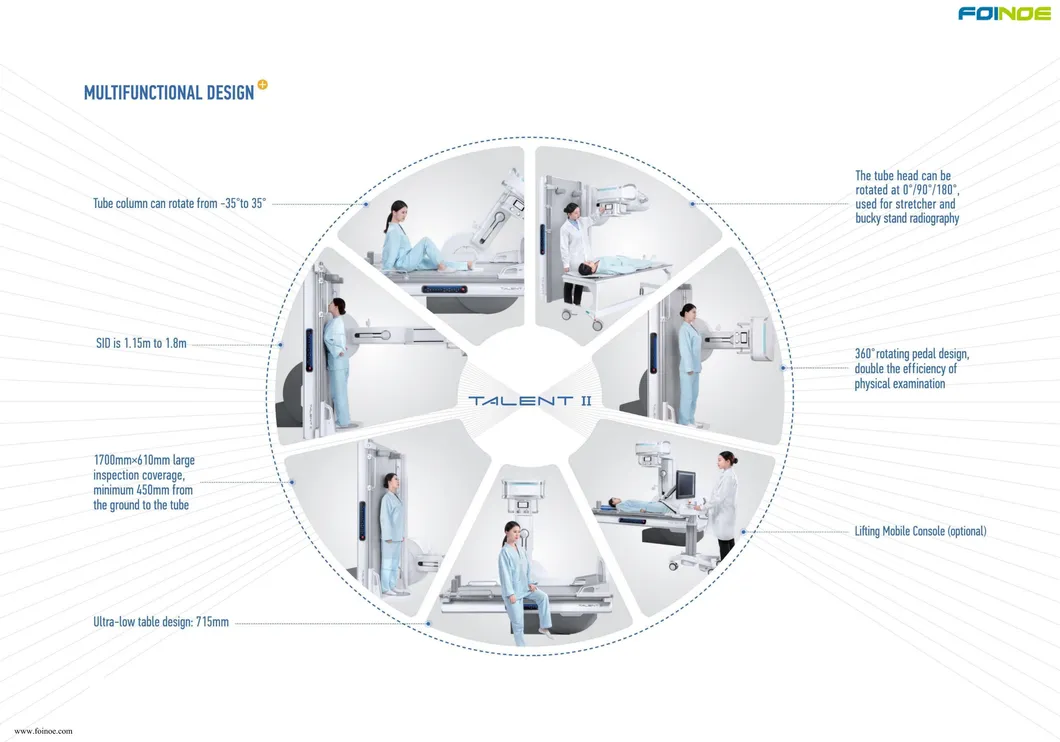

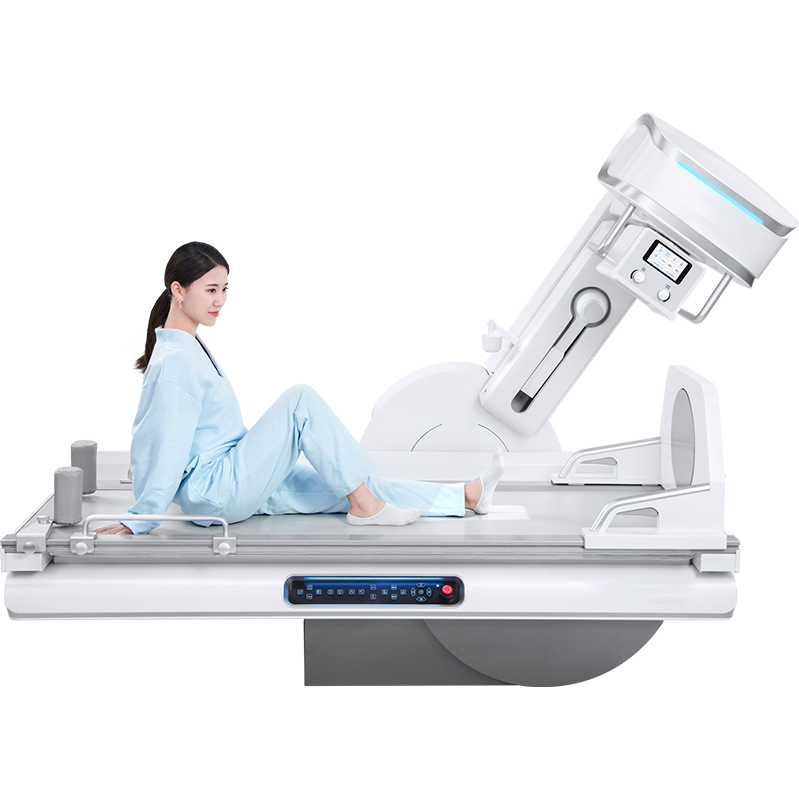

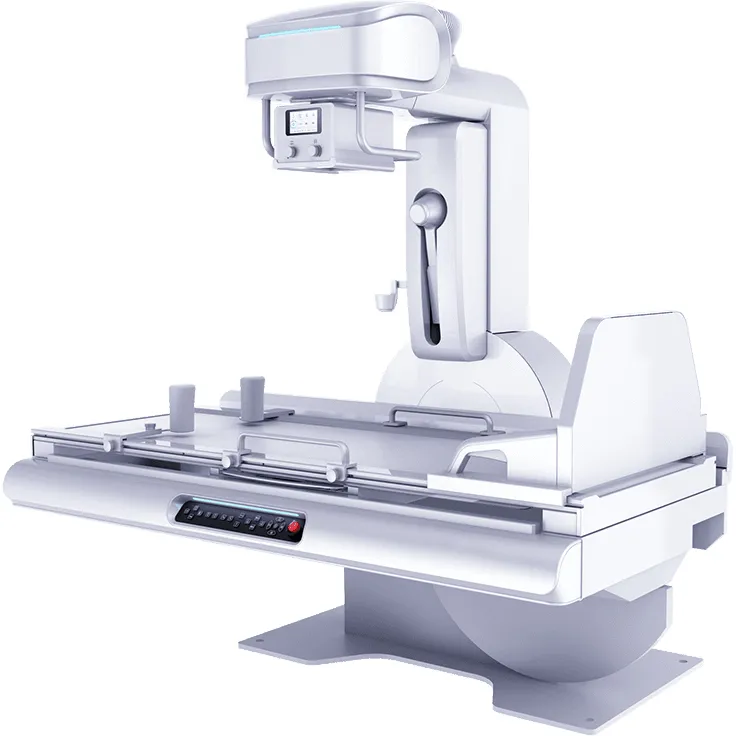

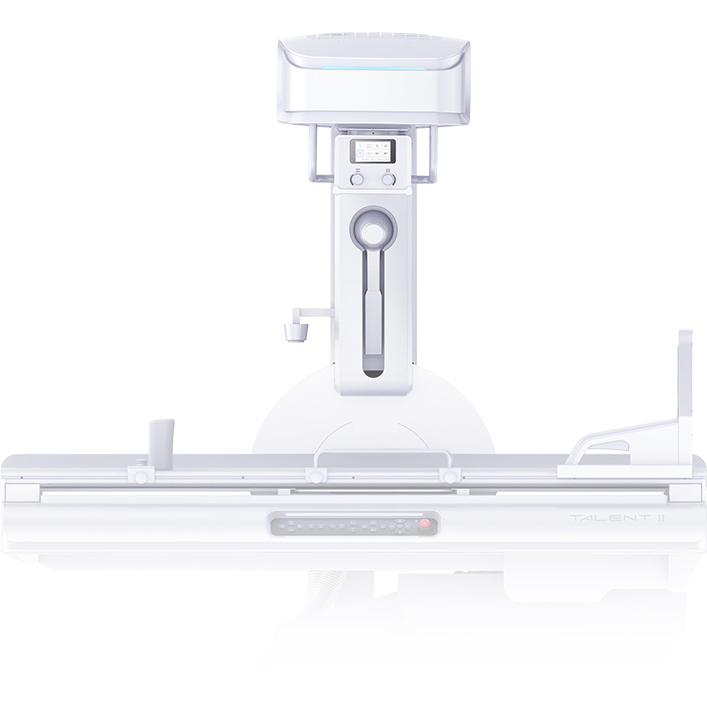

Remote Control Bed (DC-DT-4)
- Bed Size: 2106 x 2042 x 1636mm
- SID Range: 1.15m ~ 1.8m
- Bed Rotate Range: -15° to +90°
- Tube Column Rotate Range: -35° to +35°
- Load Bearing: 200kg
- One-click Function: Standing or Lying Position
Frequently Asked Questions

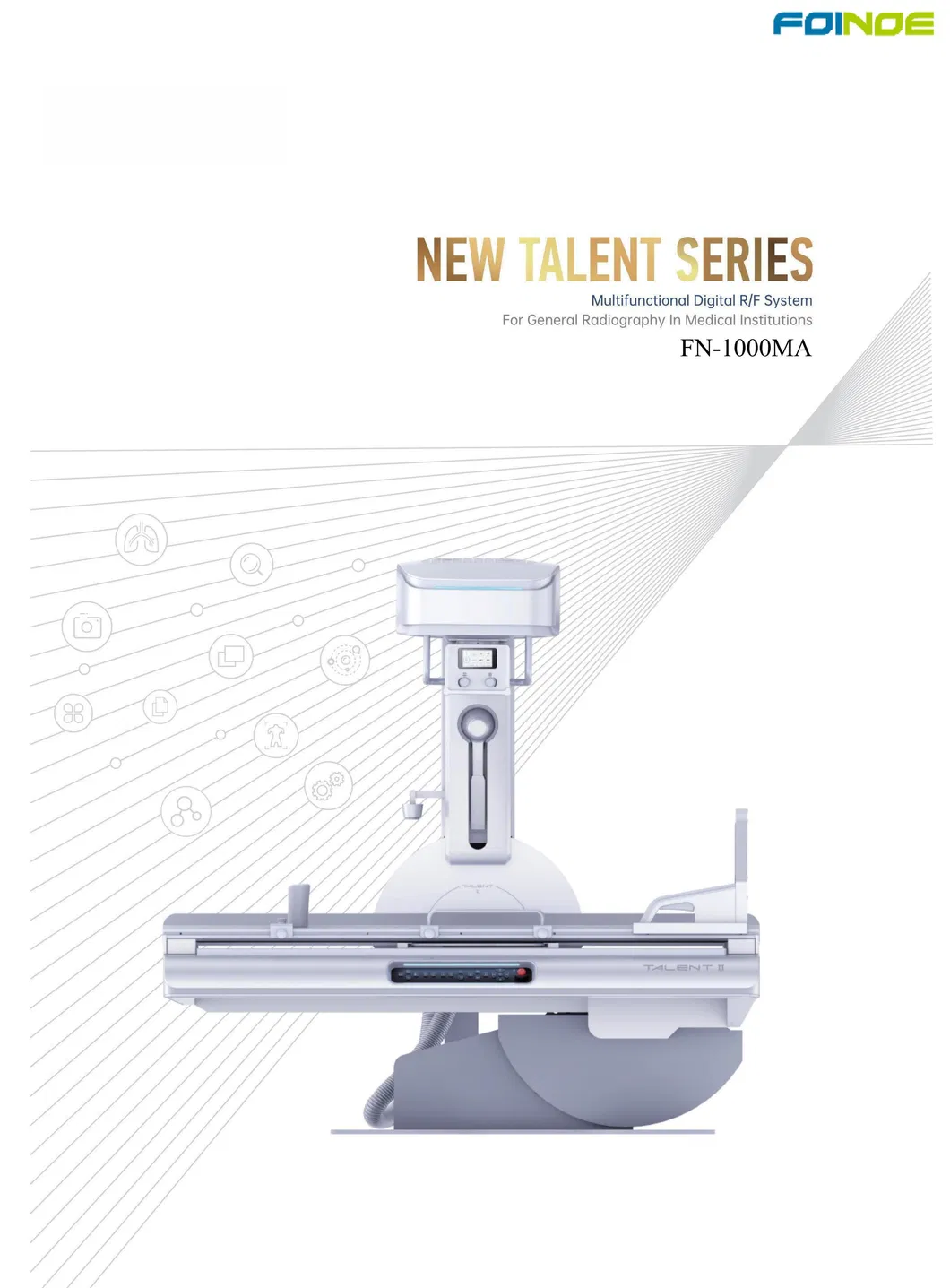

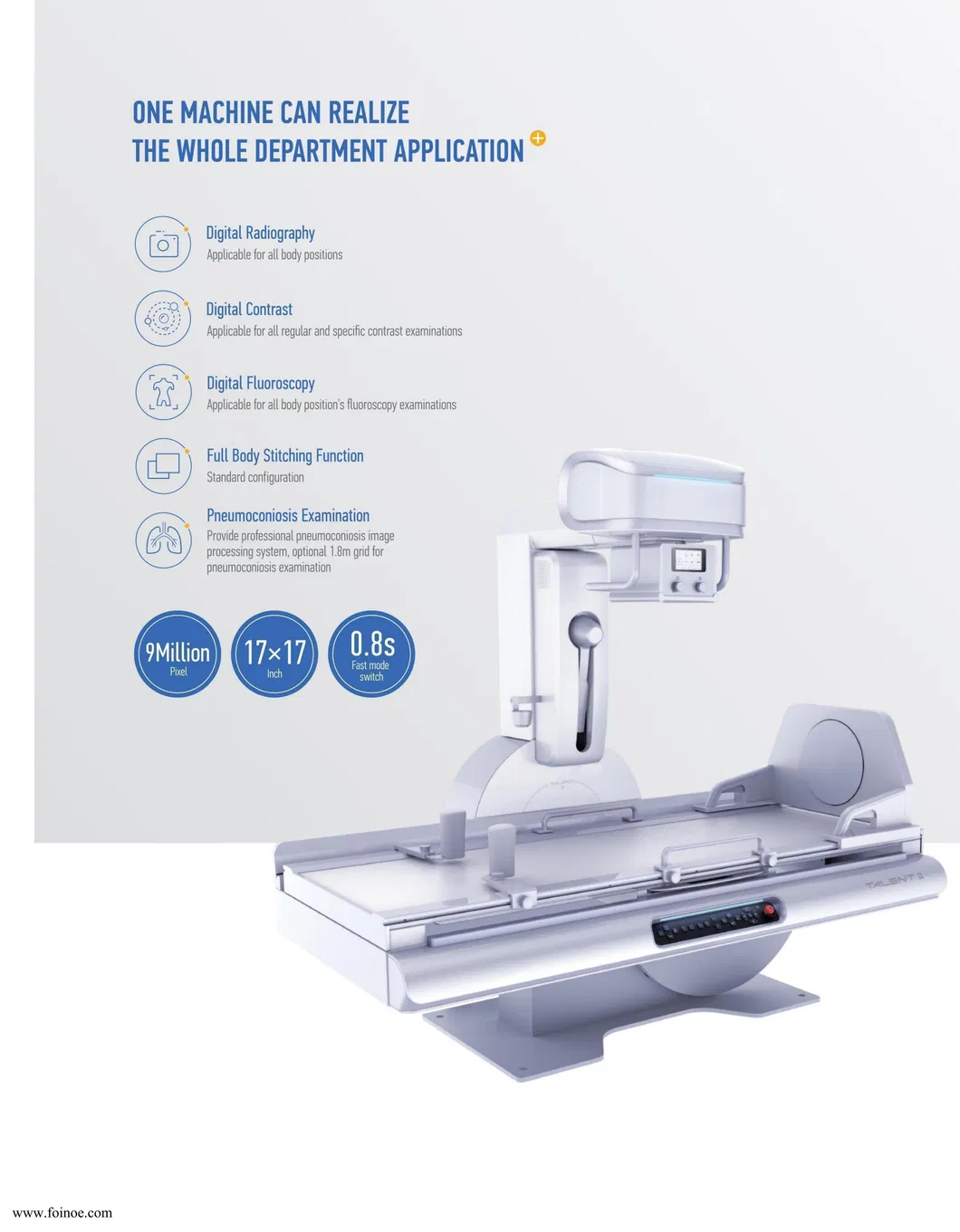

What are the primary functions of the FNX-1000MA system?
The FNX-1000MA is a multifunctional digital system designed for both high-quality digital radiography and dynamic fluoroscopy applications.
What is the maximum output power of the generator?
The system features a high-frequency generator with a maximum output power of 80kW, supporting a wide range of clinical requirements.
Does the detector support real-time dynamic imaging?
Yes, the a-Si Dynamic Flat Panel Detector supports a maximum frame rate of 30f/s for smooth dynamic image acquisition.
What is the weight capacity of the remote control bed?
The remote control bed is designed to be robust, with a load-bearing capacity of up to 200kg.
Does the workstation comply with medical imaging standards?
Yes, the TS-5 DX Ray Diagnostic Workstation fully complies with standard DICOM 3.0 for PACS transmission and film printing.
Can the system automatically adjust parameters for different body parts?
Yes, it features Anatomically Programmed Radiography (APR) with at least 1350 preprograms that automatically set parameters based on the chosen body part.
