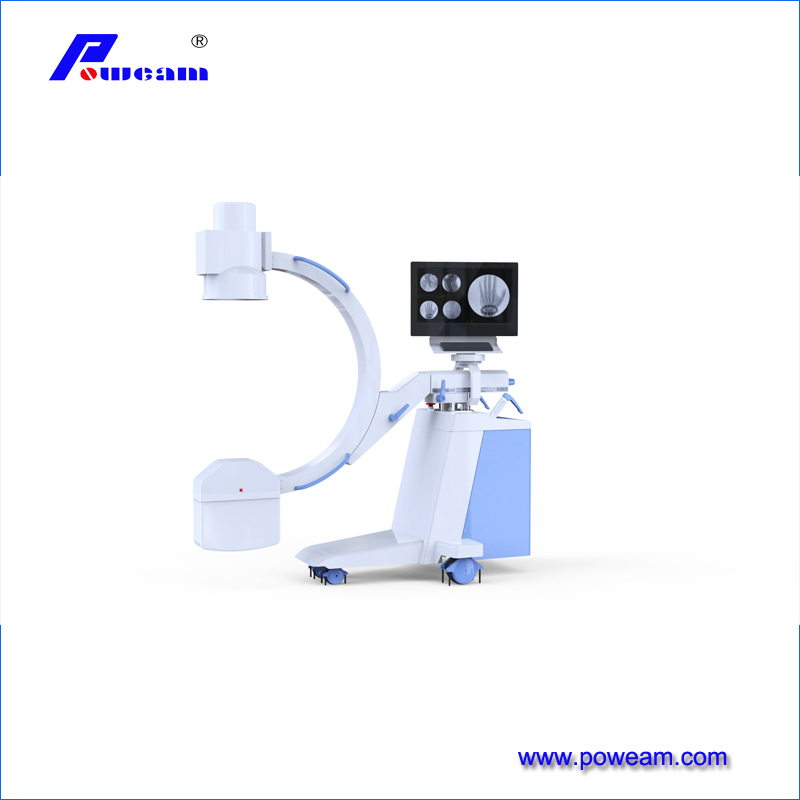

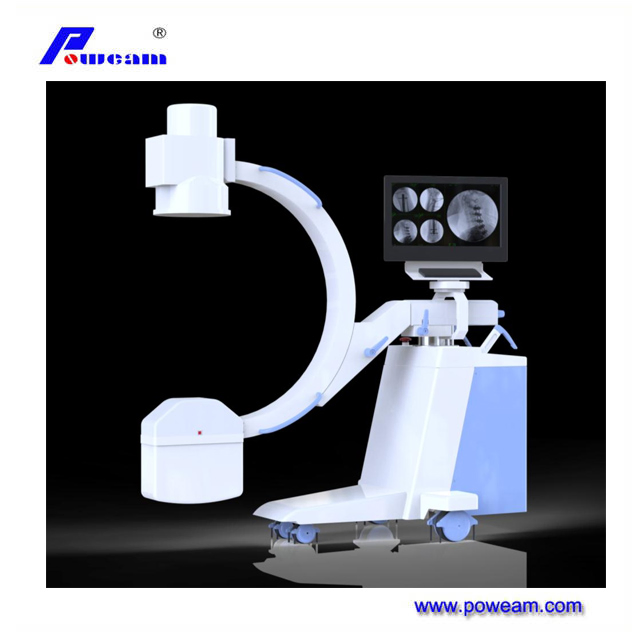

High Frequency Mobile Digital C-Arm System
High Frequency Mobile Digital C-Arm System
High Frequency Mobile Digital C-Arm System
High Frequency Mobile Digital C-Arm System
High Frequency Mobile Digital C-Arm System
1 / 5
High Frequency Mobile Digital C-Arm System
High Frequency Mobile Digital C-Arm System
High Frequency Mobile Digital C-Arm System
High Frequency Mobile Digital C-Arm System
High Frequency Mobile Digital C-Arm System

High Frequency Mobile Digital C-Arm System

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Send Inquiry

Product Description

Overview & Basic Info
Model NO.1200D
CertificationCE, ISO 7494-1
GroupMiddle-aged and Old
Model NameDigital C-Arm System
ComplianceISO 7494-1; ISO 6875; ISO 13485; IEC 80601-2-60
OriginChina
Capacity5000PCS/Year
Product Description

High Frequency Mobile Digital C-arm System

1. Monoblock Specifications:

  • Focus: 0.6/1.8
  • Anode capacity: 35.5kJ (47kHu)
  • Tube Heat capacity: 650kJ (867kHu)
  • Power output: 3.5kW
  • Inverter Frequency: ≥40kHz
  • Tube voltage: 40kV~110kV
  • Tube current: 0.3mA~8mA
  • Automatic brightness tracking function
  • Beam limiter: Electric iris + linear symmetrical rotatable

2. Imaging System:

  • Image intensifier: 9″ three field, center resolution 4.8lp/mm
  • Camera: Megapixel black and white progressive scanning (1024x1024)
  • LCD: 24 inch, resolution 1920x1200, 60Hz
  • Workstation: Registration, Acquisition, Processing, and DICOM browsing
  • Gray level: ≥ 11
  • Line pair resolution: ≥ 2.0LP/mm

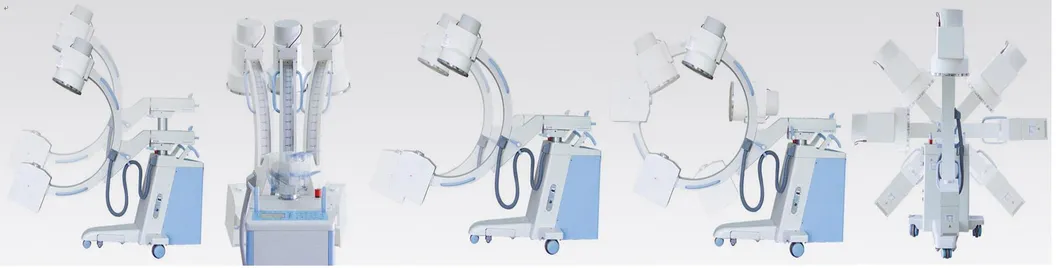

Detailed Photos
High Frequency Mobile Digital C-Arm System
Product Parameters
Name High Frequency Mobile Digital C-arm System
Model PM1200D
Environment Temp 10°C - 40°C
Relative Humidity 30% - 75%
Power Supply Single-phase 220V ± 22V, 50Hz±1Hz
Professional Medical Solutions

Established in 1999, the manufacturer is a professional provider of medical instruments. The product range includes medical imaging, in-vitro diagnostics, life support, patient monitoring, and dental products. With a commitment to research and development, 6% of gross output is invested in R&D annually, launching multiple new products with international advanced levels each year.

The technical team consists of highly experienced engineers, 95% of whom have at least 15 years of relevant experience in the medical field. The mission is to deliver high-quality medical equipment at competitive prices with comprehensive technical support and installation services.

Frequently Asked Questions (FAQ)
Q1: What is the maximum tube voltage and power output of the 1200D system?
A: The system features a power output of 3.5kW with a tube voltage range from 40kV to 110kV for both fluoroscopy and radiography modes.
Q2: What are the imaging specifications for the camera and monitor?
A: The system utilizes a 1024x1024 megapixel black and white progressive scanning camera and a 24-inch LCD monitor with a resolution of 1920x1200.
Q3: Does the system support digital medical networking?
A: Yes, the workstation includes full DICOM functions, allowing for DICOM browsing and network services to integrate with hospital management systems.
Q4: What certifications does this Digital C-Arm System hold?
A: The equipment is certified under CE and ISO 7494-1, and complies with international standards such as ISO 13485 and IEC 80601-2-60.
Q5: What are the environmental requirements for operating this equipment?
A: It requires an environment temperature of 10°C-40°C, relative humidity between 30%-75%, and atmospheric pressure of 700hpa-1060hpa.
Q6: What image processing features are available on the workstation?
A: The workstation provides features such as horizontal and vertical mirroring, recursive noise reduction, edge enhancement, sharpening, magnifying glass, and expert report templates.
