Professional Monitor (E190)
Applications: Endoscopy chest / Laparoscopy, Enteroscopy / Gastroscopy, Operating rooms, Intensive care units.
FAQ
Q: What is the primary light source used in the YSAQ-100 system?
A: The system utilizes a high-intensity 150W Xenon lamp with a color temperature of 5200K and an average bulb life of approximately 500 hours.
Q: Does the system support image magnification during procedures?
A: Yes, the video processor includes an electronic magnification function with 1.2X, 1.5X, and 2X settings.
Q: What is CBI technology and how does it benefit diagnosis?
A: CBI stands for Compound Band Imaging. It is a cutting-edge technique that allows users to switch rapidly between normal images and CBI viewing modes to better visualize tissue without the need for spraying stains.

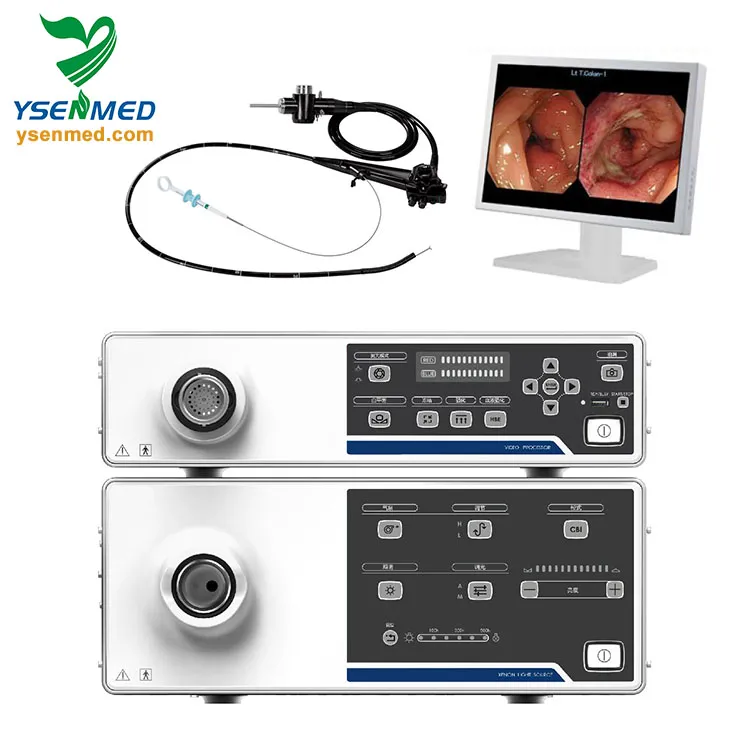

Q: What are the specifications of the medical monitor included?
A: The E190 monitor is a 19-inch display with a resolution of 1280 x 1024, 16.7 million color depth, and a contrast ratio of 1000:1.
Q: What is the HbE function mentioned in the technical data?
A: HbE (Hemoglobin Enhancement) highlights hemoglobin in blood vessels, making it easier for clinicians to identify capillary extent and the margins of superficial lesions in real-time.

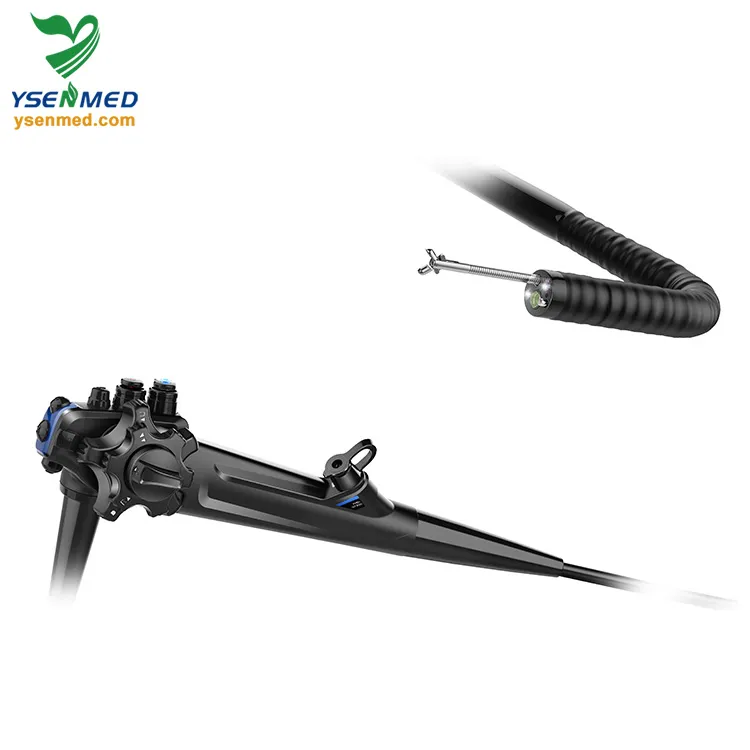

Q: What is the range of tip bending for the YSVG1T30 model?
A: The YSVG1T30 model features a bending range of 210° Up, 90° Down, and 100° both Left and Right.
