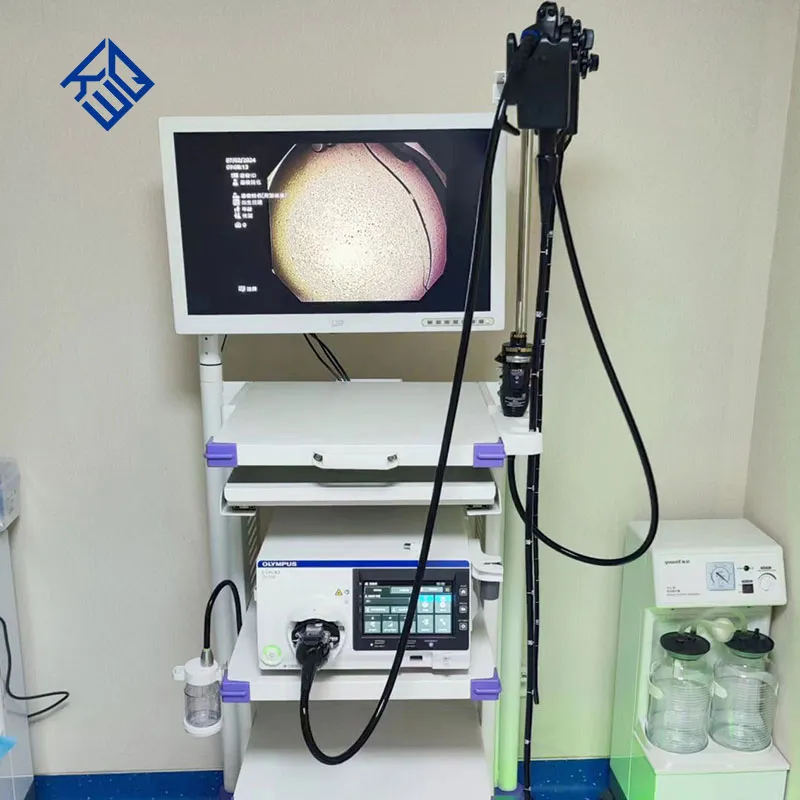

A New Standard for High-definition Upper Gastrointestinal Tract Endoscopes with Further Improved Approachability and Operability.

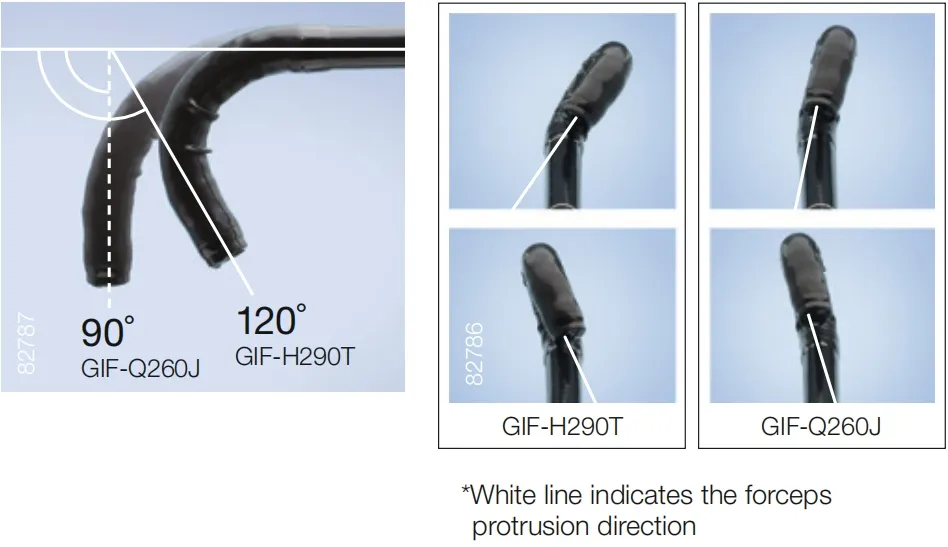

The down angle of the GIF-H290T has been expanded to 120˚ from 90˚. Moveable range during up angle position is also extended for easier lesion approachability.
Improved position of the auxiliary water channel close to the instrument channel supports hemostasis without adjustment of scope positioning.
Equipped with a high-definition CCD, high-resolution HD images are provided, leading to improvement in treatment accuracy.
| Category | Parameter | Specification |
|---|---|---|
| Optical System | Field of view | 140º |
| Direction of view | 0° (Forward viewing) | |
| Depth of field | 3-100 mm | |
| Insertion Section | Distal end outer diameter | 9.8 mm |
| Insertion tube outer diameter | 9.9 mm | |
| Working length | 1030 mm | |
| Channel inner diameter | Standard Instrument Channel | |
| Minimum visible distance | 3 mm | |
| Air/Water | Air flow rate | 30 cm3 /s |
| Bending | Angulation range | Up 210º / Down 120º / Right 100º / Left 100º |
| Length | Total Length | 1350 mm |

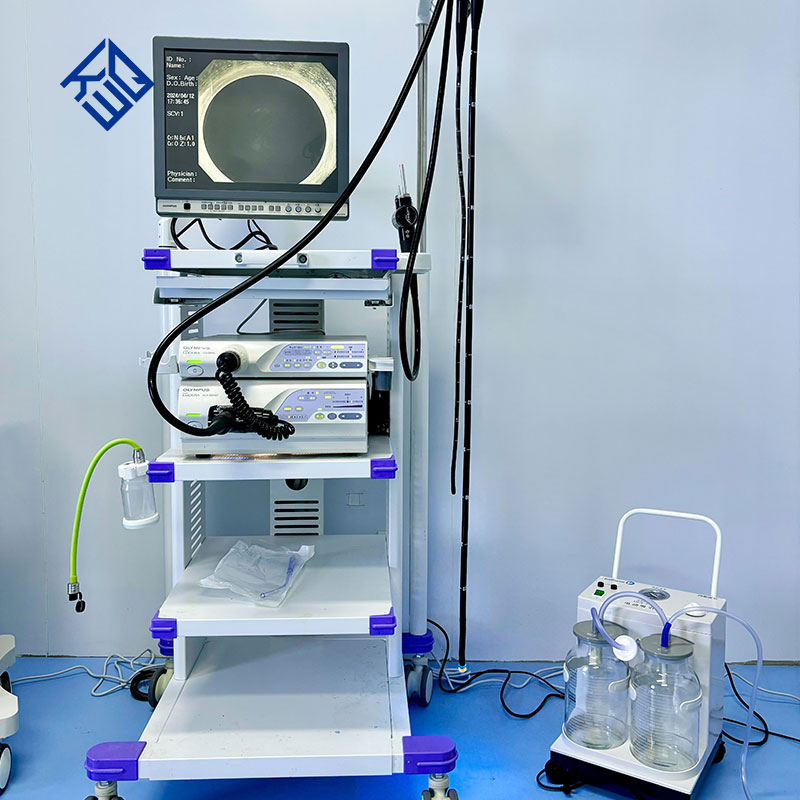

| Compatibility | Video System | EVIS LUCERA CV-290 / CLV-290SL / CLV-290 |
