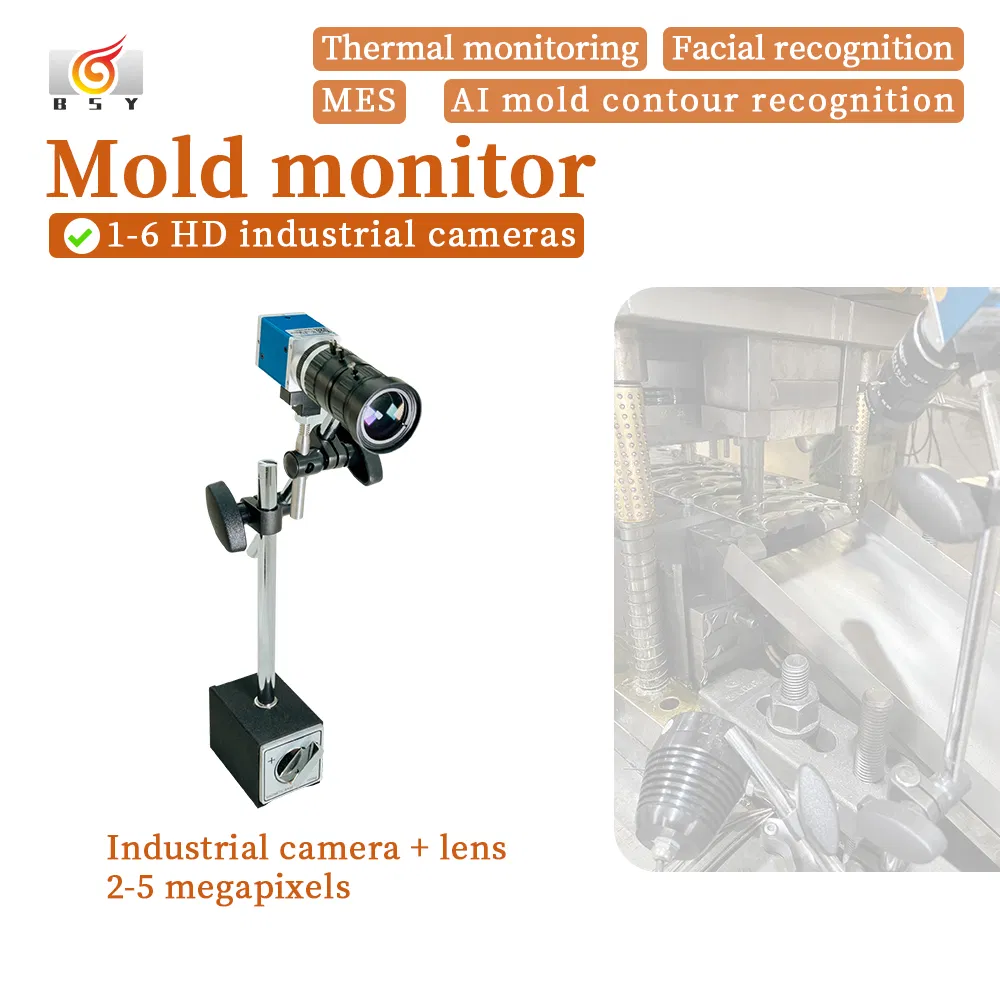

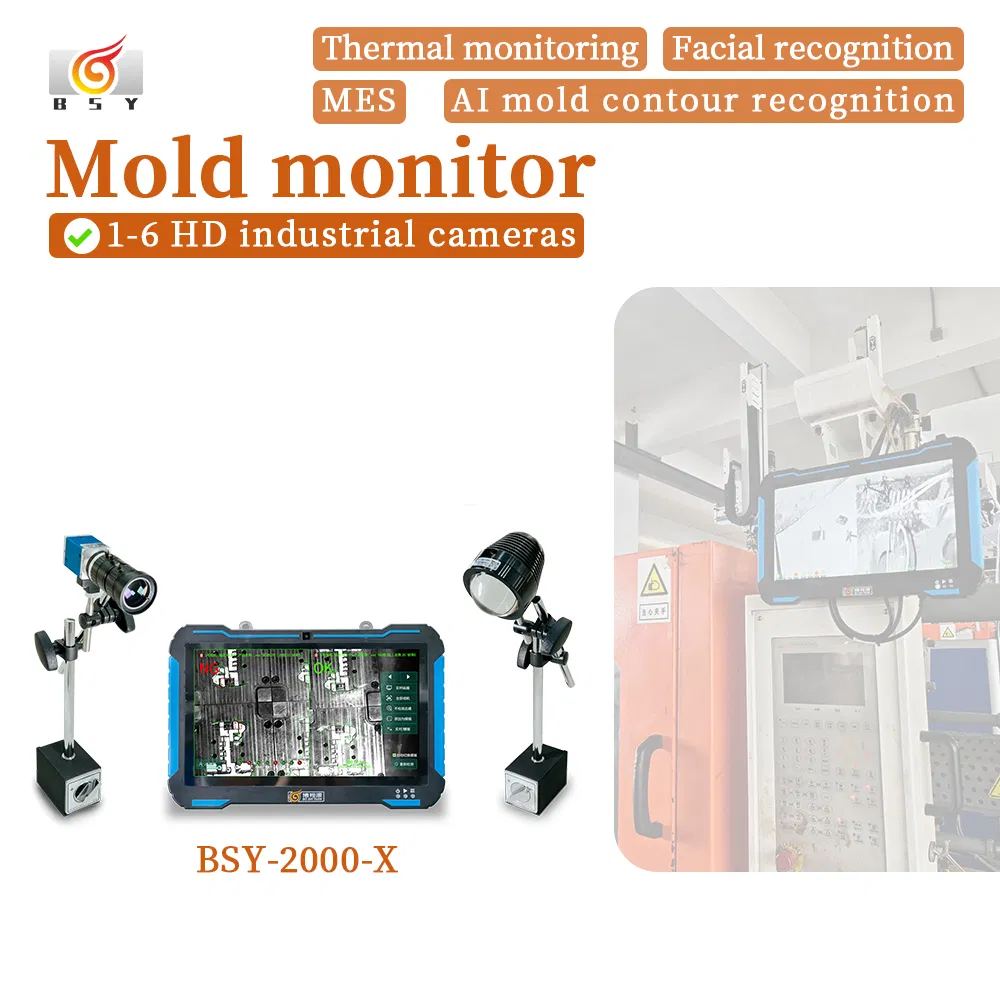

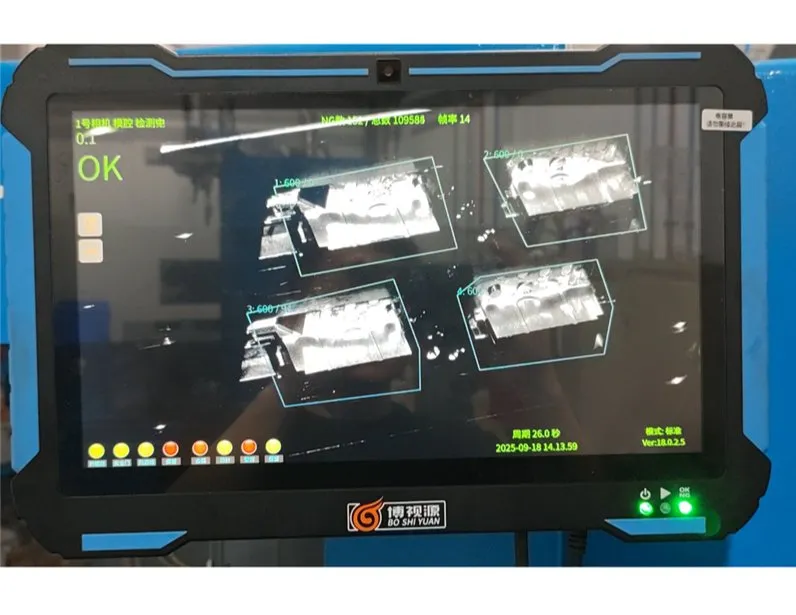

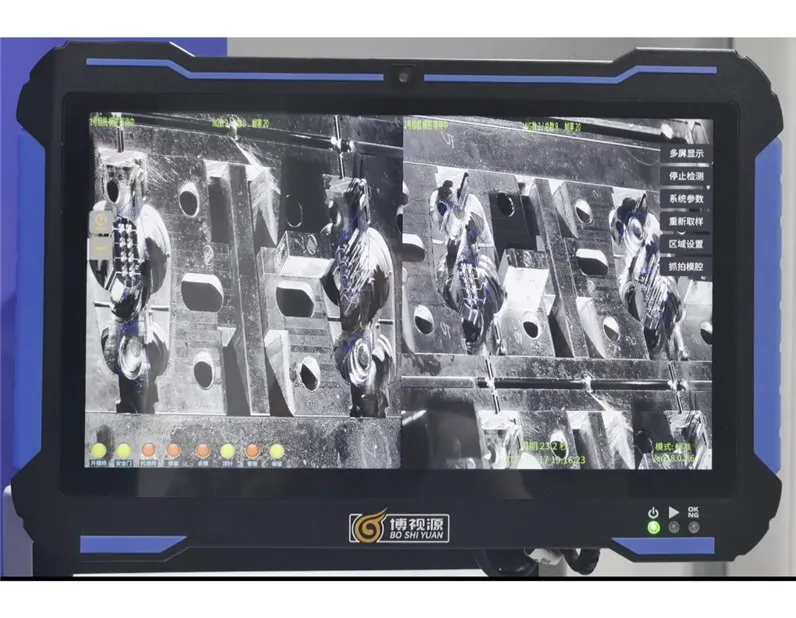

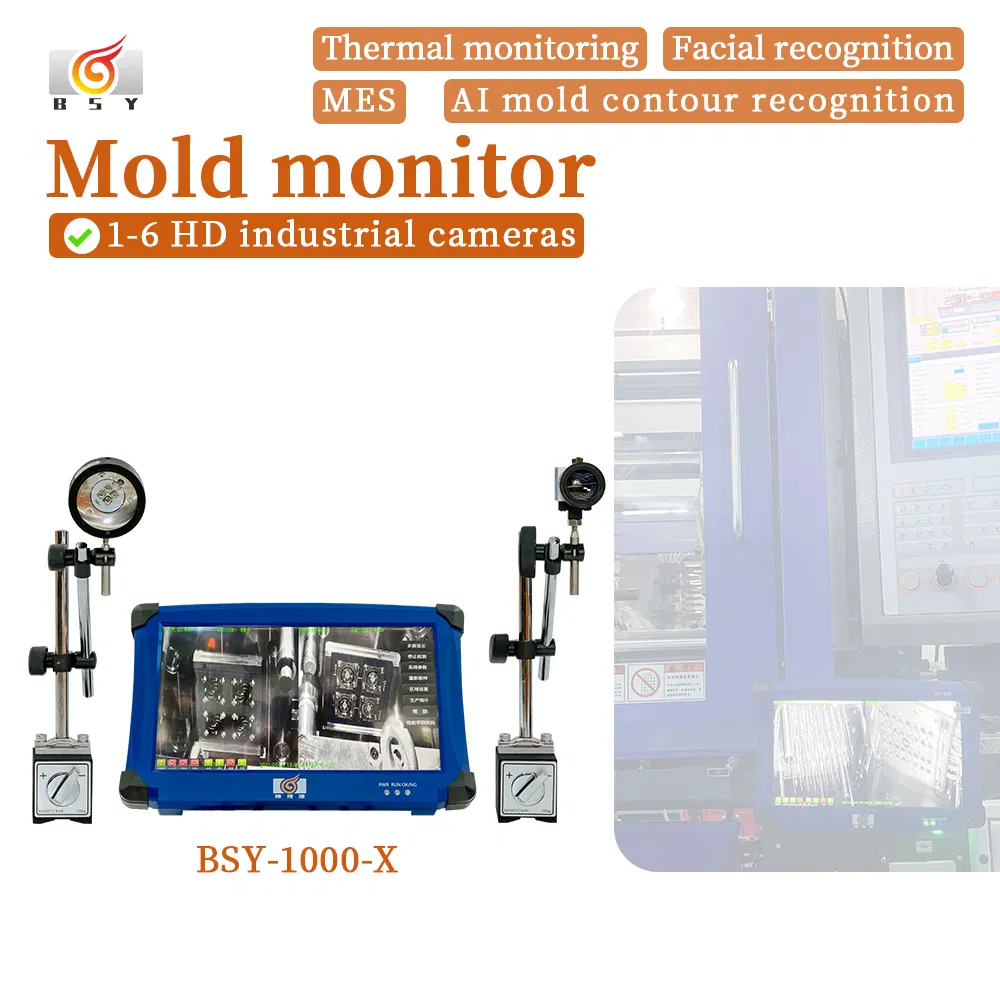

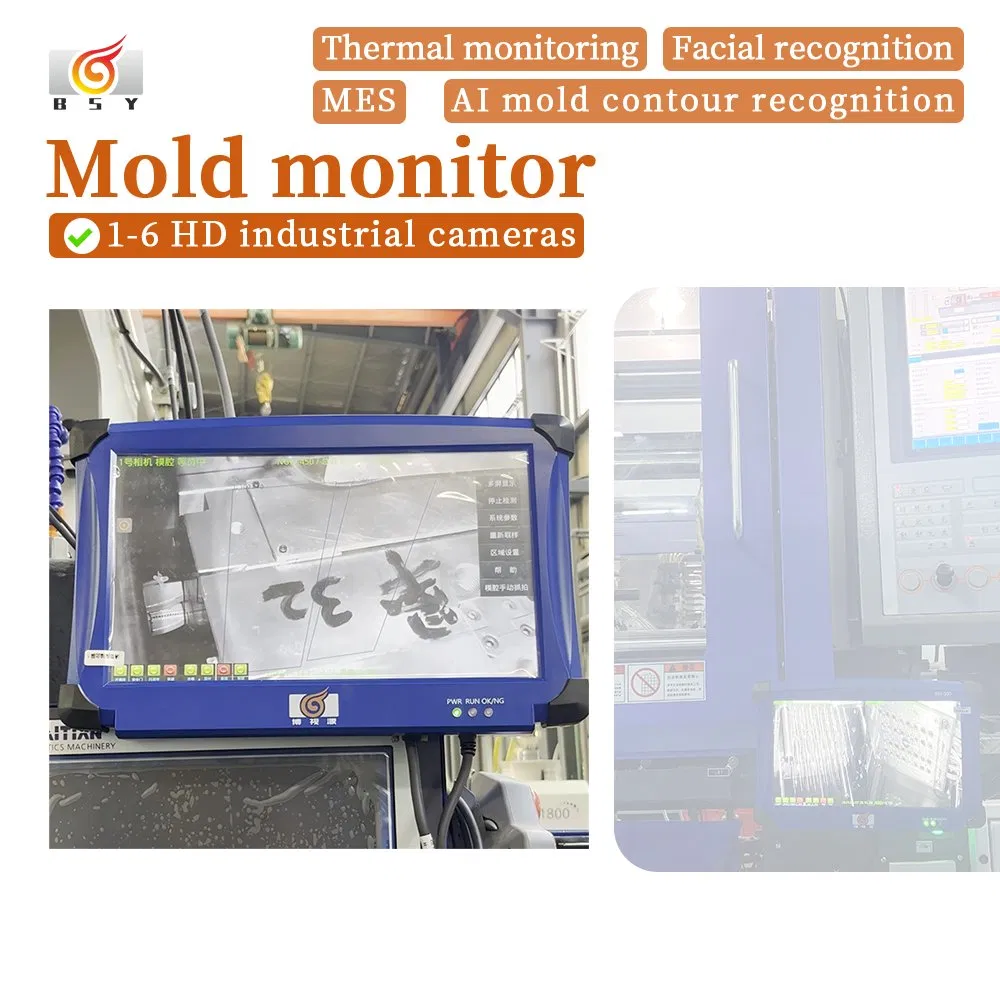

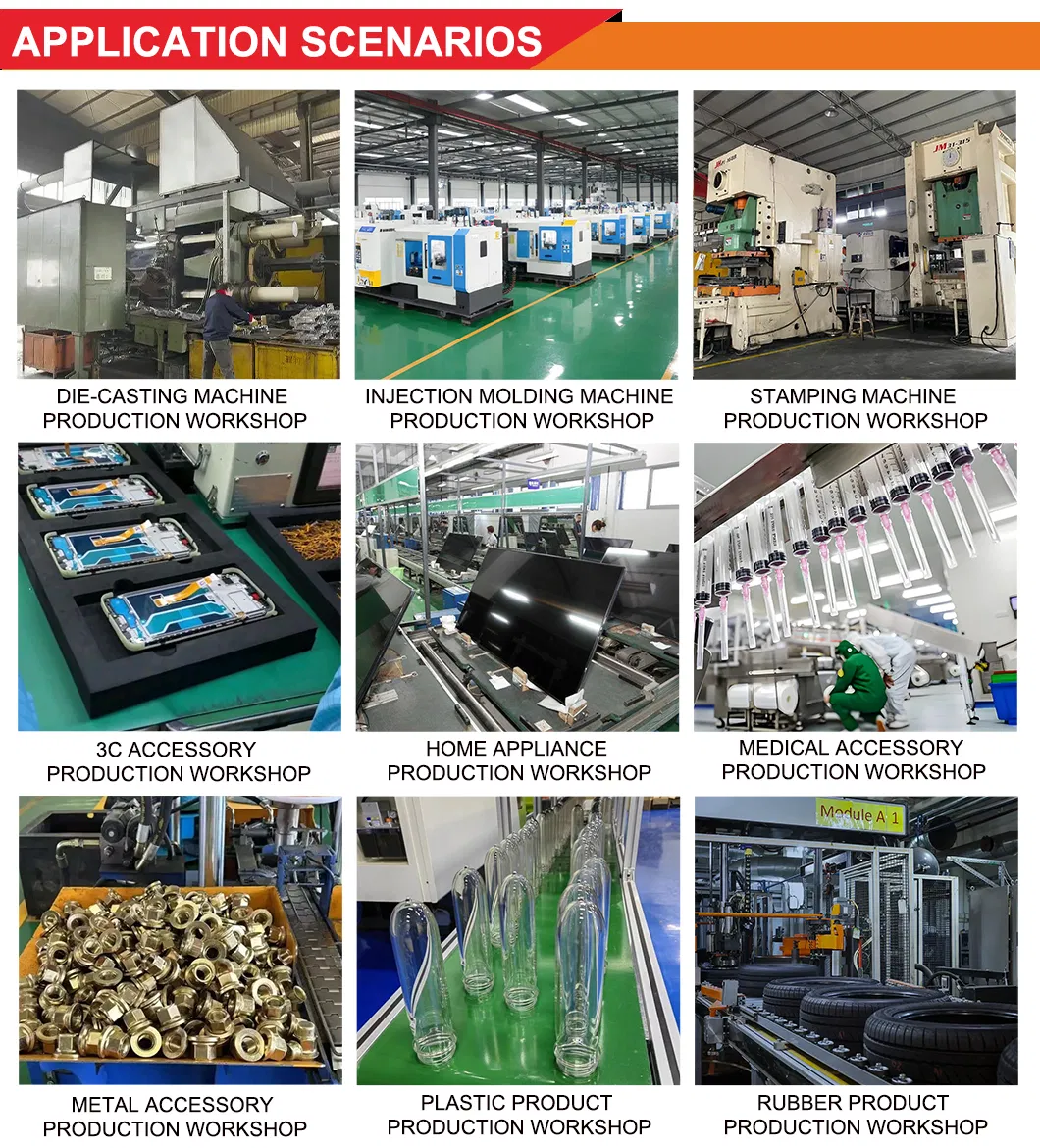

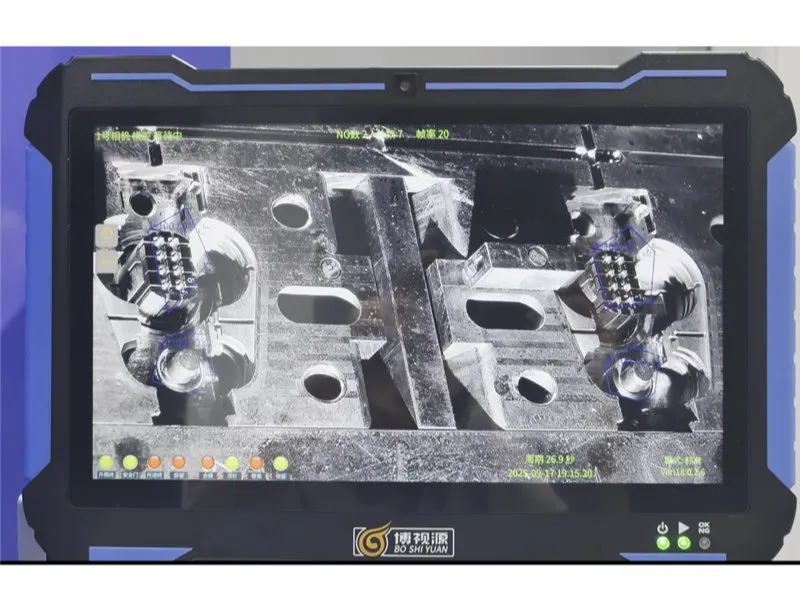

The Mold Monitor utilizes machine vision comparison and detection capabilities to perform real-time calculations on image data, enabling continuous monitoring of equipment operation. Applied to injection molding machines, presses, and die-casting machines, it performs in-mold real-time inspection.
| Storage (GB) | CPU | Cache | Power (W) | OS | Speed (ms) | Max Cameras | Resolution |
|---|---|---|---|---|---|---|---|
| 4G | N95/N97/N305 | M.2 64G | 50 | LINUX | 30 | 8 | 1920*1080 |
| Model | Length (mm) | Width (mm) | Thickness (mm) | Weight (Kg) |
|---|---|---|---|---|
| BSY-2000 | 380 | 255 | 41.5 | 2.3 |
| Feature | Description |
|---|---|
| AI deficiency algorithm | Integrates project management and object detection algorithms to reduce false positives caused by unstable lighting or oil stains. |
| Face recognition | Captures operator facial data for secure login, alarm cancellation, and real-time operation tracking. |
| Big Data Management | Provides online video preview, data statistics, and automated reports for early warning. |

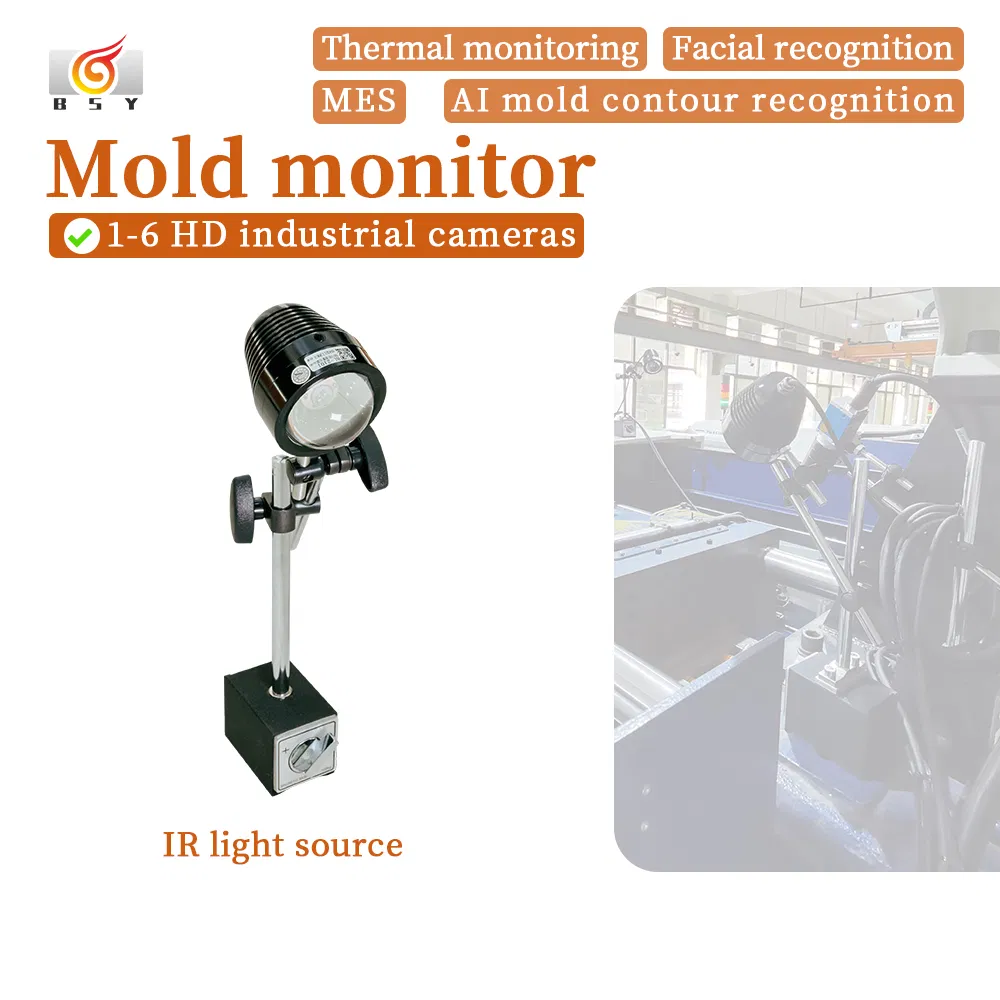

| Light Auto Compensation | Automatically adjusts detection area brightness to environment changes, minimizing false alarms. |
| Motion Correction | Performs tracking correction when mold opening stroke deviates. |
1. Low-cost, non-contact retrofit solution.
2. User-friendly with zero learning curve.
3. Significantly reduces mold damage incidents.

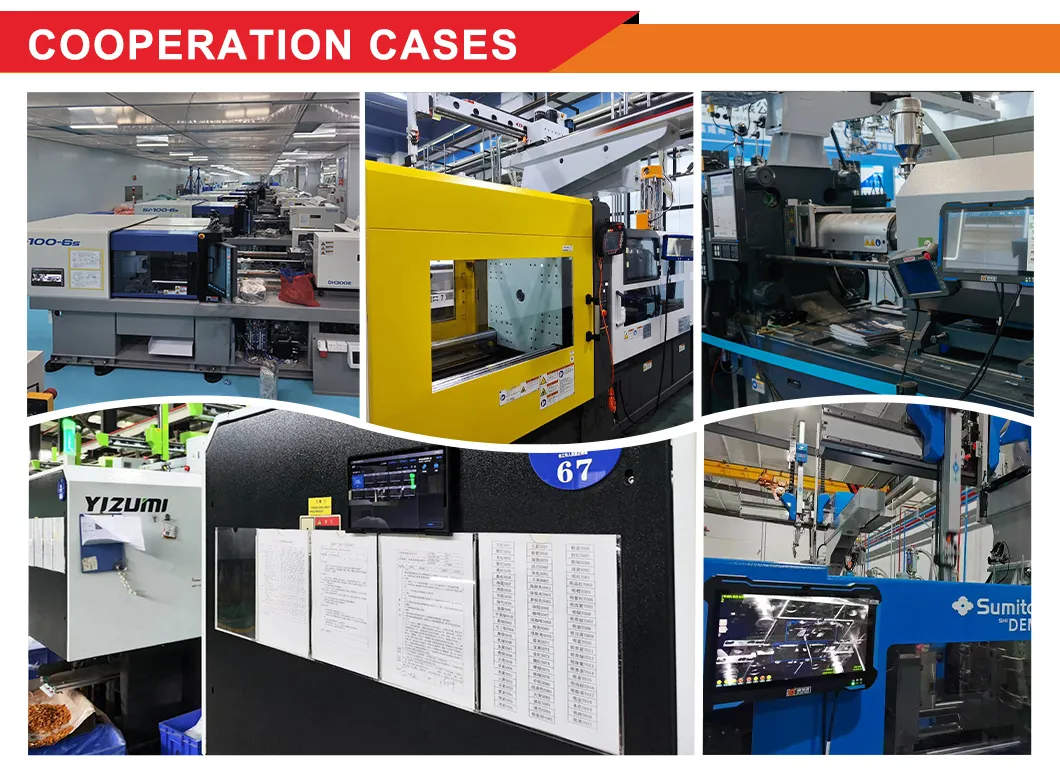

In the niche market of mold monitoring systems, our annual sales volume has exceeded 10,000 units. Our service network covers major industrial regions, and our business footprint is expanding globally to markets like Japan, Spain, and India. We operate multiple manufacturing and marketing centers to ensure synchronized pre-sales and after-sales support.
We pack all mold monitors in standard export cartons to ensure safe delivery. Our logistical partners support Air and Sea shipments to meet your timeline and budget requirements.
