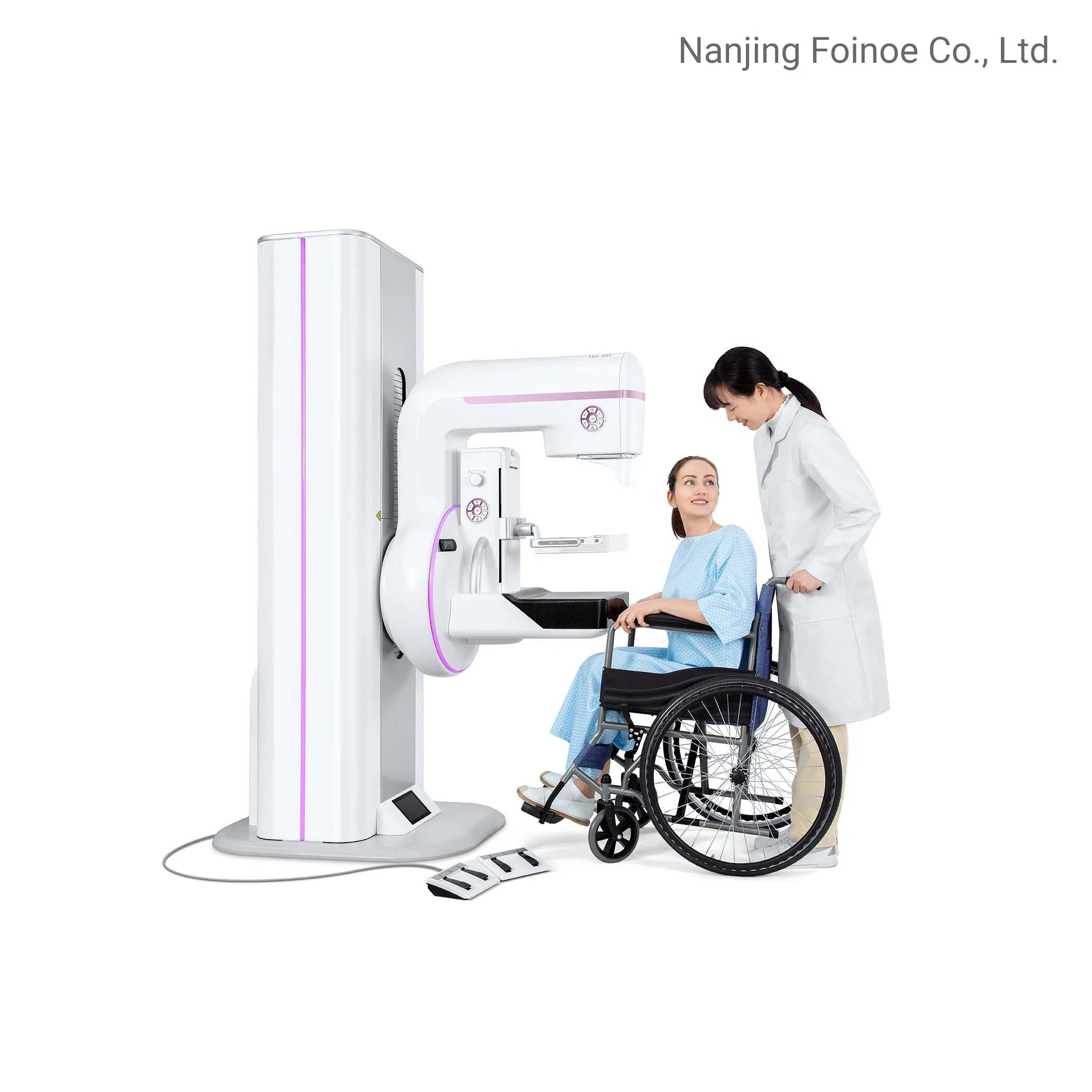

Mammographie Portable Mammography Equipment Foinoe Digital X-ray Machine Price Breast Full Field Digital Mammography System

1 / 5

Mammographie Portable Mammography Equipment Foinoe Digital X-ray Machine Price Breast Full Field Digital Mammography System

Customization:	Available
Customized:	Non-Customized
Certification:	CE, ISO13485

Send Inquiry

Product Description

📊 Basic Info.

Model NO.DM-200MA-1

ScaleMedium

Pixel Matrix4096*3072

ScintillatorCsi

Transport PackageWooden Carton

Specification5.1kW / 10 -630mAs / 20kV -40kV

OriginChina

Production Capacity5000pieces/Month

📝 Product Description

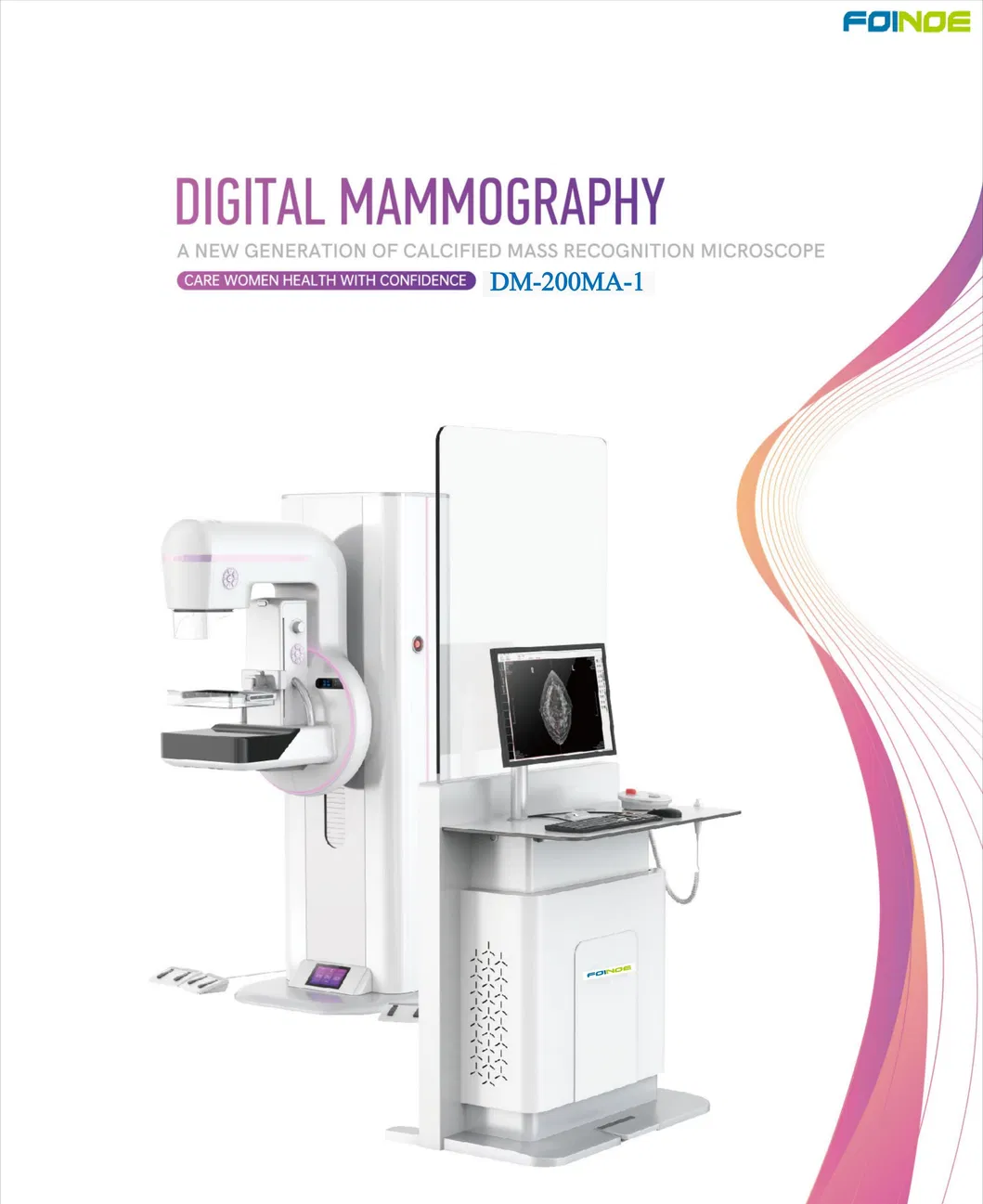

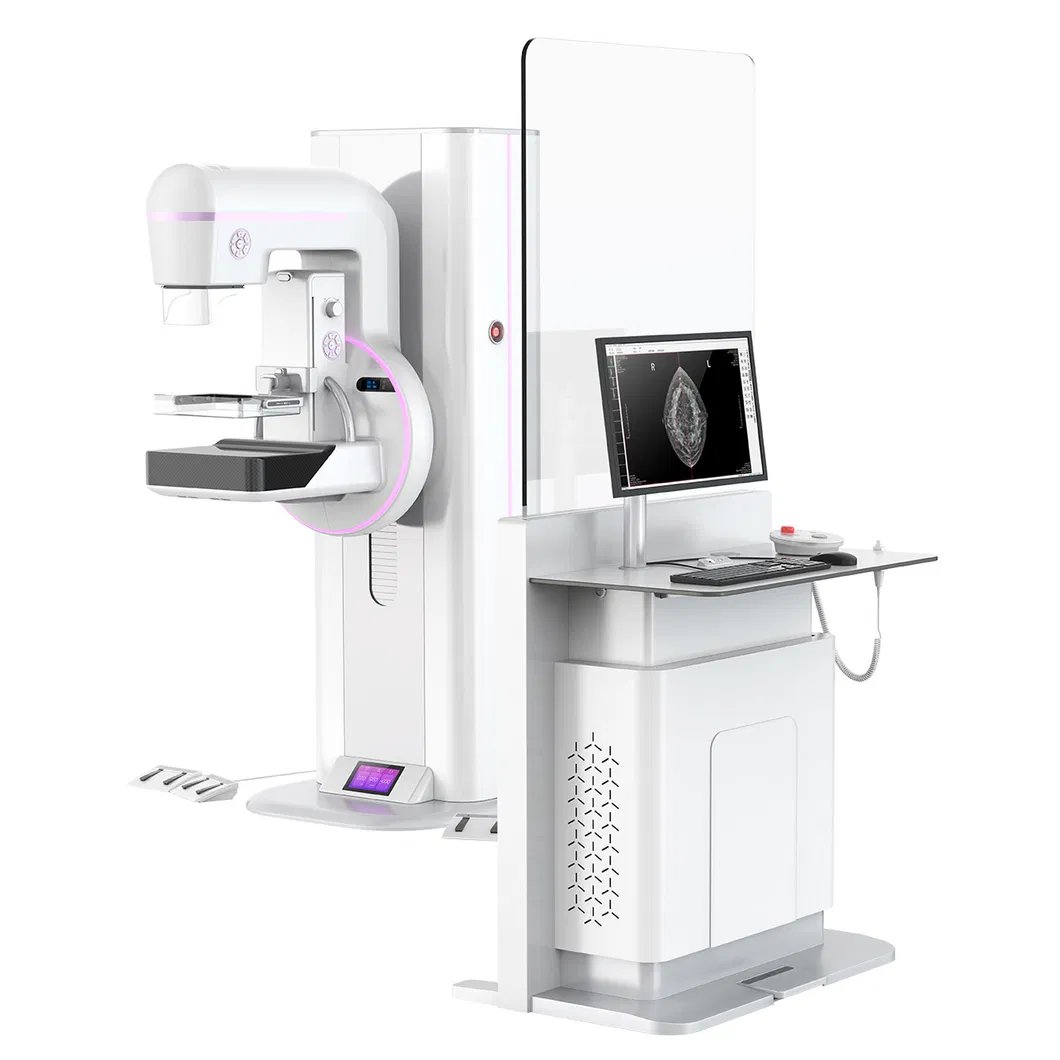

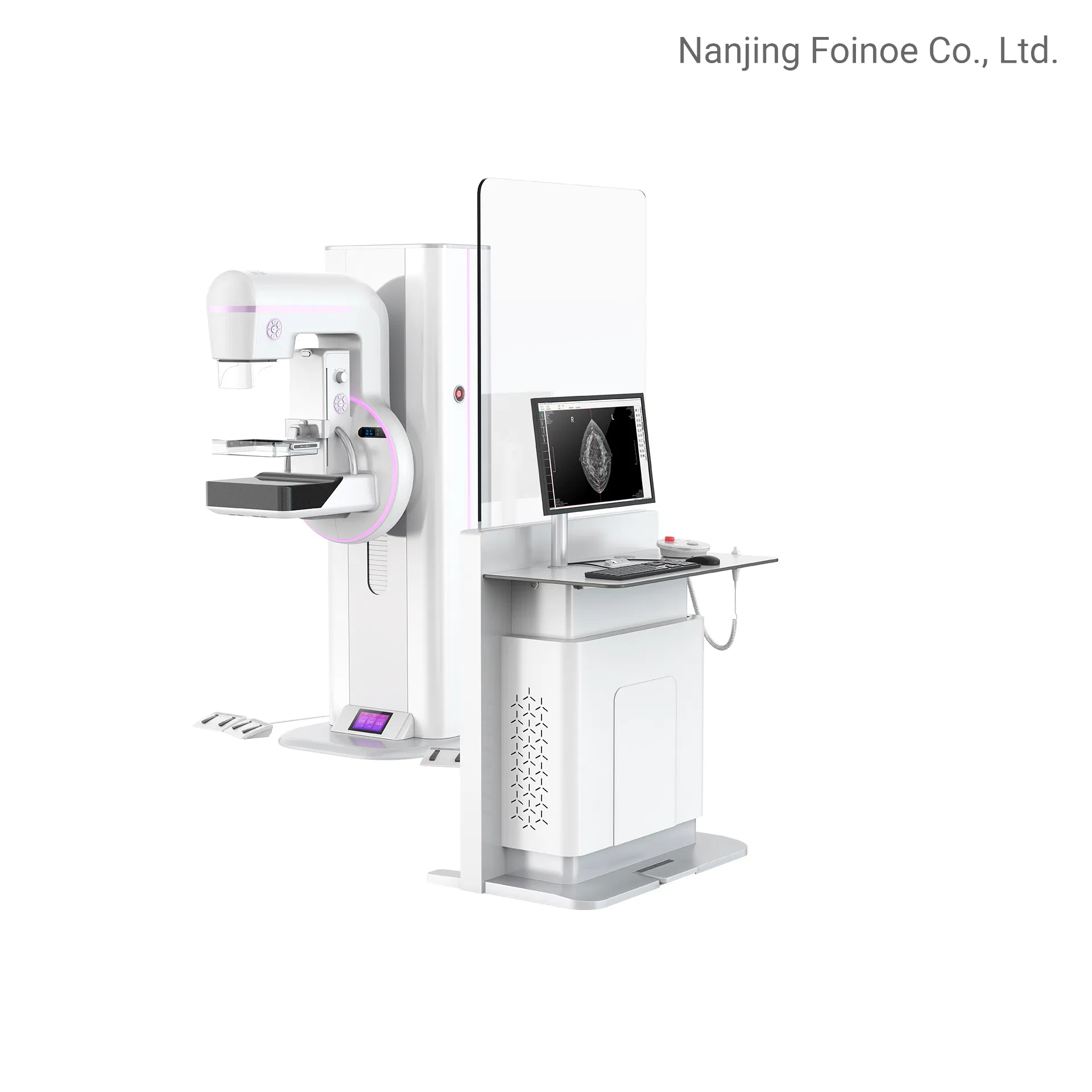

Digital Medical X-ray Mammography System Machine DM-200MA-1

⚙️ Specifications

No.	Model	Product Name	Quantity
1	FSQ-DM-1	High Frequency Generator	1
2	XM15	X-ray Tube	1
3	XSQM-1	Collimator	1
4	YPZZ-1	Compression device (Standard & Point)	1
5	ADM-2430M	X-ray Imaging System	1
6	TSM-1	Image Processing System	1
7	DM166-1	C-Arm Stand	1
8	MKZT-1	Console	1
9	/	Foot Switch	2

🔹 High Frequency Generator

Tube voltage range: 20kV - 40kV
Current time product: 10 - 630mAs
Maximum output power: 5.1kW
Input: 90 - 264VAC, single phase

🔹 X-Ray Tube XM15

Nominal tube voltage: 40kV
Focus: 0.1mm / 0.3mm
Anode heat capacity: 225kJ
Target surface: Mo target

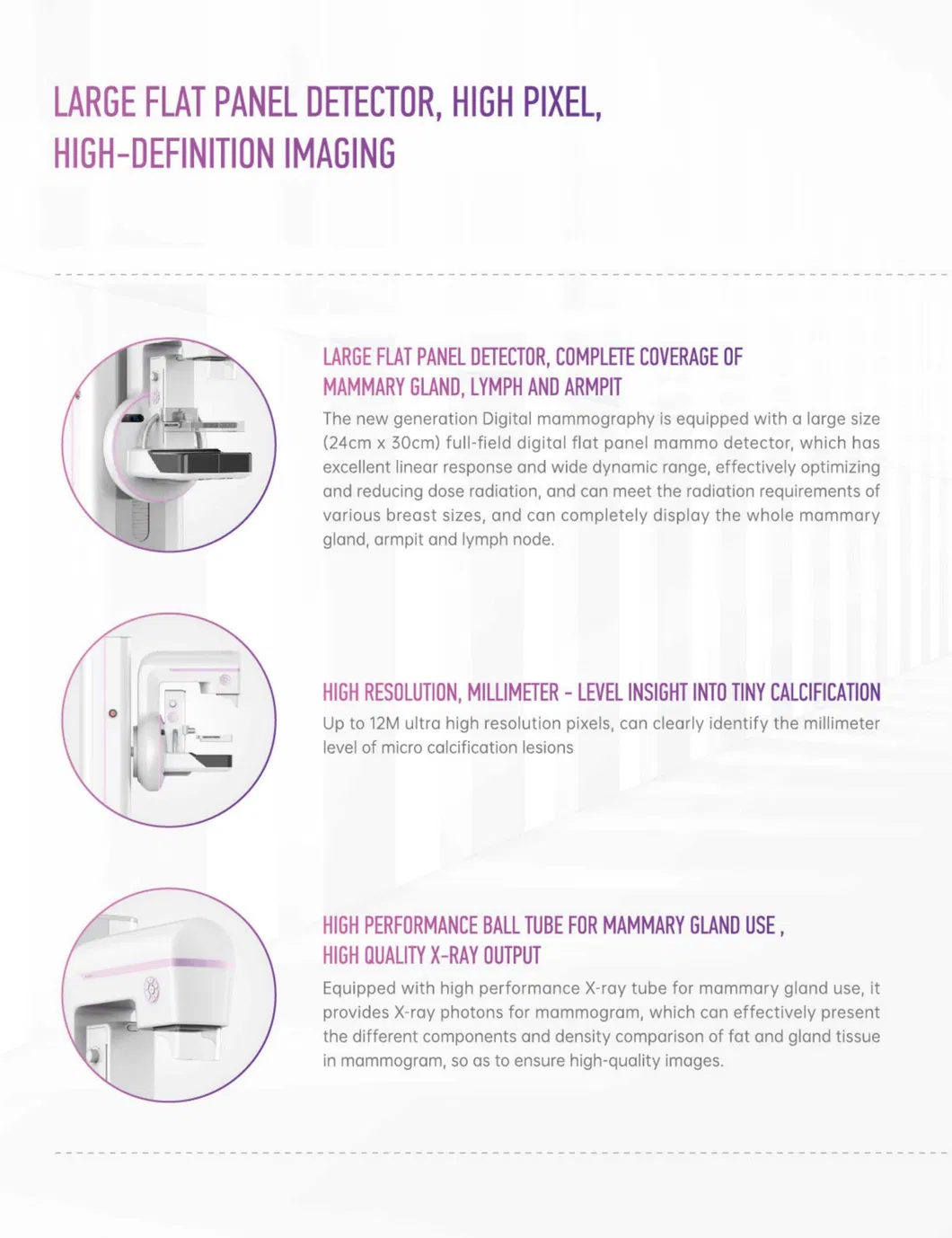

🔹 Imaging System ADM-2430M

Scintillator: Cesium Iodide
Pixel size: 77 microns
Acquisition matrix: 4096 * 3072
Spatial resolution: 6.0 lp/mm

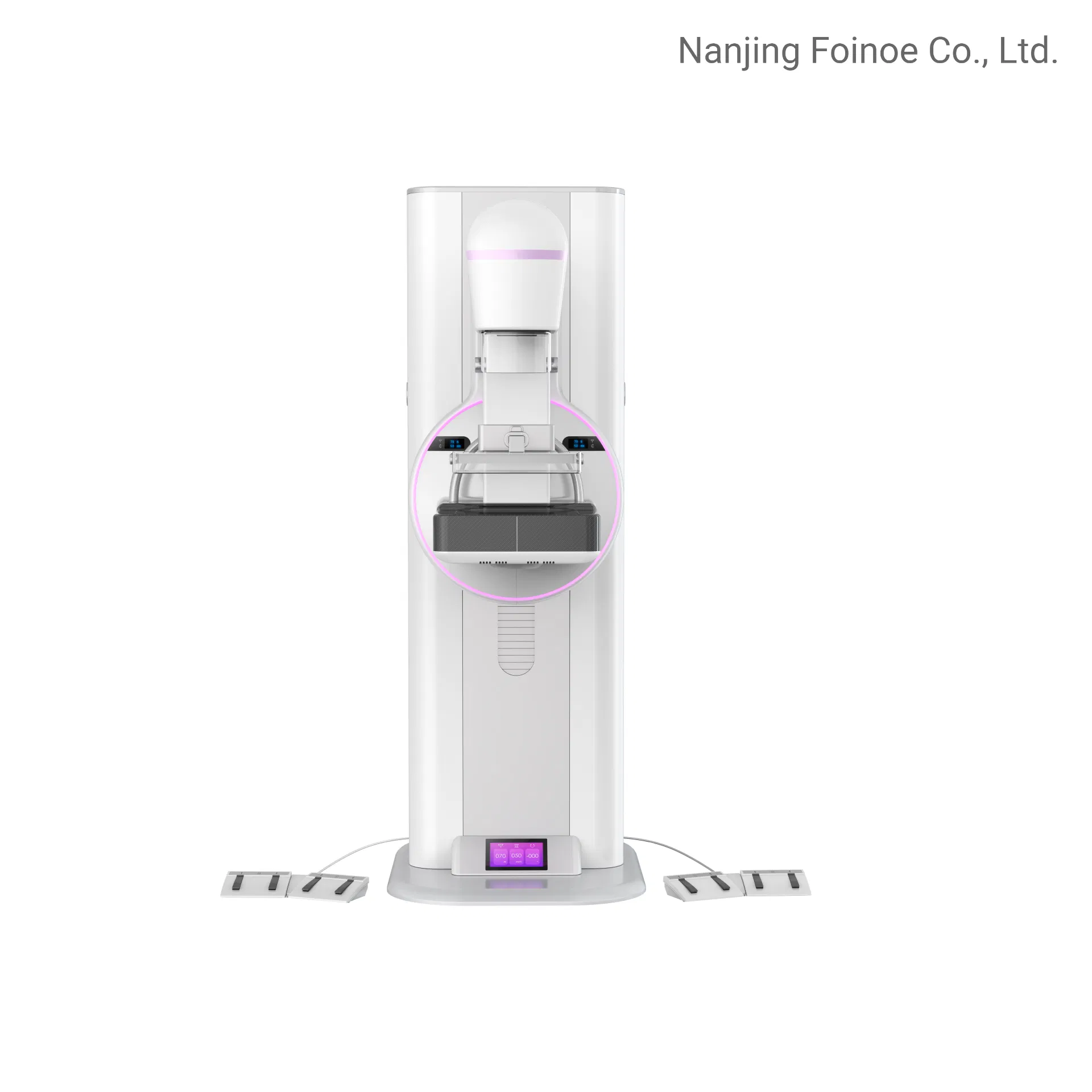

🔹 C-Arm Stand DM166-1

Rotation range: -180° to +180°
FID distance: 650mm
Electric control with isocenter rotation

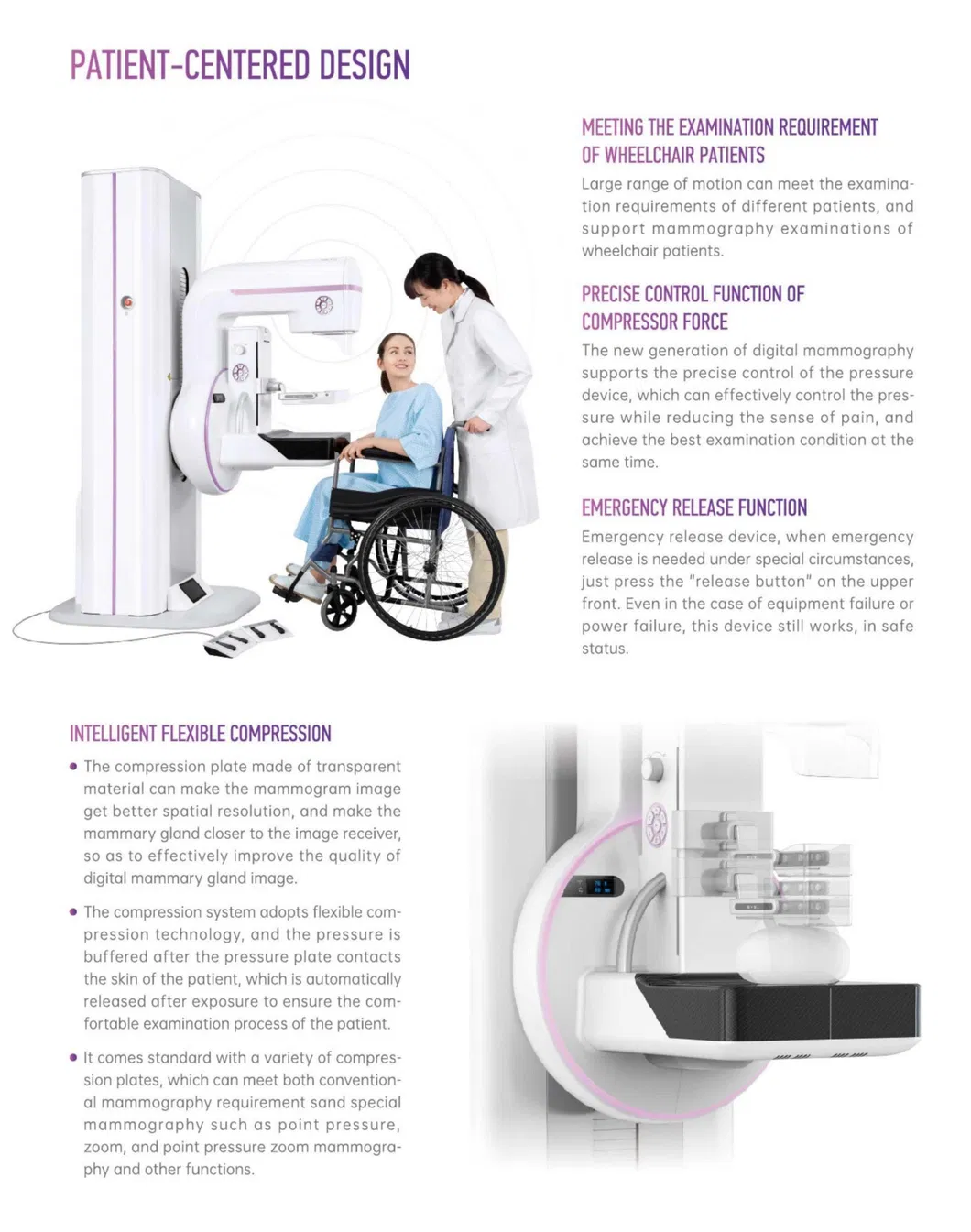

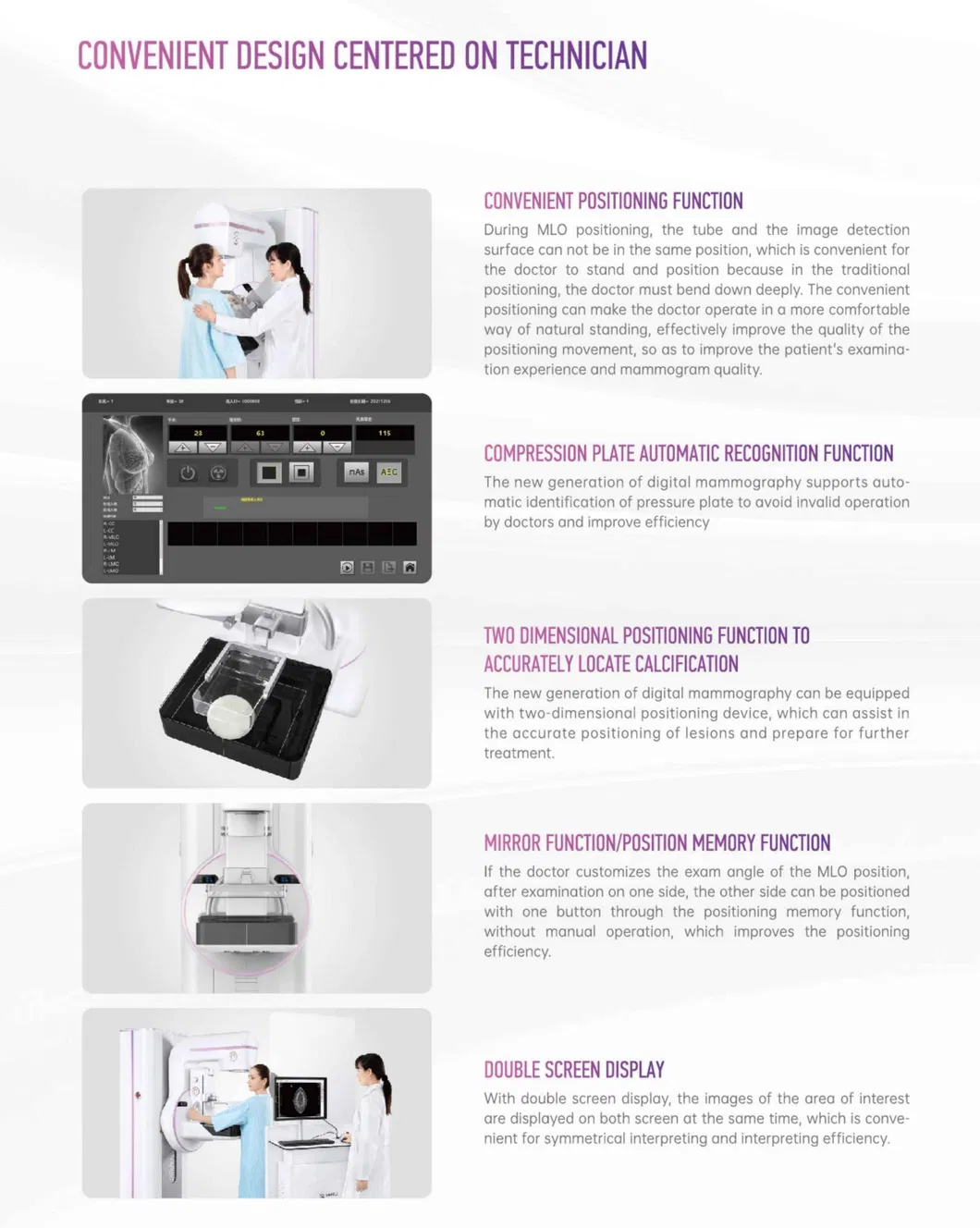

📸 Detailed Photos

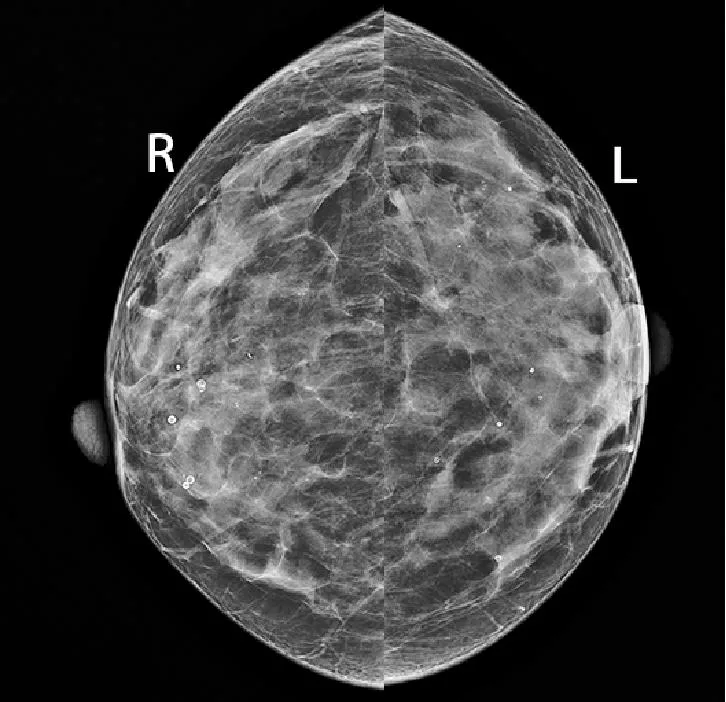

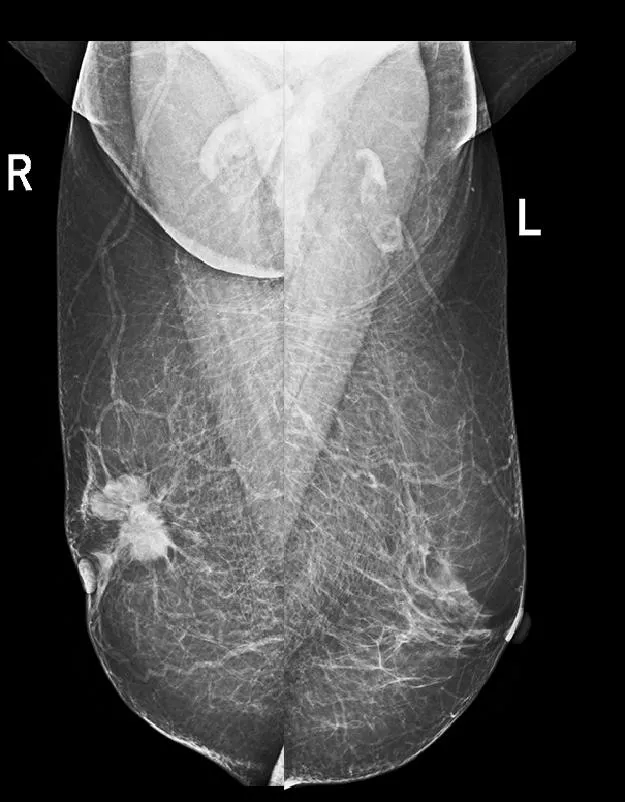

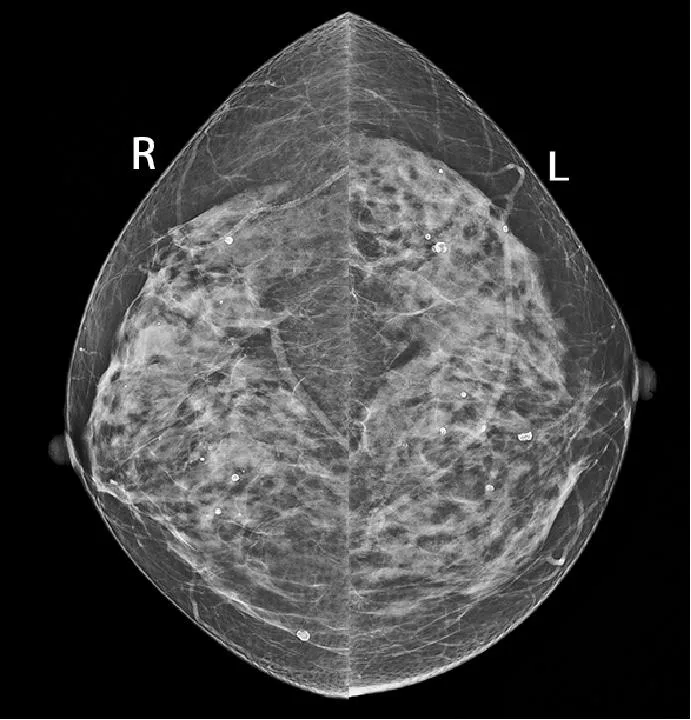

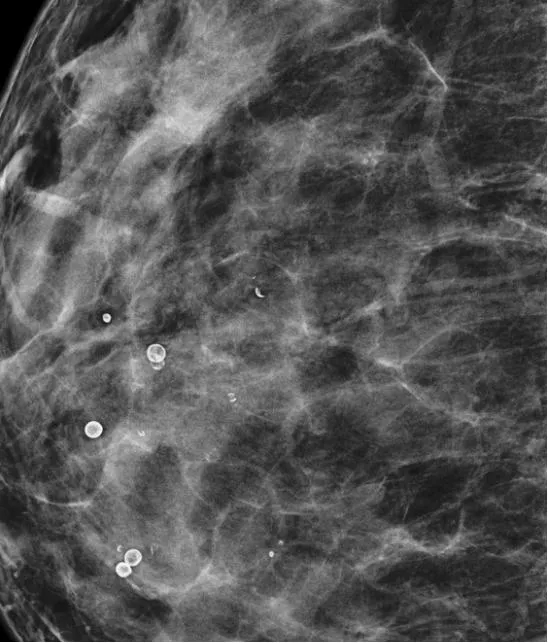

🔬 Clinical Images

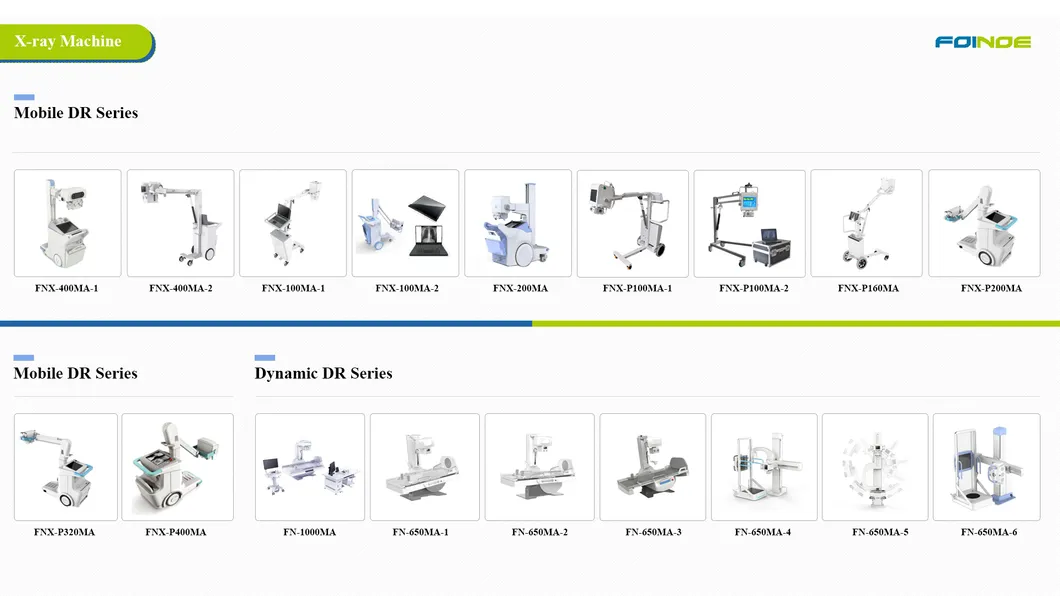

📂 Other Models

🏢 Overview & Feedback

🌟 Customer Satisfaction

❓ Frequently Asked Questions

Q: What is the primary imaging technology used in this system? A: It uses a high-resolution X-ray imaging system with a Cesium Iodide (Csi) scintillator and a pixel matrix of 4096*3072.

Q: What is the voltage range for the X-ray generator? A: The tube voltage range is adjustable from 20kV to 40kV, suitable for various breast tissue densities.

Q: Does the system support DICOM standard protocols? A: Yes, it is fully compatible with the DICOM 3.0 standard for seamless image transmission, printing, and archiving.

Q: What are the rotation capabilities of the C-arm stand? A: The C-arm features electric control with an isocenter rotation range of -180° to +180°.

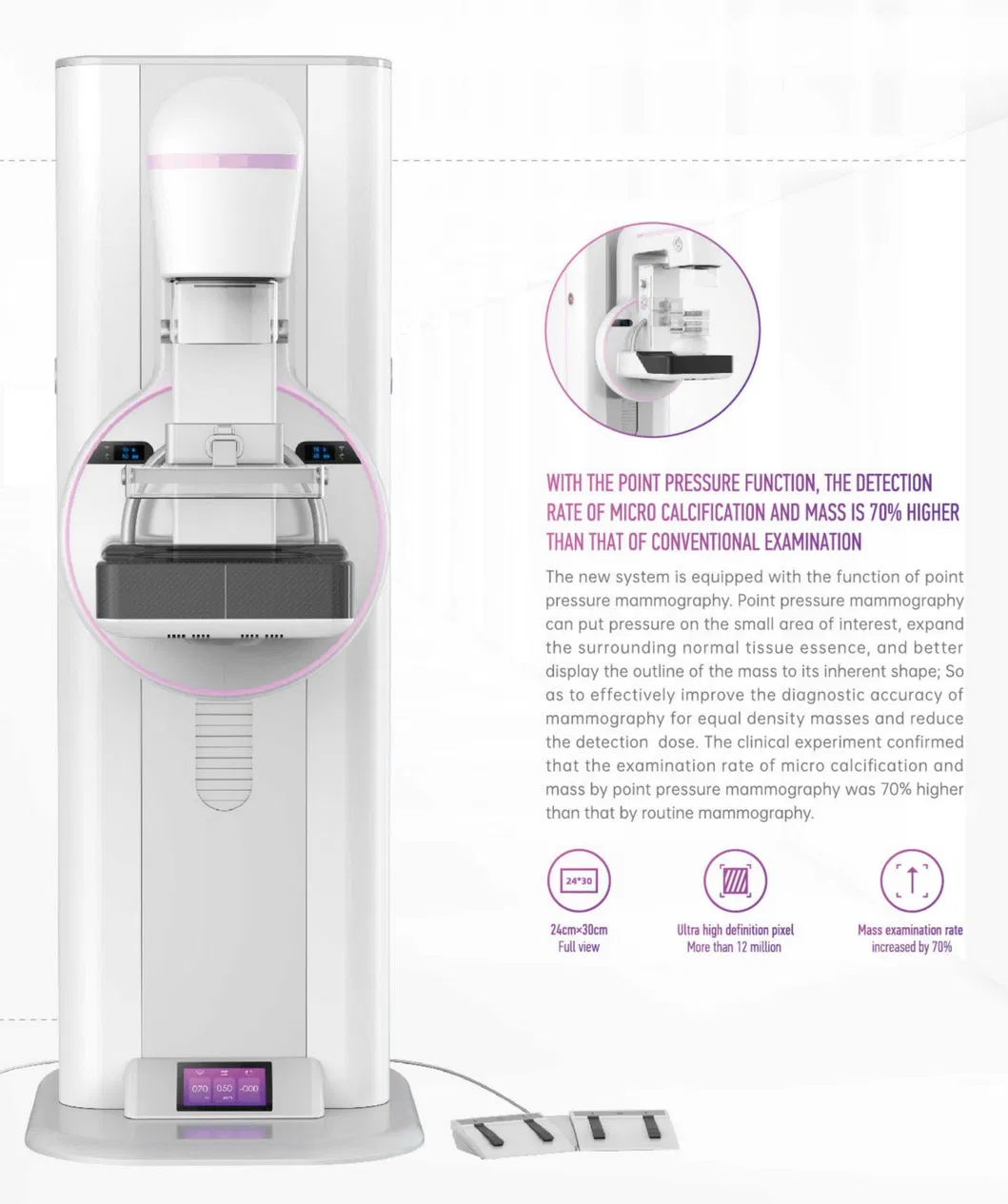

Q: What sizes of compression paddles are available? A: It includes a standard 24cm x 31cm compressor and a 9cm x 9cm point pressure compressor for detailed imaging.

Q: What is the pixel size and spatial resolution? A: The system features a 77-micron pixel size and a spatial resolution of 6.0 lp/mm for high-clarity clinical diagnostics.
