Portable Measurement Videoscope 200m Handheld Endoscope Inspection Camera System
Portable Measurement Videoscope 200m Handheld Endoscope Inspection Camera System
Portable Measurement Videoscope 200m Handheld Endoscope Inspection Camera System
Portable Measurement Videoscope 200m Handheld Endoscope Inspection Camera System
Portable Measurement Videoscope 200m Handheld Endoscope Inspection Camera System
1 / 5
Portable Measurement Videoscope 200m Handheld Endoscope Inspection Camera System
Portable Measurement Videoscope 200m Handheld Endoscope Inspection Camera System
Portable Measurement Videoscope 200m Handheld Endoscope Inspection Camera System
Portable Measurement Videoscope 200m Handheld Endoscope Inspection Camera System
Portable Measurement Videoscope 200m Handheld Endoscope Inspection Camera System

Portable Measurement Videoscope 200m Handheld Endoscope Inspection Camera System

Customization: Available
Technology: with Meter Counter
Style: Fixed Focus Lens
Send Inquiry

Product Description

Basic Information
Model NO.
DS200C-34
Type
Video Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
1200tvl
Kind
Waterproof Camera
Certification
CE, FCC, RoHS
Feature
Waterproof / Weatherproof, High Definition
Effective Distance
200m
Sensor Size
1/3 inch
Origin
China
HS Code
8525893900
Portable Measurement Videoscope Handheld Inspection Camera

System Configuration: 200M cable camera + 10.1inch 4K monitor + cable reel/braker + counter meter.

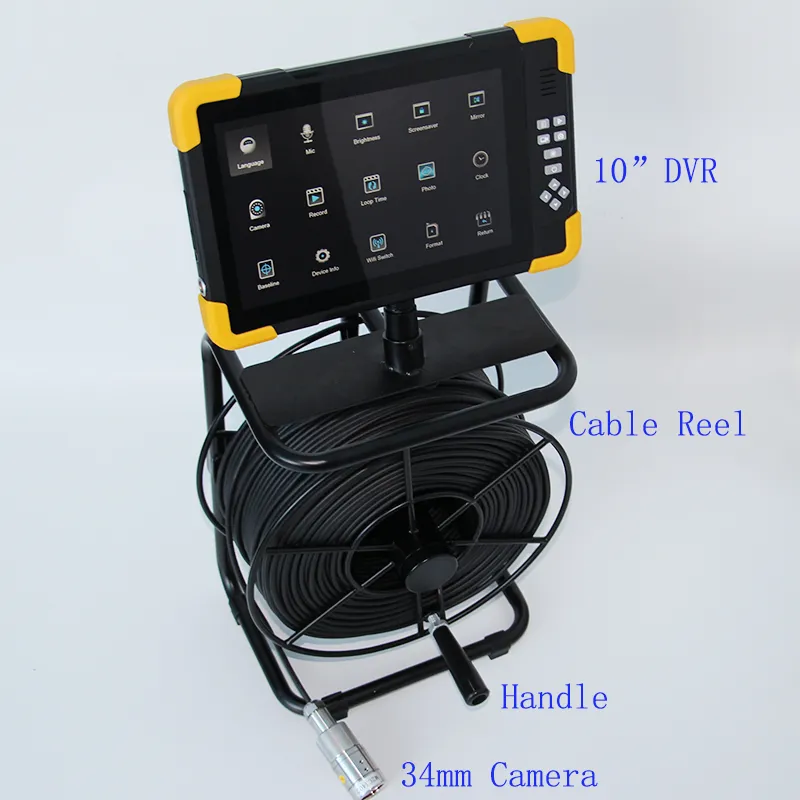

Inspection Camera System
Product Overview

This 5MP Flexible Endoscope Camera System is designed for Contractors and Plumbers to work smarter and get the job done faster. It provides a higher resolution display screen for viewing pipes, is fully waterproof (IP68), and features a deep-focused lens. The 34mm camera head is built with 12 adjustable LED lamps, making it an advanced inspection solution for Residential Plumbing, Municipal Collection Systems, and Industrial Pipelines.

Videoscope View

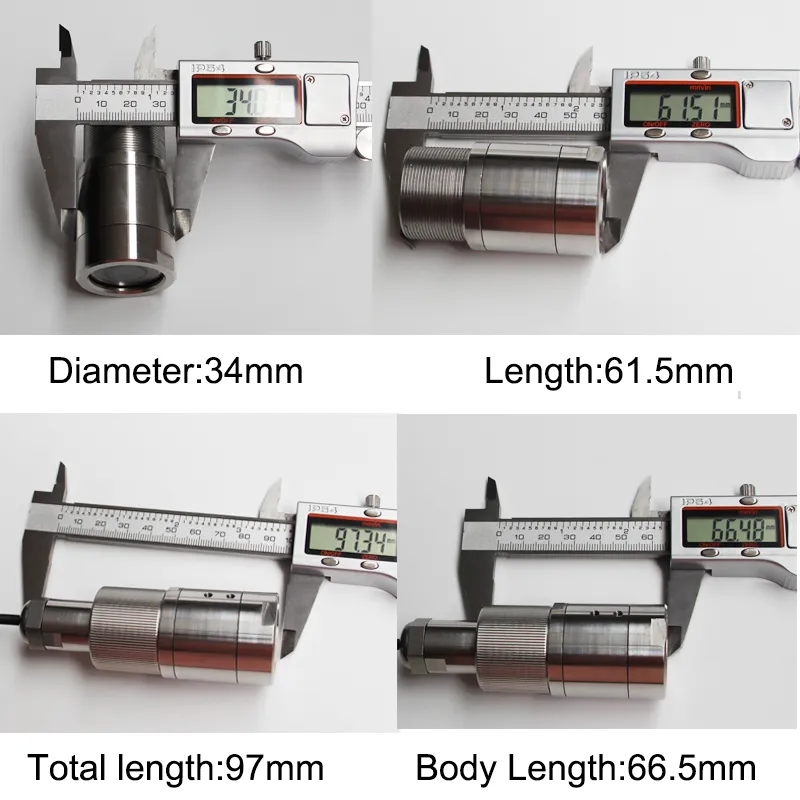

Camera Head Detail
Key Features
  • High Resolution: 5MP Sony Sensor with 2560*1440px resolution.
  • Waterproof Capability: IP68 rated, operational underwater up to 200m depth.
  • Wide Vision: 120° view angle with 12 adjustable high-intensity LEDs.
  • Smart Monitoring: 10.1 inch touch screen with 1280*800px resolution and WiFi support for mobile viewing.
  • Durable Build: Stainless steel cable reel with integrated meter counter and brake system.
  • Advanced Recording: Supports 4K/2K recording, 12MP photos, and H.265 compression.
  • Long Battery Life: Dual 6200mAh exchangeable Li-batteries providing 6-8 hours of work time.

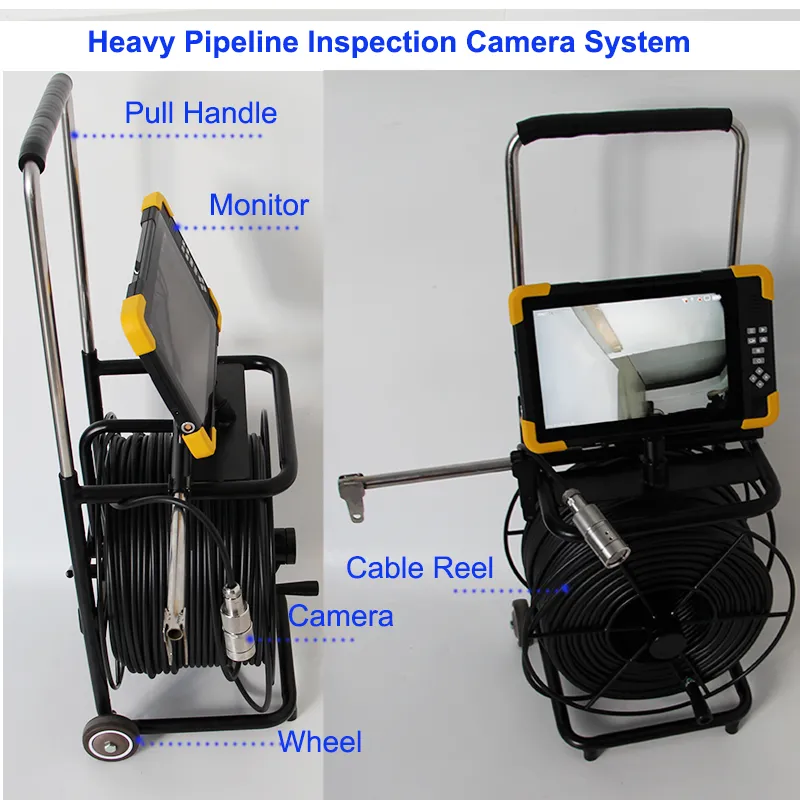

Cable Reel System

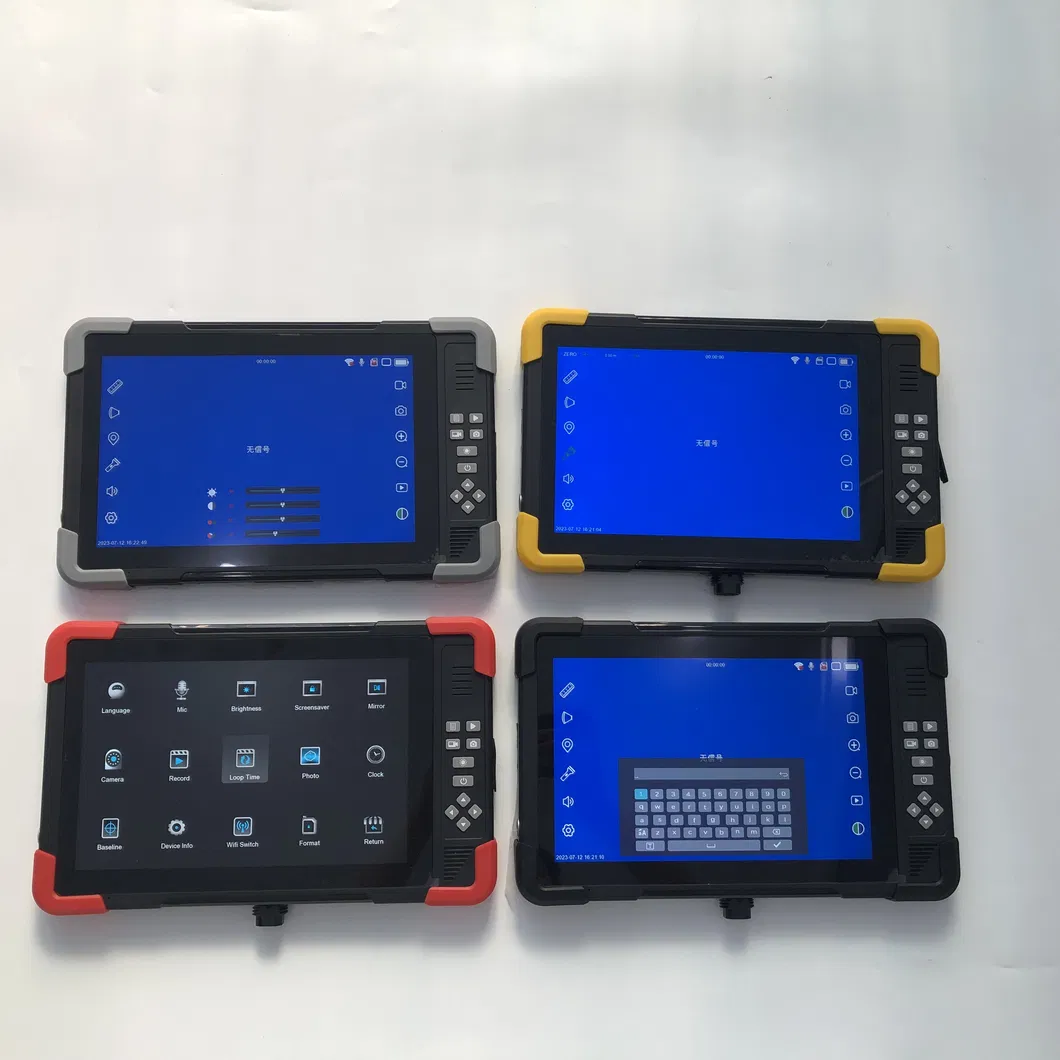

Monitor Interface

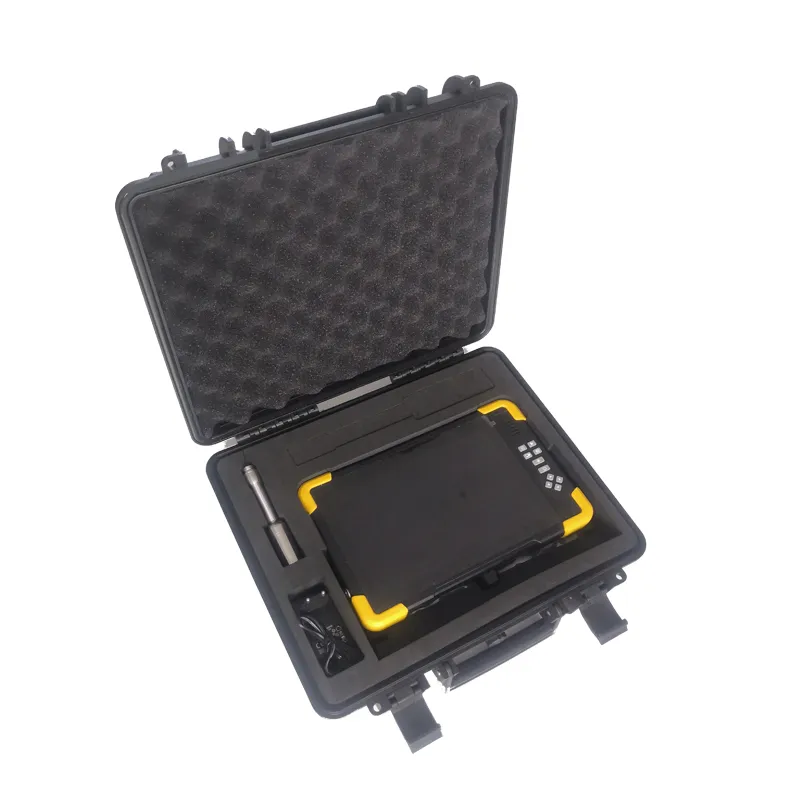

Full Kit Display
Technical Specifications
Component Parameter Details
Camera Resolution 5.0 Mega Pixel, 2560*1440px
Dimension ø34mm*61.5mm (133mm with spring)
Housing 316L stainless steel, sapphire glass
View Angle 120°
Cable Length Up to 200m
Diameter 7.5mm
Monitor Display Size 10.1 inch Touch Screen
Video Output HDMI 1080P
Storage TF card up to 256GB
WiFi 802.11 a/b Support
Battery Capacity 6500mAh (6-8 hours operation)
Frequently Asked Questions
What is the maximum depth this camera can handle?
The system is IP68 waterproof and can work underwater at a maximum depth of up to 200 meters.
What is the resolution of the recorded video and photos?
The camera uses a 5MP Sony Sensor, supporting video recording up to 2K/4K resolution and photo capture at up to 12MP.
Does the system include a distance measurement feature?
Yes, the stainless steel cable reel is equipped with a high-precision meter counter to track the length of the cable extended into the pipe.
Can I view the live inspection on my smartphone?
Yes, the system supports WiFi wireless transmission, allowing you to view the live feed on mobile devices via a dedicated app.
How long does the battery last on a single charge?
The system features exchangeable 6500mAh Li-batteries that provide between 6 to 8 hours of continuous working time.
What is the material of the camera housing?
The camera head is constructed from 316L stainless steel with a sapphire glass lens cover for maximum durability in harsh environments.
