Easyvistar Endoscopy Image System with Medical Light Source and Monitor
Easyvistar Endoscopy Image System with Medical Light Source and Monitor
Easyvistar Endoscopy Image System with Medical Light Source and Monitor
Easyvistar Endoscopy Image System with Medical Light Source and Monitor
Easyvistar Endoscopy Image System with Medical Light Source and Monitor
1 / 5
Easyvistar Endoscopy Image System with Medical Light Source and Monitor
Easyvistar Endoscopy Image System with Medical Light Source and Monitor
Easyvistar Endoscopy Image System with Medical Light Source and Monitor
Easyvistar Endoscopy Image System with Medical Light Source and Monitor
Easyvistar Endoscopy Image System with Medical Light Source and Monitor

Easyvistar Endoscopy Image System with Medical Light Source and Monitor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
E20B+KS-ELS100A+EM32-4KA
Certification
CE, ISO13485
Image Sensor
1/2'' CMOS
Resolution
1920X1080p IPX8 Waterproof
Horizontal Res.
1200TVL
Screen Size
7'' with Output Display
Storage
USB Disk or Hard Disk
Video Output
HD-SDI, HDMI, USB, DVI, CVBS
Production Cap.
50,000 Per Year
HS Code
8539391000

Product Overview

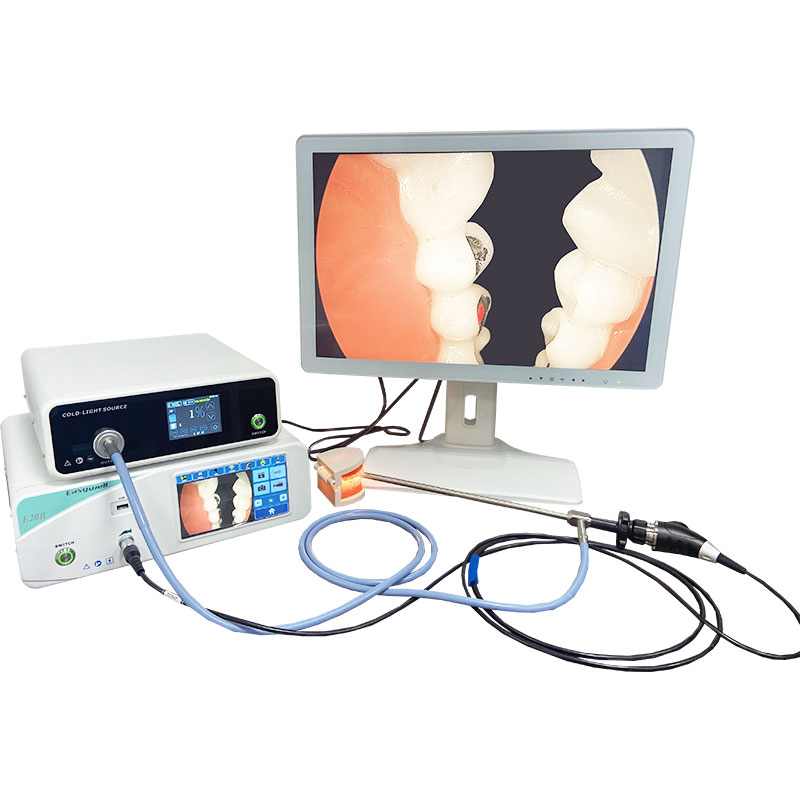

1080P Full HD Endoscope Camera System with Medical Light Source and Monitor. Designed for delicate imaging, noise reduction, and high-contrast visualization in complex surgical treatments.
Endoscopy Image System
Medical Light Source and Monitor

Technical Data

System Features (E20A / E20B)
Image Sensor1/2'' CMOS
Resolution1920x1080p
Touch Screen7 inch (E20B display function)
StorageUSB disk or Hard disk
Video OutputHD-SDI, HDMI, USB, DVI, CVBS
Net Weight5.2 kgs
Light Source Data (KS-ELS100A)
Light Source60W LED
Life Span30,000 Hours
Color Temp5700-7000K
Illumination> 2,000,000 Lux
Brightness Control0-100% adjustment
Medical Monitor Data (EM32-4KA)
Screen Size32 inches (16:9)
Resolution3840x2160 pixels (4K)
Color Depth1.07 Billion colors (10 Bit)
Luminance400cd/m2
InterfacesSDI IN/OUT, DP1.4, HDMI2.0, DC12V

System Components

LED Cold Light Source
LED Cold Light Source
Light Source Rear View
Endoscopic Main Machine

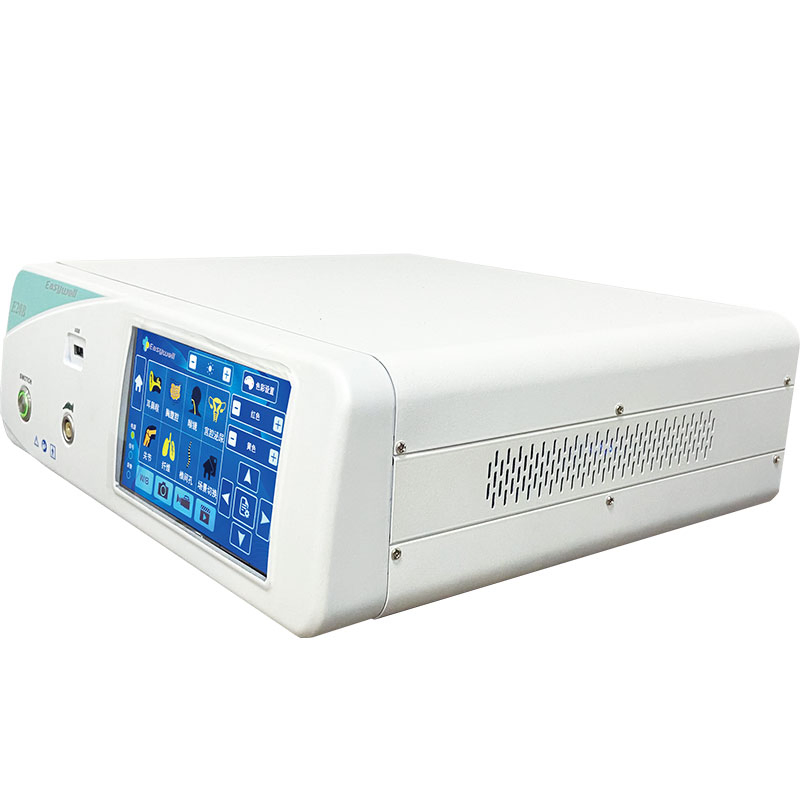

Image System Main Machine
Main Machine Interface
4K Medical Monitor
32" 4K Medical Monitor

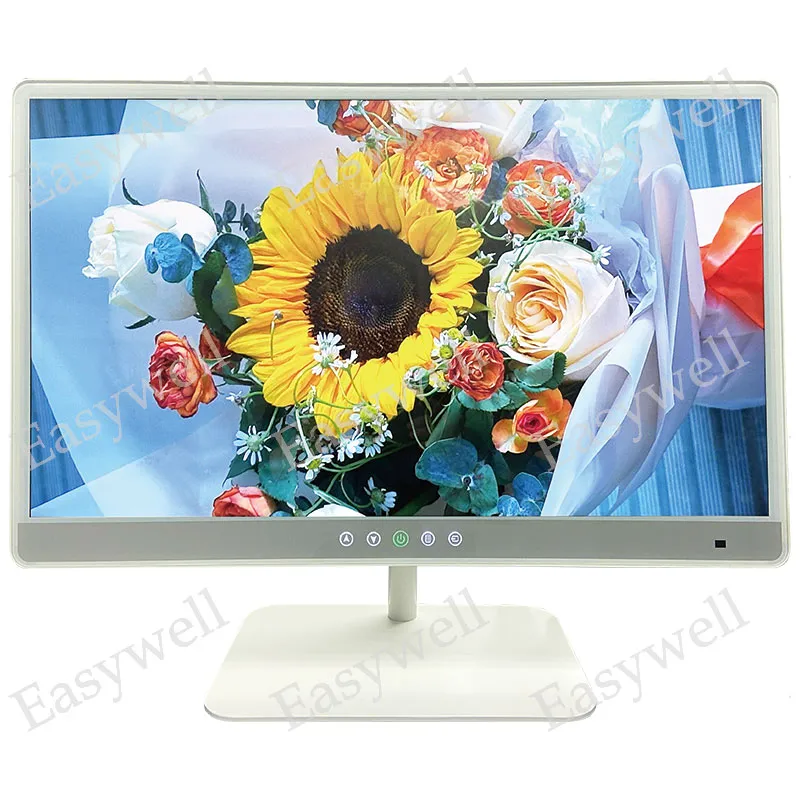

Monitor Detail

Quality Assurance

Certificate of Quality
Manufacturer Certificate

Frequently Asked Questions

What is the maximum resolution of this endoscopy system?
The system provides 1080P Full HD (1920x1080p) resolution for the camera and supports 4K (3840x2160) display on the 32-inch medical monitor.
What kind of light source is used in this system?
It utilizes a 60W LED cold light source with a lifespan of approximately 30,000 hours and an illumination intensity of over 2,000,000 Lux.
Does the system support video and image storage?
Yes, the system supports recording 1080p videos in MP4 format and capturing 8-megapixel JPG photographs directly to a USB disk or hard disk.
What certifications does the equipment hold?
The endoscopy image system is fully certified with CE and ISO13485 standards, ensuring medical-grade quality and safety.
What video output signals are available?
The system is highly compatible, offering multiple output options including HD-SDI, HDMI, USB, DVI, and CVBS.
Is the camera head waterproof?
Yes, the camera head features an IPX8 waterproof rating, making it suitable for standard medical disinfection and surgical environments.
