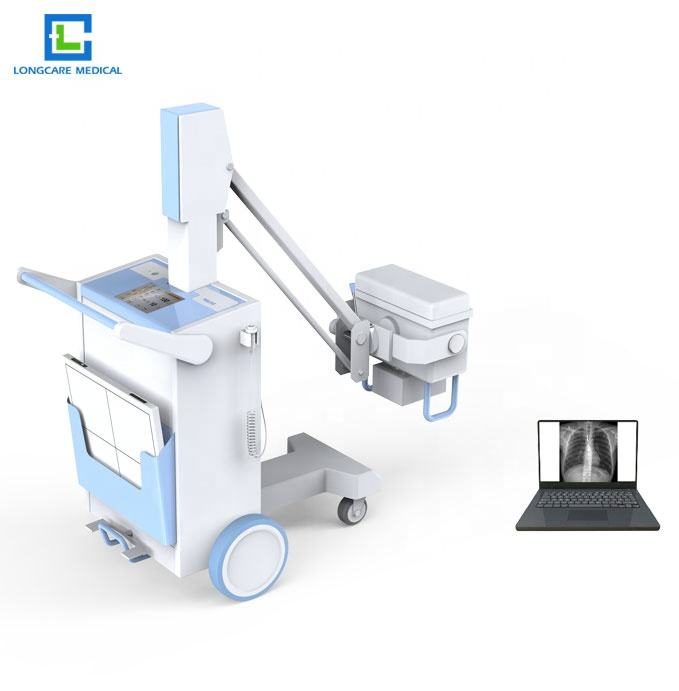

Yhx5100 Cost-Effective High Frequency Mobile Digital X-ray Equipment for Hospital Radiography Department
1 / 1
Yhx5100 Cost-Effective High Frequency Mobile Digital X-ray Equipment for Hospital Radiography Department

Yhx5100 Cost-Effective High Frequency Mobile Digital X-ray Equipment for Hospital Radiography Department

Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Certification: CE, ISO13485
Send Inquiry

Product Description

📋 Basic Information
Model NO.
YHX5100
Warranty
1 Year
Output Power
5kw
Tube Current
25mA - 100mA
Exposure Method
Wire/Wireless Control
Power Source
Electric
Quality Certification
CE
Detector Type
a-Si Wireless Flat Panel Detector
Tube Focus
1.5 mm
Inverter Frequency
50 kHz
Effective Area
14X17inch
Instrument Classification
Class II
📷 Product Description
Digital X-ray Equipment
⚙ Technical Specification
Parameter Item Details
Power Supply Voltage 220V±22V
Frequency 50Hz±1Hz
Inner-resistance <=1.0Ω
High Voltage Generator Output Power 5 kW
Inverter Frequency 50 kHz
Tube Voltage 40kV-120kV
Tube Current 25mA - 100mA
X-ray Tube Anode Capacity 35 kJ
Tube Focus 1.5 mm
Flat Panel Detector Detector Type A-Si wireless flat panel detector
Pixel Size 150μm
Effective Area 14x17inch
Spatial Resolution ≥ 3.3lp / mm
Digital Workstation Features:
• Support for touch screen operation with embedded soft keyboard.
• Independent patient registration or HIS integration.
• Automatic parameter selection based on inspection parts.
• Comprehensive image processing: rotation, mirroring, labeling.
• Multi-format image printing and DICOM support.
🏭 Profile & Facilities

We are a dynamic medical equipment provider dedicated to delivering cost-effective medical solutions worldwide. Our core principle focuses on quality guarantee and excellent service, providing a one-stop procurement experience for imaging equipment, operating room devices, ICU equipment, and medical consumables. All products are approved with ISO 13485 and CE certification.

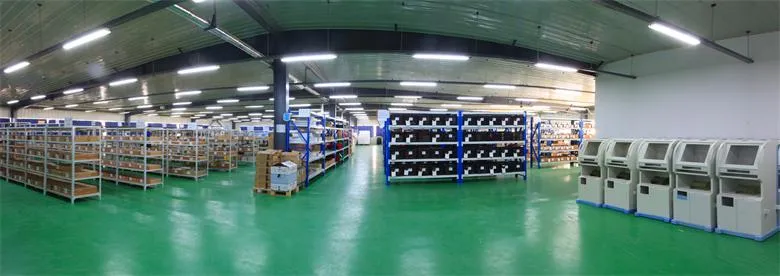

Facility 1

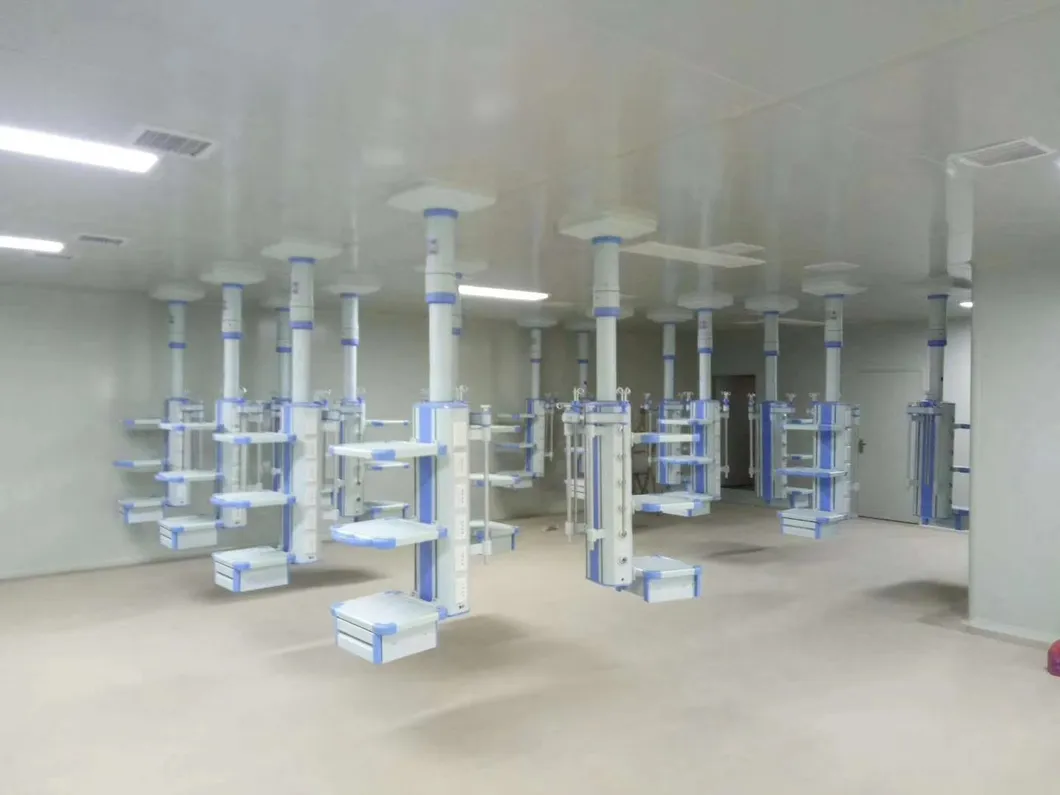

Facility 2

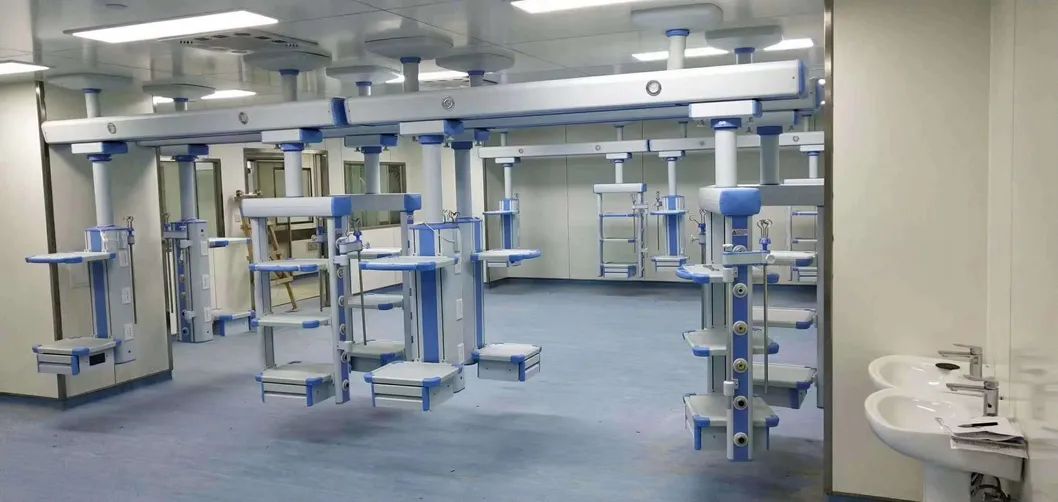

Facility 3

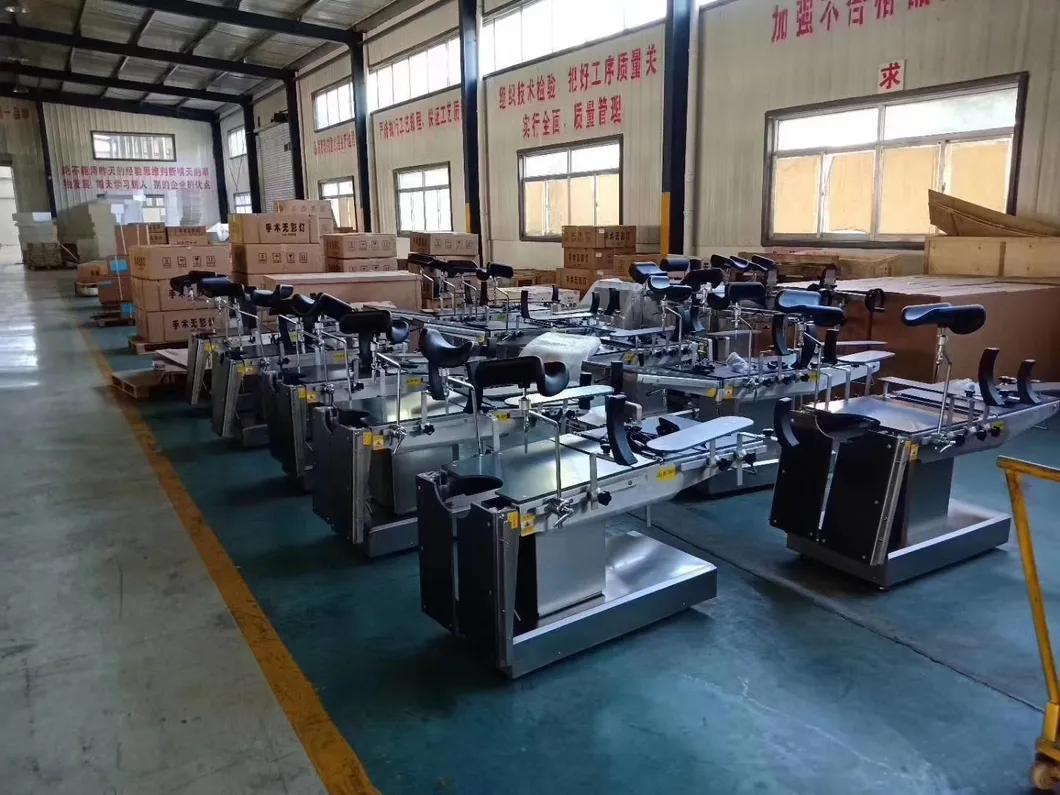

Facility 4

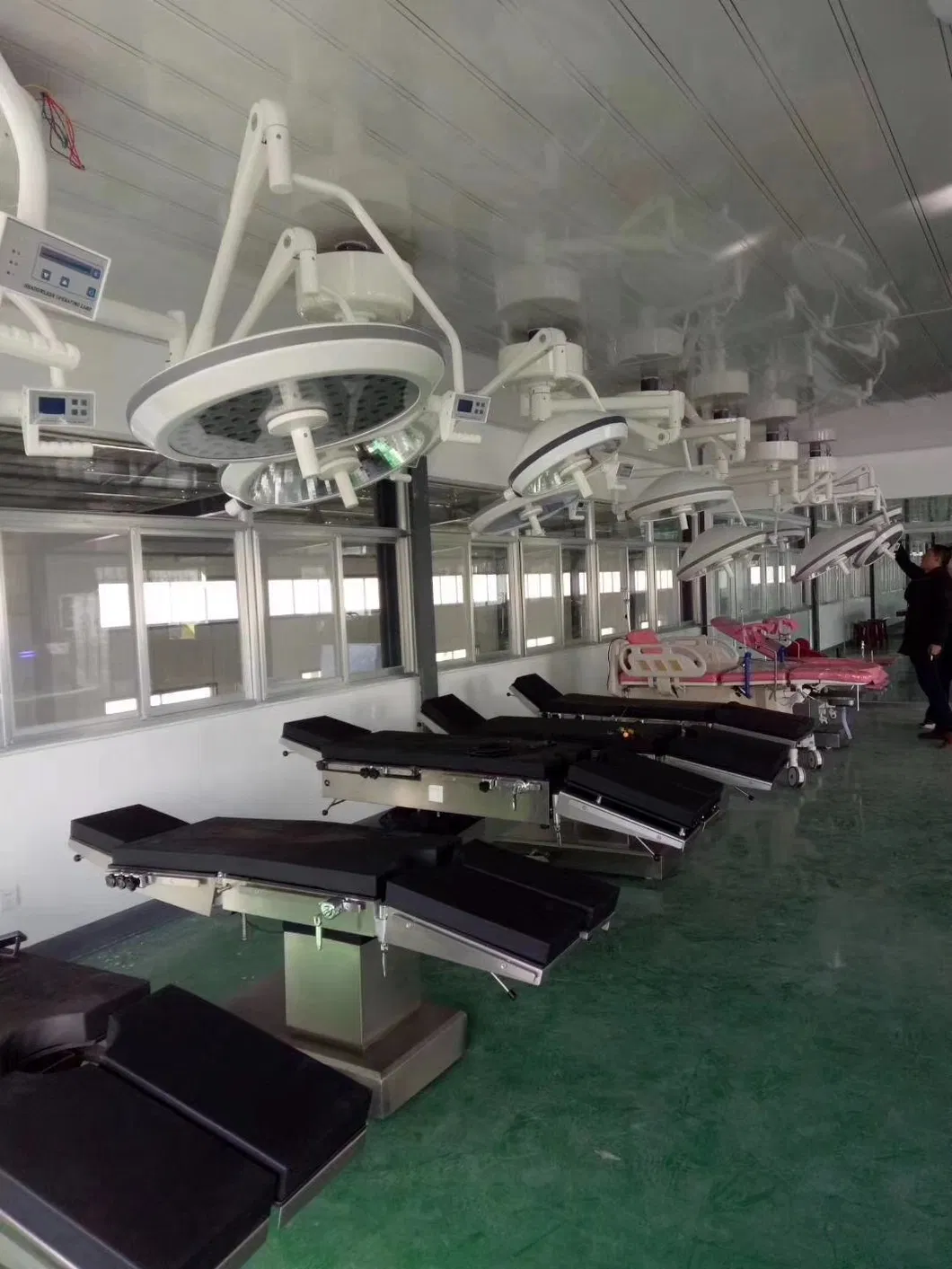

Facility 5

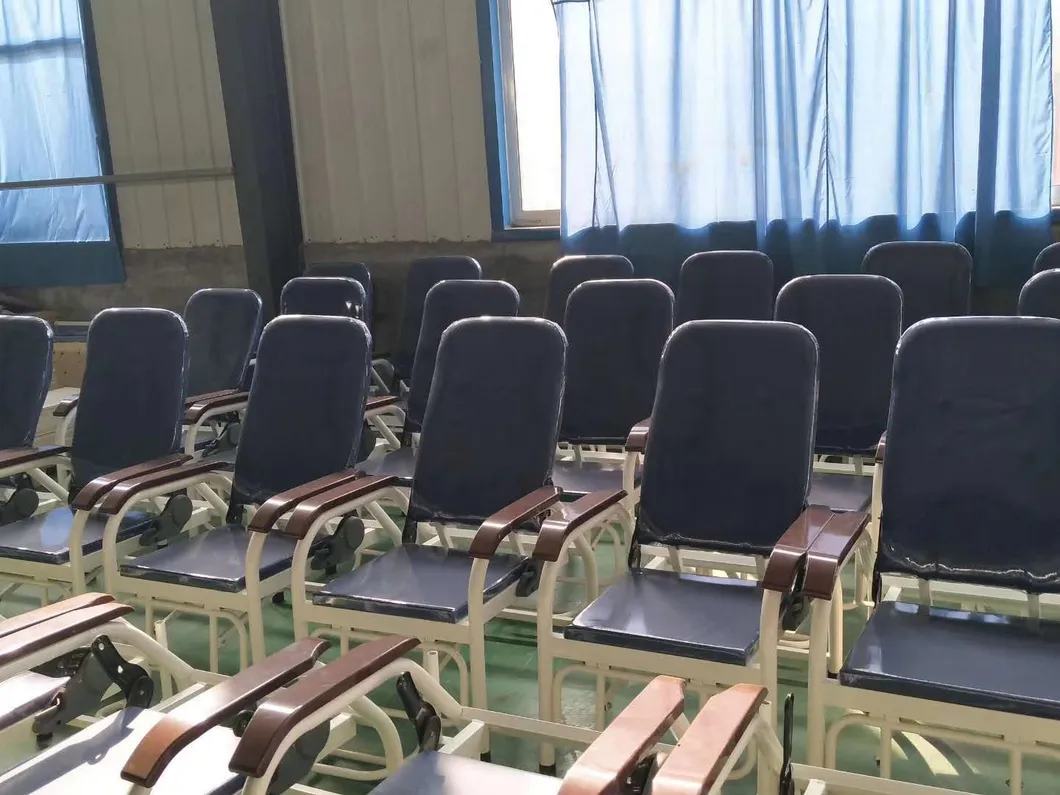

Facility 6
⭐ Our Advantages
Advantages
• Innovative Design: Rocker arm with single-arm support and self-balanced technology.
• Safety First: Expansion gate design with automatic locking for safe movement.
• High Quality: Compact high-frequency generator ensures superior image quality with low skin dose.
• Smart Control: KV and mAs numeral closed-loop control with real-time microprocessor monitoring.
📦 Package & Delivery

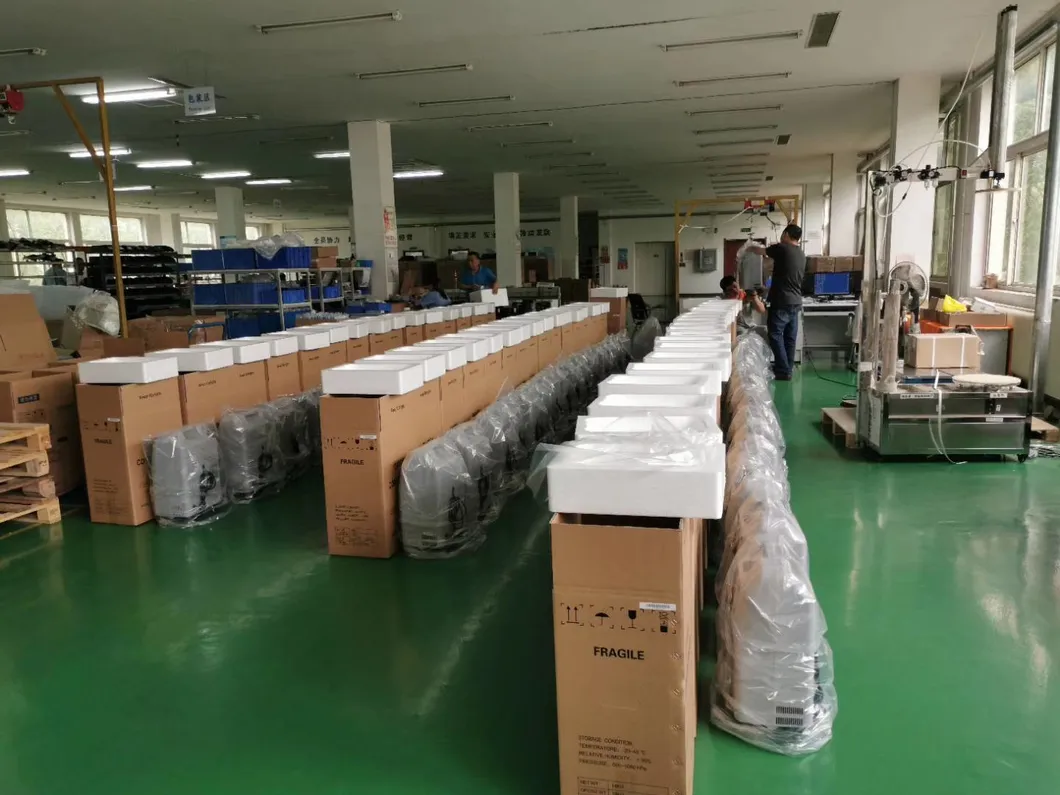

Package 1

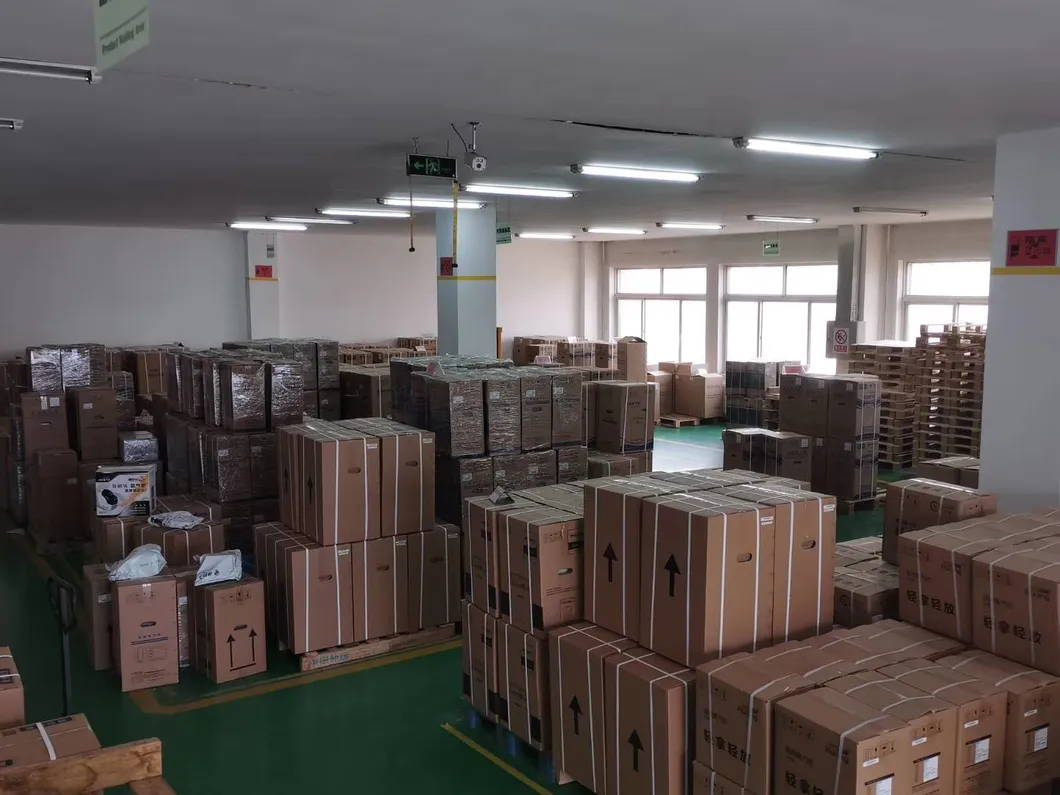

Package 2
Delivery
❓ Frequently Asked Questions
What is the main advantage of your medical equipment?
We provide professional-grade medical equipment backed by an expert team and advanced production lines, ensuring high reliability and performance.
Why should I choose the YHX5100 X-ray model?
The YHX5100 is highly cost-effective, featuring a high-frequency generator and wireless flat panel detector for superior imaging at a competitive price point.
What kind of after-sales support do you offer?
We provide comprehensive online technical support and fast delivery services to ensure your equipment remains operational.
Is the equipment certified for international use?
Yes, our products are CE certified and manufactured under ISO 13485 quality management systems.
Does the X-ray machine support wireless operation?
Yes, it supports both wire and wireless control for exposure, and the flat panel detector is also wireless for maximum flexibility.
What is the typical packaging for international shipping?
We use professional-grade wooden cases to ensure the equipment is fully protected during sea or air transport.
