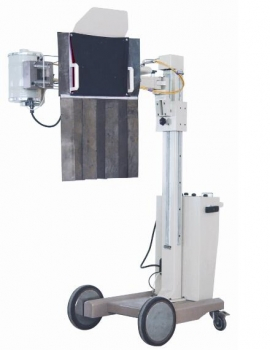

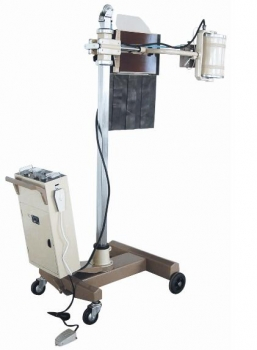

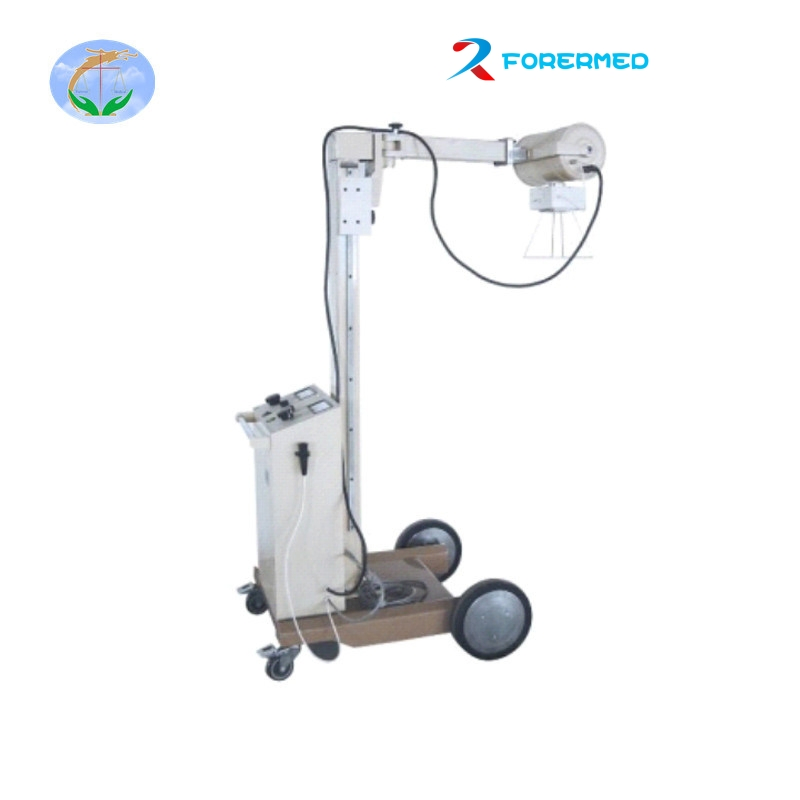

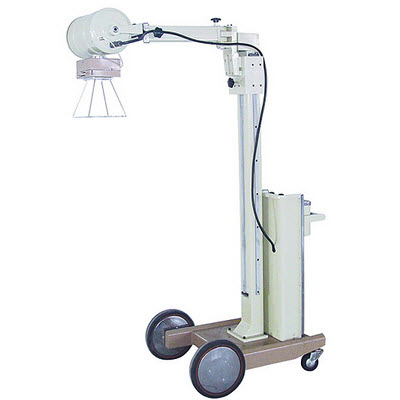

High Quality 100mA Movable Mobile Portable Medical X-ray Machine Imaging Diagnostic Equipment
High Quality 100mA Movable Mobile Portable Medical X-ray Machine Imaging Diagnostic Equipment
High Quality 100mA Movable Mobile Portable Medical X-ray Machine Imaging Diagnostic Equipment
High Quality 100mA Movable Mobile Portable Medical X-ray Machine Imaging Diagnostic Equipment
High Quality 100mA Movable Mobile Portable Medical X-ray Machine Imaging Diagnostic Equipment
1 / 5
High Quality 100mA Movable Mobile Portable Medical X-ray Machine Imaging Diagnostic Equipment
High Quality 100mA Movable Mobile Portable Medical X-ray Machine Imaging Diagnostic Equipment
High Quality 100mA Movable Mobile Portable Medical X-ray Machine Imaging Diagnostic Equipment
High Quality 100mA Movable Mobile Portable Medical X-ray Machine Imaging Diagnostic Equipment
High Quality 100mA Movable Mobile Portable Medical X-ray Machine Imaging Diagnostic Equipment

High Quality 100mA Movable Mobile Portable Medical X-ray Machine Imaging Diagnostic Equipment

Customization: Available
Customized: Customized
Certification: CE, ISO13485
Send Inquiry

Product Description

Basic Information

Model NO.
YJ-F100
Voltage
180~240V
Frequency
50Hz
Power
Not Lower Than 7kVA
Current
15mA / 30mA / 60mA / 100mA
X-ray Tube Range
50~90kvp
Timer Range
0.08~6.3s
Rotation
± 60°
Focus
1.8/4.3 mm
Origin
China

Product Description

Mobile X-ray Machine

High Quality 100mA Mobile X-Ray Diagnostic Equipment

  • Specifically designed for use in wards and emergency treatment rooms for radiography.
  • Equipped with a high-performance combined X-ray generator.
  • Features single focus and bridge rectification for stable imaging.
  • Precise, safe, reliable, and highly flexible for clinical environments.
  • Includes a remote control device with a control range of ≥5m for operator safety.

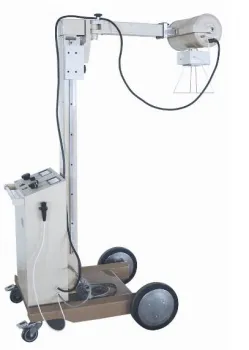

X-ray Machine Details

Technical Parameters

Component Specifications
X-ray Generator Stationary anode, single focus, bridge silicon rectification. Oil-immersed self-cooled unit.
Max Rated Capacity 15mA / 90kvp 30mA / 90kvp 60mA / 90kvp 100mA / 80kvp
Exposure Time 6.3s 6.3s 2.0s 3.2s
Power Supply 180~240V, 50Hz, Power ≥ 7kVA, Resistance ≤ 0.4Ω
Focus to Ground 700 ~ 1780mm
X-ray Tube Focus Model XD4 2.9/100, Focus 1.8/4.3mm, Transverse rotation ± 60°
Dimensions & Weight 1230×900×2050 mm | Net Weight: 159kg / Gross Weight: 256kg

Gallery & Documentation

Profile
Certifications
Exhibition
Shipping
FAQ Overview

Frequently Asked Questions

1. What are the primary applications for the YJ-F100 mobile X-ray machine?
The YJ-F100 is primarily designed for radiography in hospital wards and emergency treatment rooms where mobility is essential for patient diagnosis.
2. Does the machine support remote operation?
Yes, it comes with a remote control device that allows operators to trigger exposures from a safe distance of at least 5 meters.
3. What is the adjustable range for the X-ray tube height?
The distance between the focus and the ground can be adjusted from 700mm to 1780mm, providing flexibility for various imaging positions.
4. What are the power requirements for installation?
The machine requires a voltage of 180~240V at 50Hz, with a power capacity not lower than 7kVA and a circuit resistance not larger than 0.4Ω.
5. How mobile is the unit?
The unit is designed as a mobile diagnostic equipment with a net weight of 159kg, featuring a stable base and wheels for easy transport between clinical rooms.
6. What type of X-ray tube is used in this model?
It uses the XD4 2.9/100 fixed anode X-ray tube with a dual focus of 1.8mm and 4.3mm, allowing for transverse rotation of ± 60°.
