Medical Equipment Mobile Digital X-ray Machines

1 / 5

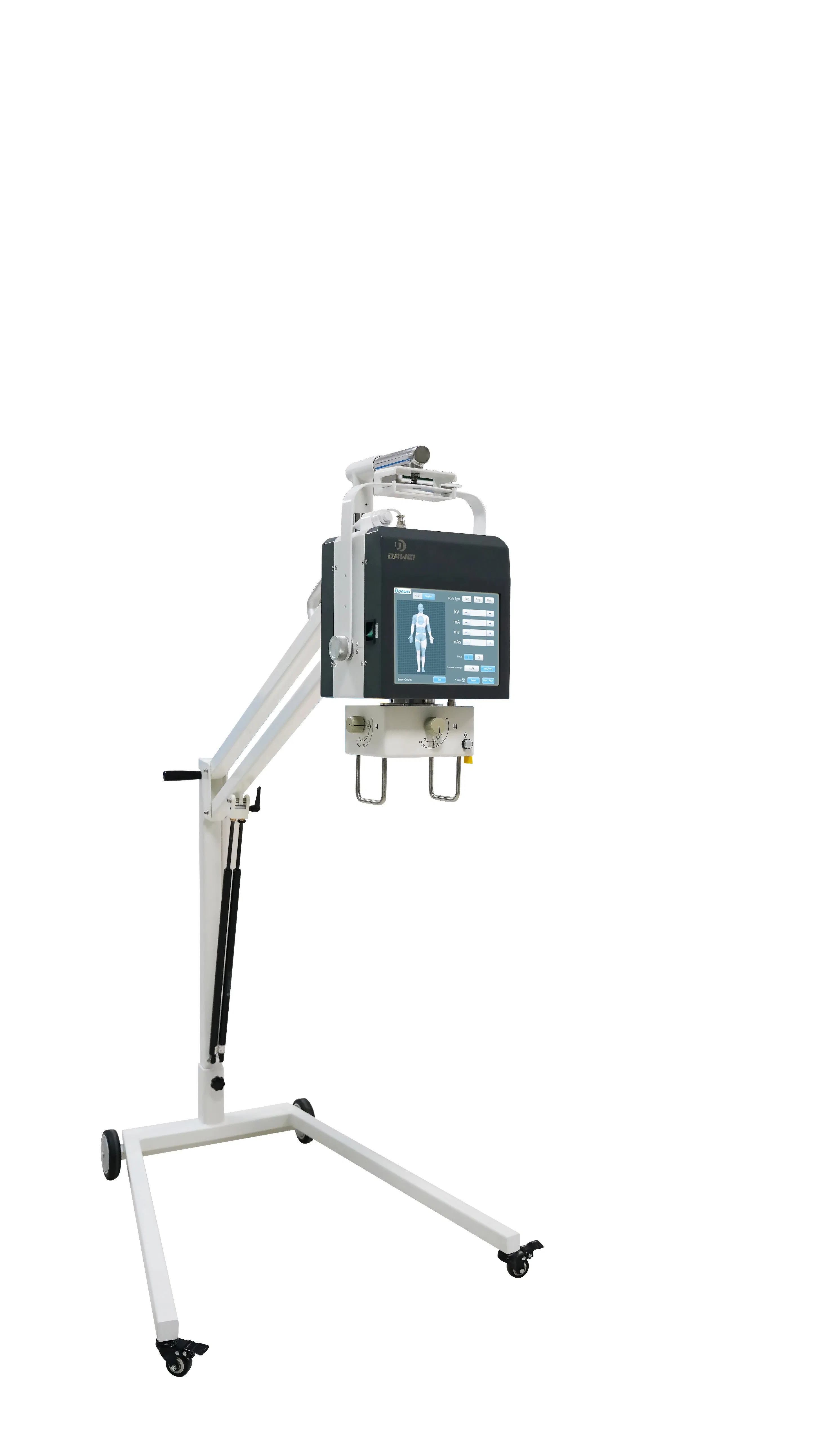

Medical Equipment Mobile Digital X-ray Machines

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

RD-500A

Certification

CE, FDA, EEC, ISO13485

Detector Size

17" * 17"

Pixel Matrix

3072 * 3072

Output Power

5.3kW

Exposure Kv

40kv - 125kv

Tube Current

10mA ~ 100mA

Power Supply

100-240V, 50Hz/60Hz

Specification

140 * 120 * 50cm

Origin

China

Product Description

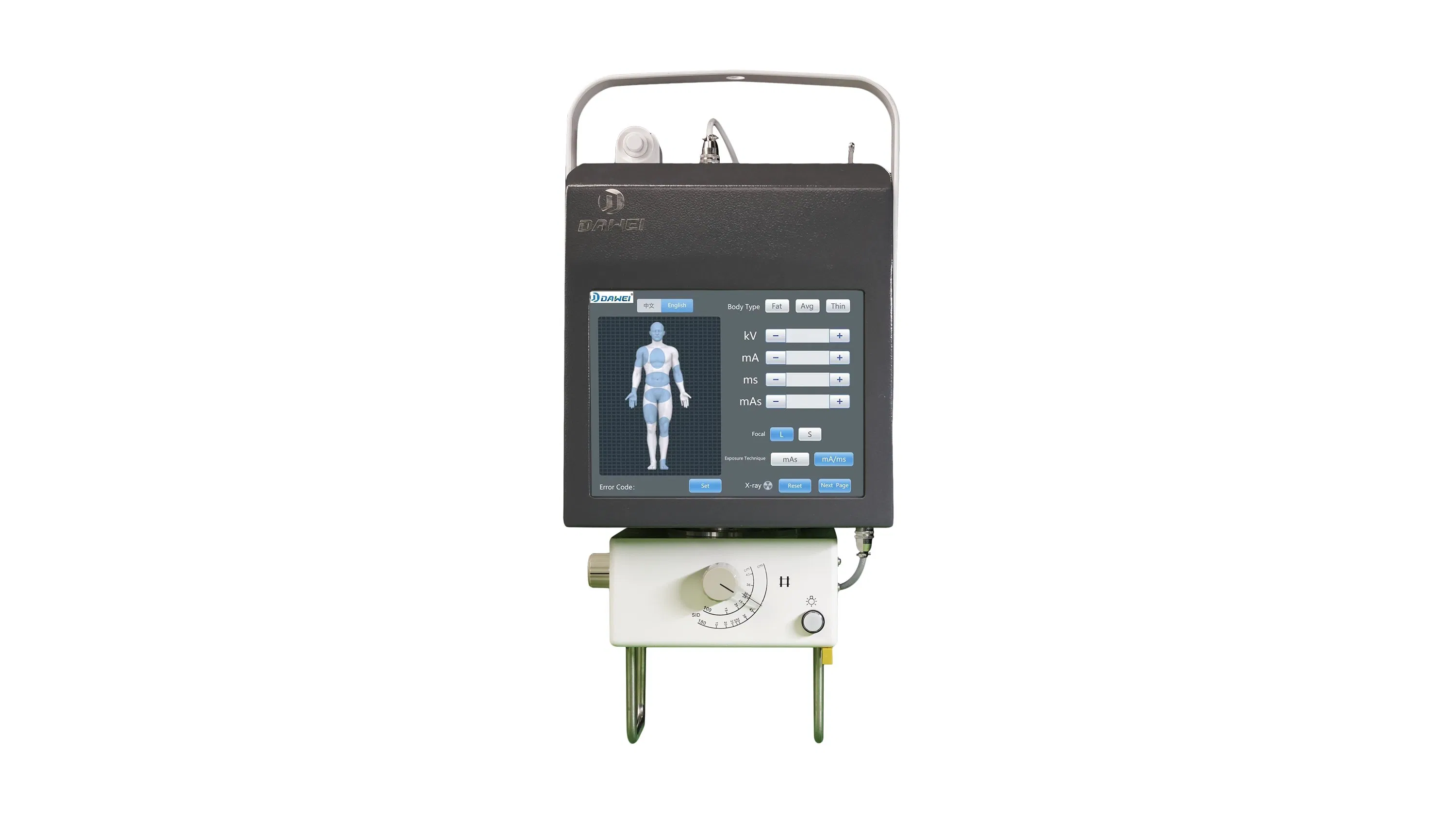

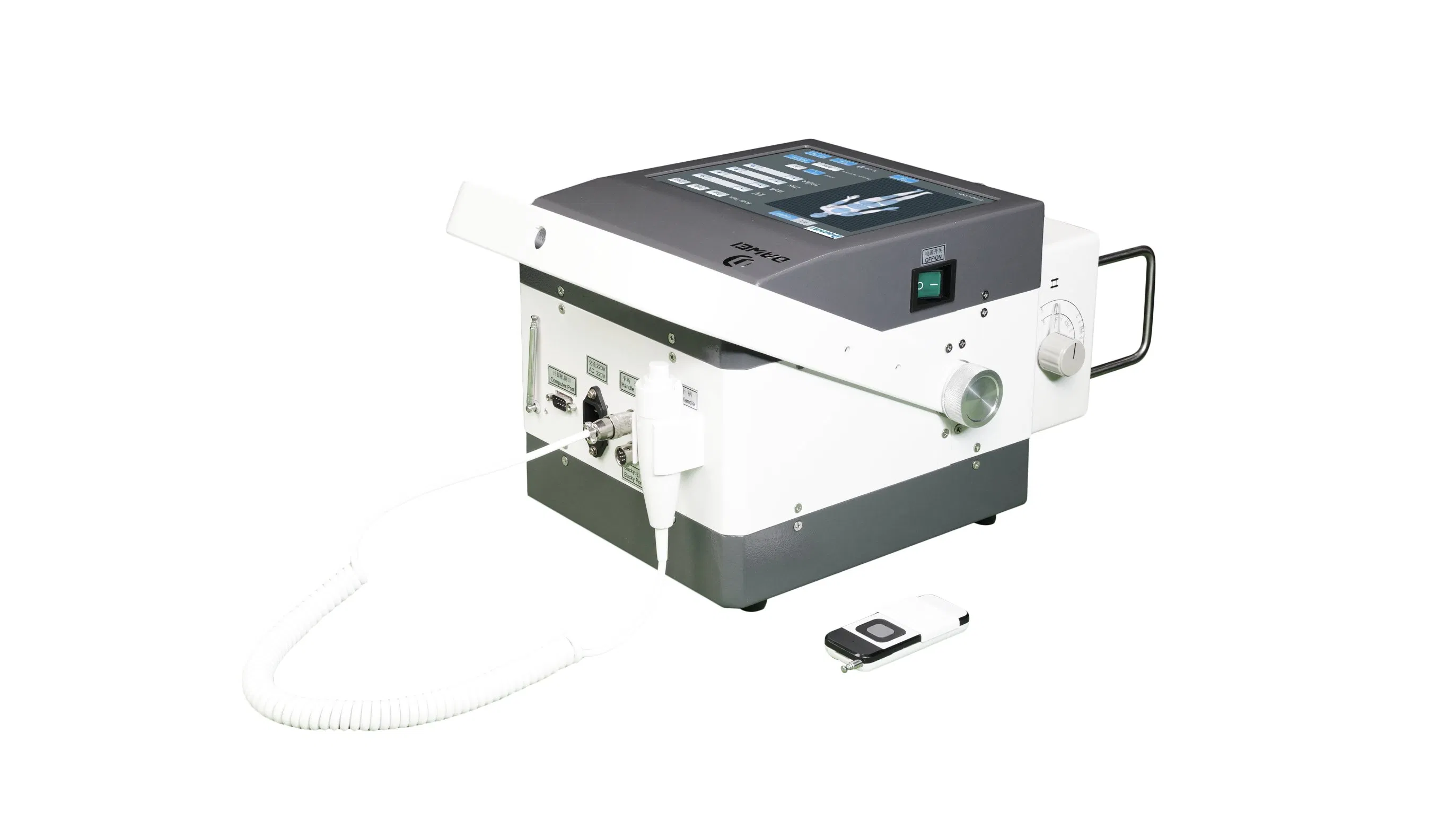

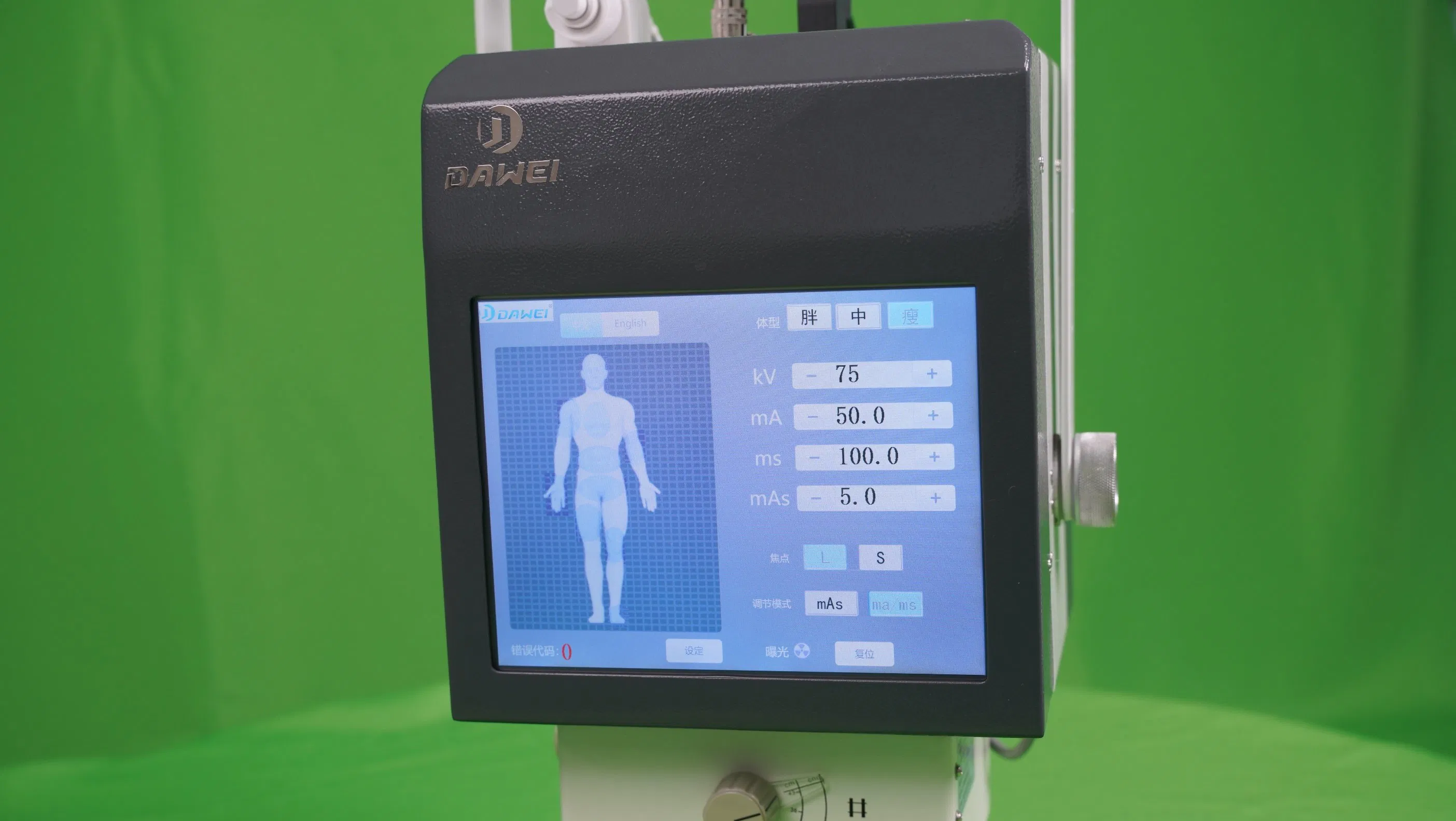

Medical High Frequency High Voltage Digital Radiography X-ray Machine

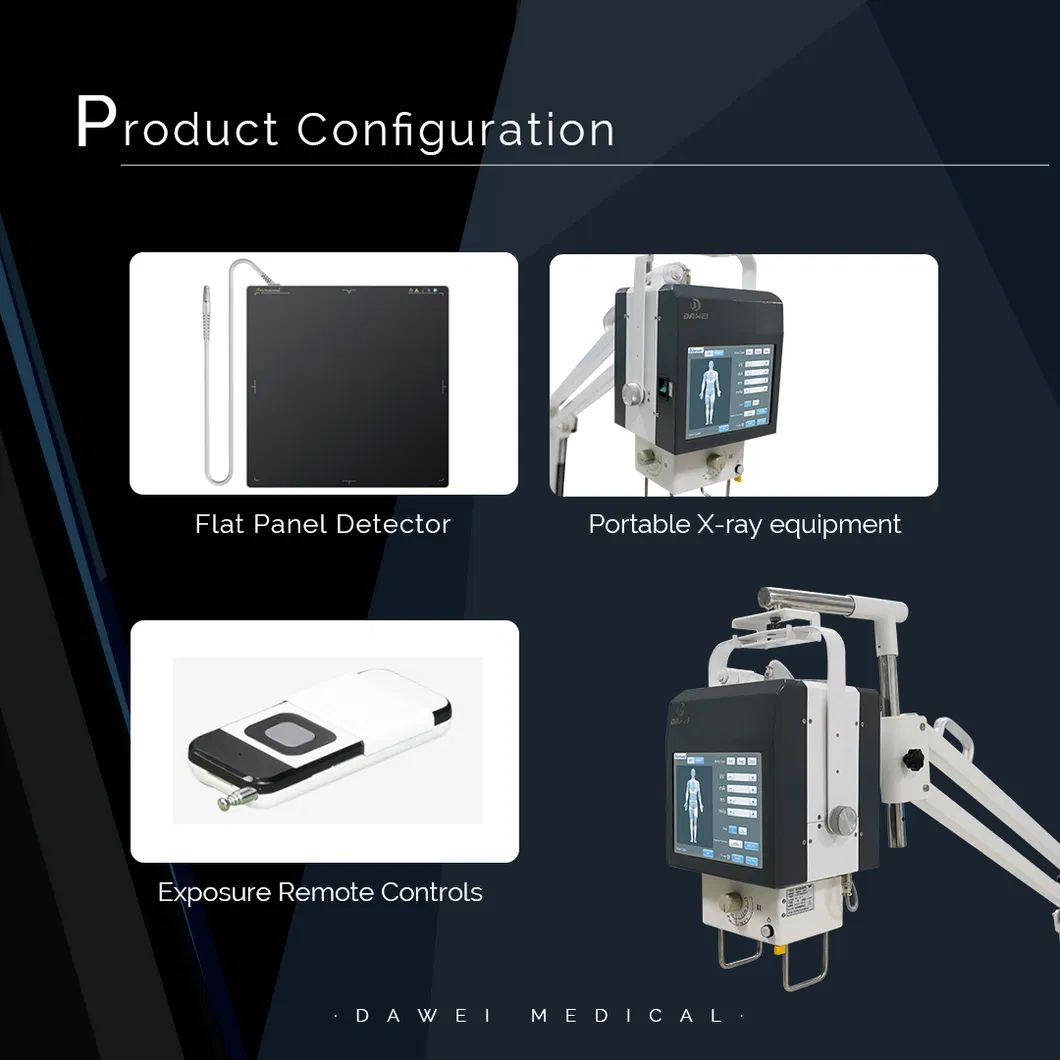

Product Name	Model	Item	Specification Details	Standard/Option
Portable Digital X-ray Radiography System	RD-500A	X-ray Unit	1. Output Power: 5.3kW 2. Input voltage: 220VAC±10% 50Hz 3. Tube Voltage: 40kV-125kV 4. Tube Current: 10mA-100mA	Standard
		Flat Panel Detector	1. Tech: Amorphous Silicon 2. Scintillator: Cesium iodide 3. Pixel Matrix: 30723072 4. Pixel Pitch: 139um 5. Image Size: 43cm43cm (17*17in) 6. Acquisition Time: 5s	Standard
		Mobile Rack	Heavy-duty support structure	Standard
		Workstation	Laptop: Intel i5, 16GB Memory, 512GB Hard disk, 14.0 inches Screen	Standard
		Mobile Chest Rack	Height: 1500mm, Width: 455mm	Option

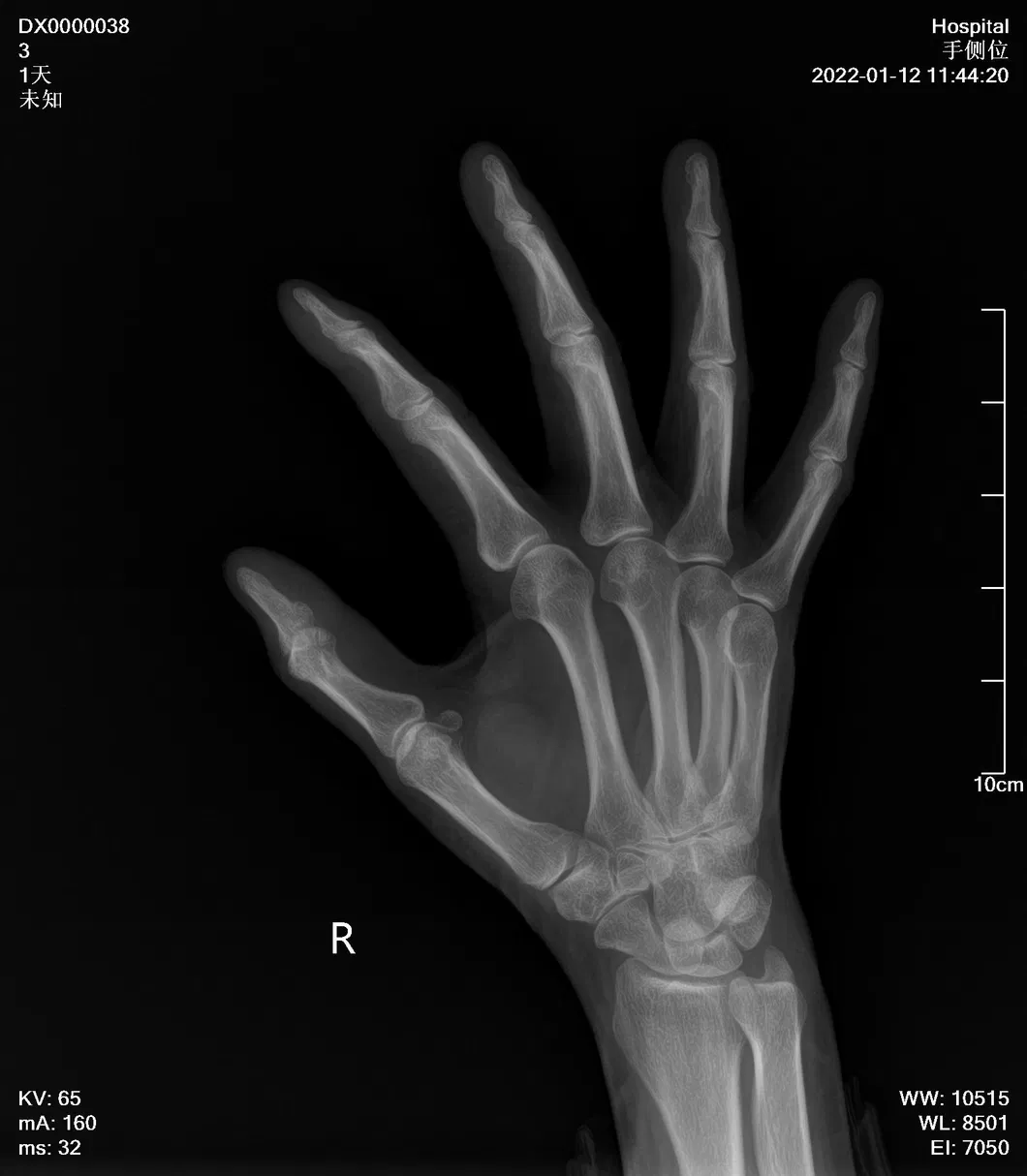

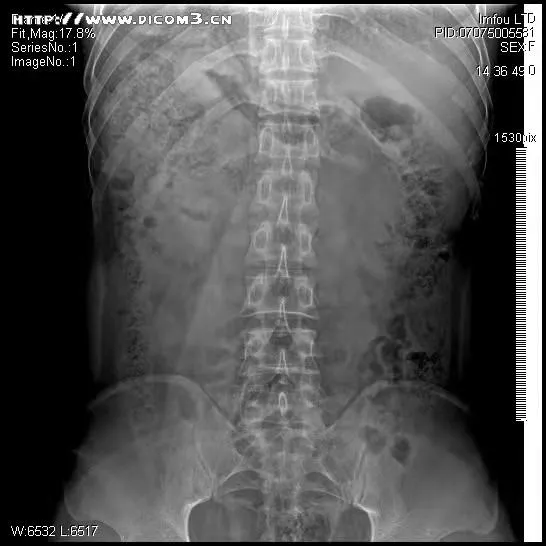

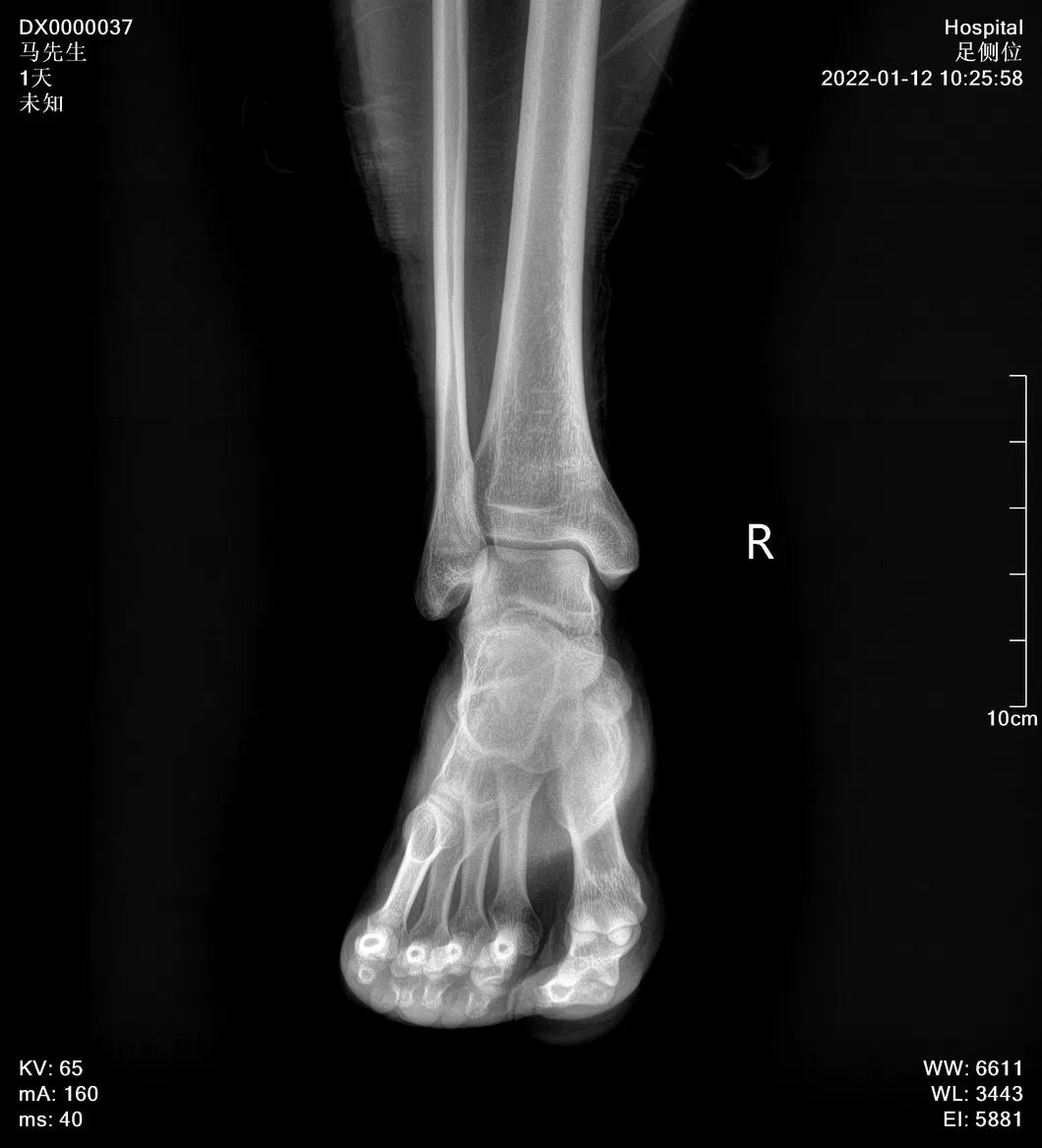

Clinical Images

Product Overview

Frequently Asked Questions

What is the main application of the RD-500A?

The RD-500A is a medical high-frequency high-voltage digital radiography X-ray machine designed for portable and stationary clinical imaging.

What are the specifications of the Flat Panel Detector?

The system features a 17"x17" Amorphous Silicon detector with a Cesium Iodide scintillator, providing a 3072*3072 pixel matrix for high-resolution imaging.

What is the output power and voltage range?

The device offers an output power of 5.3kW with a tube voltage range adjustable from 40kV to 125kV and a current range of 10mA to 100mA.

How fast is the image acquisition?

The image acquisition time for the RD-500A is approximately 5 seconds, allowing for rapid clinical workflows.

What is included in the standard workstation?

The standard workstation includes a laptop computer equipped with an Intel i5 CPU, 16GB of RAM, and a 512GB hard disk.

Is the mobile chest rack included as standard?

No, the mobile chest rack (1500mm height) is an optional accessory that can be added to the system according to clinical needs.
