Basic Information
Model NO.
XM100, XM101A, XM101C, XM101D
Tube Voltage
40~100kv (Interval 1kv)
Power Supply
220V±10% 50Hz
Production Capacity
500PCS/Month
Most Popular High Frequency Mobile X-ray Equipment
Common Features
- High frequency inverter capable of emitting high-quality X-rays at minimal doses for excellent image definition.
- kV analog and mAs digital closed-loop control with micro-processing real-time technology.
- High-quality knockdown X-ray generator minimizes excess radiation for safety.
- 50 modifiable exposure presets for user convenience.
- Two-button kV & mAs adjustment with clear LCD display.
- Symmetrical beam applicator and collimator lamp for precise field location.
- 20 meters microwave exposure remote control capability.
Exclusive Features (XM101C & XM101D)
- Patented self-balancing single arm support for effortless positioning.
- Auto-trim technology to automatically calibrate center of gravity based on rotation angle.
- XM101D Only: Built-in rechargeable battery supporting 200mA shots; equipped with Rotary Pillar.
Technical Specifications
| Model |
XM100 |
XM101A |
XM101C |
XM101D |
| Power Output |
2.5kW |
3.5kW |
5kW |
| Frequency |
50kHz |
| Tube Voltage |
40~100kV (interval 1kV) |
| mAs Range |
1.0~160mAs |
1.0~125mAs |
1.0~180mAs |
| Operation |
Wire & Wireless control |
Product Showcase

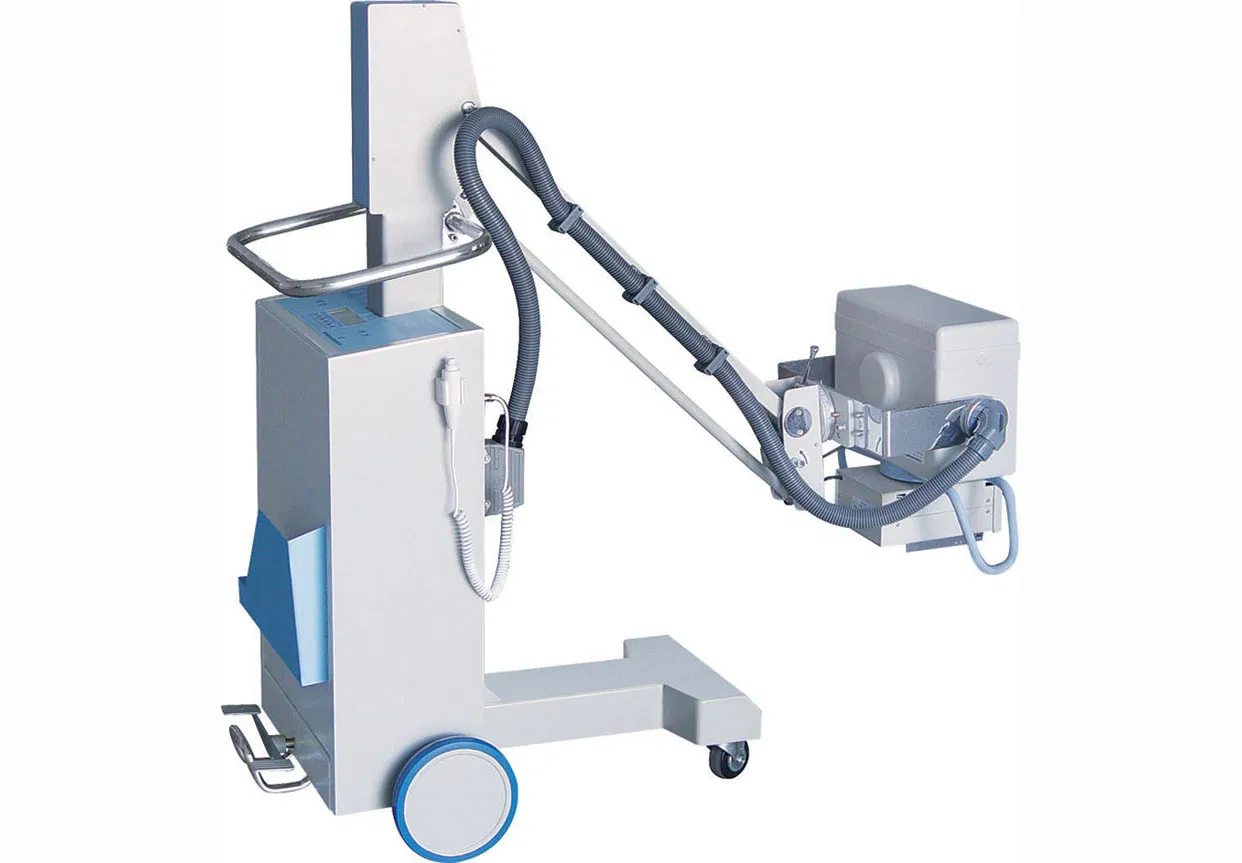

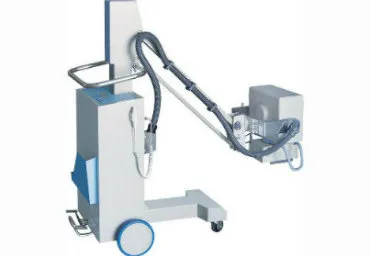

XM100 / XM101A / XM101C Series

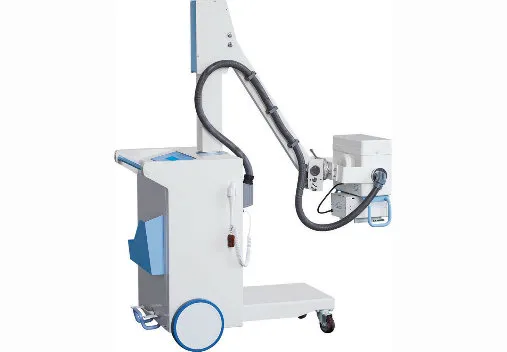

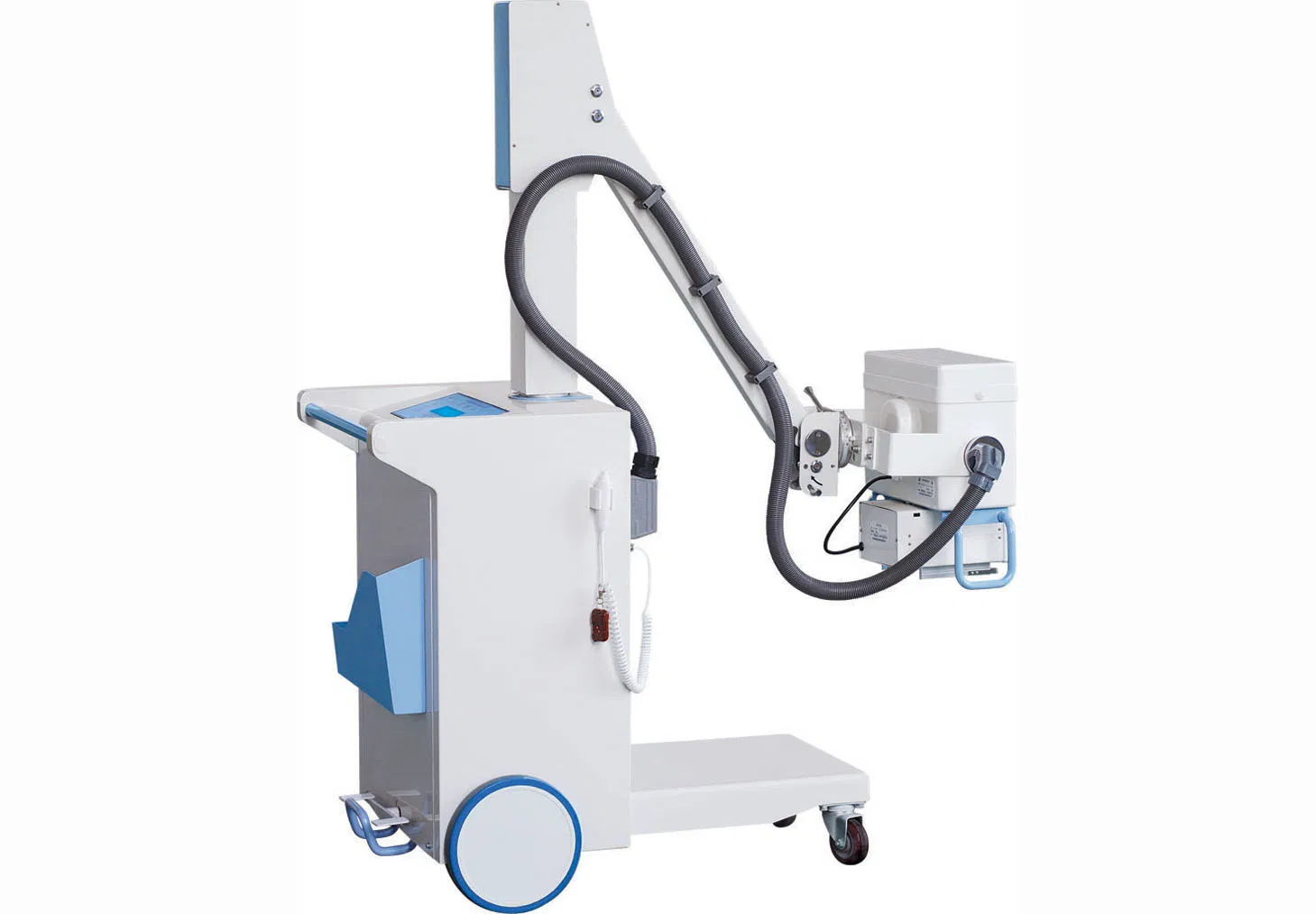

XM101D (Built-in Battery Model)
| MOQ |
1 Unit |
Warranty |
1 Year |
| Package |
Standard Export Carton |
Certifications |
ISO, RoHS |
Frequently Asked Questions
What is the Minimum Order Quantity (MOQ)?
The Minimum Order Quantity is generally 1 unit. For specific accessories or consumables, the MOQ may vary.
Which payment methods are accepted?
We accept various forms of payment including bank transfer (T/T), L/C, and Western Union.
What certifications do the products carry?
Most products are ISO and RoHS certified, ensuring international quality and safety standards.
Is it possible to customize the product with a company logo?
Yes, logo customization is available for most models, subject to specific technical exceptions.
What after-sales and technical support is provided?
We offer comprehensive technical support, customer service, and troubleshooting assistance for our equipment.
How long is the standard warranty period?
We typically offer a 12-month warranty for all main units. Some accessories may have different warranty terms.
