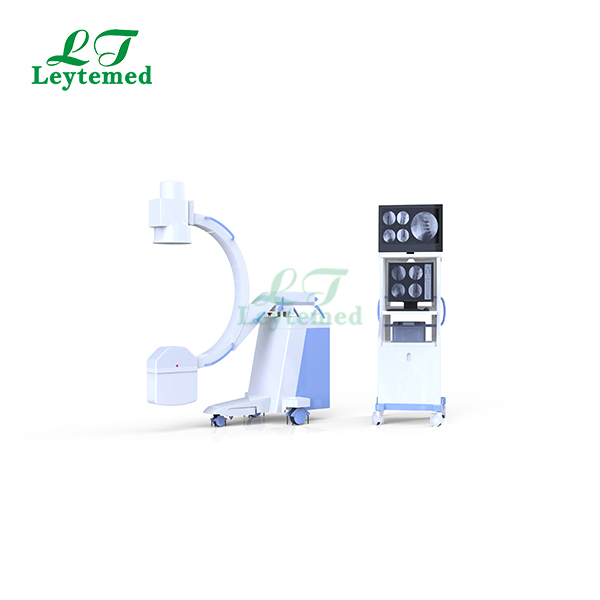

The LTX10 is an advanced High Frequency Mobile C-arm System designed for precision medical imaging in hospital environments. It features a compact design with exceptional maneuverability.
Packing Detail: 2440*1100*1420mm | 3.9 CBM | NW: 353KG | GW: 538KG
| Category | Details |
|---|---|
| Fluoroscopic Capacity |
Max rated: 4mA/120kV Automatic: 40kV~120kV Adjust Automatically Manual: 0.3mA~4mA Pulse: 4.1mA~8mA |
| Photography Capacity |
Max Power: 5 KW Voltage Range: 40kV~120kV mAs Range: 1~180 mAs (varies by kV) |
| X-ray Tube |
Special High Frequency Type; Fixed anode Dual-focus: large 1.5, small 0.3mm*0.3mm Inverter Frequency: 40KHz; Thermal capacity: 35KJ |
| Video System |
Image Intensifier: 9" (Toshiba technology) Camera: Ultra low-light CCD (Imported) Monitor: 1000 horizontal / 800 vertical lines, 12.5MHz bandwidth |
| Mechanical Structure |
Directive wheel: ±90° revolution Pillar Range: ≥400mm C-arm Movement: 200mm (Forward/Backward) Rotation: Horizontal ±180°, Vertical ±15°, Orbit 120° |
Usage:
Main Features:
Professional Services:
Detailed inquiries replied within 24 hours. We provide experienced engineering support and OEM services, including custom logo printing and packaging customization.
Shipping Methods:
• Express (UPS/DHL/FEDEX): Door-to-door, 7-15 days.
• Air Cargo: Airport delivery, 7-15 days.
• Sea Freight: Cost-effective for large orders, approx. 1 month.
