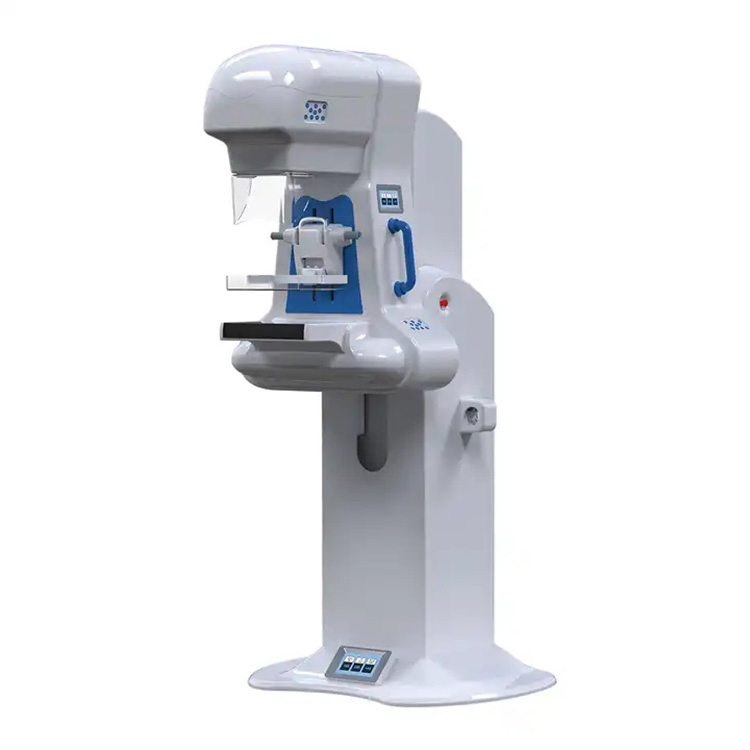

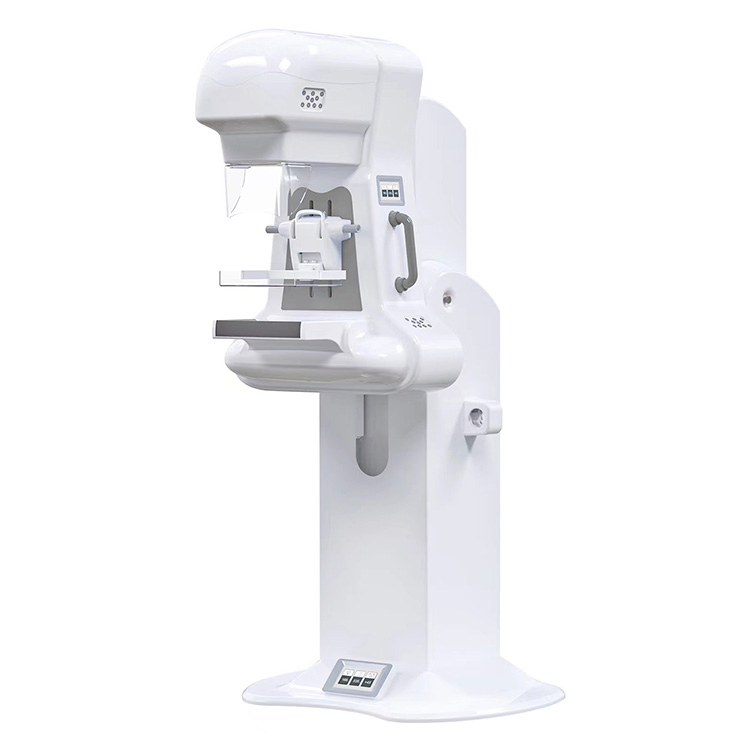

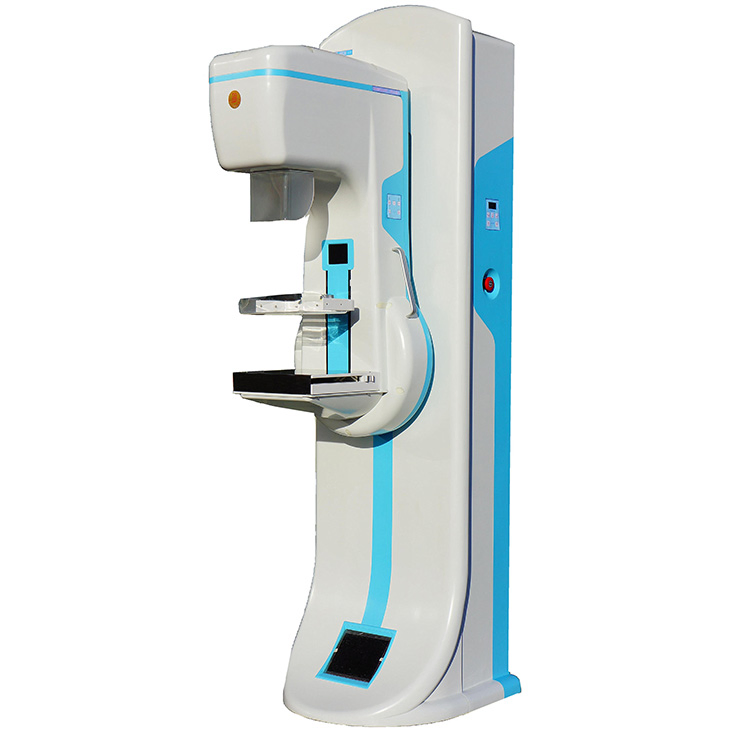

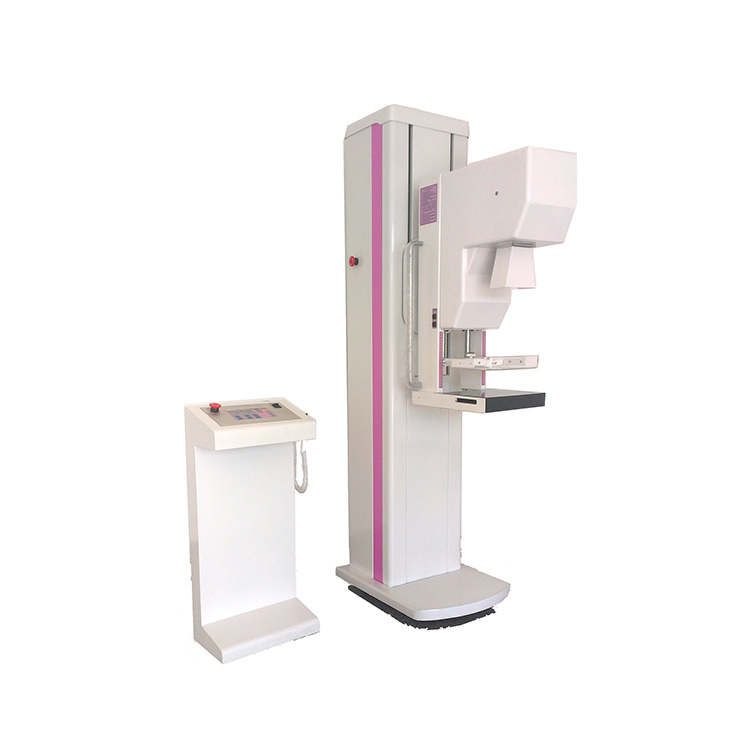

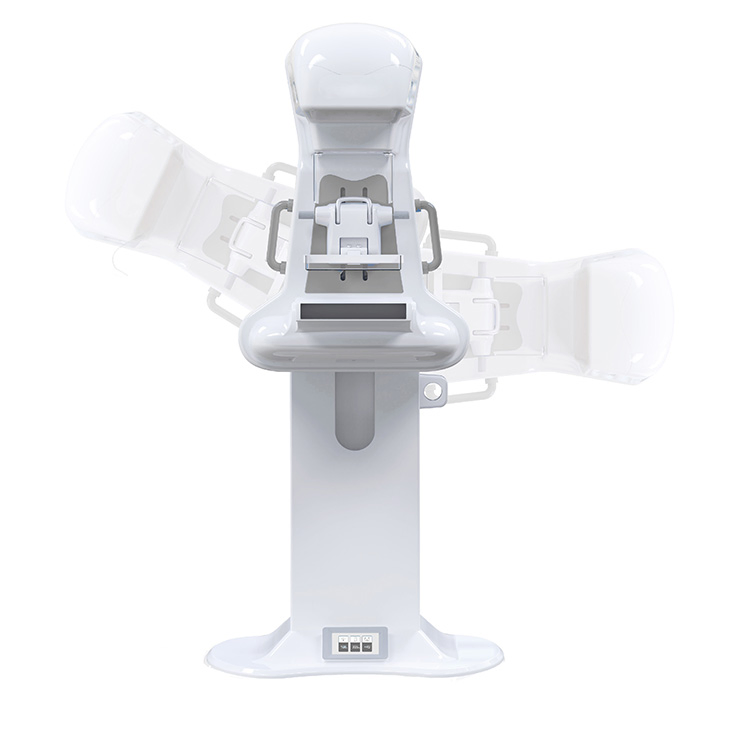

Xmm400 3D High Frequency Diagnostic Machine Price Medical Breast Cancer Detection Radiography X-ray Imaging System Digital Mammography System
Xmm400 3D High Frequency Diagnostic Machine Price Medical Breast Cancer Detection Radiography X-ray Imaging System Digital Mammography System
Xmm400 3D High Frequency Diagnostic Machine Price Medical Breast Cancer Detection Radiography X-ray Imaging System Digital Mammography System
Xmm400 3D High Frequency Diagnostic Machine Price Medical Breast Cancer Detection Radiography X-ray Imaging System Digital Mammography System
Xmm400 3D High Frequency Diagnostic Machine Price Medical Breast Cancer Detection Radiography X-ray Imaging System Digital Mammography System
1 / 5
Xmm400 3D High Frequency Diagnostic Machine Price Medical Breast Cancer Detection Radiography X-ray Imaging System Digital Mammography System
Xmm400 3D High Frequency Diagnostic Machine Price Medical Breast Cancer Detection Radiography X-ray Imaging System Digital Mammography System
Xmm400 3D High Frequency Diagnostic Machine Price Medical Breast Cancer Detection Radiography X-ray Imaging System Digital Mammography System
Xmm400 3D High Frequency Diagnostic Machine Price Medical Breast Cancer Detection Radiography X-ray Imaging System Digital Mammography System
Xmm400 3D High Frequency Diagnostic Machine Price Medical Breast Cancer Detection Radiography X-ray Imaging System Digital Mammography System

Xmm400 3D High Frequency Diagnostic Machine Price Medical Breast Cancer Detection Radiography X-ray Imaging System Digital Mammography System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
XMM400
Certification
CE, ISO13485
Group
All Age
Inverter Frequency
28 kHz
Flat Panel Detector Size
24×30cm
Power Rating
5 Kw
Effective Pixels
12 Million
Pixel Size
77um
Spatial Resolution
6.0 Lp/mm
Imaging Time
≤ 5s
Tube Heat Capacity
500khu
Max Peak Voltage
49kv
Origin
China
HS Code
9022199090
Product Description
Digital Mammography System

XMM400 3D High Frequency Diagnostic Machine - Medical Breast Cancer Detection Radiography X-ray Imaging System

Key Features:
  • Advanced professional algorithms provide superior breast image quality.
  • Specifically designed and optimized for women with dense breasts.
  • Tube with tungsten molybdenum alloy target for better penetrating performance.
  • Reduces 30% of X-ray dose for patients with the same image quality.
  • Amorphous silicon detector with high sensitivity (24cm×30cm).
  • Intelligent multi-level breast compression for enhanced patient comfort.
  • High-end imported IAE tube (500KHU) and Spellman High-voltage (5kW).
  • Wheel chair compliant with smooth height adjustment (650mm to 1300mm).
  • DICOM 3.0 compatible for seamless connection with hospital PACS.

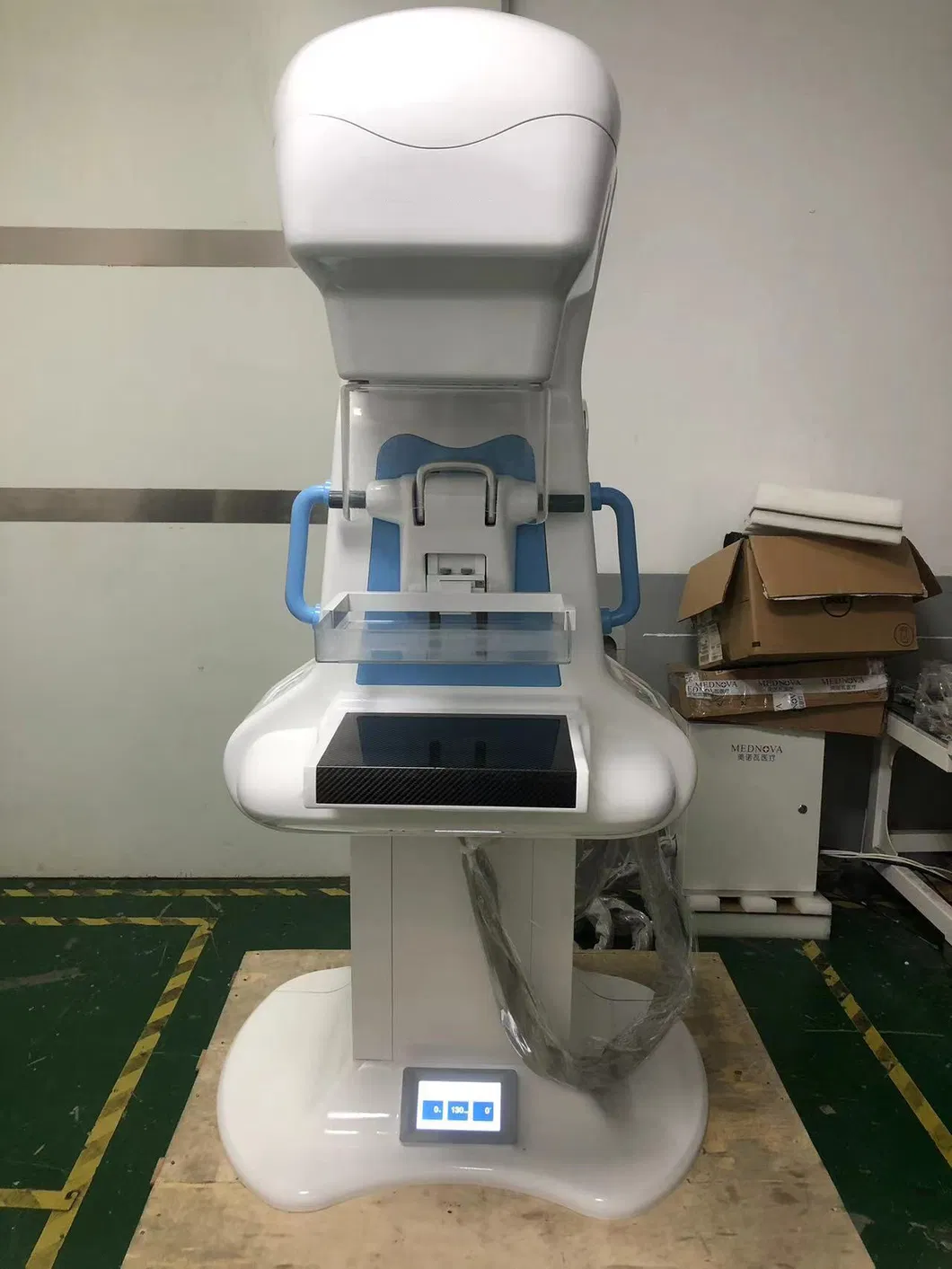

XMM400 Details

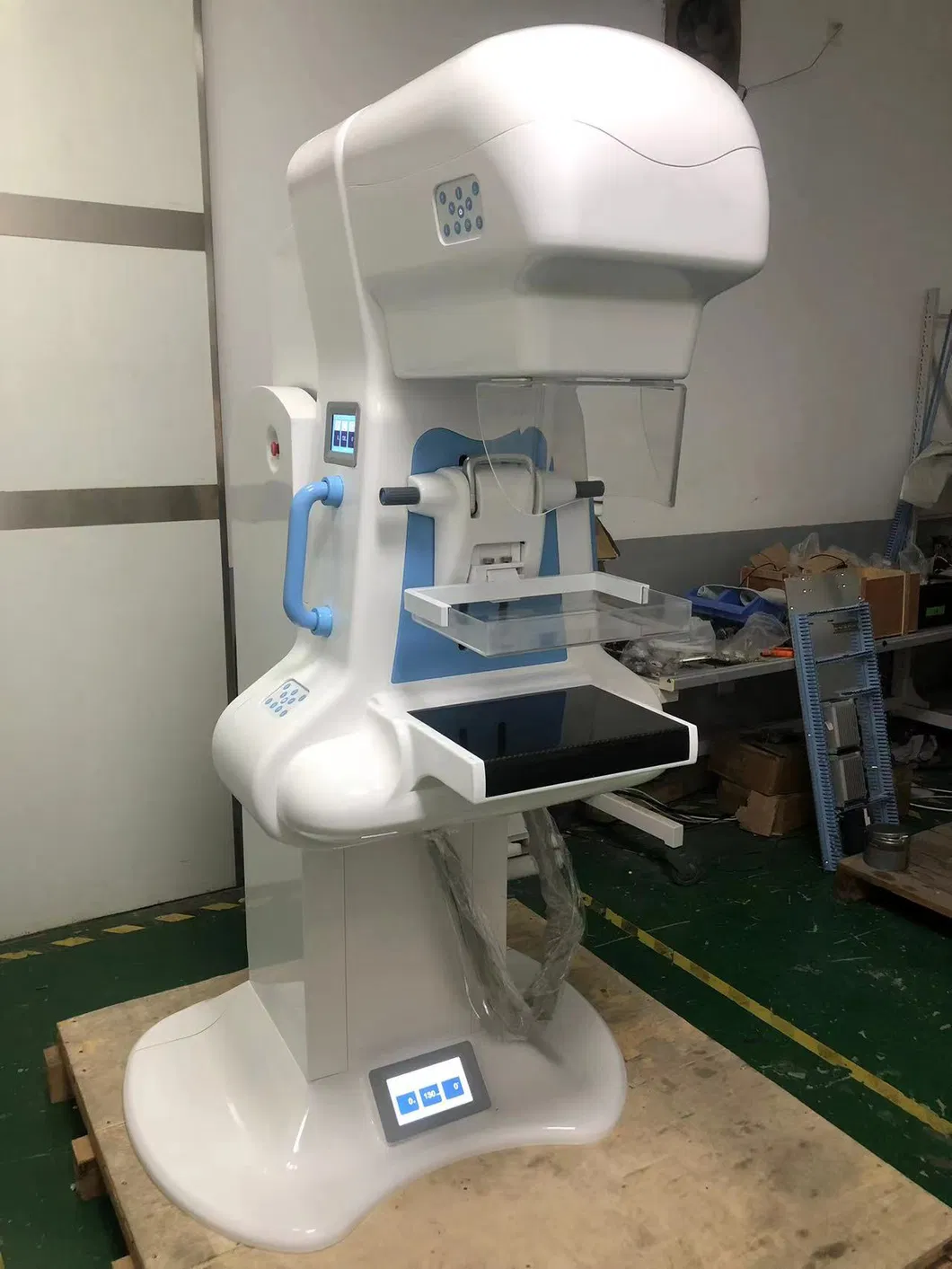

XMM400 View
Main Technical Specifications
Generator & Detector
Inverter Frequency28 kHZ
Nominal Power5 kW
Detector TypeAmorphous silicon flat panel detector
Detector Size24×30cm
Effective Pixels12 Million (3072*4096 pixels)
Pixel Size77um
Spatial Resolution6.0 Lp/mm
X-Ray Tube
Anode MaterialRhenium tungsten molybdenum alloy / tungsten target
Focus Size0.1mm / 0.3mm
Max Heat Capacity500 kHU
Max Peak Voltage49 kV
Mechanical Stand
Rotation Angle-90° to +90° (Electric)
Vertical Range650mm - 1300mm
SID≥ 65cm
Compression ModeElectric (Button + Foot switch)
Manufacturing & Quality
Production Line
Factory Overview
Quality Control
Certificates
Professional Team
Frequently Asked Questions
What is the advantage of the tungsten molybdenum alloy tube?
It offers better penetration for dense breasts, reduces X-ray dose by 30% compared to traditional tubes, and has a longer lifespan, reducing maintenance costs.
How large is the flat panel detector on the XMM400?
The system features a 24×30cm amorphous silicon flat panel detector with 12 million effective pixels.
Is this mammography system compatible with hospital networks?
Yes, it is fully DICOM 3.0 compatible, allowing for seamless integration with PACS and other DICOM equipment for data transmission and storage.
What imaging modes are available for exposure?
The XMM400 supports three modes: full-automatic exposure (intelligent dose selection), semi-automatic exposure, and manual mode.
Does the machine accommodate patients in wheelchairs?
Yes, the device is wheelchair compliant and features a wide vertical adjustment range from 650mm to 1300mm.
How fast can the system produce an image?
The system provides rapid imaging with a shortest imaging time of 2 seconds and a full processing time of less than or equal to 5 seconds.
