Veterinary Multifunctional HD Portable Gastroscope Excellent Pet Handheld Endoscope System

Type: Veterinary Endoscope System
Working Length: 1200mm/1500mm
Diameter of Distal-End: 6.5mm/8.0mm/8.5mm

Product Description

Basic Specifications

Model NO.
CCV-E800
Instrument Channel
2.2 mm / 2.8 mm
Range of Bending
Up 180°, Down 90°; L/R 100°
LCD Display
5-Inch HD
Transport Package
Standard Export Package
Origin
China
Production Capacity
500 units/Month

Product Description

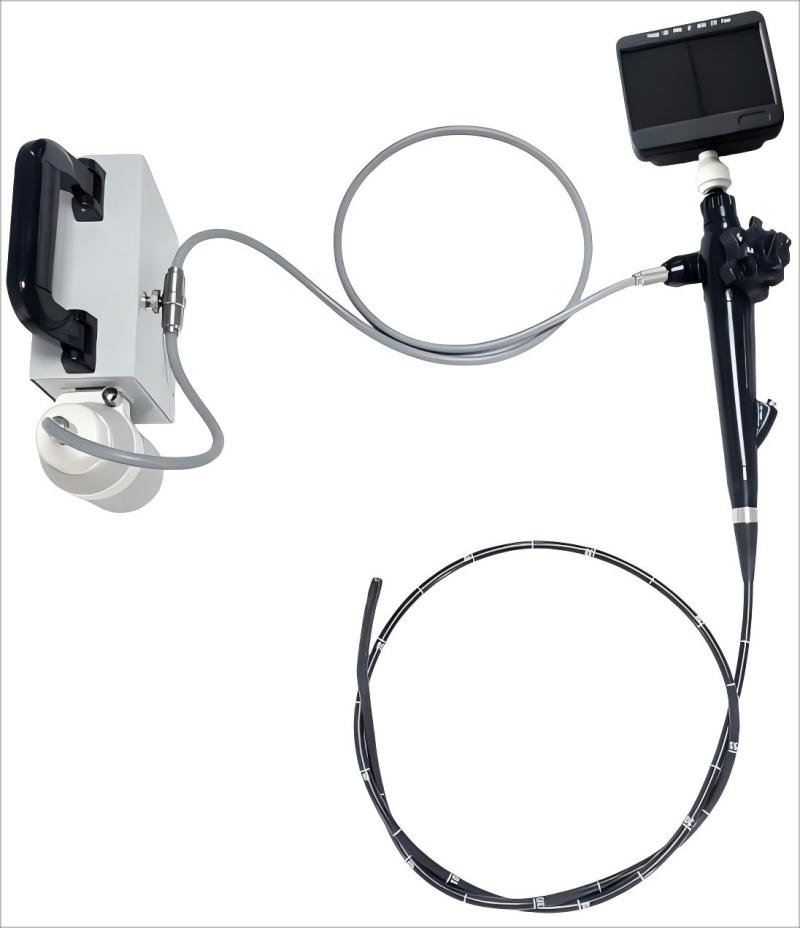

Veterinary Multifunctional HD Portable Gastroscope Excellent Pet Handheld Endoscope System (Model: CCV-E800)

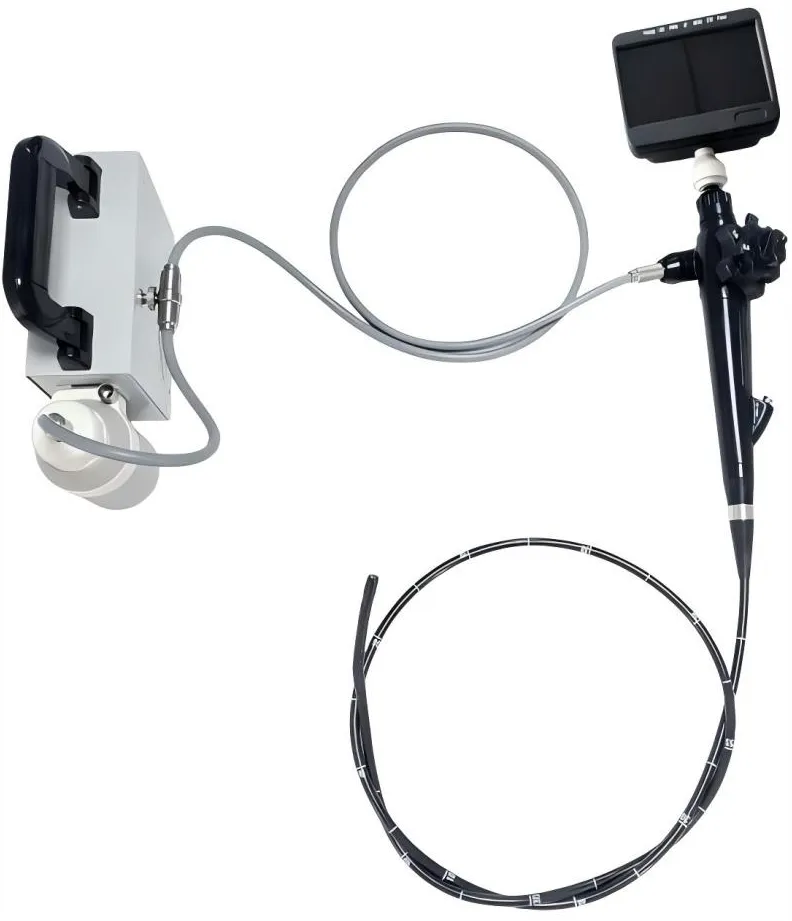

Veterinary Endoscope System

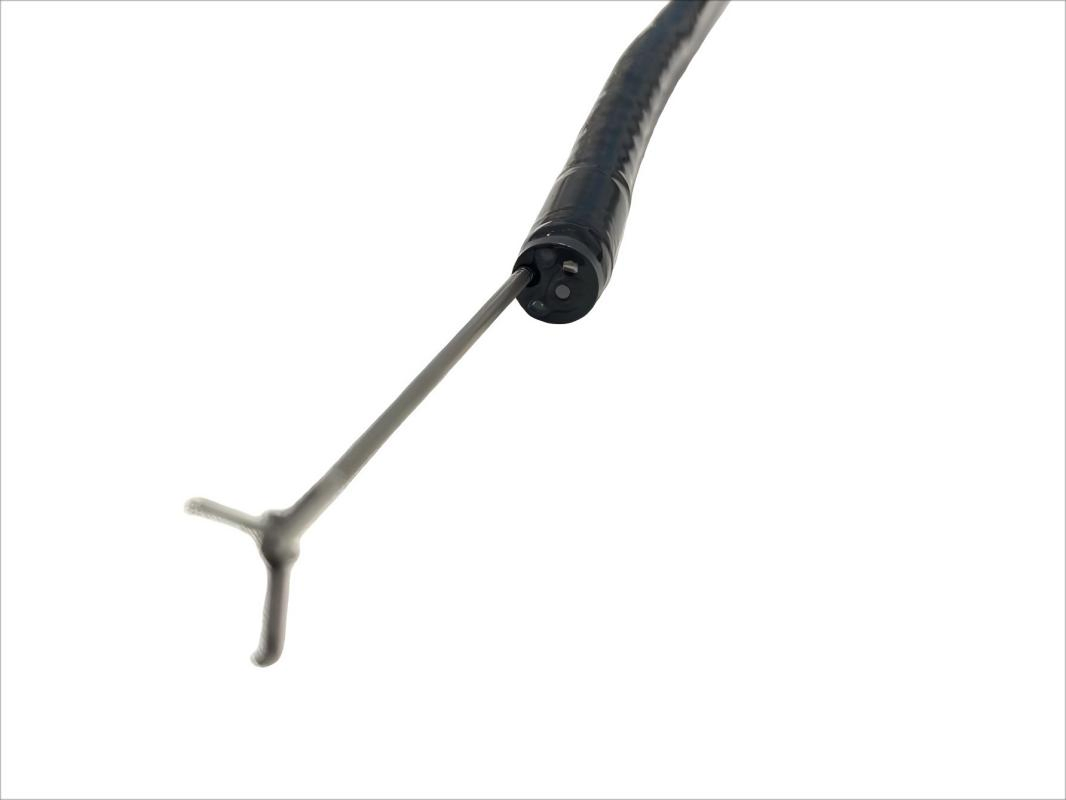

The multifunctional Gastroscope using polycarbonate new composite handle, reasonable designed the clamp hole position, the washable pipe system can protect the lotion unobstructed, to prevent the pipeline blockage, with biopsy forceps hole to ensure the pliers and other devices unobstructed. When do surgery, the suction valve is convenient, removable, safe and reliable, so that users do not feel fatigue in the operation.

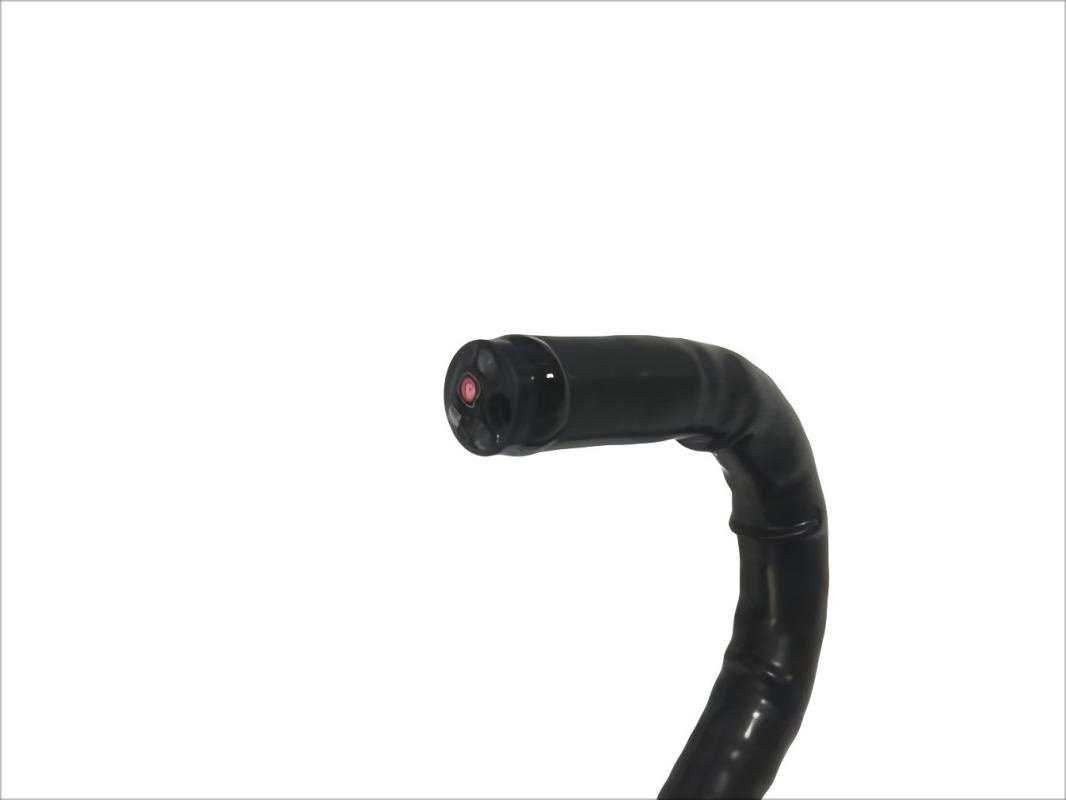

The excellent operation of the traction device can be easily transfer and adjust the bending parts to upward, downward. Can smoothly and fastly reach to the desired site of observation. And timely and accurate detection of diseased tissue.

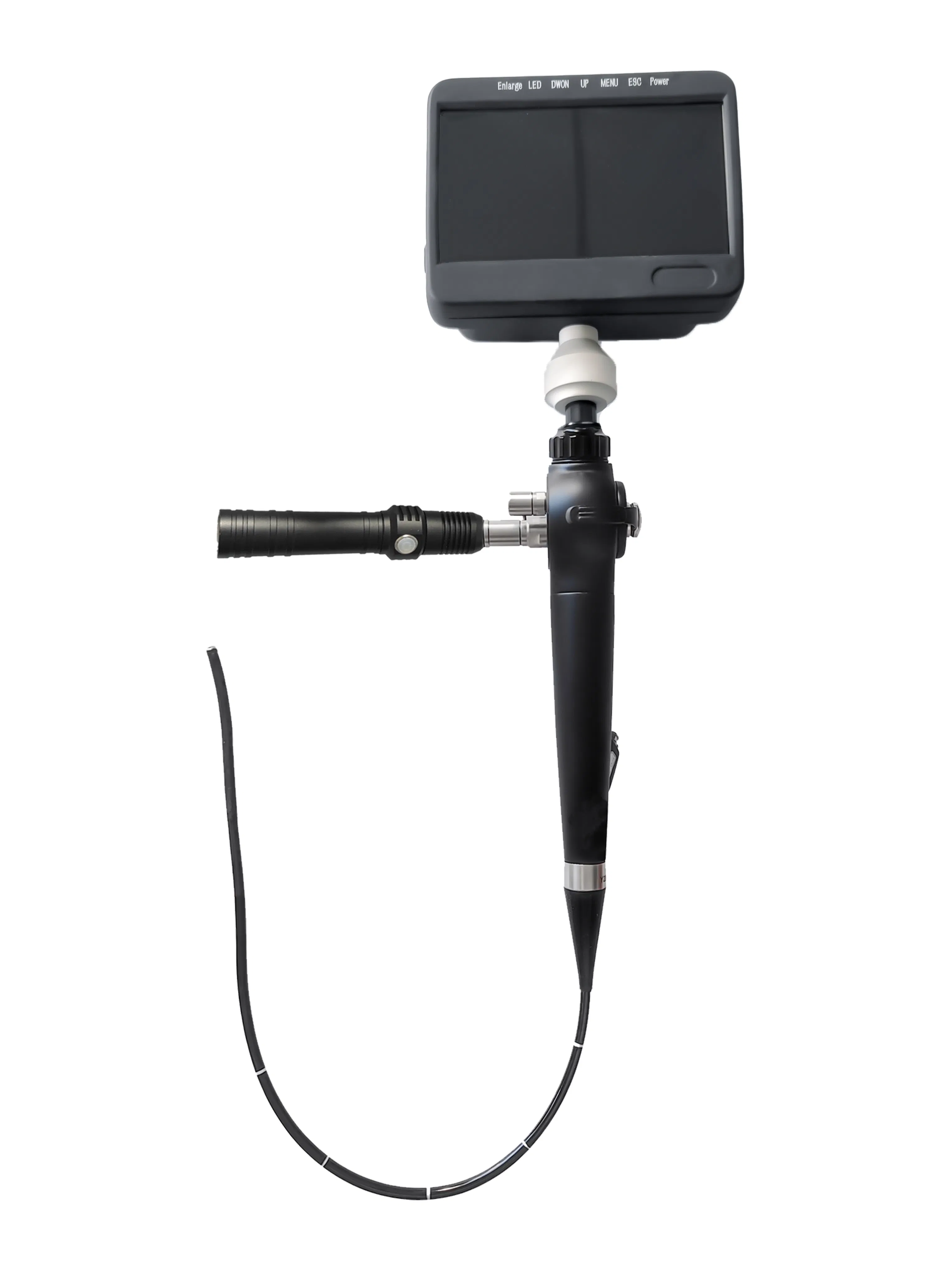

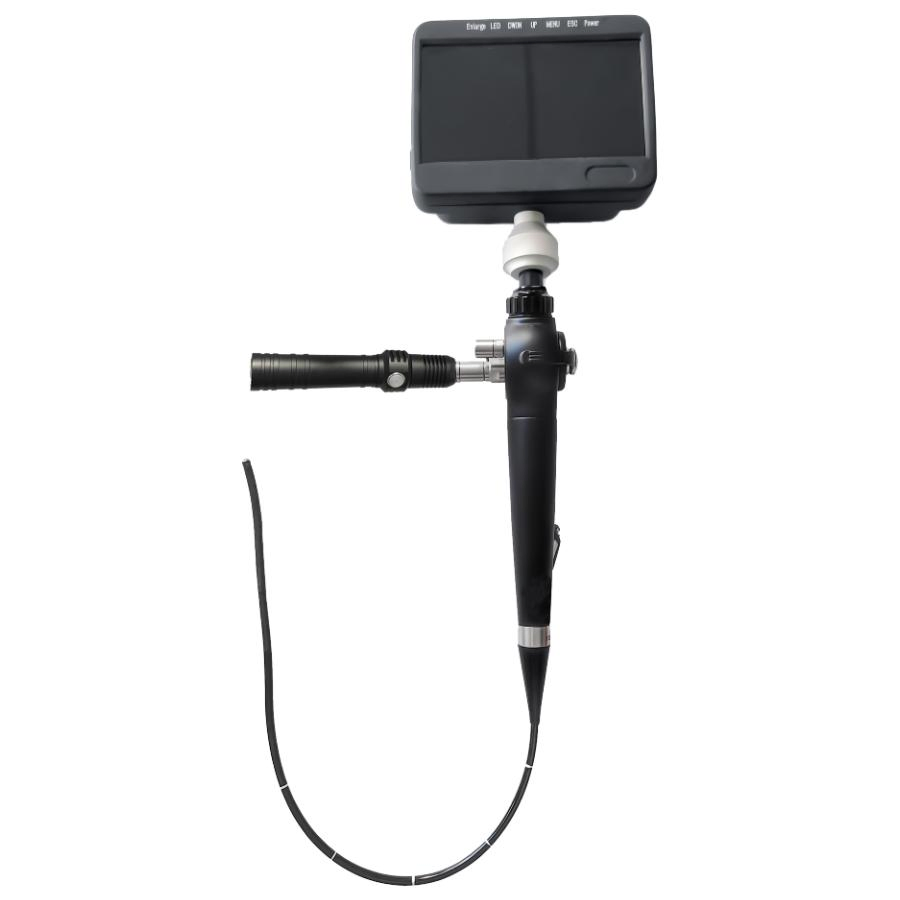

The multi-function portable Gastroscope with 5 inch high-resolution display with TF card can record pictures and videos, with a key camera video image brightness electronic zoom, radiation, easy removal and disassembly for cleaning and disinfection.

The scope with multi-coated high transmittance imaging system, round field of view, wide viewing angle, wide field of view, the scene is broad and wide, 3-100 mm range can see more clear picture, so that the observation and diagnosis correctness greatly improved. The high-definition CMOS camera makes users to get clearer, wide and bright image.
View of Field Distal-end Dia. Insert Tube OD Depth of View Bending Range Working Channel Working Length LCD Resolution
120° Φ6.5mm Φ6.5mm 3-100mm Up 180°, Down 90°; L/R 100° Φ2.2mm 1200mm 5.0" CMOS 1M Pixels
120° Φ8.0mm Φ8.0mm 3-100mm Up 180°, Down 90°; L/R 100° Φ2.2mm 1500mm 5.0" CMOS 1M Pixels
120° Φ8.5mm Φ8.5mm 3-100mm Up 180°, Down 90°; L/R 100° Φ2.8mm 1500mm 5.0" CMOS 1M Pixels

Available Veterinary Equipment

Comprehensive range of medical solutions for veterinary clinics including:
  • X-Ray Machines & Film
  • B/W & Color Ultrasound (2D/3D/4D)
  • Hematology & Chemistry Analyzers
  • Patient Monitors & ECG
  • Oxygen Generators & Ventilators
  • Operating Lamps & Tables
  • Anesthesia Machines
  • Infusion Pumps
  • Autoclave Sterilizers
Endoscope Detail 1
Endoscope Detail 2
Endoscope Detail 3

Frequently Asked Questions

What is the resolution of the CCV-E800 endoscope system?
The system features a high-definition CMOS camera with 1,000,000 pixels, providing clear and bright images for accurate diagnosis.
How large is the built-in display?
The CCV-E800 is equipped with a 5-inch high-resolution LCD display, which supports picture and video recording via a TF card.
What are the bending capabilities of the probe?
The probe offers a versatile range of motion: Up 180°, Down 90°, and Left/Right 100°, allowing for comprehensive site observation.
Is the device easy to clean and disinfect?
Yes, the handle is made of a polycarbonate composite and features a washable pipe system, designed for easy removal, disassembly, and thorough disinfection.
What are the available working channel sizes?
Depending on the specific model configuration, the working channel diameter is available in 2.2 mm or 2.8 mm to accommodate different biopsy forceps.
What is the observation depth of the imaging system?
The multi-coated imaging system provides a clear depth of view ranging from 3 mm to 100 mm with a 120° wide field of view.
