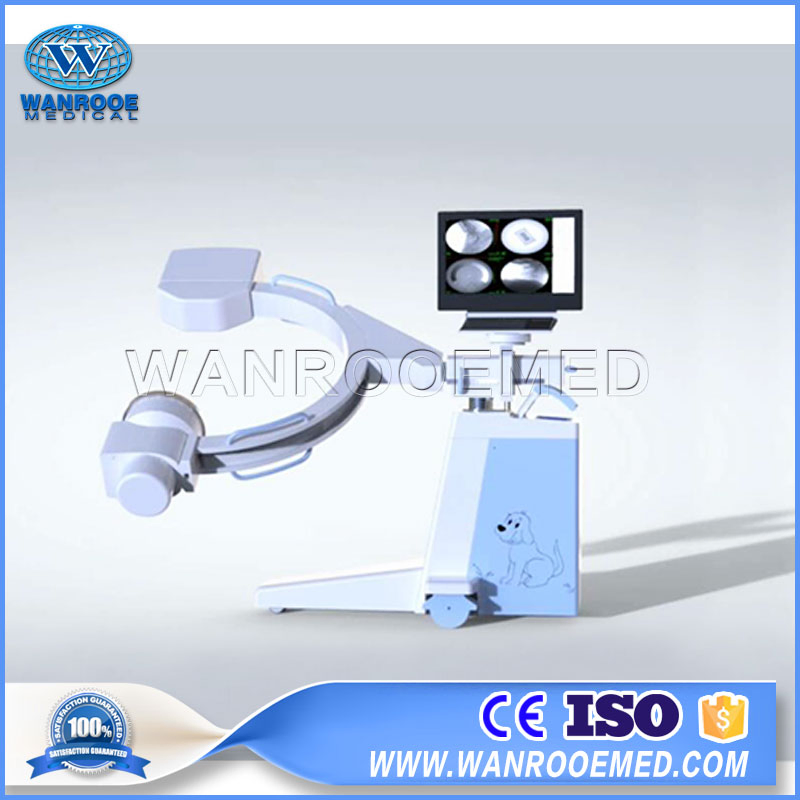

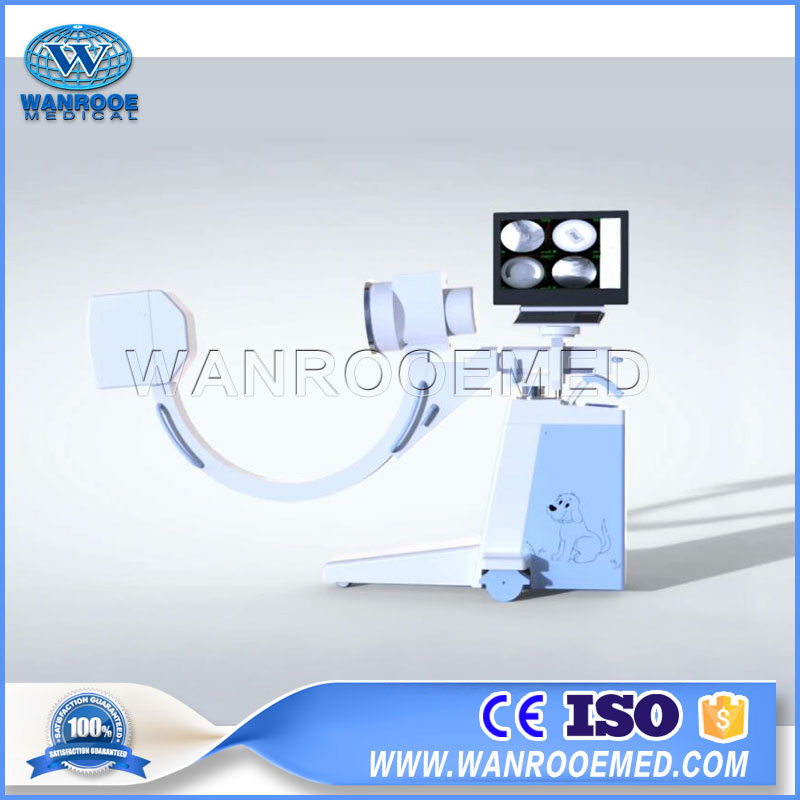

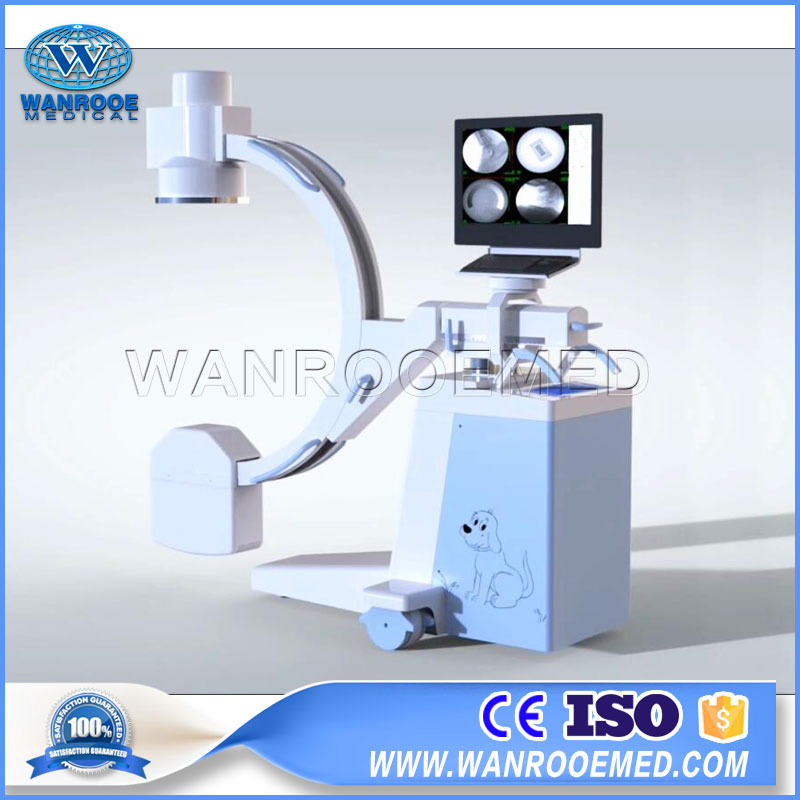

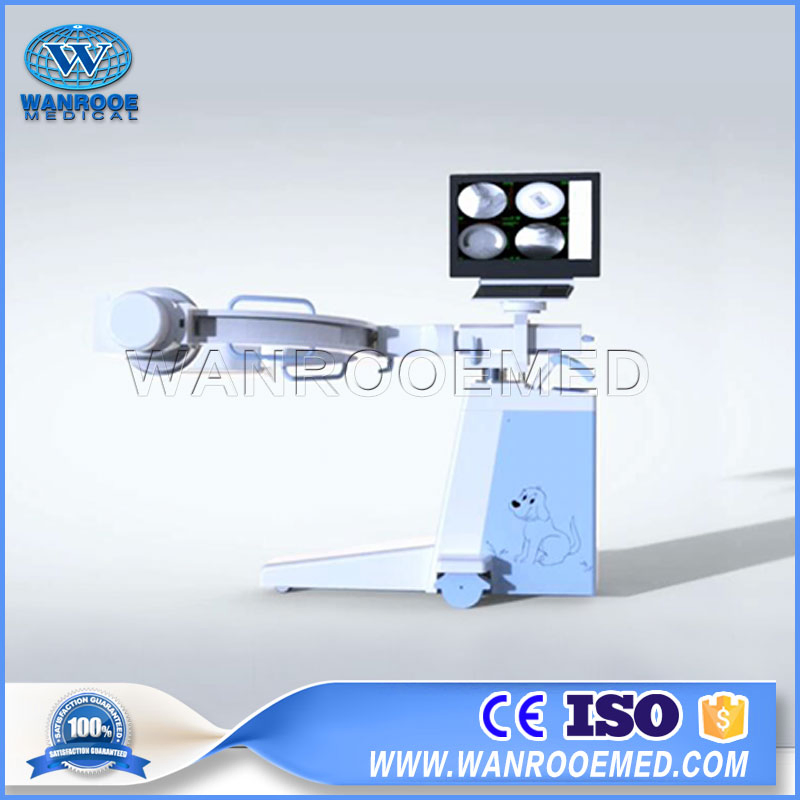

Vet1120 Veterinary Mobile C-Arm System Digital Radiography X-ray Equipment for Pet Pig Sheep Dog Cat
Vet1120 Veterinary Mobile C-Arm System Digital Radiography X-ray Equipment for Pet Pig Sheep Dog Cat
Vet1120 Veterinary Mobile C-Arm System Digital Radiography X-ray Equipment for Pet Pig Sheep Dog Cat
Vet1120 Veterinary Mobile C-Arm System Digital Radiography X-ray Equipment for Pet Pig Sheep Dog Cat
Vet1120 Veterinary Mobile C-Arm System Digital Radiography X-ray Equipment for Pet Pig Sheep Dog Cat
1 / 5
Vet1120 Veterinary Mobile C-Arm System Digital Radiography X-ray Equipment for Pet Pig Sheep Dog Cat
Vet1120 Veterinary Mobile C-Arm System Digital Radiography X-ray Equipment for Pet Pig Sheep Dog Cat
Vet1120 Veterinary Mobile C-Arm System Digital Radiography X-ray Equipment for Pet Pig Sheep Dog Cat
Vet1120 Veterinary Mobile C-Arm System Digital Radiography X-ray Equipment for Pet Pig Sheep Dog Cat
Vet1120 Veterinary Mobile C-Arm System Digital Radiography X-ray Equipment for Pet Pig Sheep Dog Cat

Vet1120 Veterinary Mobile C-Arm System Digital Radiography X-ray Equipment for Pet Pig Sheep Dog Cat

Customization: Available
Certification: CE, ISO13485
Scale: Large
Send Inquiry

Product Description

📋 Basic Information
Model NO.:
VET1120
Frequency:
50kHz
Tube Voltage:
40-120 Kv
Specification:
Max. Tube Current: 100mA
Origin:
China
HS Code:
94029000
Capacity:
1000 Sets/Month
⭐ Product Overview

VET1120 Veterinary Mobile C-arm System

Digital Radiography X-ray Equipment for Pet Pig, Sheep, Dog, and Cat

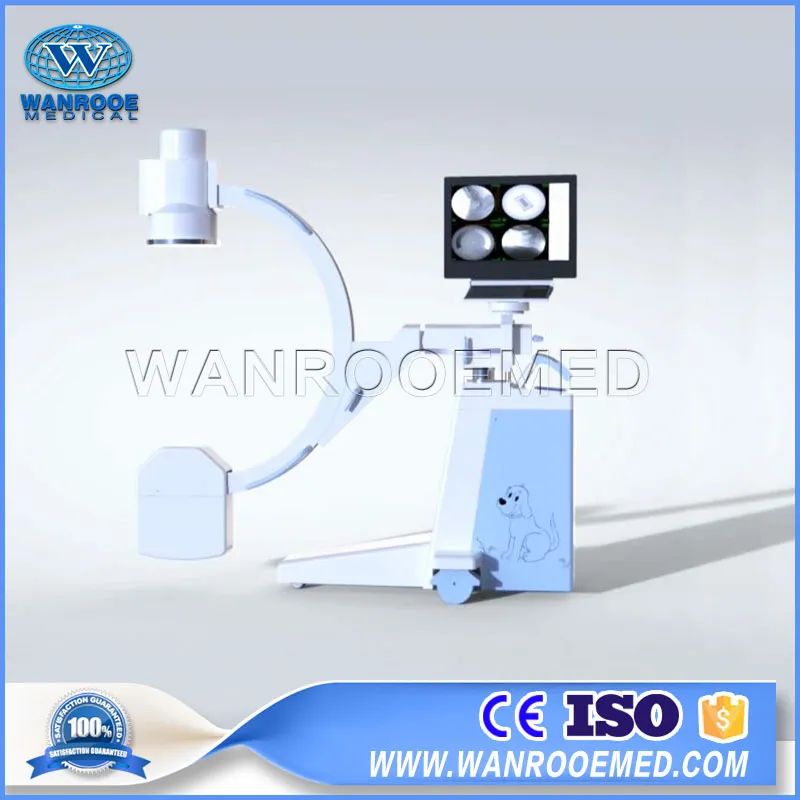

VET1120 Veterinary Mobile C-arm
⚙️ Technical Specifications
Category Detailed Parameters
Fluoroscopic Capacity Max rated capacity: Tube Current 4mA, Tube Voltage 110kV
Automatic Fluoroscopy: 40kV~110kV Adjust Automatically
Pulse Fluoroscopy: 40kV~110kV; 4.1mA~8mA
Photography Capacity Max rated capacity: 3.5 KW
Tube Voltage/Current: 40kV~110kV / 1~125 mAs
Plateholder Size: 8"x10" or 10"x12"
X-ray Tube Fixed anode, Dual-focus (1.5 / 0.6)
Inverter Frequency: 40KHz
Thermal capacity: 35KJ (47KHU)
Video System Image Intensifier: TOSHIBA (9", 6", 4.5")
CCD Camera: Ultra low-light imported camera
Monitor: 23 inches, 1920*1080, 60HZ
Workstation Features: Worklist, Mirroring, Magnifying glass, Edge enhancement, Recursive noise reduction, DICOM browsing.
Structure Pillar Range: ≥400mm
C-arm Movement: Forward/Backward 200mm
Rotation: Horizontal ±180°, Vertical ±15°
Slip on orbit: 120° (+90°~ -30°)
🔍 Key Applications & Features

Clinical Usage

  • Orthopaedics: Osteopathy, diaplasis, nailing.
  • Surgery: Removing foreign body, cardiac catheter, interventional therapy, partial radiography.

Product Features

  • Integrated design with compact appearance and convenient operation.
  • Unique hand-held remote controller for better workflow.
  • Graphical color LCD touch screen console interface.
  • High-quality combined HF-HV X-ray generator to reduce irradiation.
  • Toshiba image intensifier for stable, high-definition display.
  • KV/MA automatic tracking feature for optimal brightness and definition.
📸 Product Details
VET1120 Details
VET1120 Components
❓ Frequently Asked Questions
What types of animals is the VET1120 suitable for?
The system is specifically designed for veterinary use, suitable for pets and livestock including pigs, sheep, dogs, and cats.
What are the primary surgical applications of this C-arm?
It is ideal for orthopaedic procedures such as nailing and diaplasis, as well as general surgeries like foreign body removal and interventional therapy.
Does the system help in reducing X-ray radiation?
Yes, it utilizes a high-frequency high-voltage X-ray generator and pulse fluoroscopy modes to significantly reduce irradiation while maintaining image quality.
What imaging technology is used in the VET1120?
The system features a high-quality Toshiba image intensifier combined with an ultra low-light digital CCD camera for high-definition clinical images.
How flexible is the movement of the C-arm?
The C-arm offers excellent maneuverability with a ±180° horizontal rotation and a unique ±15° vertical axis revolution, making special positioning easier.
Does the workstation support medical record management?
Yes, the digital workstation includes features for registration, medical records, worklists, and supports DICOM for web services and browsing.
