Advanced Versatile Endoscope System for Secure Airway Intubation Solutions for Global Healthcare Procurement

📋

Basic Information

Model NO.

CR-31, Single Handle, 4.5 inch Touchable screen

Quality Guarantee

Accessories: Half a Year; Main Unit: 1 Year

Group

Pediatric, Adult

Product Name

Video Laryngoscope

Screen Size

4.5 Inch Touchable Screen

Certificate

CE/ISO Compliant

Video Function

USB Output / Type C

Battery

Rechargeable Lithium Battery

Composition

Power Adapter, Display Host and Visual Blade

Features

Reusable, Anti-fog

HS Code

9018903010

Production

100000 PCS/Month

🔍

Product Description

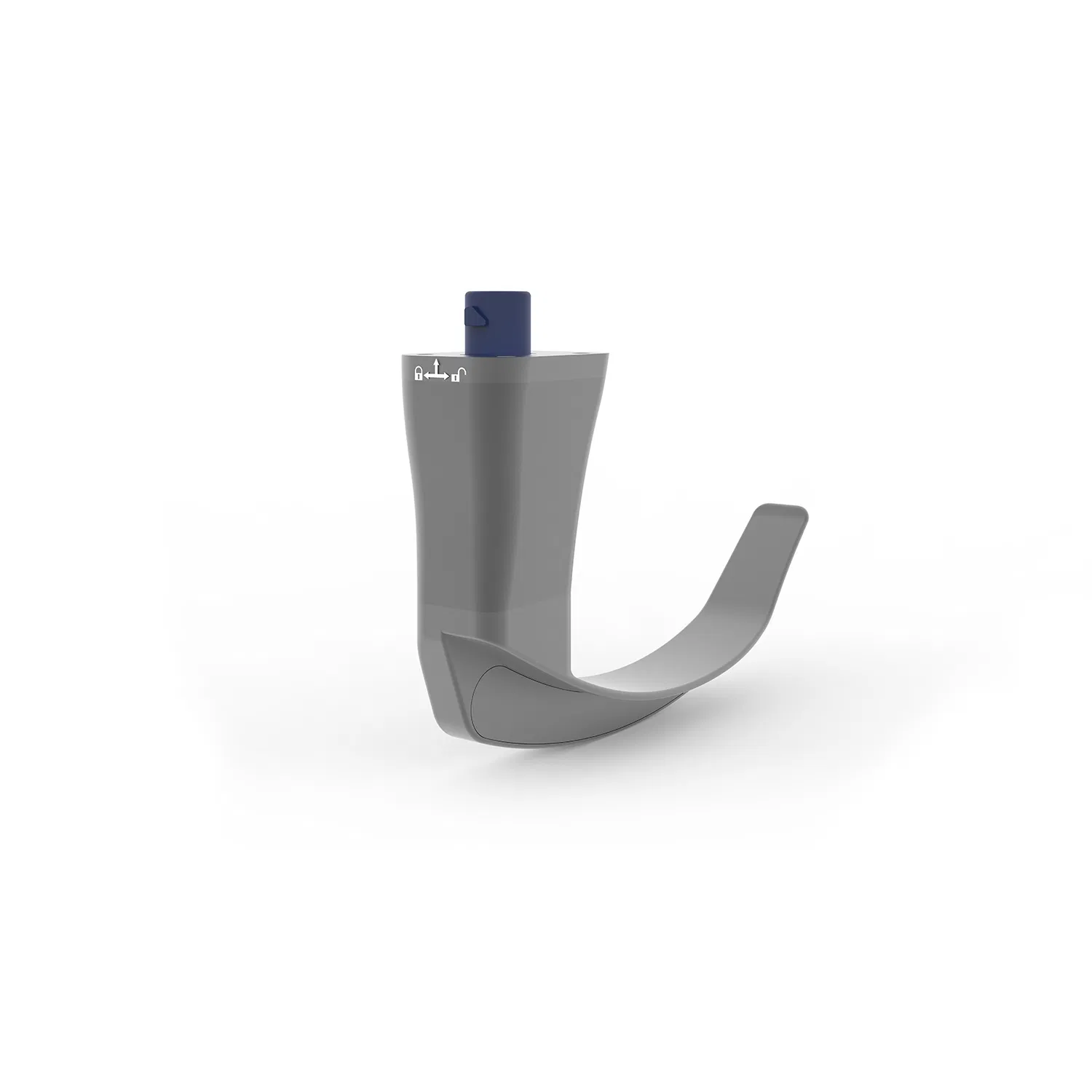

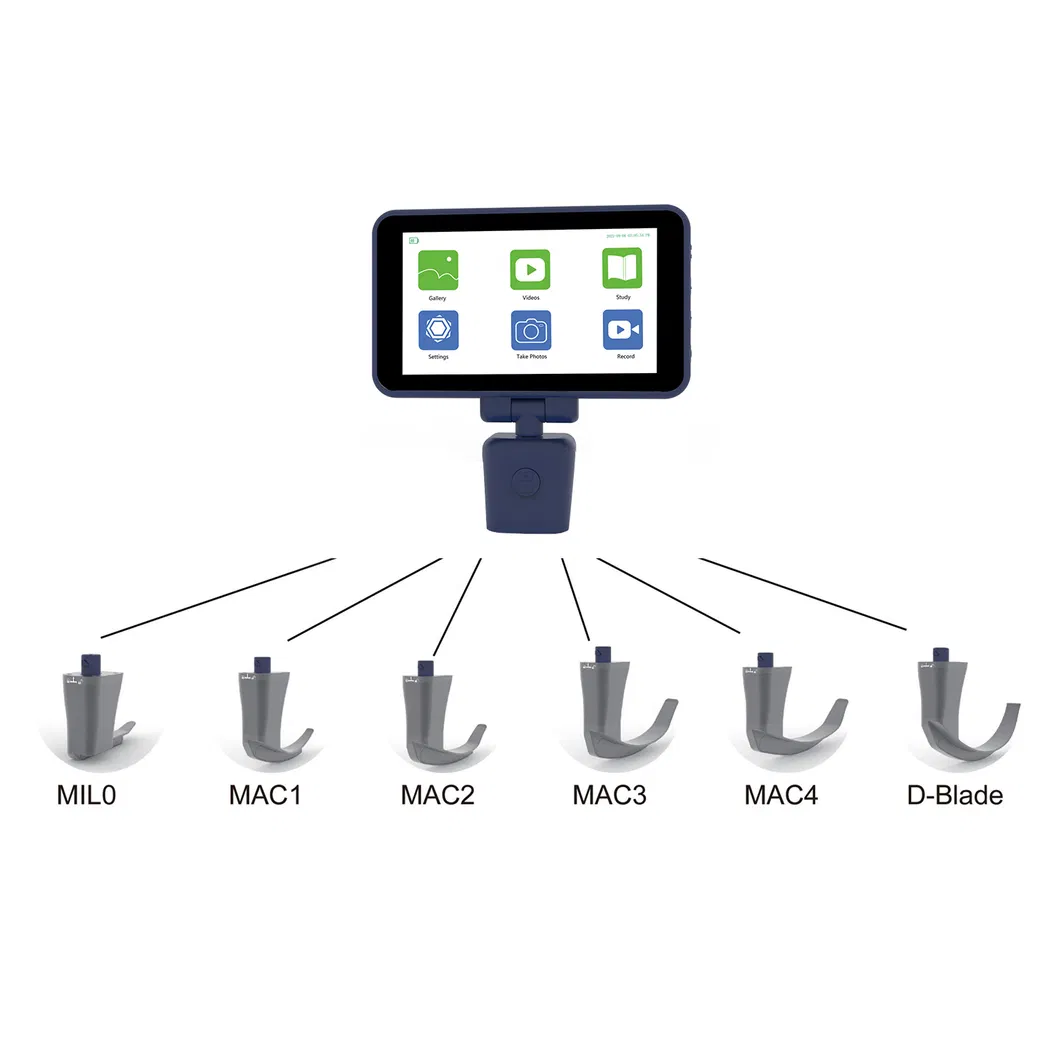

Structure and Composition: It mainly consists of three parts: power adapter, display host and visual blade.

Scope of Application: It can be used to provoke patients' glottis and expose epiglottis, guide medical staff to accurately intubate airway for first aid and also for oral inspection and treatment.

📏

Technical Specifications

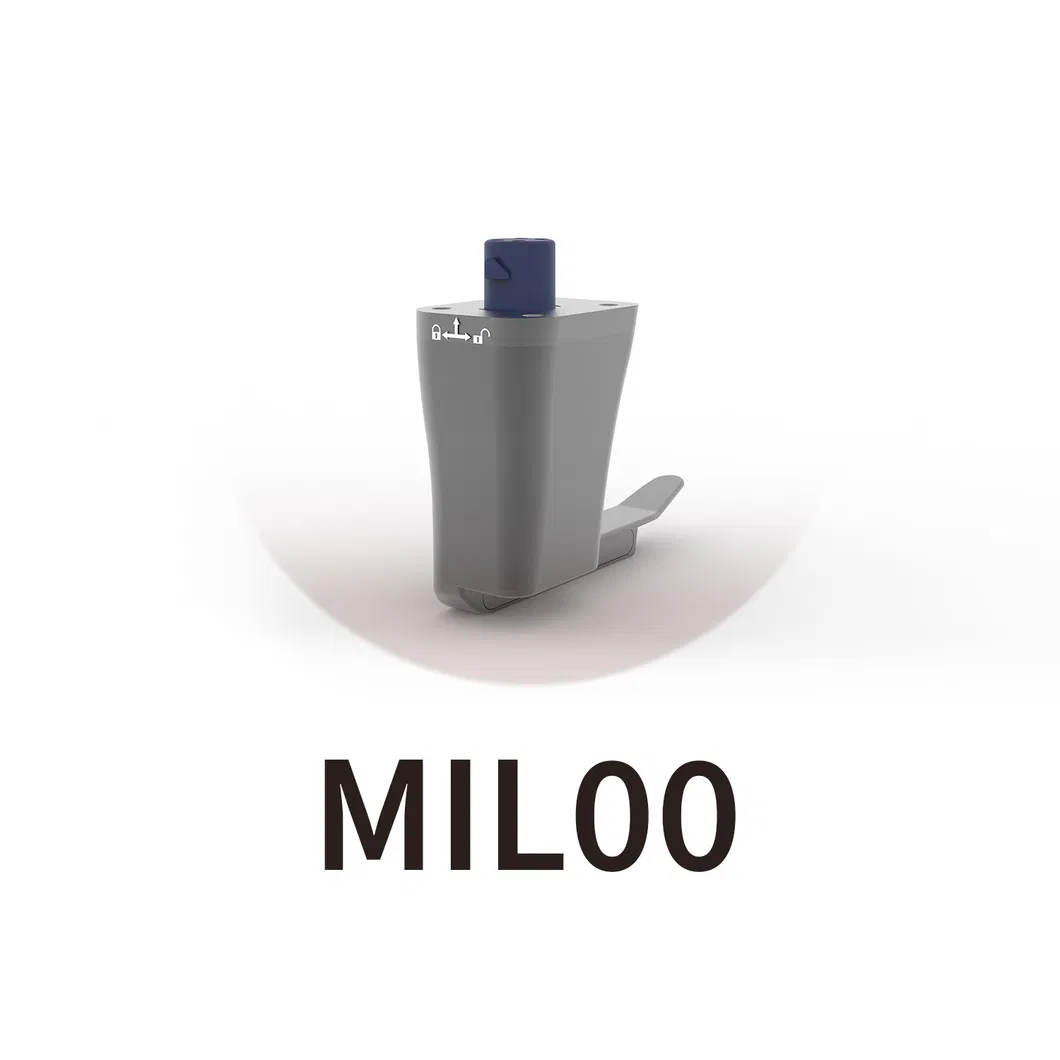

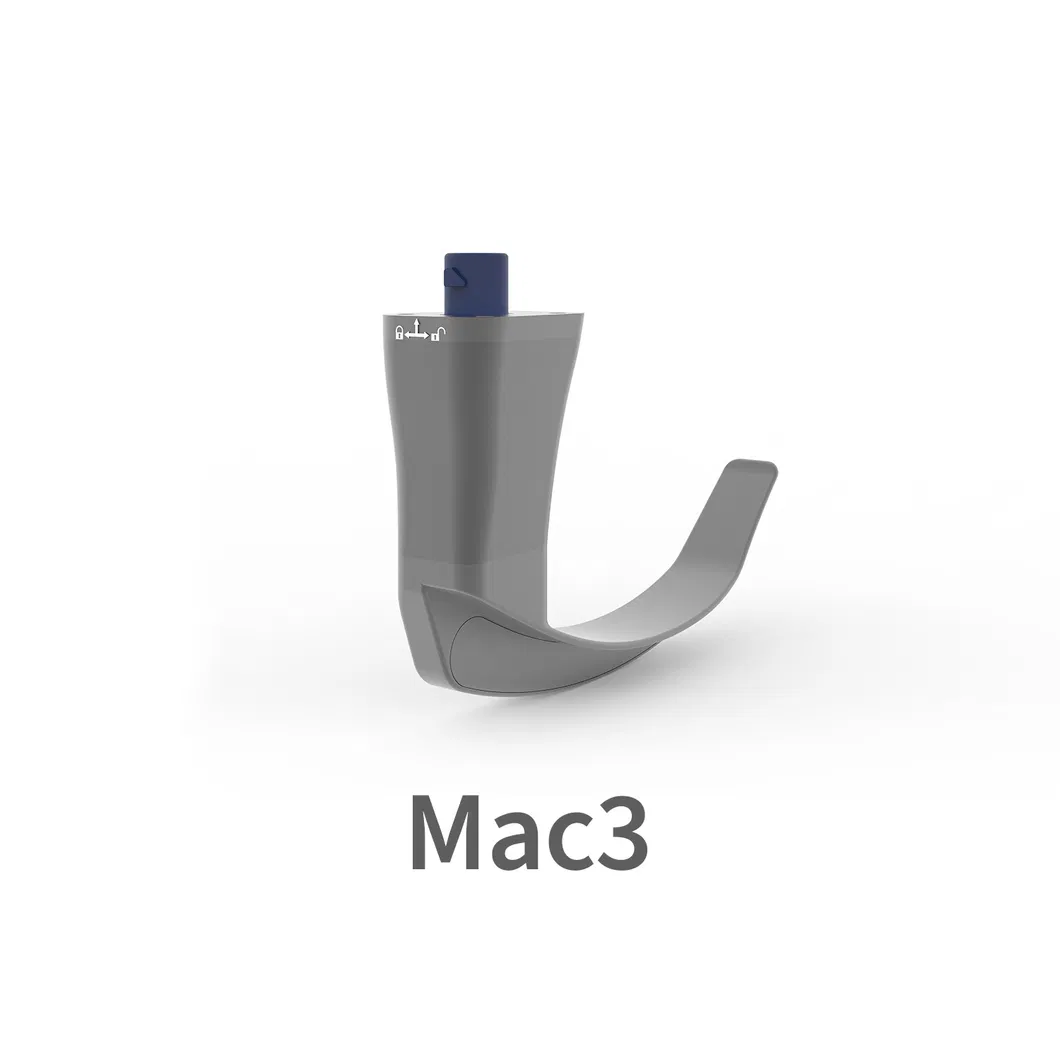

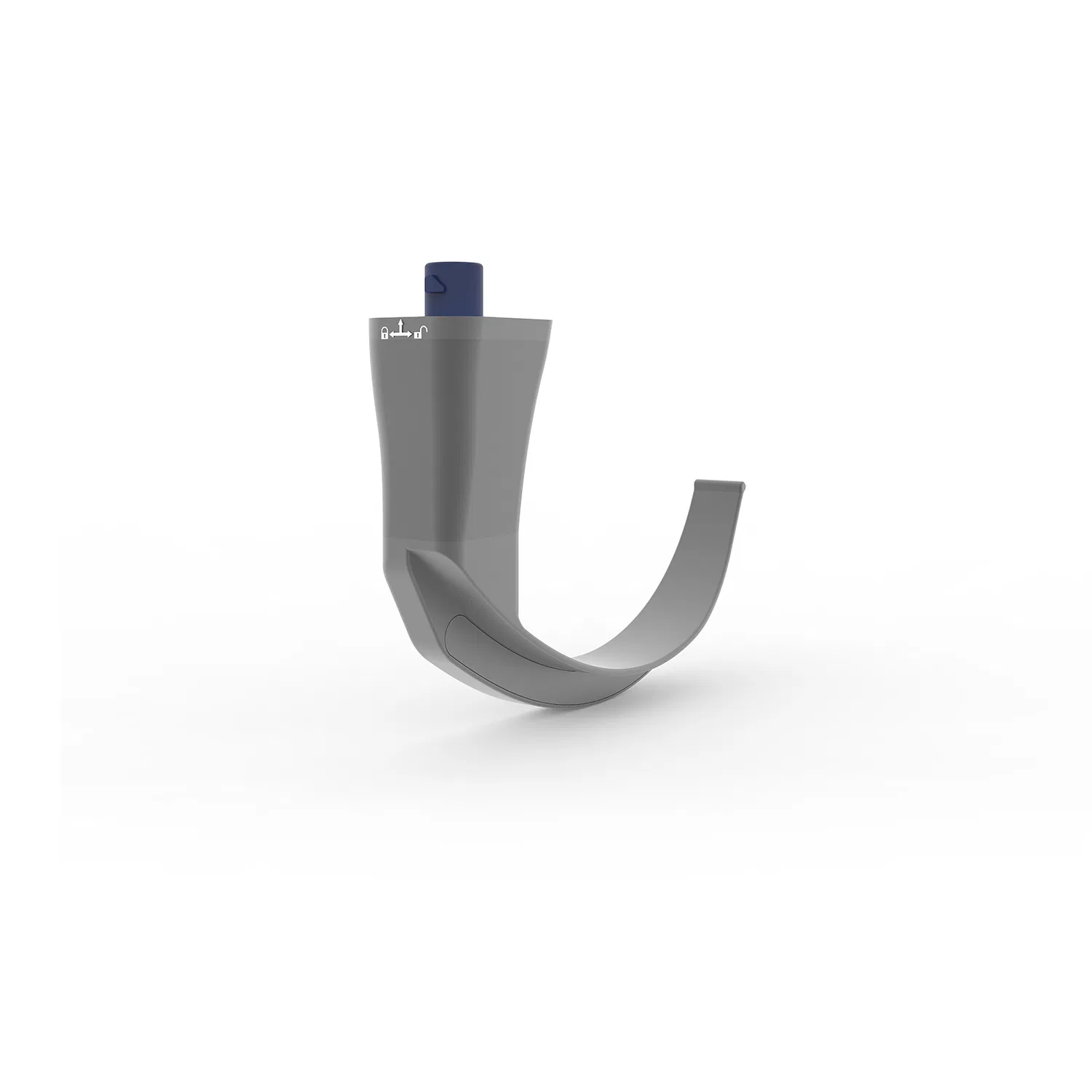

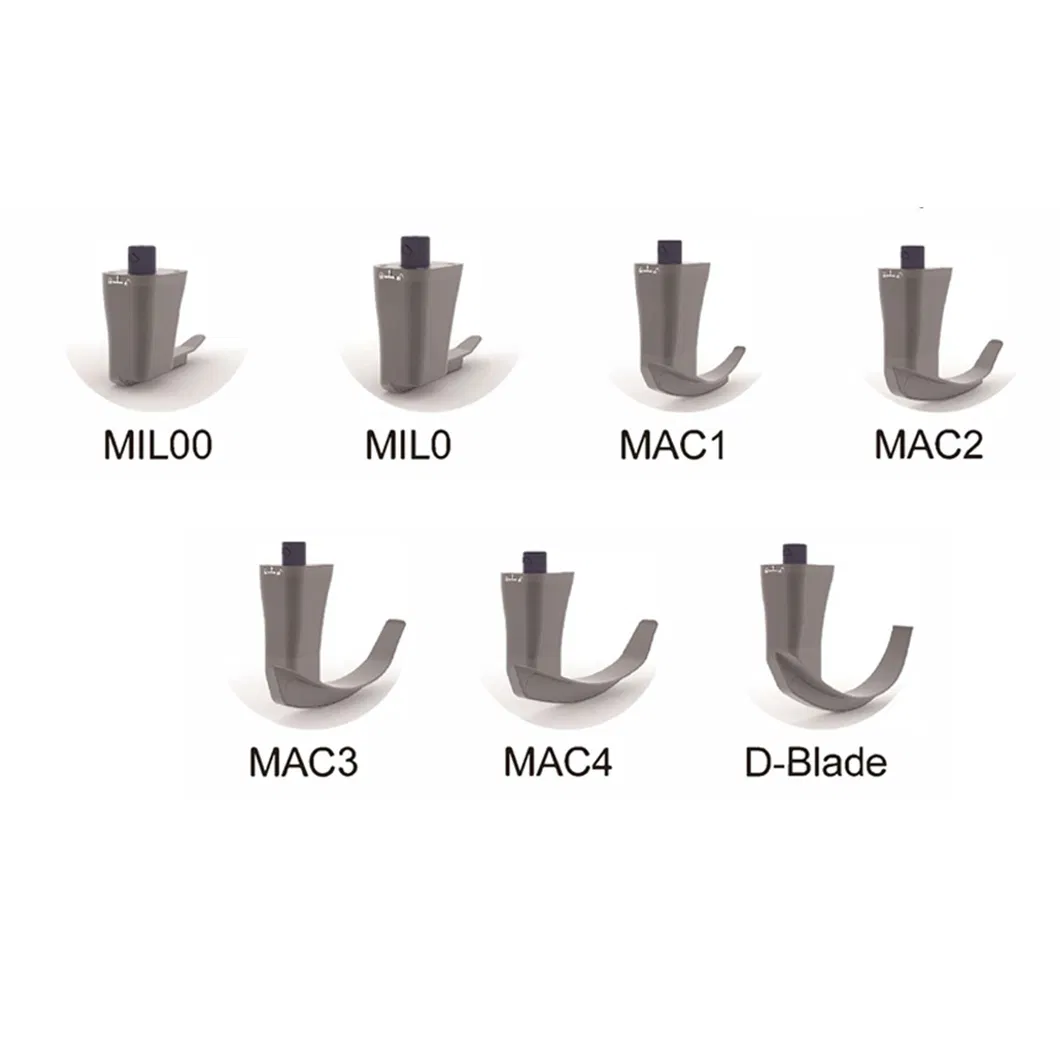

Blade Type	MIL00	MIL0	MAC1	MAC2	MAC3	MAC4	D-blade
Application	Premature	Neonate	Pediatric	Small Adult	Adult	Large Adult	Difficult Airway
Intubation ID	2.0-3.0mm	2.5-4.0mm	4.0-6.0mm	5.0-6.0mm	6.0-9.0mm	7.5-10.0mm	7.5-10.0mm

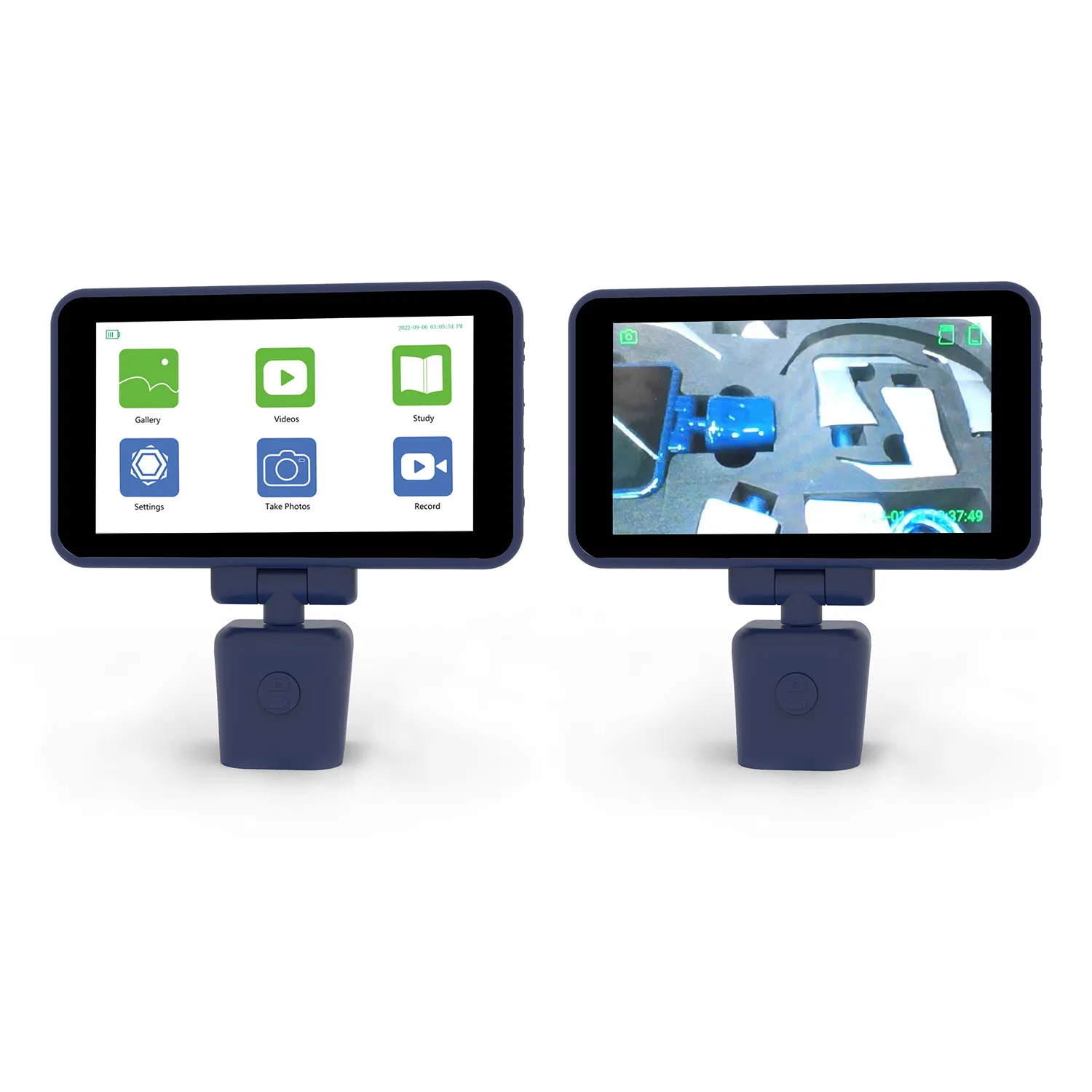

4.5 Inch Host Technical Index

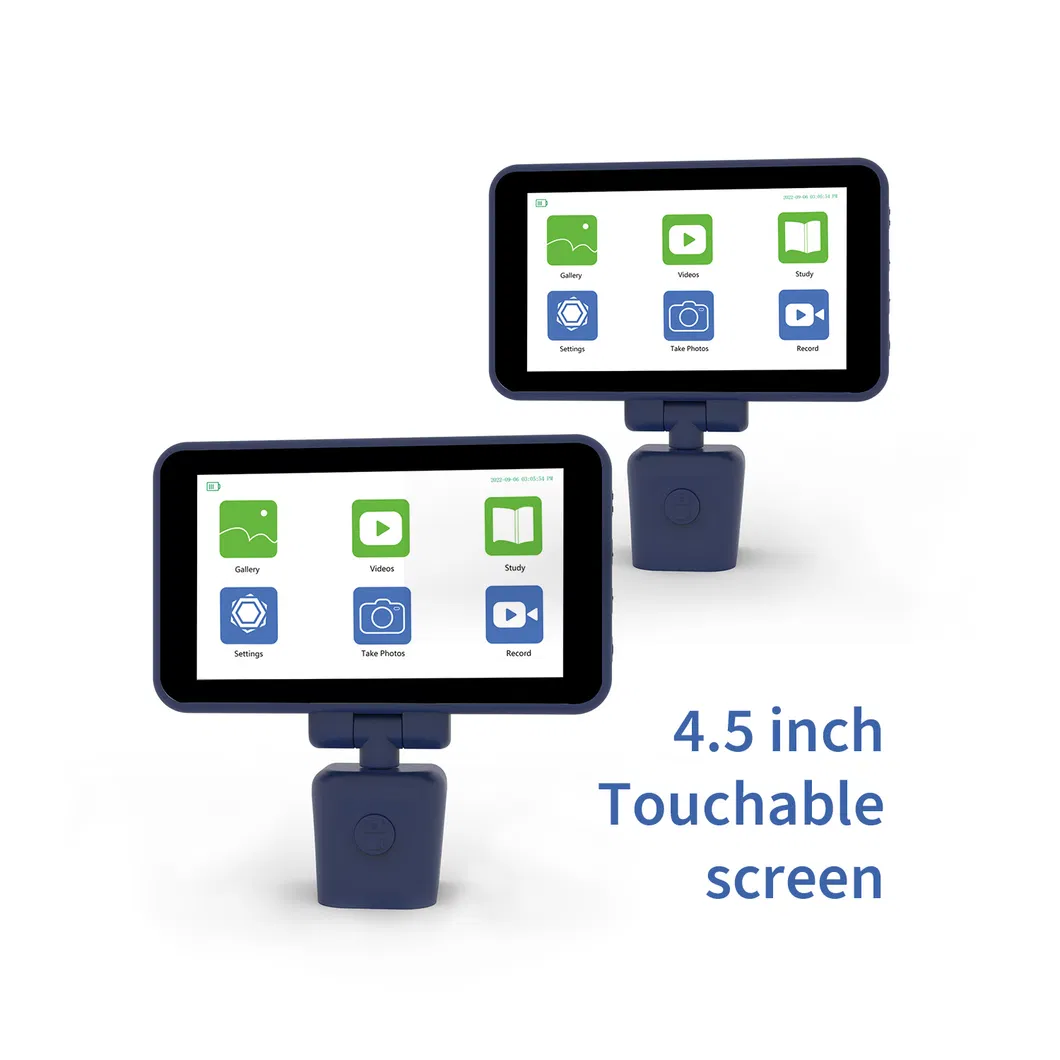

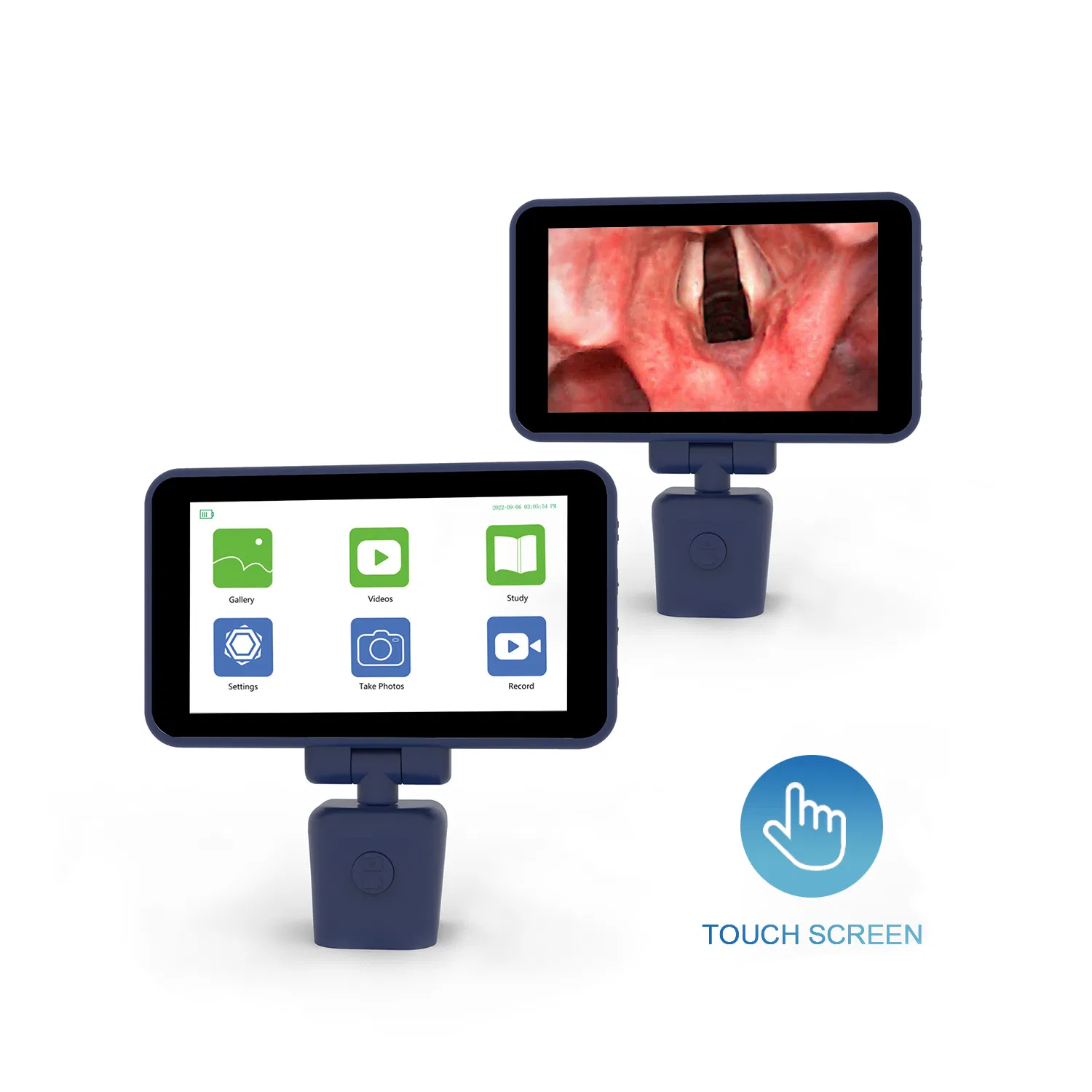

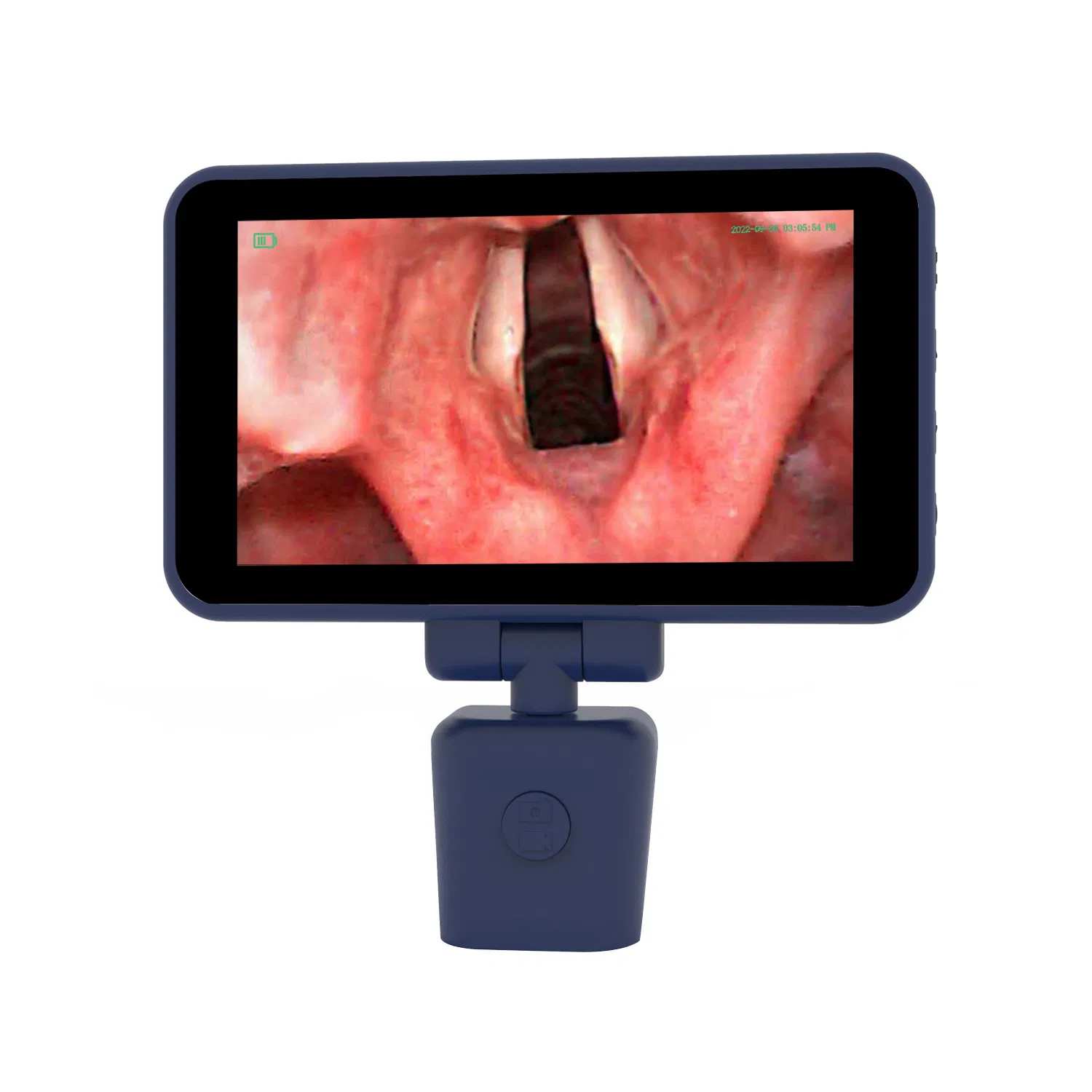

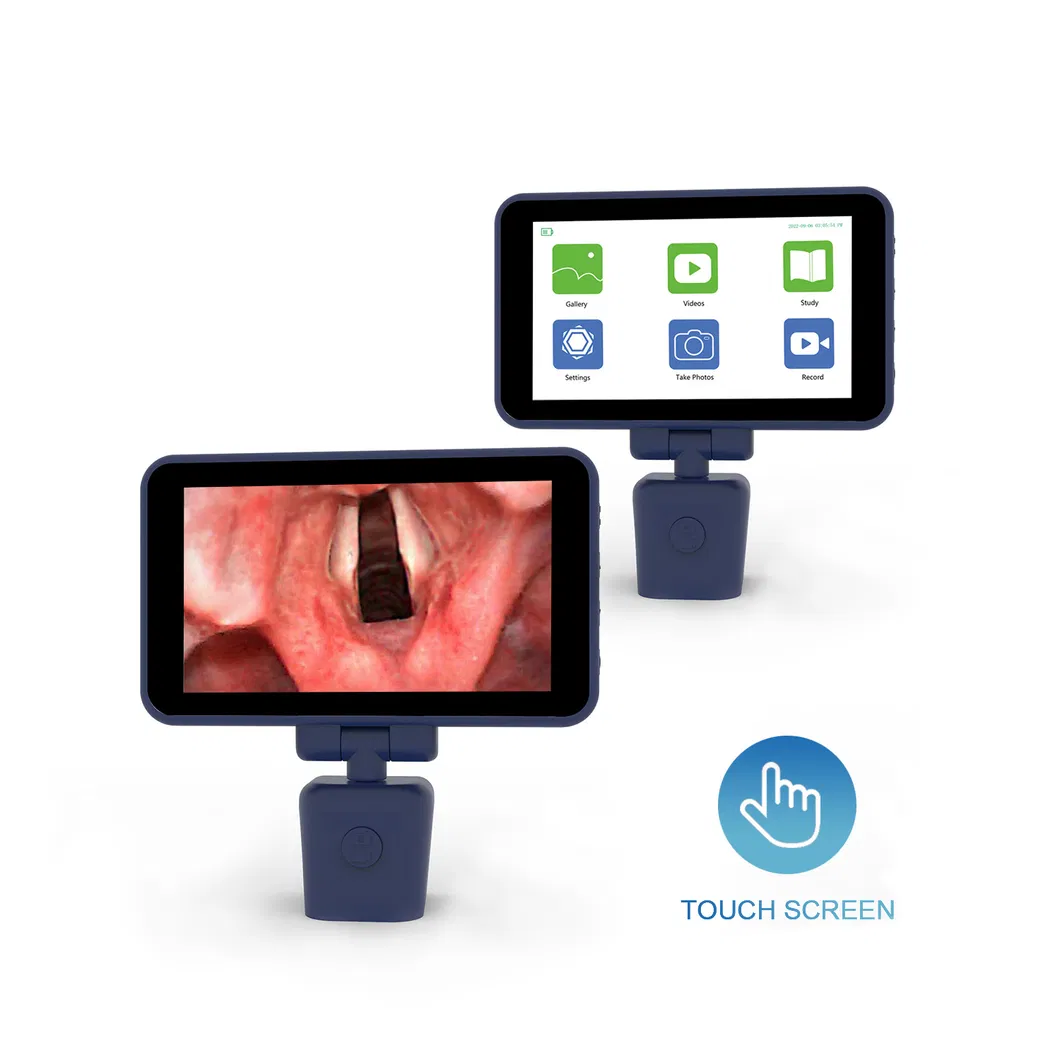

Display	4.5'' Touchable screen (854*480)
Viewing Angle	≥80º
Rotation Angle	0º~150º Vertical, 0º~270º Horizontal
Camera Resolution	1280*720 px
Illuminance	≥1000 LUX
Memory	16GB Internal Memory
Battery Capacity	3500mAh (>5 hrs working time)
Sterilization	HPGP or Glutaraldehyde immersion

📸

Product Gallery

⭐

Core Features

SAFETY Medical grade alloy with high flexure strength; IPX7 waterproof grade; optional disposable versions.

COST EFFECTIVE Rechargeable lithium battery; 3-in-1 system integration; durable high-performance blades.

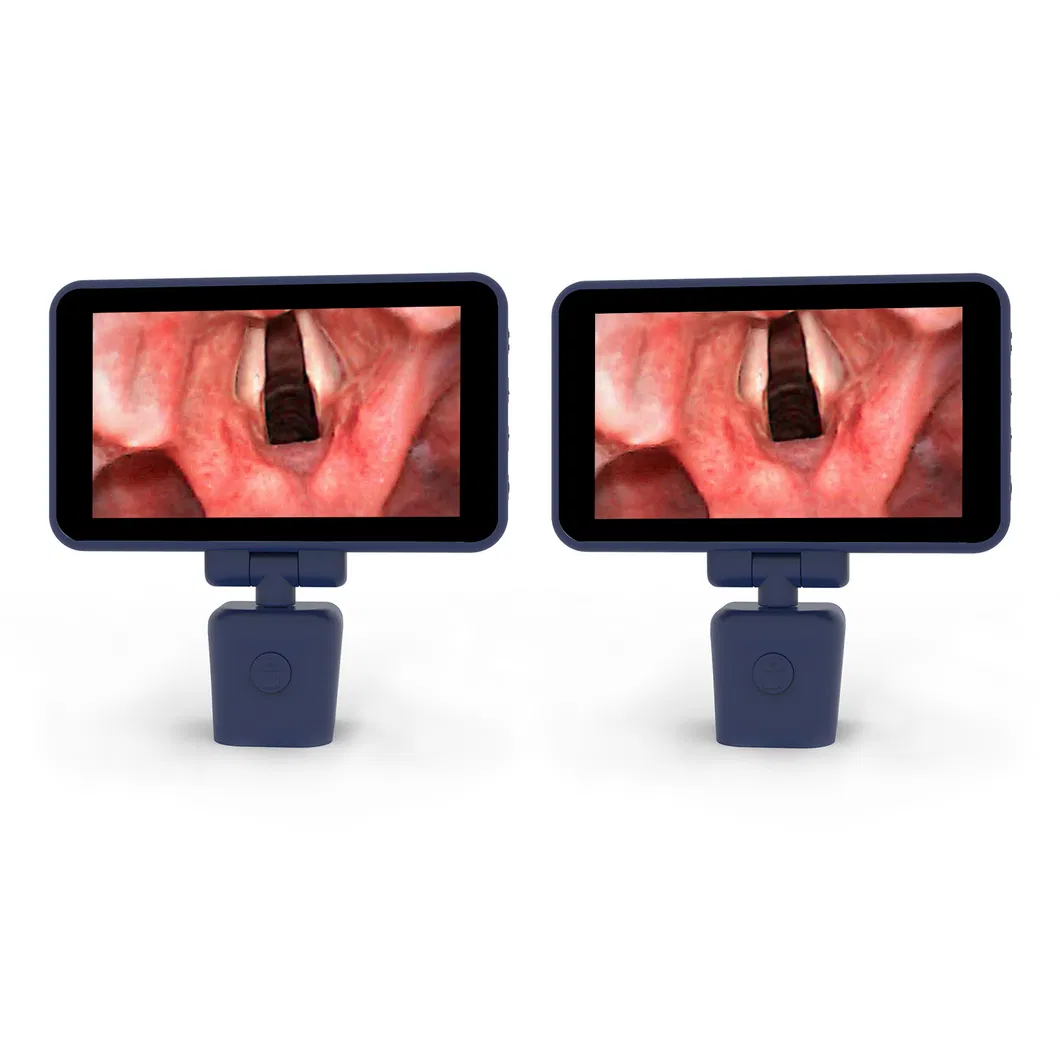

INTELLIGENT Anti-fog lens; omnidirectional rotation screen; one-button recording and review.

🔥

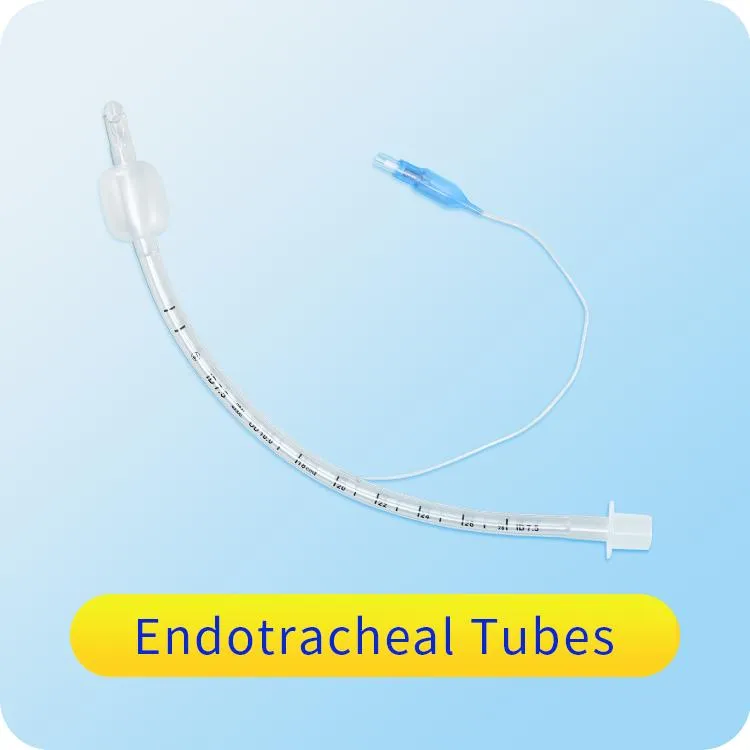

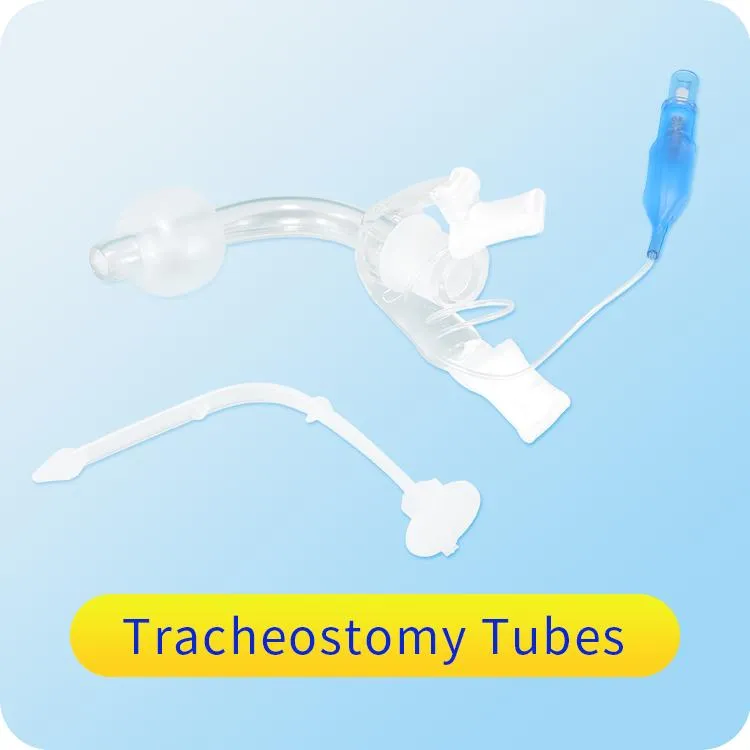

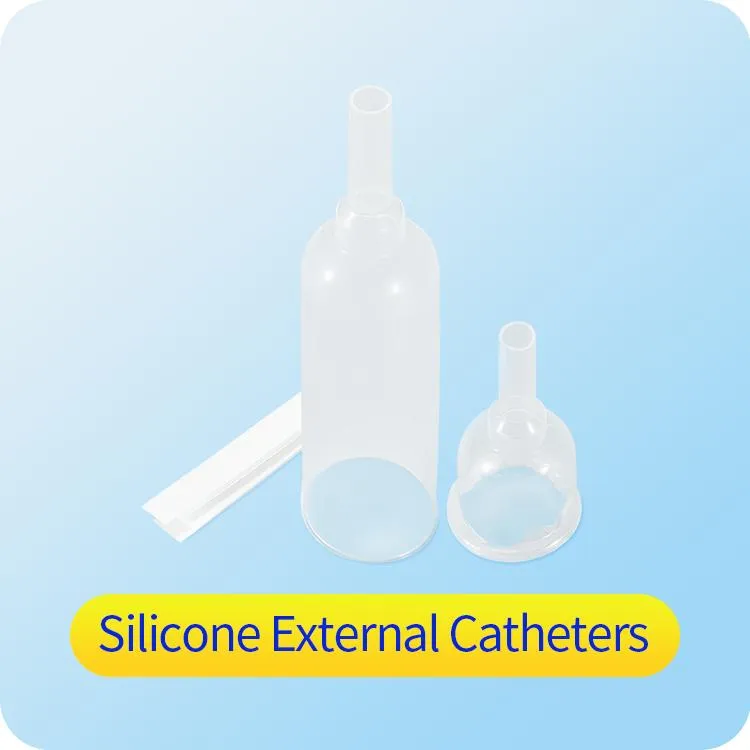

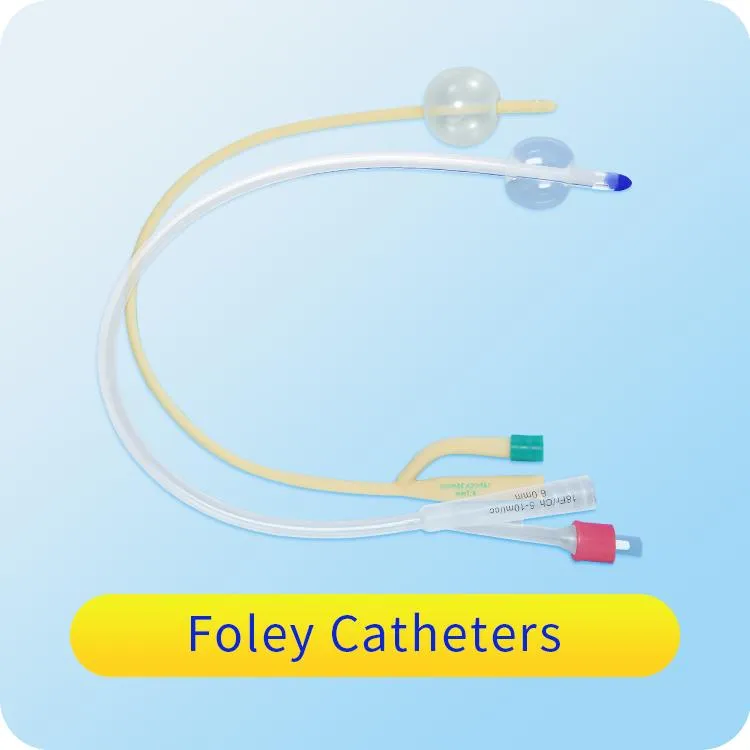

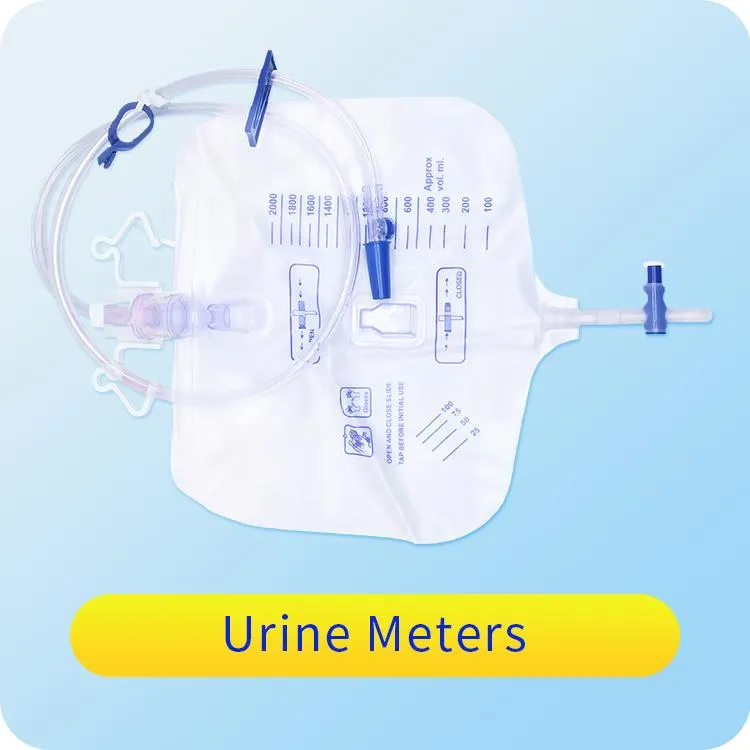

Related Medical Products

📦

Packaging & Certification

❓

Frequently Asked Questions

1. What is the warranty period for the video laryngoscope?

The main unit comes with a one-year free warranty from the date of commissioning. Accessories are covered for half a year.

2. How long is the battery working time?

The device uses a 3500mAh rechargeable lithium battery providing over 5 hours of continuous working time with a charging time of less than 4 hours.

3. What are the sterilization methods for the reusable blades?

The blades can be sterilized using low-temperature hydrogen peroxide gas plasma (HPGP) or glutaraldehyde immersion.

4. What is the lead time for mass production orders?

Normally, for mass production, it takes approximately 15 days to finish the production depending on the specific order quantity.

5. Does the device support image and video recording?

Yes, it features one-button operation for image capture and video recording with 16GB internal memory and automatic coverage of full records.

6. What clinical departments is this suitable for?

It is ideal for Anesthesia, ICU/NICU/CCU, Operating Rooms, Emergency Rescue, Ambulances, and ENT departments for both routine and difficult intubations.
