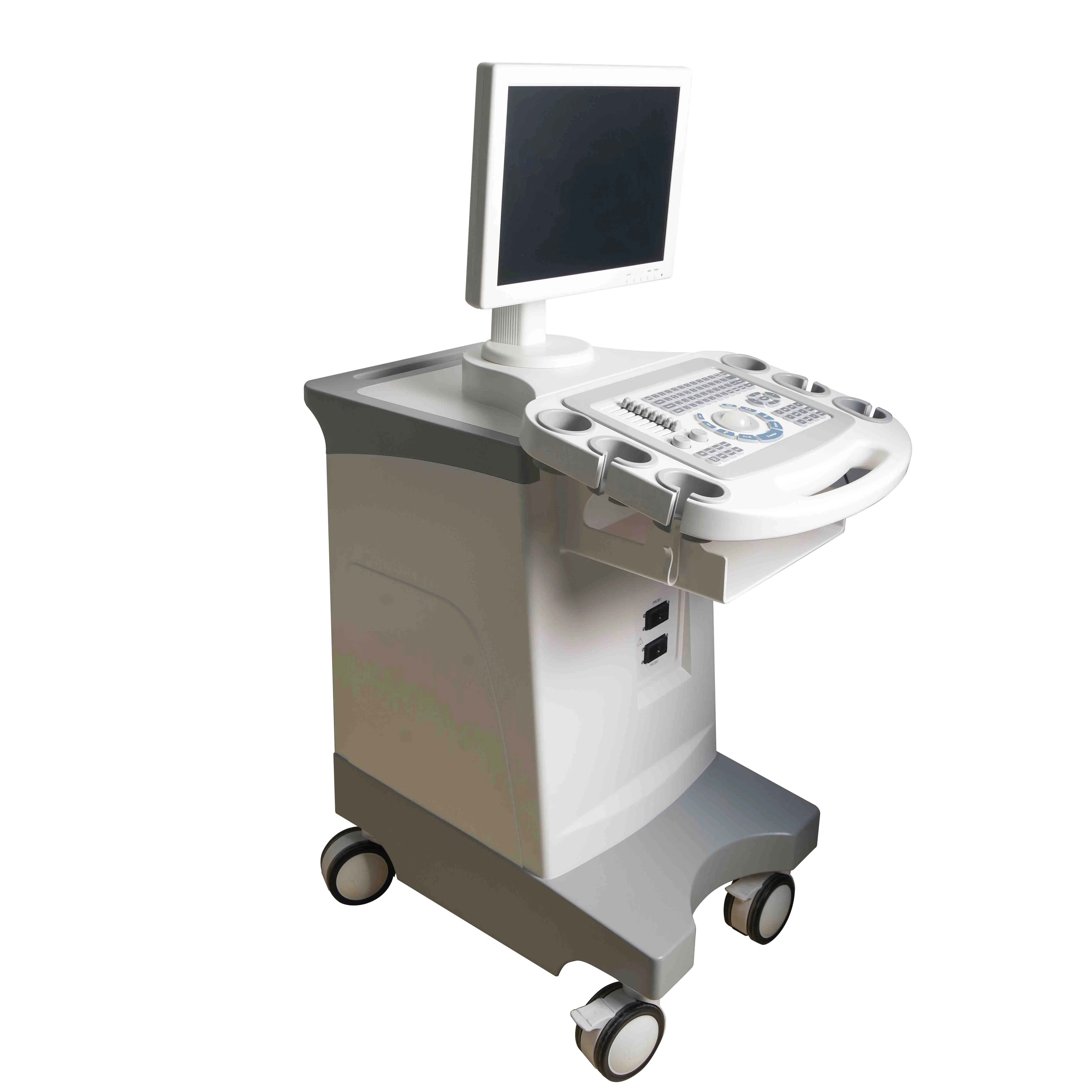

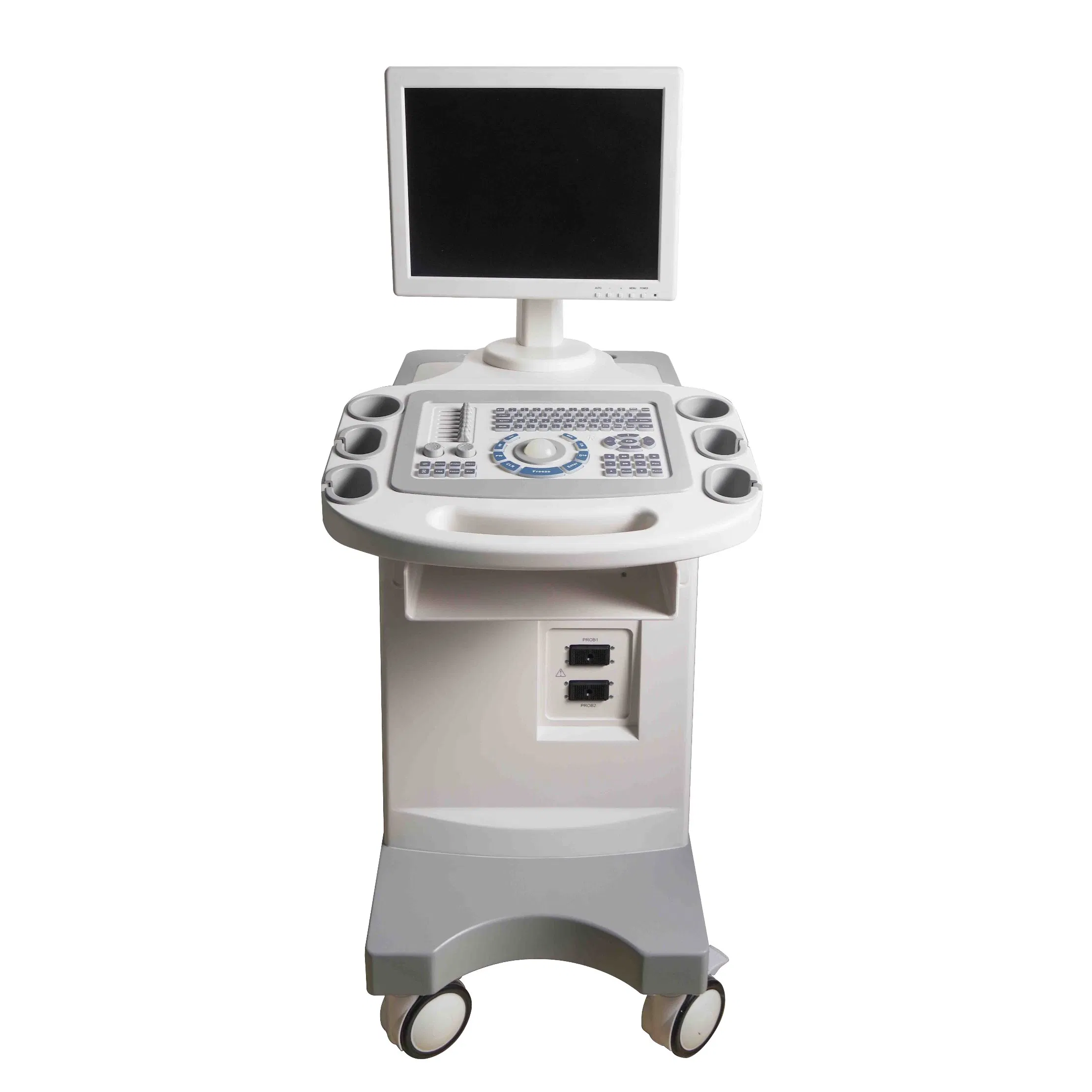

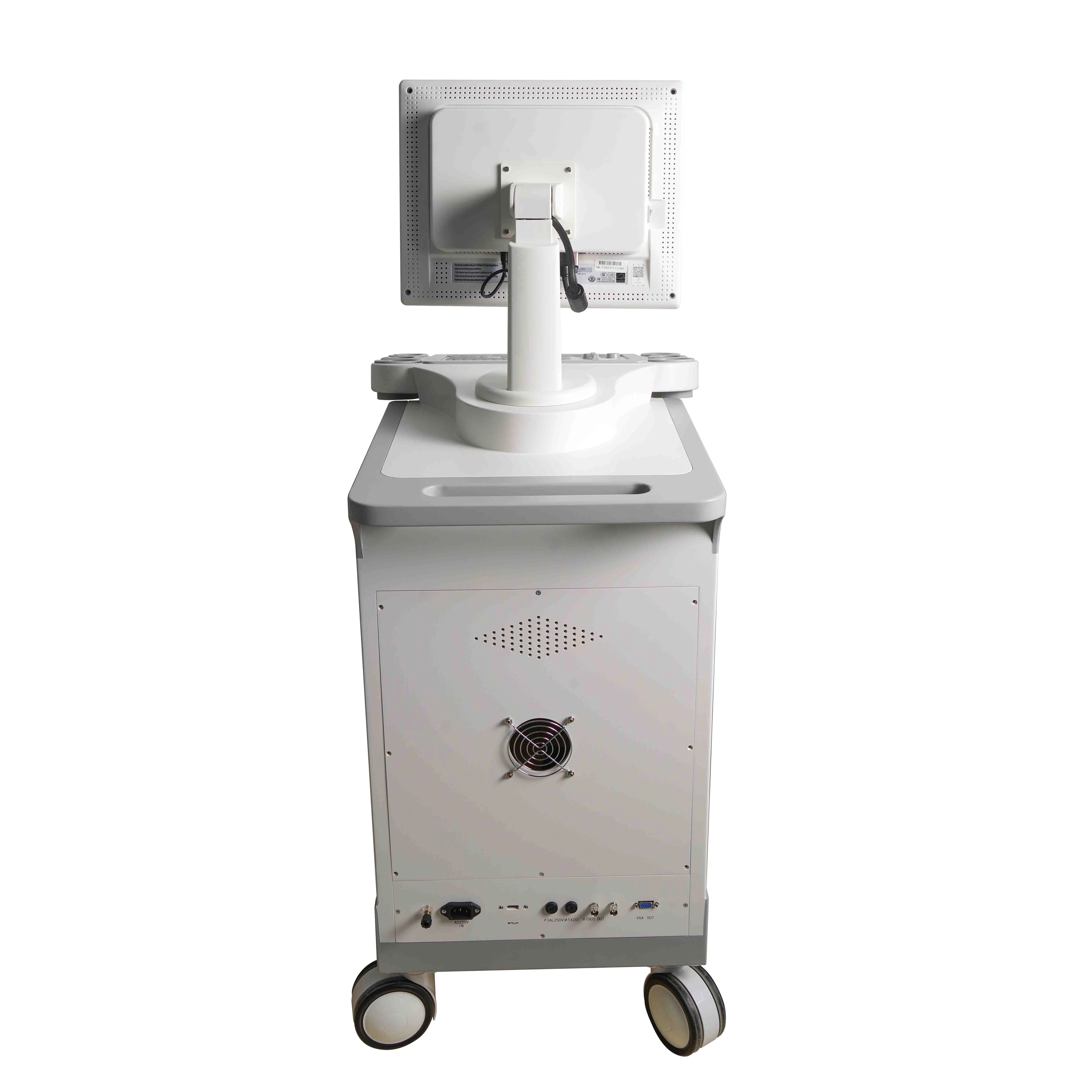

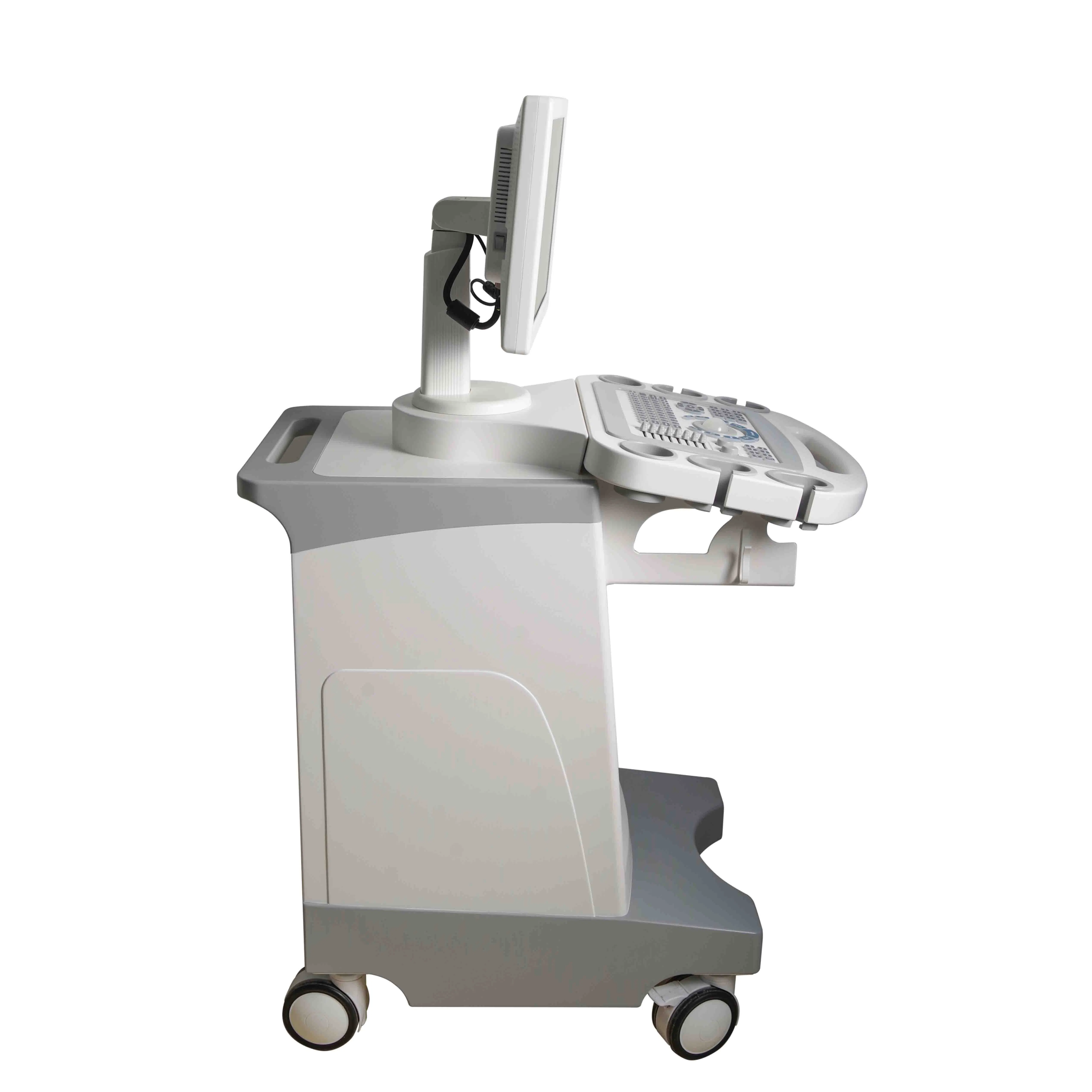

Ut1000 Compact Black and White Ultrasound System with Mobile Trolley
Ut1000 Compact Black and White Ultrasound System with Mobile Trolley
Ut1000 Compact Black and White Ultrasound System with Mobile Trolley
Ut1000 Compact Black and White Ultrasound System with Mobile Trolley
Ut1000 Compact Black and White Ultrasound System with Mobile Trolley
1 / 5
Ut1000 Compact Black and White Ultrasound System with Mobile Trolley
Ut1000 Compact Black and White Ultrasound System with Mobile Trolley
Ut1000 Compact Black and White Ultrasound System with Mobile Trolley
Ut1000 Compact Black and White Ultrasound System with Mobile Trolley
Ut1000 Compact Black and White Ultrasound System with Mobile Trolley

Ut1000 Compact Black and White Ultrasound System with Mobile Trolley

Customization: Available
Customized: Customized
Certification: CE, FDA, ISO13485
Send Inquiry

Product Description

UT1000 Trolley Black and White Ultrasound Diagnostic Instrument

A professional compact diagnostic system featuring a 15.1-inch LED monitor and advanced imaging modes for versatile clinical applications.

Basic Information
Model NO.
UT1000
Scale
Large
Language
En, Cn
Monitor
15.1 Inch LED
Warranty
12 Months
Probe Interface
2 Active Probes
Specification
800X520X990mm, 22KG
Production Capacity
1200/Year
Product Description & Key Features
Display Modes
B, B/B, 4B, B+M, M
Imaging Quality
256 levels gray scale, 16 kinds of pseudo color
Storage
Permanent storage for 128 images, 256 consecutive cine loop
Control
8 segments TGC and overall gain adjustment

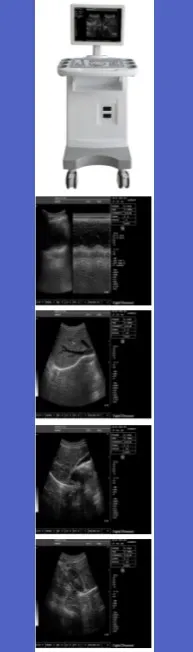

UT1000 Ultrasound System Trolley
Main Parameters • Dynamic range: 0~120dB adjustable
• E-zoom: magnify 2 times of real-time image
• Focus position: dynamic electron focusing
• Frequency conversion: 2.5MHz - 7.5MHz support (depending on probe)
Output Interface • USB Video Output (1 group)
• SVGA Video Output (1 group)
• PAL Video Output (1 group)
• USB Port for printer connection and reports
Product Gallery & Options

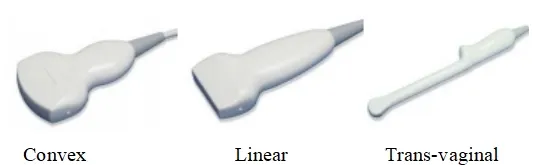

Optional Probes
Detail 1
Detail 2
Detail 3

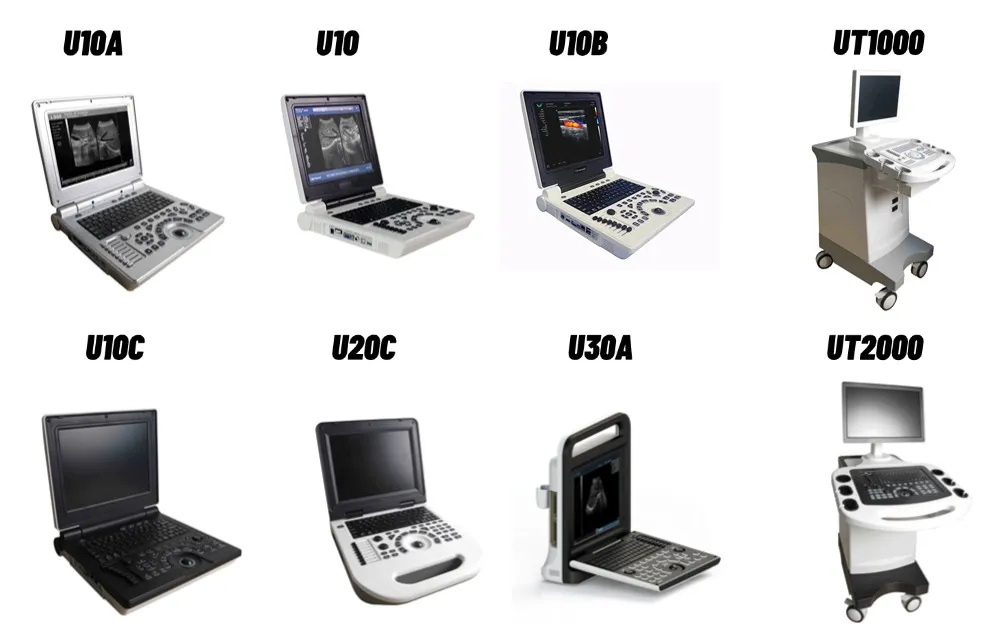

Clinical Display
Full System Overview
Frequently Asked Questions
What type of display does the UT1000 use?
The system is equipped with a high-resolution 15.1-inch LED player with backlight keys for easier operation in dim environments.

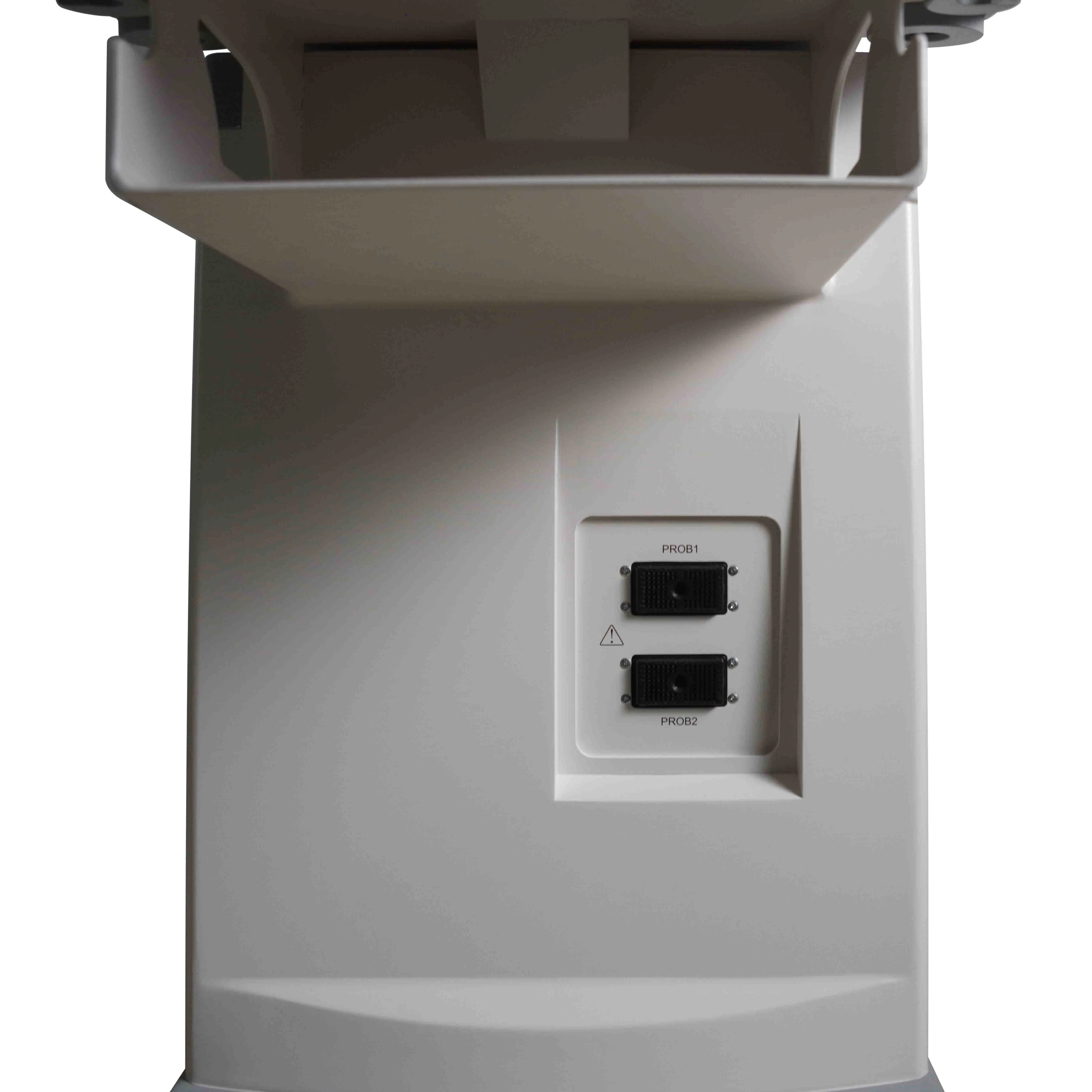

How many probe interfaces are available?
The UT1000 features 2 active probe interfaces, allowing for quick switching between different types of scans.
Can I save images directly on the machine?
Yes, the device supports permanent storage for up to 128 images and a cine loop capacity of 256 consecutive images.
What imaging modes are supported?
The system supports multiple display modes including B, B/B, 4B, B+M, and M-mode.
Does the system support external connectivity?
Yes, it includes USB, SVGA, and PAL video outputs. The USB port allows connection to a common printer for printing measurement reports.
What is the warranty period for the UT1000?
The UT1000 ultrasound diagnostic instrument comes with a standard 12-month warranty.
