Customization: Available
After-sales Service: Engineers Available for Technology Assistence
Warranty: 12 Months
Send Inquiry

Product Description

Basic Specifications
Model NO.
YTH
Type
Polymer Dosing Machine
Method
Chemical Treatment
Usage
Industrial, Agriculture, Hospital, Municiple, Farming, Restaurant Sewage etc.
PAM Dosage
1-25 Kg/H
Water Inflow
0.3-12 M3/H
Capacity
500-6000 L/H
Material
SS304
Protection Level
IP55 F
HS Code
8479820090
Product Overview

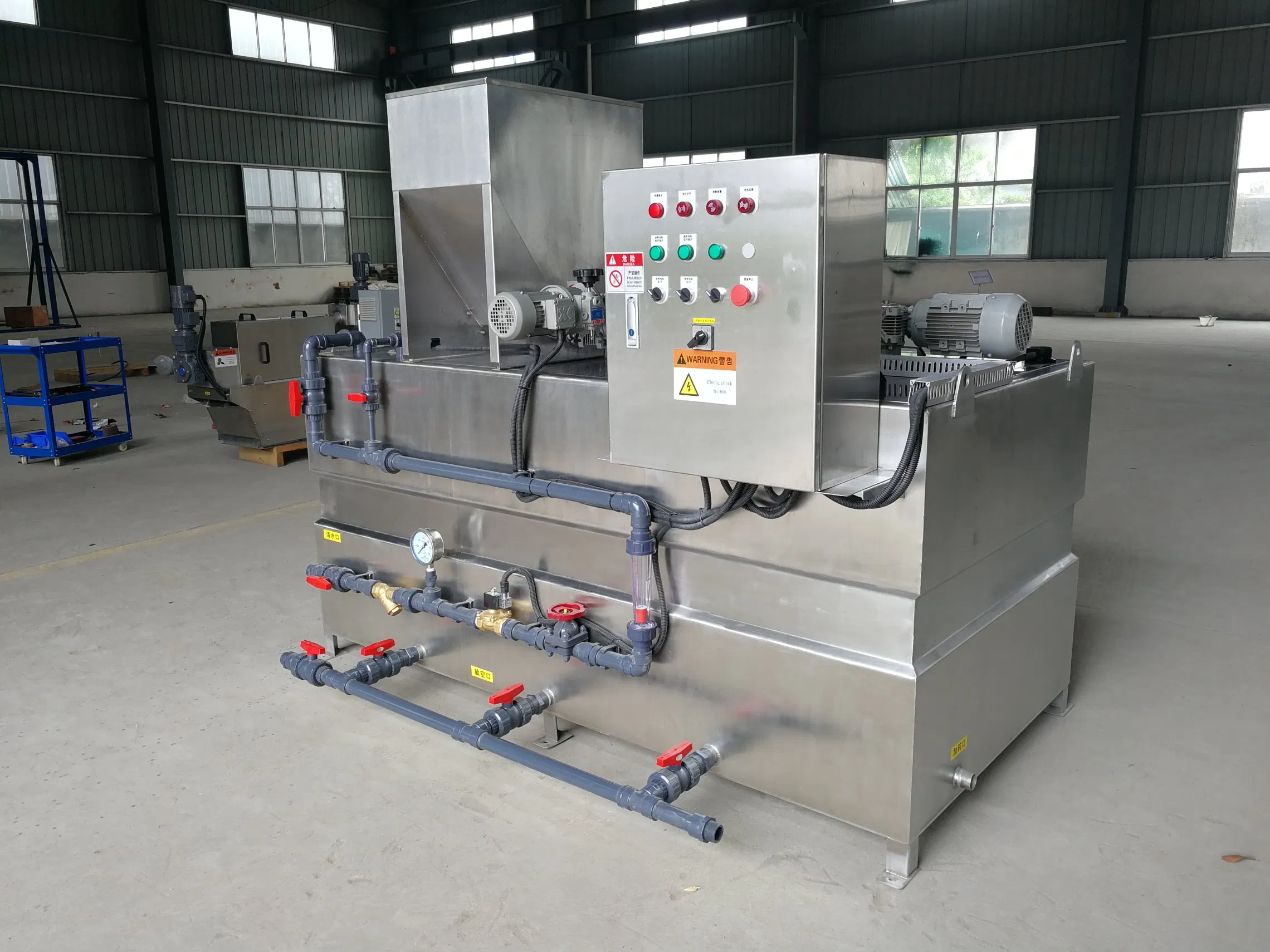

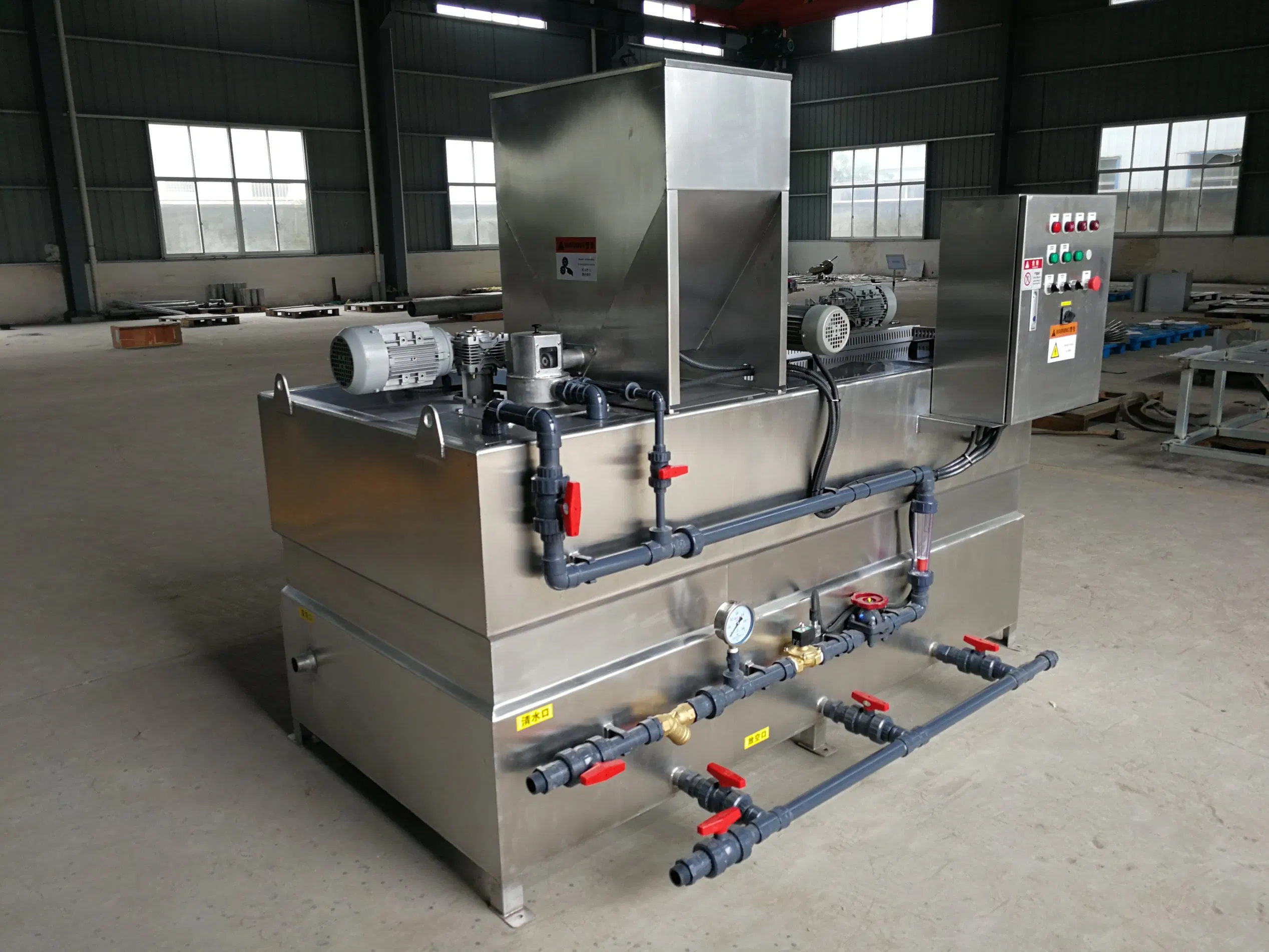

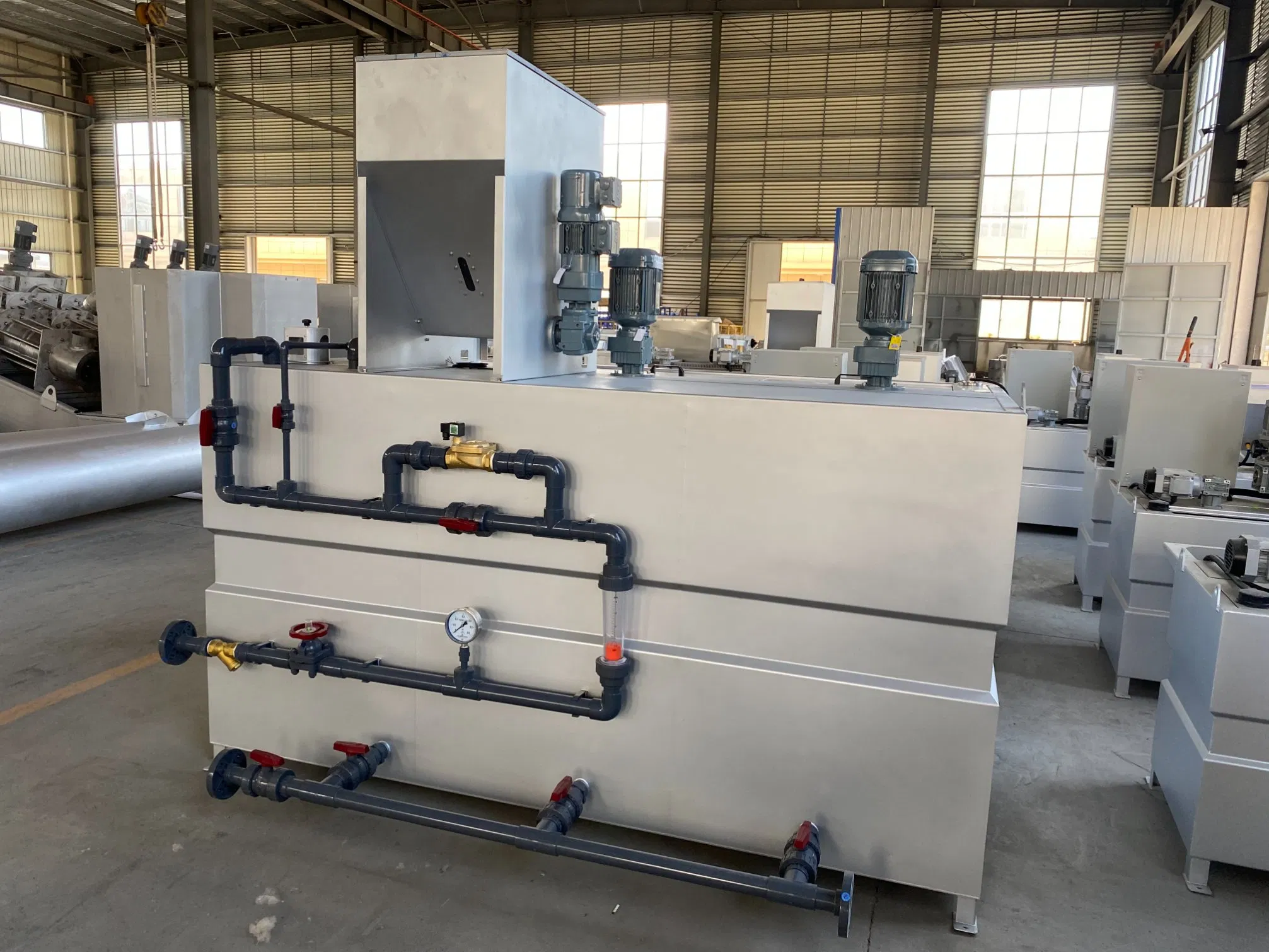

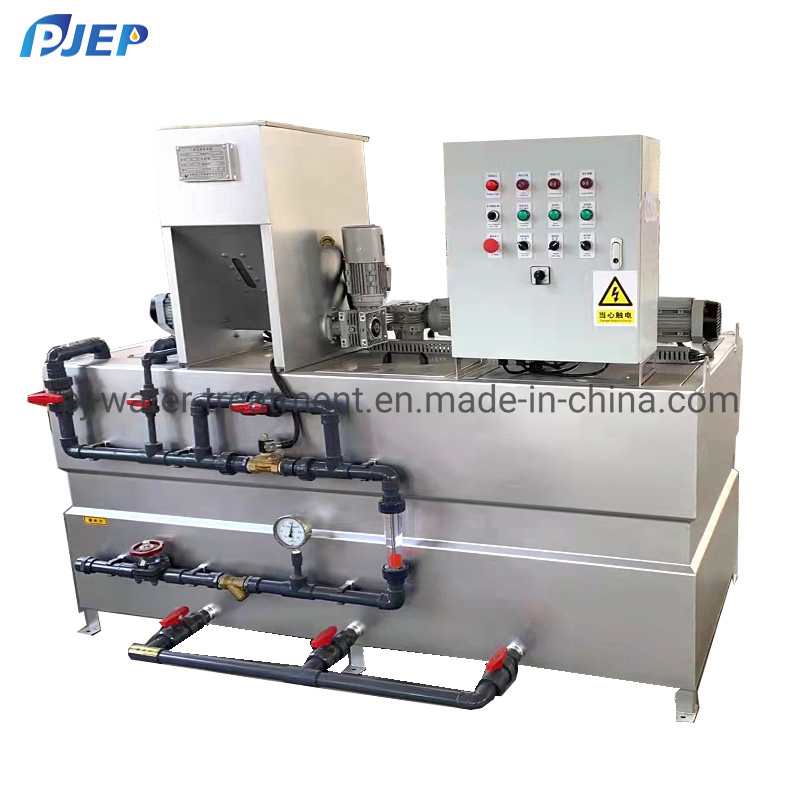

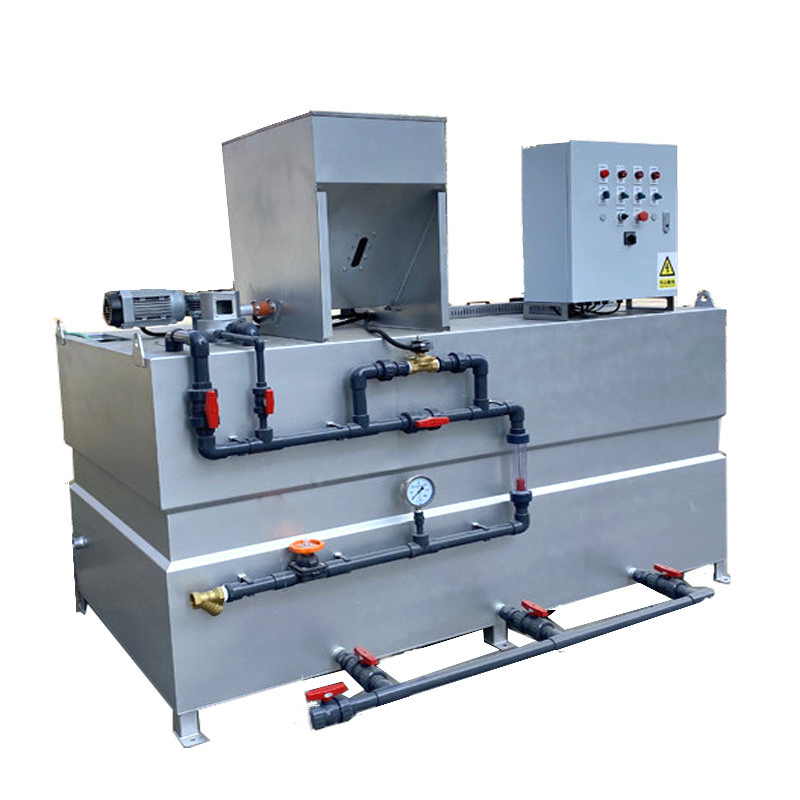

The automatic polymer dosing machine is widely used in the waste water treatment, it can mix the compounds continuously and effectively, so the reactive polymer solution appears. The machine includes different parts: dry powder hopper, infiltration device, Tank, Level controller, Mixer, water inlet pipe, and Electric cabinet.

Dosing Equipment Dosing Machine
Key Features
  • Fully automatic operation & integrated with automatic dosing, dissolving and feeding.
  • Highly precise dry polymer dosing device and well-designed heater device to prevent polymer caking.
  • Adjustable dosage of dry polymer and water for precise solution concentration preparation.
  • Integrated electric control cabinet for full process management with low-powder alarm warnings.
  • Optional configurations: Vacuum feeding machine and on-line dilution system.
  • Tank material options: SS304 or SS316, Polypropylene PP, FRP, etc.
Models & Specifications
Model Item YTH 500 YTH 1000 YTH 1500 YTH 2000 YTH 3000 YTH 4000 YTH 5000 YTH 6000
Capacity (L/h) 500 1000 1500 2000 3000 4000 5000 6000
Power (kw) 0.94 2.45 2.45 2.62 4.89 4.89 4.89 4.89
PAM dosage (kg/h) 1~5 2~10 3~15 3.5~20 4.5~25
Water inlet (m³/h) 0.3~1.5 0.6~3 0.9~4 1.2~6 2.0~10 2.4~12 2.4~12 2.4~12
N.W. (kg) 250 400 490 550 700 770 960 1050
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional factory specializing in the production of wastewater treatment equipment.
Do you provide OEM services?
Yes, we provide OEM services and can accommodate required logos on the equipment.
What is your annual production capacity?
Our facility produces more than 3,000 sets of machines per year.
How long is the product warranty?
The warranty period is one year after the arrival of the goods.
What is the standard packaging for export?
We typically use anti-corrosion wooden cases to ensure safe international transport.
What are the available materials for the dosing tank?
The tanks can be manufactured from SS304, SS316, Polypropylene (PP), or FRP depending on customer requirements.
