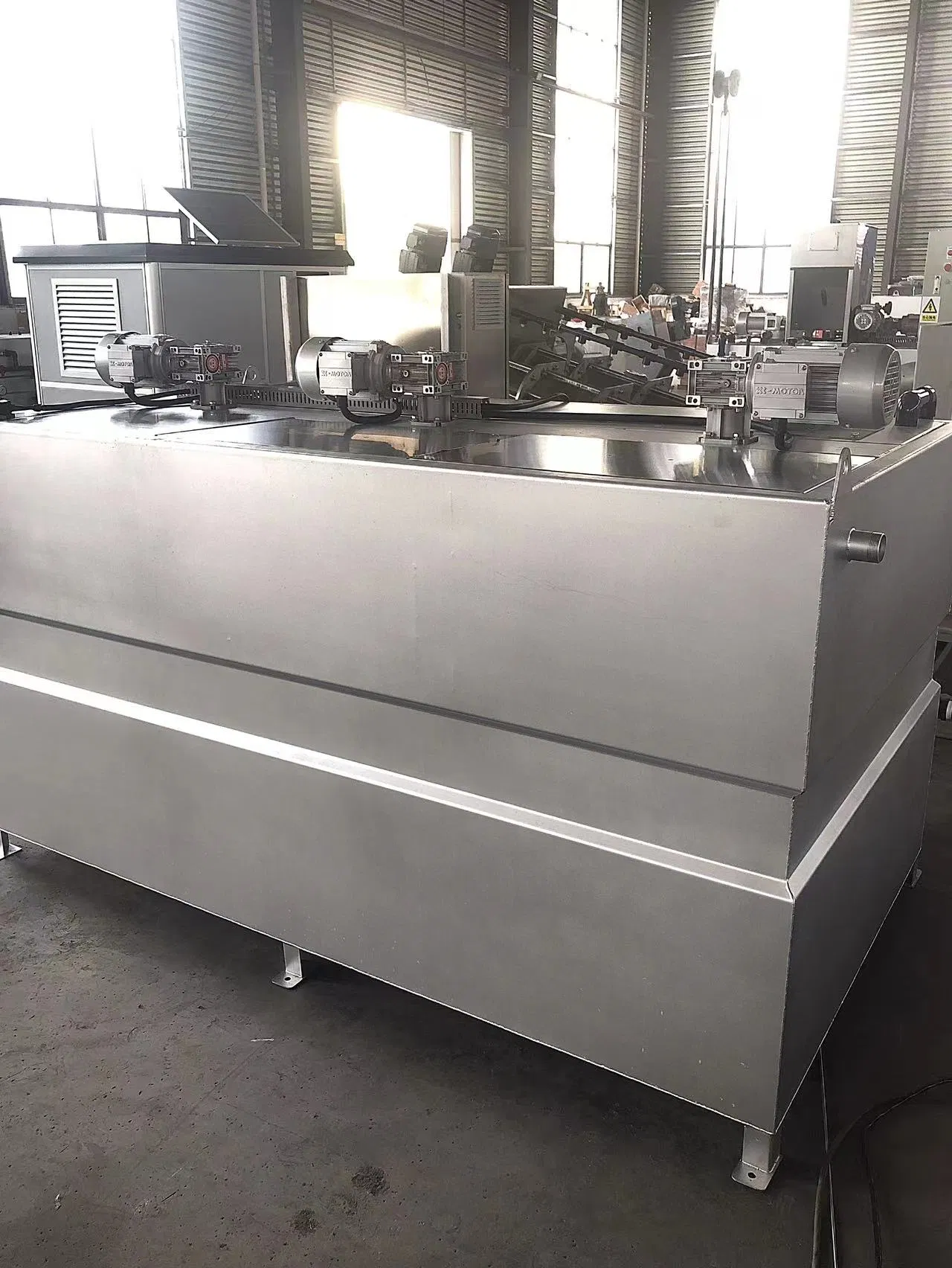

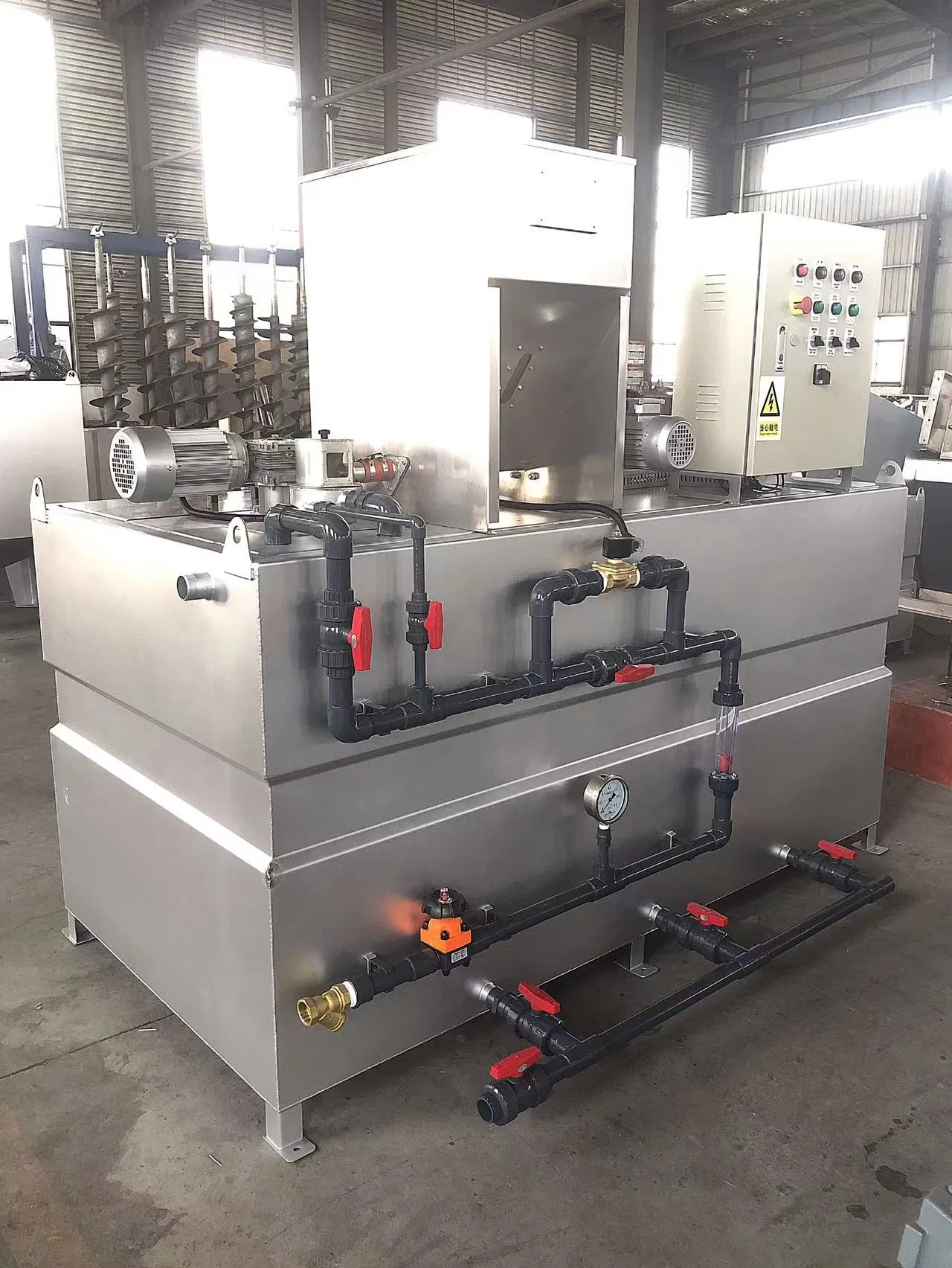

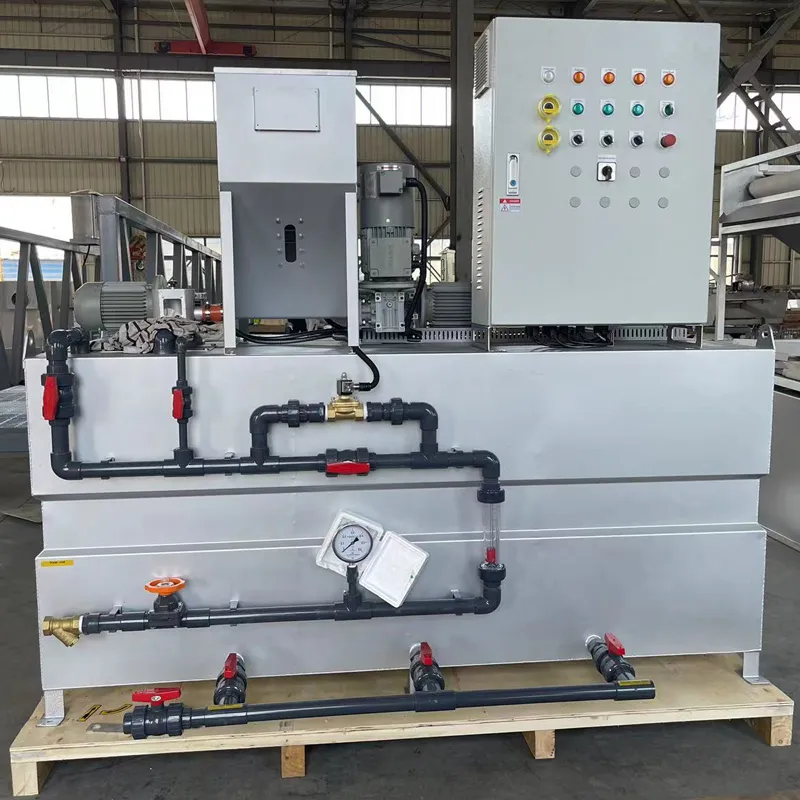

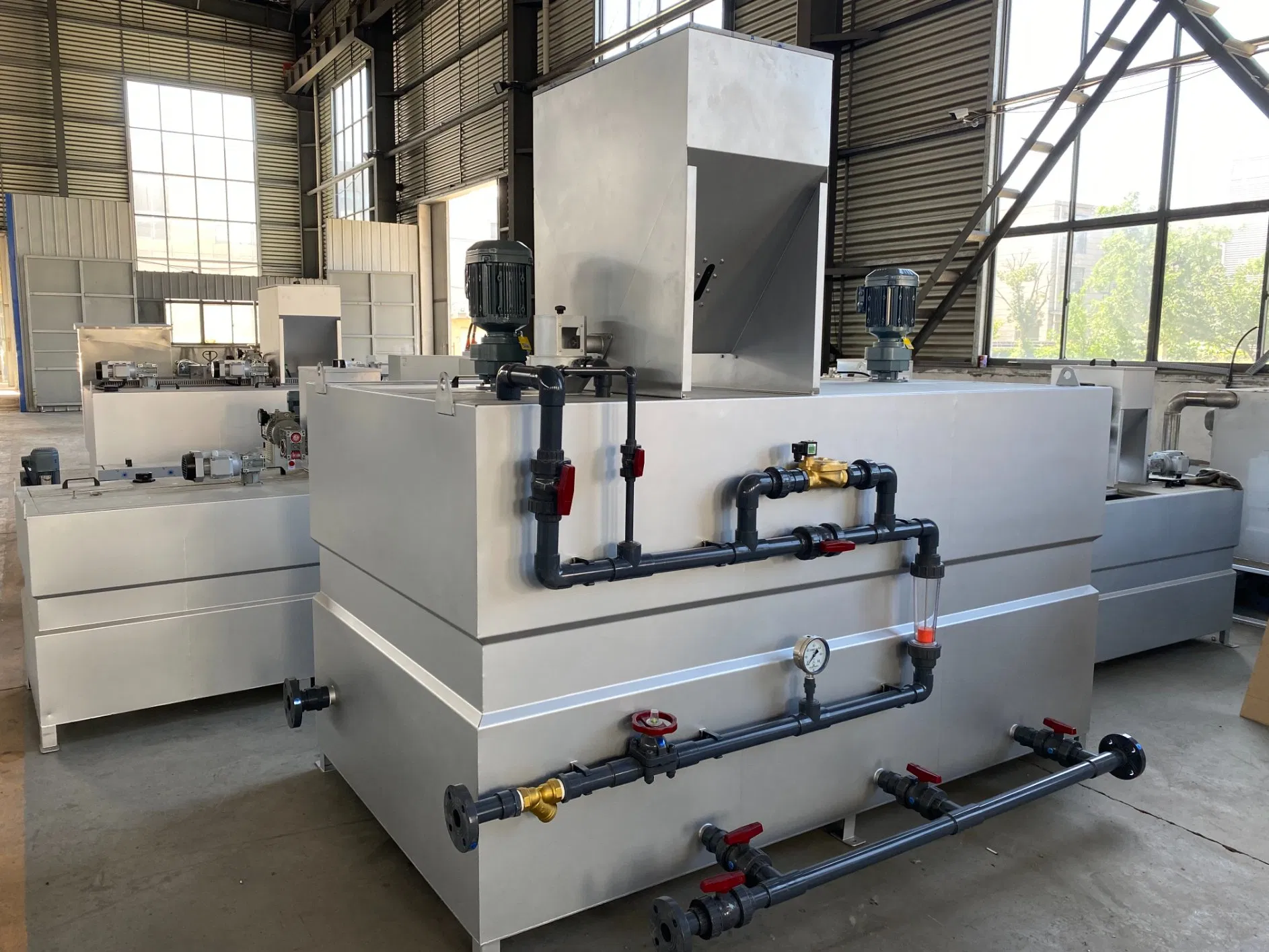

The automatic polymer dosing machine is widely used in wastewater treatment. It can mix compounds continuously and effectively to produce a reactive polymer solution. The system integrates multiple components including a dry powder hopper, infiltration device, tank, level controller, mixer, water inlet pipe, and electric cabinet.
Core Features
Fully automatic operation integrated with dosing, dissolving, and feeding.
High-precision dry polymer dosing and heating device to prevent caking.
Adjustable dosage for precise solution concentration preparation.

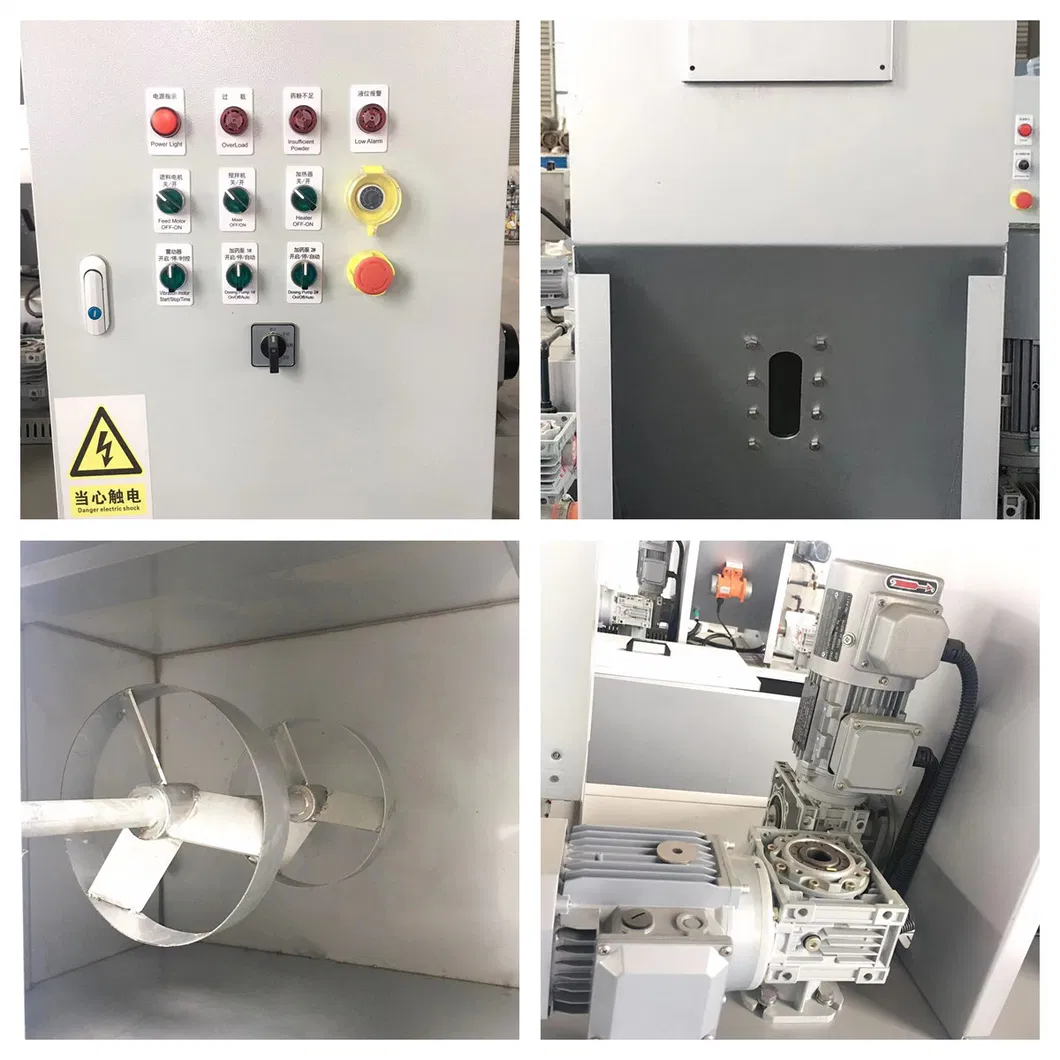

Smart electric control cabinet with low-position powder alarms.
Multiple tank material options: SS304, SS316, PP, or FRP.
Optional vacuum feeding and on-line dilution systems available.

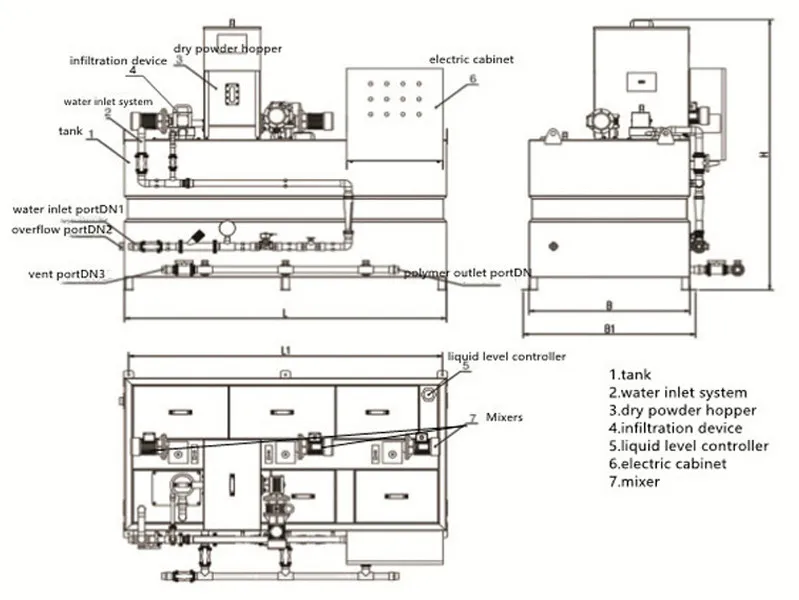

Structure Diagram
Models & Specifications
Model Item
YTH 500
YTH 1000
YTH 1500
YTH 2000
YTH 3000
YTH 4000
YTH 5000
YTH 6000
Capacity (L/h)
500
1000
1500
2000
3000
4000
5000
6000
Power (kw)
0.94
2.45
2.45
2.62
4.89
4.89
4.89
4.89
PAM dosage (kg/h)
1~5
2~10
3~15
3.5~20
4.5~25
Water inlet (m³/h)
0.3~1.5
0.6~3
0.9~4
1.2~6
2.0~10
2.4~12
2.4~12
2.4~12
N.W. (kg)
250
400
490
550
700
770
960
1050
Exhibition & Application
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional factory specializing in the production of wastewater treatment equipment.
Do you provide OEM services?
Yes, we offer OEM services and can incorporate any required logos.
What is your annual production capacity?
Our facility produces more than 30,000 sets of machinery per year.
How long is the product warranty?
We provide a one-year warranty starting from the arrival of the goods.
What is the typical delivery time?
Normally, delivery is completed within 45 days after receiving the down payment.
What kind of packaging is used for export?
We typically use anti-corrosion wooden cases to ensure the safety of the equipment during transit.
