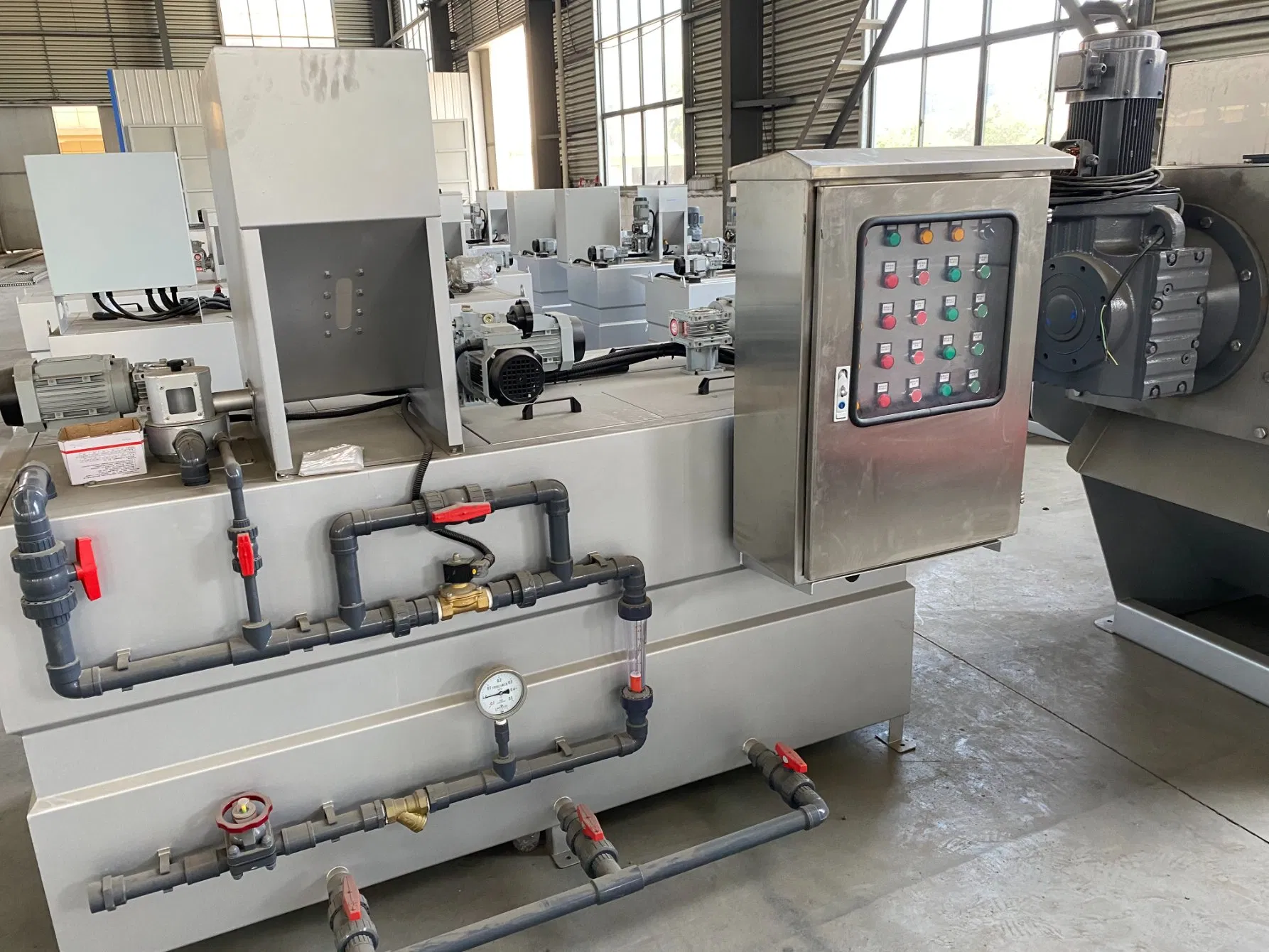

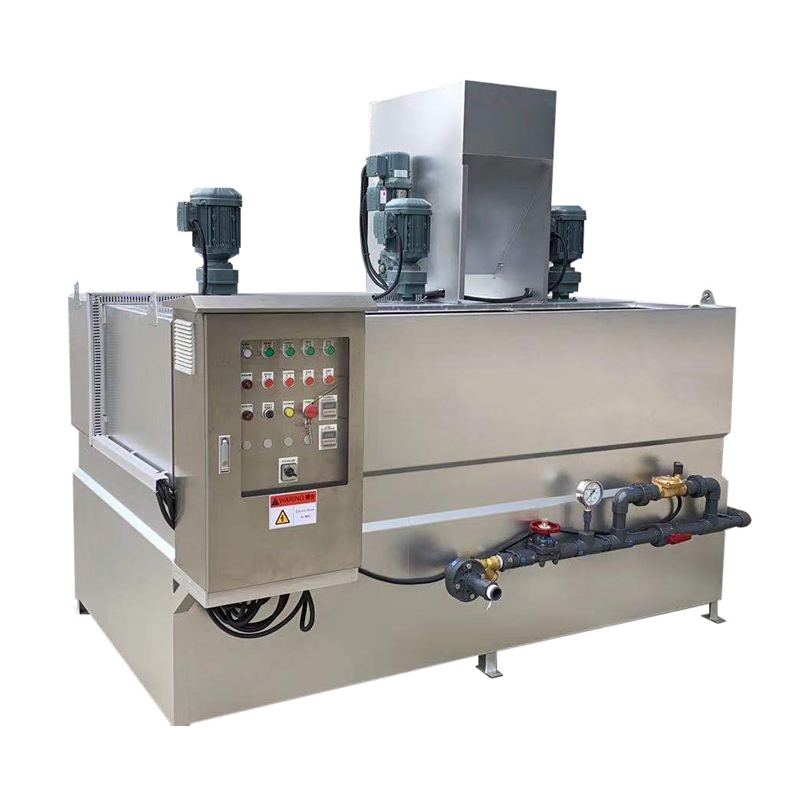

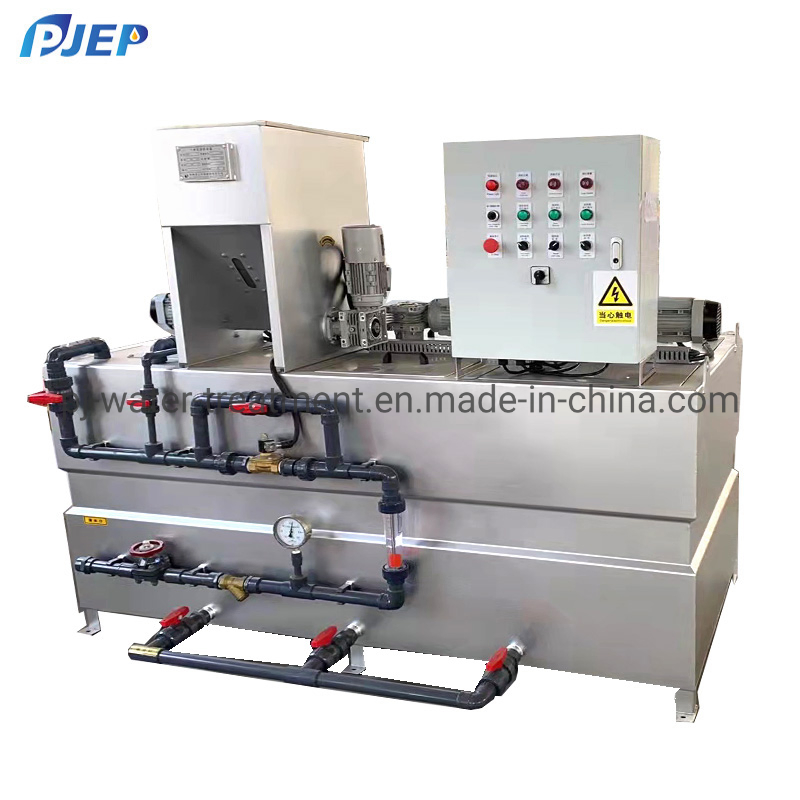

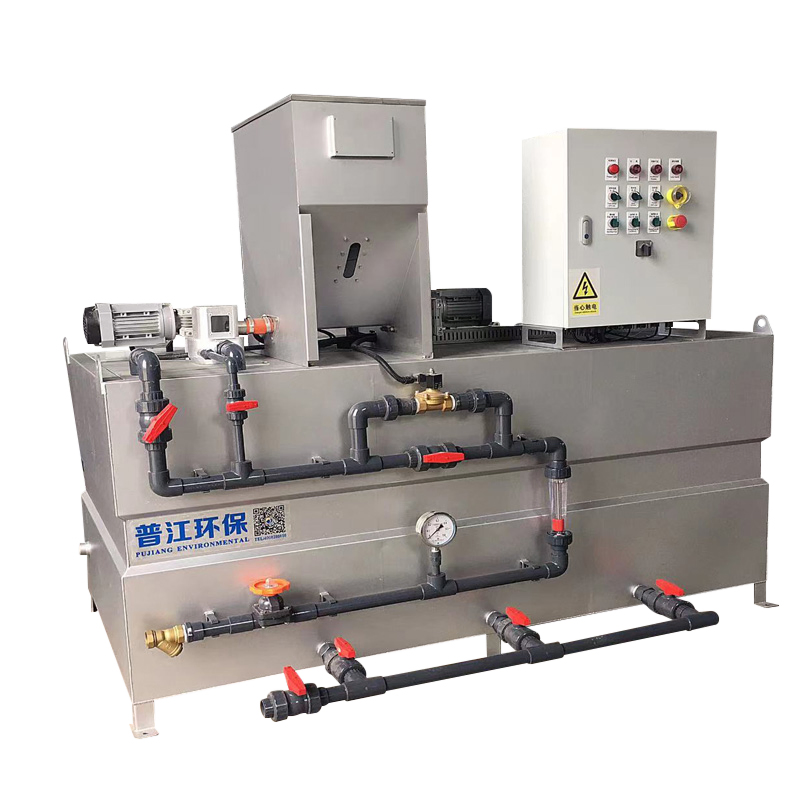

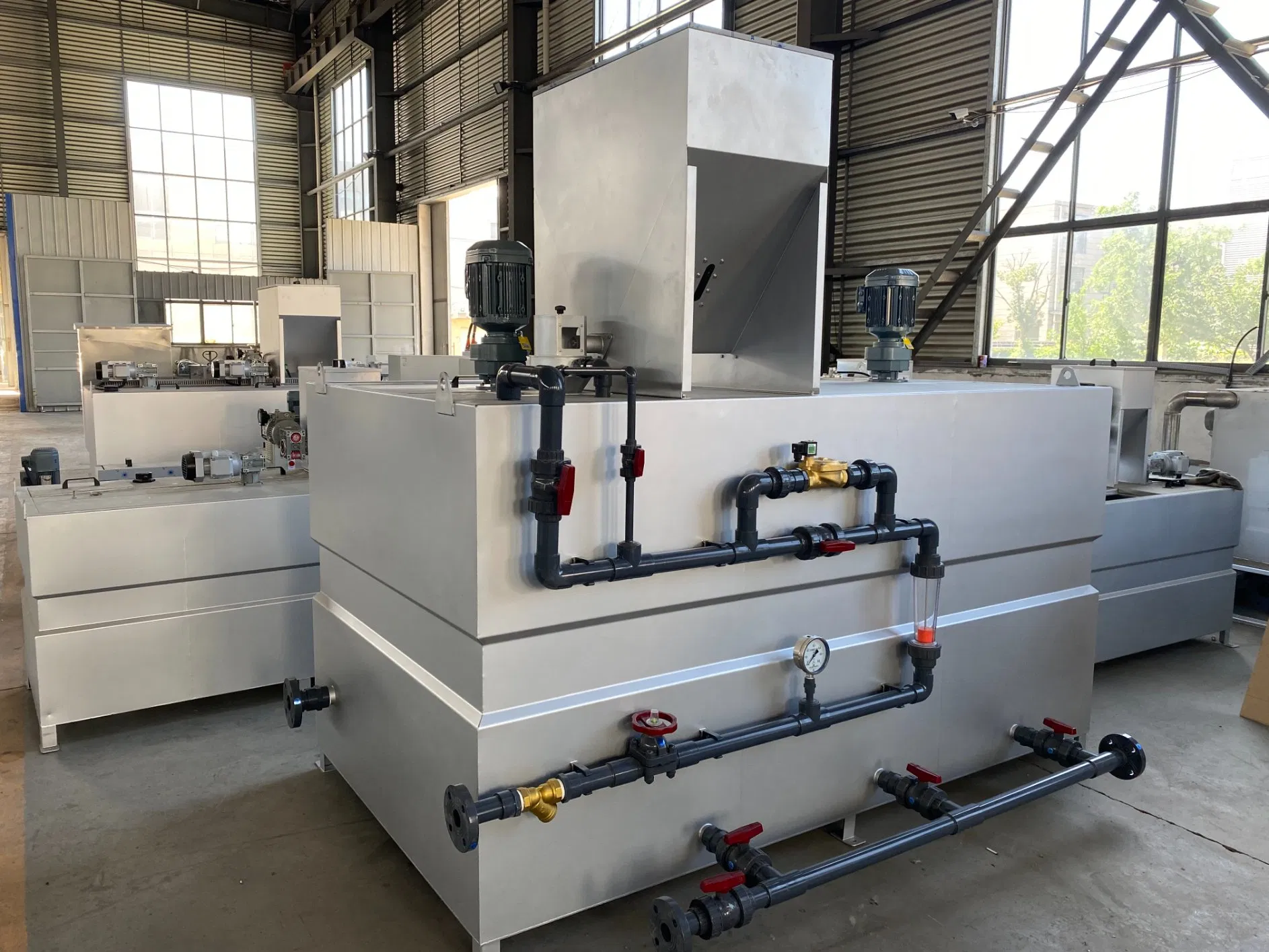

The automatic polymer dosing machine is widely used in wastewater treatment. It can mix compounds continuously and effectively to produce a reactive polymer solution. The machine consists of several key components: dry powder hopper, infiltration device, tank, level controller, mixer, water inlet pipe, and electric cabinet.
| Model Item | YTH 500 | YTH 1000 | YTH 1500 | YTH 2000 | YTH 3000 | YTH 4000 | YTH 5000 | YTH 6000 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (L/h) | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | ||
| Power (kw) | 0.94 | 2.45 | 2.45 | 2.62 | 4.89 | 4.89 | 4.89 | 4.89 | ||
| PAM dosage (kg/h) | 1~5 | 2~10 | 3~15 | 3.5~20 | 4.5~25 | |||||
| Water inlet (m³/h) | 0.3~1.5 | 0.6~3 | 0.9~4 | 1.2~6 | 2.0~10 | 2.4~12 | 2.4~12 | 2.4~12 | ||
| Reference Dimension (mm) | L | 1370 | 2000 | 2130 | 2200 | 2400 | 2720 | 2700 | 2970 | |
| B | 680 | 1000 | 1070 | 1200 | 1300 | 1400 | 1500 | 1600 | ||
| H | 1485 | 1770 | 1810 | 1970 | 2270 | 2355 | 2222 | 2322 | ||
| N.W. (kg) | 250 | 400 | 490 | 550 | 700 | 770 | 960 | 1050 | ||
Our facility features strong manufacturing capacity, first-class workshops, and advanced processing facilities. We regard product quality as our core priority, having established a complete process control and management system covering research, development, raw material procurement, manufacturing, and quality inspection. We focus on environmental equipment, including sludge treatment and sewage treatment systems.
Our range includes screw press sludge dewatering machines, polymer dosing machines, screw conveyors, sludge hoppers, solid-liquid separators, and sand-water separators. These products are widely used in municipal sewage, petrochemical, food and beverage, aquaculture, pharmaceutical, and textile industries.
