Model NO.
E40B+KS-ELS100A+EM32-4KA+KS-N8002
Certification
CE, ISO13485, ISO 9001, EMC/LVD, RoHS
Image Resolution
3840X2160p (4K)
Video Output
SDI, HDMI, USB 3.0, DVI, RJ45
Illumination
up to 2,000,000lux
Screen Size
7 Inch with Display Function

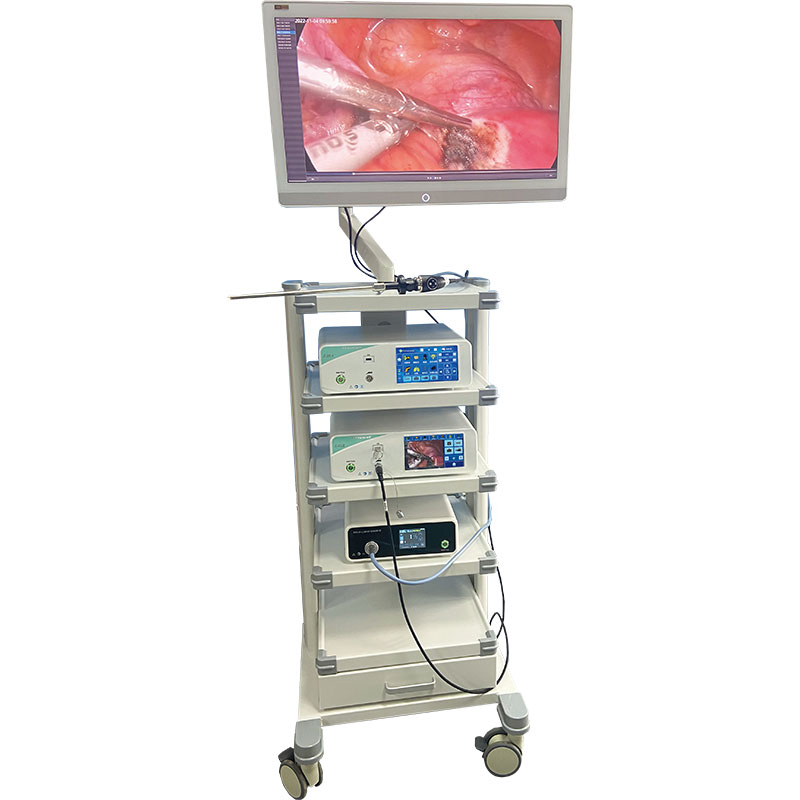

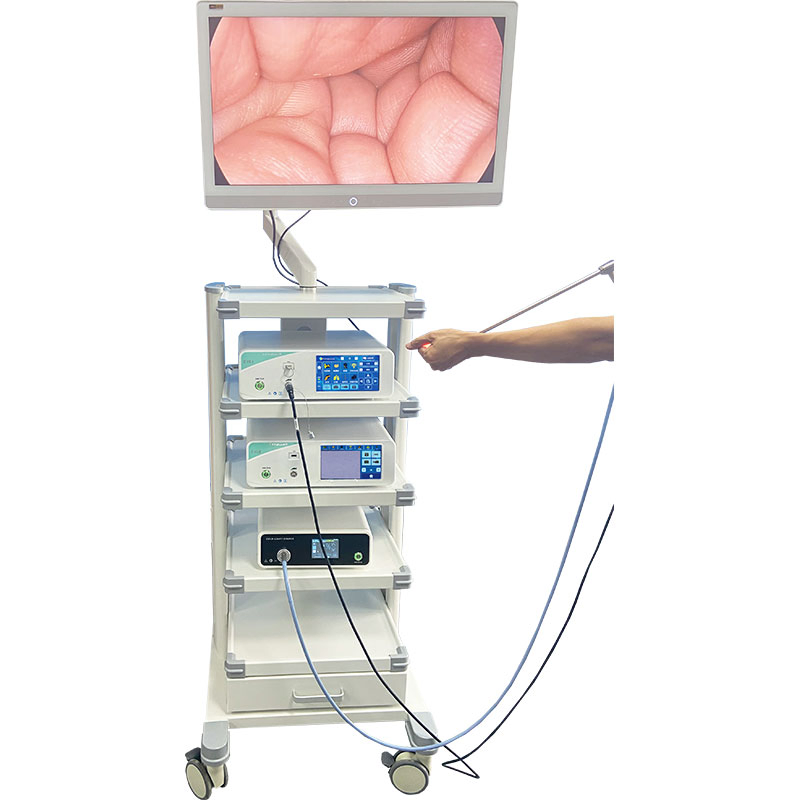

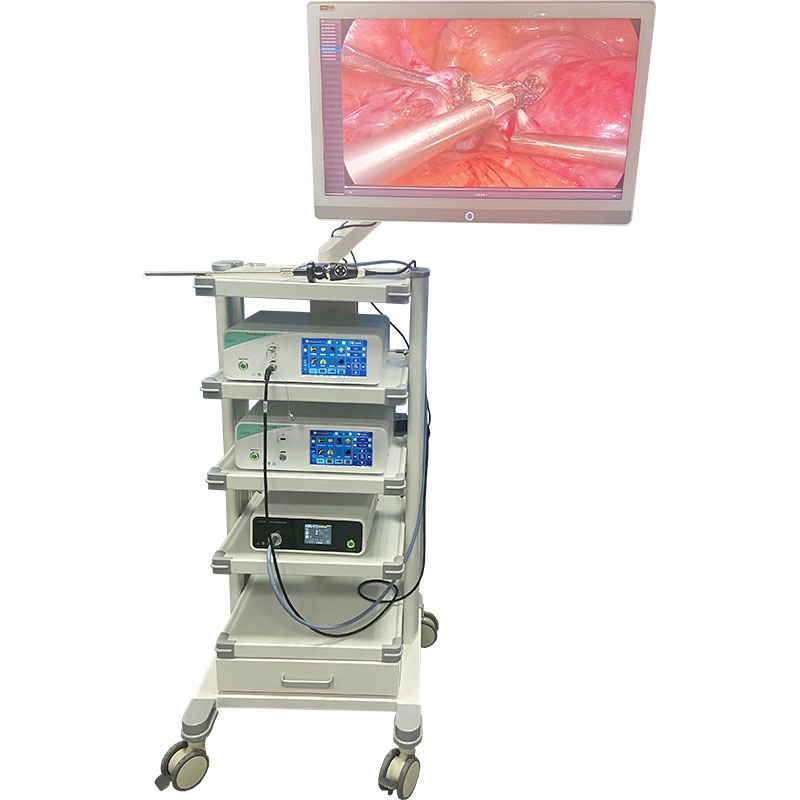

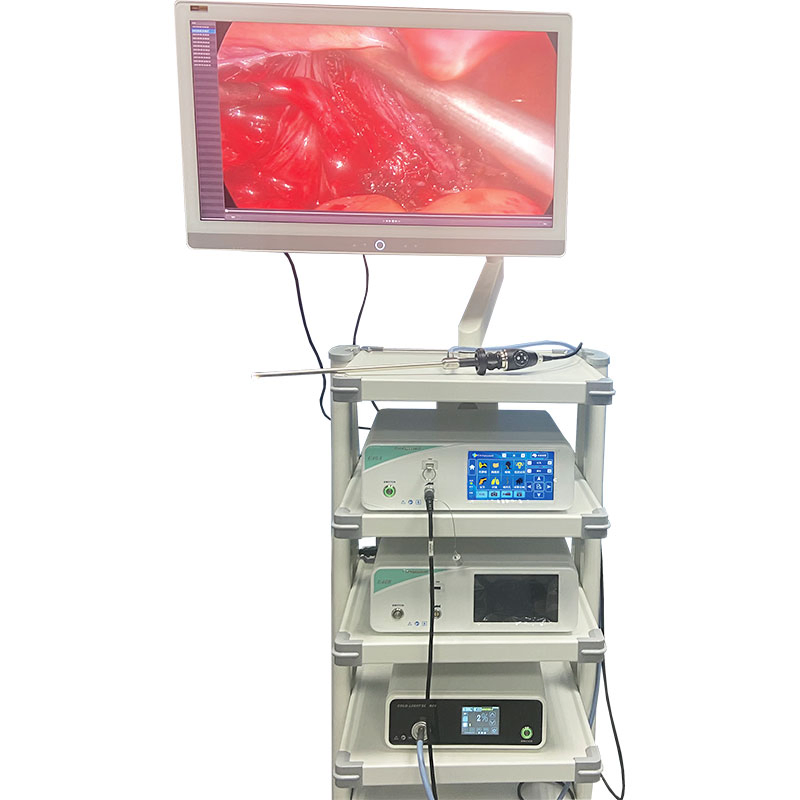

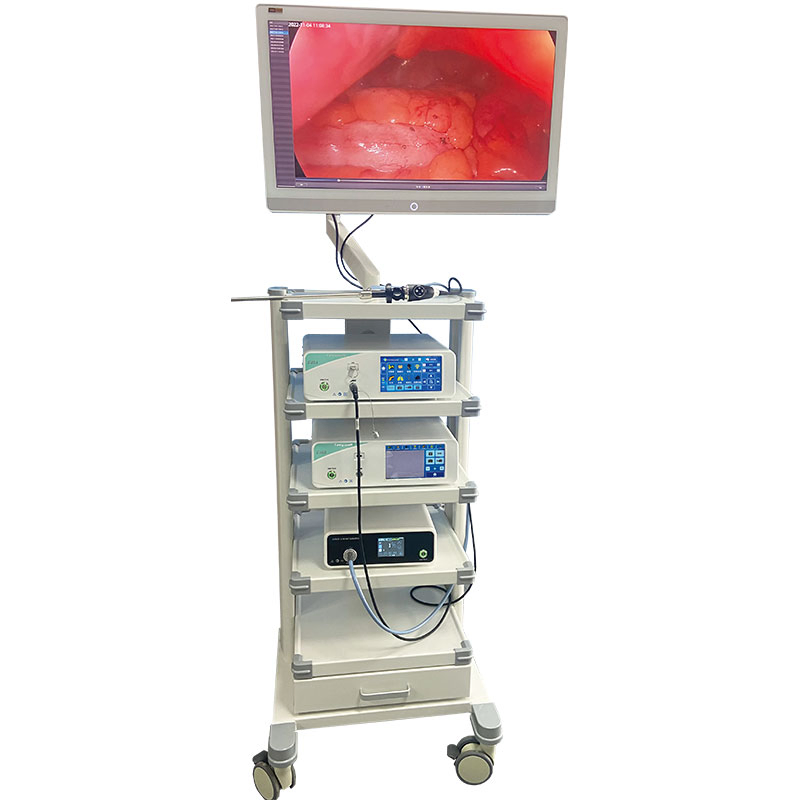

UHD Endoscopy Camera System with Light Source, Monitor and Endo Trolley (E40B+KS-ELS100A+EM32-4KA+KS-N8002)
The resolution of 4K Endoscopy camera is 3840 x 2160, it can present doctors with more excellent endoscopic images, and the ultra-high processing chip realized rich color gamut. FPGA image processing algorithms can achieve stronger noise reduction, sharpening, brightness, contrast and extinction functions, and better meet the needs of doctors in the diagnosis of complex surgical treatment. 4K ultra image processing chip technology. 40,000 hours long working life of 80W light source. 32-inch 4K Ultra HD Multi-display allows doctor and nurse to see the real-time operation live.

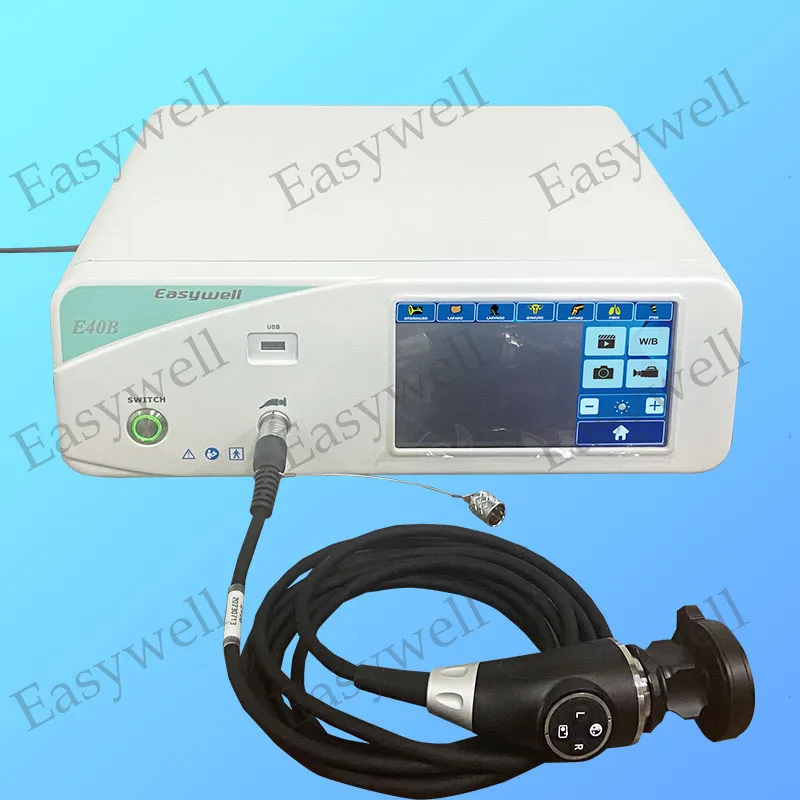

Technical Features: E40A / E40B
| Image sensor |
1/1.8" 1/1.2'' COMS |
Touch Screen |
7 inch, E40B(display function) |
| Resolution |
3840x2160p |
Storage |
USB disk or Hard disk |
| Color Temp |
3500k/6500k/7500k |
C type coupler |
F=32mm standard (F=18/35mm optional) |
| Recording |
3840x2160p |
Video output |
SDI, HDMI, USB 3.0, DVI, RJ45 |
| LED Life |
50,000 Hours |
Illumination |
> 2,000,000 Lux |

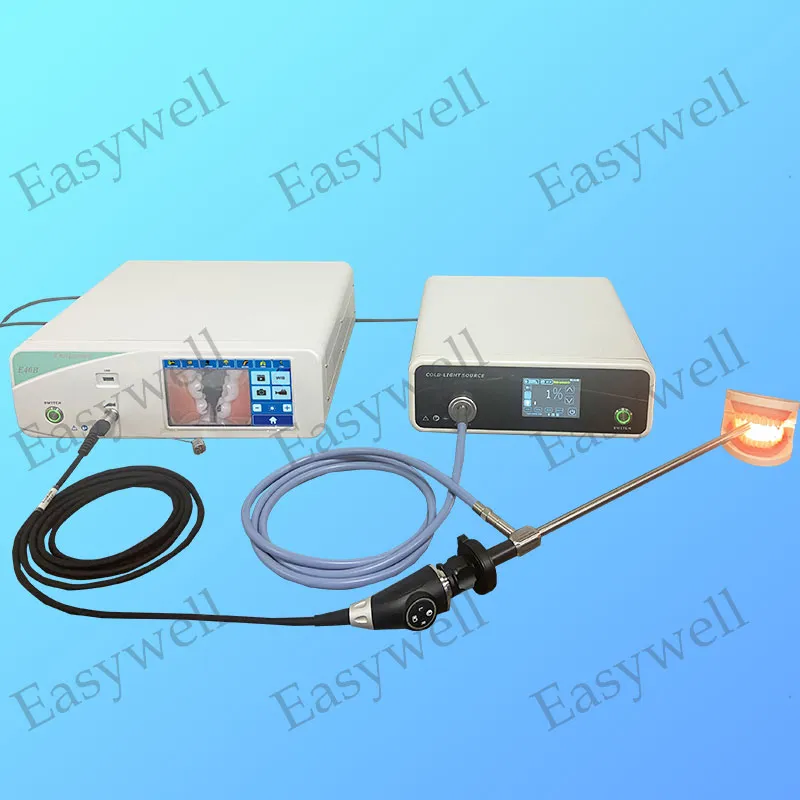

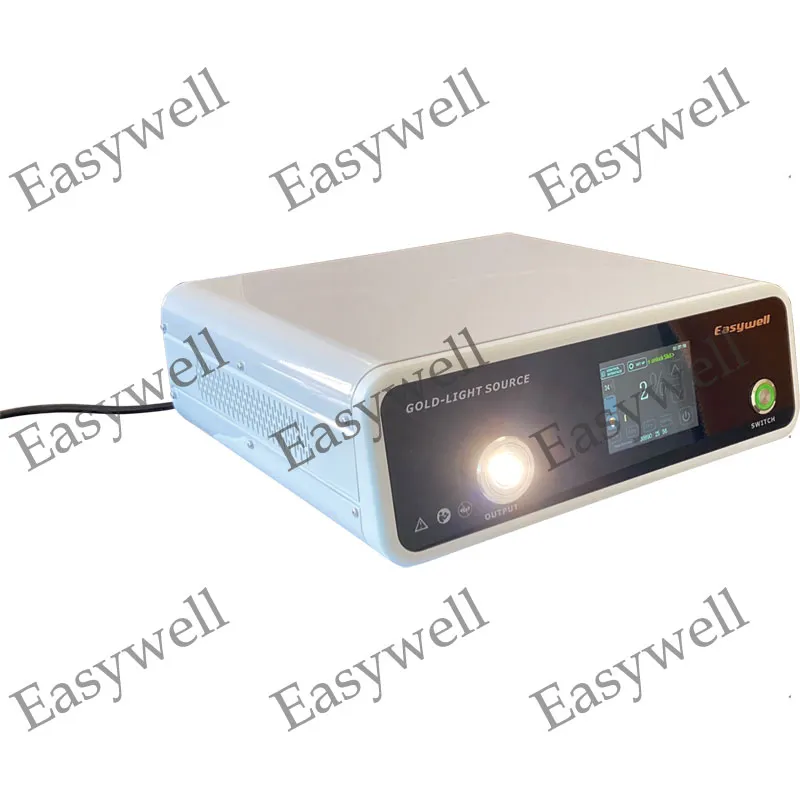

Technical Data of KS-ELS100A Light Source
| Light source | 60W LED |
| Life span | 30,000 Hours |
| Input Voltage | AC100-240V, 50/60Hz |
| Color Rendering Index | >90 |
| Brightness control | 0-100% adjustment |

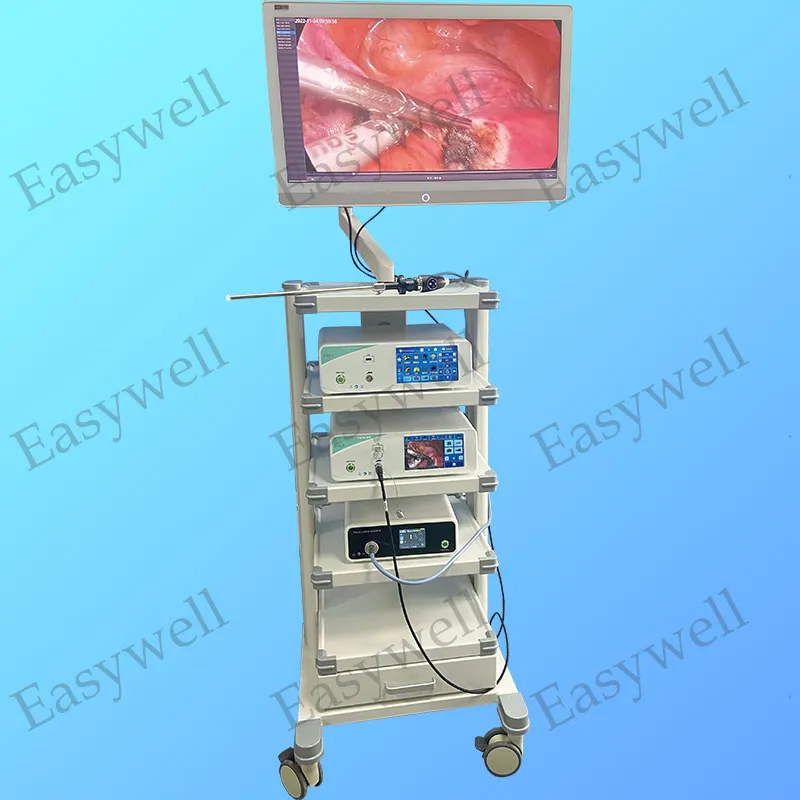

4K Medical Monitor Specifications
| Active screen size | 32 inches (16:9) |
| Pixel Format | 3840x2160 pixels |
| Color Depth | 1.07 Billion colors (10 Bit) |
| Luminance | 400cd/m2 |
| Interfaces | SDI IN/OUT, DP1.4, HDMI2.0, HDMI1.4, DC12V |

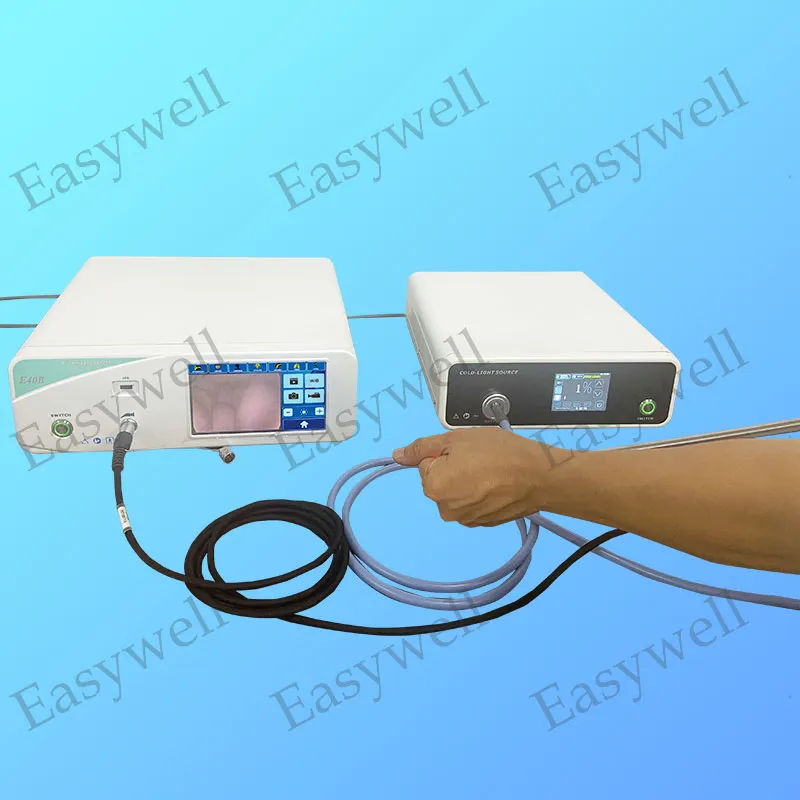

System Components Gallery
Quality Certifications
Frequently Asked Questions
1. What is the maximum resolution of the E40B Endoscopy System?
The system features 4K UHD resolution, providing 3840 x 2160 pixels for ultra-clear medical imaging.
2. Is the camera head waterproof for sterilization?
Yes, the camera head is rated IPX8 waterproof, making it suitable for standard medical disinfection processes.
3. How long is the lifespan of the LED light source?
The medical cold light source (KS-ELS100A) features a high-performance LED with a lifespan of up to 40,000 to 50,000 working hours.
4. Can I record videos and take photos during surgery?
Absolutely. The system supports 4K video recording and 8-megapixel JPG photography, which can be stored directly to a USB disk or hard disk.
5. What type of video outputs does the system support?
The unit provides multiple output options including SDI, HDMI, USB 3.0, DVI, and RJ45 for versatile connectivity to various monitors and recording devices.
6. Does the system include a monitor and trolley?
Yes, this comprehensive package includes the 4K UHD camera system, a medical LED light source, a 32-inch 4K medical monitor, and a specialized endoscopy trolley.
