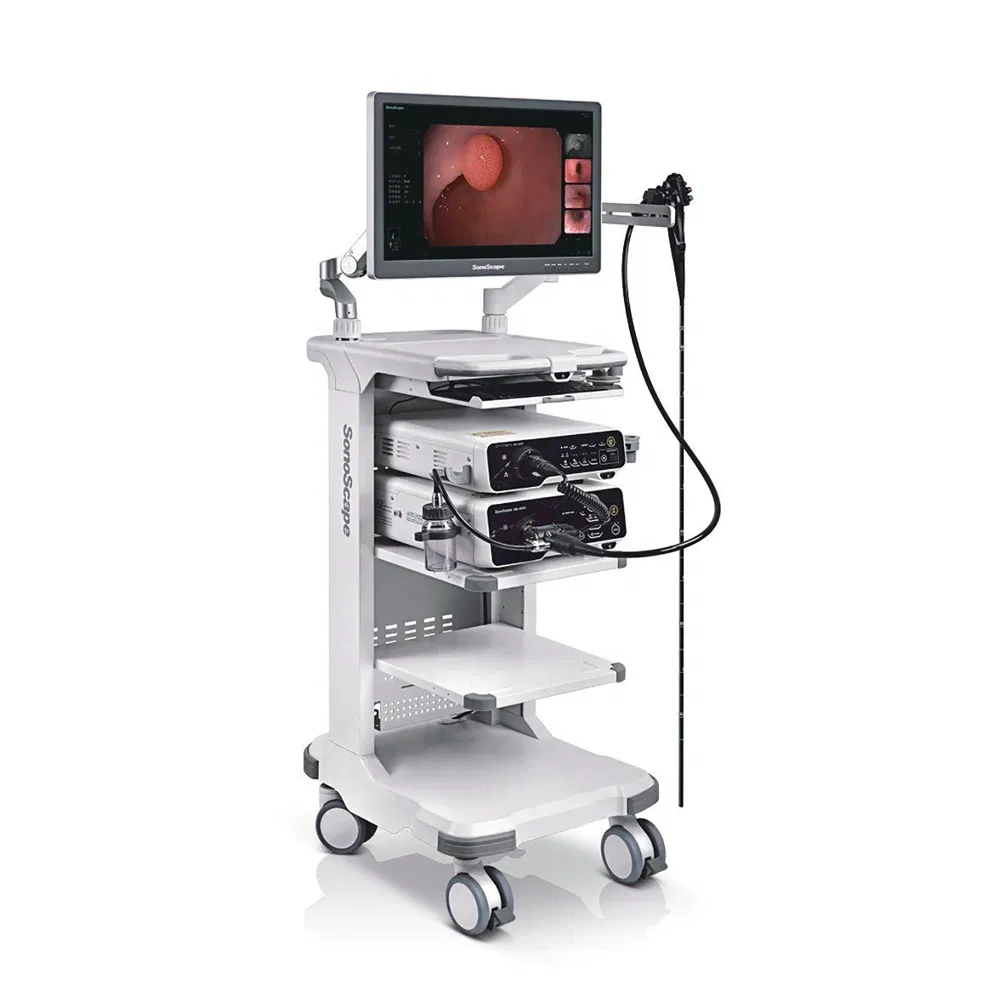

Sonoscape HD-500 Medical Equipment Endoscope System Portable USB Video Duodenoscope
Sonoscape HD-500 Medical Equipment Endoscope System Portable USB Video Duodenoscope
Sonoscape HD-500 Medical Equipment Endoscope System Portable USB Video Duodenoscope
Sonoscape HD-500 Medical Equipment Endoscope System Portable USB Video Duodenoscope
Sonoscape HD-500 Medical Equipment Endoscope System Portable USB Video Duodenoscope
1 / 5
Sonoscape HD-500 Medical Equipment Endoscope System Portable USB Video Duodenoscope
Sonoscape HD-500 Medical Equipment Endoscope System Portable USB Video Duodenoscope
Sonoscape HD-500 Medical Equipment Endoscope System Portable USB Video Duodenoscope
Sonoscape HD-500 Medical Equipment Endoscope System Portable USB Video Duodenoscope
Sonoscape HD-500 Medical Equipment Endoscope System Portable USB Video Duodenoscope

Sonoscape HD-500 Medical Equipment Endoscope System Portable USB Video Duodenoscope

Customization: Available
Customized: Non-Customized
Certification: CE, ISO13485
Send Inquiry

Product Description

📋 Basic Information
Model NO.
HD-500
Type
Endoscopy System
Scale
Small
Screen Size
24 inch LCD or 26 inch LCD
Light Source
50W LED
Field of View
140°
Video Output
DVI(1) SDI(1)
Air Pump Switch
3 Options (L, M and H)
🔭 Product Description

The HD-500 Image Processor adopts state-of-the-art technology to provide High Definition endoscopic images, significantly improving efficiency and accuracy in routine and complex medical procedures.

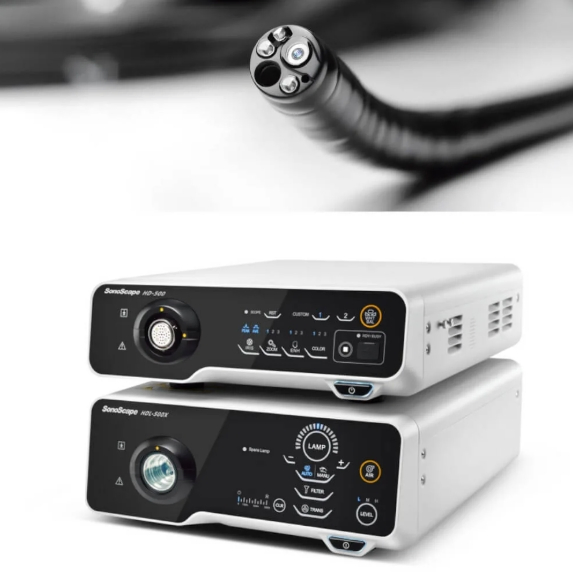

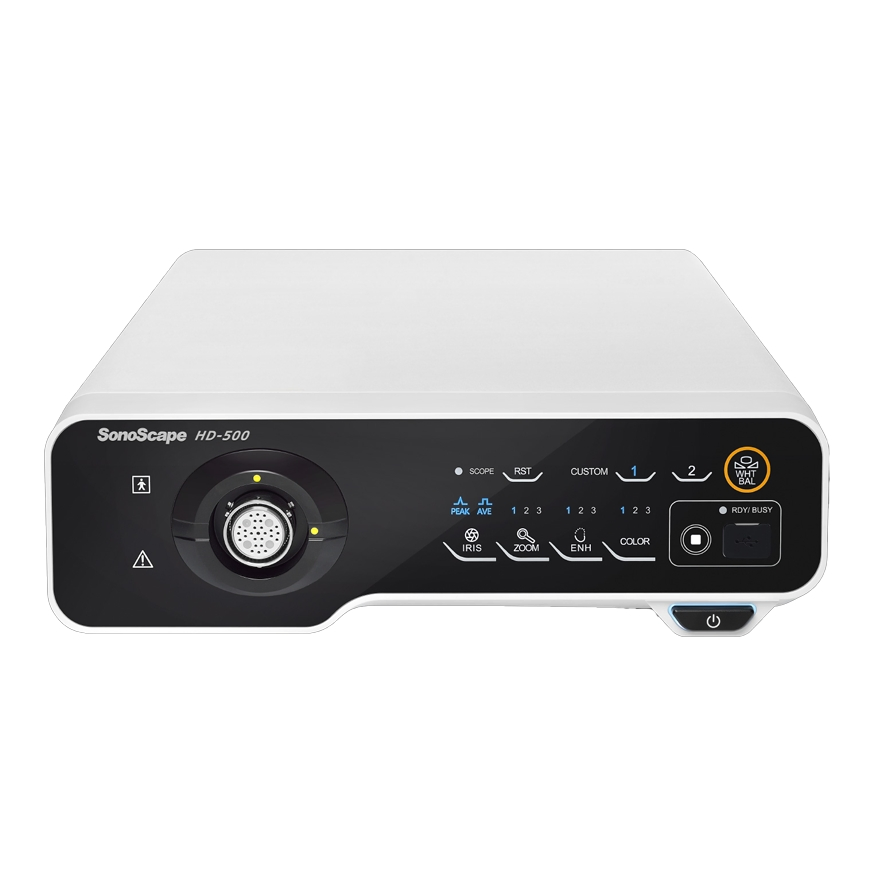

HD-500 Image Processor
✨ VIST-empowered Technology

Versatile Intelligent Staining Technology

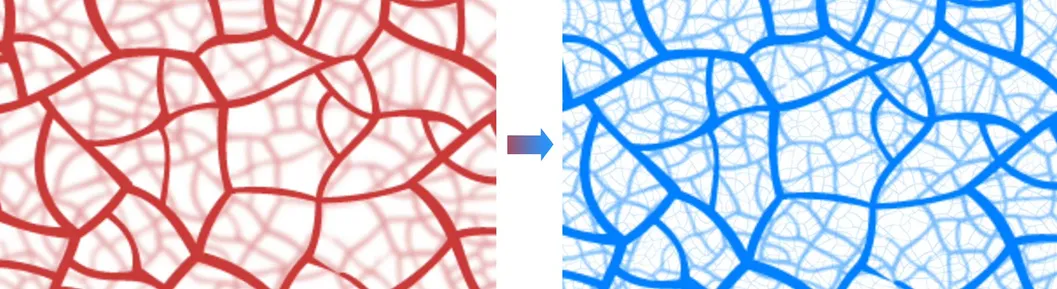

VIST Technology Contrast

This chromoendoscopy technology combines optical and digital image processing. It creates a clear and bright image contrast, greatly enhancing the details of the mucosa and blood vessels. VIST makes it easier to detect lesions and predict early-stage tumors.

✔

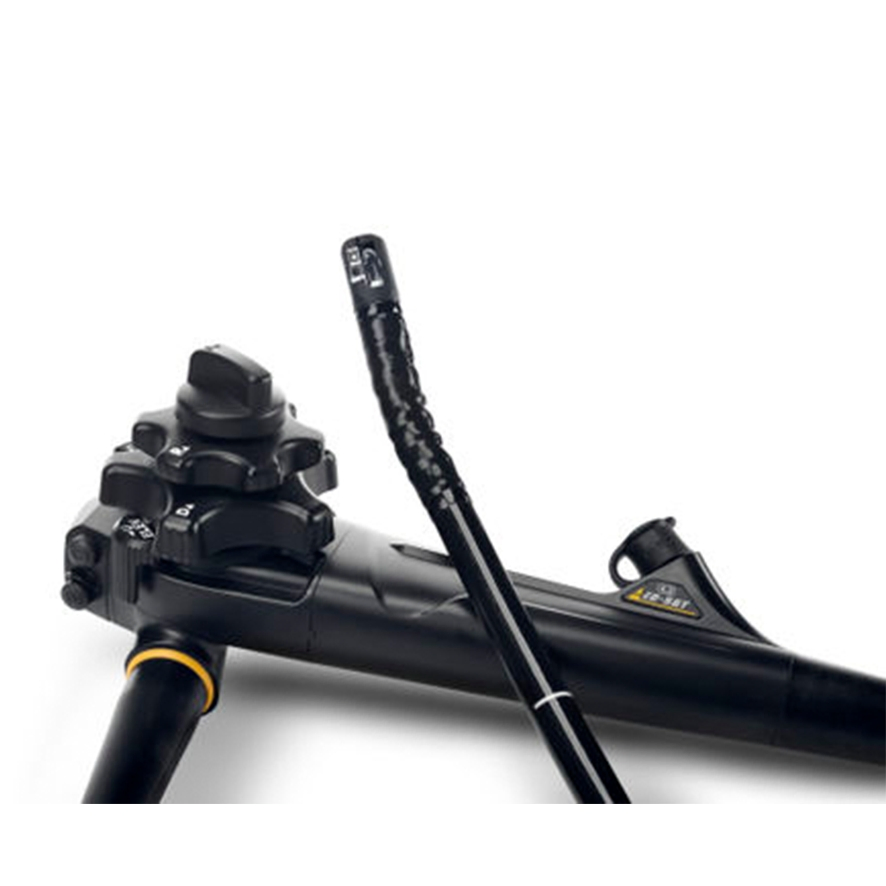

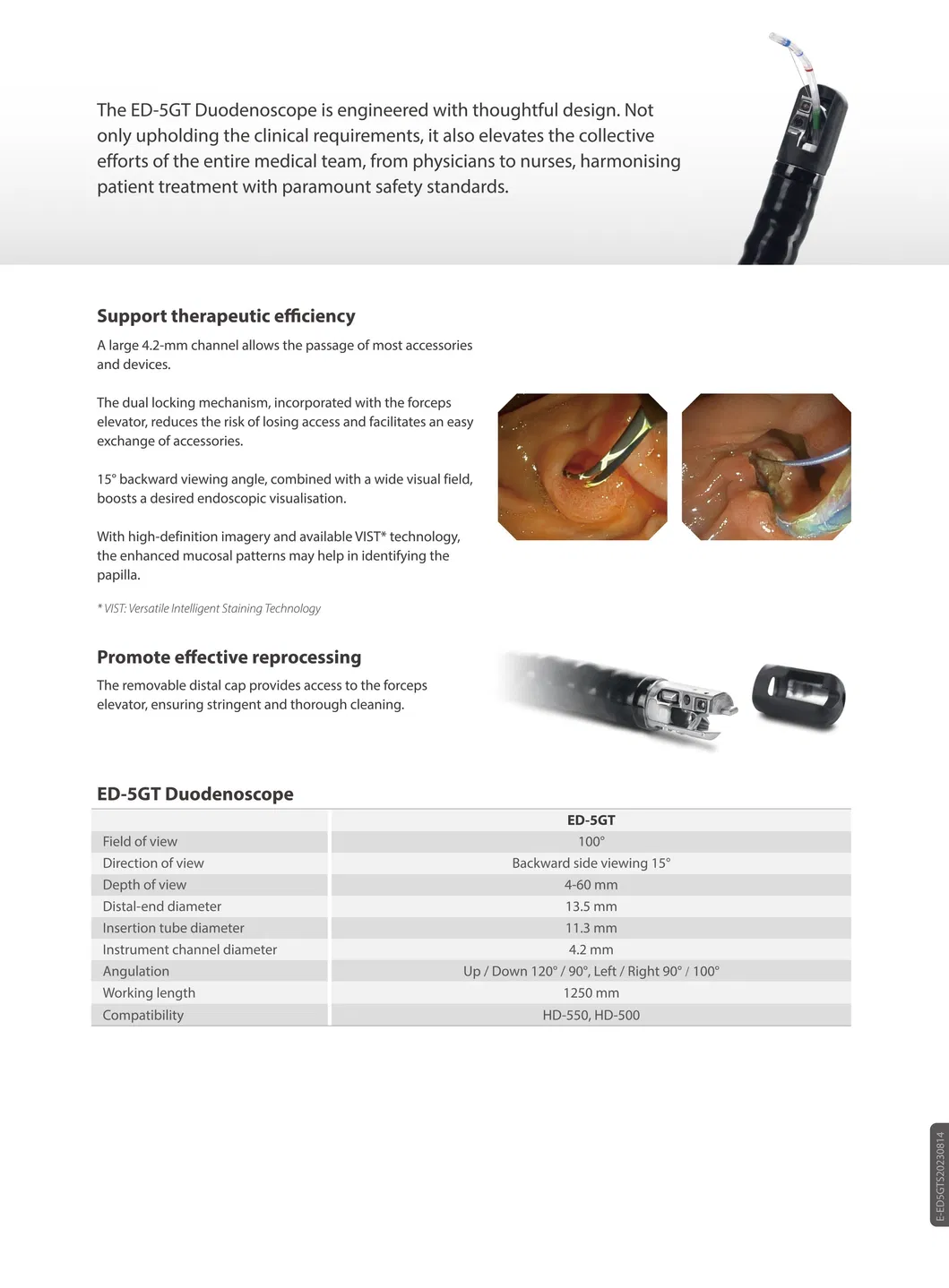

Support Therapeutic Efficiency: A large 4.2-mm channel allows the passage of most accessories and devices. The dual locking mechanism reduces the risk of losing access and facilitates easy accessory exchange.
✔

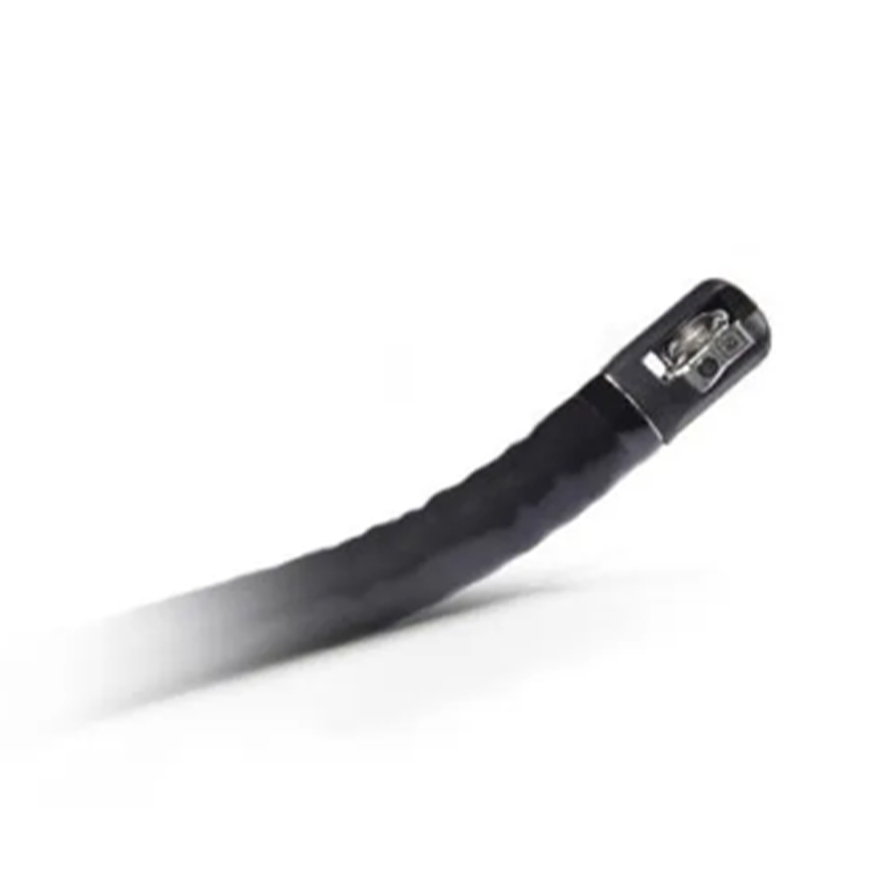

Advanced Visualization: A 15° backward viewing angle combined with a wide visual field boosts endoscopic visualization. High-definition imagery helps in identifying the papilla effectively.
✔
Effective Reprocessing: The removable distal cap provides access to the forceps elevator, ensuring stringent and thorough cleaning protocols.

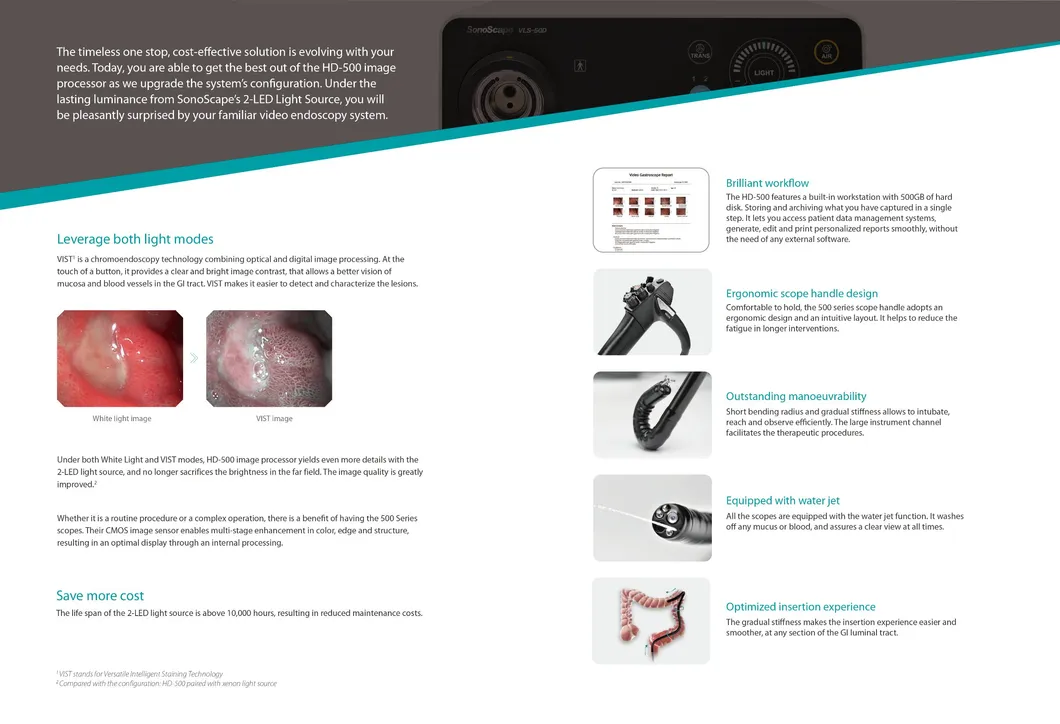

Endoscope System Detail 1

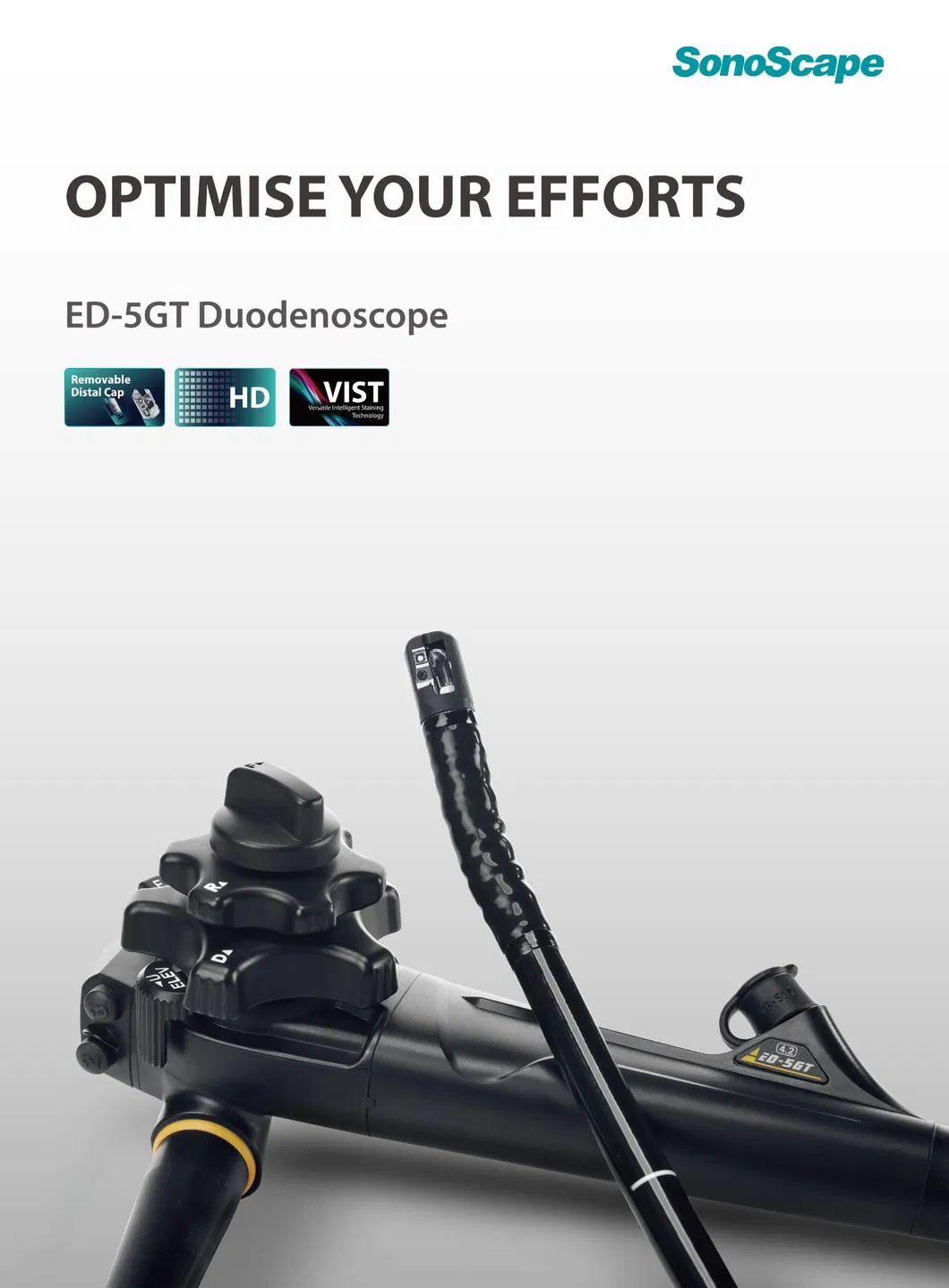

Endoscope System Detail 2
Endoscope System Detail 3

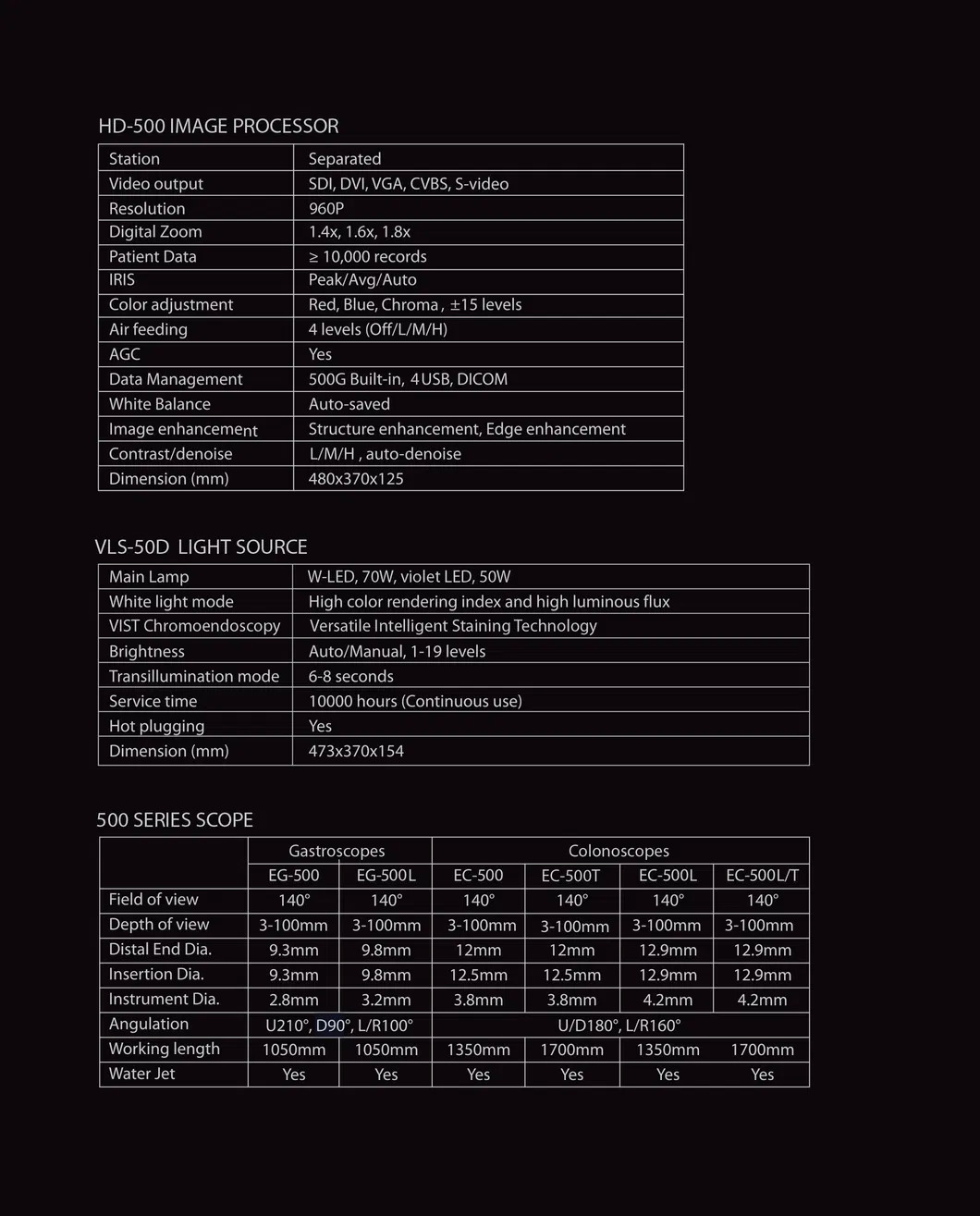

Endoscope System Detail 4
📊 Technical Parameters
Item Specification
Product NameEndoscopy System
Model NumberHD-500
Power SourceElectric
Warranty1 Year
MaterialMetal, Plastic, Steel
Quality CertificationCE
Instrument ClassificationClass II
Screen Size24 inch LCD or 26 inch LCD
Light Source50W LED
Field of View140°
Video Output PortDVI(1) SDI(1)
Air Pump Switch3 Options (L, M and H)
Full System Layout 1
Full System Layout 2
Full System Layout 3
Frequently Asked Questions
Q1: What is VIST technology in the HD-500 system? VIST (Versatile Intelligent Staining Technology) is a chromoendoscopy feature that combines optical and digital processing to enhance the visualization of mucosal patterns and blood vessels.
Q2: Does the system support surgical accessories? Yes, the system features a large 4.2-mm channel that allows for the passage of most medical accessories and therapeutic devices.
Q3: What are the monitor options for this endoscopy system? The HD-500 system supports high-definition display options, typically available in 24-inch or 26-inch LCD screens.
Q4: How is the device cleaned after use? The system includes a removable distal cap that provides direct access to the forceps elevator, ensuring thorough cleaning and effective reprocessing.
Q5: What kind of light source does it use? It utilizes a high-efficiency 50W LED main lamp for bright and clear illumination during procedures.
Q6: What video outputs are supported for recording? The HD-500 image processor provides standard medical-grade video outputs, including one DVI port and one SDI port.
