Polymer Dosing Machine Dosing Unit Dosing System
Polymer Dosing Machine Dosing Unit Dosing System
Polymer Dosing Machine Dosing Unit Dosing System
Polymer Dosing Machine Dosing Unit Dosing System
Polymer Dosing Machine Dosing Unit Dosing System
1 / 5
Polymer Dosing Machine Dosing Unit Dosing System
Polymer Dosing Machine Dosing Unit Dosing System
Polymer Dosing Machine Dosing Unit Dosing System
Polymer Dosing Machine Dosing Unit Dosing System
Polymer Dosing Machine Dosing Unit Dosing System

Polymer Dosing Machine Dosing Unit Dosing System

Customization: Available
After-sales Service: Engineers Available for Technology Assistence
Warranty: 12 Months
Send Inquiry

Product Description

Basic Specifications

Model NO.
YTH
Type
Polymer Dosing Machine
Method
Chemical Treatment
Usage
Industrial, Agriculture, Hospital, Municipal Sewage etc.
PAM Dosage
1-25 Kg/H
Water Inflow
0.3-12 M3/H
Protection Level
IP55 F
Capacity
500-10000 L/H
Material
SS304
Package Size
690cm * 150cm * 140cm

Product Overview

The automatic polymer dosing machine is an essential unit for wastewater treatment. It ensures continuous and effective mixing of chemical compounds to produce optimal reactive polymer solutions. This integrated system includes a dry powder hopper, infiltration device, tank, level controller, mixer, water inlet pipe, and an electric control cabinet.

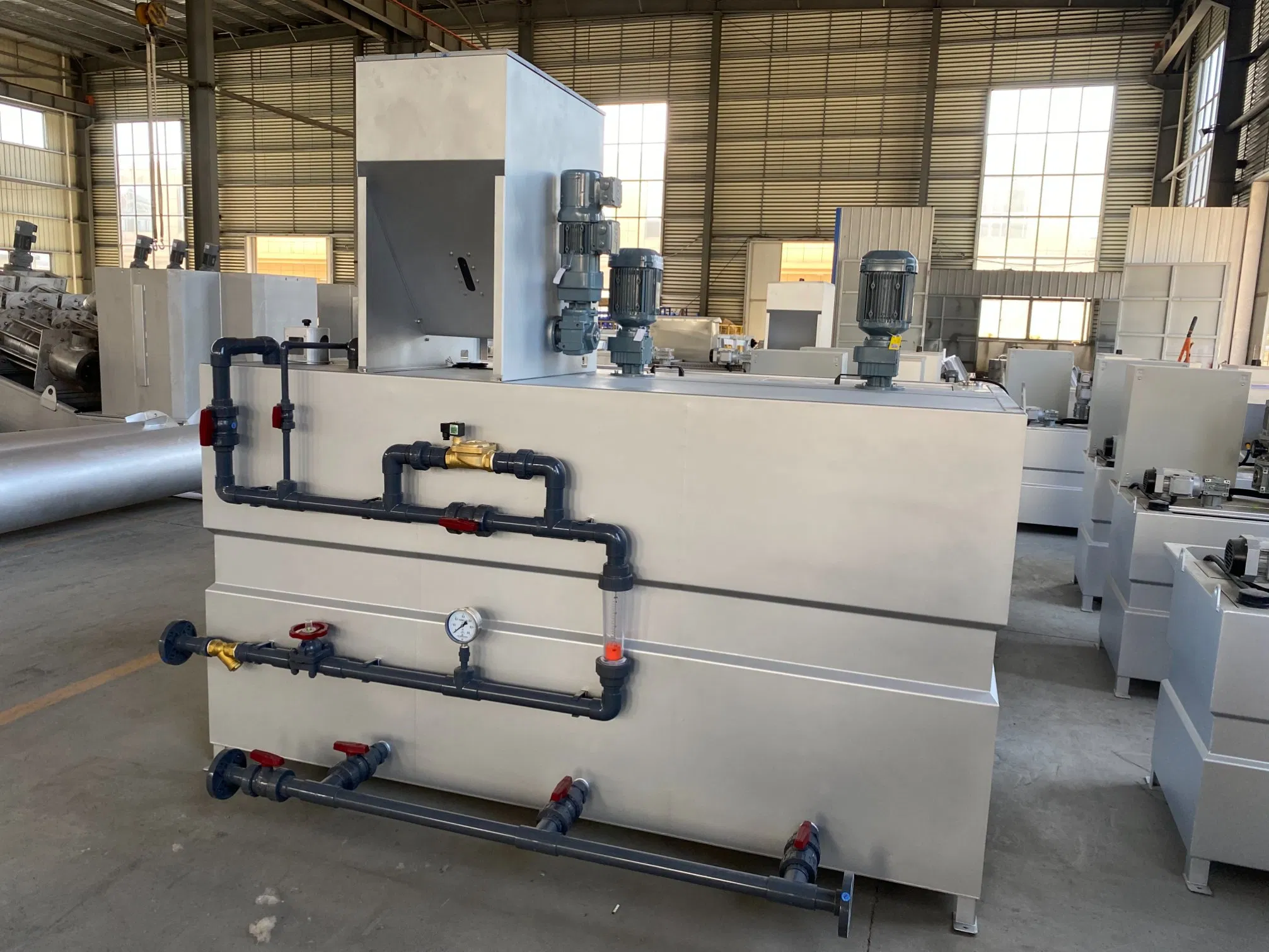

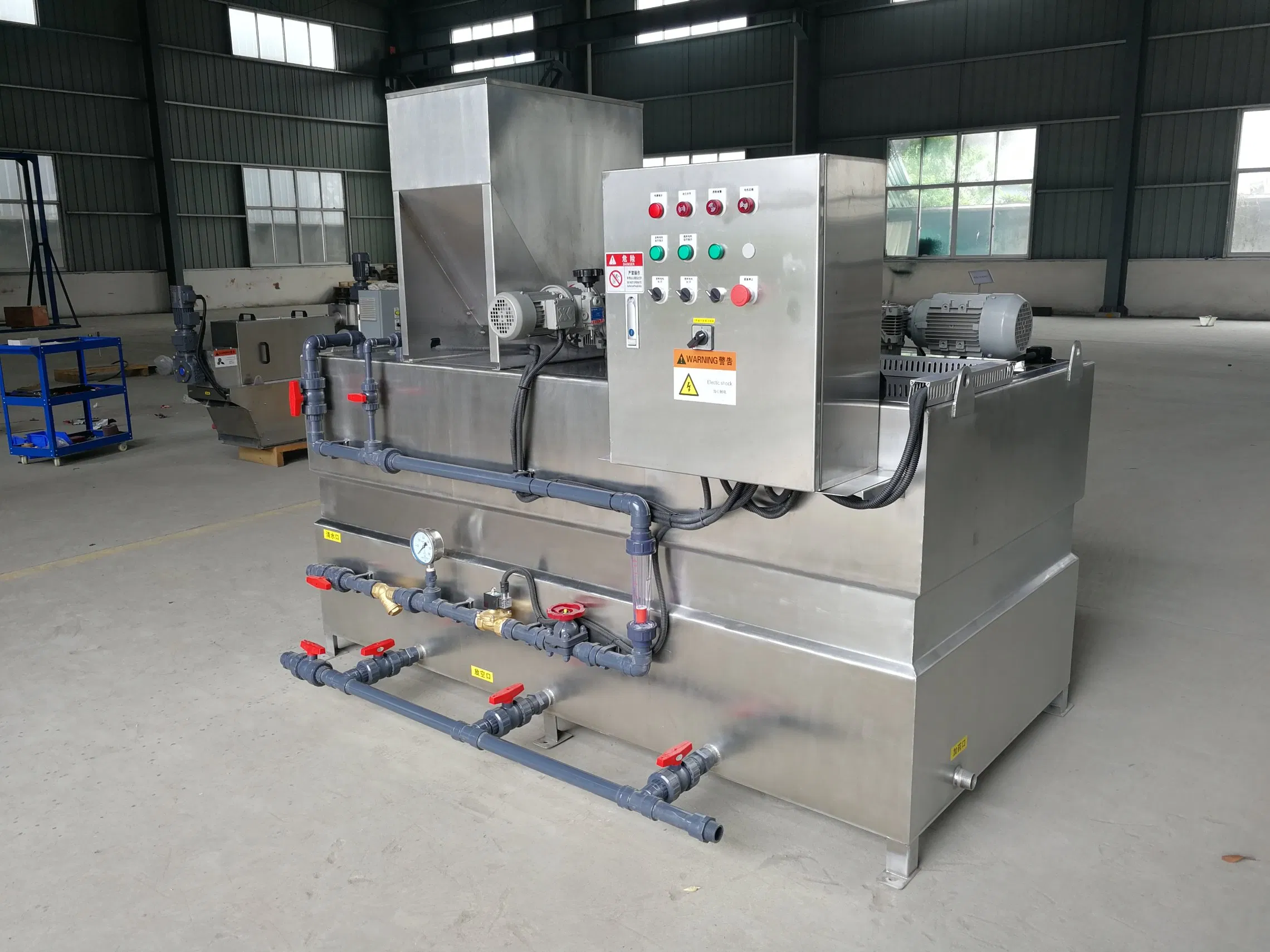

Polymer Dosing Machine Main View

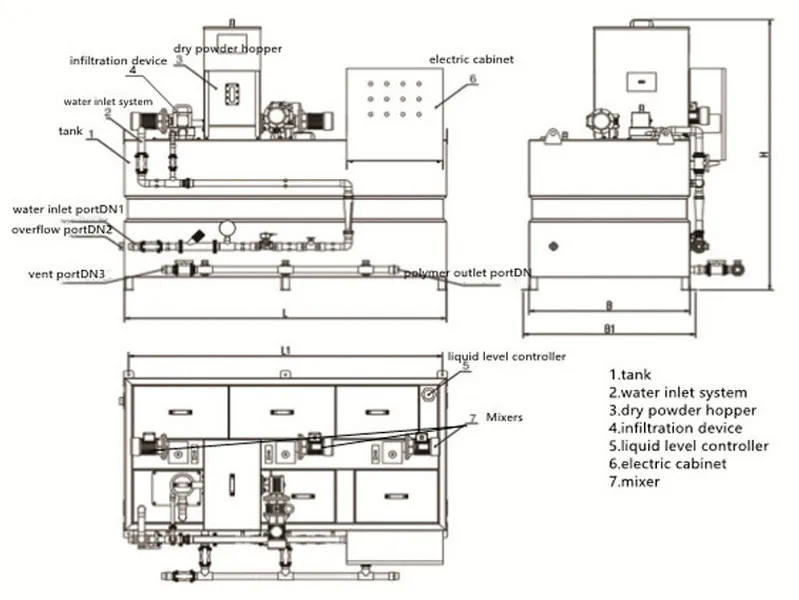

Structure Diagram

Key Features

  • Fully automatic operation integrated with dosing, dissolving, and feeding.
  • Highly precise dry polymer dosing with a specialized heater to prevent caking.
  • Adjustable concentration for custom preparation of chemical solutions.
  • Advanced alarm system for low powder levels to ensure continuous workflow.
  • Multiple material options including SS304, SS316, PP, and FRP.

Technical Parameters

Model Item YTH 500 YTH 1000 YTH 1500 YTH 2000 YTH 3000 YTH 4000 YTH 5000 YTH 6000
Capacity (L/h) 500 1000 1500 2000 3000 4000 5000 6000
Power (kw) 0.94 2.45 2.45 2.62 4.89 4.89 4.89 4.89
PAM dosage (kg/h) 1~5 2~10 2~10 3~15 3.5~20 3.5~20 4.5~25 4.5~25
Water inlet (m³/h) 0.3~1.5 0.6~3 0.9~4 1.2~6 2.0~10 2.4~12 2.4~12 2.4~12

Applications & Logistics

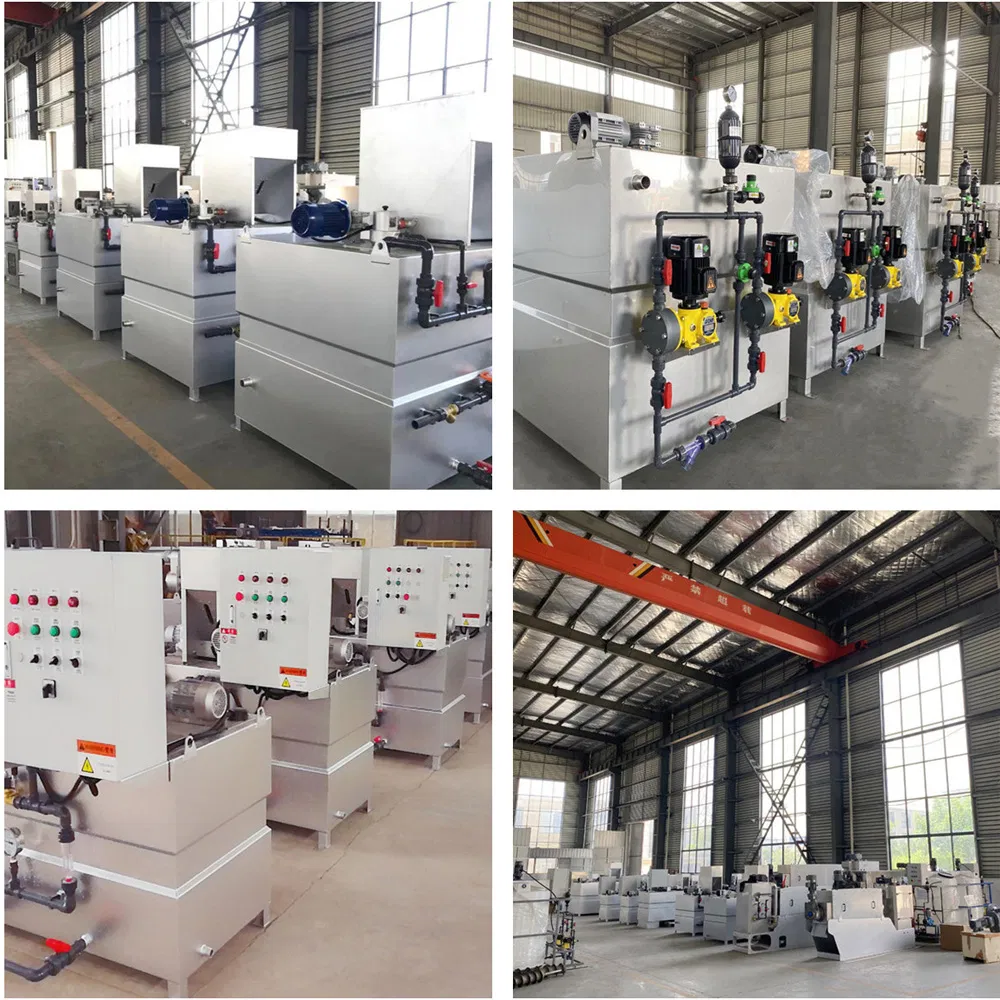

Environmental Equipment Range
Client Exhibition Display

Frequently Asked Questions

Q: Are you a trading company or manufacturer? A: We are a professional factory and manufacturer specializing in waste water treatment equipment.
Q: Do you provide OEM service? A: Yes, we provide OEM services and can accommodate required logos.
Q: What is your production capacity? A: We produce more than 3,000 sets of equipment per year.
Q: How long is the warranty period? A: One year after the arrival of the goods. We also provide after-sales engineering technical assistance.
Q: What is your standard delivery time? A: Normally within 45 days upon receiving the down payment.
Q: What kind of export packaging do you use? A: We typically use anti-corrosion wooden cases for secure international transport.
