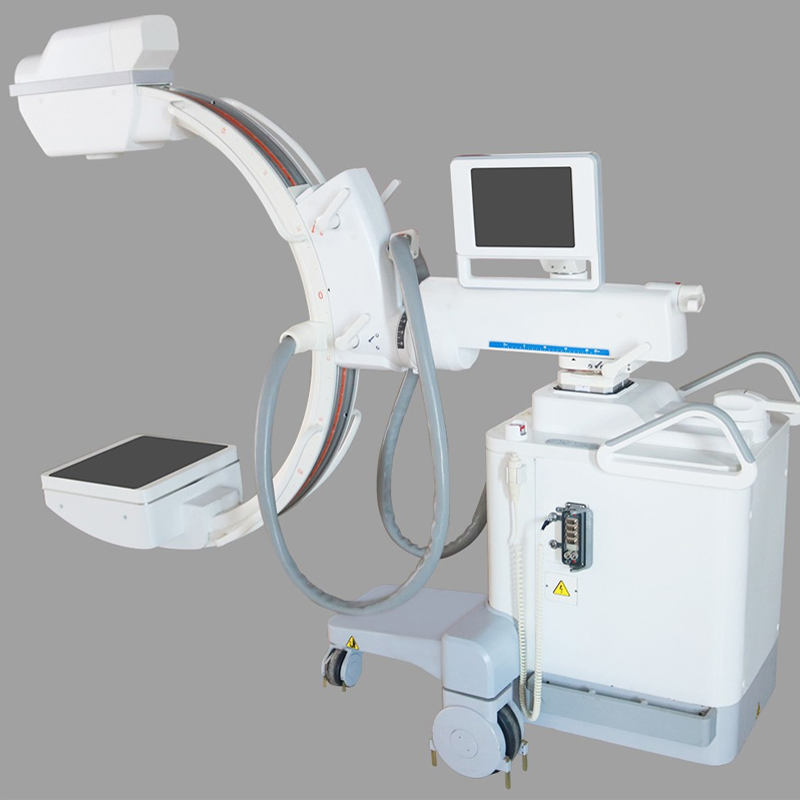

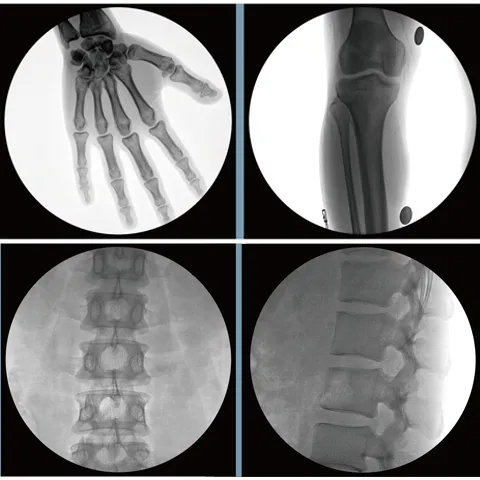

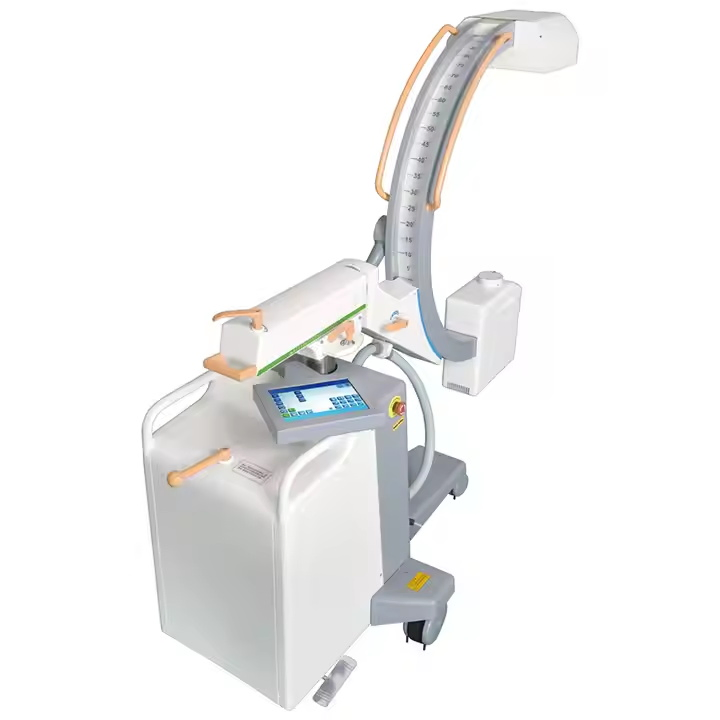

The Series Mobile C-arm X-ray Machine adopts a 1Kx1K pixel digital image system, providing clear images for accurate diagnosis. Its simple and lightweight mechanical design makes operation more convenient and efficient in clinical environments.
| Part | Technical Parameters and Performance |
|---|---|
| HF Generator | 110kV, 3.5KW, 40kHz; Fluoroscopy mode 40~110 kv / 0.5~5mA; Pulsed fluoroscopy; Photography 40~110kV / 1~250mAs |
| X-ray Tube | Dual-focus fixed anode: 0.6mm/1.5mm; Italy IMD Technology |
| Image Intensifier | Three fields of vision: 9", 6", 4.5"; Japan Canon Brand |
| CCD Camera | Germany Brand, 360° rotation |
| Image System | 5 Degree recursive Noise Reduction; Frame freezing; Thousands of image data storage; Dicom 3.0 support |
| Mechanical Motion | Vertical travel: 0~400mm; Horizontal travel: 0~200mm; Rotation about horizontal axis: ±180° |
| C-arm Dimension | SID: 1000mm; Depth in arm ≥650mm; Mobile stand: 1800x800x1850mm |

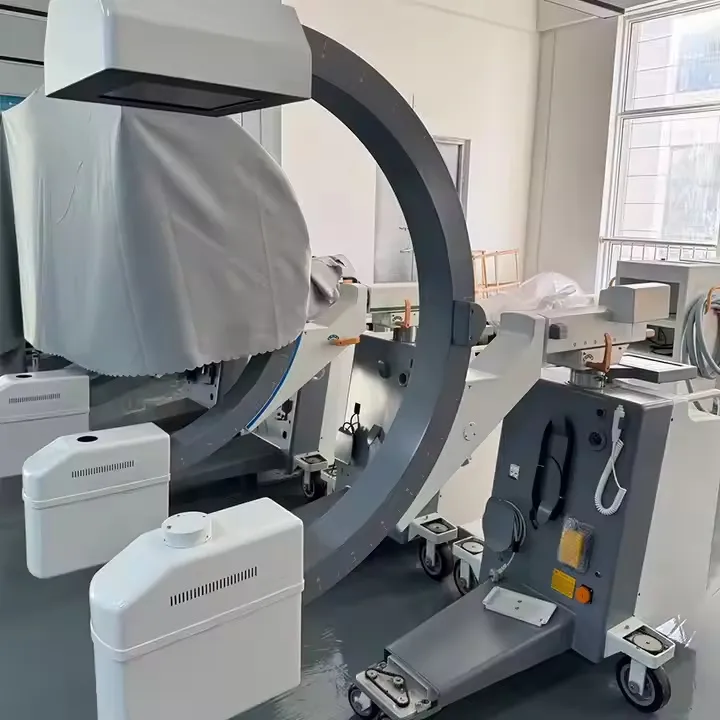

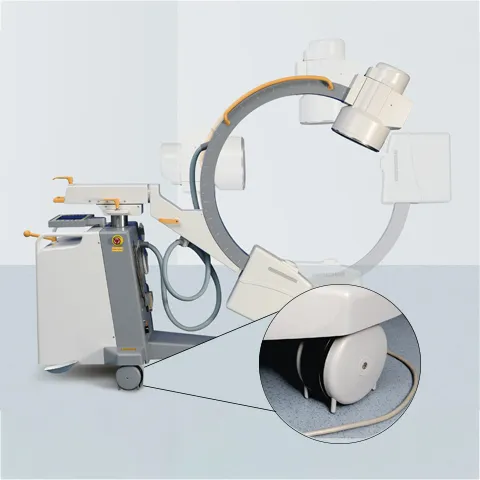

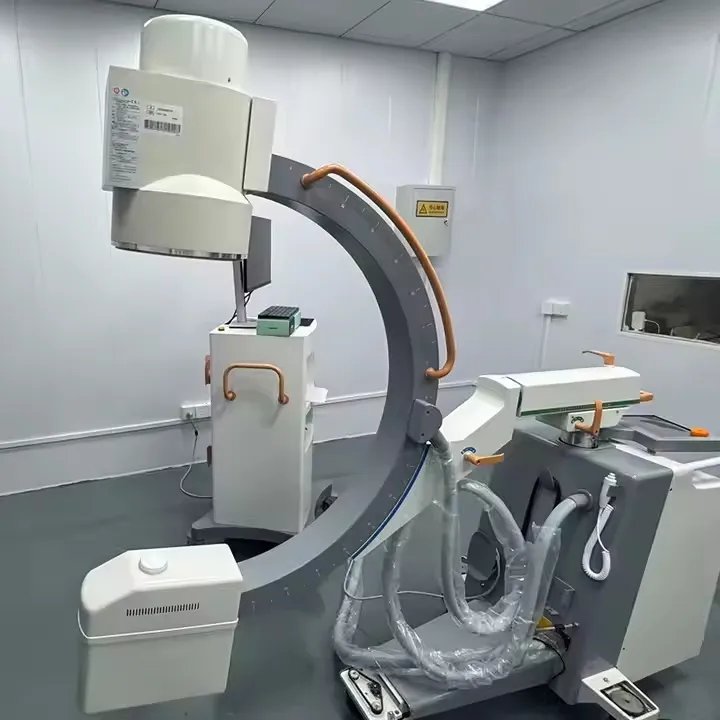

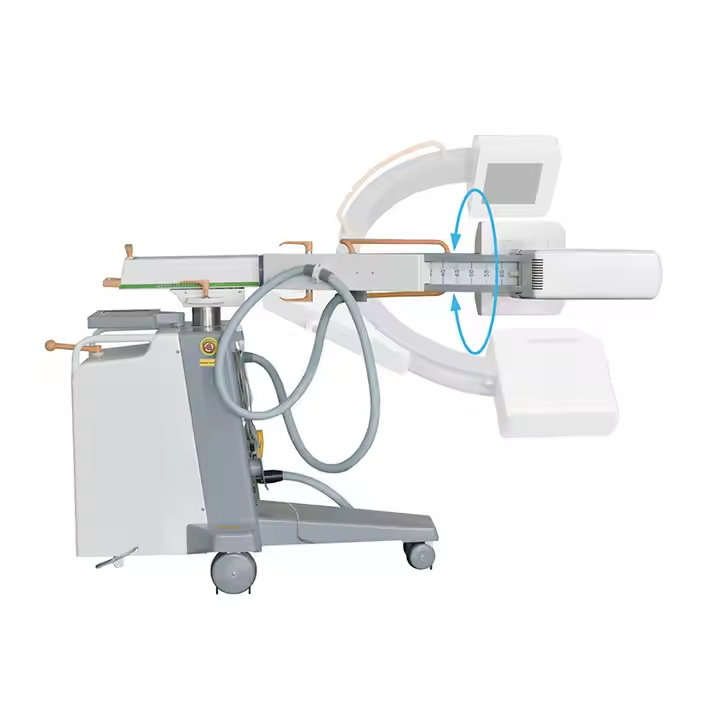

C-arm with a color guide to assist the operator in obtaining the right position. Unique block wire wheel design avoids accidents caused by compacted cables during movement.

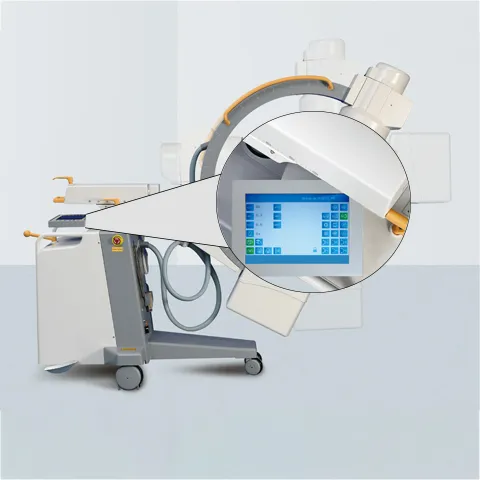

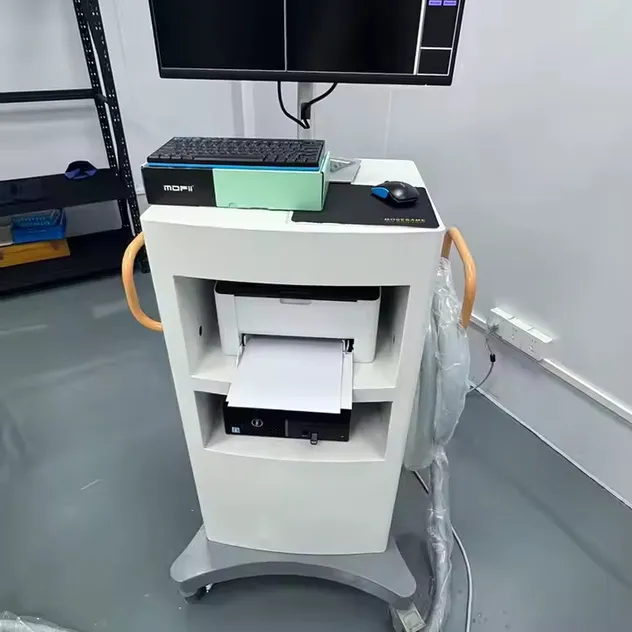

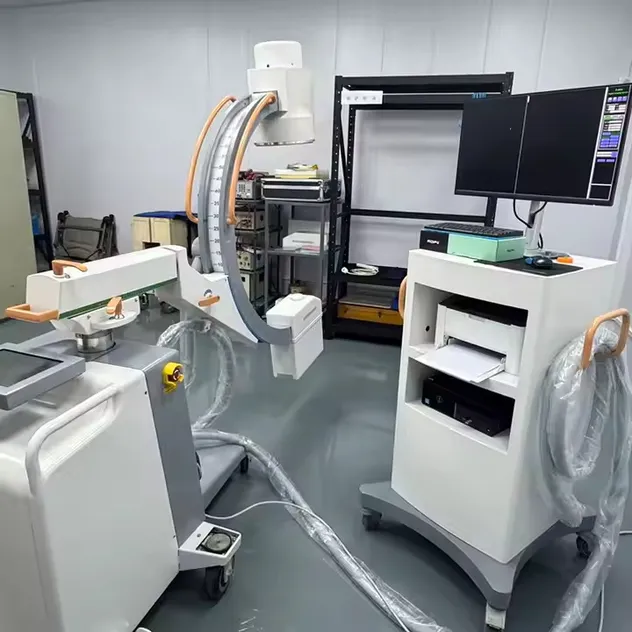

19" high-definition medical LCD display. Mass storage, movie playback, and patient information integration for comprehensive electronic medical records.
We are a high-tech enterprise focusing on the research, development, production, and sales of medical equipment and new materials. With strong R&D capabilities, our facilities have passed ISO9001:2000 and ISO14001:2011 certifications, ensuring the highest international quality standards.
