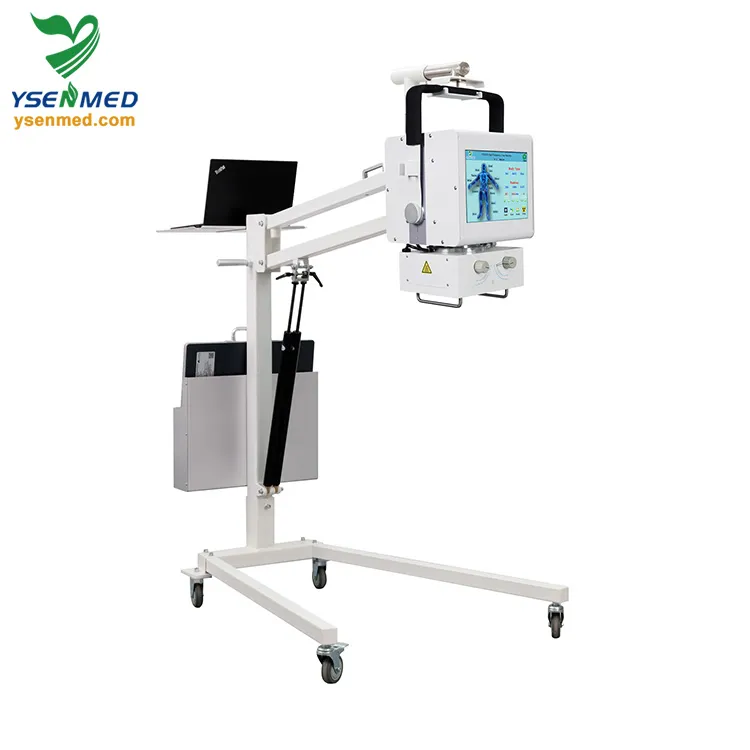

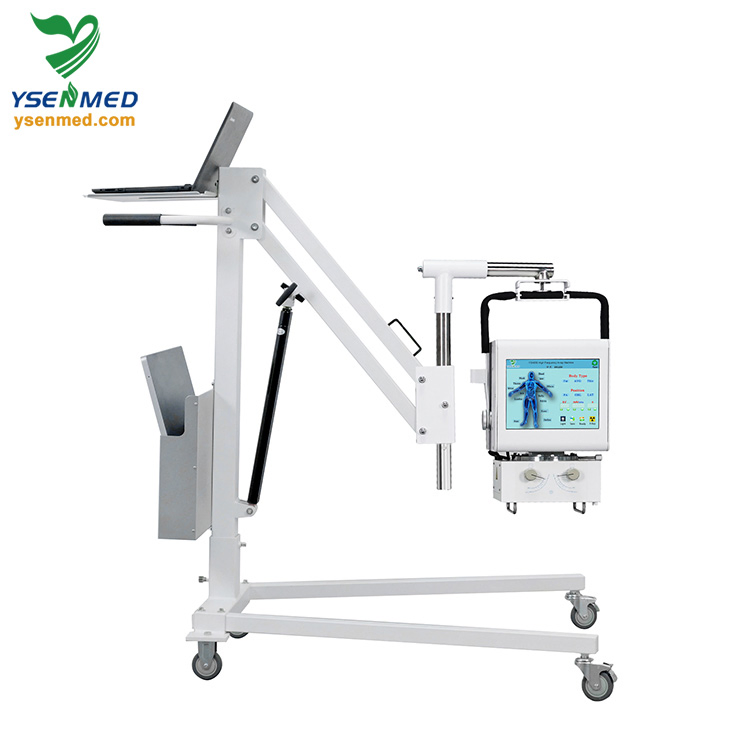

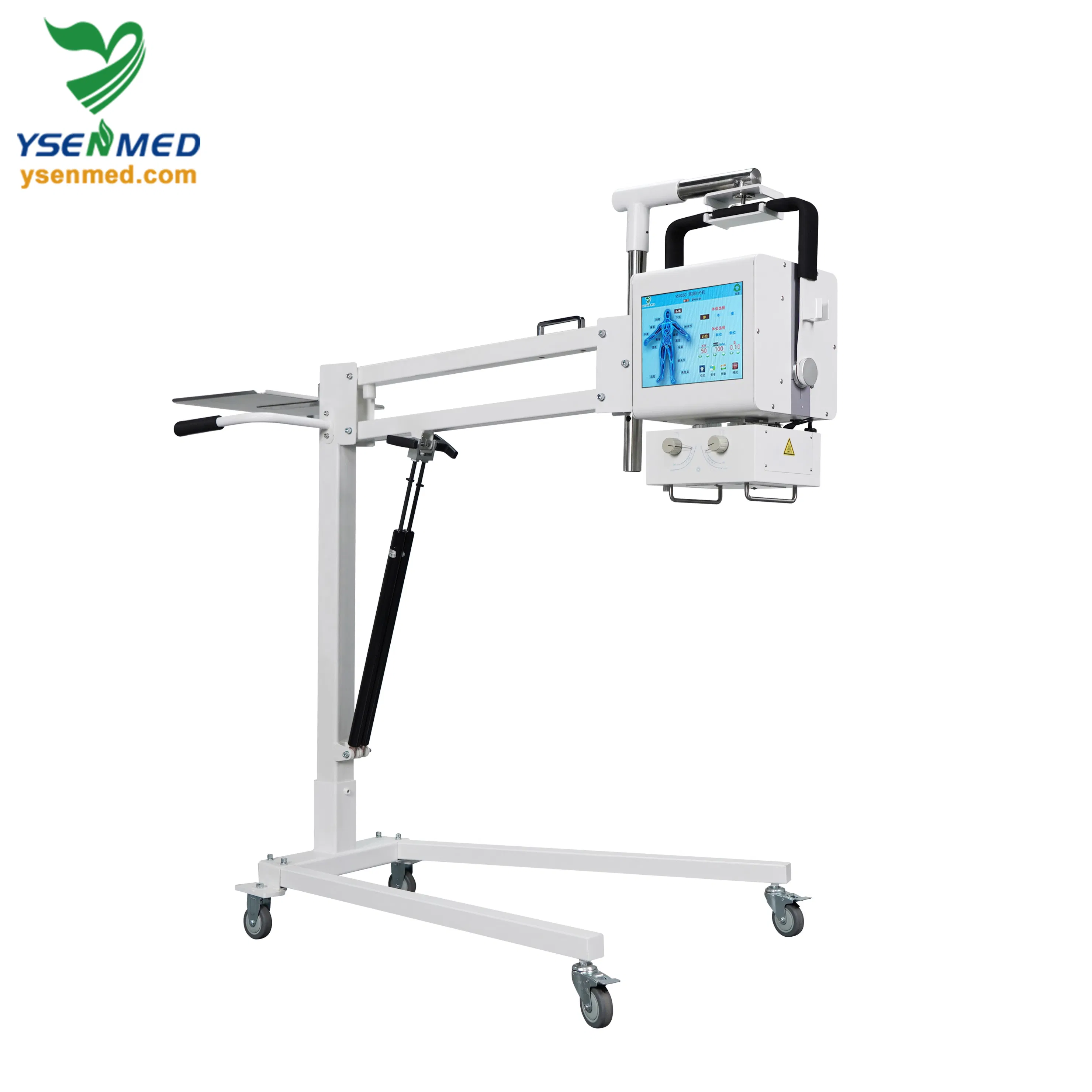

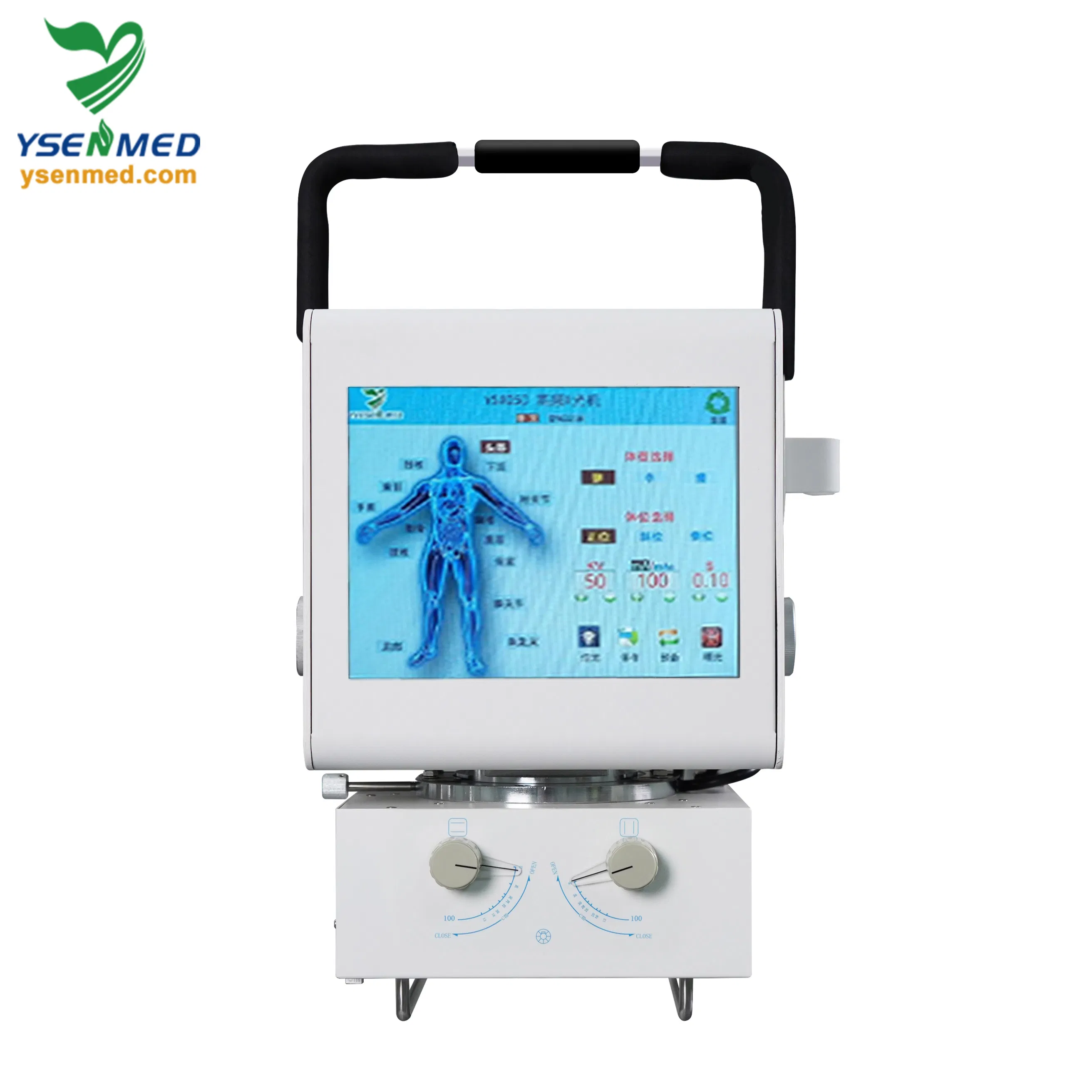

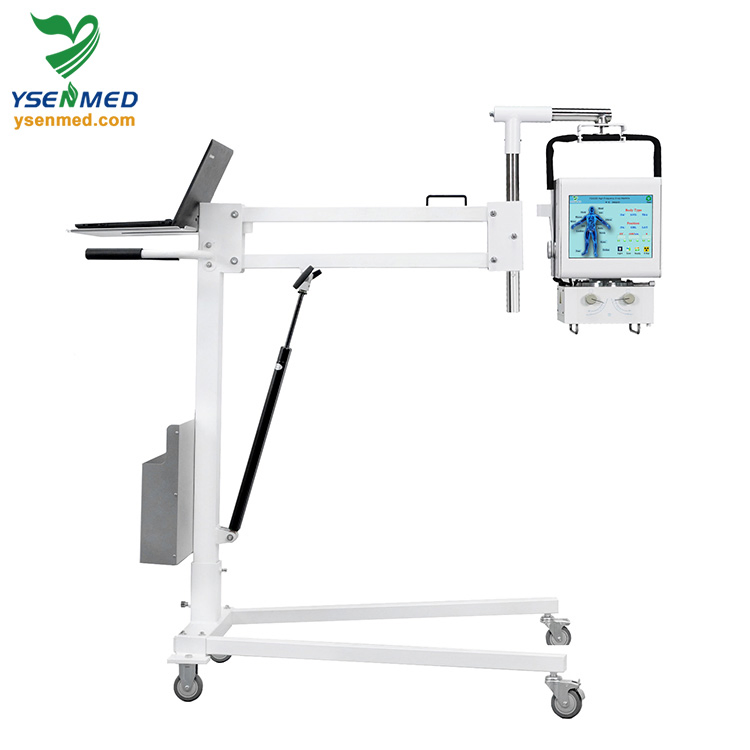

The YSX050-C is a high-performance medical mobile and portable X-ray equipment designed for versatile clinical applications, offering precision imaging and ease of transport.
| Technical Specifications | Details | |
|---|---|---|
| Model Number | YSX050-C | |
| Maximum Output Power | 5kW | |
| Power Supply | AC220V±10%, 50/60Hz±1Hz | |
| Power Requirements | 220V/50Hz (Wire diameter >4mm2; Internal resistance <0.5Ω) | |
| mA Adjustable Range | 32-100 mA | |
| mAs Adjustable Range | 0.32~315mAS, stepping R'10 or 0.4 | |
| kV Adjustable Range | 40kV~110kV, continuous regulation, stepping 1kV | |
| Exposure Time | 0.01~6.3s | |
| X-ray Tube Focus | 1.8*1.8mm | |
| Generator Frequency | 30kHz | |
| Flat Panel Parameters | Imaging Size | 17*17, 14*17 inch (wired and wireless) |
| Pixel Pitch | 140um | |
| A/D Conversion | 16bits | |
| Spatial Resolution | 3.6lp/mm | |
| Software | Human software included | |
| Laptop Configuration | R3-4300U processor, 8G RAM, 256G SSD | |
