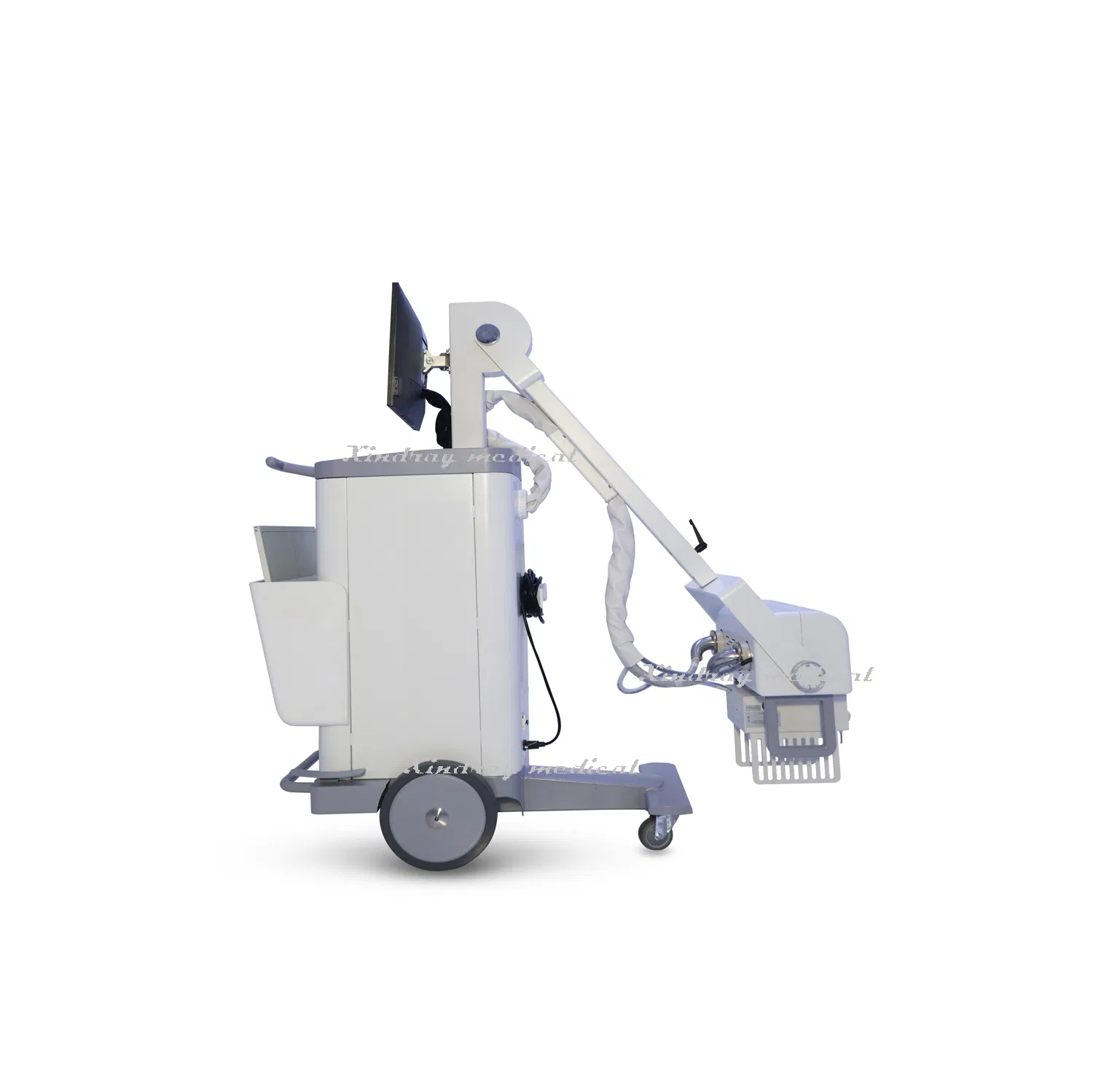

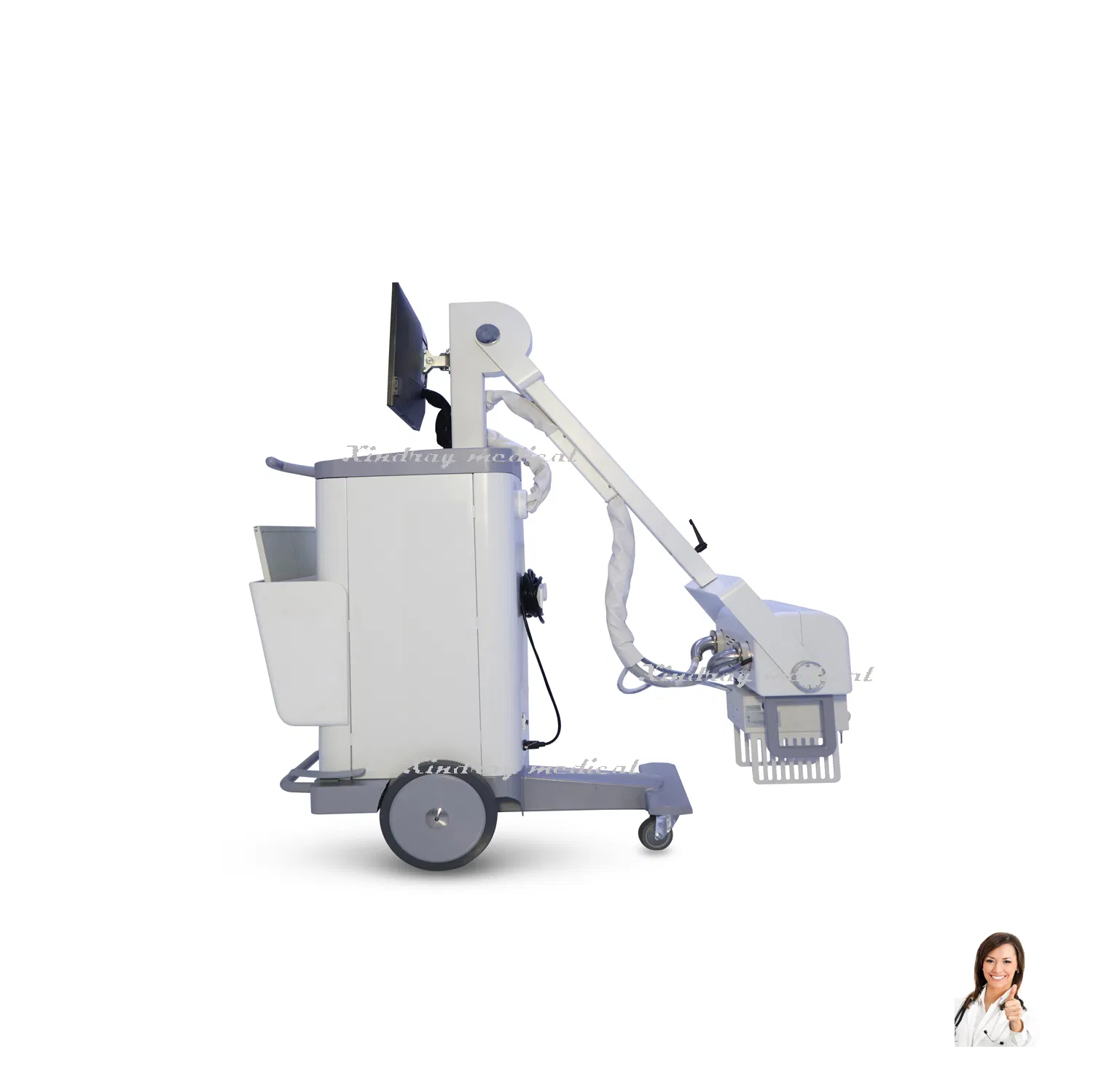

High Frequency Hospital Machine Medical Radiography Digital Mobile Portable X-ray Equipment
High Frequency Hospital Machine Medical Radiography Digital Mobile Portable X-ray Equipment
High Frequency Hospital Machine Medical Radiography Digital Mobile Portable X-ray Equipment
High Frequency Hospital Machine Medical Radiography Digital Mobile Portable X-ray Equipment
High Frequency Hospital Machine Medical Radiography Digital Mobile Portable X-ray Equipment
1 / 5
High Frequency Hospital Machine Medical Radiography Digital Mobile Portable X-ray Equipment
High Frequency Hospital Machine Medical Radiography Digital Mobile Portable X-ray Equipment
High Frequency Hospital Machine Medical Radiography Digital Mobile Portable X-ray Equipment
High Frequency Hospital Machine Medical Radiography Digital Mobile Portable X-ray Equipment
High Frequency Hospital Machine Medical Radiography Digital Mobile Portable X-ray Equipment

High Frequency Hospital Machine Medical Radiography Digital Mobile Portable X-ray Equipment

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Send Inquiry

Product Description

Basic Information
Model NO.
XRXP100A
Certification
CE, MSDS, ISO13485
Group
All People
Output Power
5.6kw
Tube Current
10-100mA
Power Supply
220V, 50kHz
Inverter Frequency
50kHz
Tube Voltage
40-120kv
Battery
Lithium Available
Touch Screen
8 Inch
Operation
Wire/Wireless Control
OEM
Available
Product Description

High Frequency Hospital Machine Medical Radiography Digital Mobile Portable X-ray Equipment

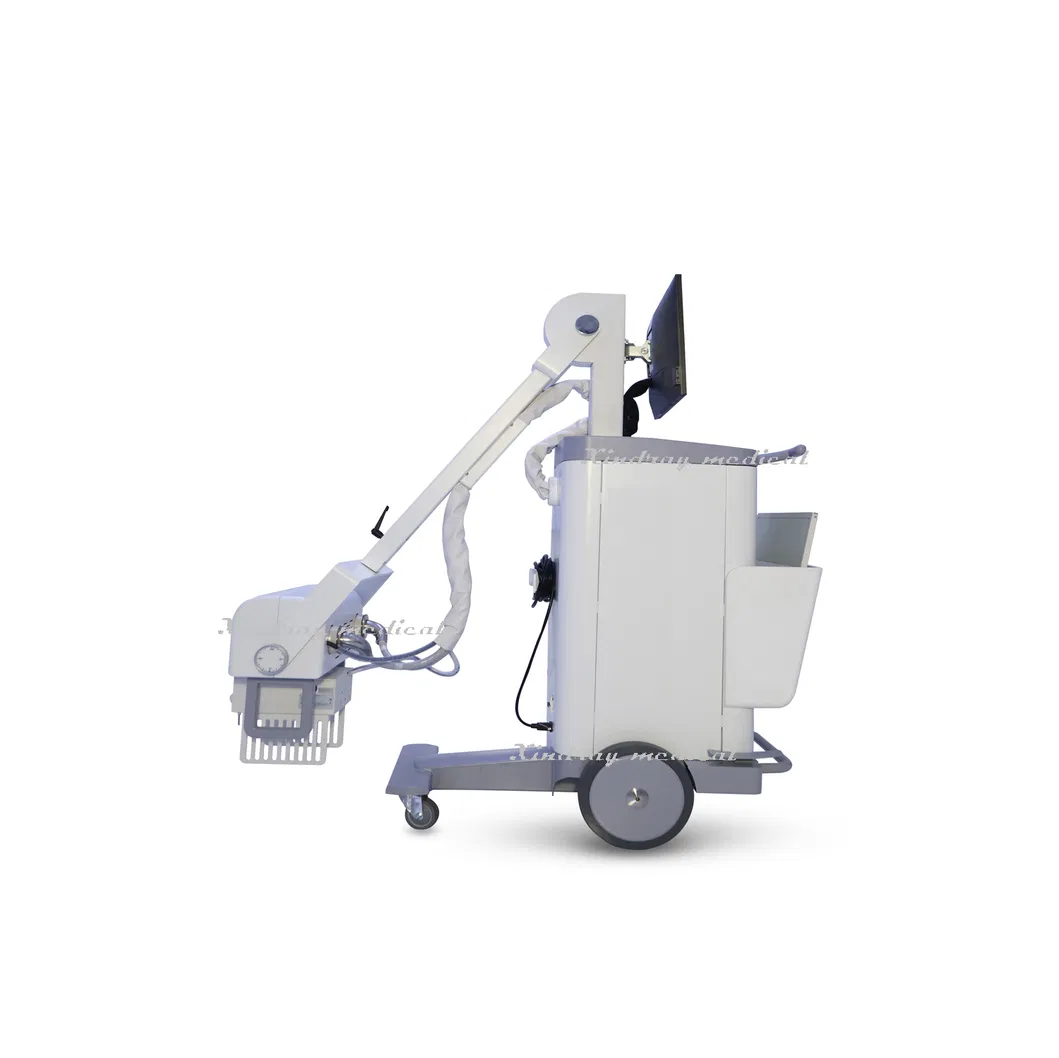

Portable X-ray Equipment
Main Features
Equipped with high frequency inverter to emit high quality X-rays with low dose on skin, ensuring excellent definition and contrast.
Utilizes KV analog closed loop control and mAs digital closed loop control for precision and repeatability.
User-friendly interface with kV/mAs button adjustment, LCD display, and multifunction safety guards.
Includes 50 preset exposure programs that can be modified and stored by the user.
High-quality knockdown X-ray generator designed to reduce irradiation, enhancing safety for operators and the environment.
Features a symmetrical beam applicator and collimator lamp for accurate radiographic positioning.
Technical Specifications
Item Specification
1. High Voltage Generator
Standard Output Power5.6kW
mA Range10-100mA
Tube Voltage Range40-125kV
mAs Range0.1-200mAs
2. X-ray Tube
Focus Range0.6/1.8mm
Anode TypesFixed Anode (15° Angle)
3. Collimator
Light SourceLED lights (30s auto-extinguish)
FeaturesBuilt-in measuring ruler
4. Tube Bracket & Dimensions
SID Range330 ~ 1650mm
Weight32KG (Bracket) / 18kg (Main Machine)
Folded Size1060*400*400mm

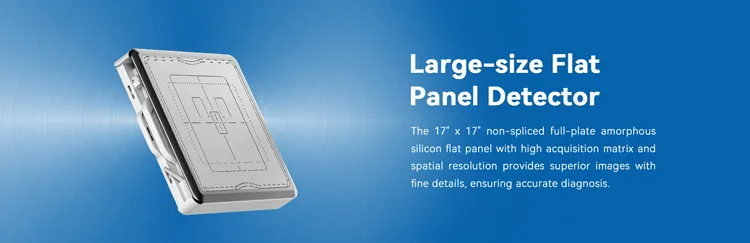

5. Flat Panel Detector
TechnologyAmorphous Silicon oxide, WIFI connection
Effective Size350mm × 430mm
Pixel Size / Resolution150 µm / 3.4lp/mm
6. Workstation & Battery
OS / HardwareWin 10 64-bit, Core i3, 4GB RAM, 500GB HDD
Battery TypeLithium Battery (32.4V)
Capacity>100 exposures per charge; 7 hours standby
Product Gallery

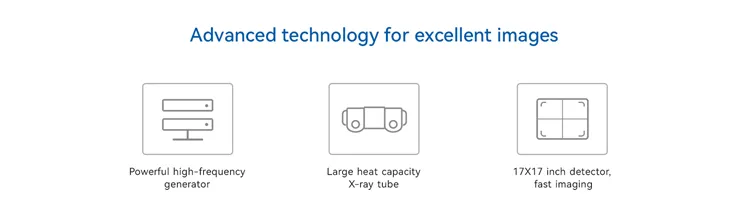

X-ray View 1 X-ray View 2 X-ray View 3
X-ray View 4 X-ray View 5 X-ray View 6
X-ray View 7 X-ray View 8 X-ray View 9
X-ray Details X-ray Details X-ray Details
Usage Scenario Usage Scenario Usage Scenario
Clinical Images Clinical Images Clinical Images
Final View
Frequently Asked Questions
How to purchase this X-ray equipment?
You can place an order directly through our platform or contact our sales team. We will confirm configuration details, shipping options, and guide you through the entire purchase process.
What payment methods are accepted?
We accept various payment modes including T/T Bank Transfer, Online Trade Assurance, Western Union, Money Gram, L/C, and Cash.
What is the expected delivery time?
Delivery time depends on the quantity ordered. Generally, our lead time is within 1 week. If items are in stock, we can ship immediately via express, air, or sea freight.
What kind of after-sales service is provided?
We provide a minimum one-year warranty (excluding consumables). Our engineers offer lifetime technical support. During the warranty period, parts are repaired or replaced for free; thereafter, only the cost of spare parts is charged.
Is the transaction secure?
Our company is a professionally certified medical entity with necessary government qualifications and verified status as a premium supplier. All transactions are 100% guaranteed for your peace of mind.
Can the battery support mobile use effectively?
Yes, the high-capacity lithium battery supports over 100 exposures on a single charge and offers a standby time of no less than 7 hours, making it ideal for mobile clinical settings.
